2HP Square Flange Pool Motor
2HP Square Flange Pool Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
2HP Square Flange Pool Motor

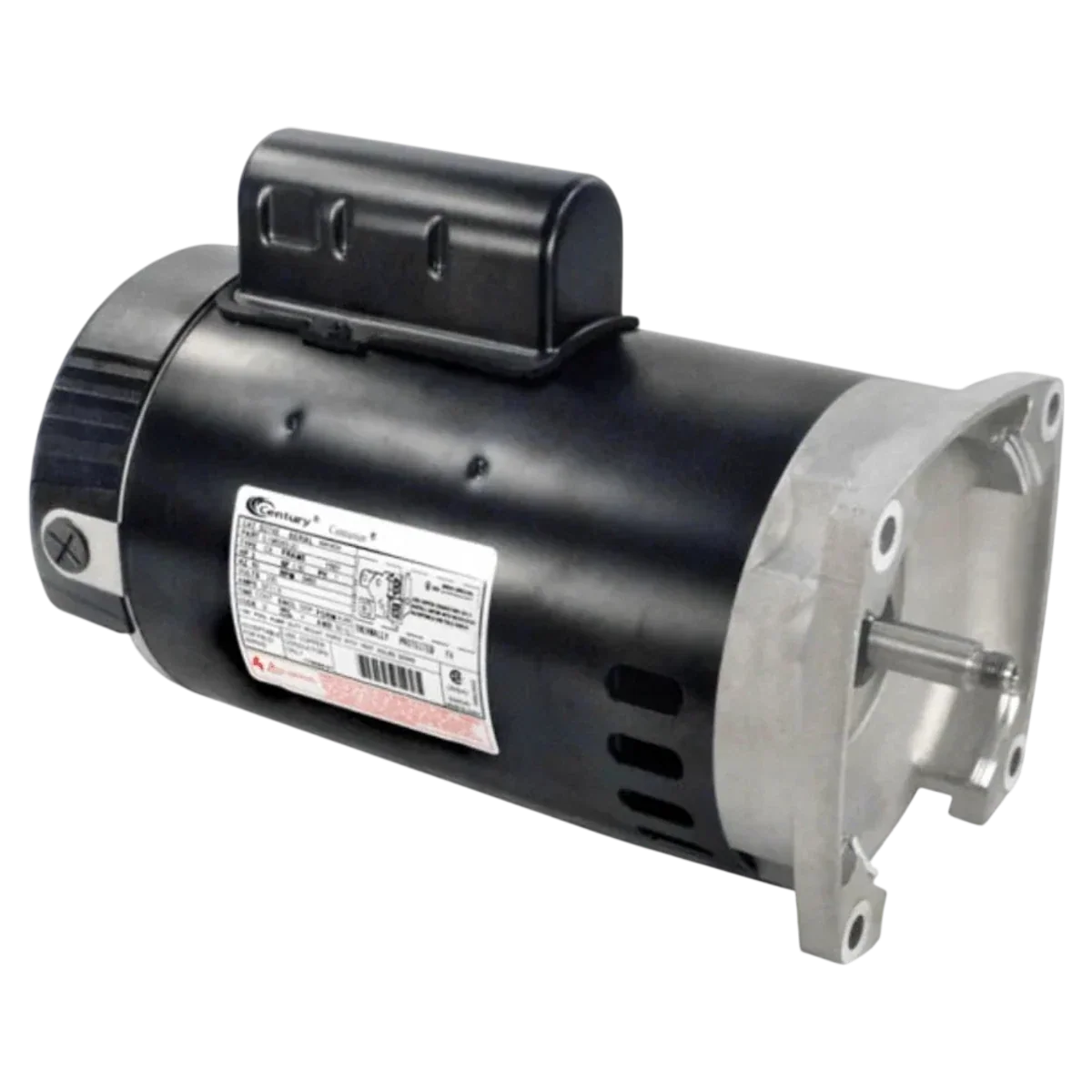

The Century B2748 is a full-rated 2 HP, 230V single-phase pool pump motor built on a 56Y square-flange frame with a threaded stainless-steel shaft for direct coupling to the pump impeller.
Key Features
- Permanent split capacitor, switchless design
- Sealed ball bearings
- 303 stainless steel threaded shaft
- Class F insulation, 50°C ambient rating
- CSA Certified
Compatibility
- Pentair WhisperFlo pumps, full-rated
- Pentair Challenger pumps, 2 HP full-rated
- Pentair pump model 184214
- Does not fit California Title 20 energy compliance requirements
When replacing a motor, match the original's HP times service factor to this motor's 2 HP x 1.30 service factor rather than comparing HP alone.
This motor is not California Title 20 compliant and cannot be sold or installed as a standard replacement in California.
