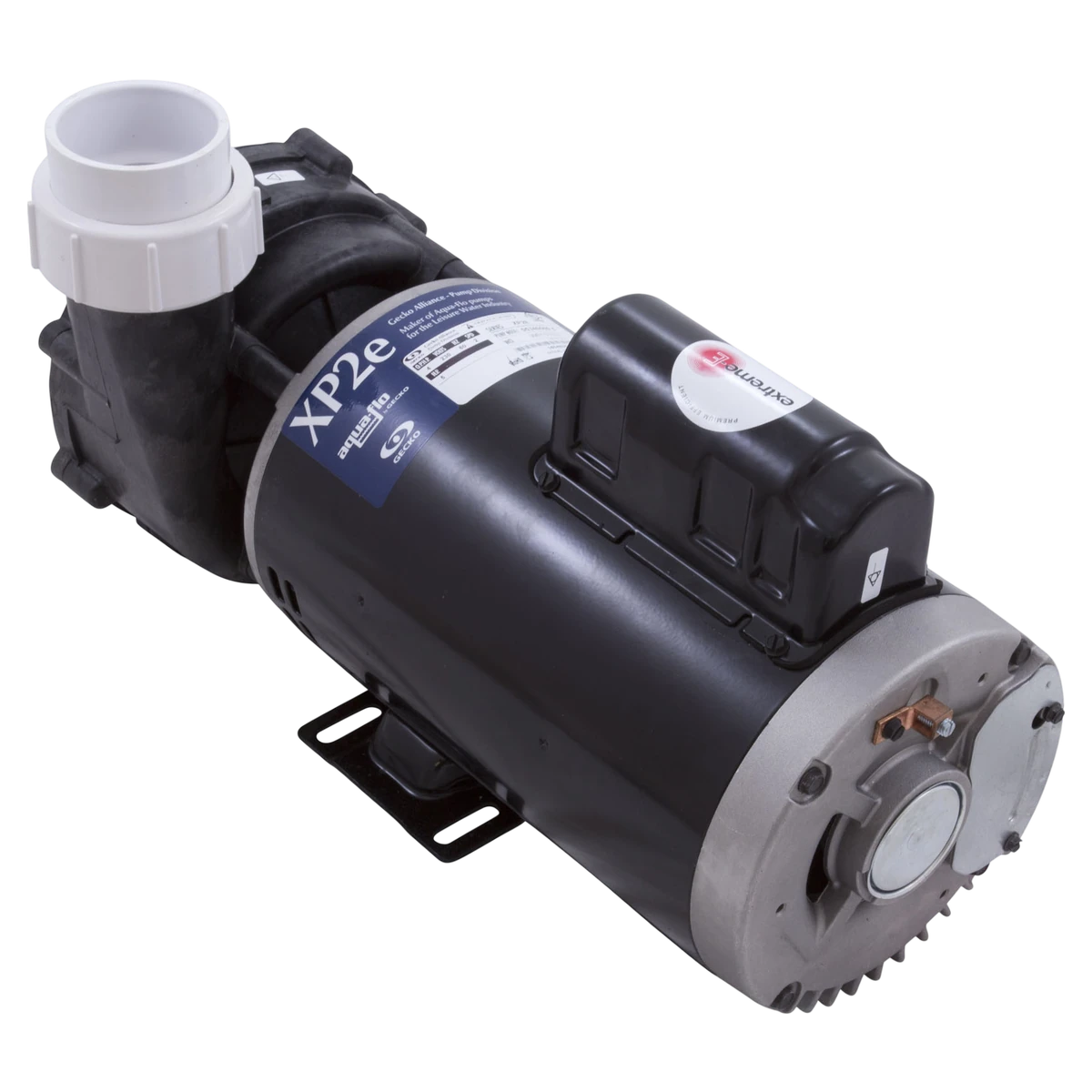

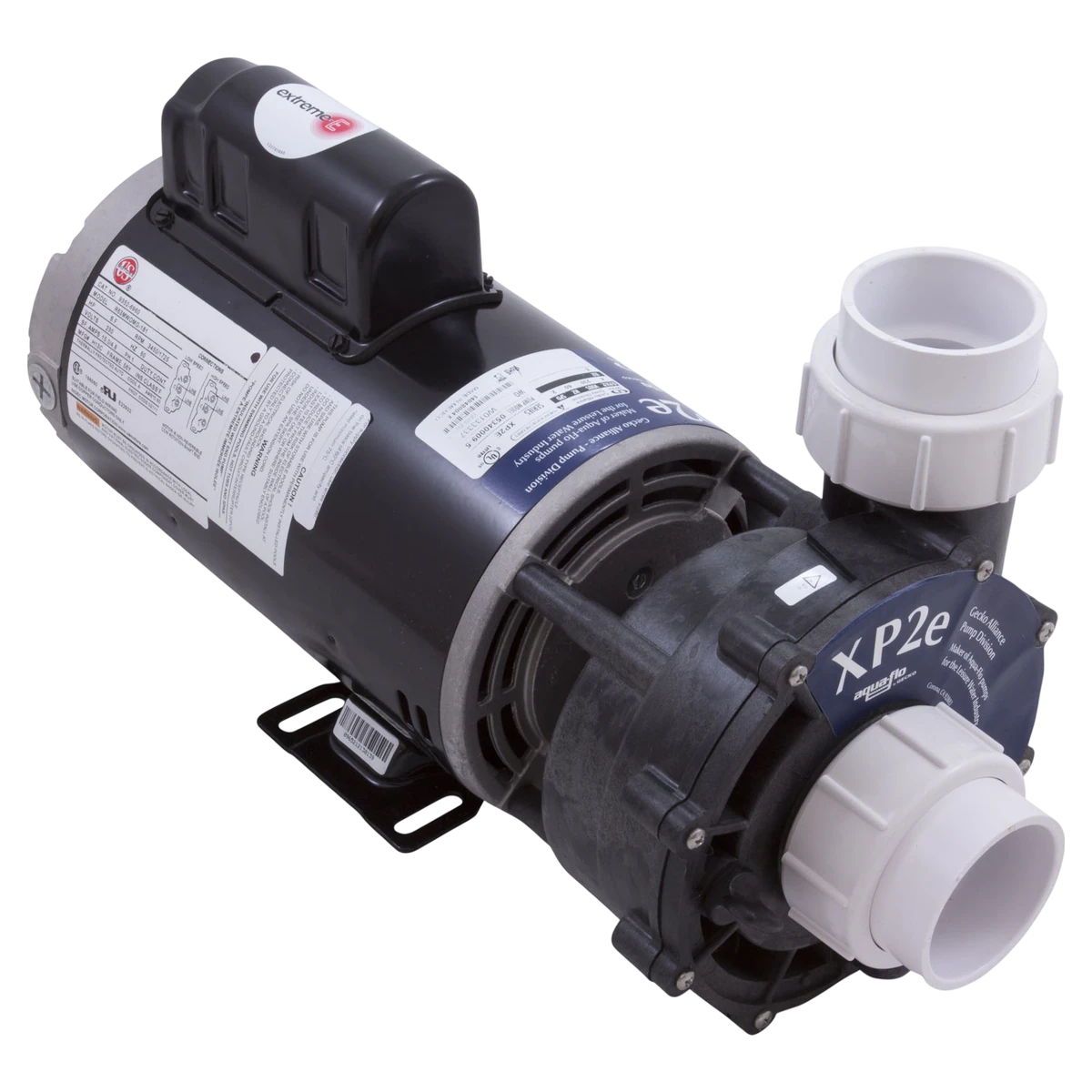

XP2e 4.0HP 2-Speed Spa Pump

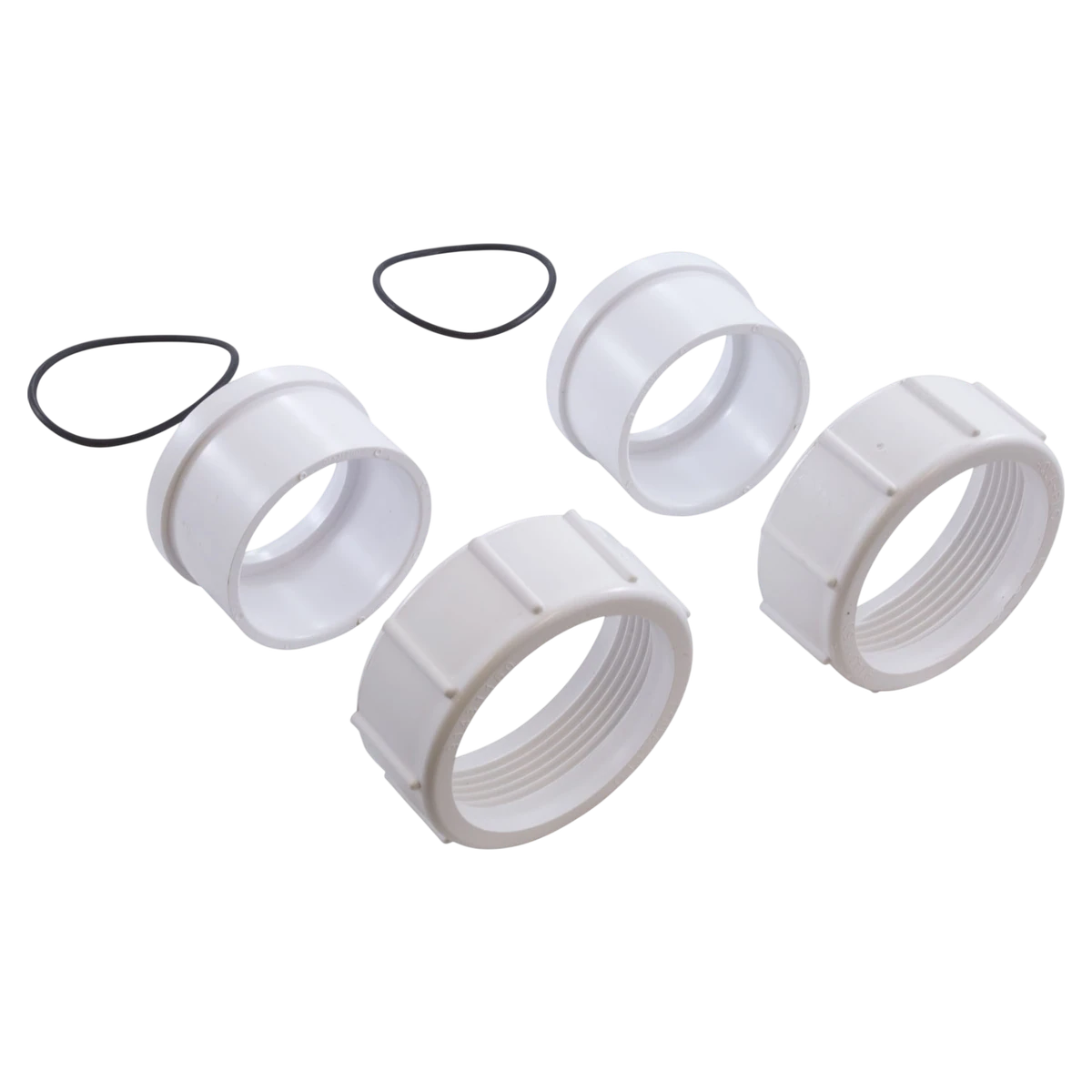

This Aqua-Flo (Gecko Alliance) Flo-Master XP2e spa pump is a 56-frame, 2-speed, 230V unit with 2" male buttress thread suction and discharge, built to circulate water for jets and filtration in large, heavily jetted spas.

Key Features

• 4.0 HP continuous / 5.0 HP total duty
• Rated up to 260 GPM flow
• Side discharge rotates in 90° increments
• Thermally protected motor
• Quiet, cooler-running 56-frame motor

Compatibility

• Shares the same mounting envelope as the original Aqua-Flo XP2 pump
• Does not fit applications requiring 2.5" suction (that's part number 05340011-5040)

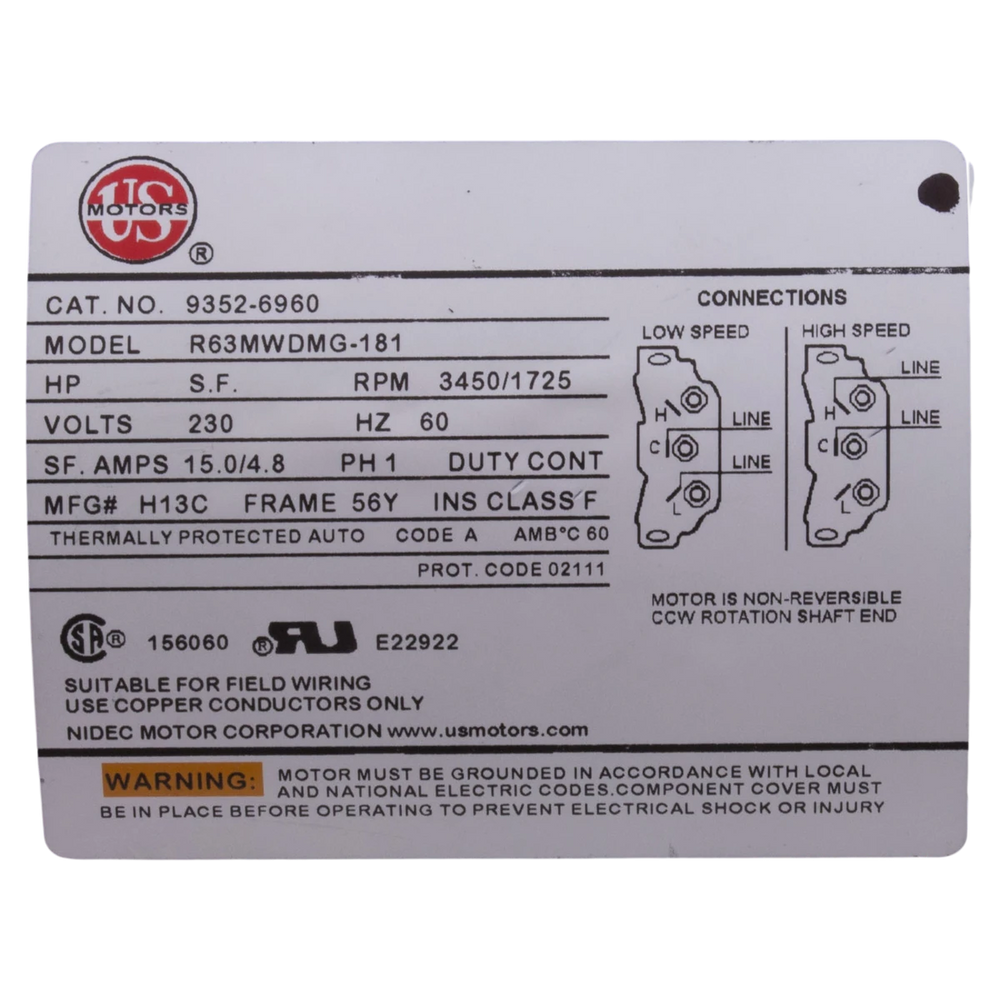

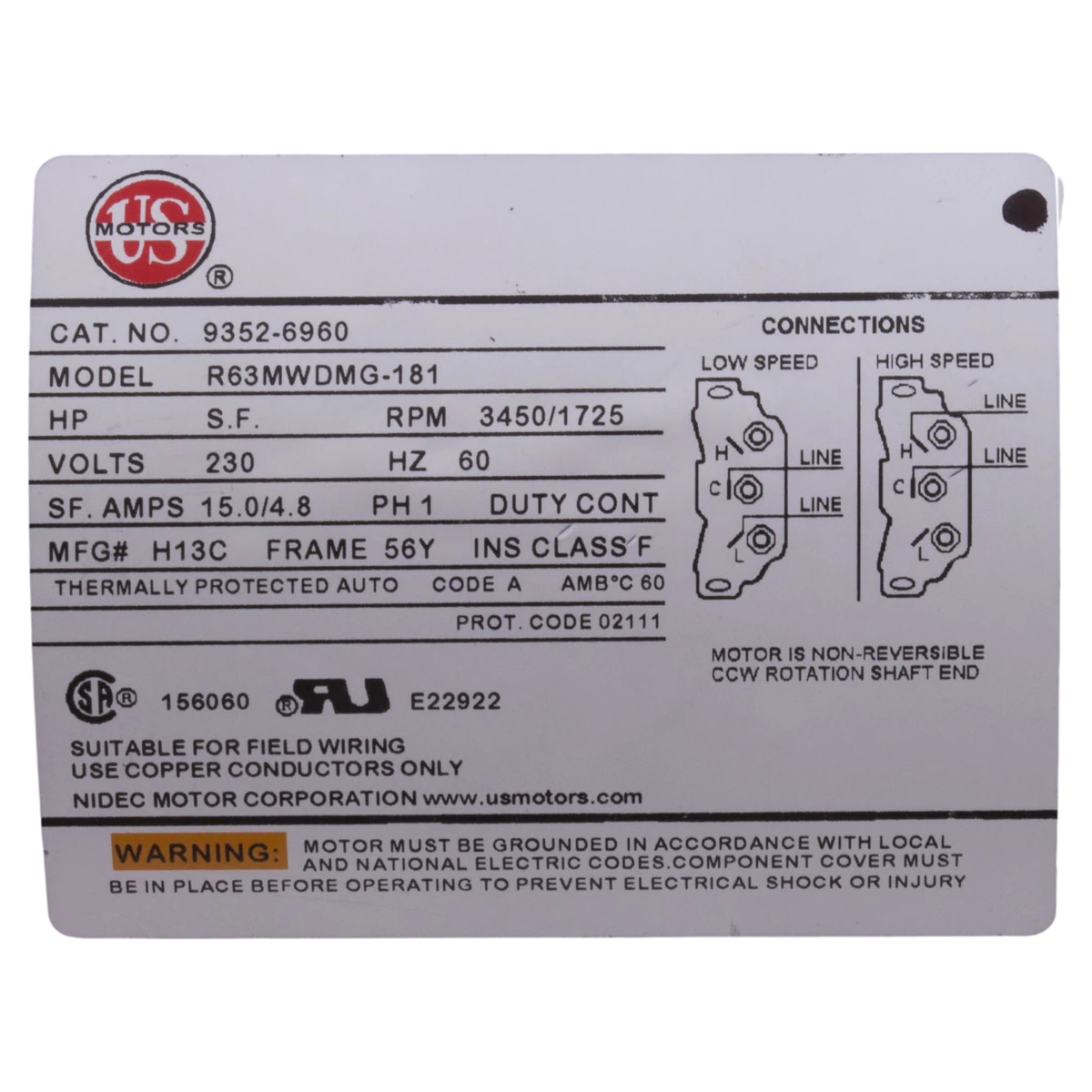

Match by motor amperage (15.0A high speed / 4.8A low speed) to confirm this is the correct pump for a replacement.

A similar-looking model, 05340011-5040, uses a 2.5" suction port instead of the 2" suction on this part — the two are not interchangeable.
