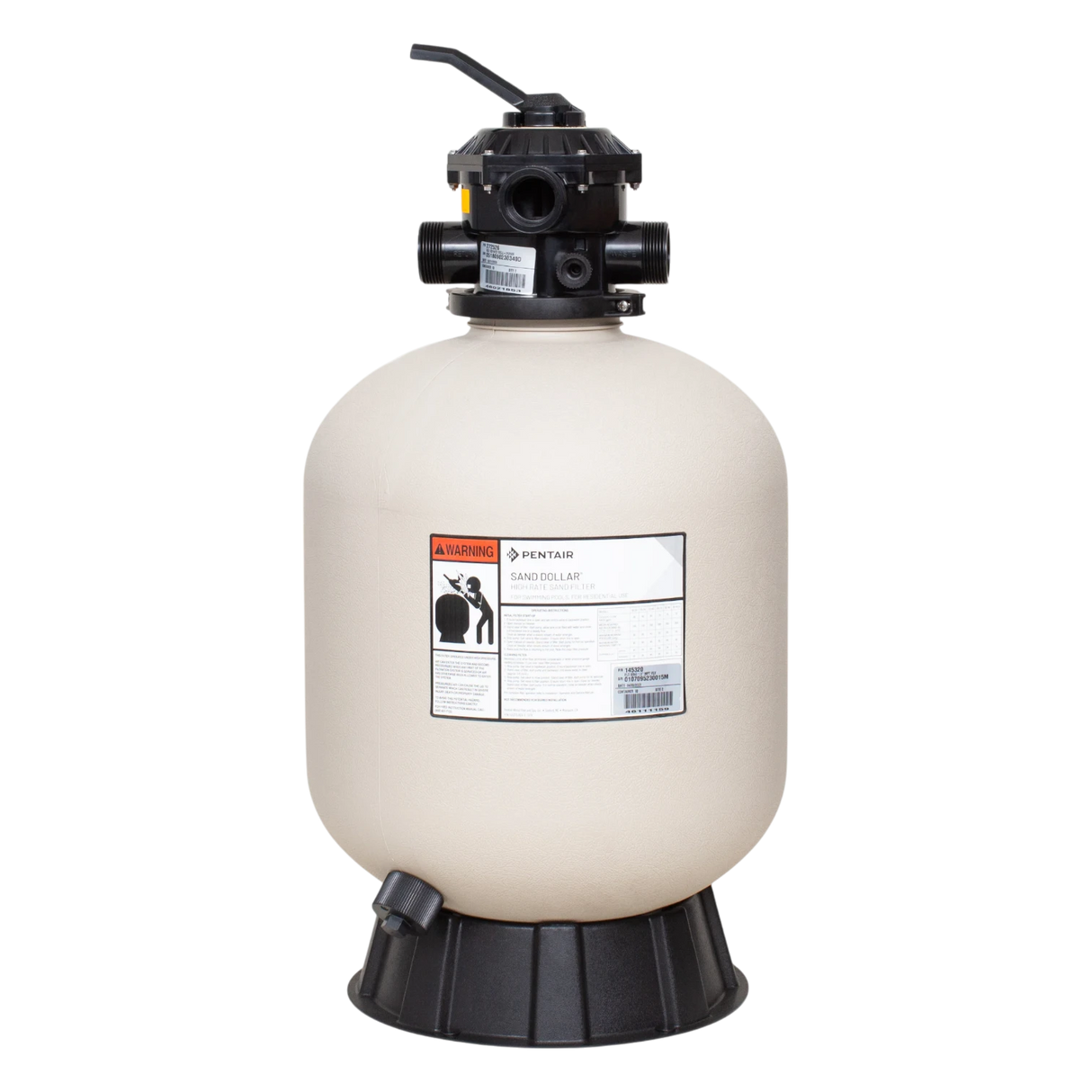

Pentair 19" Sand Dollar® Top Mount Filter EC-145320
Pentair 19" Sand Dollar® Top Mount Filter EC-145320 is backordered and will ship as soon as it is back in stock.
3 In Stock
Free Delivery!This order ships free directly from Pentair via Third Party, with a lead time of 1 - 6 days
Couldn't load pickup availability
Description
Description

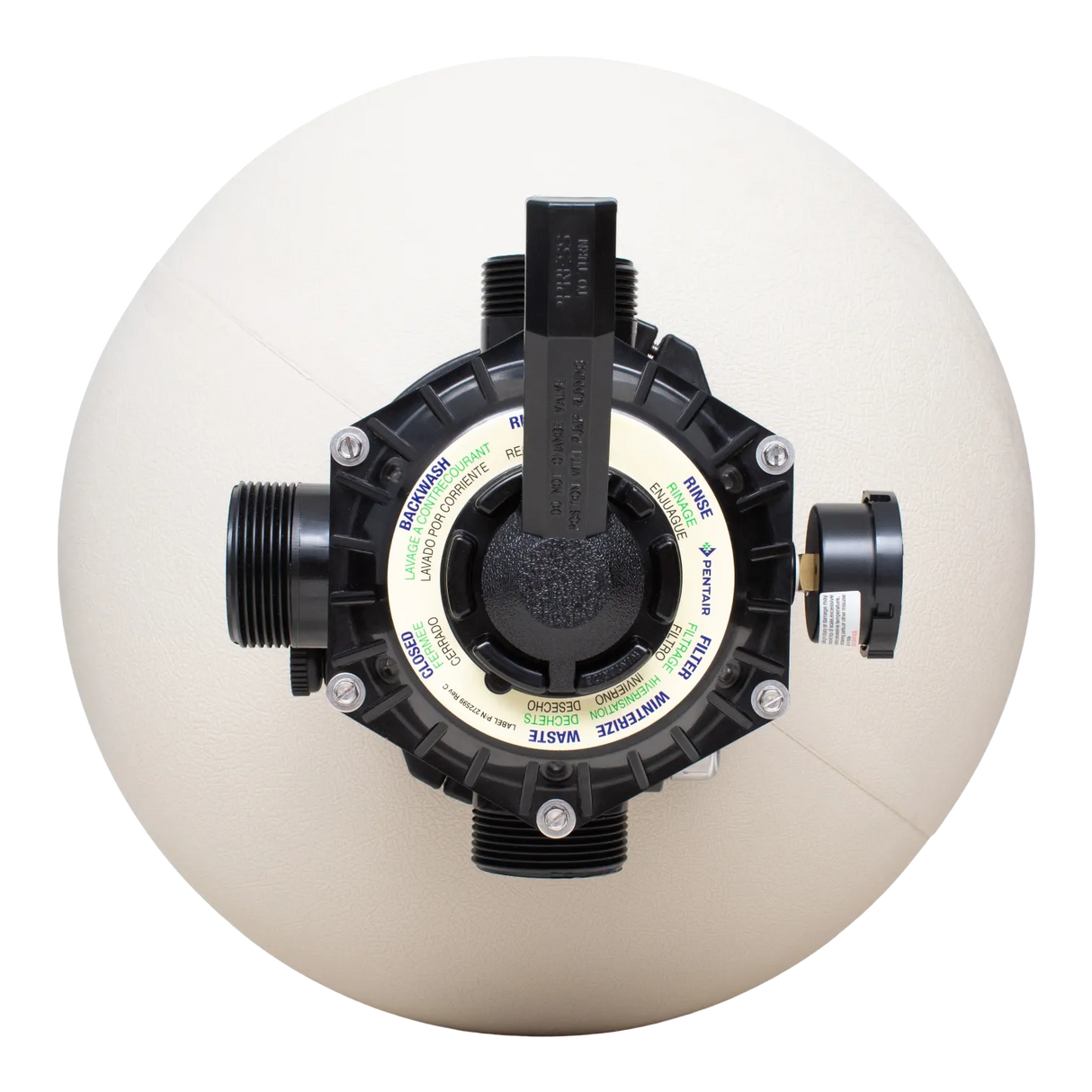

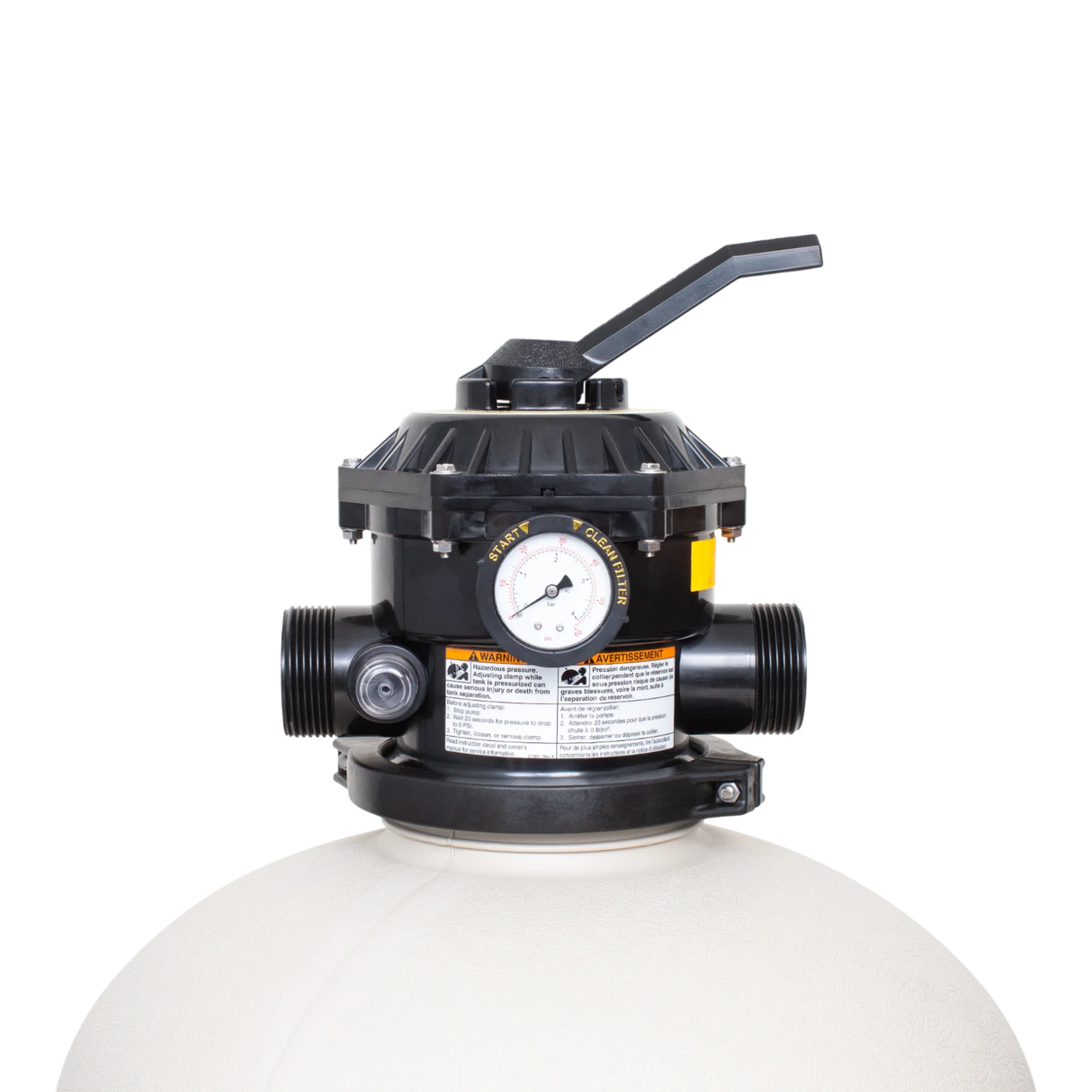

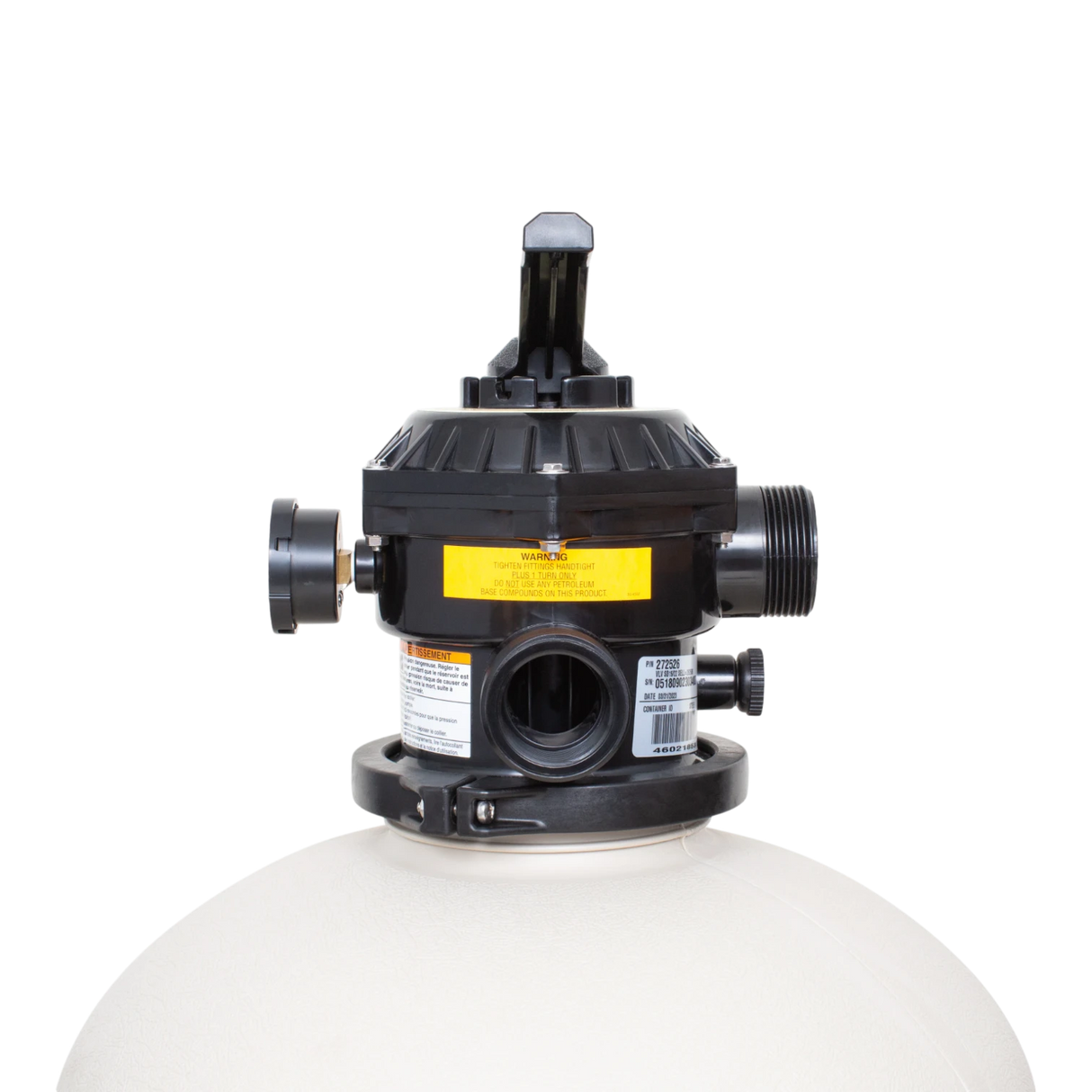

The Sand Dollar® Top Mount Filter features a clamp style, six-position multiport valve. Special lateral design provides superior flow characteristics and long filter cycles for economical operation.
19" Sand Dollar Specifications:
- Filtration Area: 1.8 square feet
- Material: Thermoplastic
- Maximum Flow Rate: 40 gal/min
- Maximum Working Pressure: 35 pounds per square inch
- Product Height: 37.75 inch
- Product Width: 19.5 inch
- Sand Required: 150 pound
- Tank Material: Thermoplastic
- Turnover 10hrs: 24000 gallon
- Turnover 12hrs: 28800 gallon
- Turnover 8hrs: 19200 gallon
- Vertical Clearance: 46 inch
Specifications
Specifications
Brochure and Data Sheet: Sand Dollar 19"
| Valve Type | Top-Mount Multi-Port |
| Sand Required | 150 lb |
| Design Flow Rate | 40 gal/min |
| Maximum Working Pressure | 35 PSI |
| Filtration Area | 1.8 square feet |
| Product Width | 19.5 inch |
| Vertical Clearance | 46 inch |
| Shipping Dimensions | 20 x 23 x 35 inch |
| Product Weight | 30 pound |
Delivery and Shipping
Delivery and Shipping
| Shipping Dimensions | 20 x 23 x 35 inch |
| Product Weight | 30 pound |
This product ships free from the Manufacturer via third party. As a result, lead time may vary from 1 - 6 days after the date in which the order was placed.
Pentair 19" Sand Dollar® Top Mount Filter EC-145320
Features:
- Six-function, multi-port valve for easy control of all filter functions
- One-piece thermoplastic tank for strength and corrosion resistance
- Combination water and sand drain for easy service and winterizing
