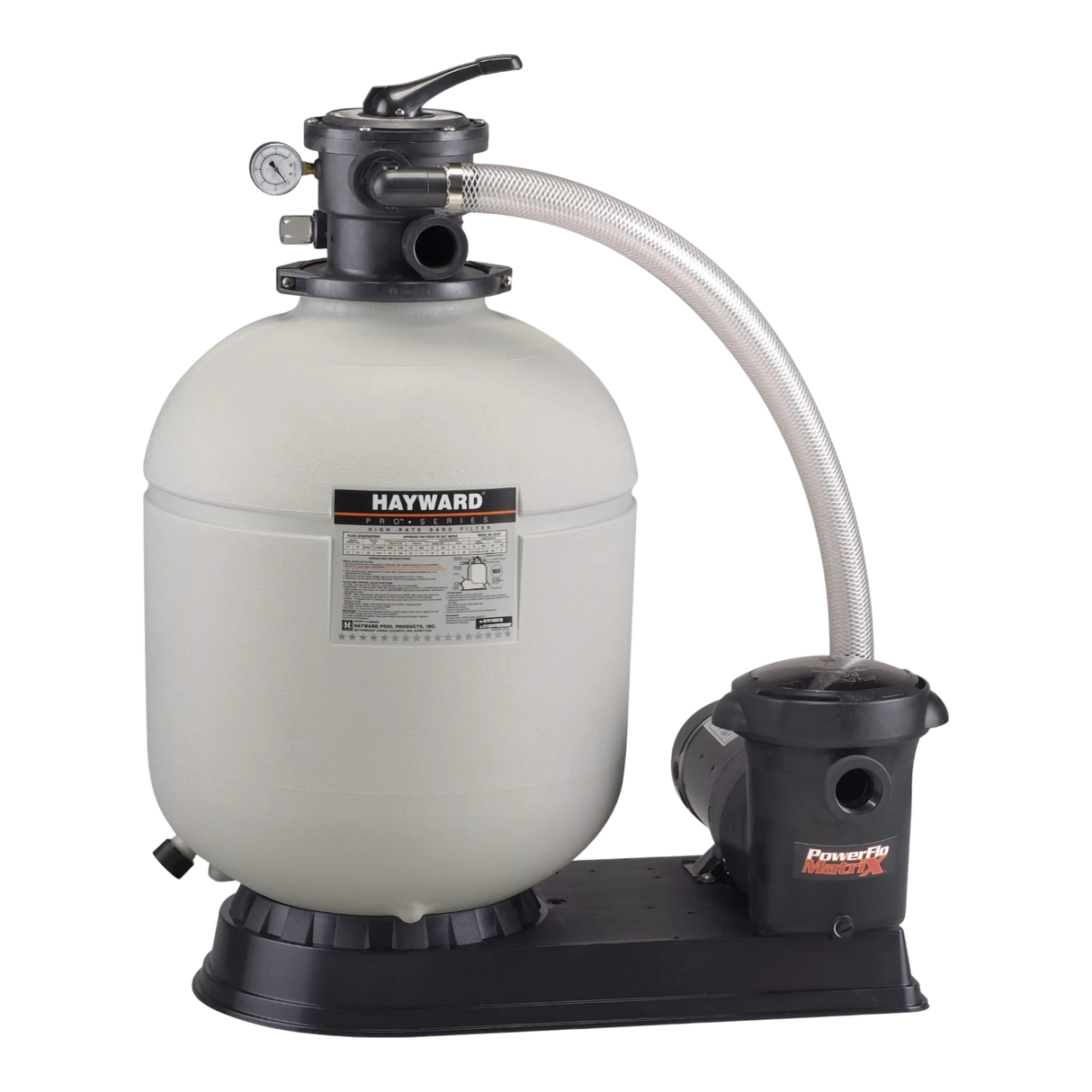

Hayward ProSeries 18-Inch 1 HP Sand Filter System

Hayward  |  SKU: W3S180T92S
$73900 /ea

Description

The Hayward W3S180T92S is an above-ground pool filter system featuring an 18-inch polymeric sand filter and a 1 HP PowerFlo Matrix pump. Designed for efficient water filtration, it includes a 7-position filter control valve for easy operation and is suitable for a variety of pool sizes. This compact system helps maintain clean and clear pool water while ensuring optimal performance.

Additional Information

Technical Specs

Part Name
Hayward W3S180T92S Pro Series 18" Sand Filter System
Model Number
W3S180T92S
Filter Type
Sand
Tank Diameter
18 inches
Filter Area
1.75 sq ft
Media Required (Sand)
150 lbs
Max Flow Rate
35 GPM
Operating Pressure
50 PSI
Valve Mount
Top
Valve Type
Multiport
Multiport Valve Included
Yes
Multiport Valve Size
1.5 inches
Pump Horsepower
1 HP
Material
Molded Polymeric
Includes
Filter
7-position Vari-Flo valve
1 HP Power-Flo Matrix pump
base
hoses
adapters
clamps
Warranty
2 year (parts)
Shipping Dimensions
30.1 x 19.1 x 30 inches
Product Weight
63 pounds

This product ships free via UPS Ground.

No documents on-file.

Highlights

  • 2-year warranty on parts
  • 7-position Vari-Flo valve provides maximum flow at lower pressure drop
  • Large pressure sand/water drain for rapid winterizing or servicing
  • Integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area
  • Exclusive full-flow 360° self-cleaning laterals provide energy-efficient operation and thorough backwashing
