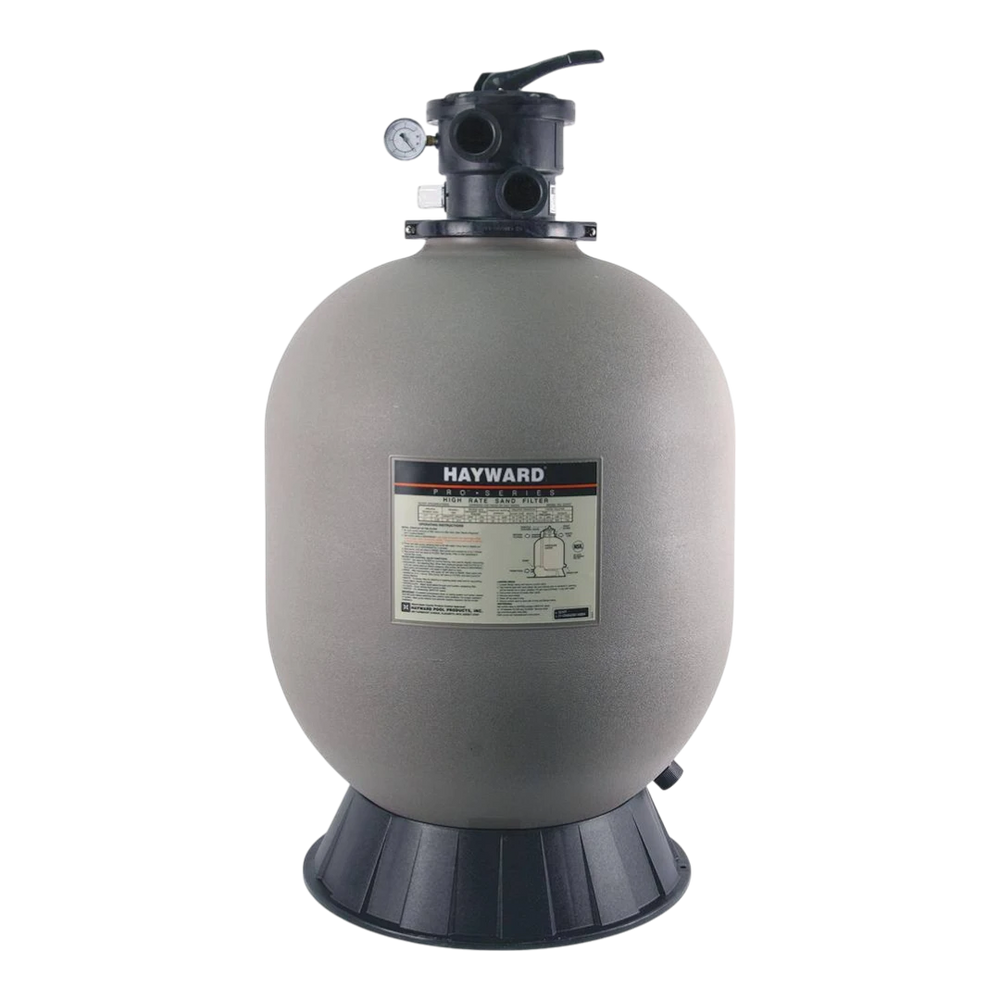

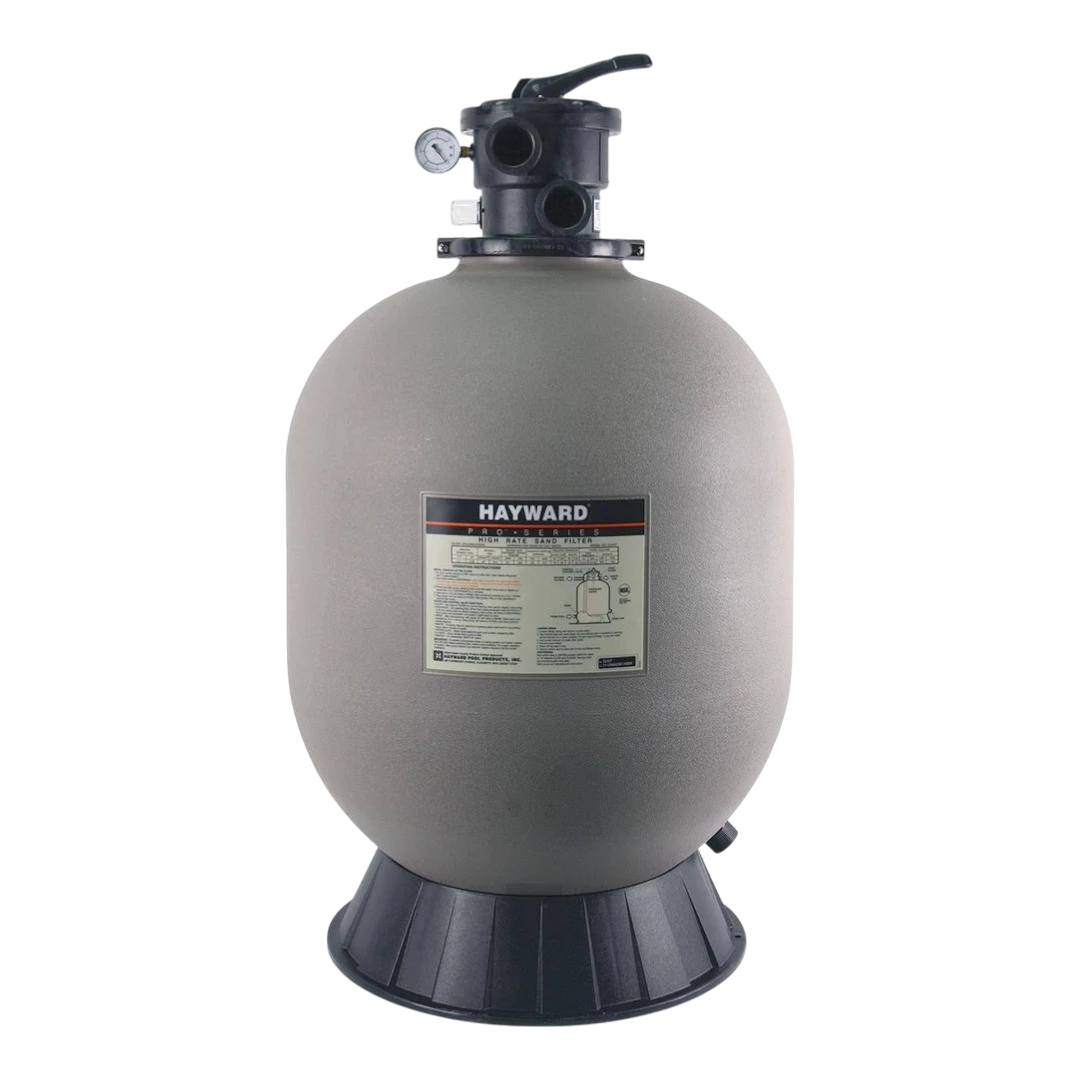

Hayward Pro Series 16" Top Mount Sand Filter

Hayward  |  SKU: W3S166T
$40900 /ea

Description

The Hayward W3S166T ProSeries Sand Filter is a high-performance, 16-inch top-mount sand filter designed to deliver efficient water flow and balanced backwashing for pool maintenance. Constructed from durable, corrosion-proof materials, it utilizes a precise self-cleaning lateral system to ensure optimal filtration and long-lasting performance. I

Features:

  • Includes 1-1/2" VariFlo
  • Compatible with Hayward Multiport Valve SP0714T
  • In-ground pools of all types and sizes
  • Requires 100 lbs of sand
  • 7 position Hayward Vari-Flo control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions. Integral sight glass lets you see when backwash cycle is completed

Additional Information

Technical Specs

Part Name
Hayward W3S166T Pro Series Sand Filter
Model Number
W3S166T
Filter Type
Sand
Tank Diameter
16 inches
Filter Area
1.4 sq ft
Media Required (Sand)
100 lbs
Max Flow Rate
30 GPM
Max Pool Volume
14,400 gallons (8-hour turnover)
Operating Pressure
50 PSI
Valve Mount
Top
Valve Type
Multiport
Multiport Valve Included
Yes
Drain Size
Large pressure sand/water drain
Material
Molded Polymeric
Includes
Filter tank
7-position VariFlo valve
base
Shipping Dimensions
16.3 x 16.3 x 34.5 inches
Product Weight
25 pounds

This product ships free via FedEx Home Delivery.

Resources

User Manual User Manual
Data Sheet / Brochure Data Sheet / Brochure

Highlights

  • Durable, corrosion-proof filter tank
  • Integral top diffuser for even water distribution
  • Self-cleaning underdrain system
  • Flange clamp design allows 360-degree rotation for easy installation
