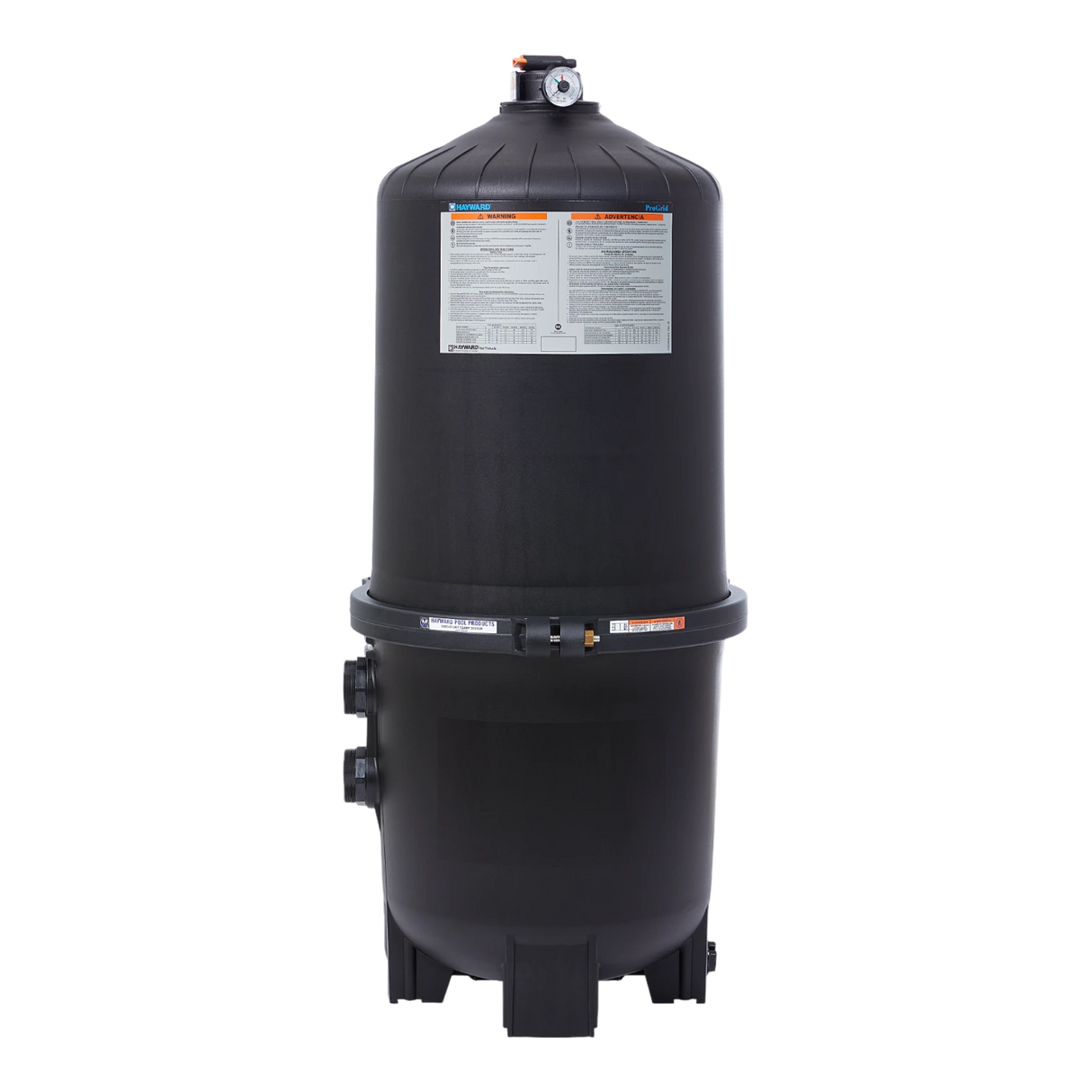

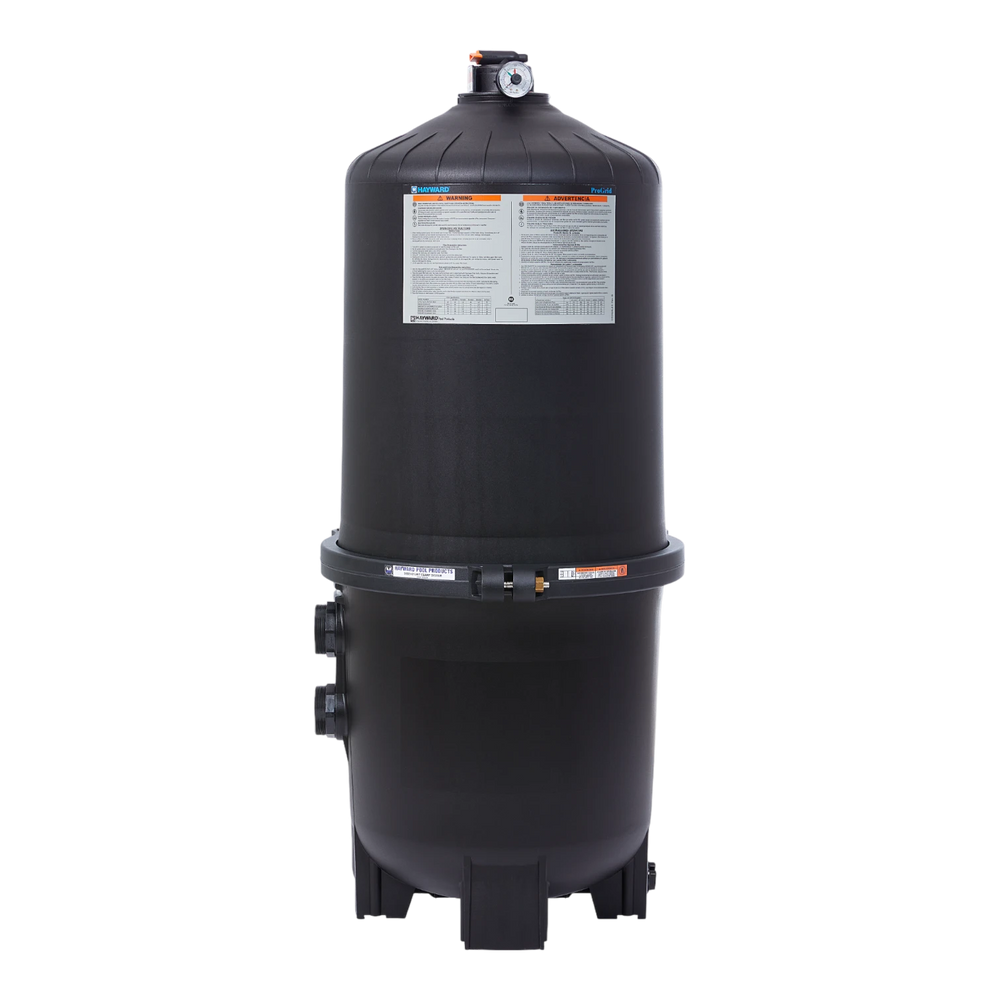

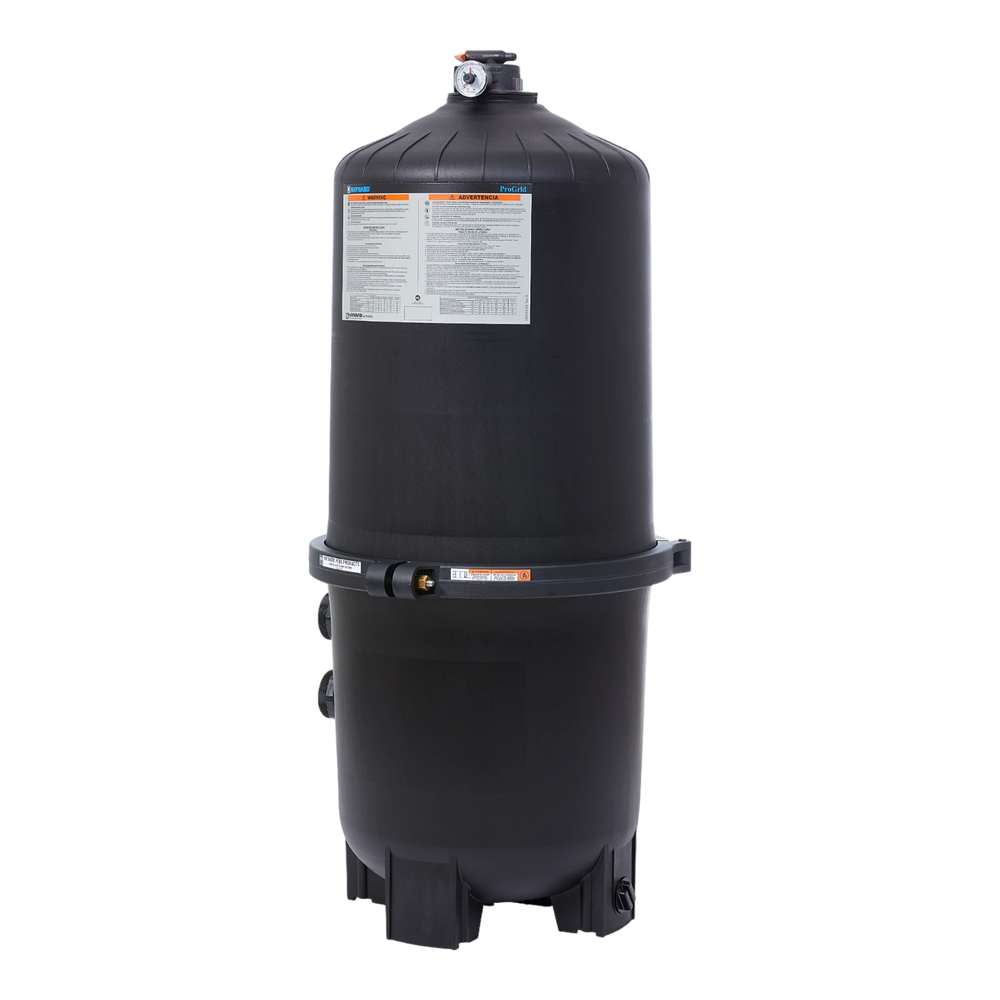

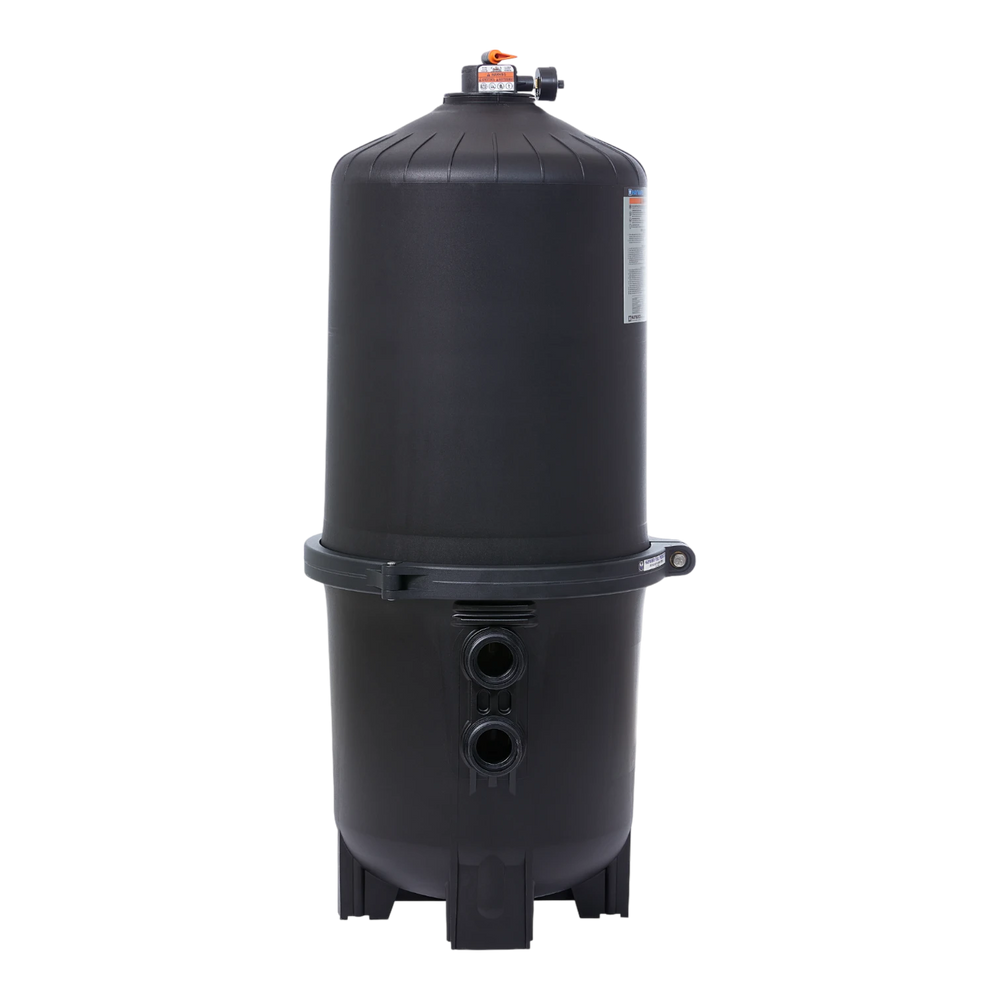

Hayward Pro-Grid DE Pool Filter, 60 SQ FT, W3DE6020
Hayward Pro-Grid DE Pool Filter, 60 SQ FT, W3DE6020 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Pro-Grid™ Vertical Grid Filter
NOTE: FILTER VALVE NOT INCLUDED
Diatomaceous earth is a porous powder with microscopic openings that when magnified look like tiny sponges. Clear water can pass through these openings, but particles, as small as two to five microns, are trapped during the first pass through the media. D.E. filters have internal elements that become coated with D.E. It is this 'filter cake' that strains dirt, dust and algae from the water. Similar to sand filters, when D.E. filters become dirty, they are cleaned either by backwashing, or regenerating and draining the clogged D.E. to the 'waste' line. To restore filtration, a fresh 'charge' of D.E. is added to the filter. For sparkling, clean pools; step up to Hayward D.E. filters.
Features:
- Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple.
- High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency.
- 72 ft filter made of reinforced thermoplastic allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance.
- New High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
- Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids
Specifications
Specifications
Brochure and Data Sheet: ProGrid 60 SqFt
| Valve Type | Side Mount DE Multiport or DE Slide Valve |
| Valve Included | No |
| D.E. Required | 7.5 pound |
| Design Flow Rate | 120 gal/min |
| Filtration Area | 60 square feet |
| Maximum Working Pressure | 50 PSI |
| Product Width | 26 inch |
| Side Clearance | 18 inch |
| Tank Diameter | 26 inch |
| Vertical Clearance | 22 inch |
| Warranty | 3 Year |
| Shipping Dimensions | 23.1 x 24.6 x 47.8 inch |
| Product Weight | 83 pound |
ProGrid 60 SqFt Parts Schematic (15 products)
Delivery and Shipping
Delivery and Shipping
| Shipping Dimensions | 23.1 x 24.6 x 47.8 inch |
| Product Weight | 83 pound |
Features:
- NSF Certified
- Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
- High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
