Description
Description

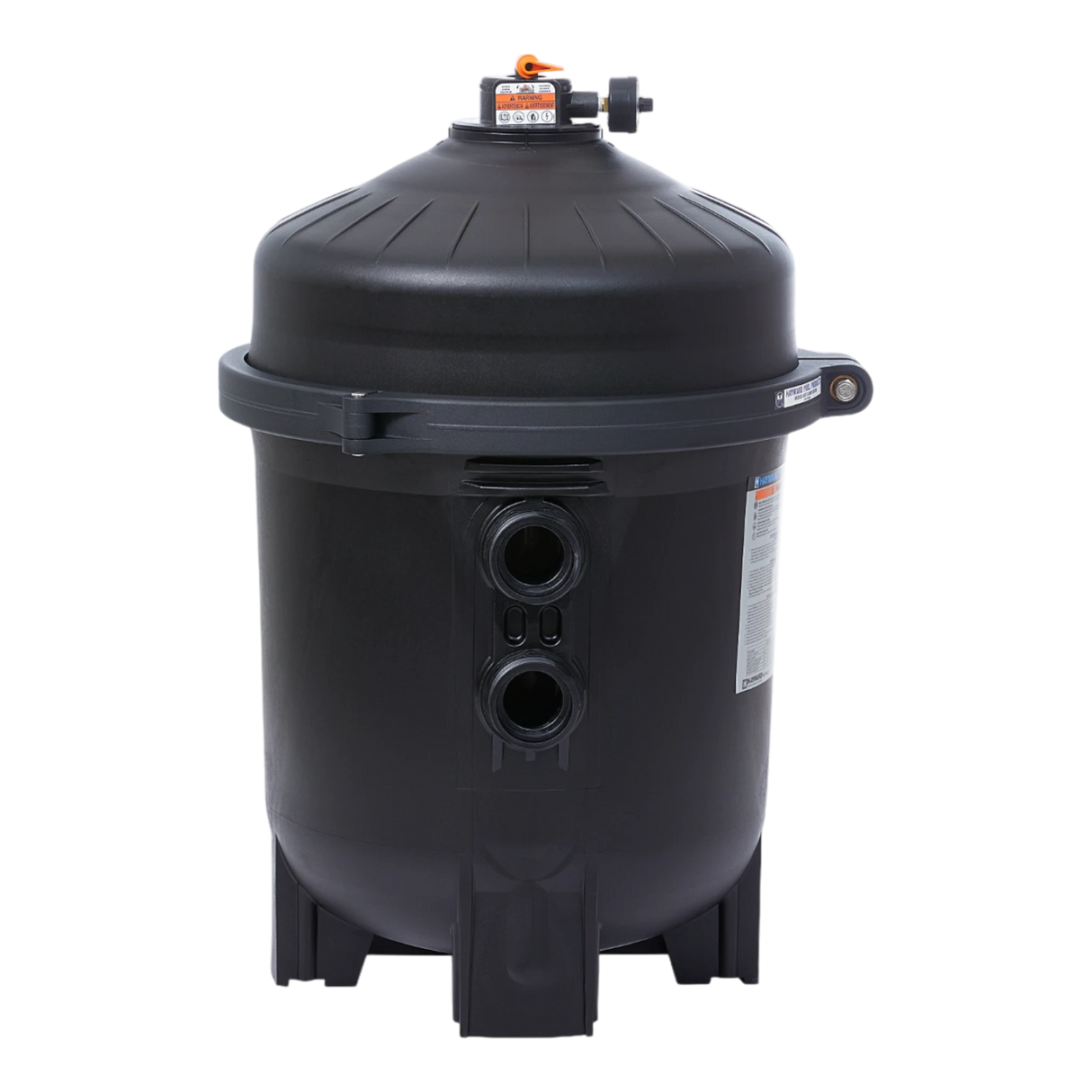

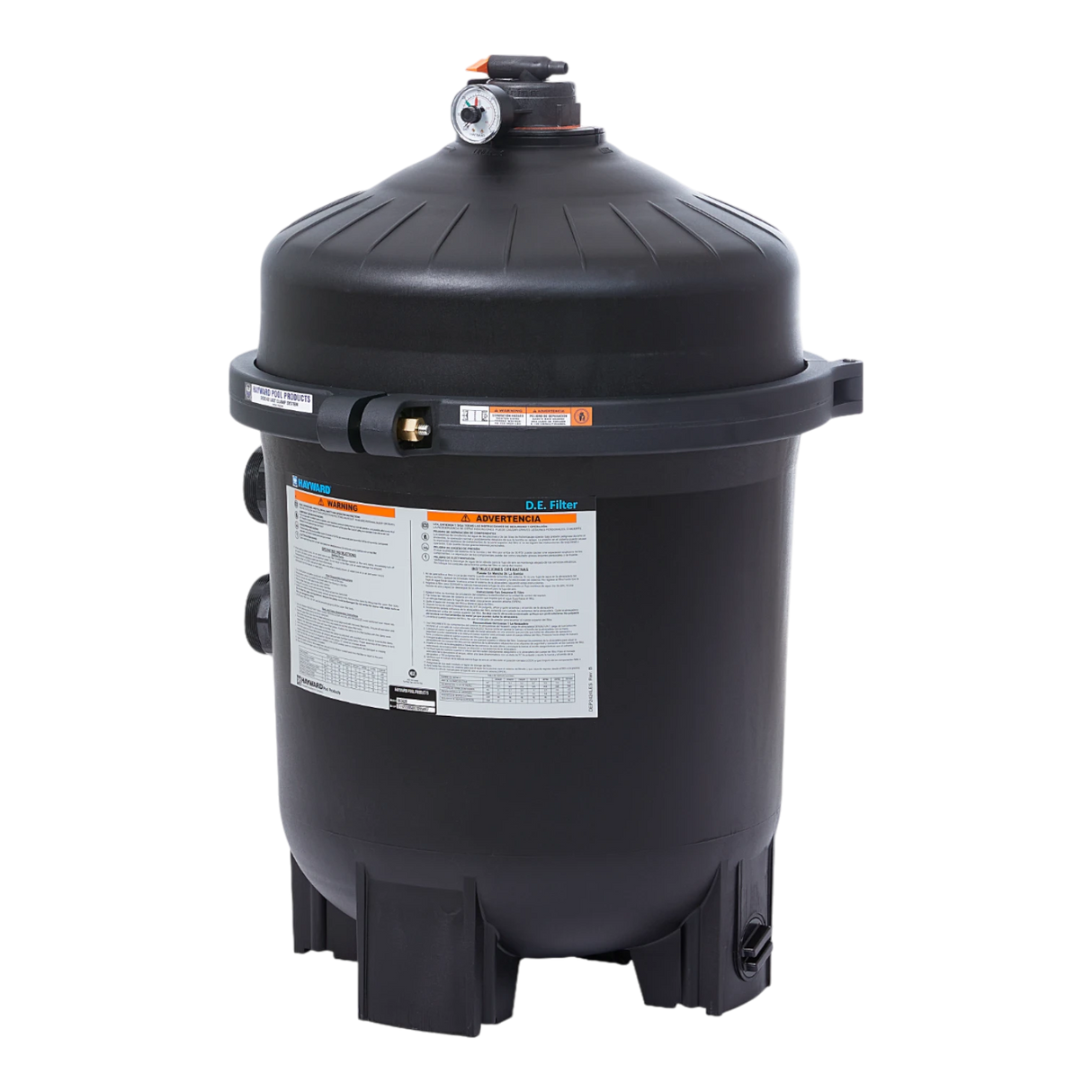

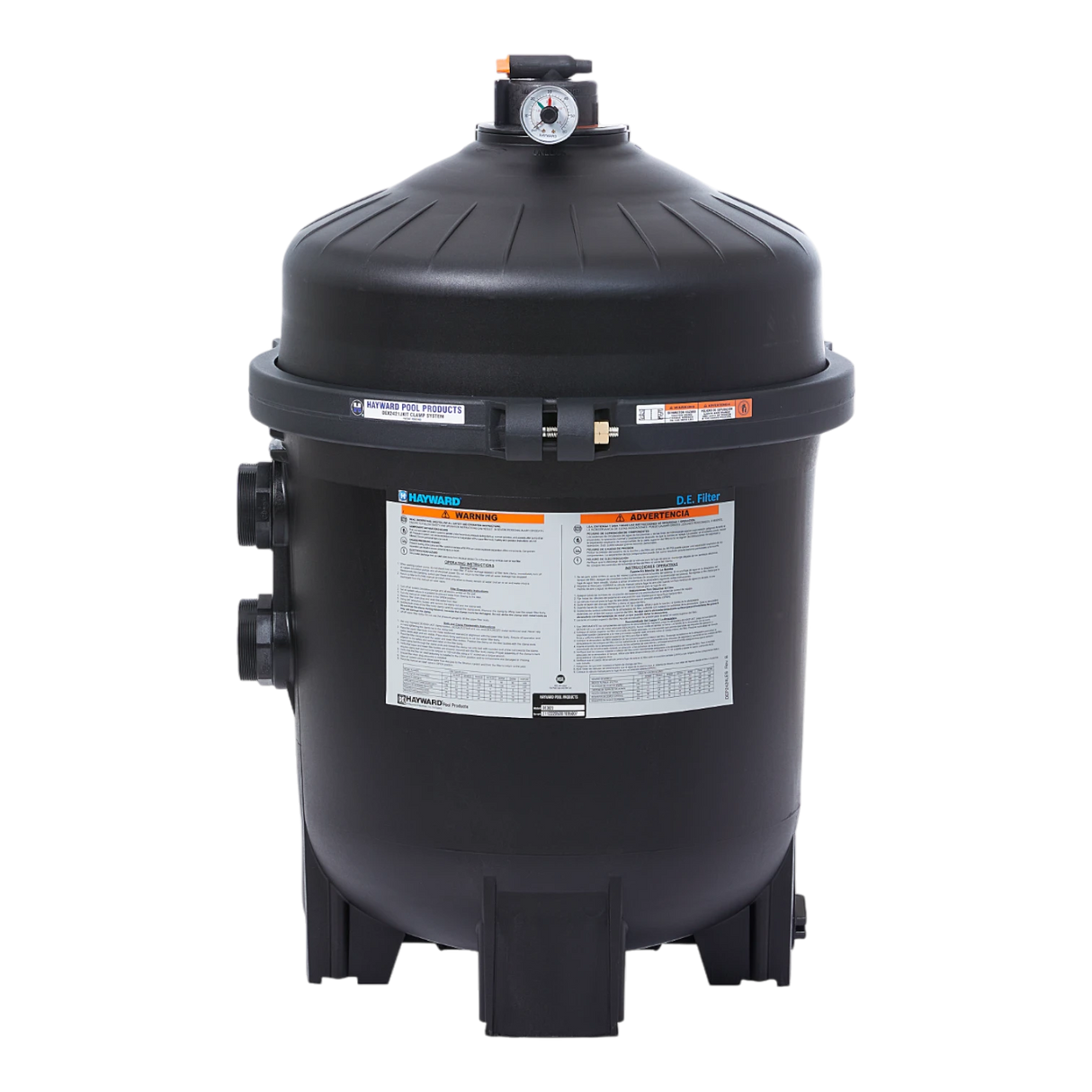

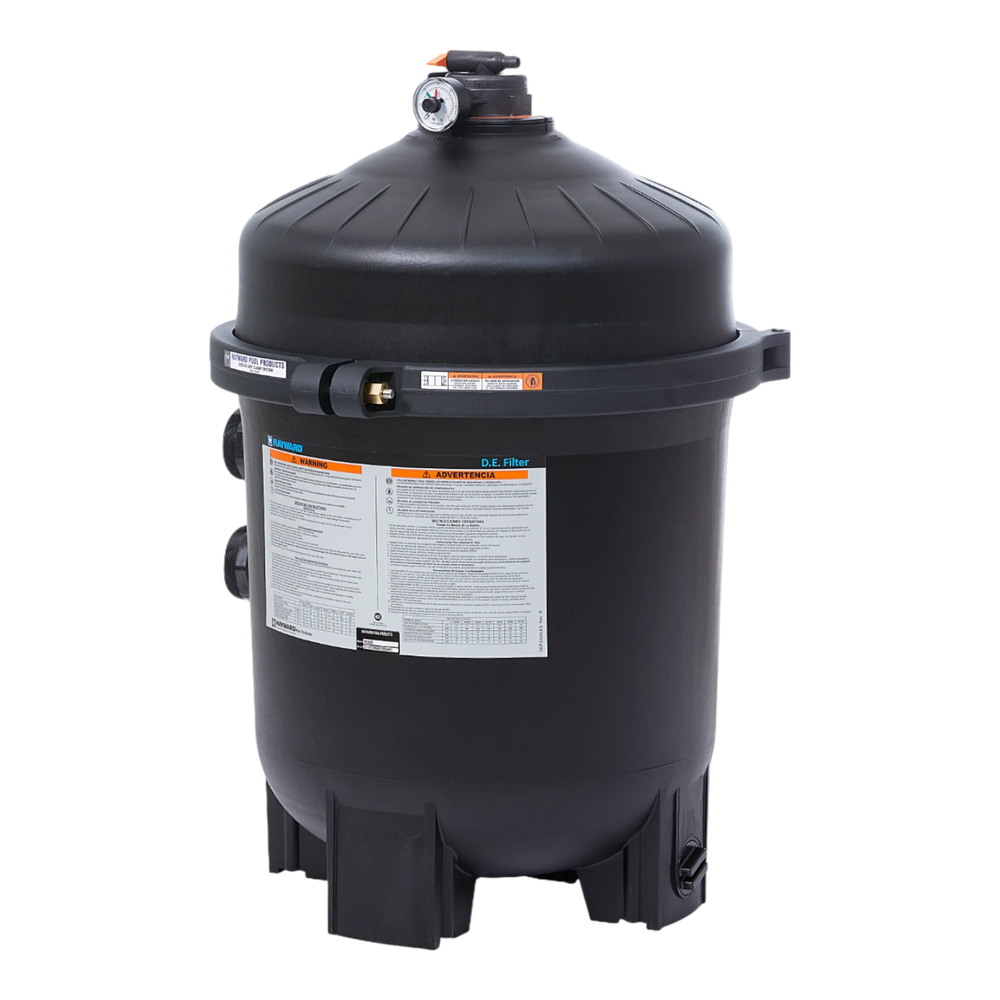

Pro-Grid™ Vertical Grid Filter
NOTE: FILTER VALVE NOT INCLUDED
Diatomaceous earth is a porous powder with microscopic openings that when magnified look like tiny sponges. Clear water can pass through these openings, but particles, as small as two to five microns, are trapped during the first pass through the media. D.E. filters have internal elements that become coated with D.E. It is this 'filter cake' that strains dirt, dust and algae from the water. Similar to sand filters, when D.E. filters become dirty, they are cleaned either by backwashing, or regenerating and draining the clogged D.E. to the 'waste' line. To restore filtration, a fresh 'charge' of D.E. is added to the filter. For sparkling, clean pools; step up to Hayward D.E. filters.
Features:
- Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple.
- High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency.
- 72 ft filter made of reinforced thermoplastic allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance.
- New High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
- Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids
Specifications
Specifications
| Includes Valve | No |
| Valve Type | 2 inch DE Multiport |
| D.E. Required | 4.5 pound |
| Design Flow Rate | 72 gal/min |
| Each Product Weight | 66 pound |
| Filtration Area | 36 square feet |
| Filtration Rate | 36 GPH/ft2 |
| Maximum Working Pressure | 50 pounds per square inch |
| Side Clearance | 18 inch |
| Tank Diameter | 26 inch |
| Vertical Clearance | 16 inch |
| Shipping Dimensions | 23.1 x 24.6 x 35.7 inch |
| Product Weight | 66 pounds |
Documentation
Documentation
Owner's Manual- ProGrid 36 SqFt
