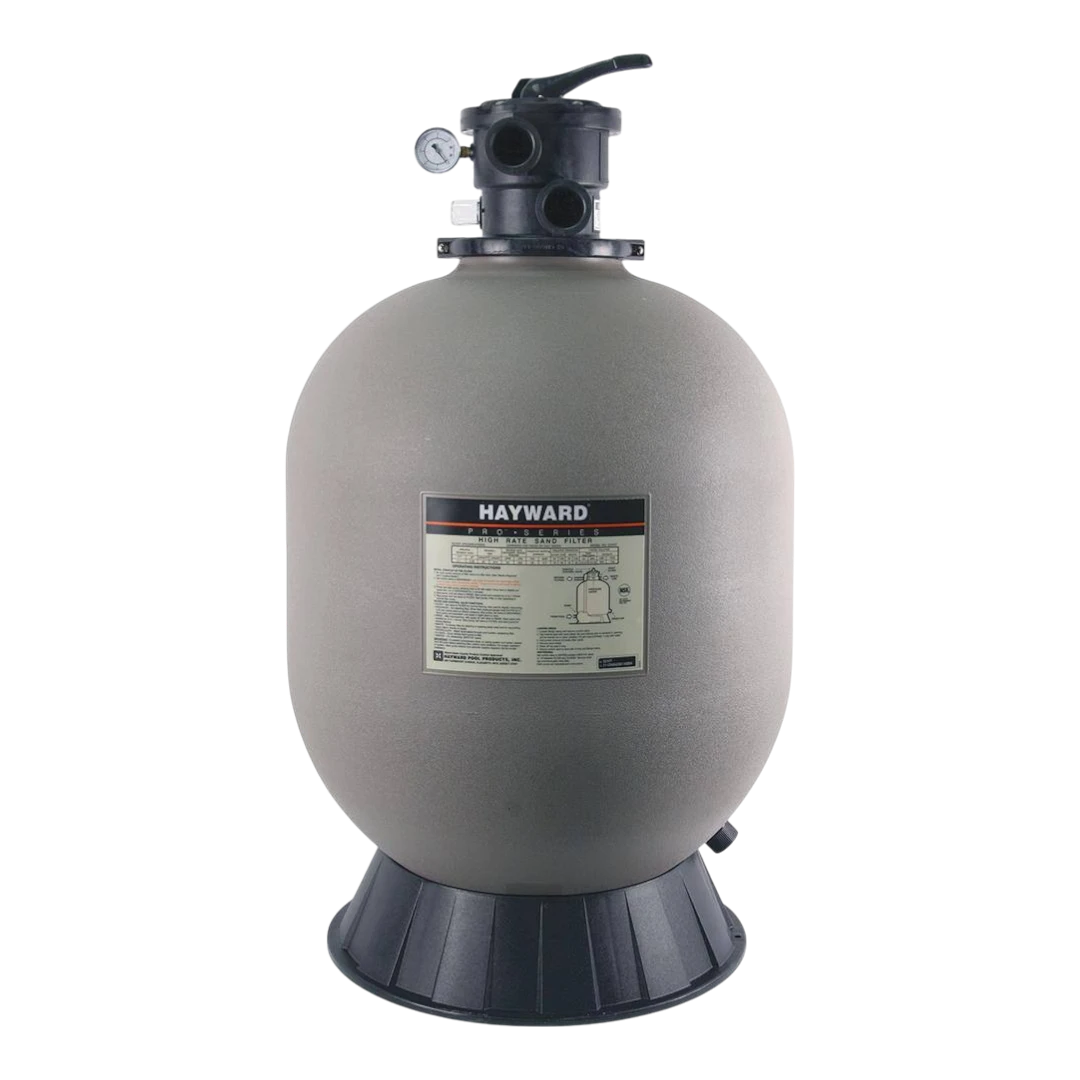

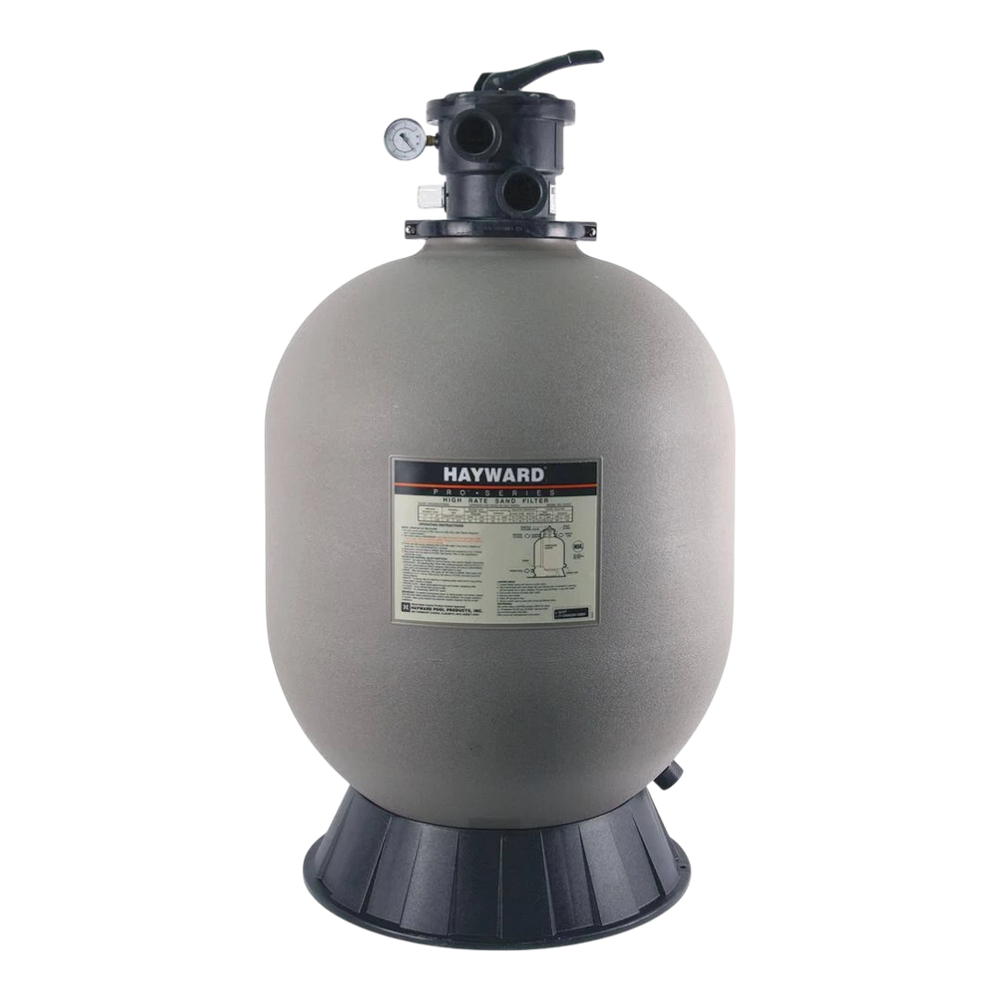

Hayward 18 Inch Pro Series Sand Filter
Hayward | SKU:
W3S180T
$44900
/ea
Unit price
/
Unavailable
Hayward 18 Inch Pro Series Sand Filter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Hayward W3S180T is an 18-inch sand filter designed for above-ground pools, featuring a top-mount multiport valve for easy operation. Constructed from durable, corrosion-proof materials, this filter utilizes an efficient umbrella-fold self-cleaning lateral system for optimized water flow and effective backwashing.
Features:
- Includes 1-1/2" VariFlo
- Compatible with Hayward Multiport Valve SP0714T
- In-ground pools of all types and sizes
- Requires 150 lbs of sand
- 7 position Hayward Vari-Flo control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions. Integral sight glass lets you see when backwash cycle is completed
Additional Information
Technical Specs
Part Name
Hayward W3S180T Pro Series Sand Filter
Model Number
W3S180T
Filter Type
Sand
Tank Diameter
18 inches
Filter Area
1.75 sq ft
Media Required (Sand)
150 lbs
Max Flow Rate
35 GPM
Max Pool Volume
16,800 gallons (8-hour turnover)
Operating Pressure
50 PSI
Valve Mount
Top
Valve Type
Multiport
Multiport Valve Included
Yes
Material
Molded Polymeric
Includes
Filter tank, 7-position Vari-Flo control valve, base
Shipping Dimensions
20.3 x 20.3 x 36.4 inches
Product Weight
32 pounds
This product ships free via FedEx Home Delivery.
Resources
User Manual
Highlights
- 360° valve rotation
- Top diffuser included
- Large drain port
- Self-cleaning laterals
