Zodiac R0475400 2-Port Cell Replacement Kit
Zodiac | SKU:
R0475400
$1,32400/ea
Unit price
/
Unavailable
Zodiac R0475400 2-Port Cell Replacement Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

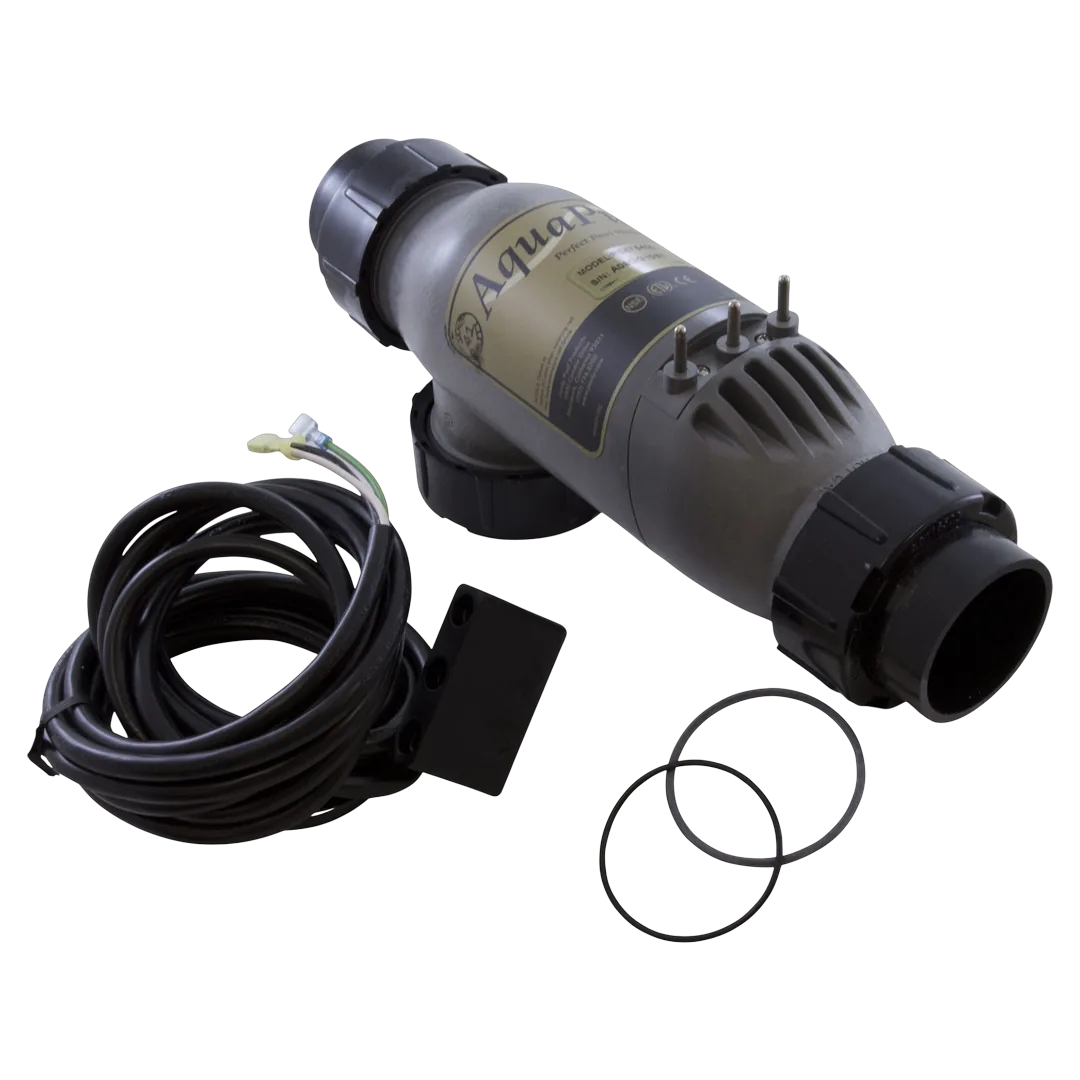

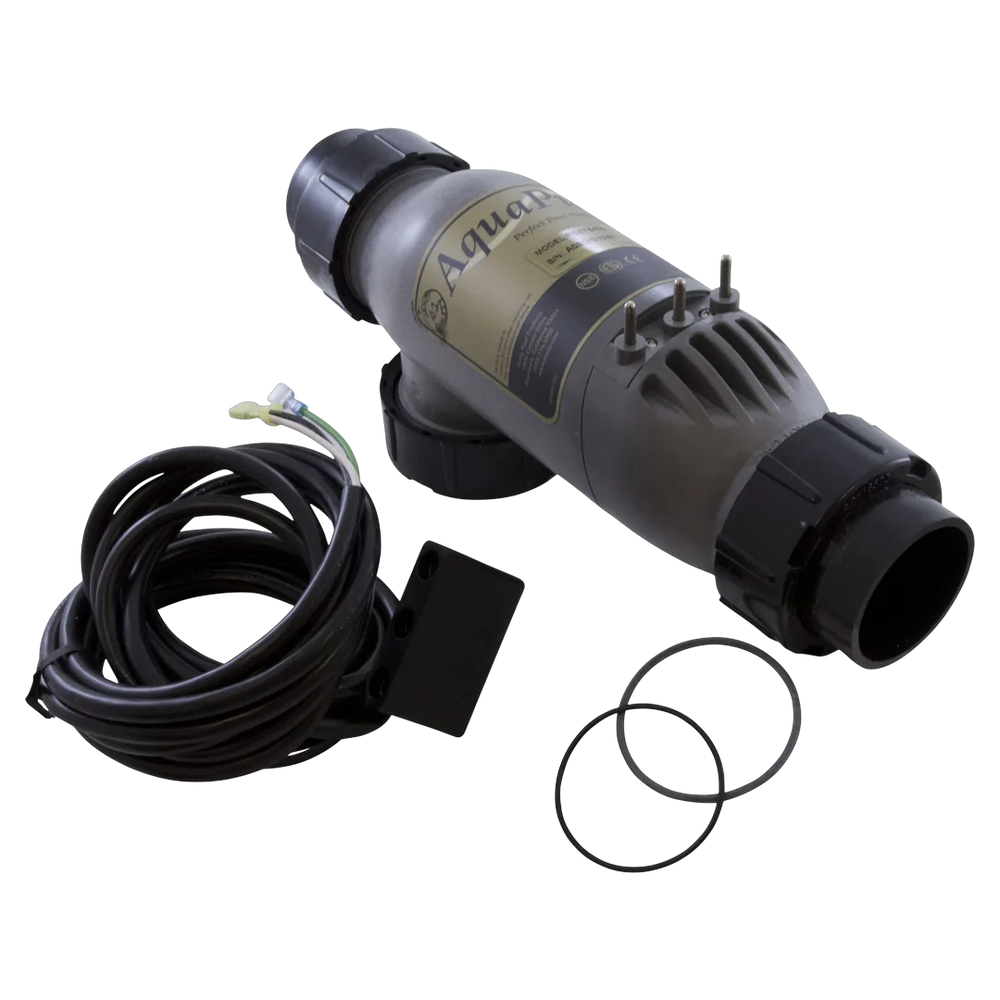

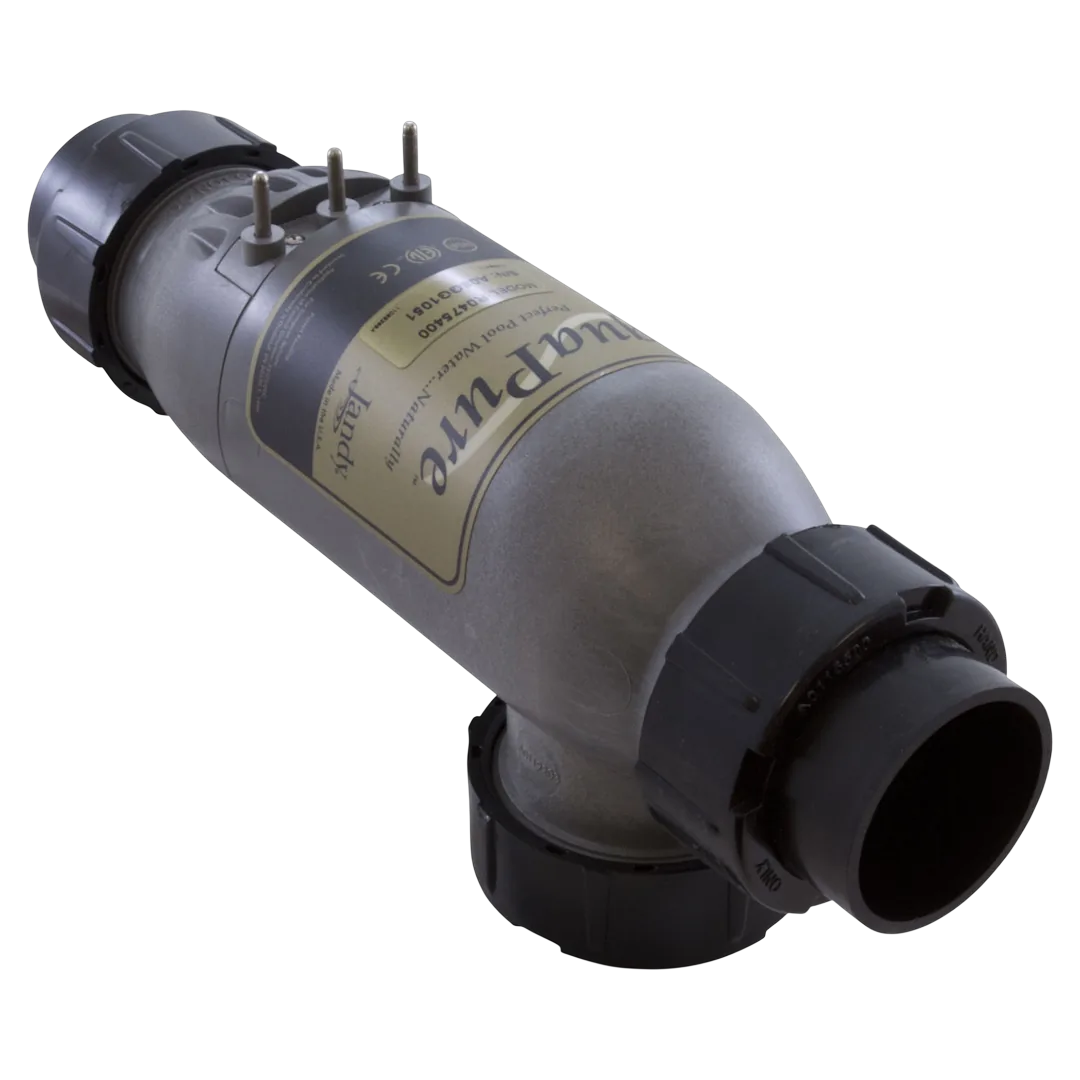

The Zodiac R0475400 is a 2-port cell replacement kit specifically designed for the Zodiac Jandy AquaPure APURE1400 pool and spa water purification system. It includes a 16-foot DC cord and is equipped with 2-inch PVC unions for secure connections. This kit is compatible with the Jandy AquaPure 1400 electronic chlorine generator.
Includes: 3-Port Cell, 16' DC Power Cord, 2" PVC LX Unions
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Jandy AquaPure 1400 3-Port Salt Cell with 2" PVC LX Unions |
| Part Number | R0475400 |
| Part Type | Salt Cell |
| Compatibility | Jandy AquaPure 1400 Systems |
| Includes | 3-Port Cell, 16' DC Power Cord, 2" PVC LX Unions |
| Material | Titanium with precious metal coatings |
| Connection Size | 2" slip × 2½" spigot universal unions |
| Flow Paths | 3-Port design with sensor integration and 90° plumbing flexibility |
| Chlorine Output | 1.25 pounds per day |
| Pool Size Capacity | Up to 40,000 gallons |
| Input Power | 115 VAC, 50/60 Hz, 1.5 amps or 230 VAC, 50/60 Hz, 0.75 amps |
| Output Power | 22–30 VDC at 3 amps max |
| Cord Length | 16 feet |
| Self-Cleaning Function | Automatic reversing cycles to prevent scale buildup |
| Certifications | ETL Listed and NSF/ANSI Standard 50 certified for commercial use |
| Shipping Dimensions | 16.625 x 4 x 4 inch |
