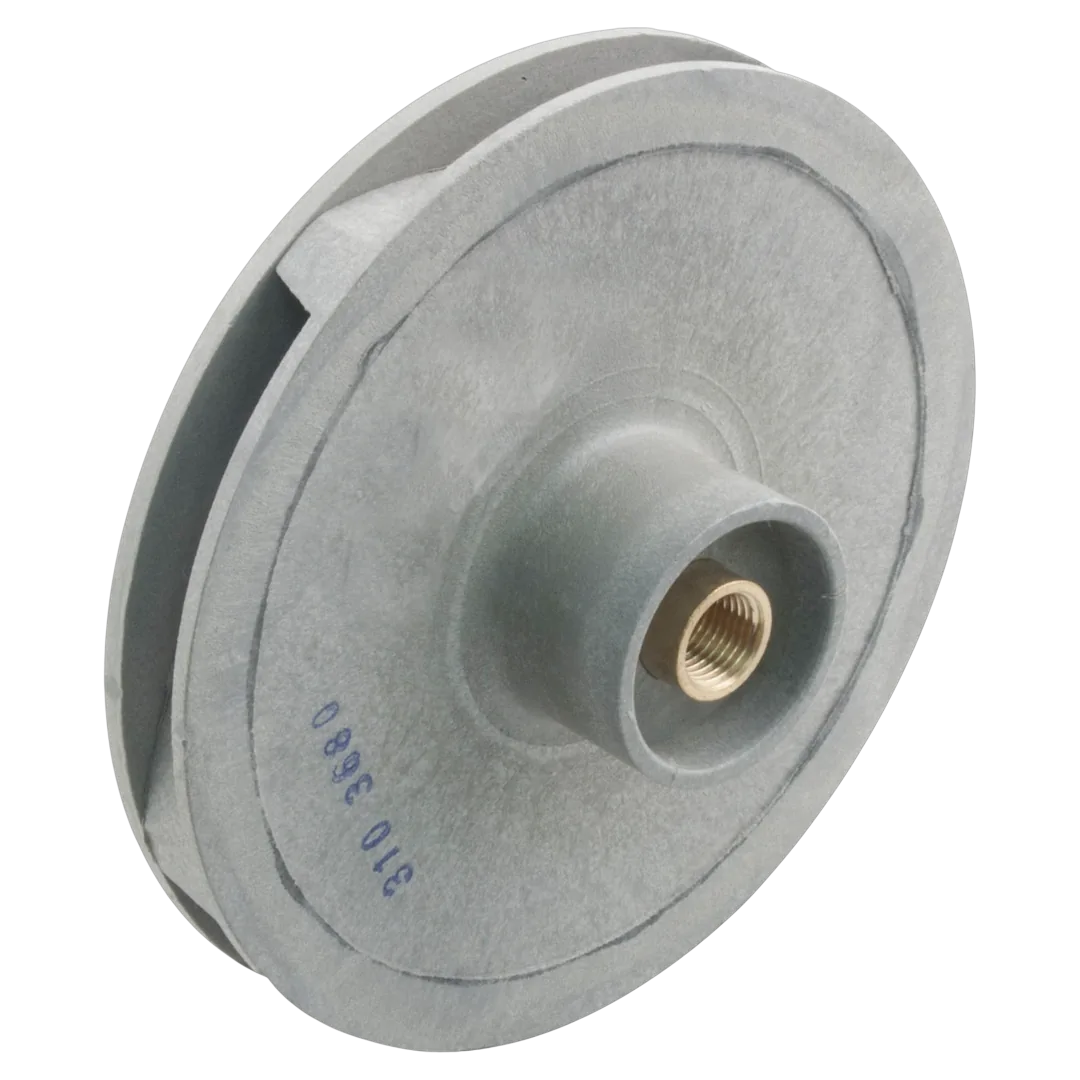

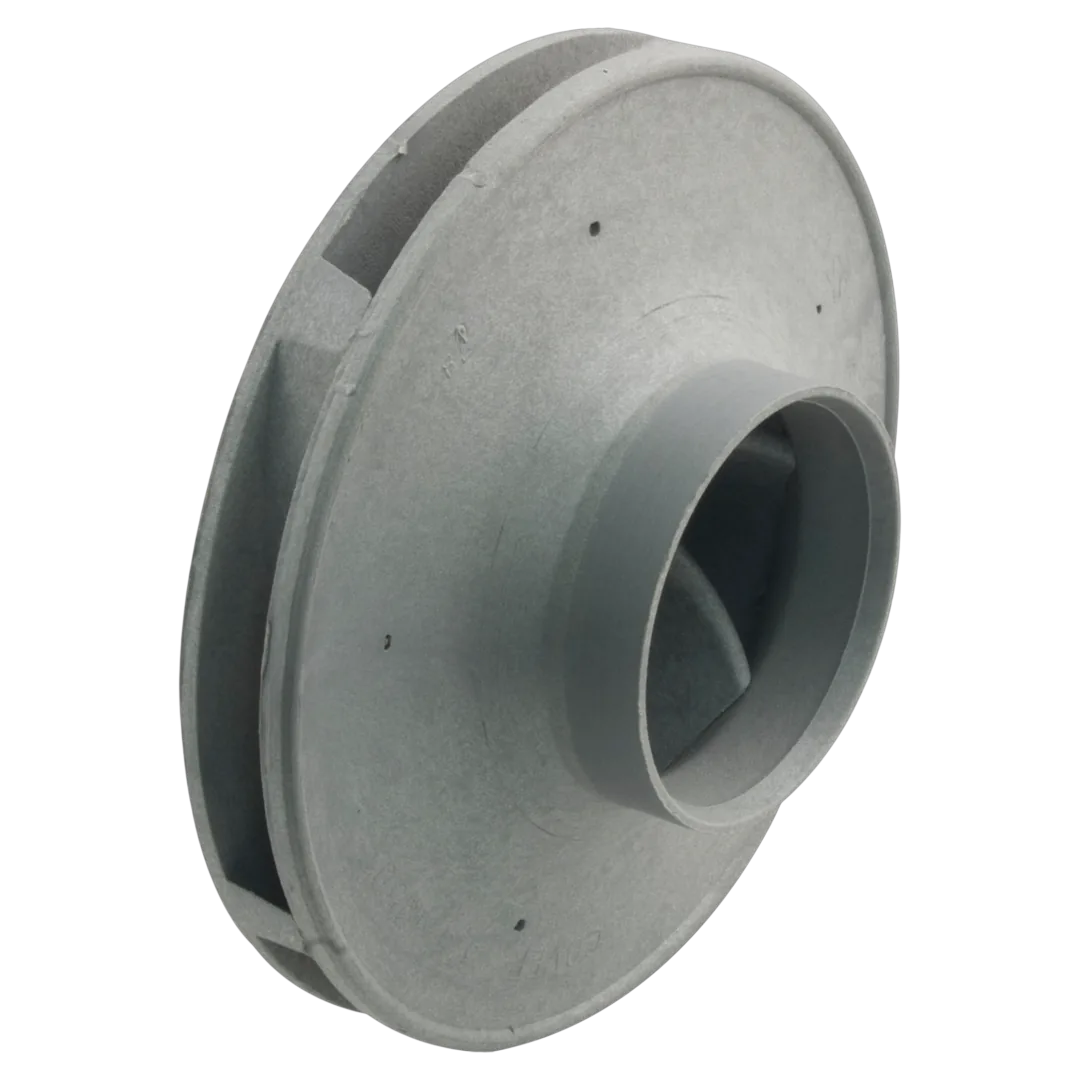

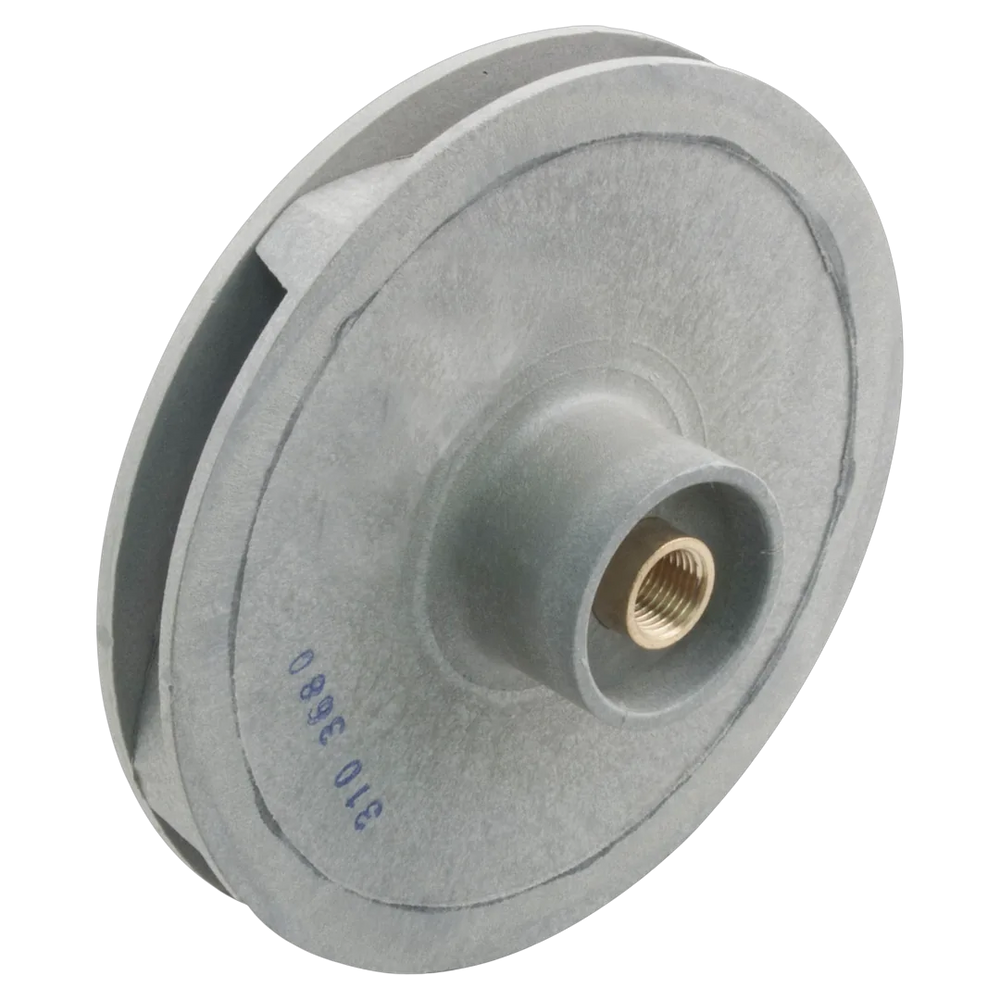

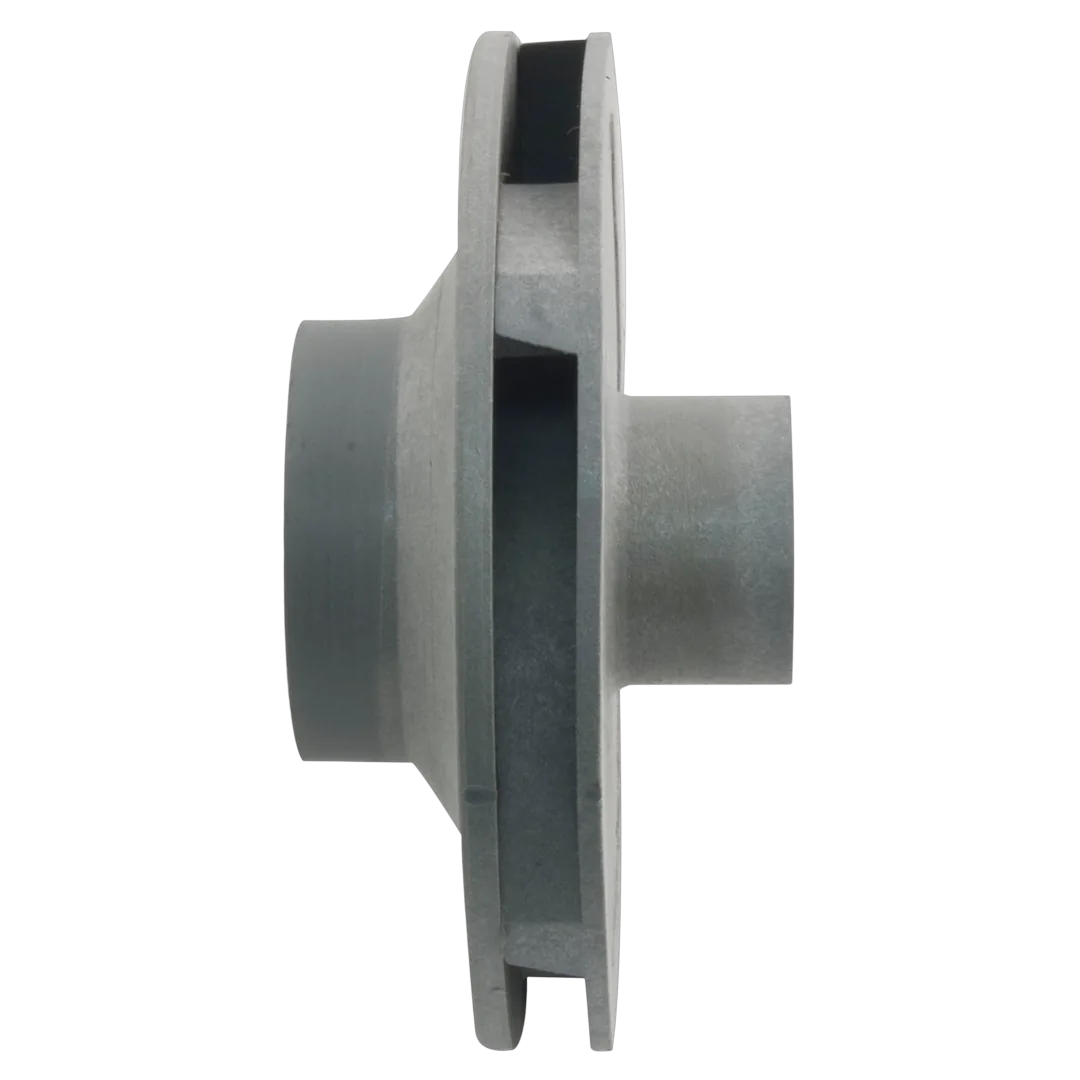

Waterway SVL56 310-3680 Impeller
Waterway | SKU:
310-3680
$6100
/ea
Unit price
/
Unavailable
Waterway SVL56 310-3680 Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-3680 is a 3.0 horsepower closed face impeller specifically designed for the SVL56E-130 pool pump. This impeller is made from durable plastic with an enamel finish and requires no assembly. It is engineered to fit the Waterway SVL56 pool pump, requiring installation onto a 3.0 horsepower or greater square flange motor.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway SVL56E-130 Impeller Assembly - High-Flow |
| Part Number | 310-3680 |
| Part Type | Impeller |
| Compatibility | Waterway SVL56E-130 pump models |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 5-1/16 inch |
| Vane Width ID | 3/8 inch |
| Eye Diameter OD | 2-1/4 inch |
| Eye Length | 9/16 inch |
| Impeller Width OD | 5/8 inch |
| Seal Seat Depth | 15/16 inch |
| Seal Seat Diameter OD | 1-1/2 inch |
| Shipping Dimensions | 10 x 6 x 6 inch |
| Product Weight | 0.44 pound |
