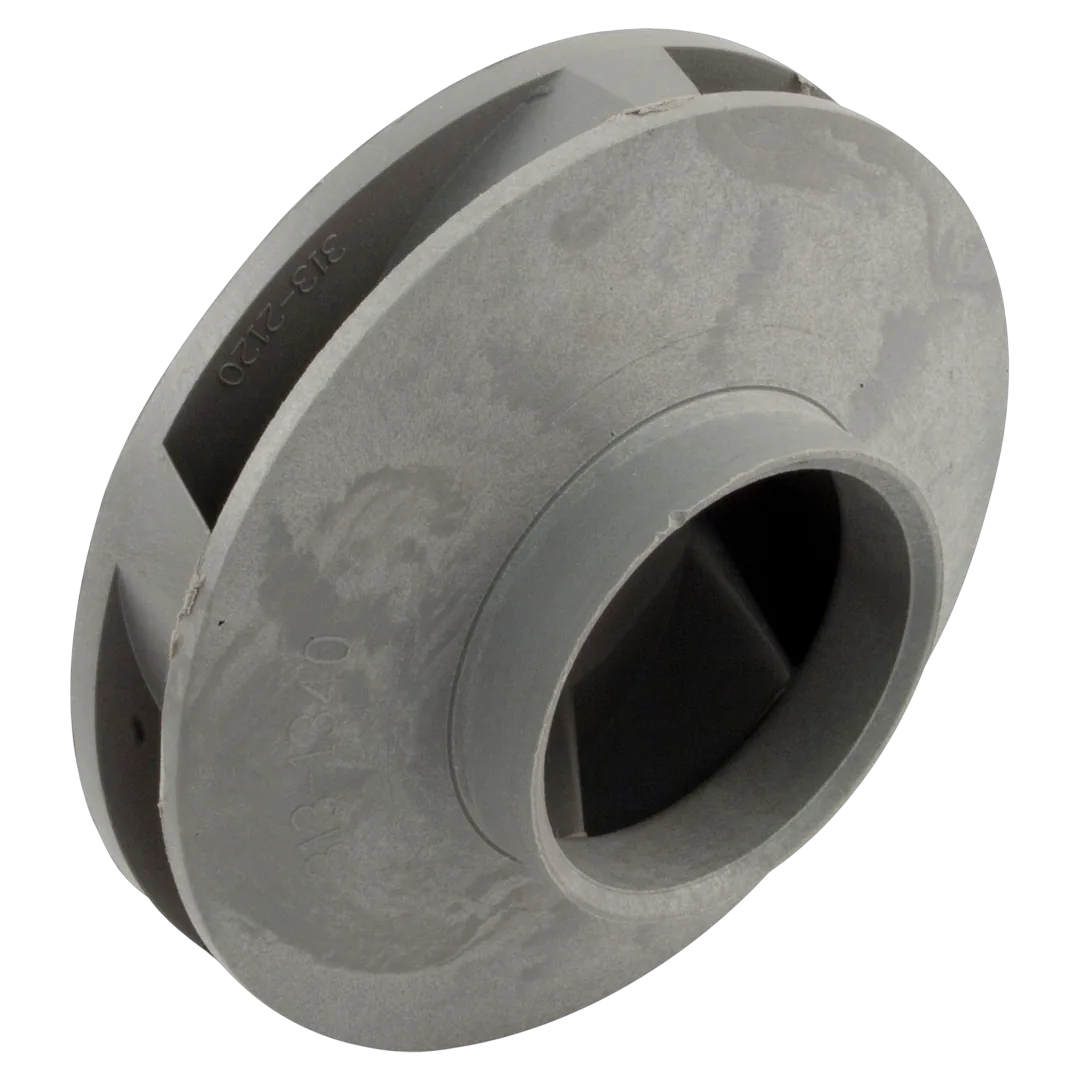

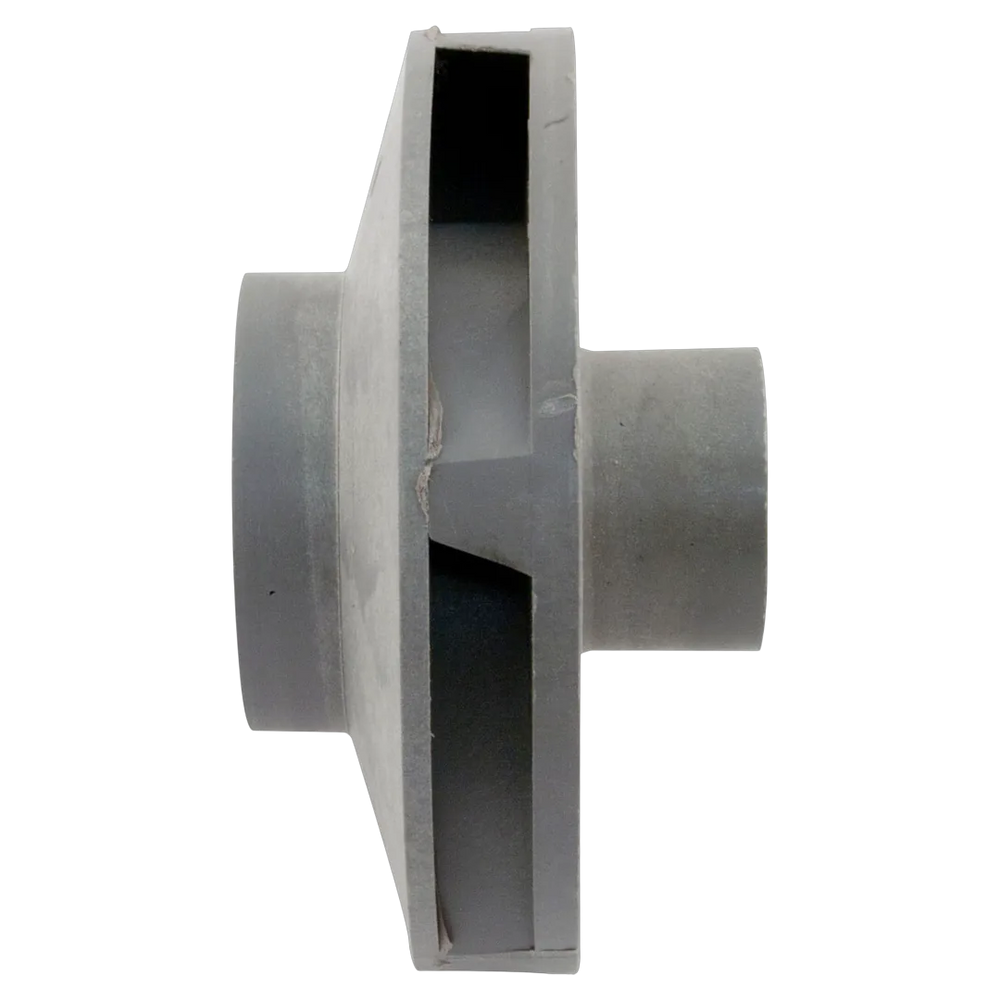

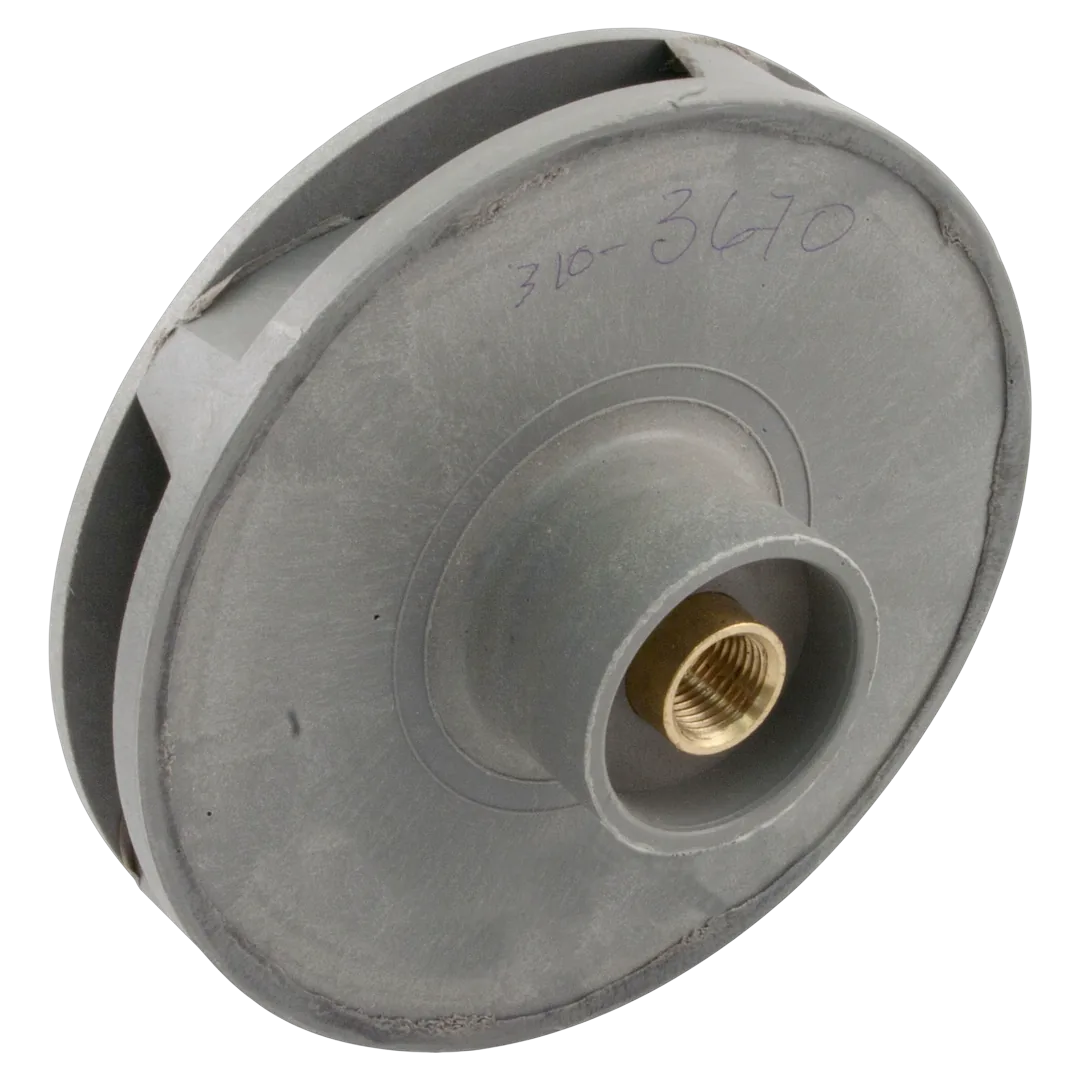

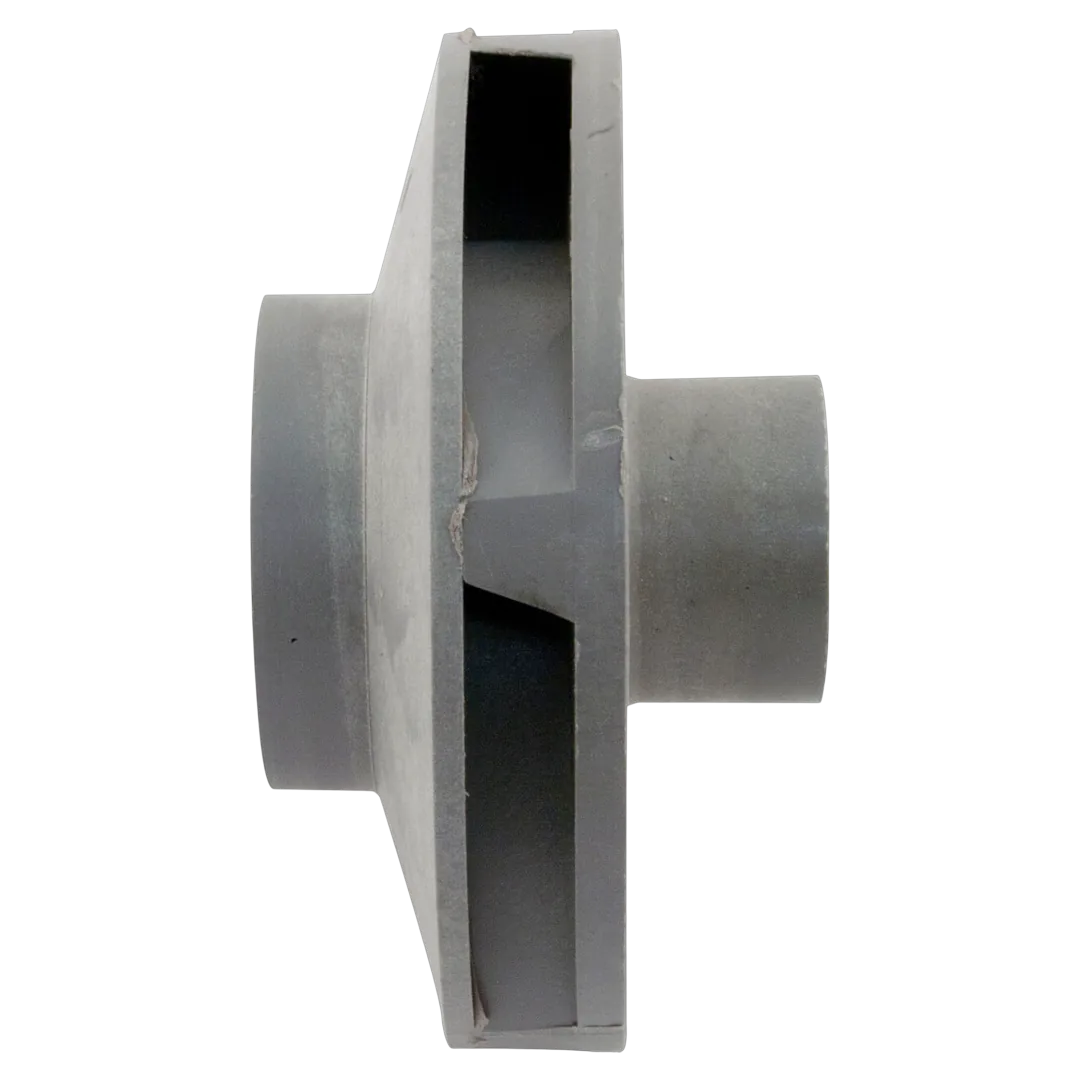

Waterway SVL56 2HP Impeller 310-3670
Waterway | SKU:
310-3670
$8100/ea
Unit price
/
Unavailable
Waterway SVL56 2HP Impeller 310-3670 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-3670 is a high-flow impeller assembly designed for use in SVL56 pool pumps. Constructed for a power rating of 2.0 horsepower, it is compatible with models utilizing the SVL56 pump housing. The impeller features a closed face design and is engineered to operate with 60Hz electrical systems at 11.5 amps.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 2-1/2HP 1-1/2AMP SVL High Flow Impeller Assembly |
| Part Number | 310-3670 |
| Part Type | Impeller Assembly |
| Compatibility | Waterway SVL56 High Flow Pump |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.5 inches |
| Vane Width ID | 0.4375 inches |
| Eye Diameter OD | 2.25 inches |
| Eye Length | 0.5 inches |
| Impeller Width OD | 0.875 inches |
| Seal Seat Depth | 0.75 inches |
| Shaft Diameter OD | 0.625 inches |
| Seal Seat Diameter OD | 1.5 inches |
| Shipping Dimensions | 4 x 4 x 2.5 inch |
| Product Weight | 9.38 pound |
