Waterway SVL56 1.5HP Impeller 310-3660
Waterway | SKU:
310-3660
$8200/ea
Unit price
/
Unavailable
Waterway SVL56 1.5HP Impeller 310-3660 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

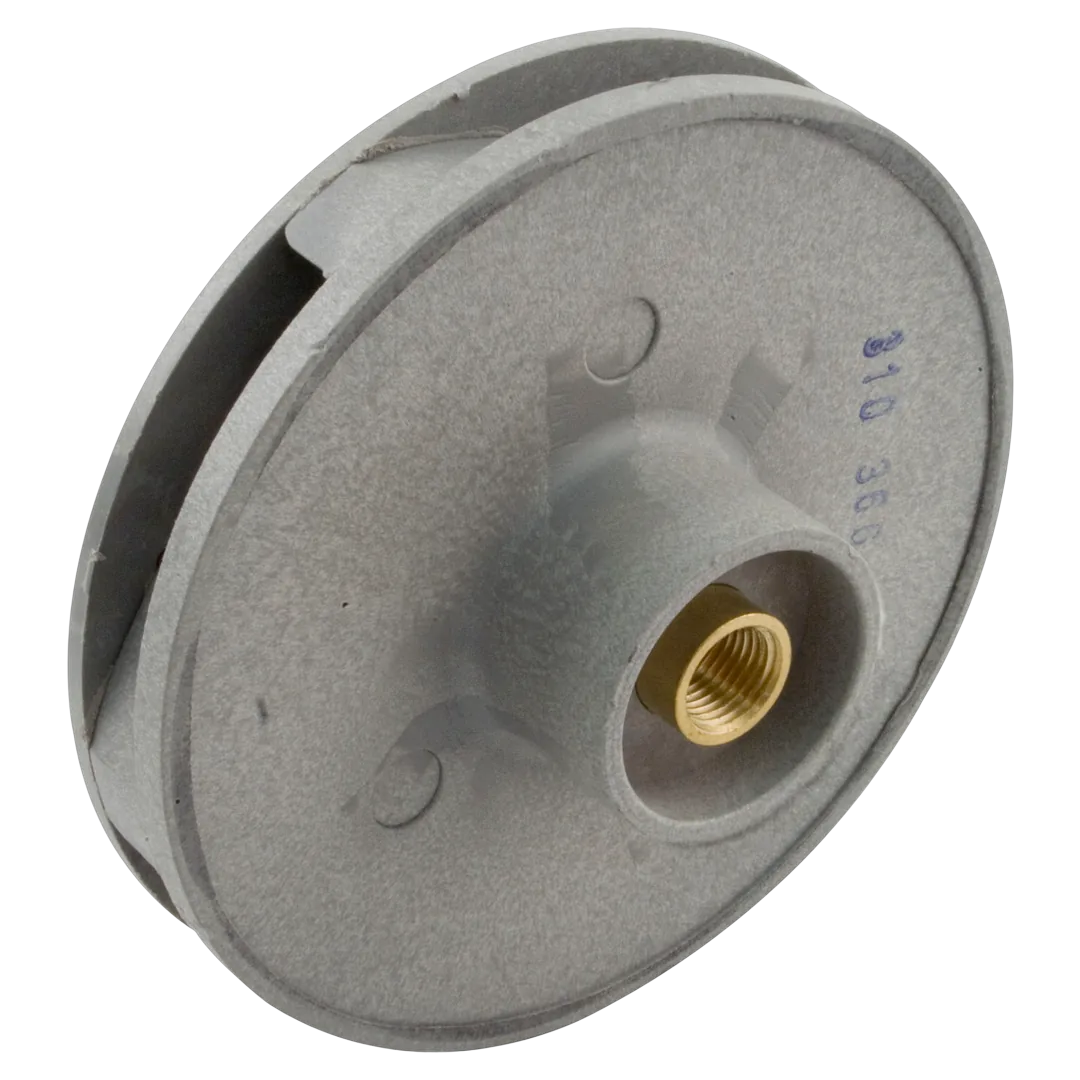

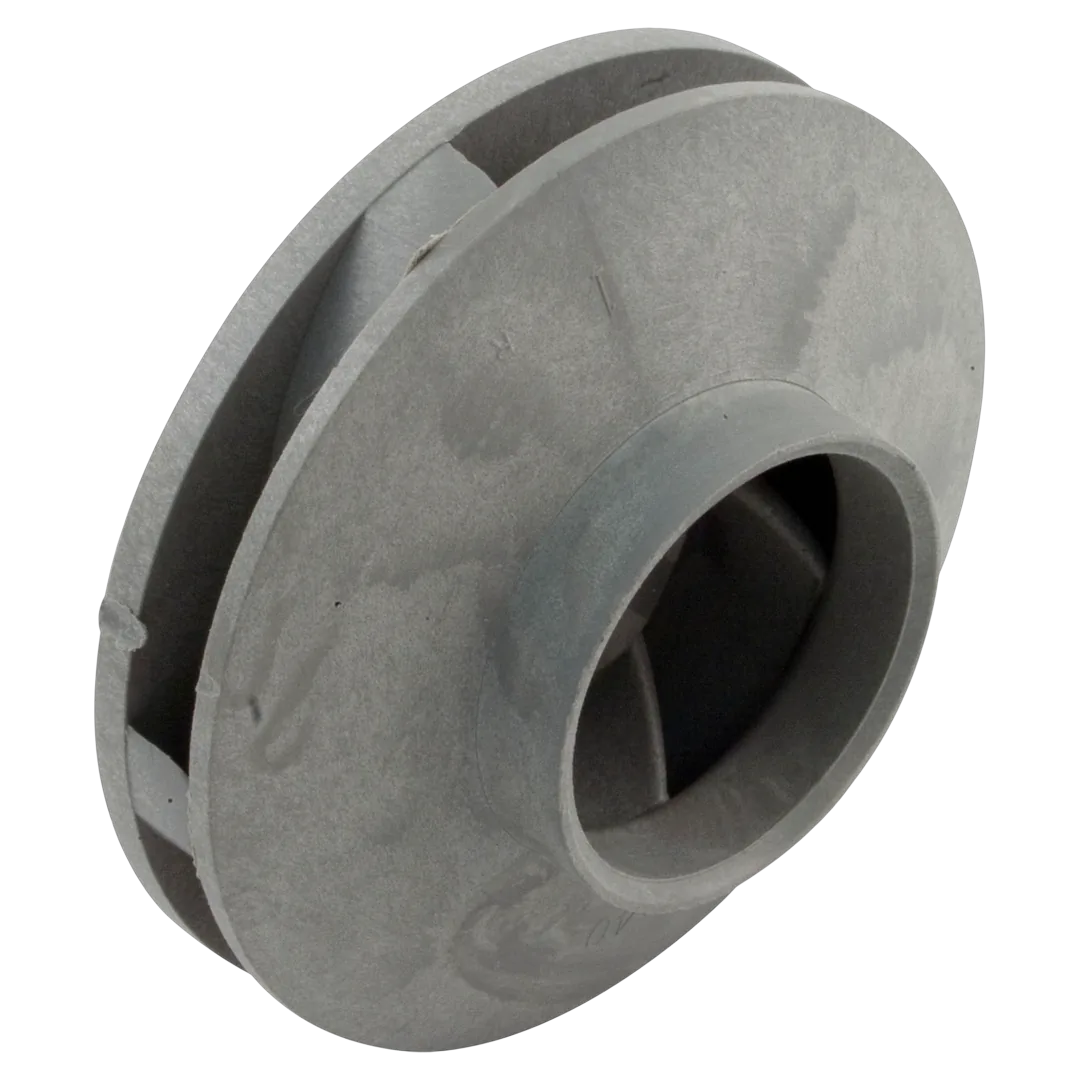

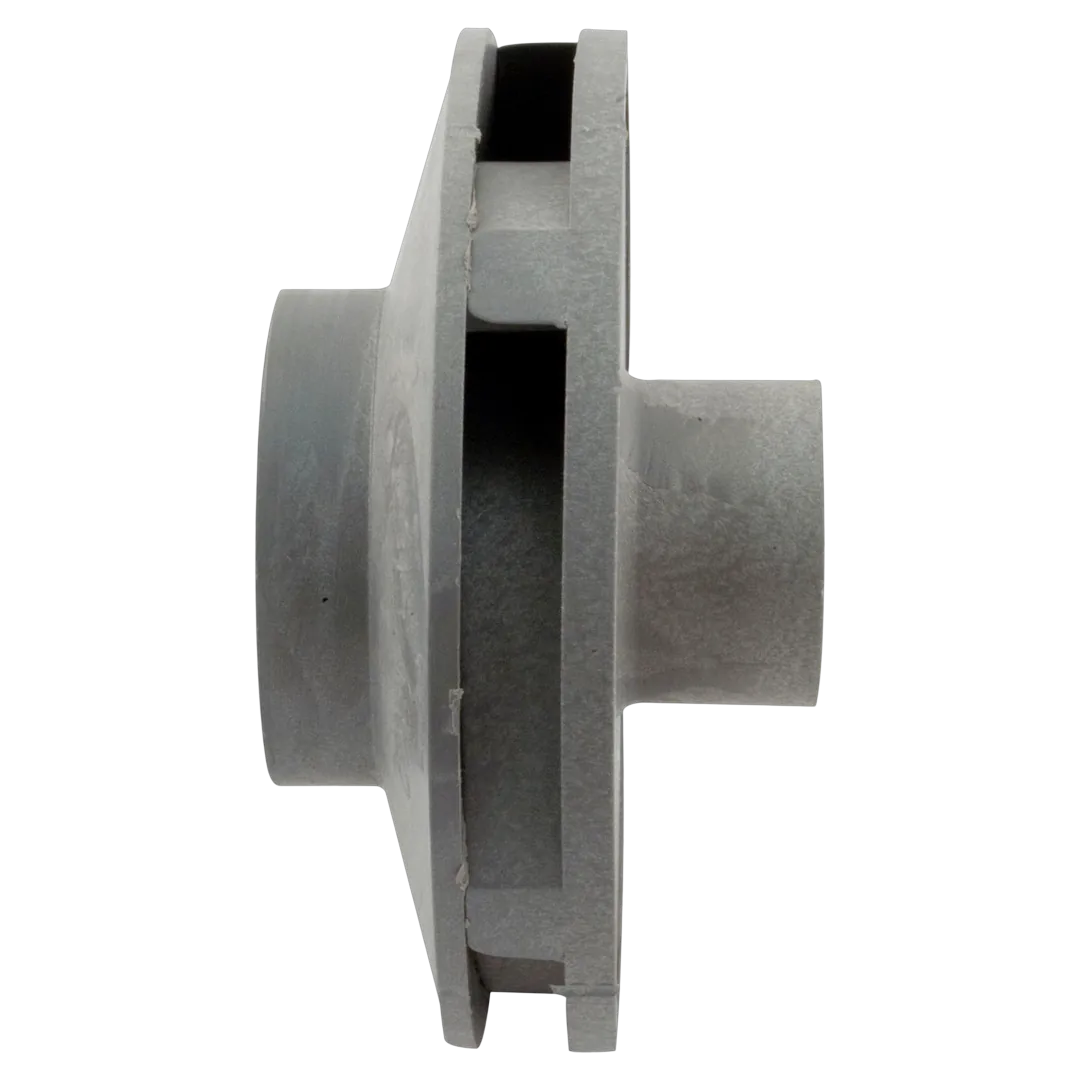

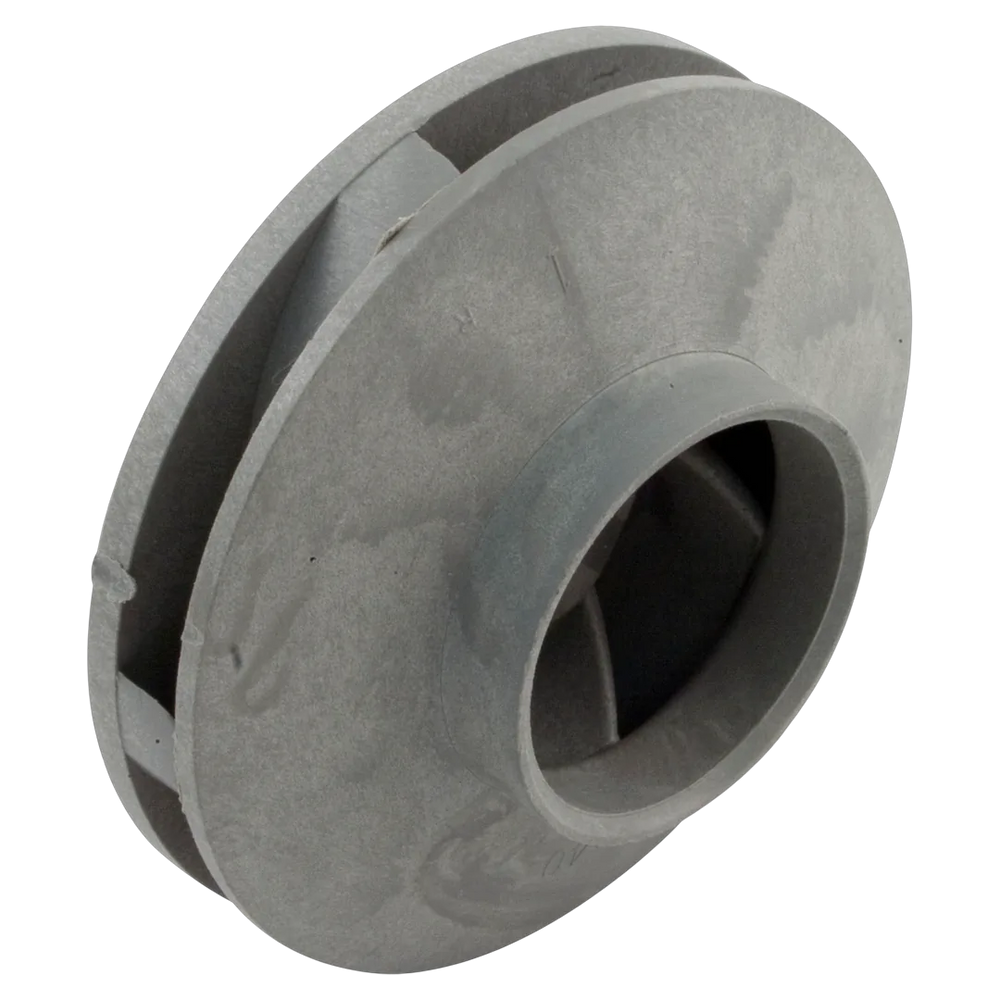

The Waterway 310-3660 is a 1.5HP impeller designed for use in the SVL56 pump series. It features a closed face design and is constructed to fit within Waterway's pump systems. This impeller assembly is specifically compatible with the models SVL56E-115, SVL56S-115, and SVL56S-215.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 310-3660 |
| Part Number | 310-3660 |
| Part Type | Impeller Assembly |
| Compatibility | Waterway SVL56E-115, SVL56S-115, SVL56S-215 pumps |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 4.5 inch |
| Vane Width | 0.375 inch |
| Eye Diameter | 2.25 inch |
| Eye Length | 0.5 inch |
| Impeller Width | 0.75 inch |
| Seal Seat Depth | 0.875 inch |
| Shaft Diameter | 0.625 inch |
| Seal Seat Diameter | 1.5 inch |
| Shipping Dimensions | 4.5 x 4.5 x 3 inch |
| Product Weight | 9.03 pound |
