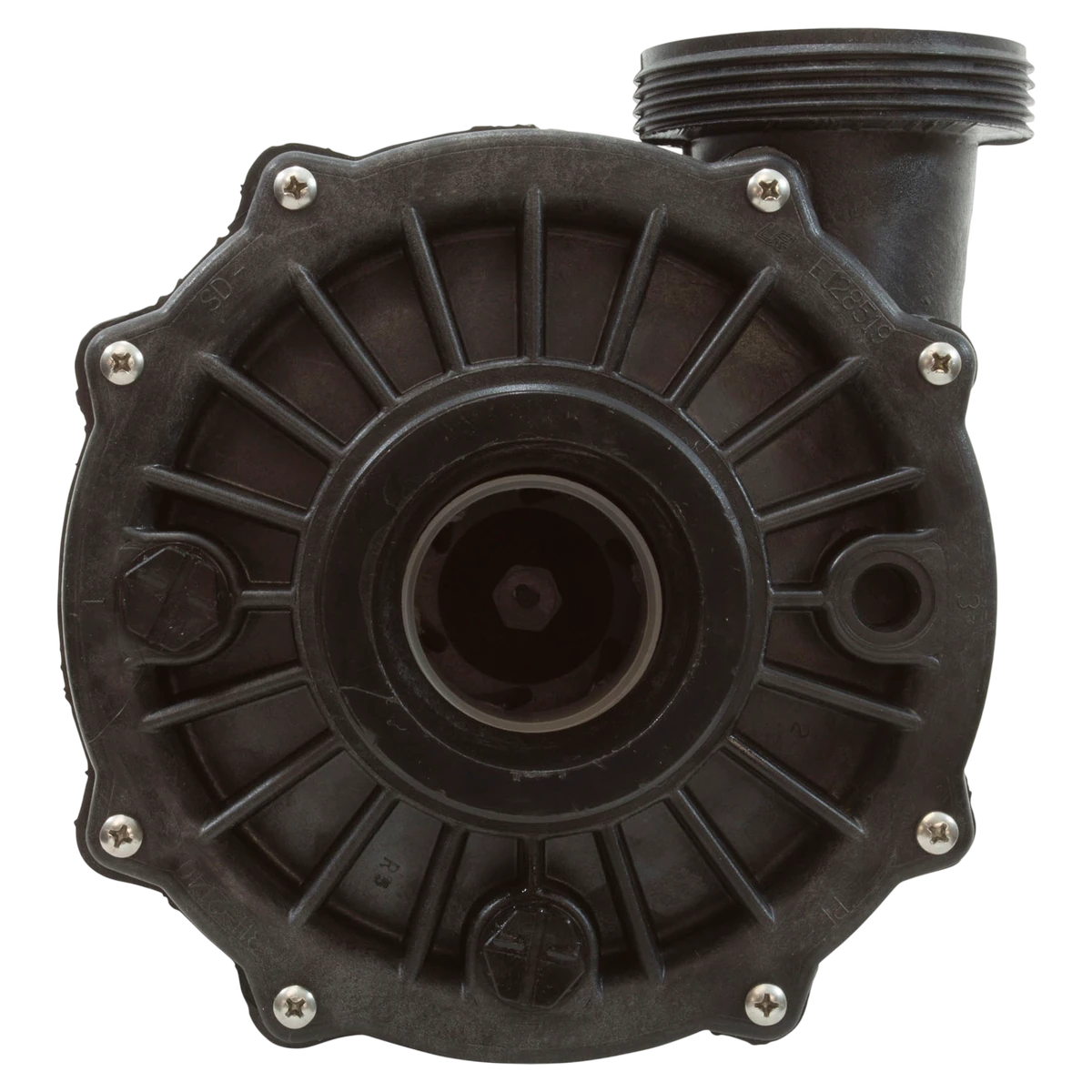

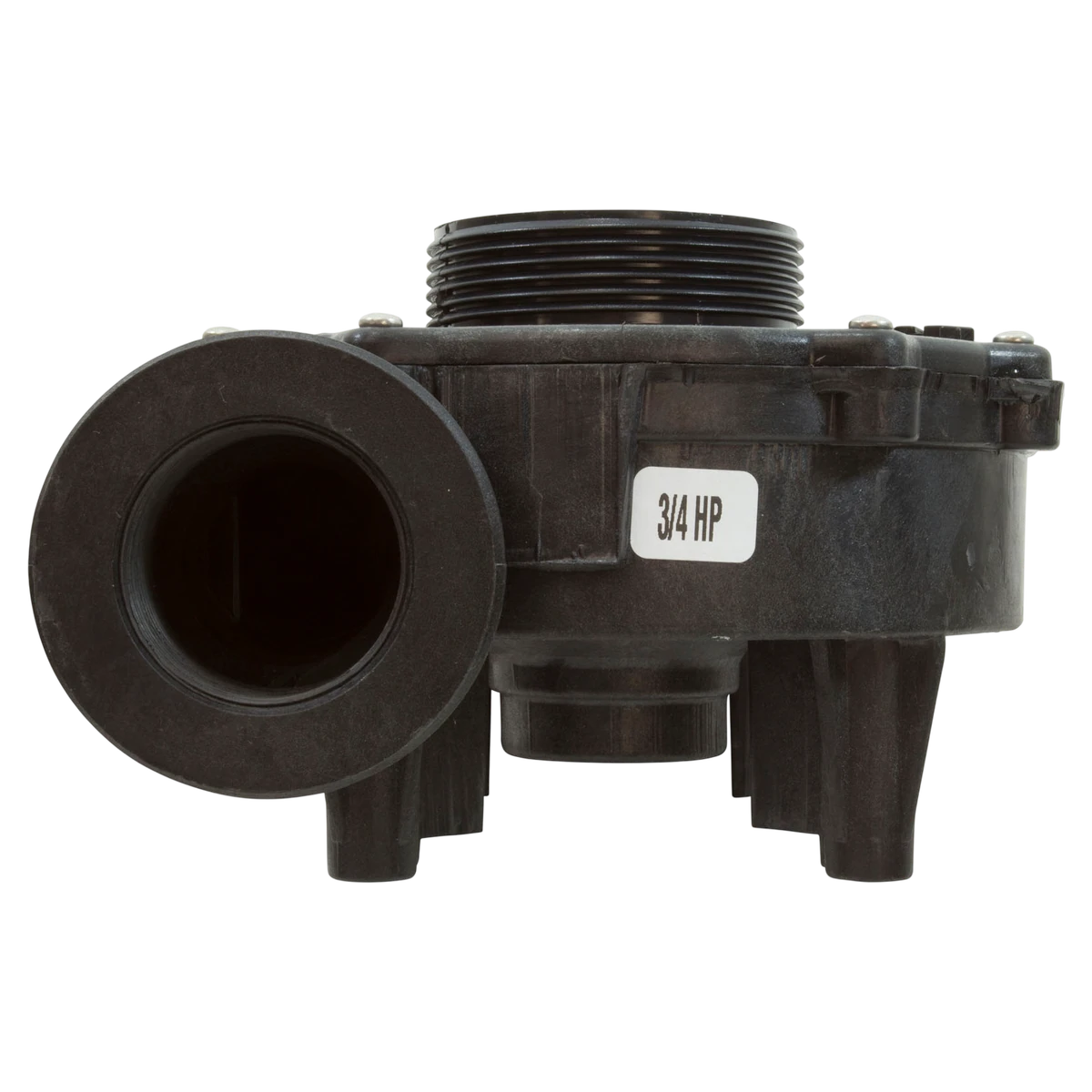

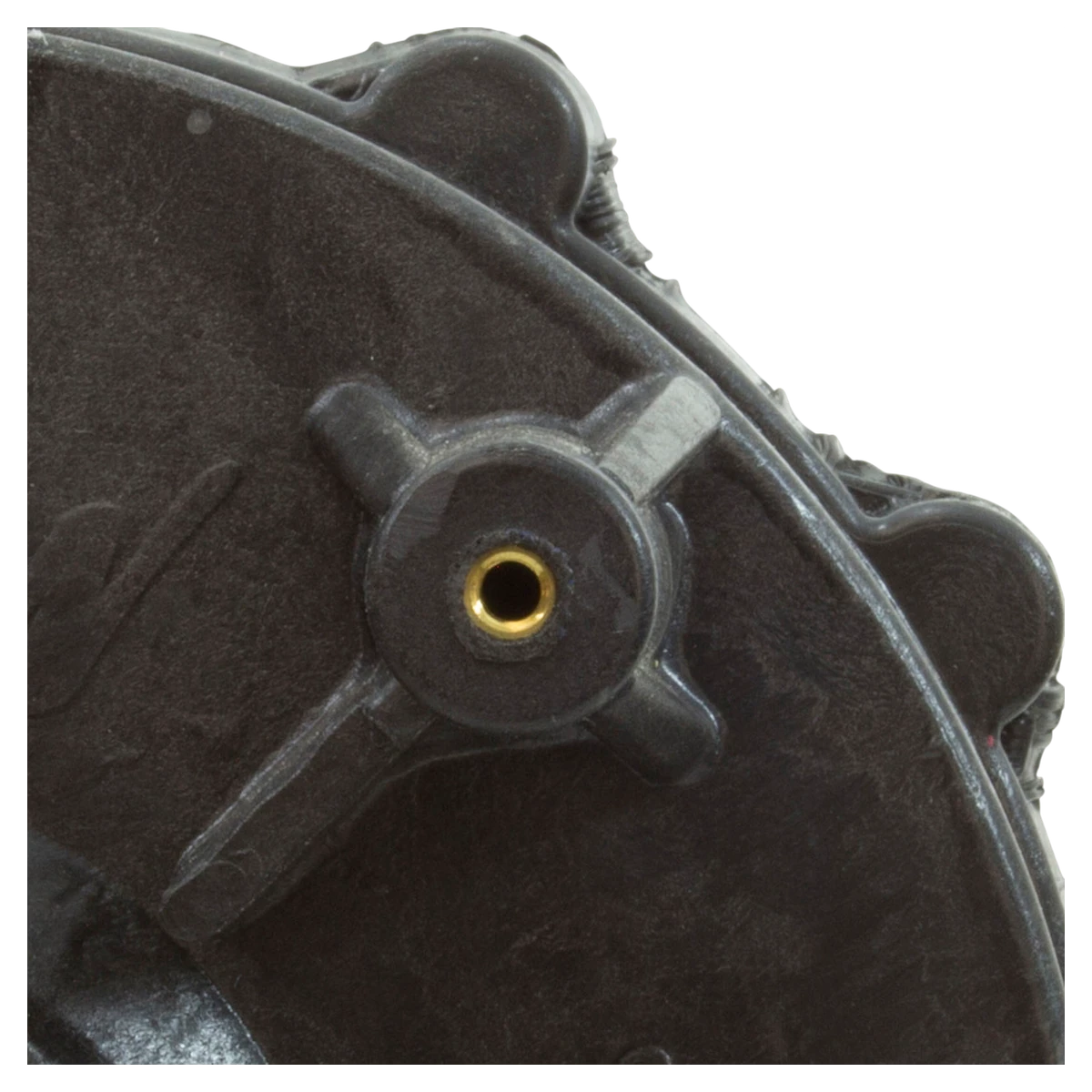

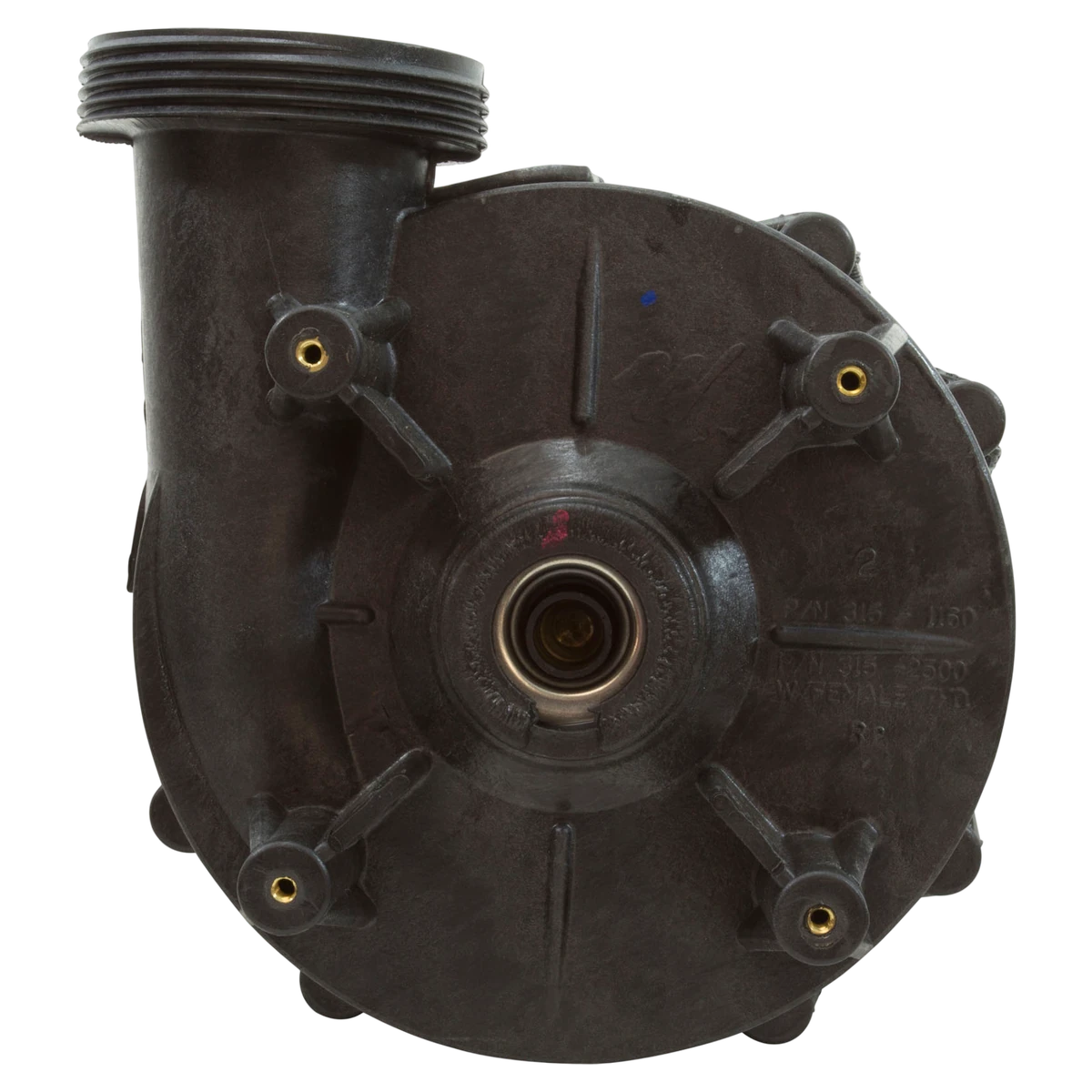

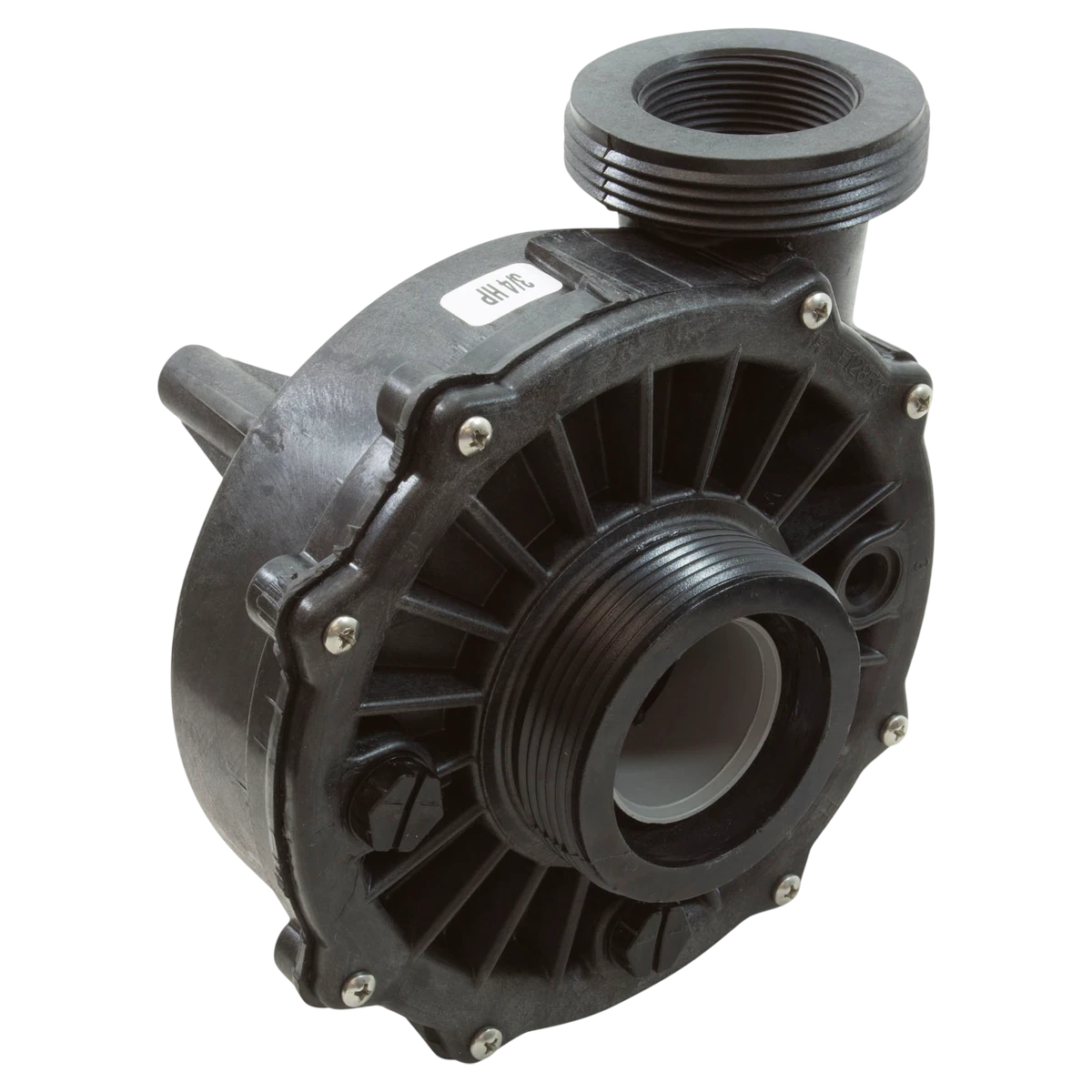

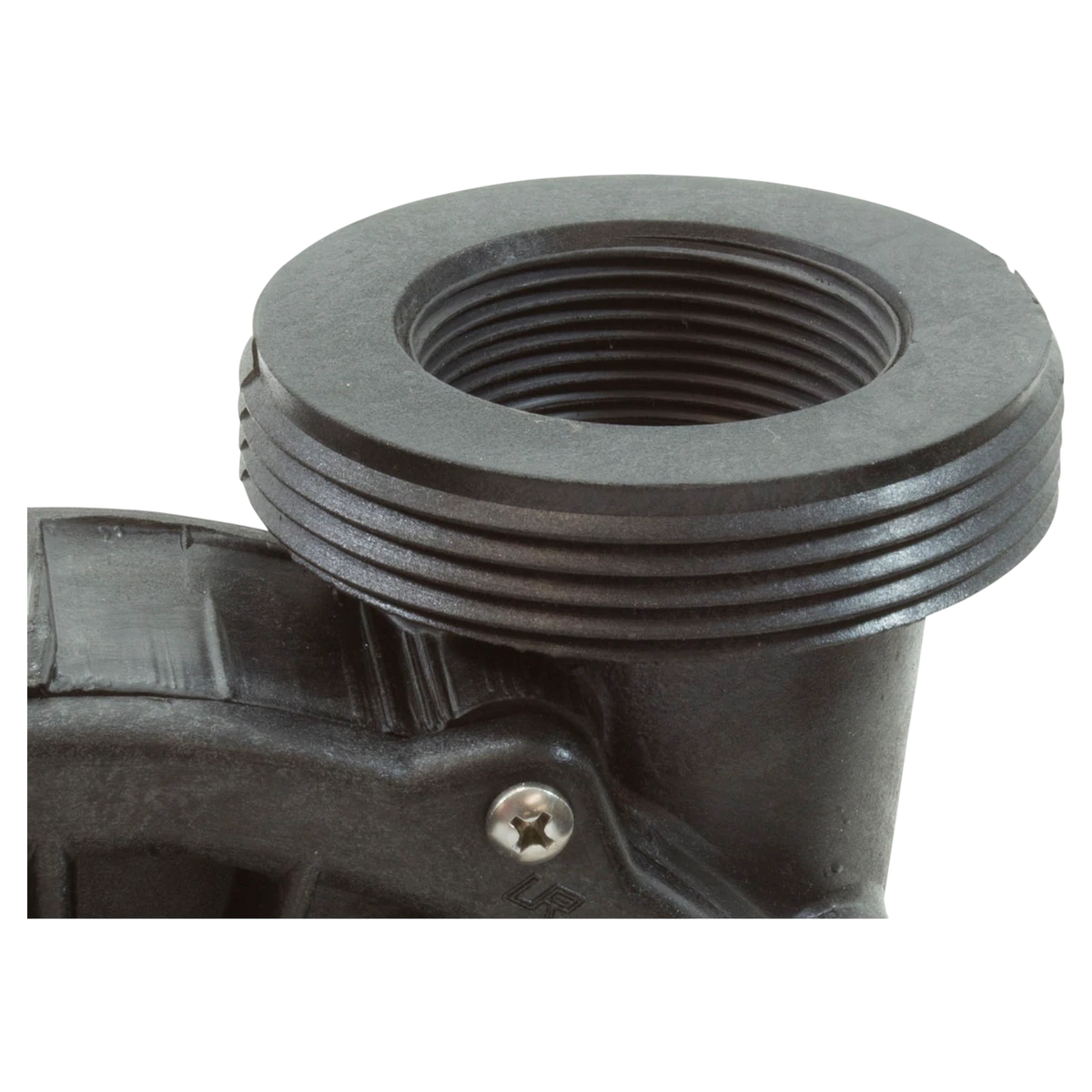

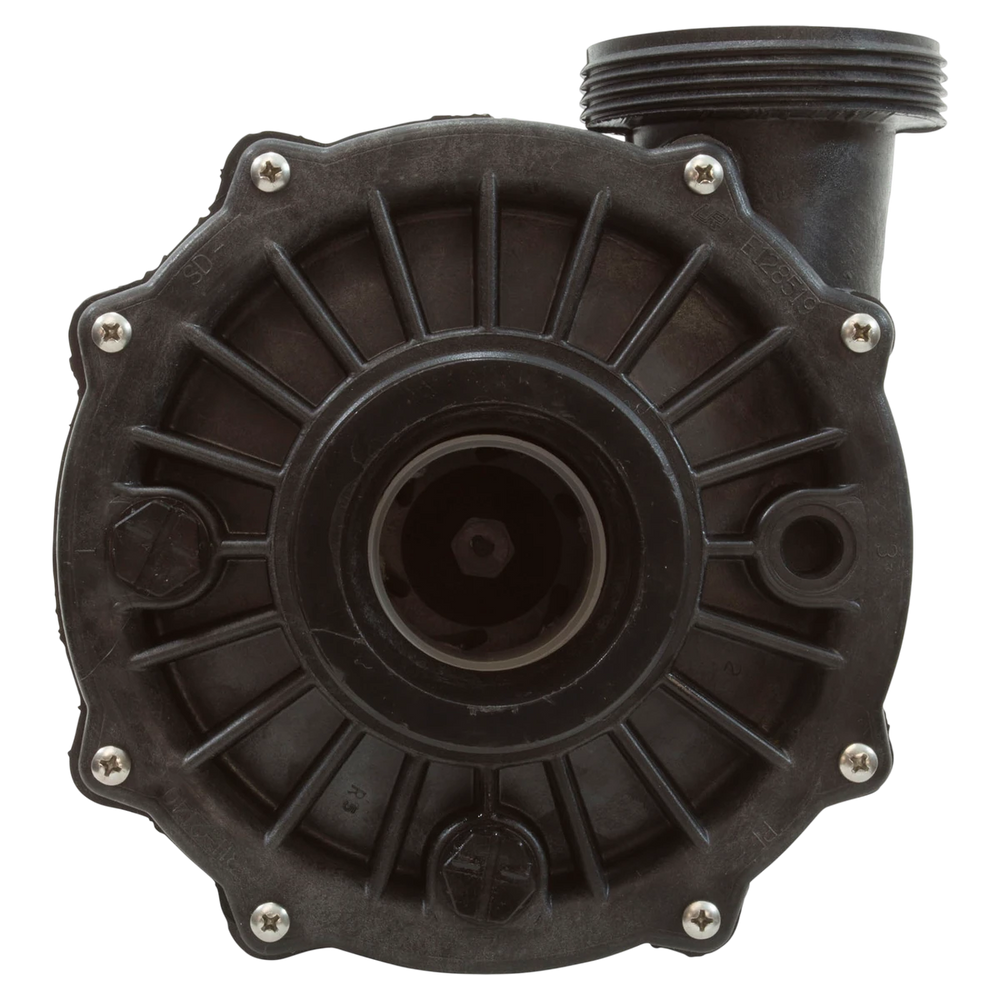

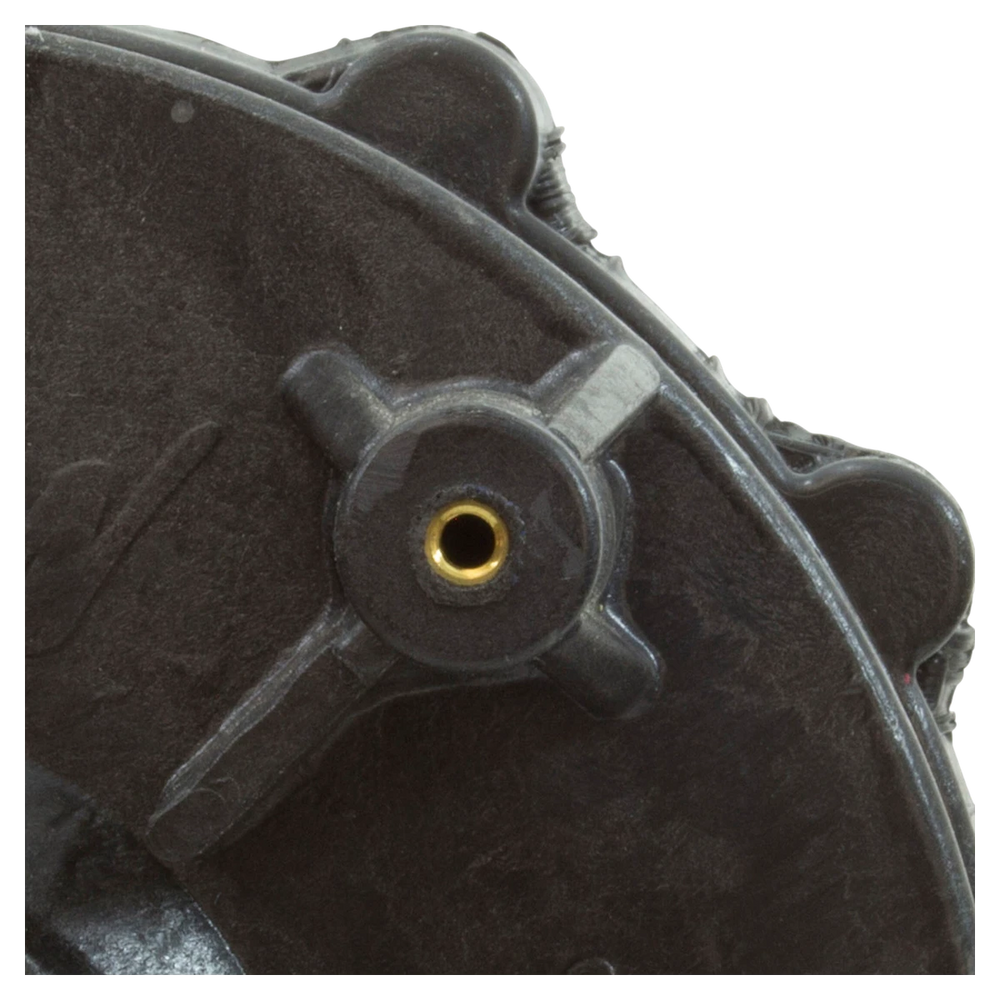

Side Discharge Spa Wet End 3/4Hp Impeller

This wet end replaces the pump body, impeller, and shaft seal on a 48-frame thru-bolt Waterway Hi-Flo style spa pump, with 2" center suction and 2" side discharge.

Key Features

• 3/4 HP, 48 frame thru-bolt
• Center suction, side discharge
• 2" suction and discharge
• Drain plugs at 3, 6, 9 o'clock
• 8-screw volute

What's Included

• Impeller
• Mechanical shaft seal

Unions are not included and need to be sourced separately for installation.

This is a wet-end-only part with no motor; it bolts to an existing 48-frame thru-bolt motor.
