Waterway Executive ME-30226-25 Spa Pump
Waterway | SKU:
ME-30226-25
$000/ea
Unit price
/
Unavailable
Waterway Executive ME-30226-25 Spa Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

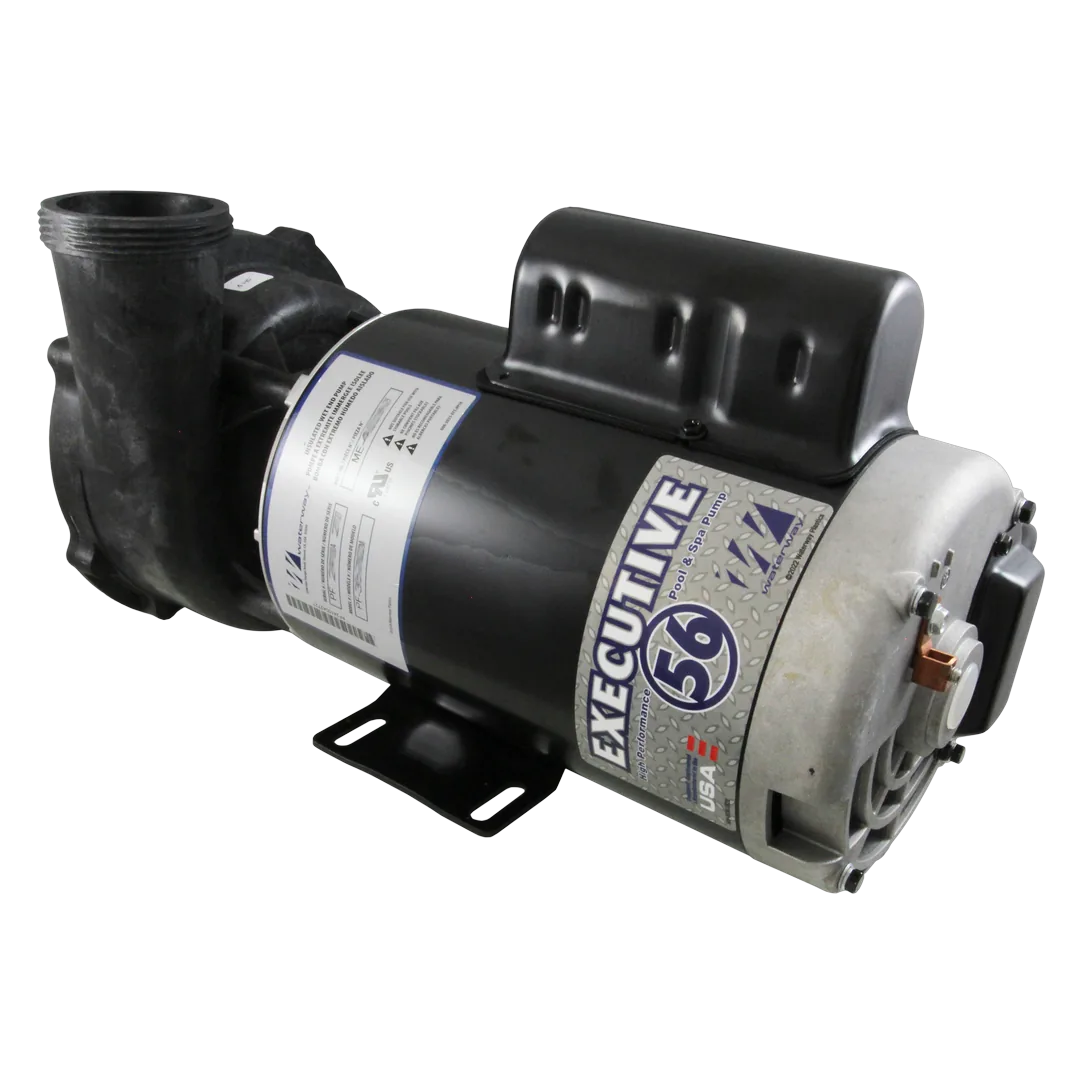

The Waterway ME-30226-25 is a dual-speed Executive spa pump designed for 56-frame motors. It operates on a 230V power supply and features a 3.0 horsepower motor with a side discharge design, a 2.5-inch intake, and a 2-inch output connection. The unit is compatible with spa systems requiring these specifications and includes an 8-foot power cord for installation flexibility.

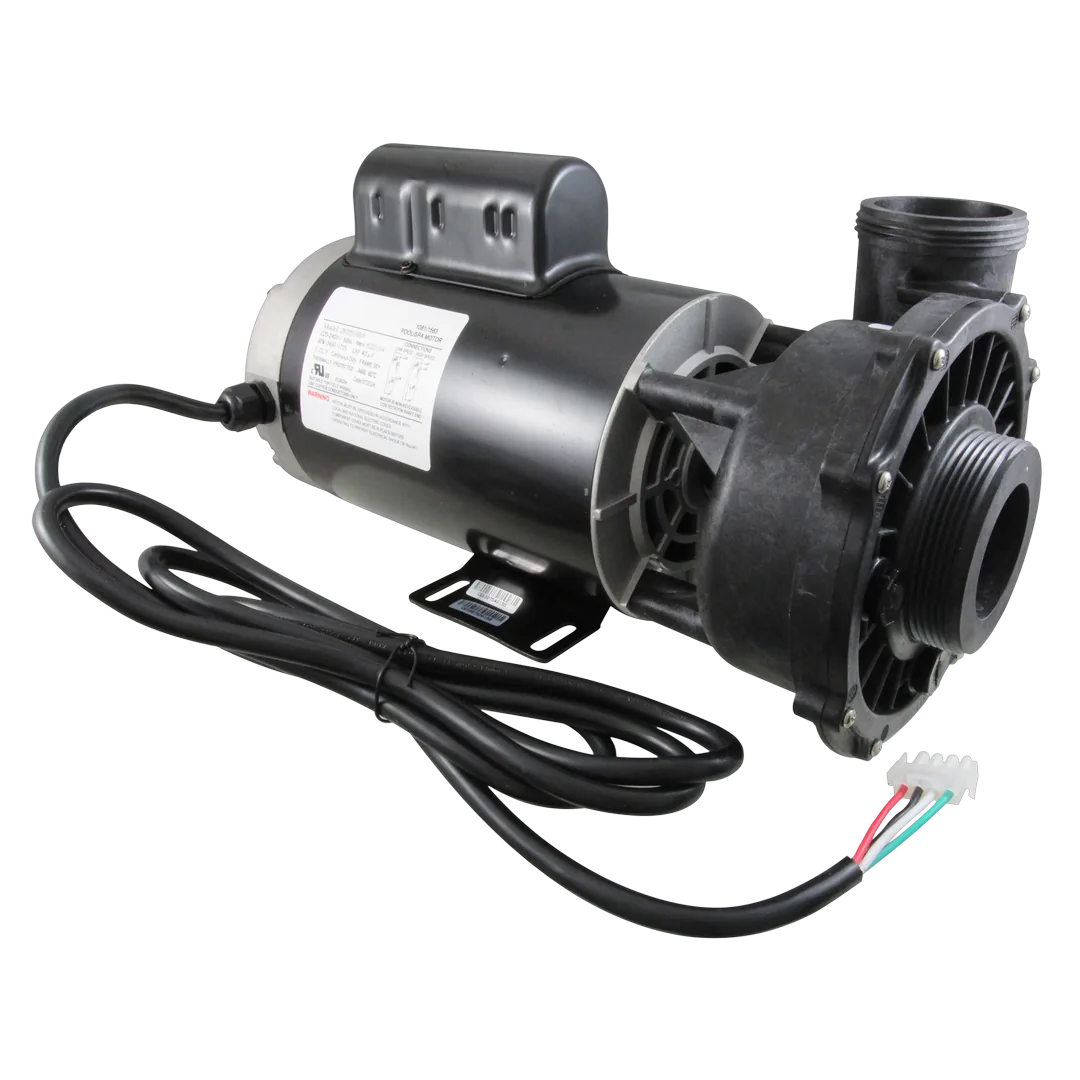

Includes: Pump with 8 ft cord
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Executive 3 HP, 2-Speed, 230V, 2 1⁄2" Intake, 2" Discharge |
| Part Number | ME-30226-25 |
| Part Type | Pump |
| Includes | Pump with 8 ft cord |
| Certifications | CE and TUV certification on export pumps |
| Material | Silicone carbide seals, Viton bellows, 316SS casing |
| Connection Size | 2 ½" Intake, 2" Discharge |
| Mount Type | 56-Frame |
| Flow Paths | Wet end can be rotated every 90° |
| Pressure Rating | Higher head pressure due to large 6 ½" diameter wet end |
| Seal Material | Silicone carbide seals, Viton bellows |
| Shipping Dimensions | 20 x 11 x 11 inch |
| Product Weight | 33.1 pound |
