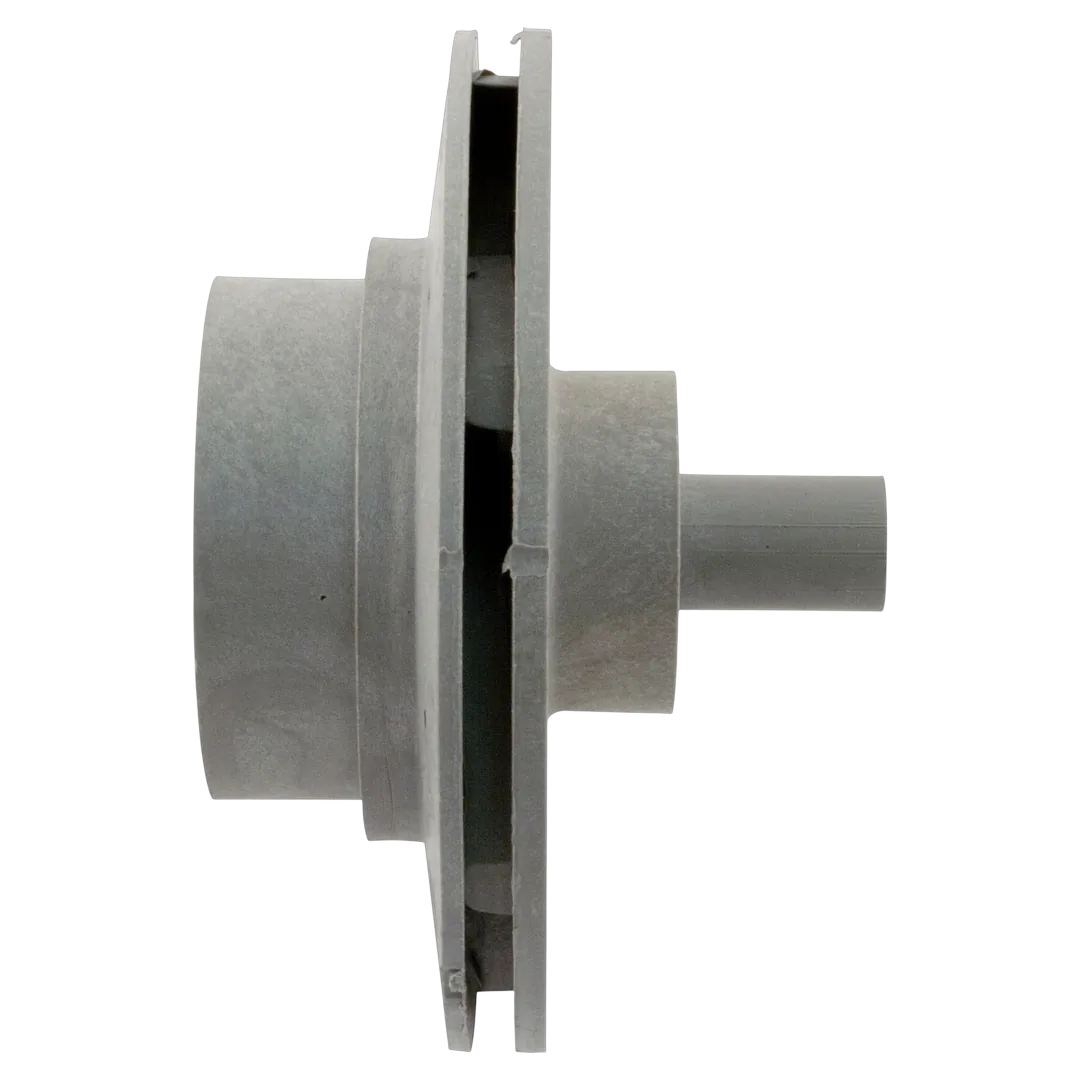

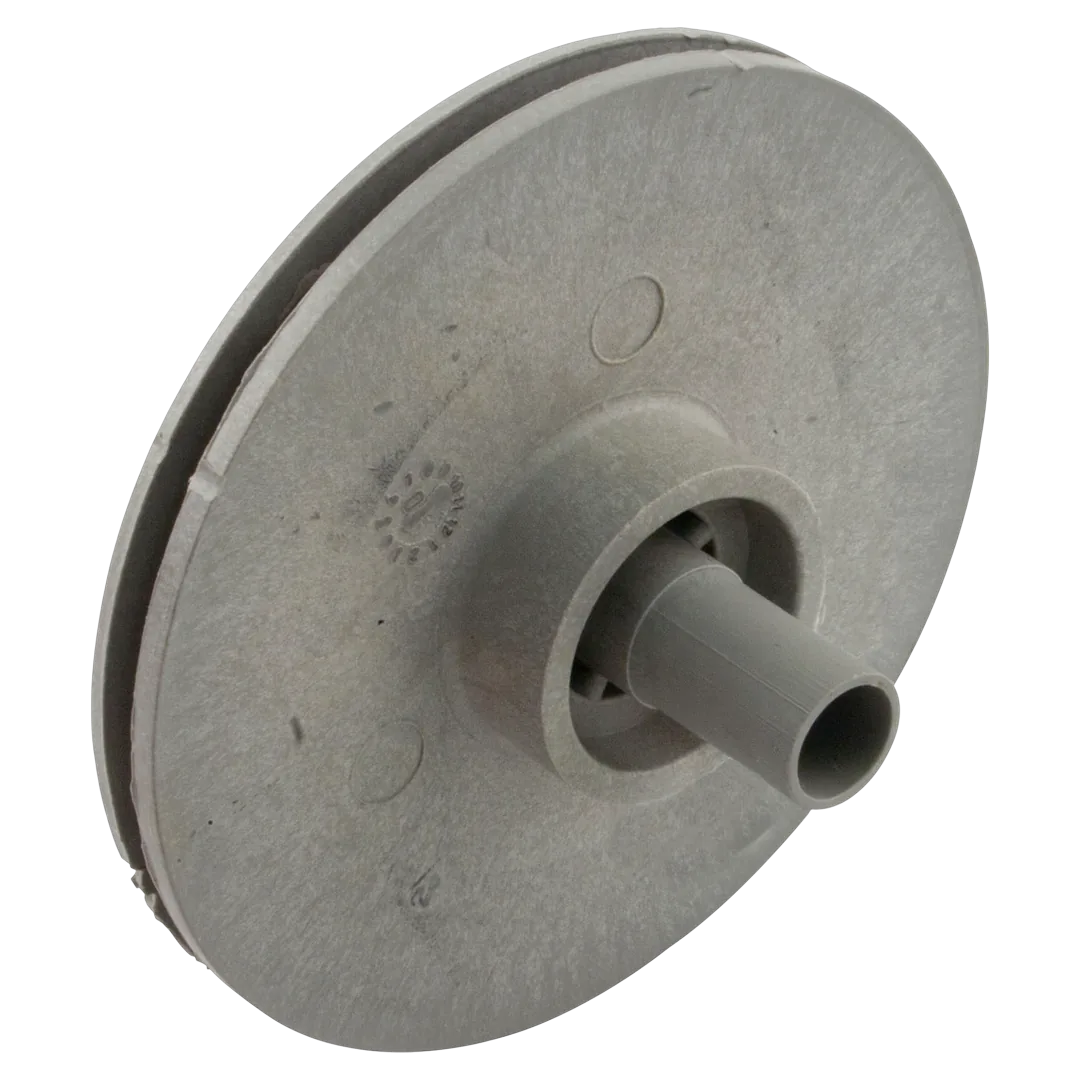

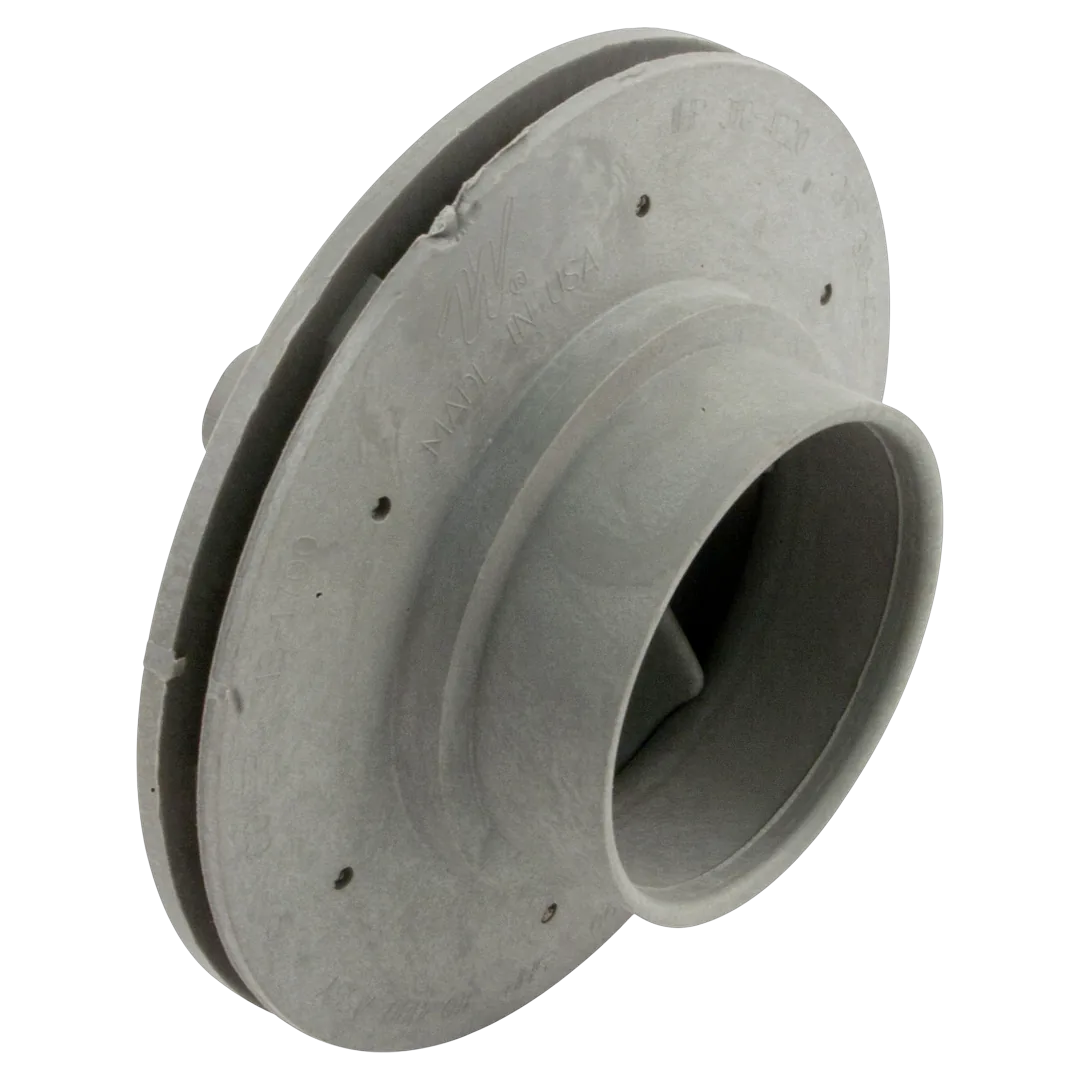

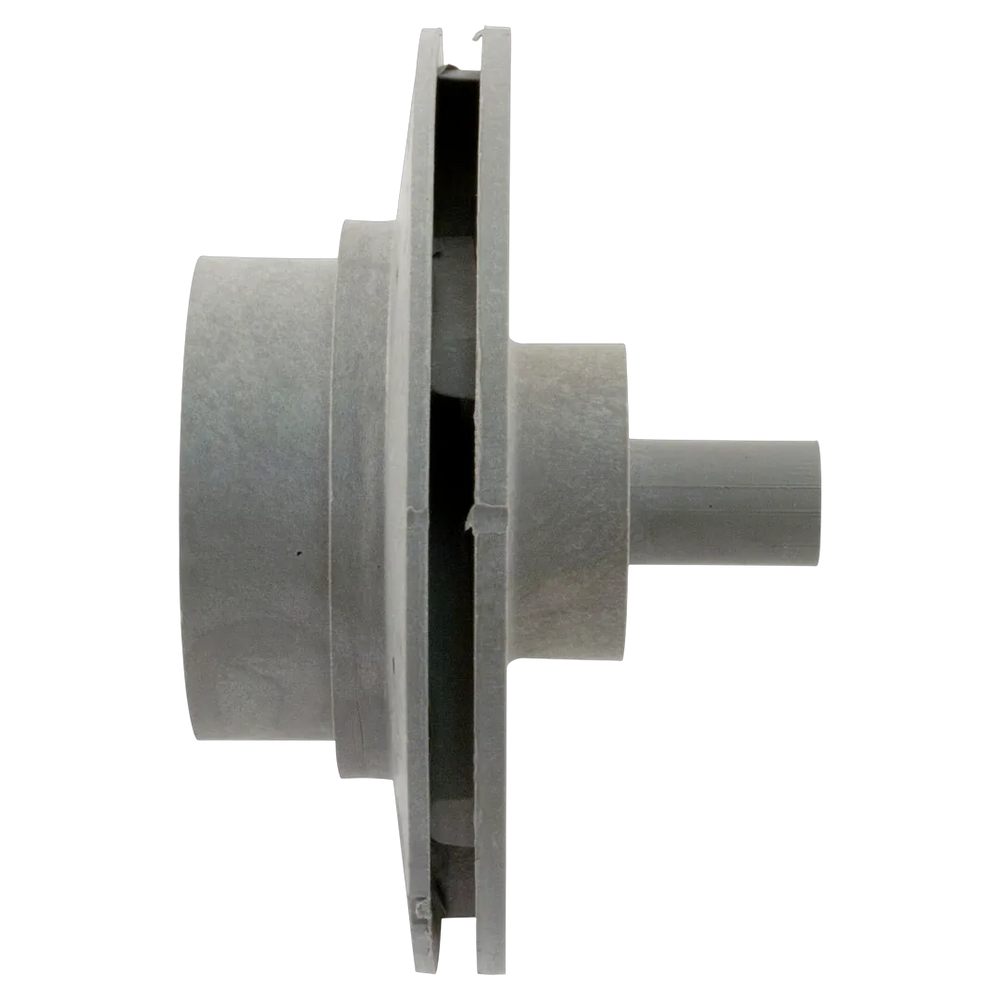

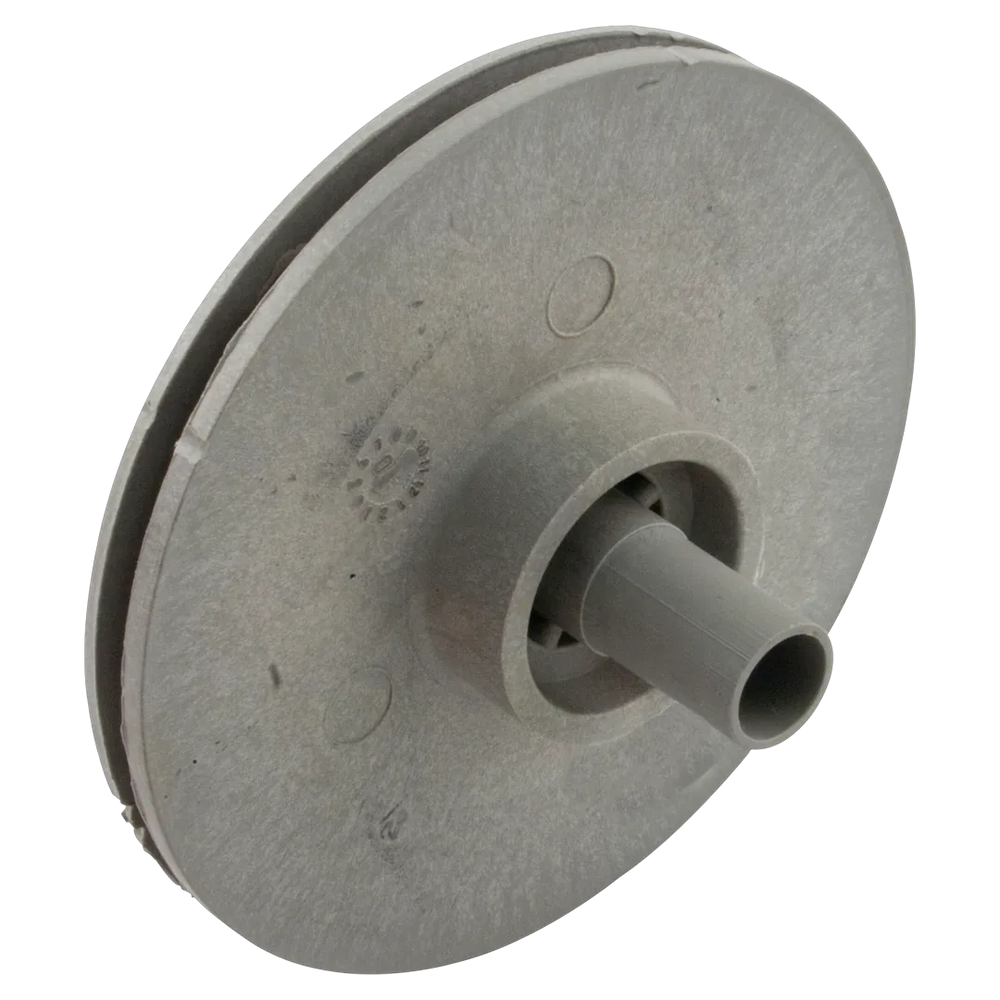

Waterway Executive 310-4220 Spa Pump Impeller
Waterway | SKU:
310-4220
$4200/ea
Unit price
/
Unavailable
Waterway Executive 310-4220 Spa Pump Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-4220 is an impeller for the Executive series spa pumps. It is a closed-face impeller designed for a 1.0 horsepower rating and accommodates both 48 and 56 frame sizes. This part is compatible with Waterway Executive 1 HP and 1.5 HP motors, fitting various wet end configurations within the series.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 1 HP Executive Impeller |
| Part Number | 310-4220 |
| Part Type | Impeller |
| Compatibility | Waterway Executive 48/56-Frame Pumps |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 4.5 inch |
| Vane Width | 0.1875 inch |
| Eye Diameter | 2.375 inch |
| Eye Length | 0.9375 inch |
| Impeller Width | 0.4375 inch |
| Seal Seat Depth | 0.5625 inch |
| Shaft Length | 0.9375 inch |
| Shaft Diameter | 0.625 inch |
| Seal Seat Diameter | 1.5 inch |
| Shipping Dimensions | 4.5 x 4.5 x 3 inch |
| Product Weight | 0.3 pound |
