Waterway Executive 310-4190 Impeller
Waterway | SKU:
310-4190
$4600/ea
Unit price
/
Unavailable
Waterway Executive 310-4190 Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

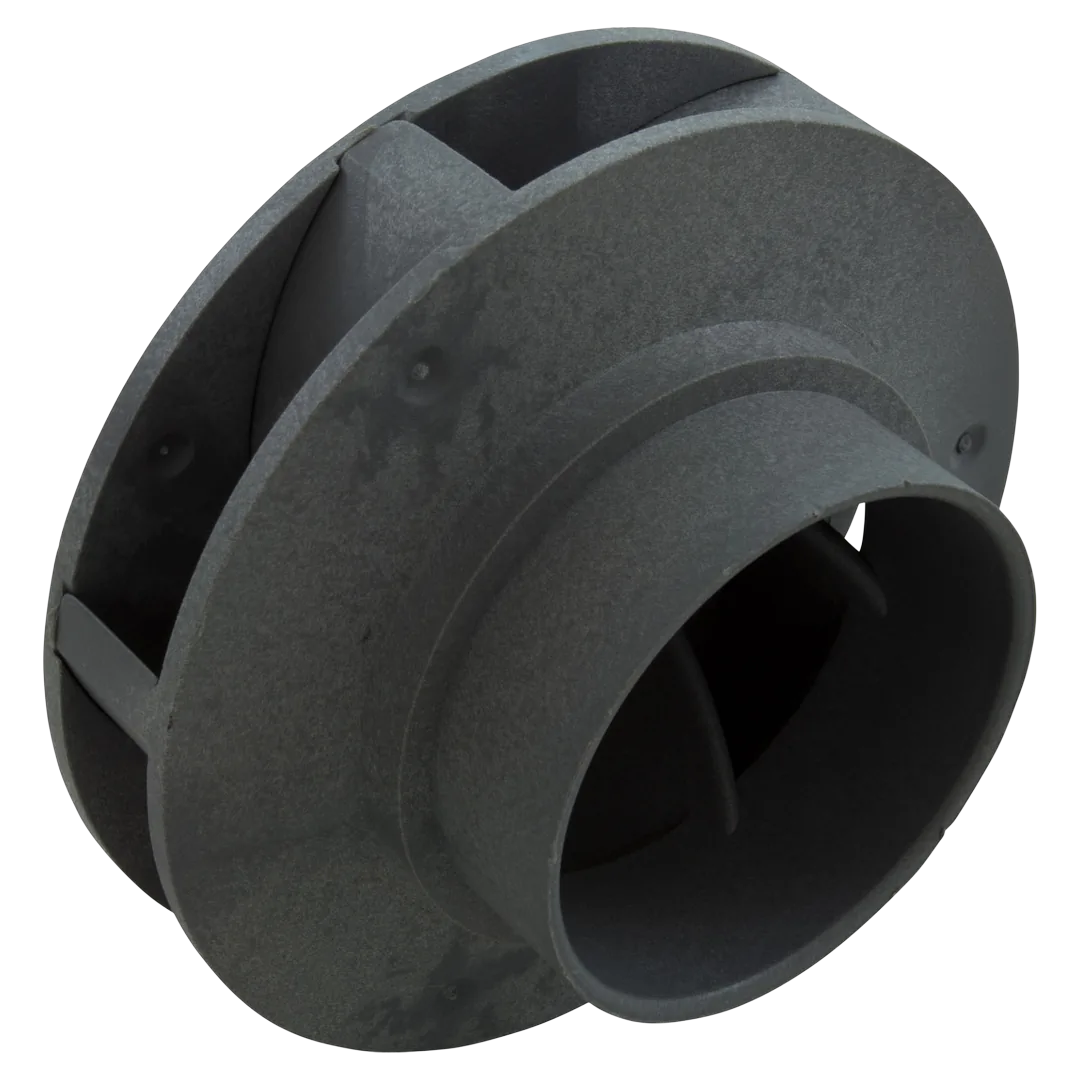

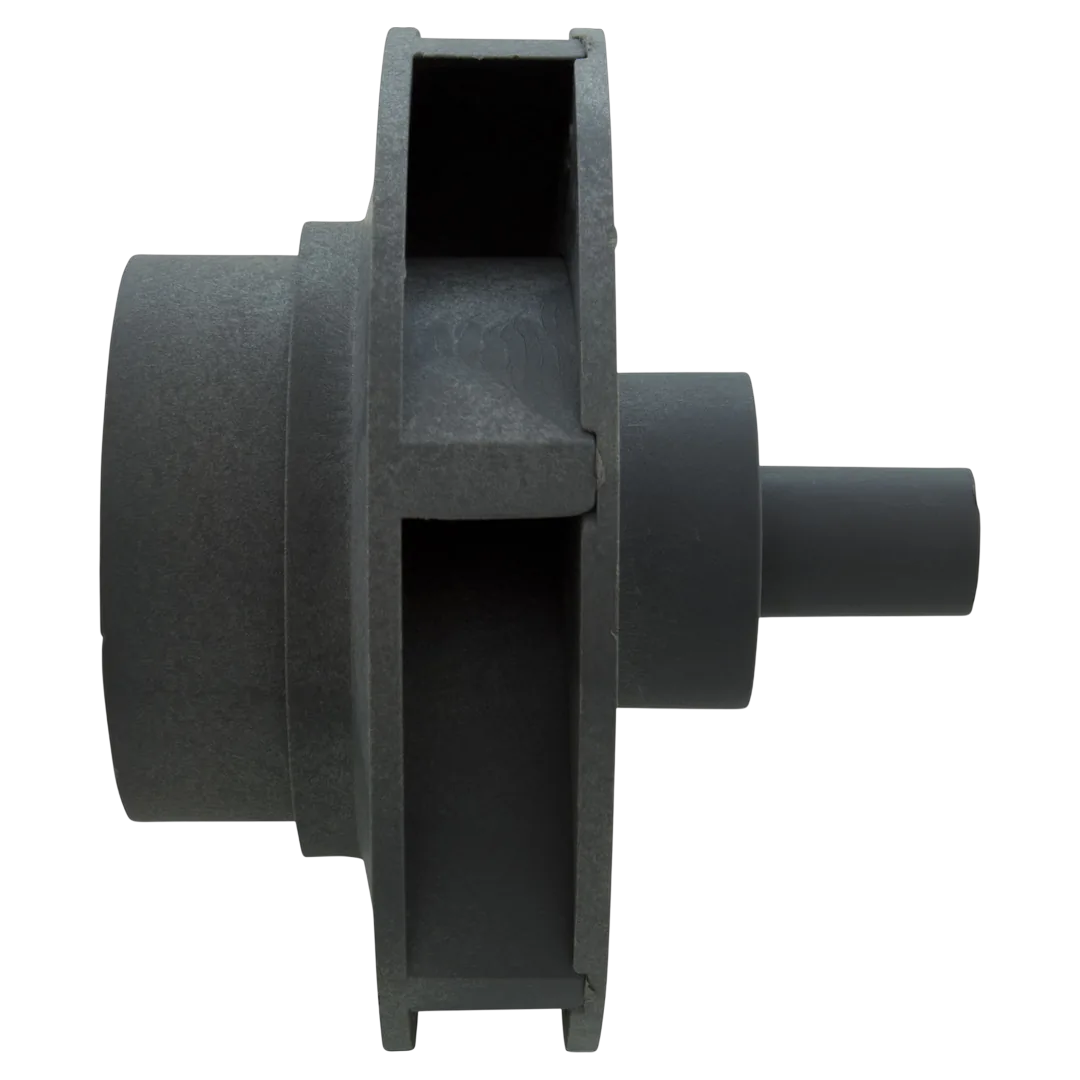

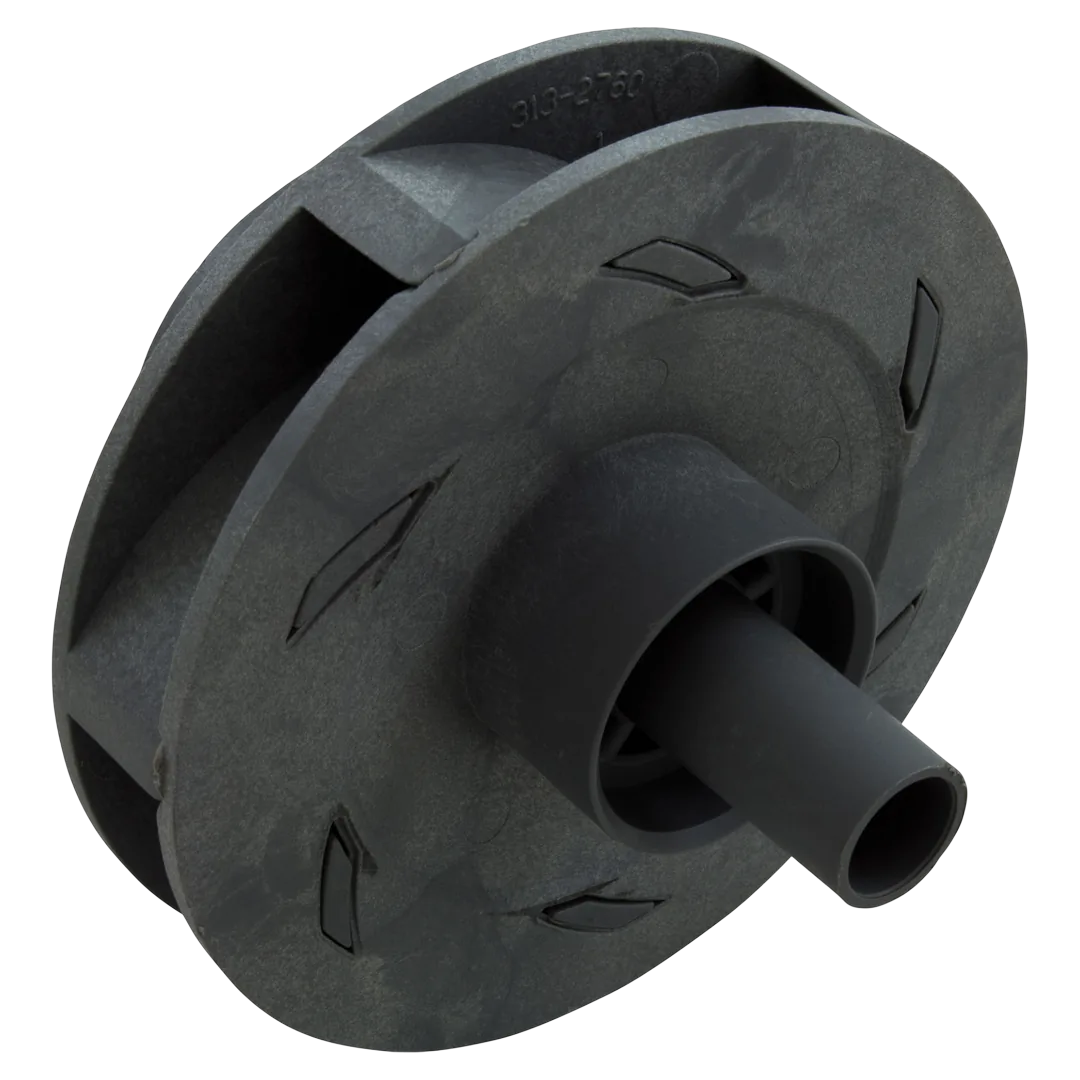

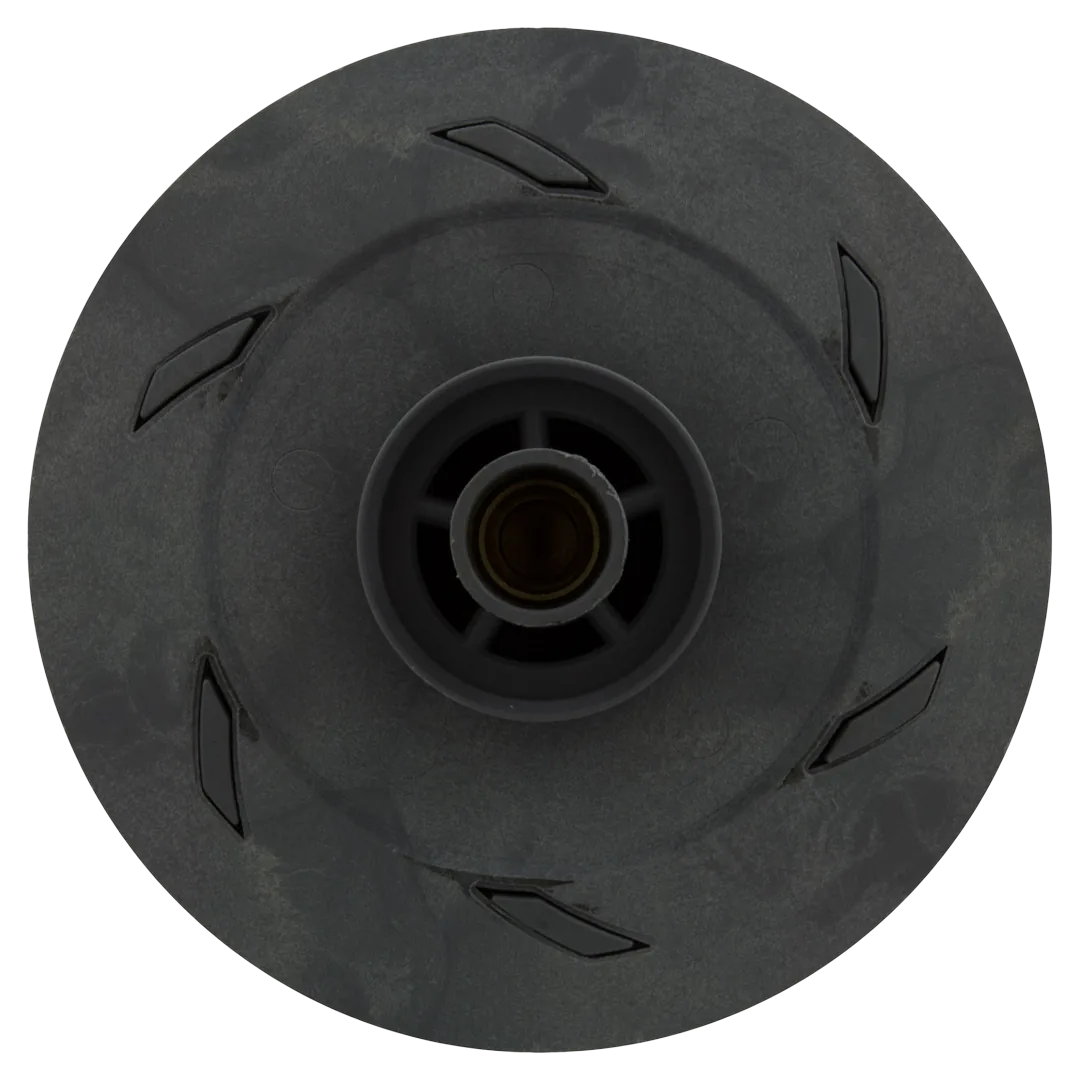

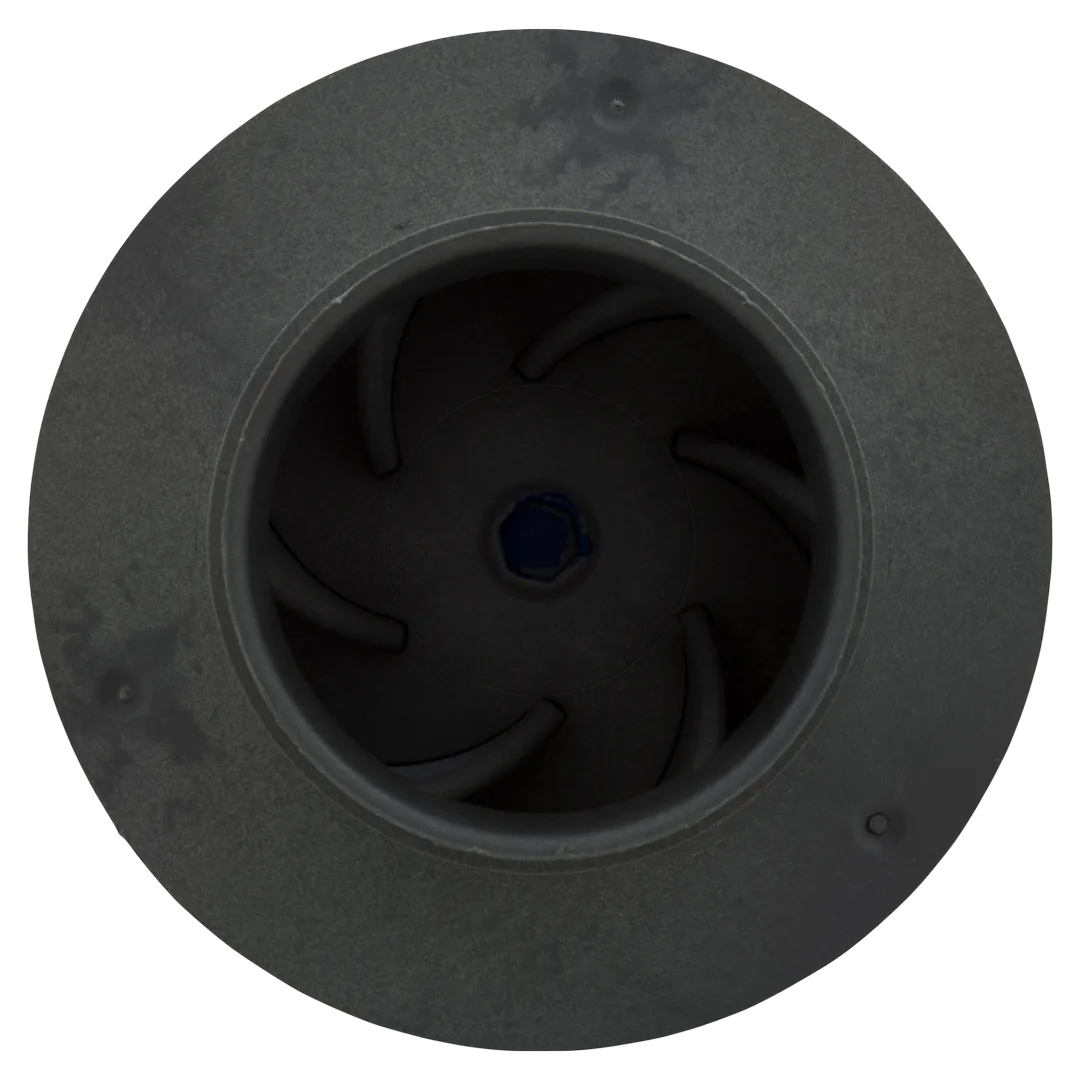

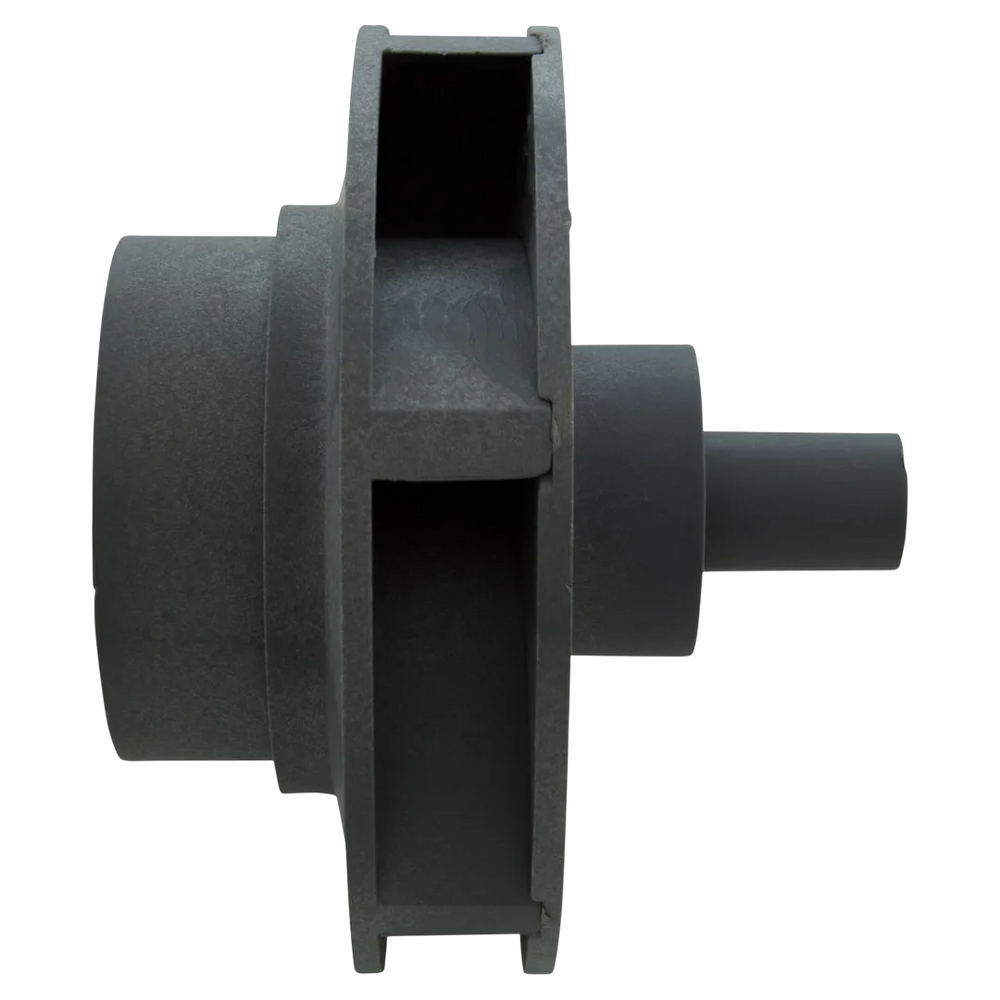

The Waterway 310-4190 is an impeller designed for the Executive series of pumps. It is compatible with both 48-frame and 56-frame configurations and is specifically engineered for 4 horsepower pumps. This impeller forms part of an assembly that can handle 230 volts and 12.0 amperes, and includes a 4.5-inch diameter with a 0.5-inch vane depth.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 4 HP Executive Impeller |
| Part Number | 310-4190 |
| Part Type | Impeller |
| Compatibility | Waterway Executive 48/56 Frame Pumps |
| Substitute Part Numbers | 310-4190B |
| Includes | Impeller only |
| Material | 30% glass-filled Noryl |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.2 inch |
| Vane Width ID | 0.6 inch |
| Eye Diameter OD | 2.2 inch |
| Eye Length | 0.9375 inch |
| Impeller Width OD | 0.875 inch |
| Seal Seat Depth | 0.75 inch |
| Shaft Length | 1.25 inch |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.375 inch |
| Shipping Dimensions | 4 x 3.5 x 3.5 inch |
| Product Weight | 0.37 pound |
