Waterway Executive 310-4180 5HP Impeller
Waterway | SKU:
310-4180
$5300/ea
Unit price
/
Unavailable
Waterway Executive 310-4180 5HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

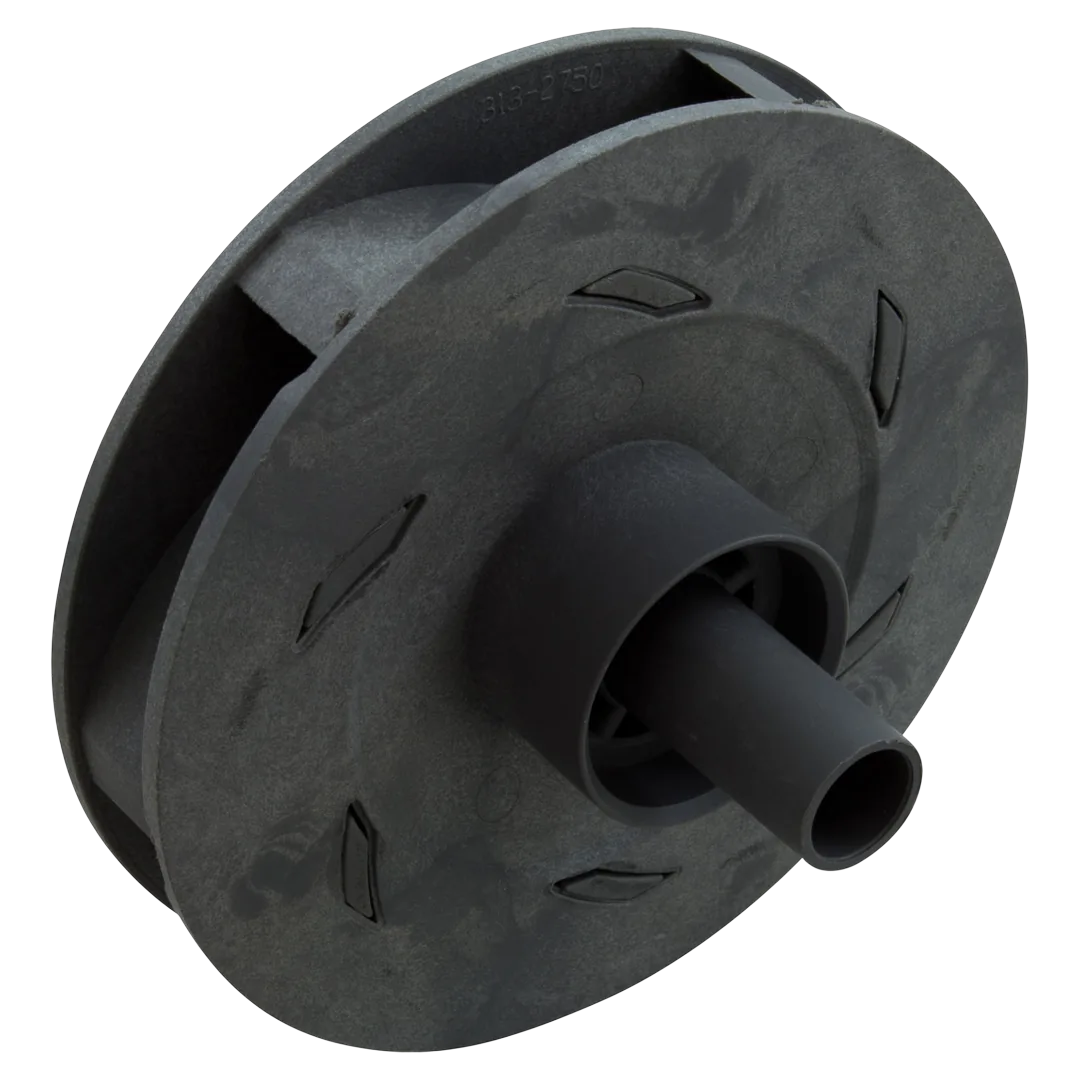

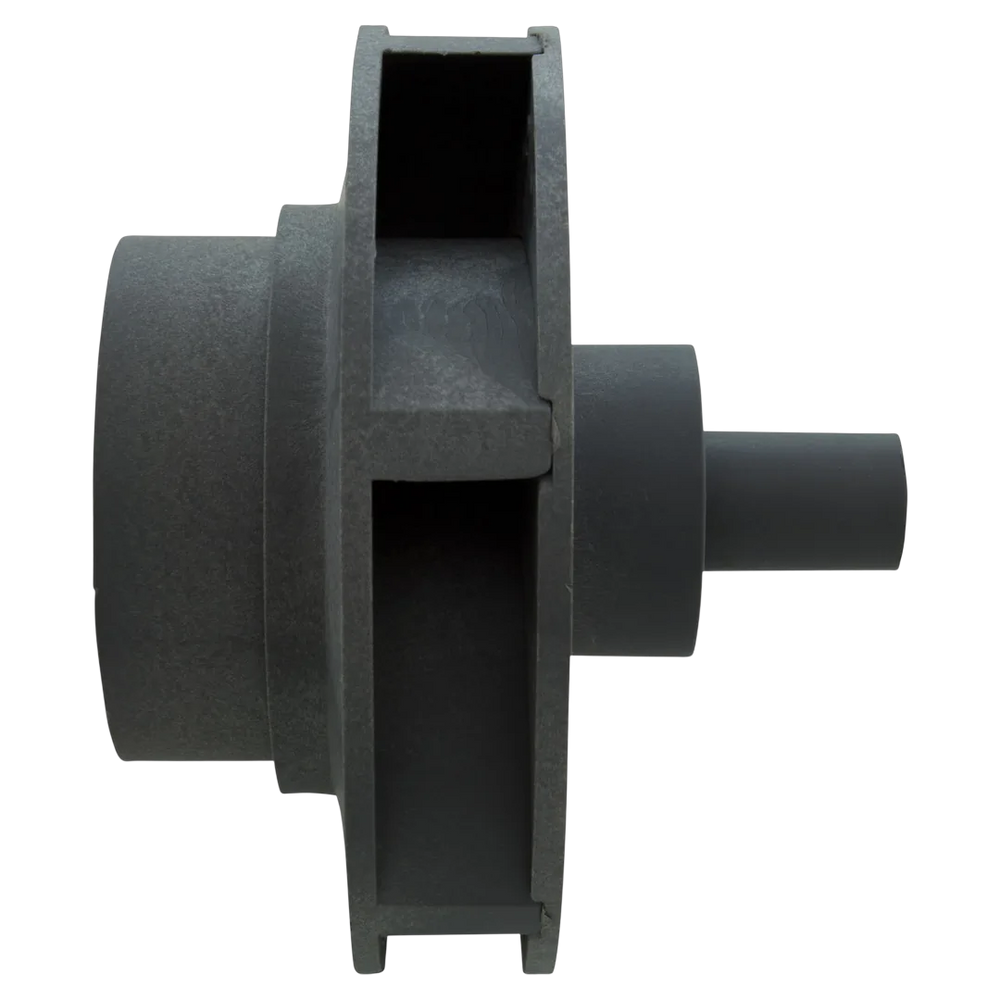

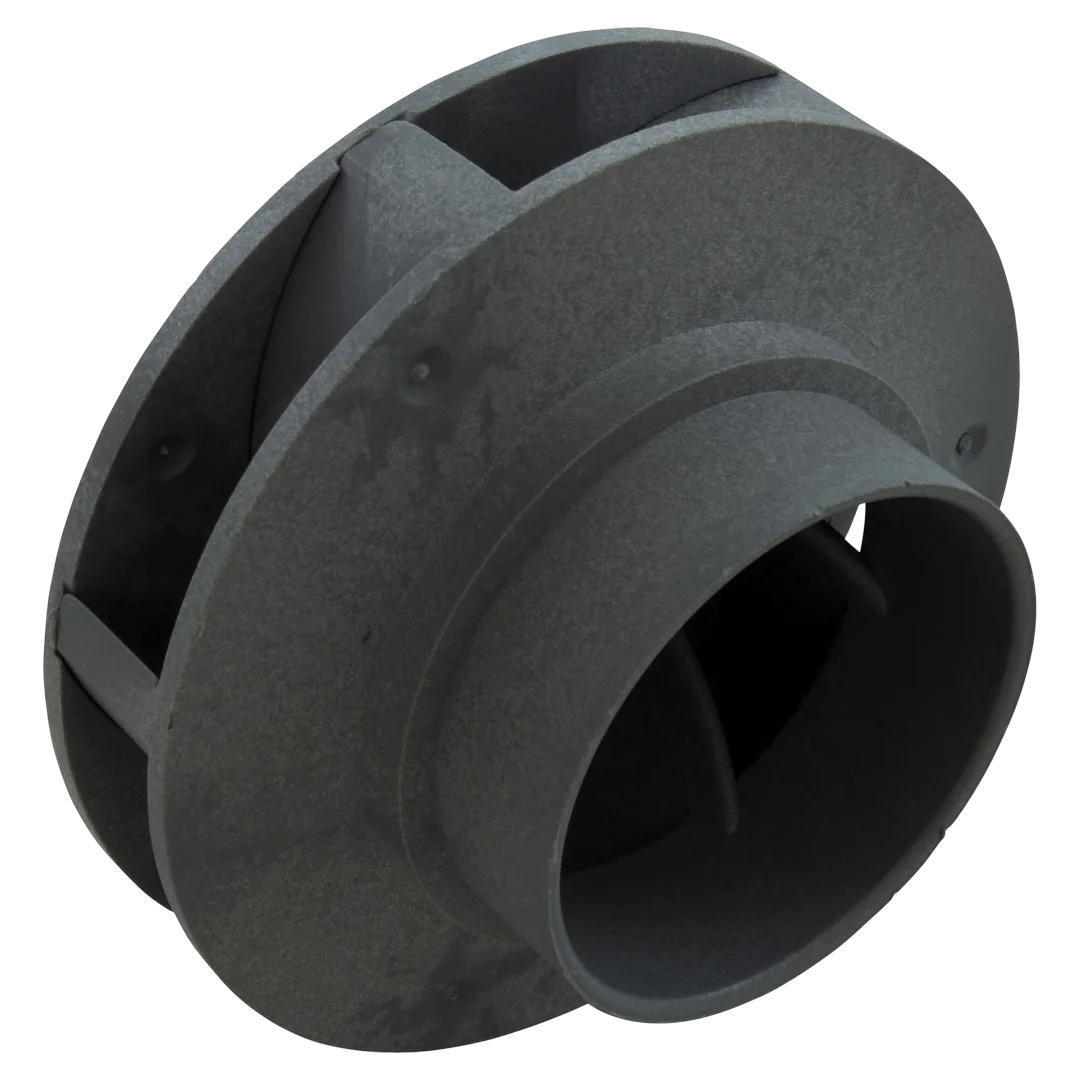

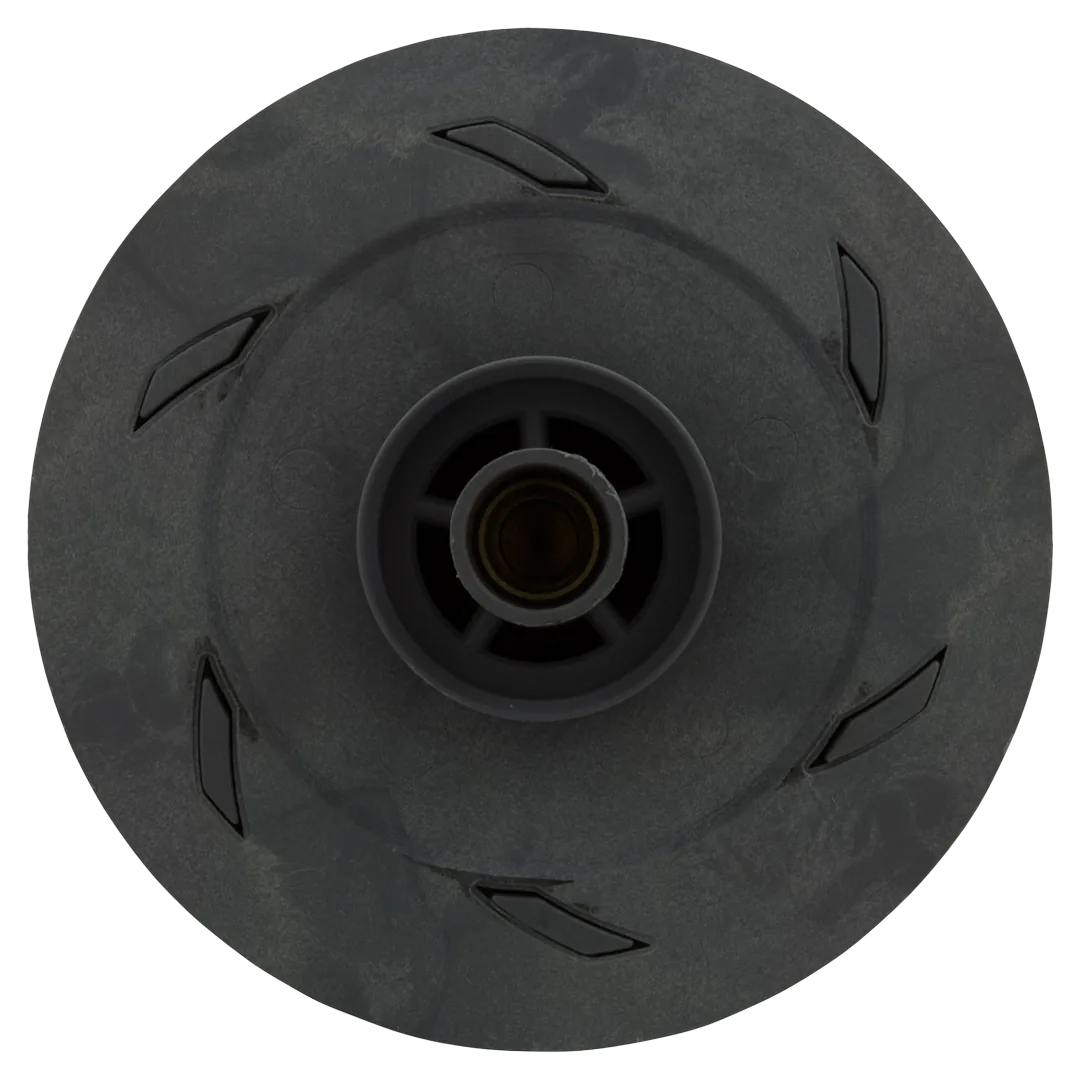

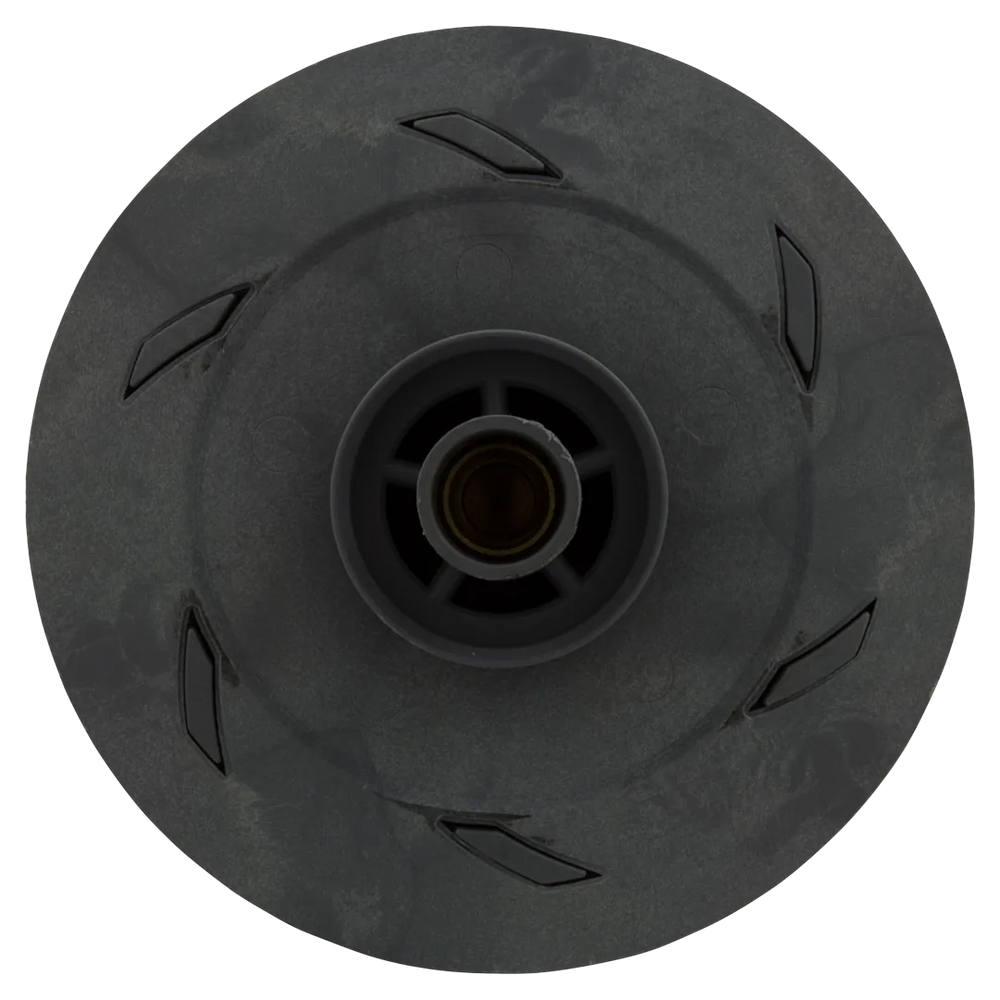

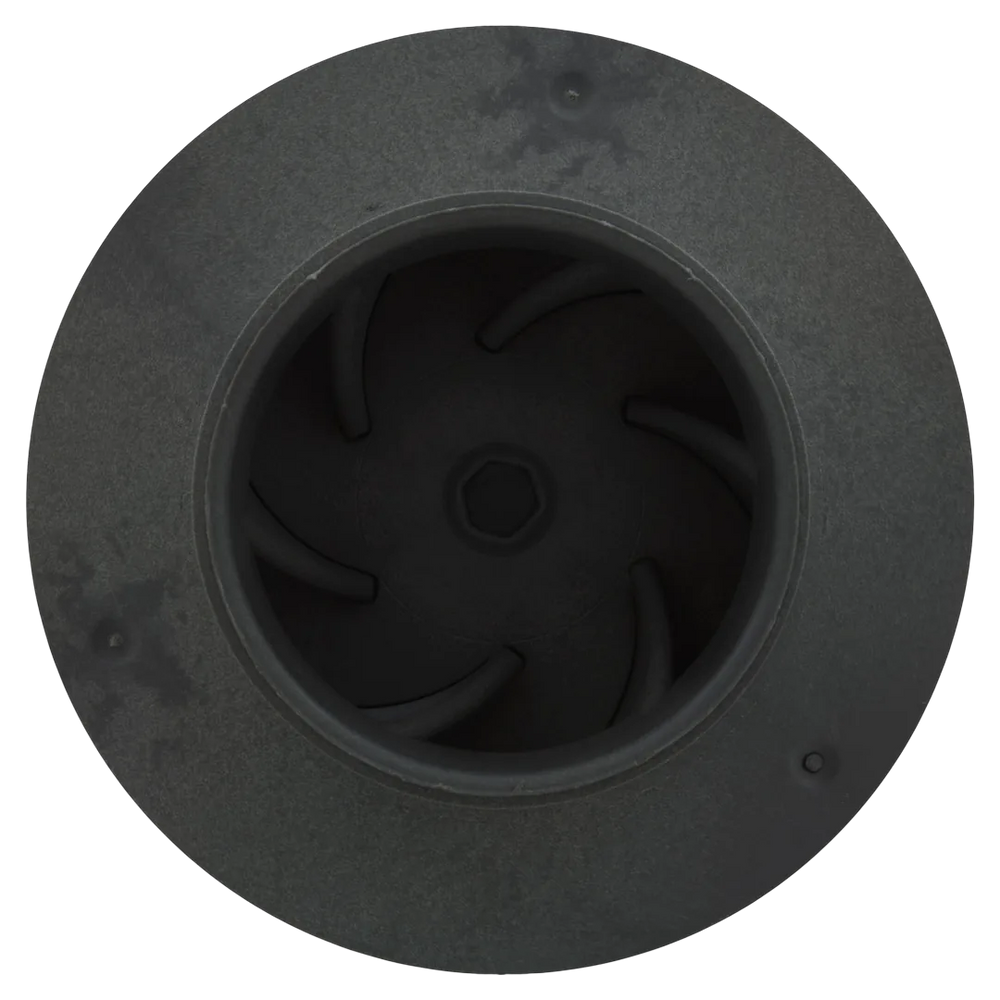

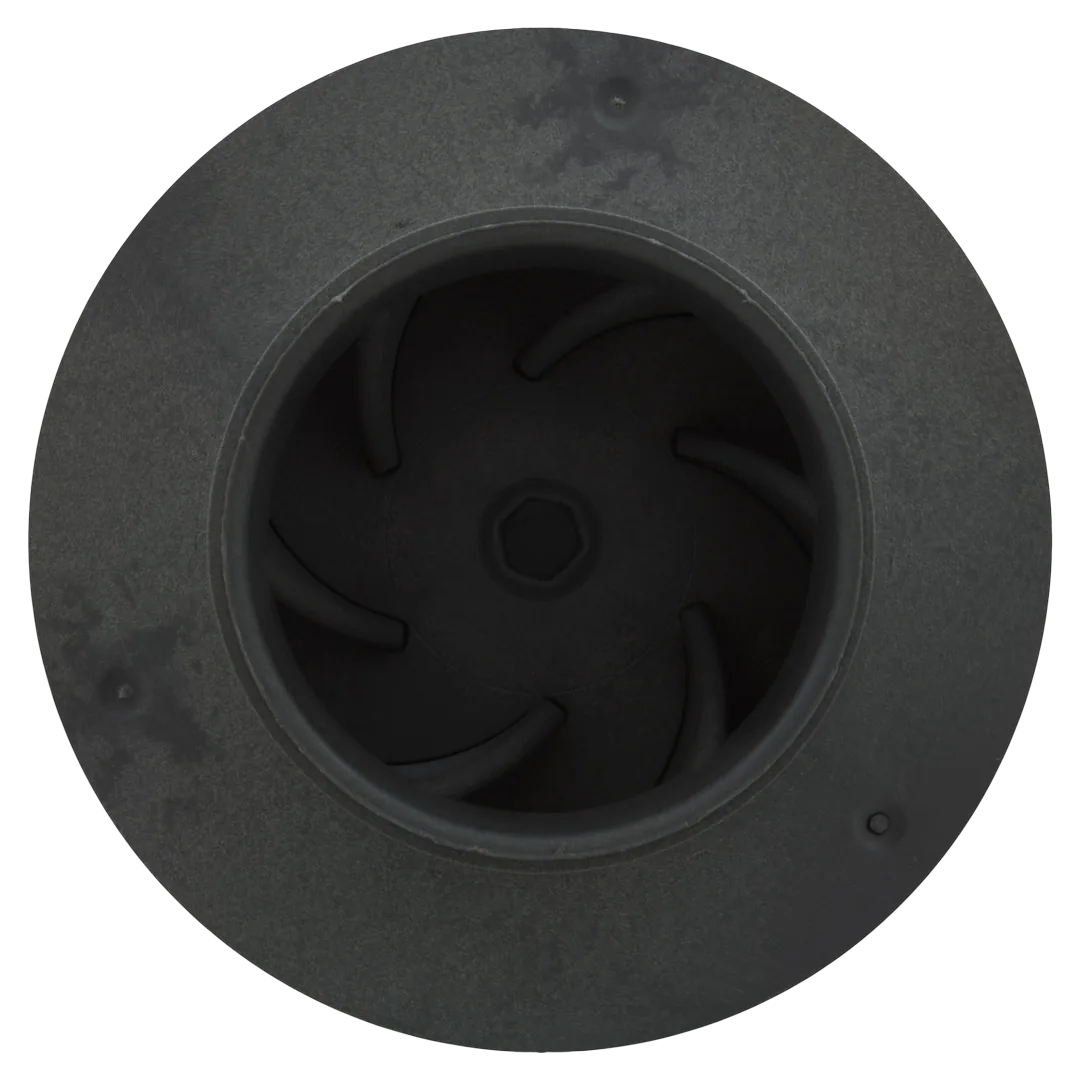

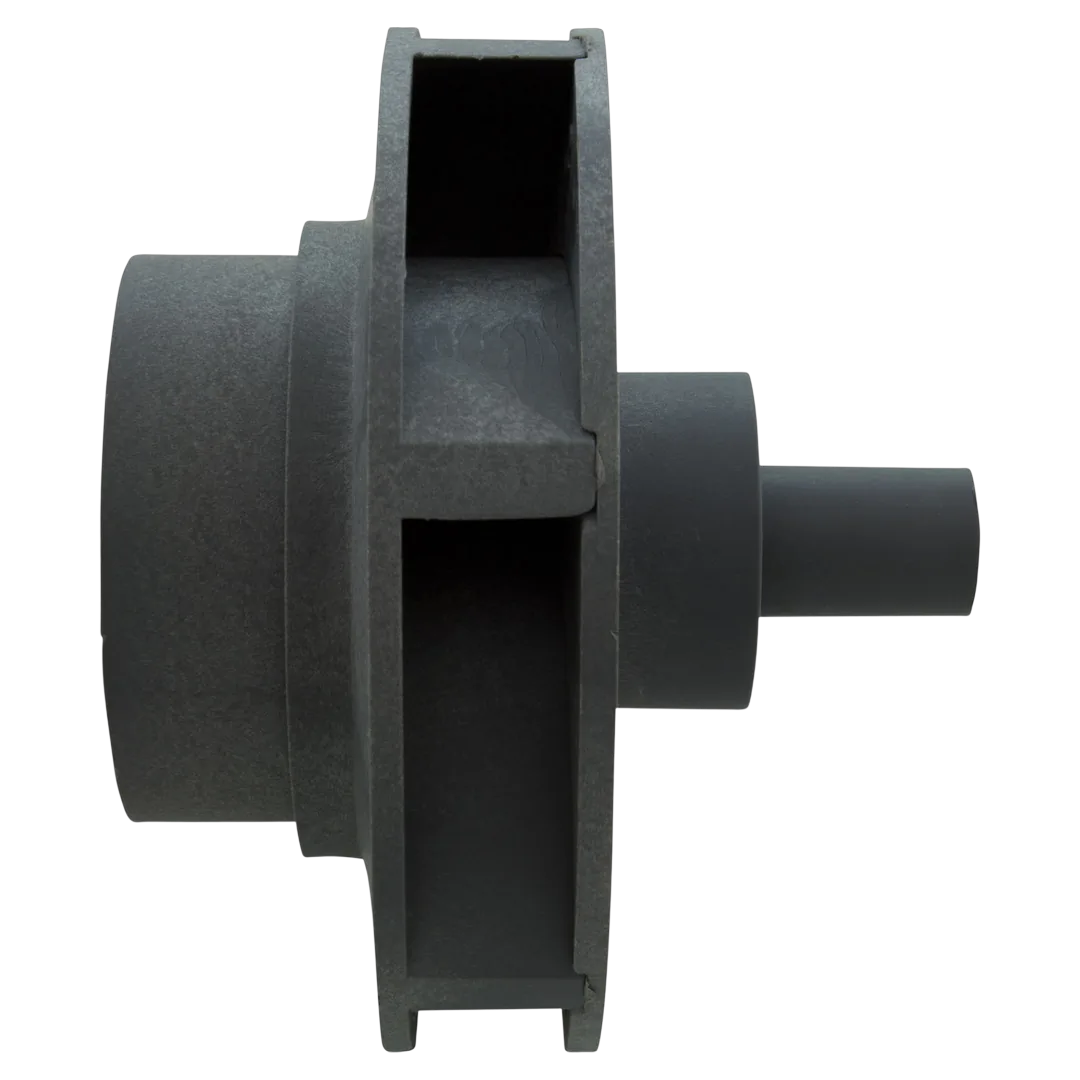

The Waterway 310-4180 is a 5 horsepower closed face impeller specifically designed for the Waterway Executive pump series. It is constructed from 30% glass-filled Noryl, which enhances its durability and performance. This impeller is compatible with Waterway 56 Frame Executive Pumps, where it serves as a critical component in the pump wet end assembly.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 5 HP Impeller Assembly |
| Part Number | 310-4180 |
| Part Type | Impeller |
| Compatibility | Waterway Executive 5.0 HP 48/56 Frame Pumps |
| Substitute Part Numbers | 310-4180B, 35-270-1810, 5039-010, 614280, 806105063304, WWP-85-8908, WWP3104180 |
| Includes | Impeller only shaft seal sold separately |
| Material | 30% glass-filled Noryl |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.5 inches |
| Vane Width ID | 0.5625 inches |
| Eye Diameter OD | 2.375 inches |
| Eye Length | 0.9375 inches |
| Impeller Width OD | 0.875 inches |
| Seal Seat Depth | 0.75 inches |
| Shaft Length | 1.25 inches |
| Shaft Diameter OD | 0.625 inches |
| Seal Seat Diameter OD | 1.375 inches |
| Product Weight | 0.373 pounds |
