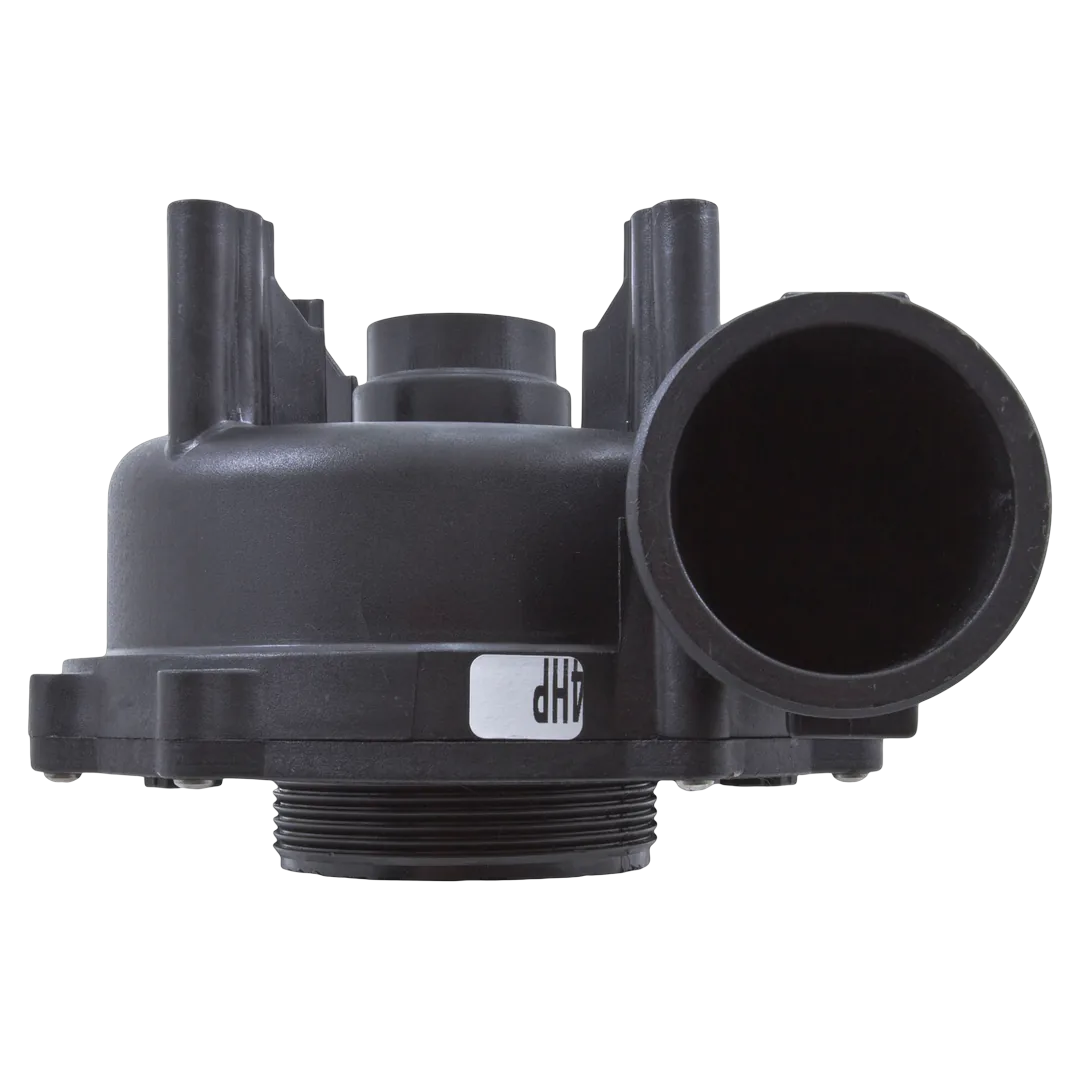

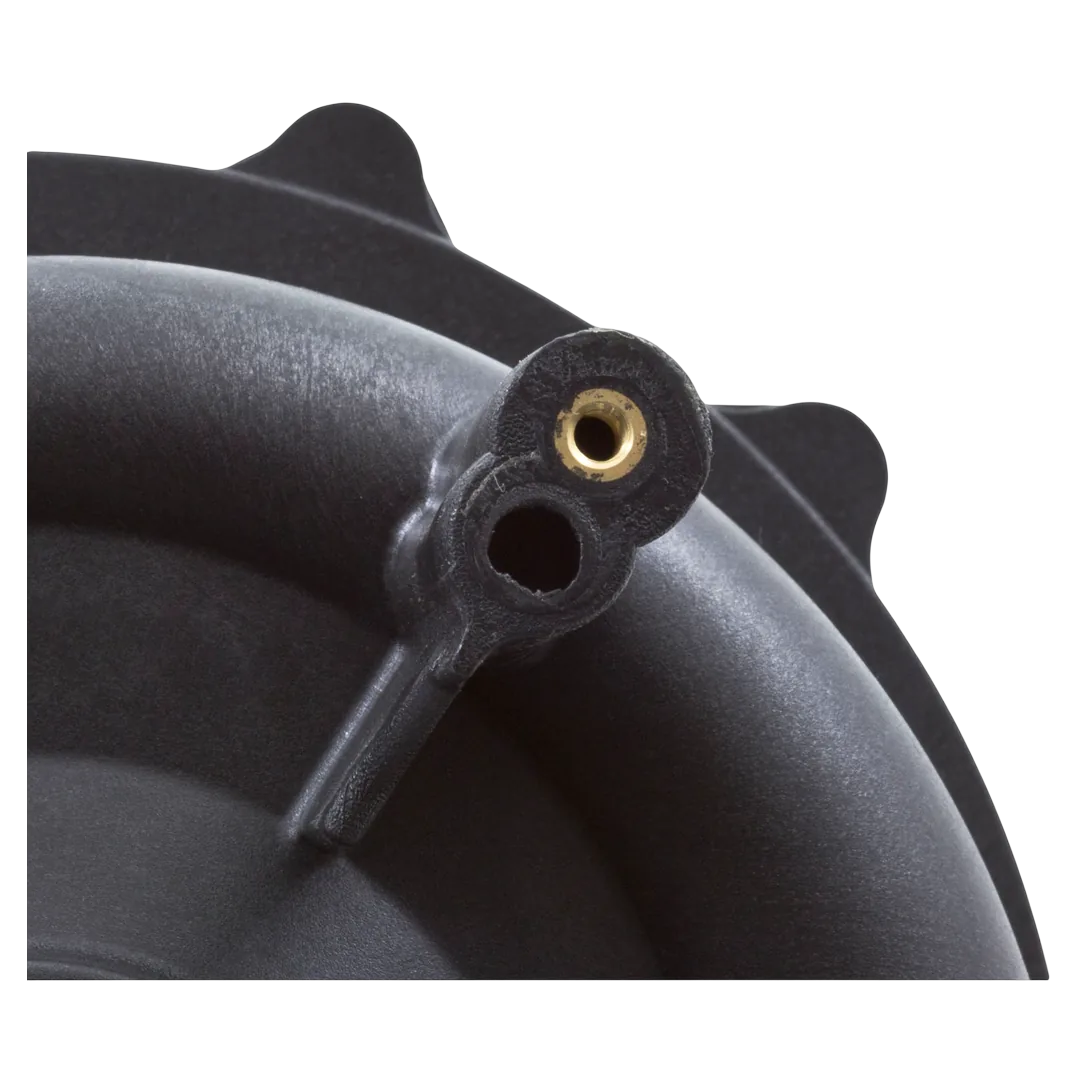

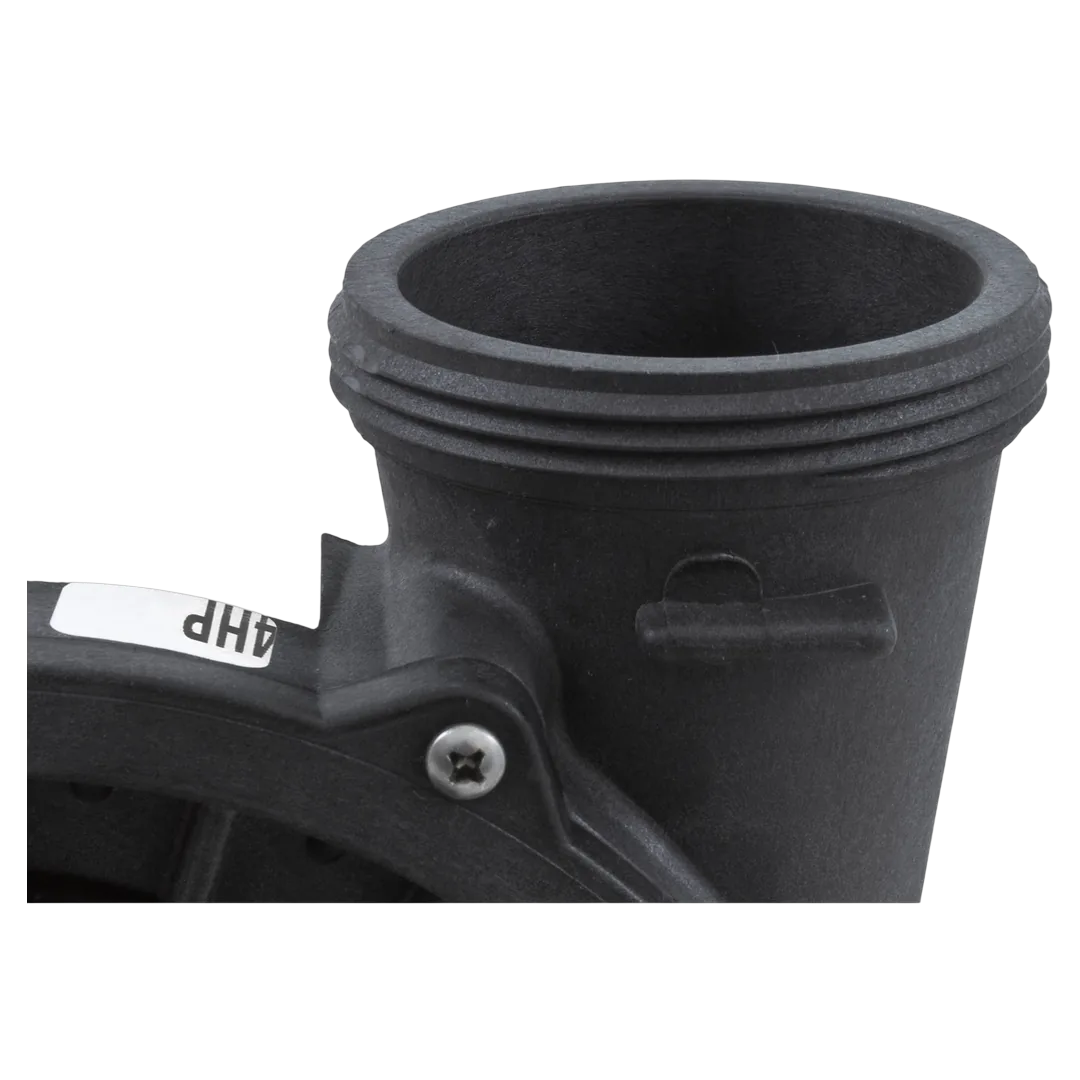

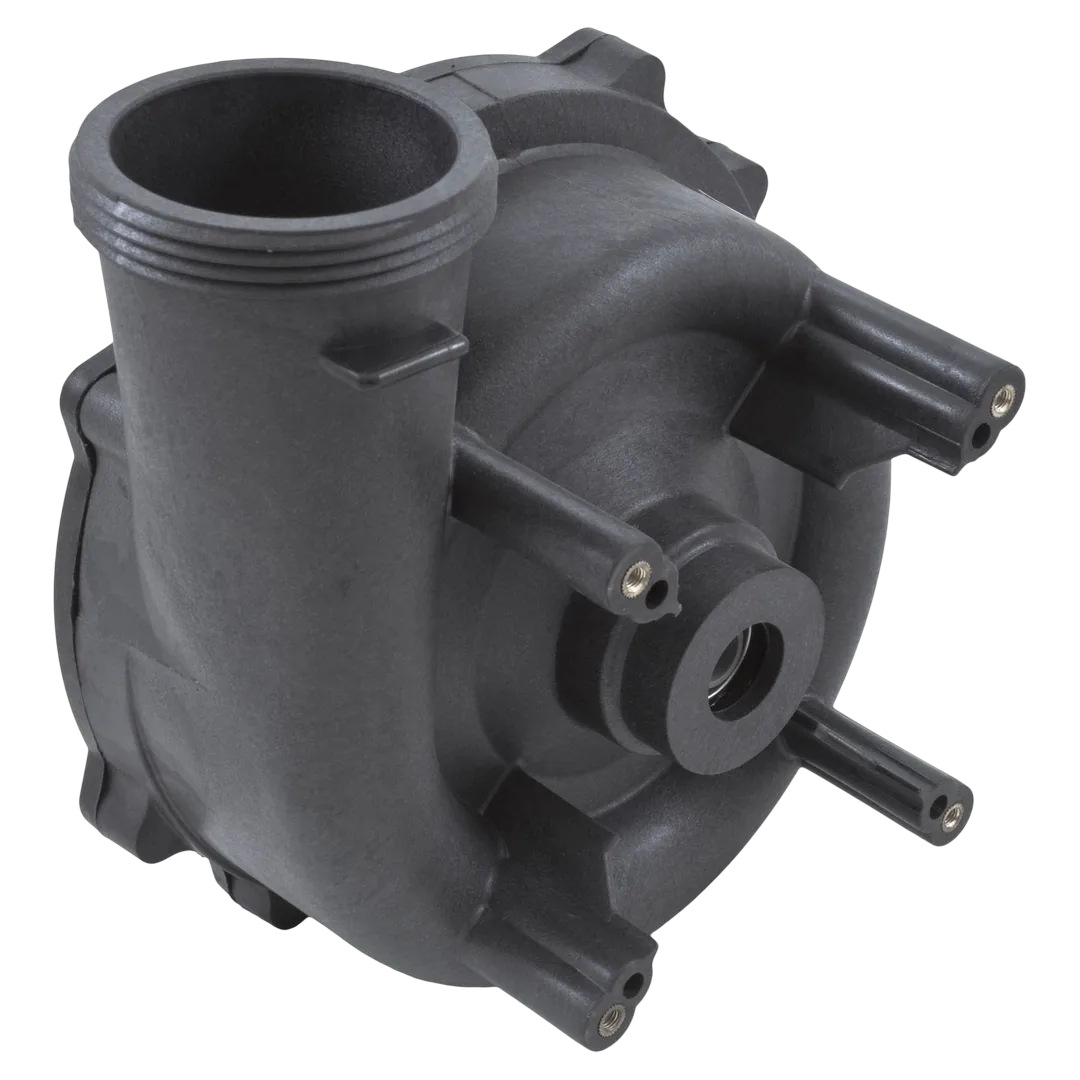

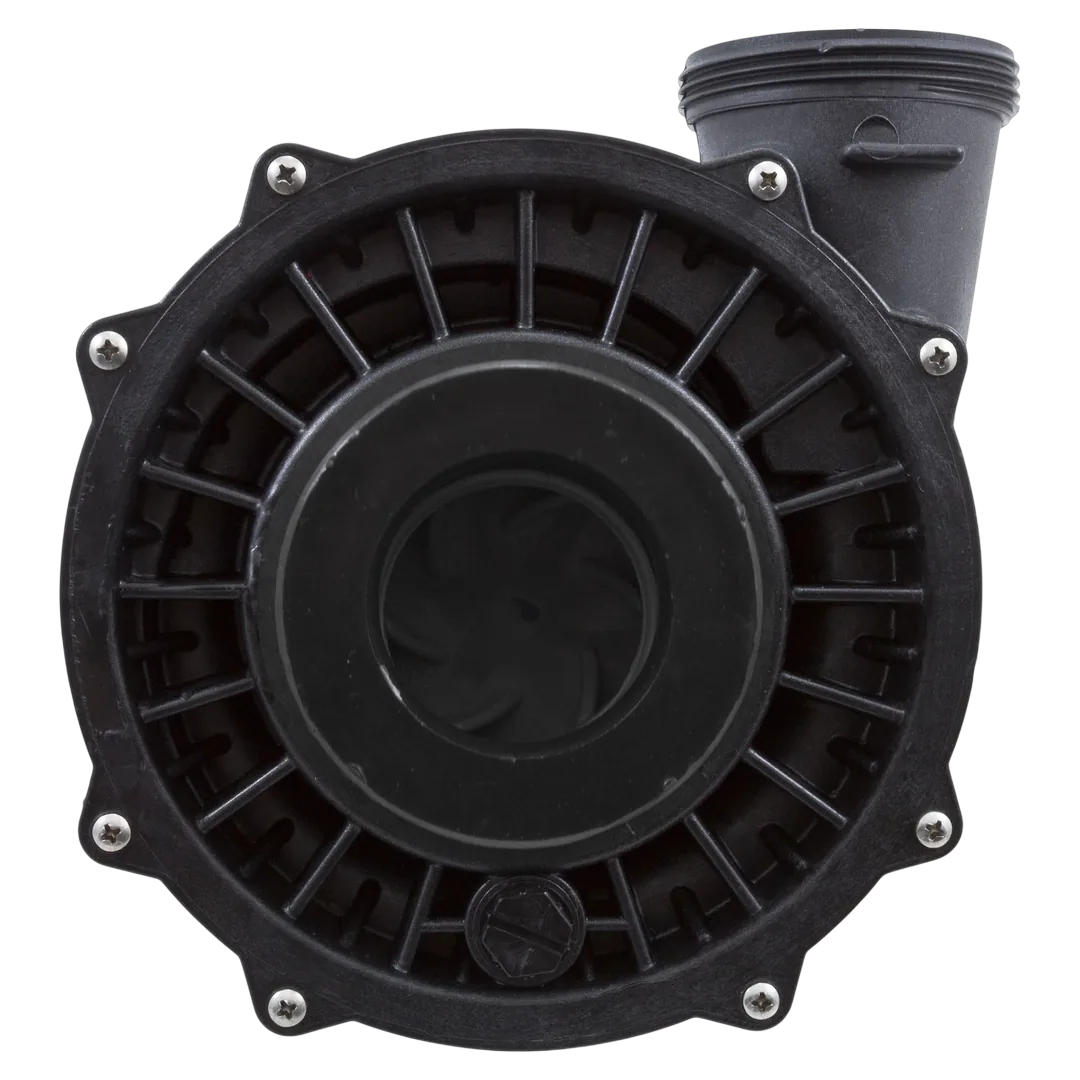

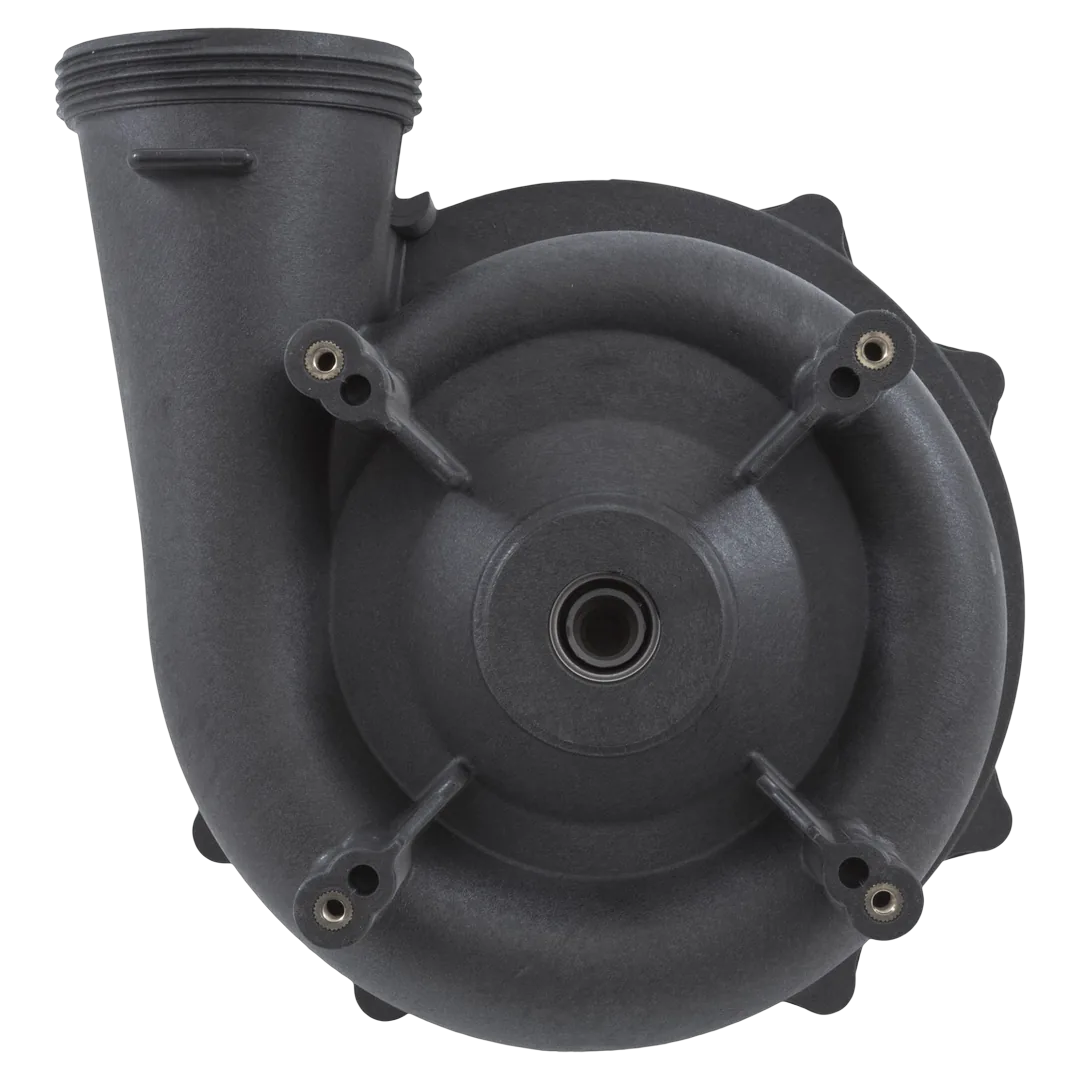

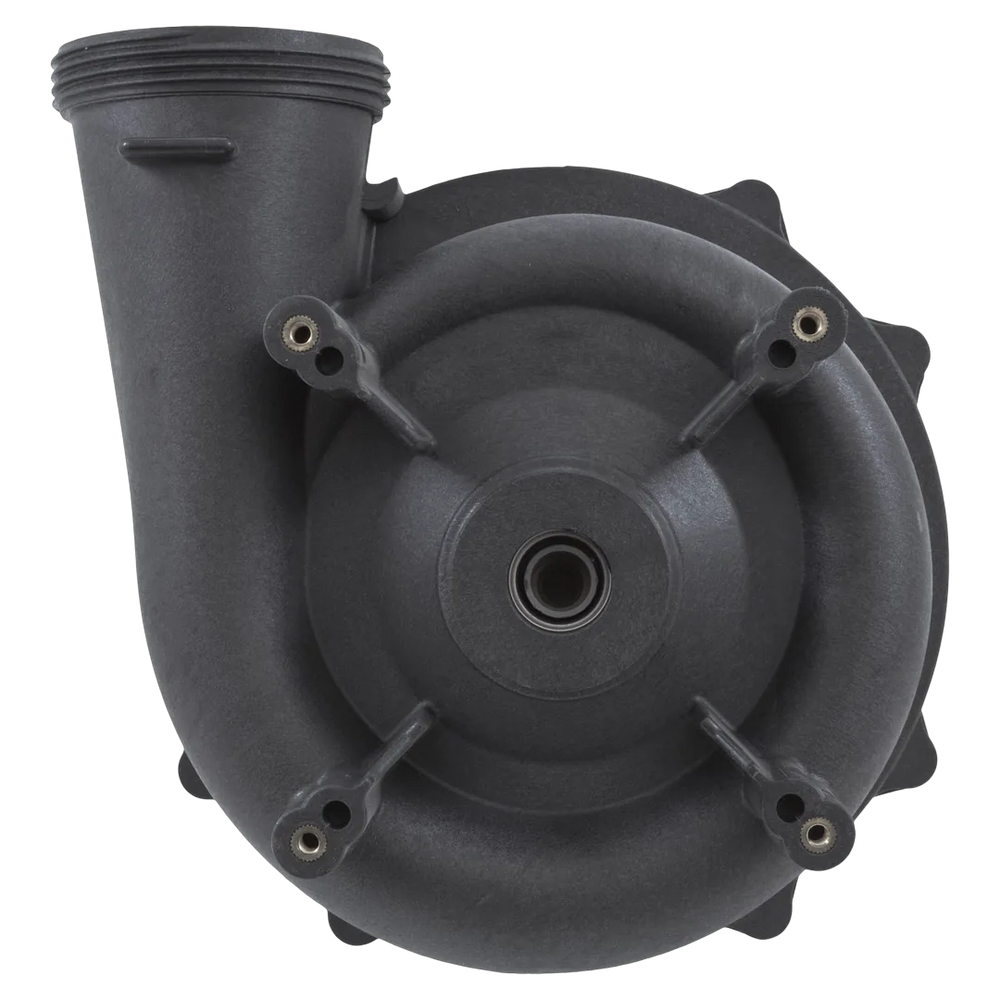

Waterway Executive 310-1440 Wet End
Waterway | SKU:
310-1440
$13500/ea
Unit price
/
Unavailable
Waterway Executive 310-1440 Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-1440 is an Executive Wet End designed for a 4.0 horsepower, 56-frame pump. It features a 2.5-inch male buttress thread (mbt) suction and a 2-inch mbt side discharge, tailored for a thru-bolt style motor. This wet end is compatible with Waterway pumps rated at 230V/12.0A and with a 6.5-inch diameter, serving as a direct replacement for models like 310-2840 and 315-1220.
Includes: Wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 2 1/2" Executive Wet End |
| Part Number | 310-1440 |
| Part Type | Wet End |
| Compatibility | 4 HP Executive 56 Frame Pump |
| Includes | Wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |
| Connection Size | 2.5" suction, 2" discharge |
| Mount Type | 56 Frame Thru-Bolt |
| Flow Paths | Side discharge |
| Shipping Dimensions | 9 x 9 x 6 inch |
| Product Weight | 3.19 pound |
