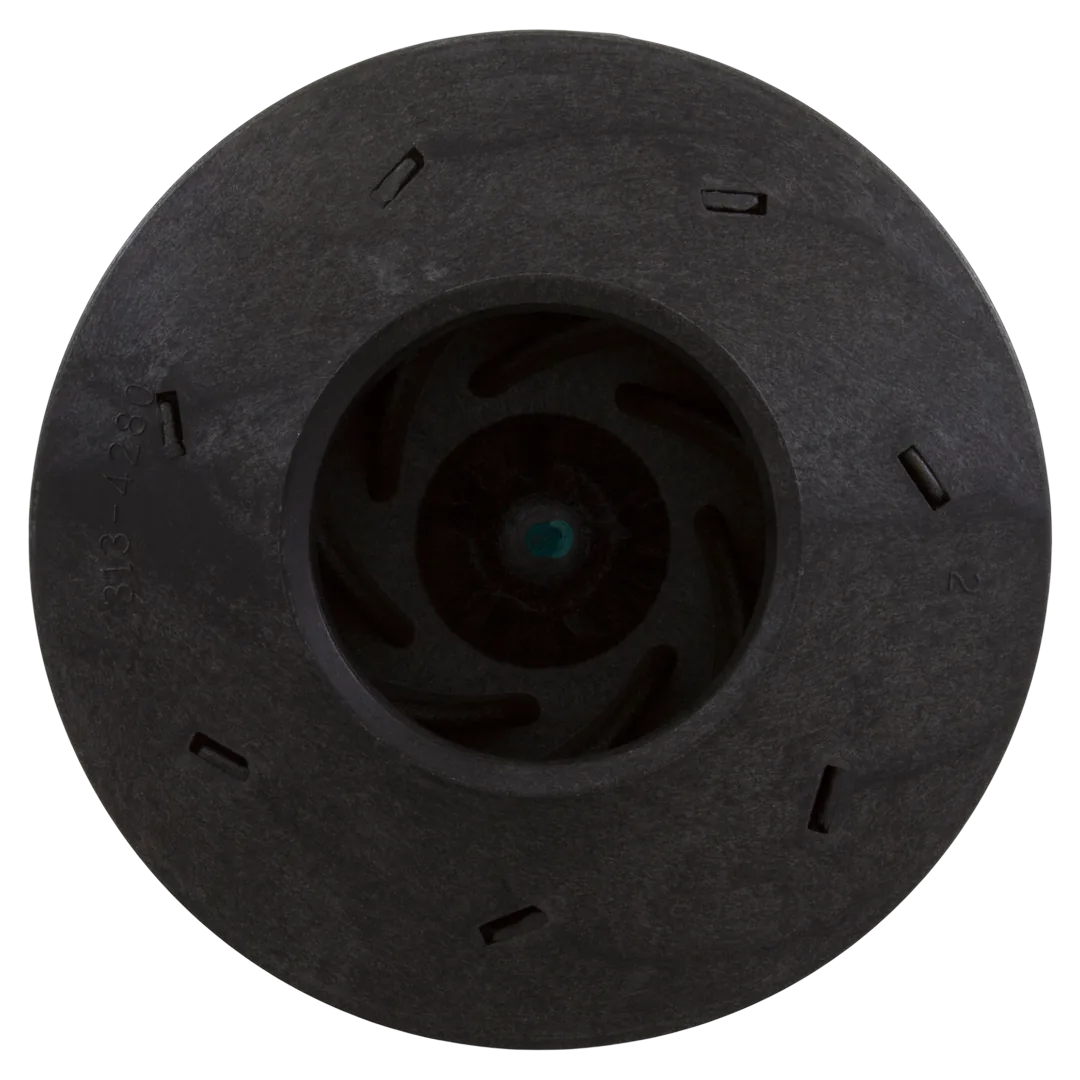

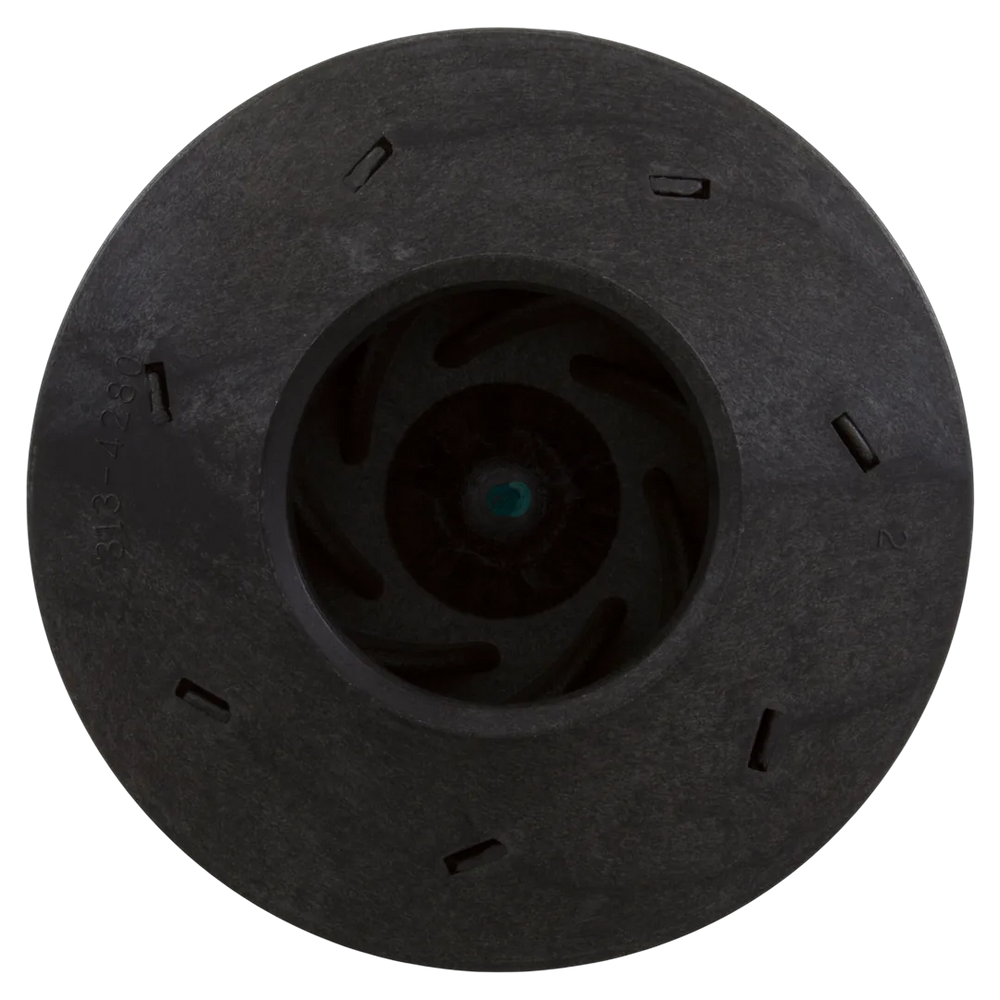

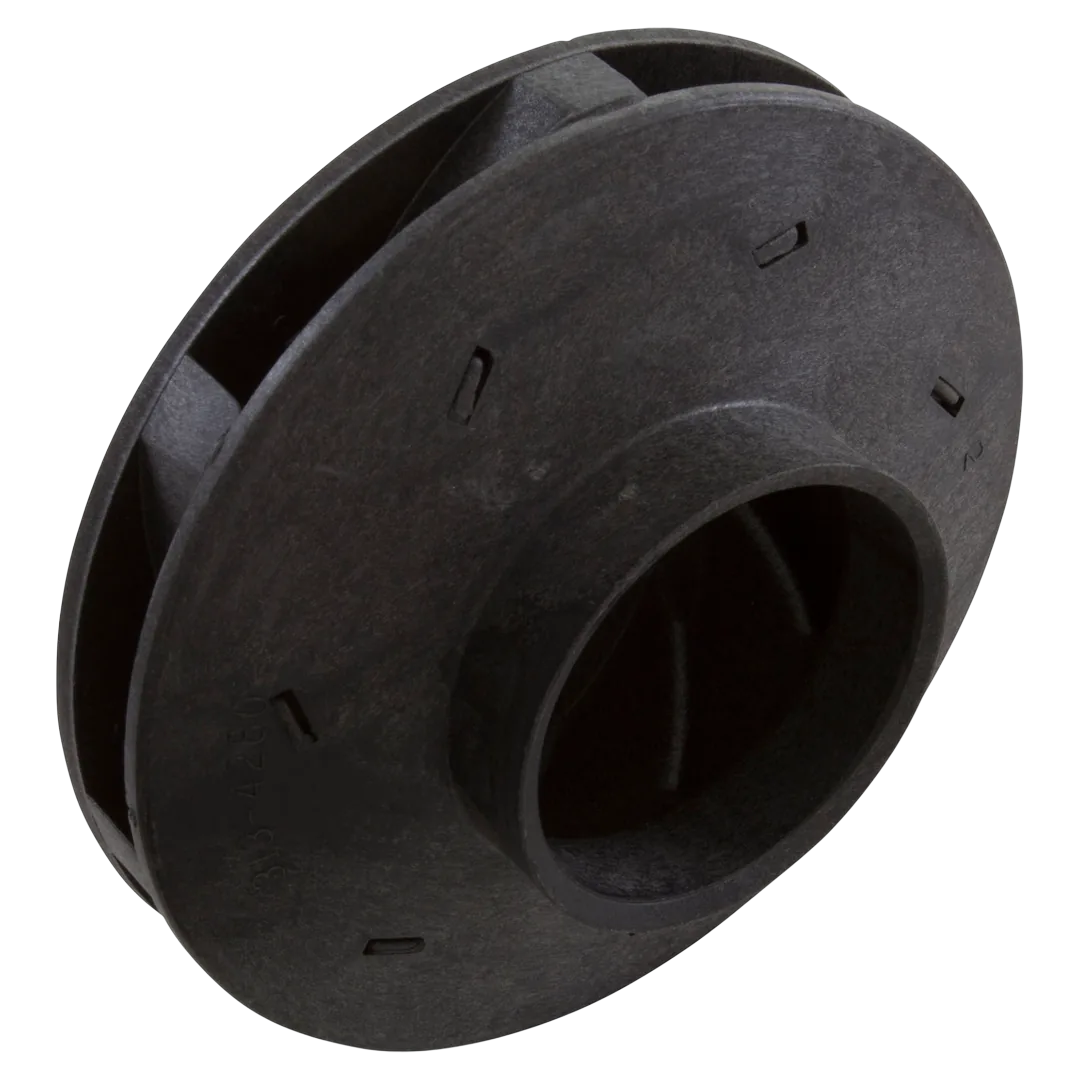

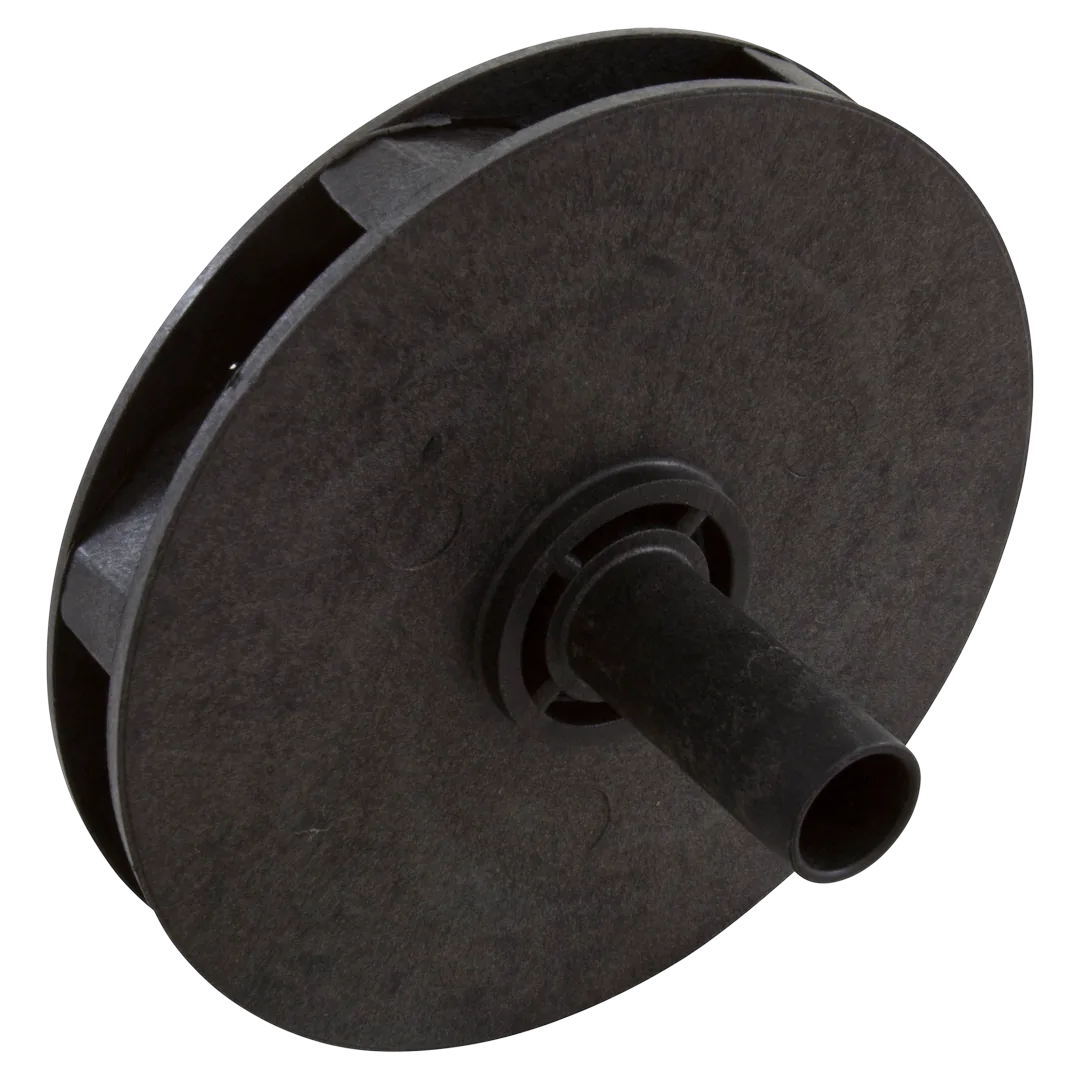

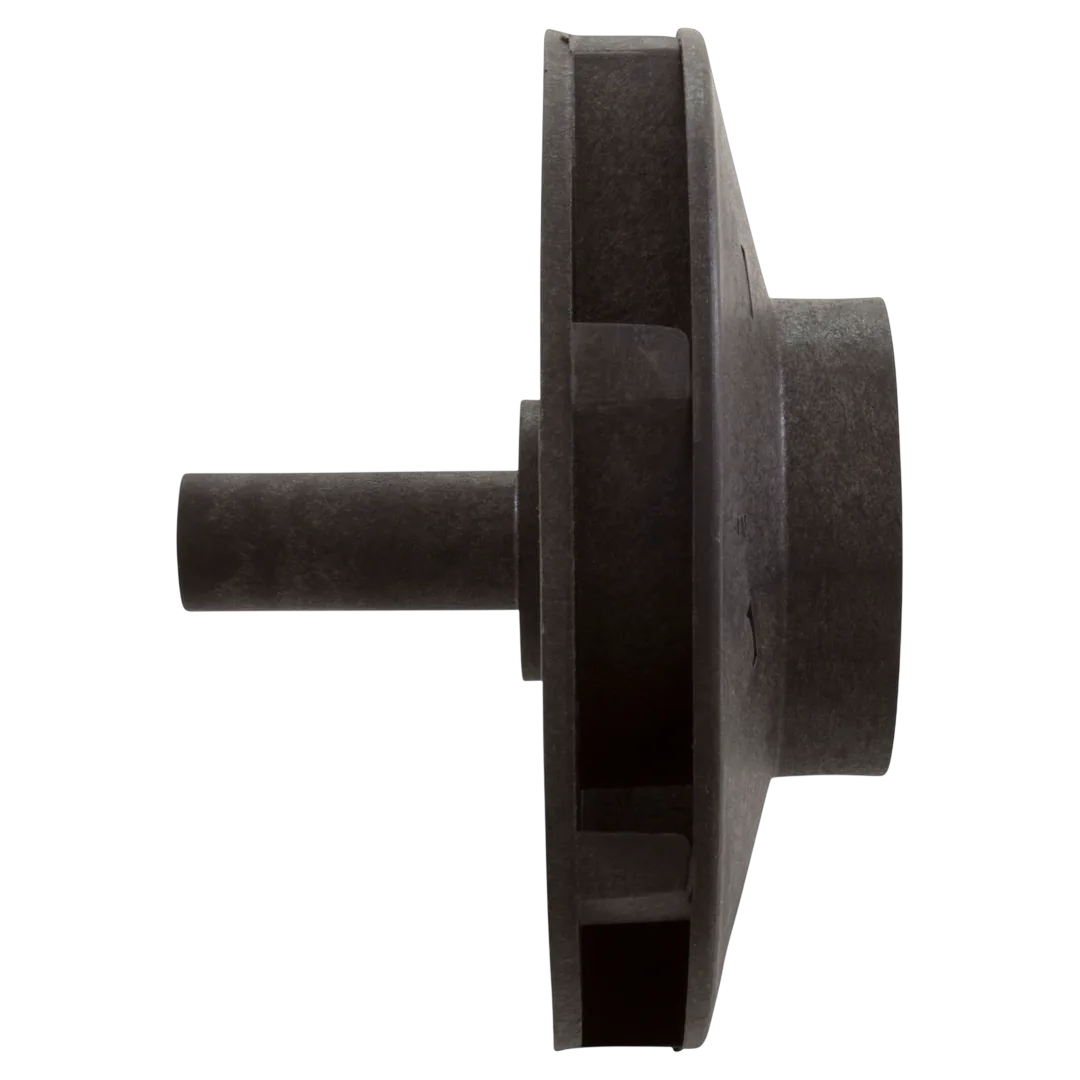

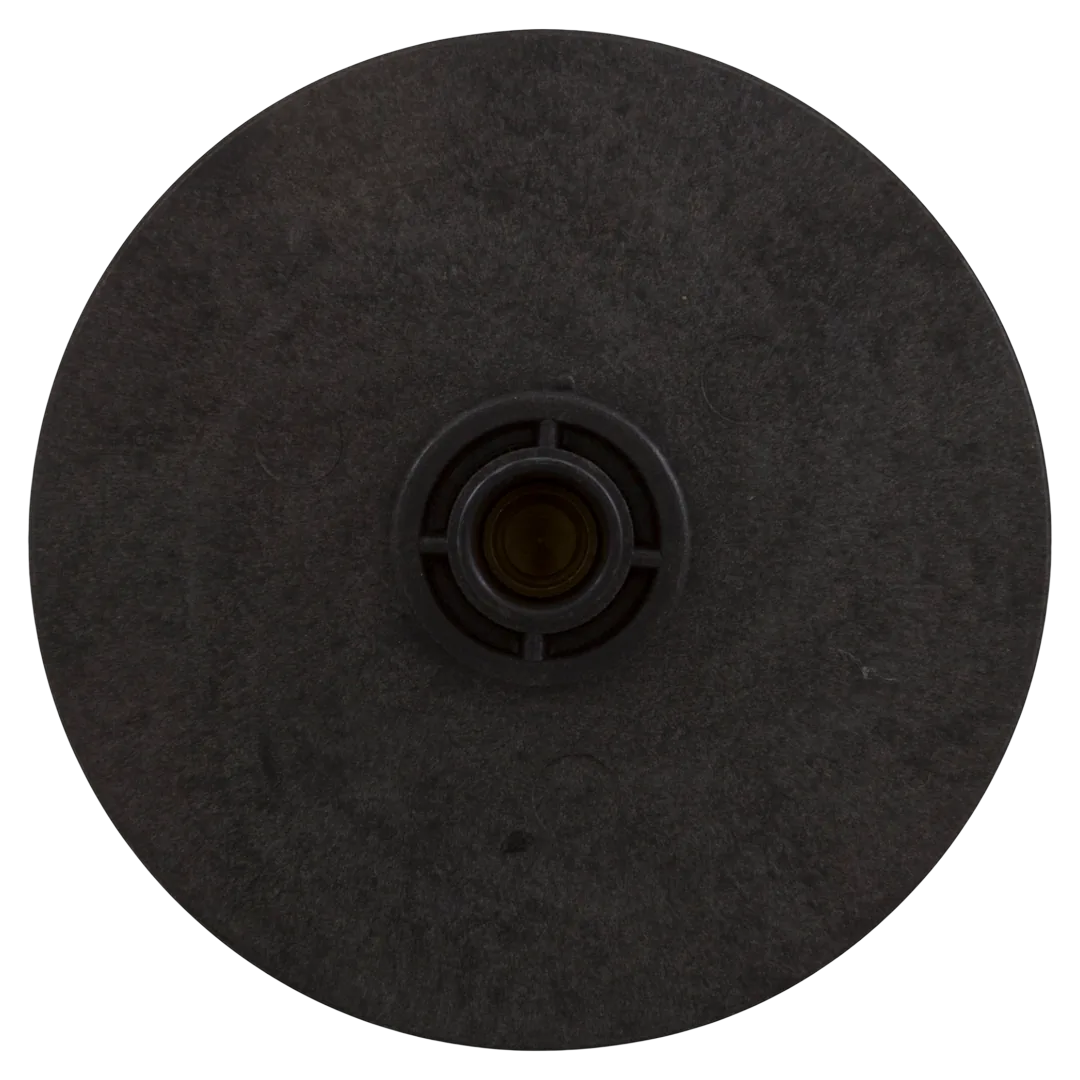

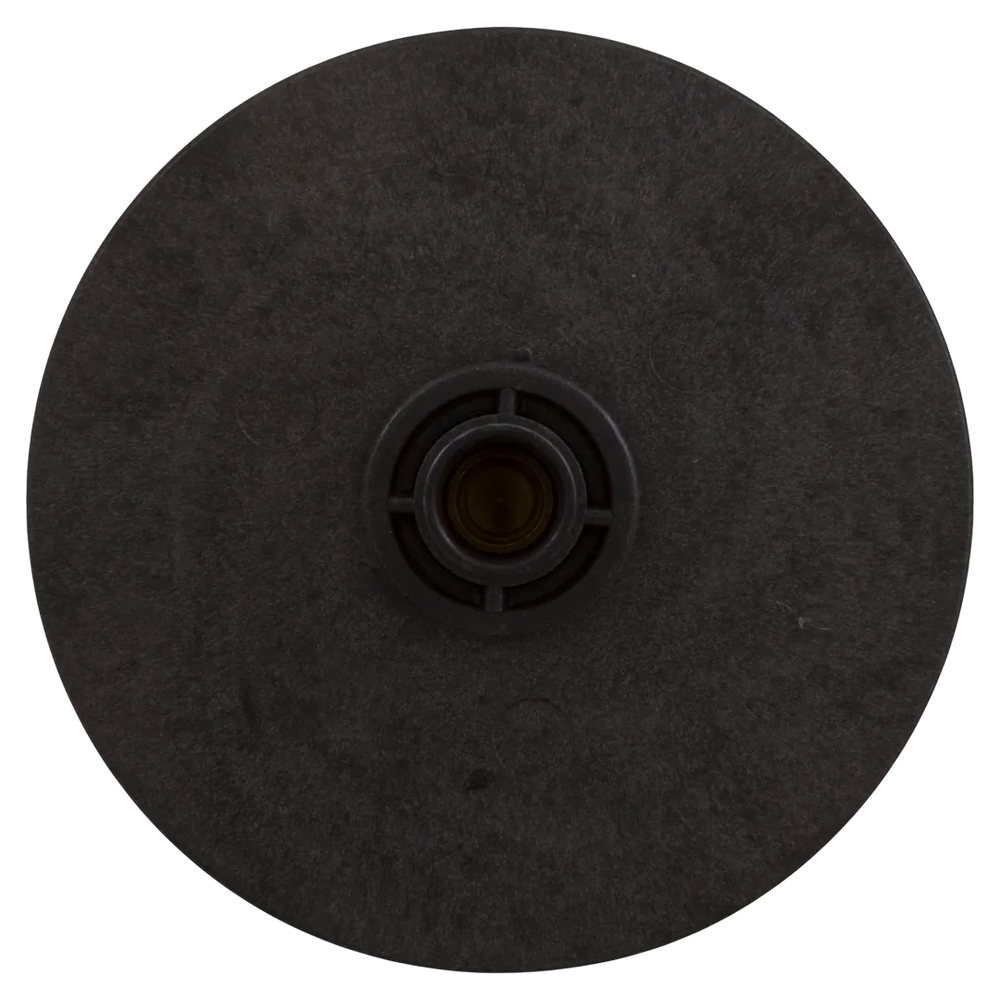

Waterway EX2 3.0 HP Impeller 310-2350
Waterway | SKU:
310-2350
$6400/ea
Unit price
/
Unavailable
Waterway EX2 3.0 HP Impeller 310-2350 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-2350 is a closed face impeller designed for the EX2 series pumps, rated at 3.0 horsepower. Constructed for the EX2 pump wet end, it typically includes an impeller plus PS-201 seal in some kits. This component is explicitly compatible with 3 HP EX2 Wet End systems, ensuring precise fit and operation.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller Assembly - 3 HP |
| Part Number | 310-2350 |
| Part Type | Impeller Assembly |
| Compatibility | Waterway EX2 Pump |
| Substitute Part Numbers | 3102350, 313-4280, 5175-507, 903255, 905040282 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-7/16 inches |
| Vane Width ID | 7/16 inches |
| Eye Diameter OD | 2-1/8 inches |
| Eye Length | 1/2 inch |
| Impeller Width OD | 11/16 inch |
| Seal Seat Depth | 1/8 inch |
| Shaft Length | 1-1/2 inches |
| Shaft Diameter OD | 5/8 inch |
| Seal Seat Diameter OD | 1-1/4 inches |
| Shipping Dimensions | 10 x 6 x 6 inch |
| Product Weight | 0.5 pound |
