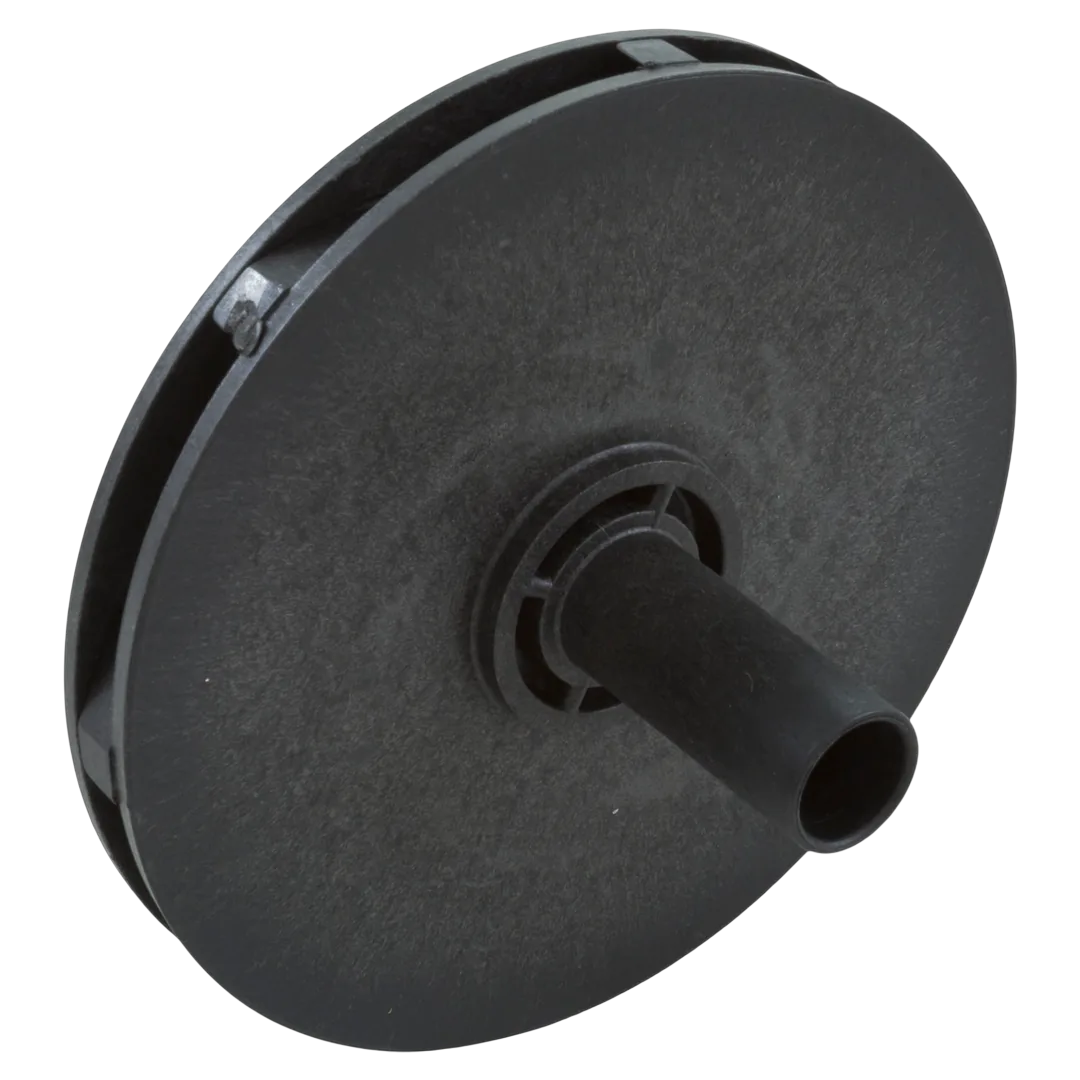

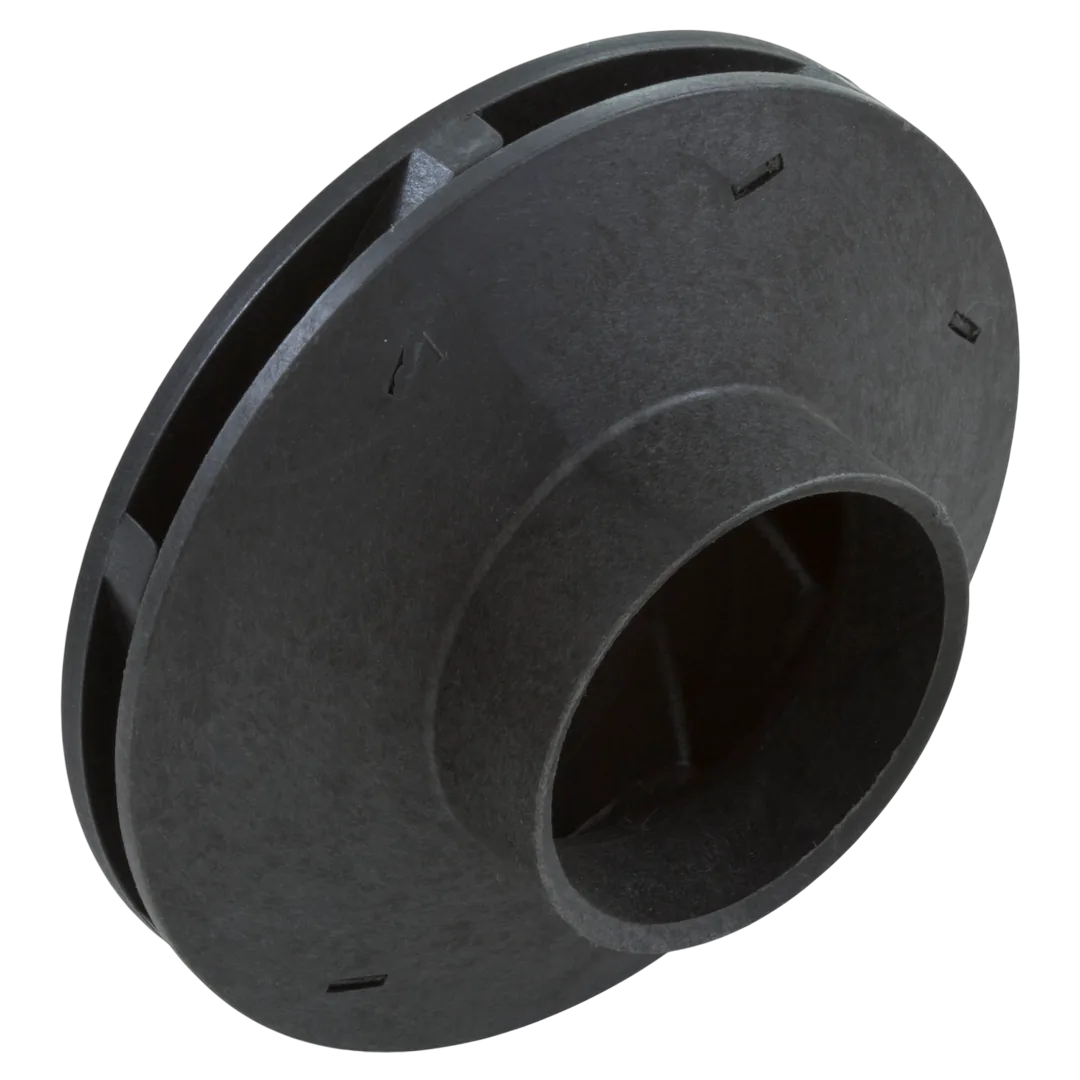

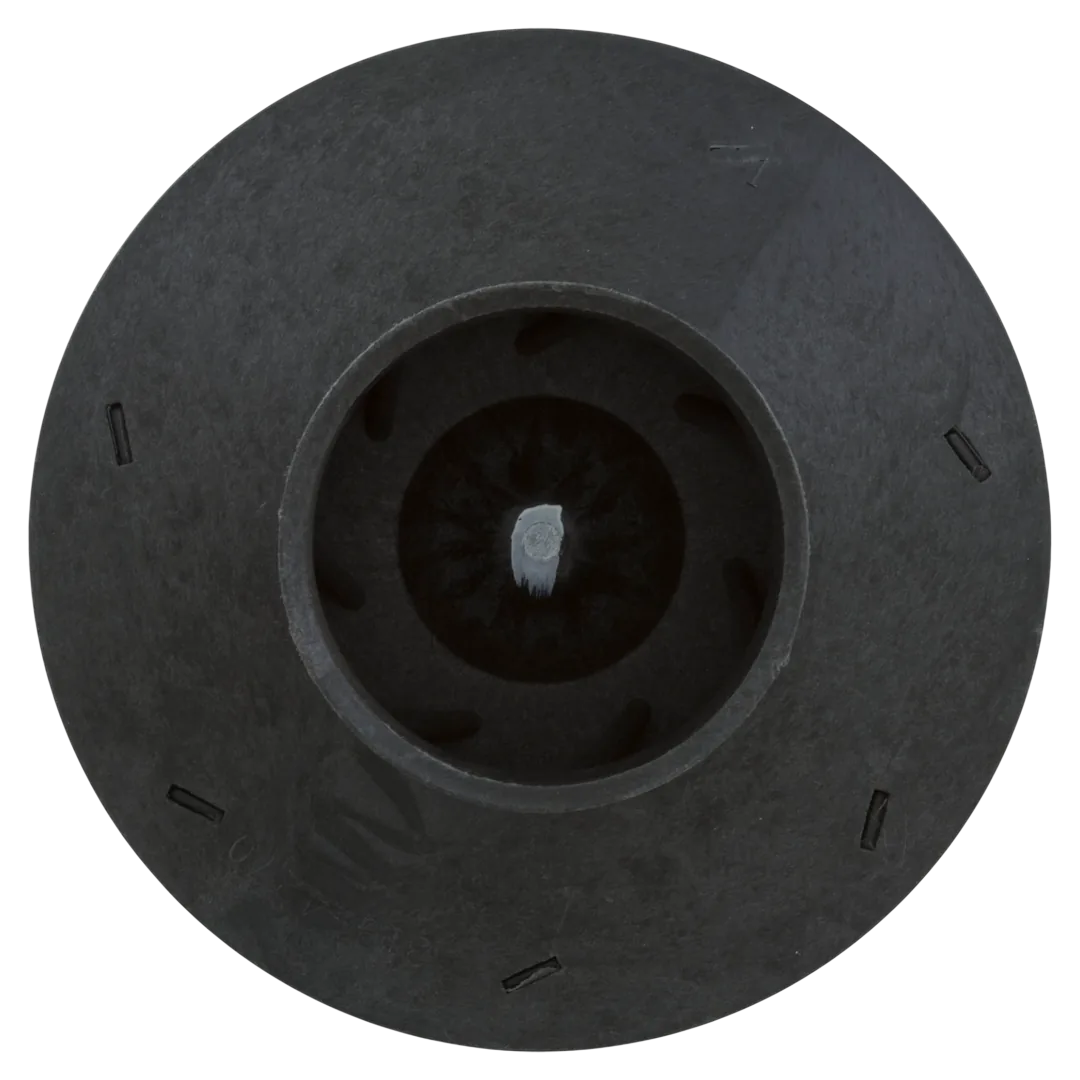

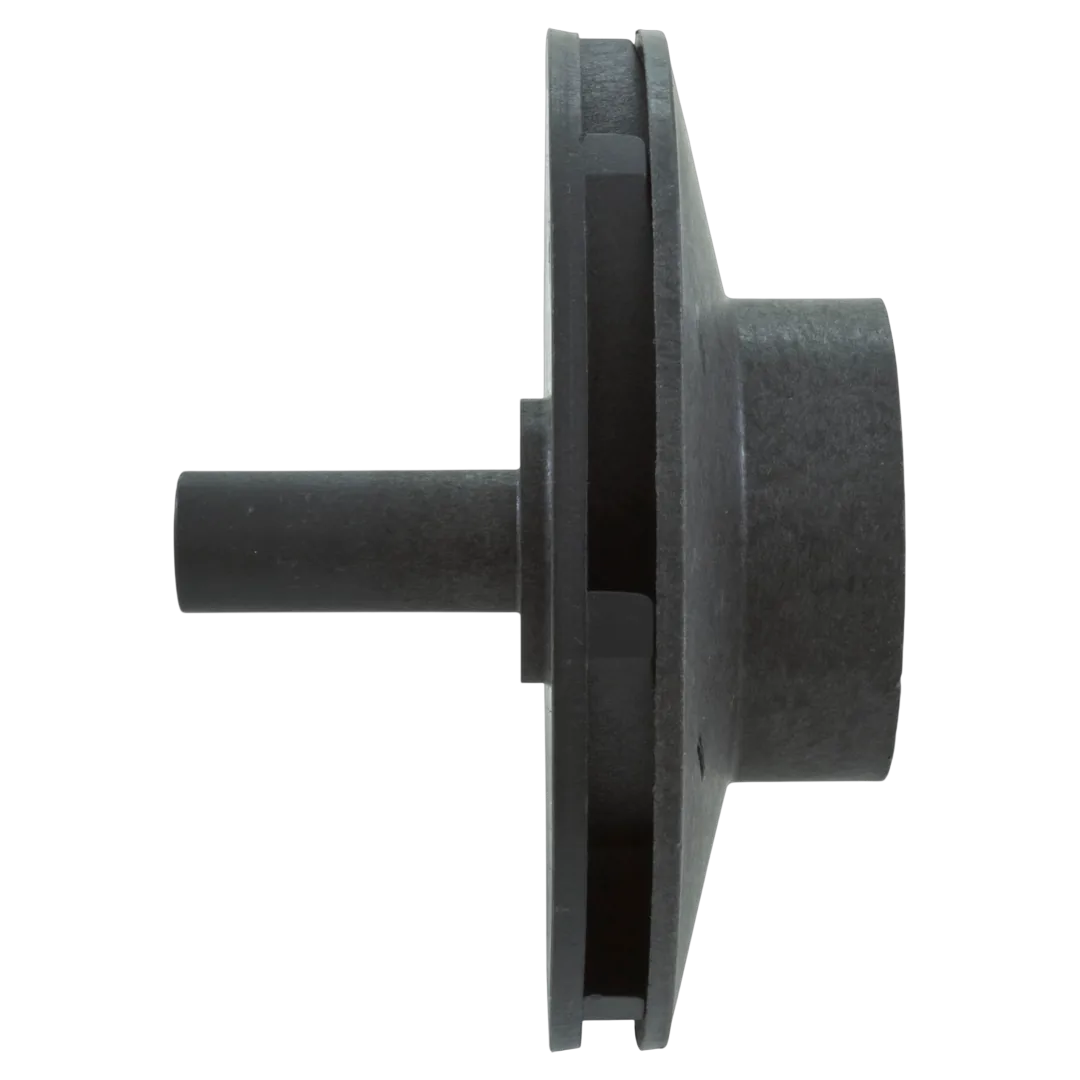

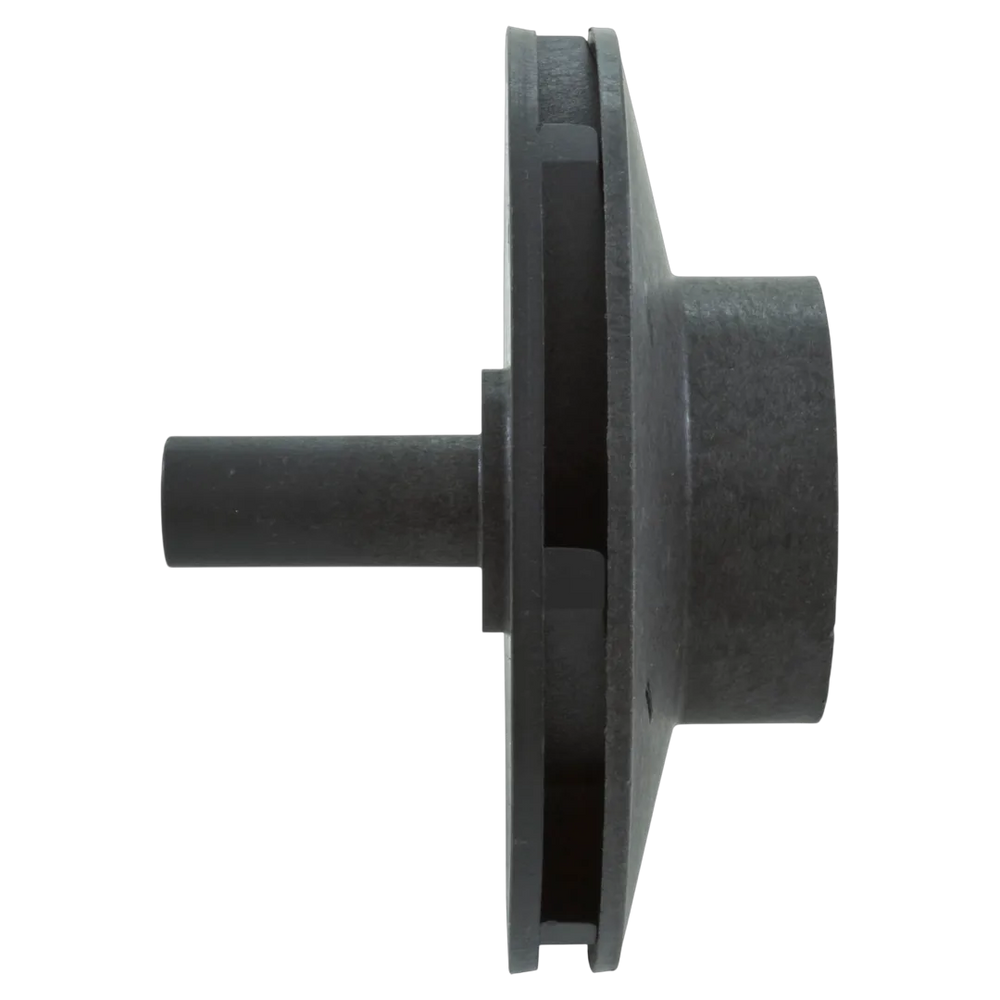

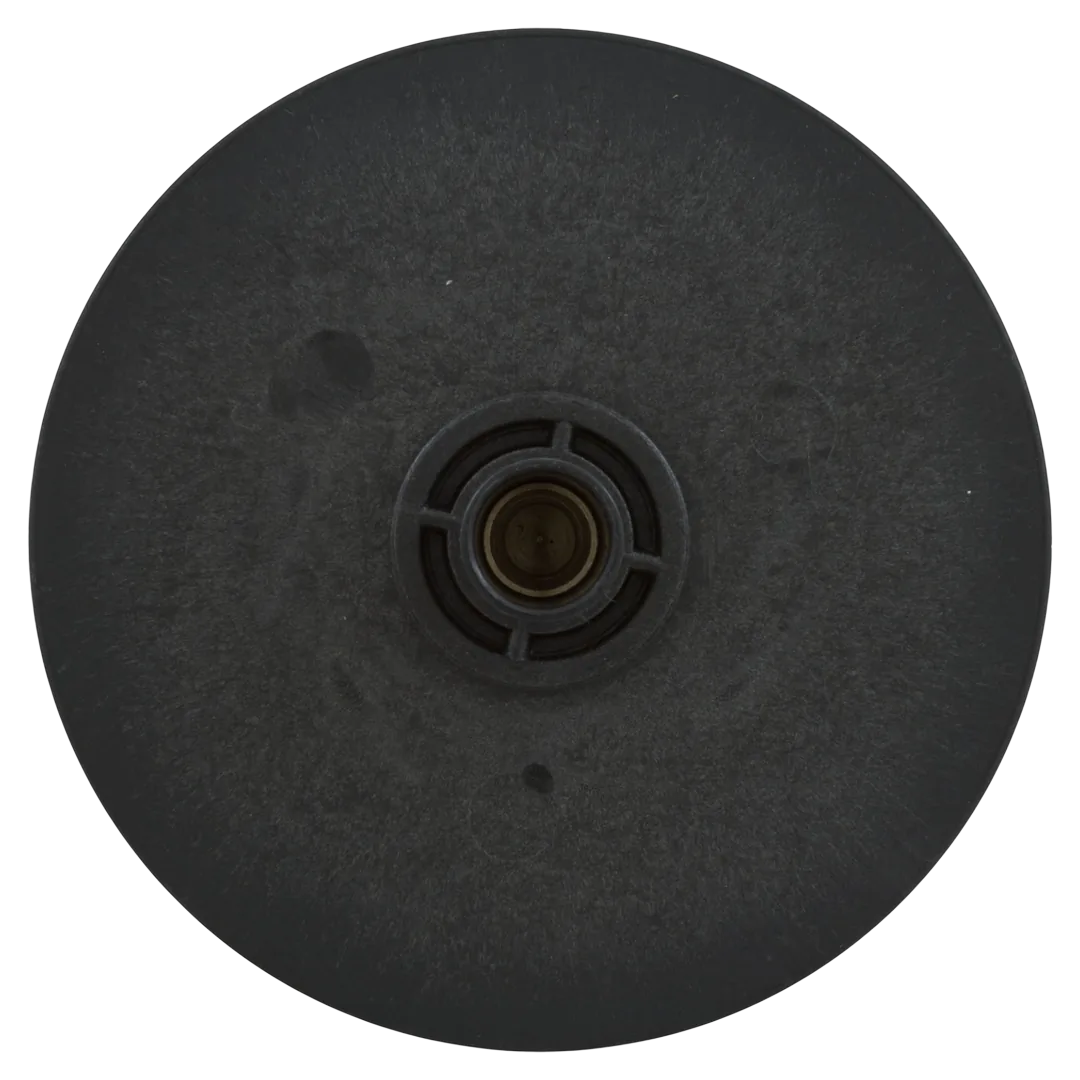

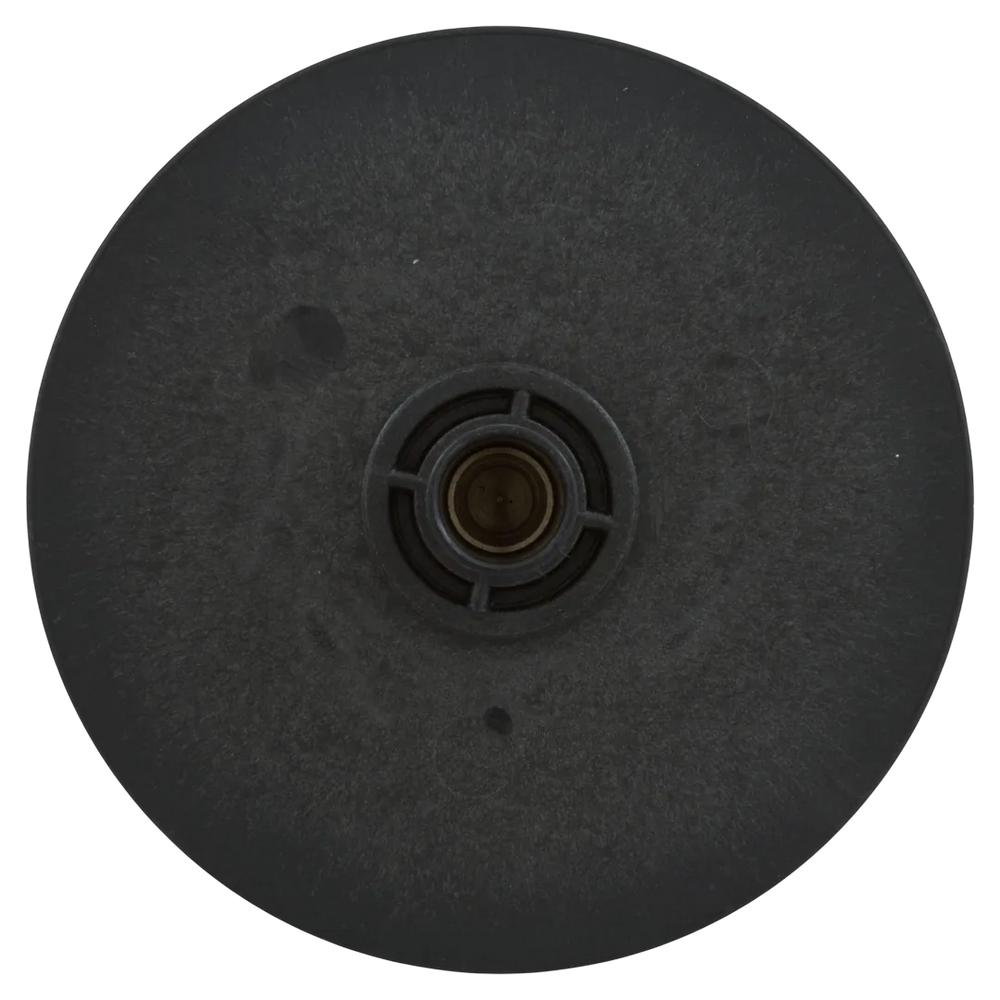

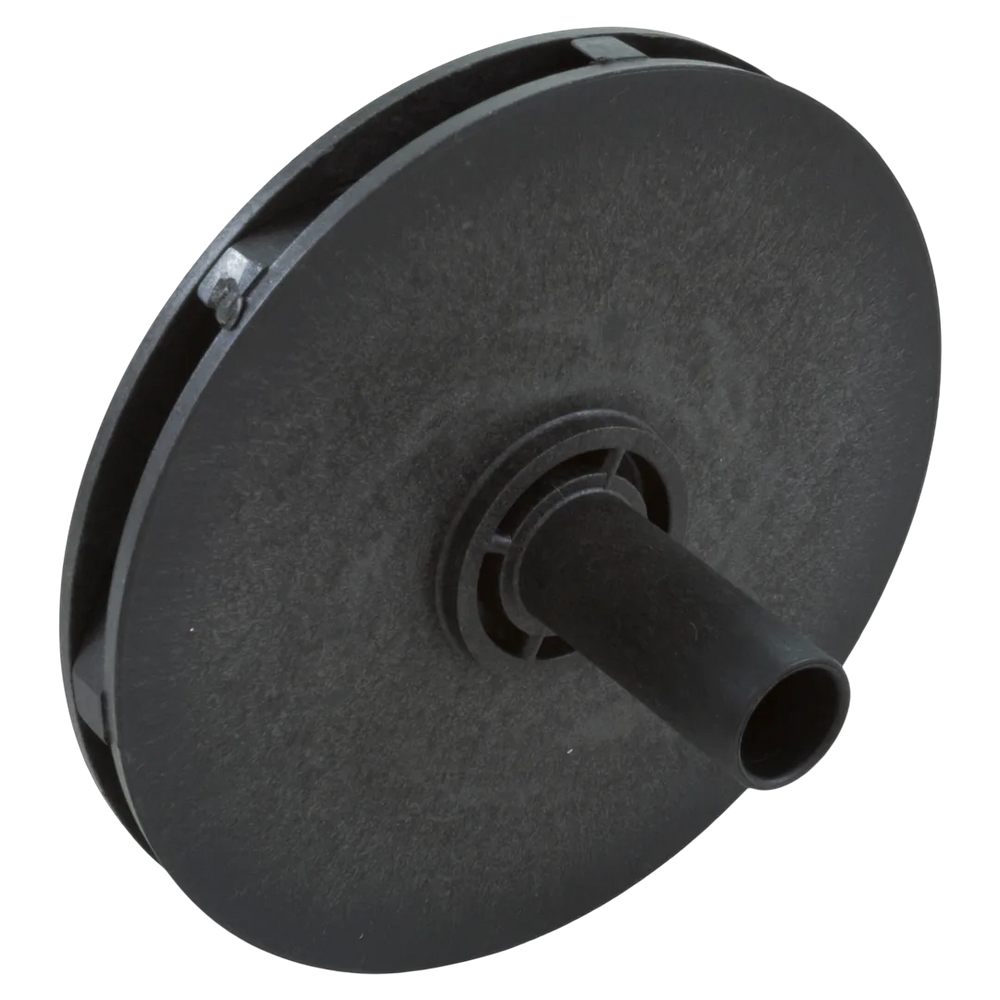

Waterway EX2 2.0 HP Impeller 310-2340
Waterway | SKU:
310-2340
$6700/ea
Unit price
/
Unavailable
Waterway EX2 2.0 HP Impeller 310-2340 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-2340 is a 2.0 horsepower impeller designed for the EX2 series pumps. It features a closed face design, which is essential for generating pressure within the pump. This impeller is compatible with spa pump motors that fit the 48 and 56 frame configurations, specifically rated for 230 volts and 8.5-10.5 amps.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway Impeller, EX2, 2 HP |
| Part Number | 310-2340 |
| Part Type | Impeller |
| Compatibility | Waterway EX2 Pump, 2.0 HP |
| Material | 30% glass-filled Noryl |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.37 inch |
| Vane Width ID | 0.26 inch |
| Eye Diameter OD | 2.09 inch |
| Eye Length | 0.69 inch |
| Impeller Width OD | 0.5 inch |
| Seal Seat Depth | 0.13 inch |
| Shaft Length | 1.5 inch |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.25 inch |
| Shipping Dimensions | 5 x 5 x 2 inch |
| Product Weight | 0.5 pound |
