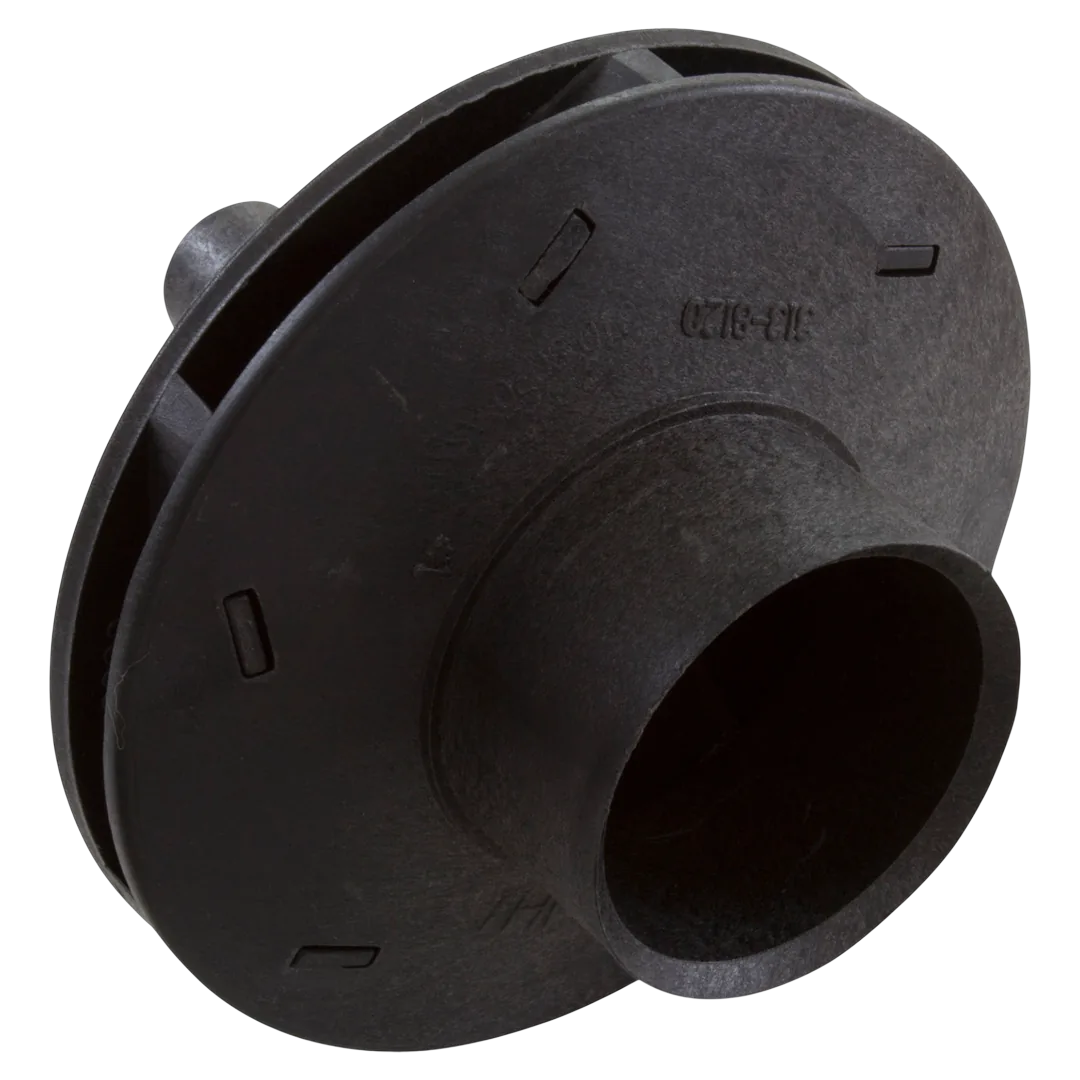

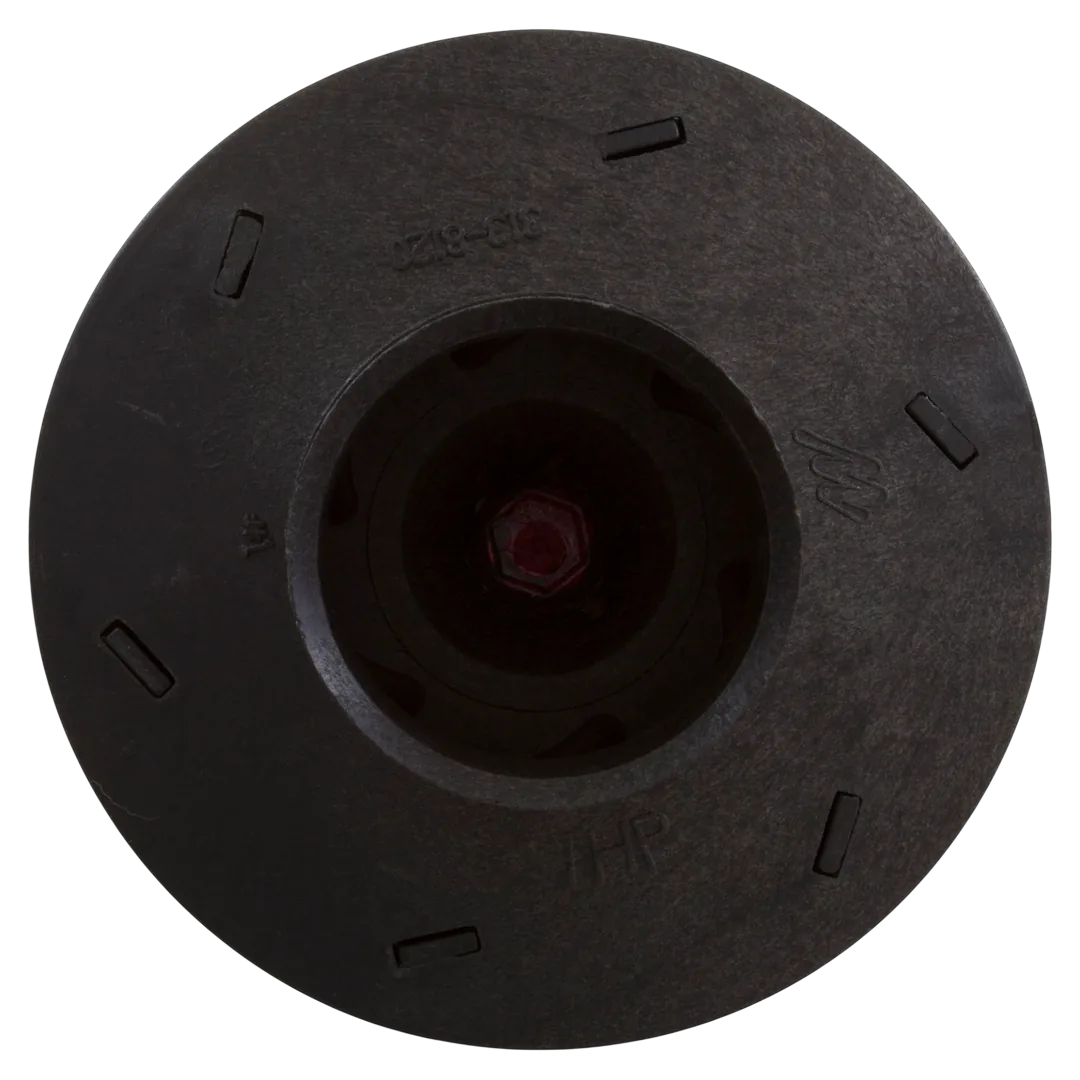

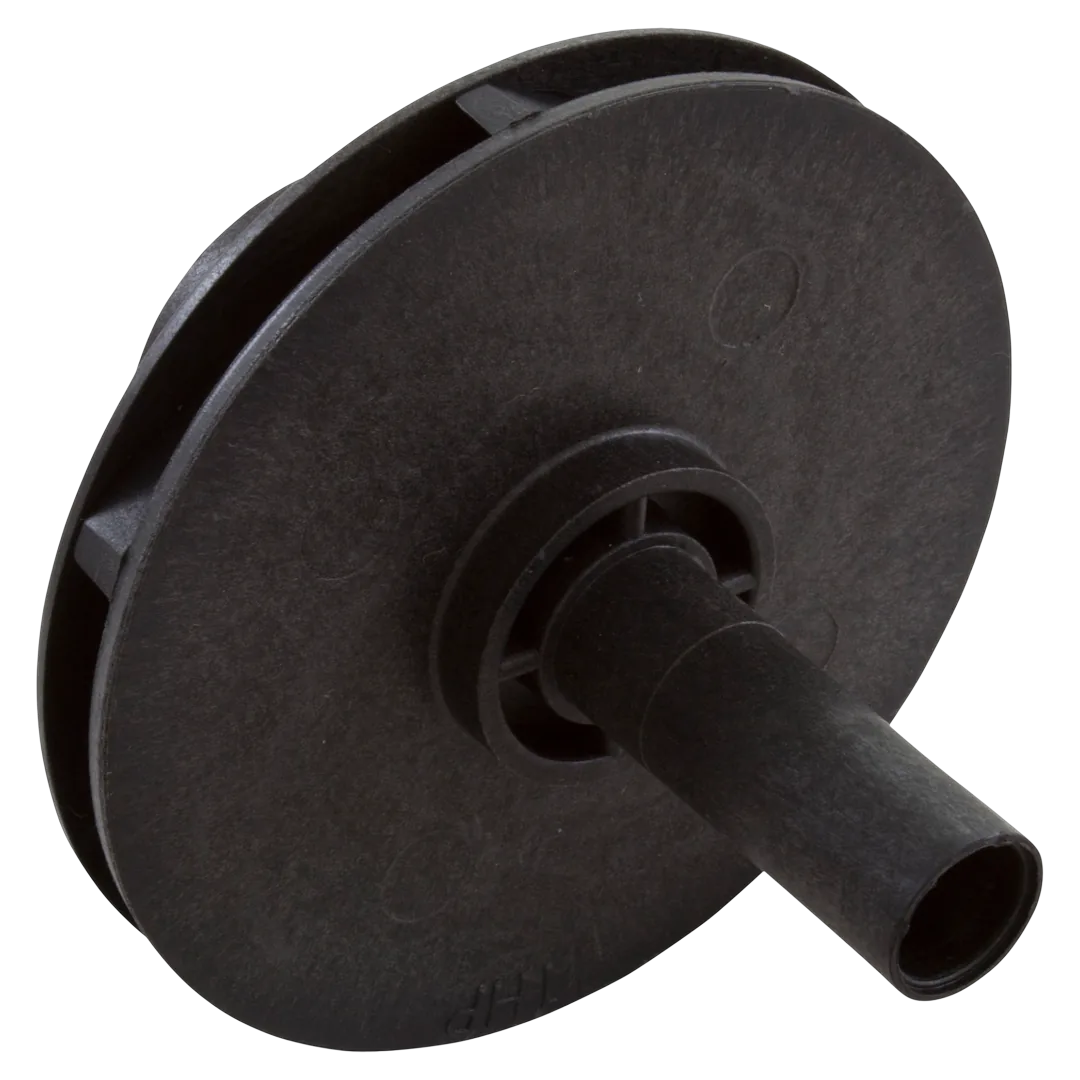

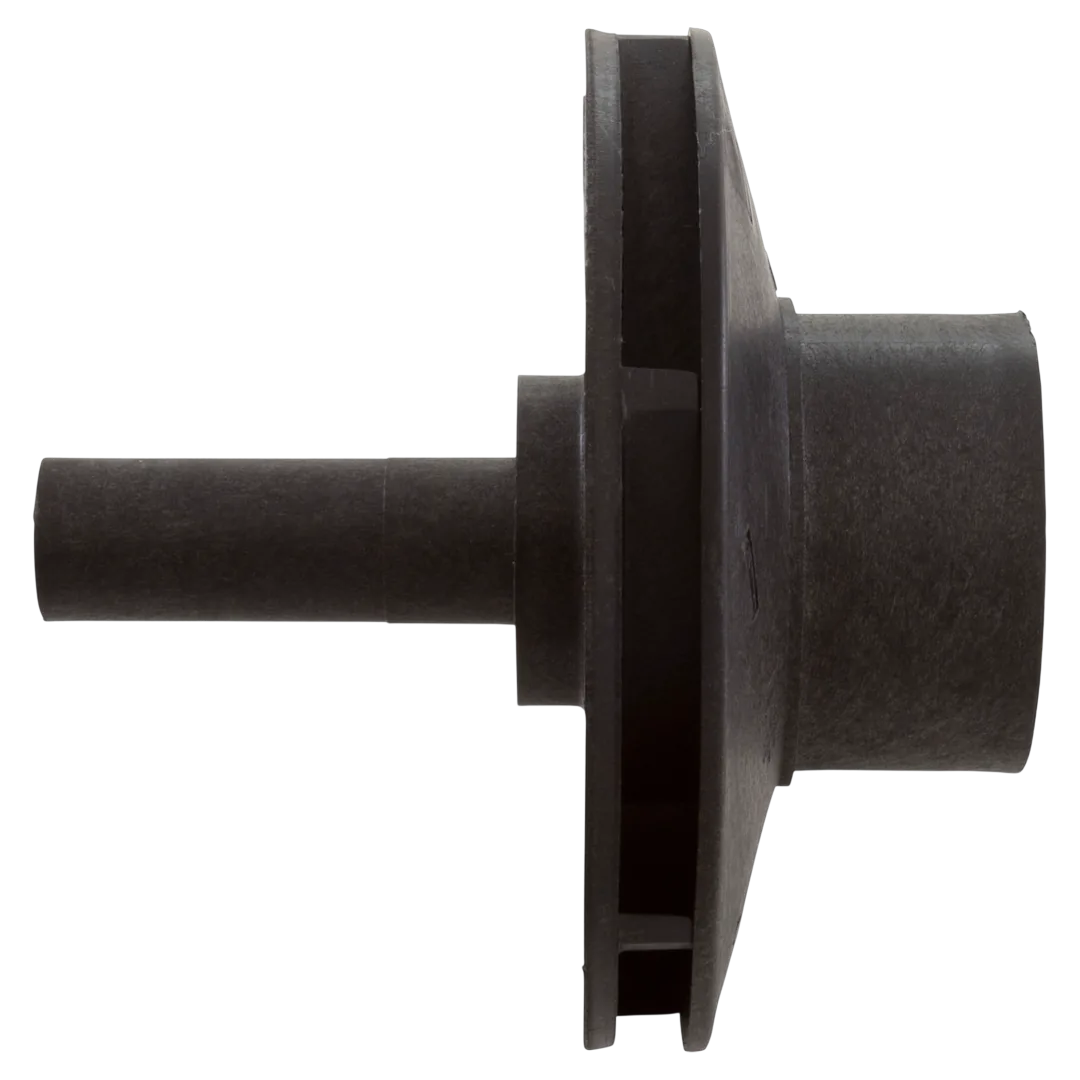

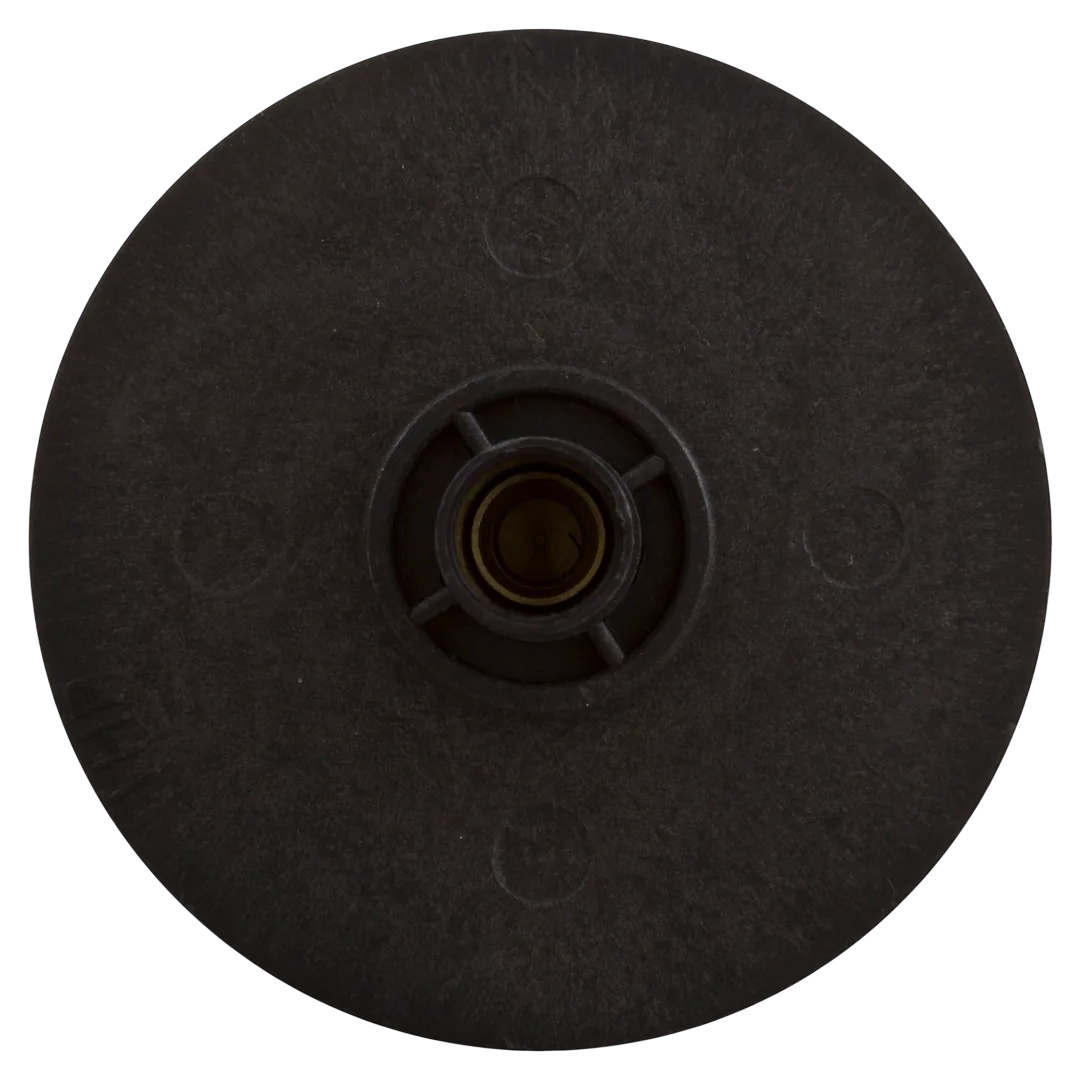

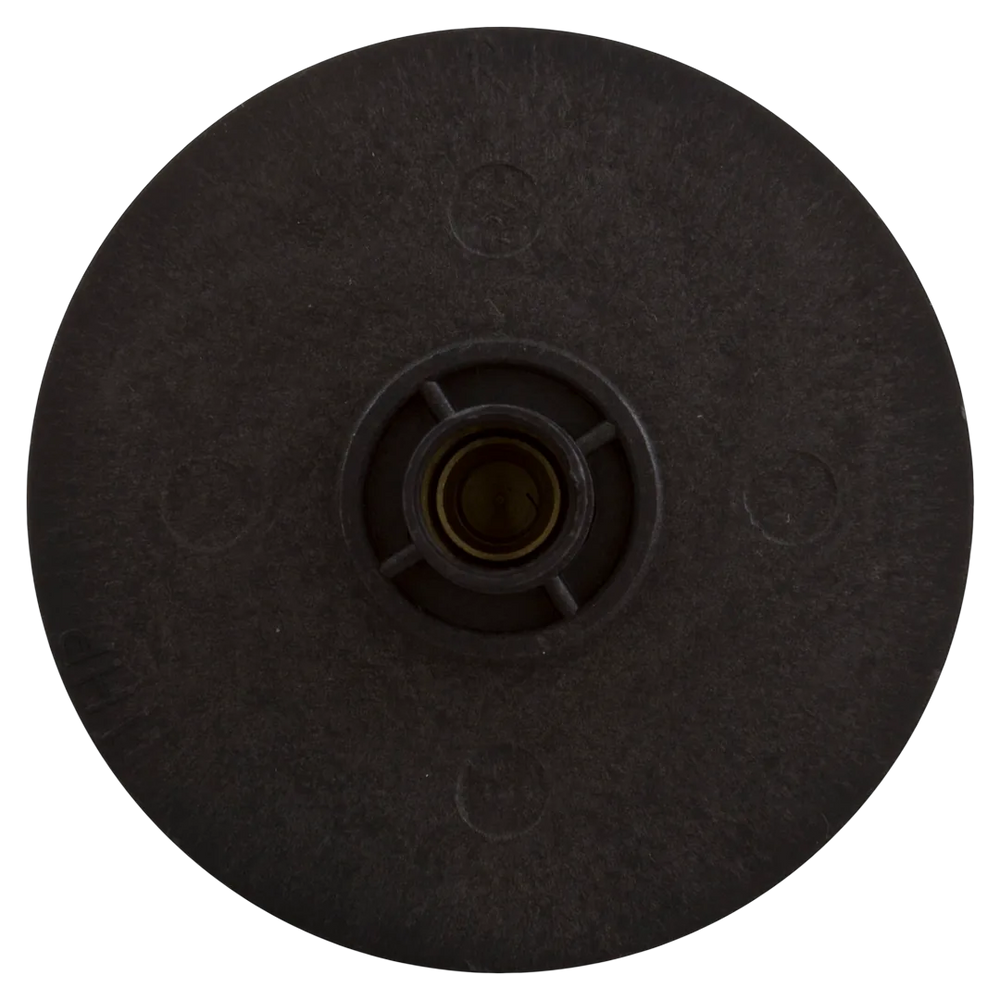

Waterway E-Series 1.0 HP Pool Pump Impeller
Waterway | SKU:
310-8020
$4900/ea
Unit price
/
Unavailable
Waterway E-Series 1.0 HP Pool Pump Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-8020 is a 1.0 HP pool pump impeller for the E-Series and Hi-Flo II pumps. It is crafted from 30% glass-filled Noryl, offering a durable composition suitable for high-performance applications. This impeller is specifically compatible with Waterway E-Series Center Discharge Pumps, Waterway Spa Flo II Pumps, and Hi-Flo II Side Discharge Pumps.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 1 HP Impeller Assembly |
| Part Number | 310-8020 |
| Part Type | Impeller |
| Compatibility | Waterway E-Series Center Discharge Pumps (2010–Present), Hi-Flo II Side Discharge Pumps (2014–Present), Spa Flo II Wet End (November 2013–Present), Iron Might Circulation Pumps (2015 and newer) |
| Substitute Part Numbers | 313-8120, 5030-16, 900881 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Diameter OD | 3.75 inches |
| Vane Width ID | 0.25 inch |
| Eye Diameter OD | 1.75 inches |
| Eye Length | 0.9375 inch |
| Impeller Width OD | 0.4375 inch |
| Seal Seat Depth | 0.25 inch |
| Shaft Length | 1.75 inches |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.25 inches |
| Product Weight | 0.3 pound |
