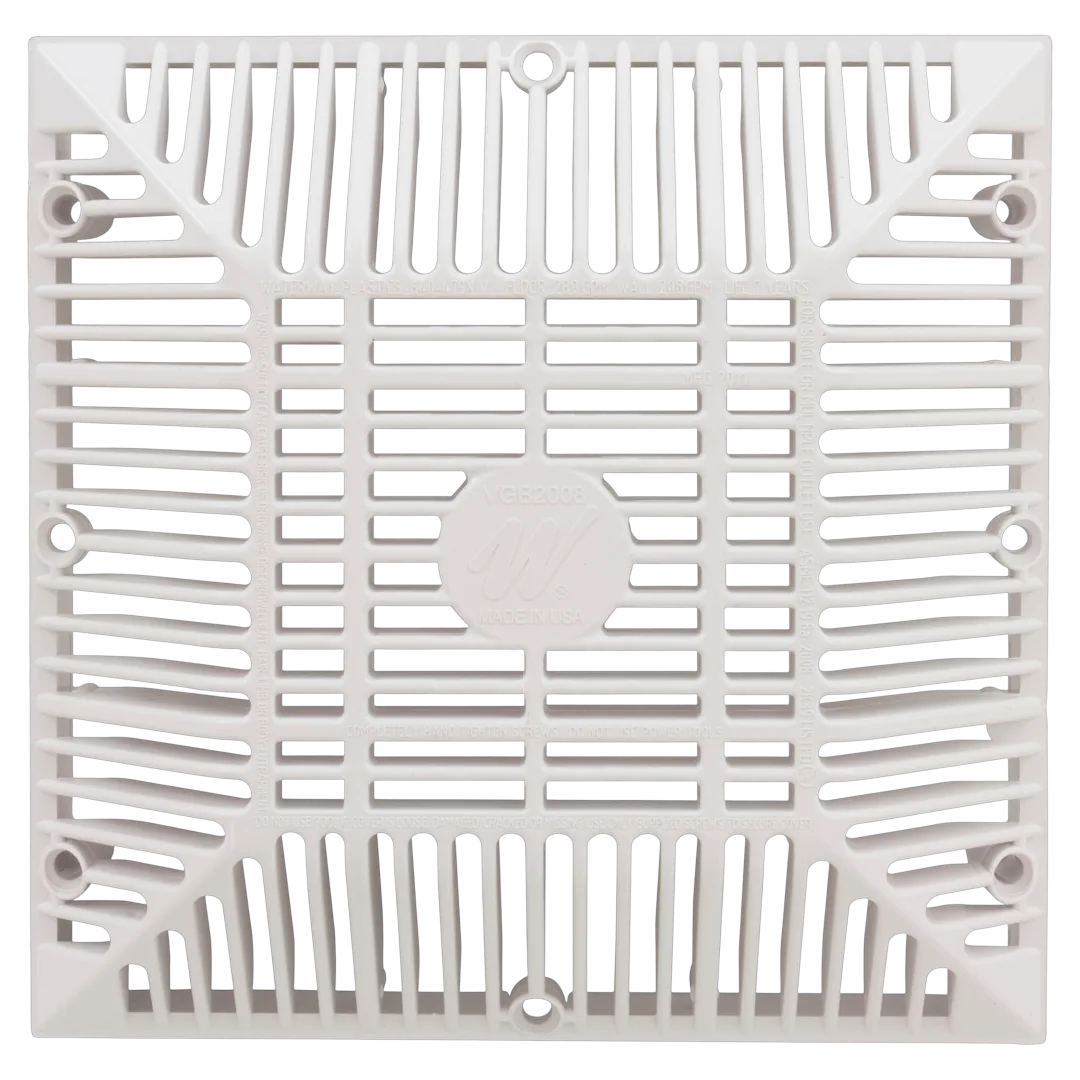

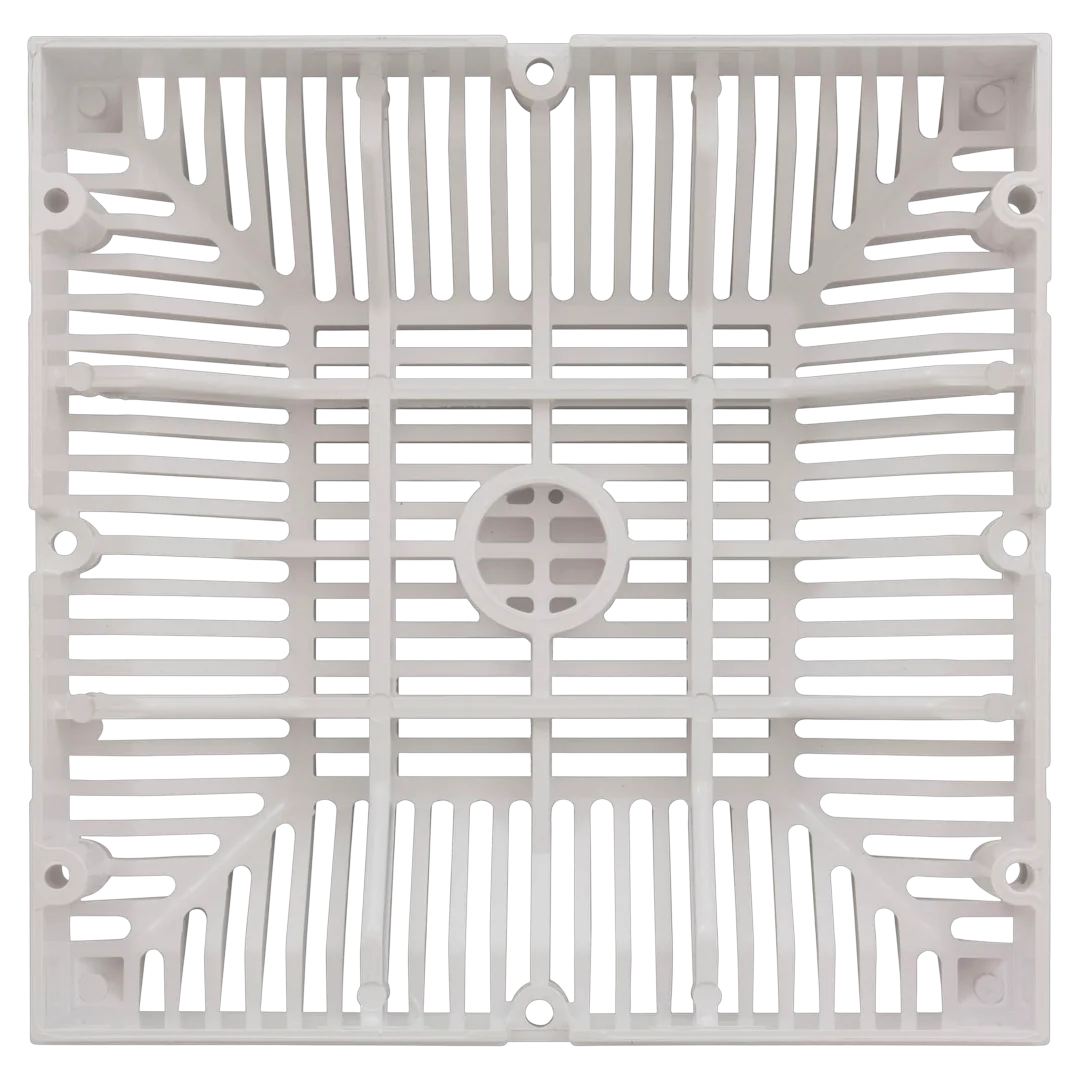

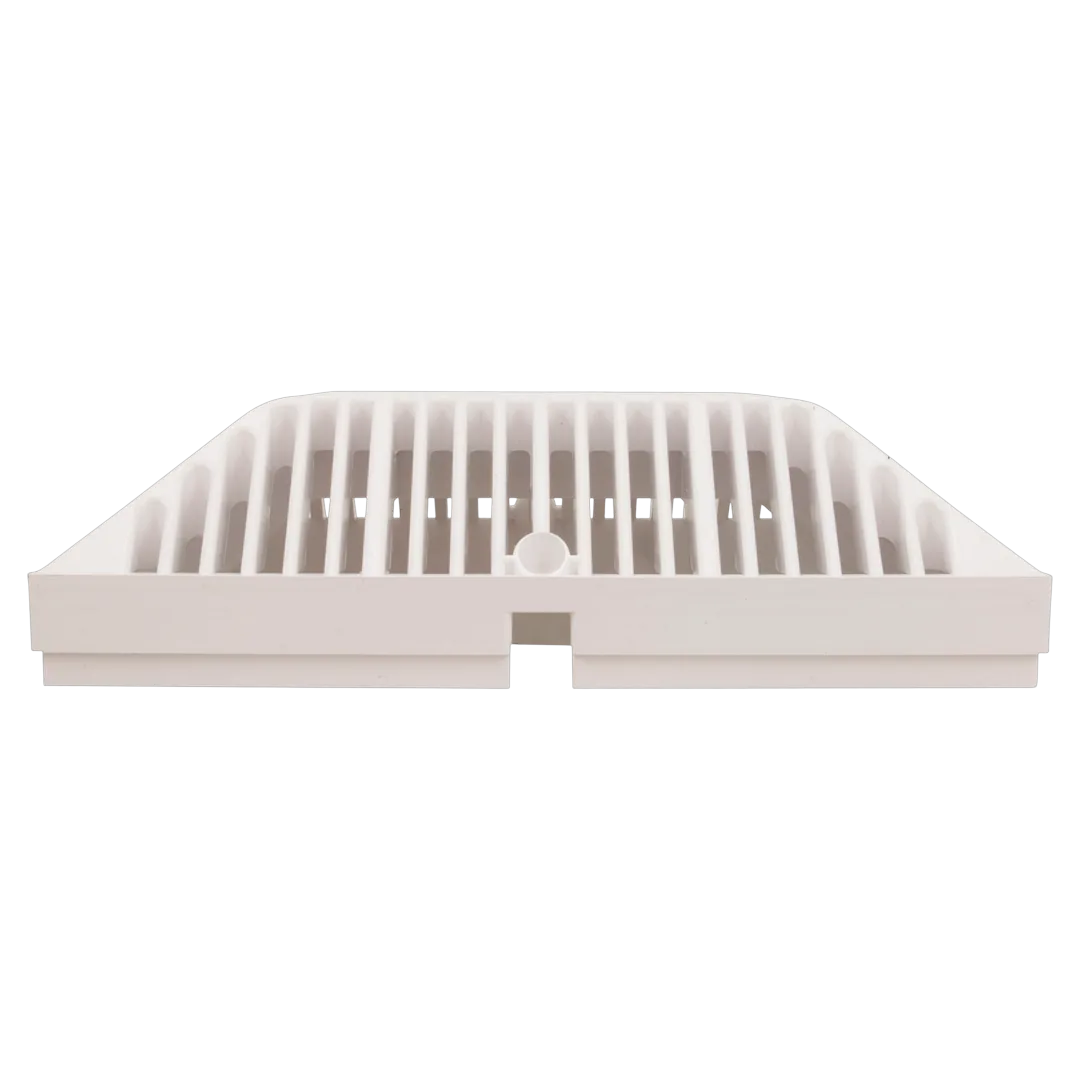

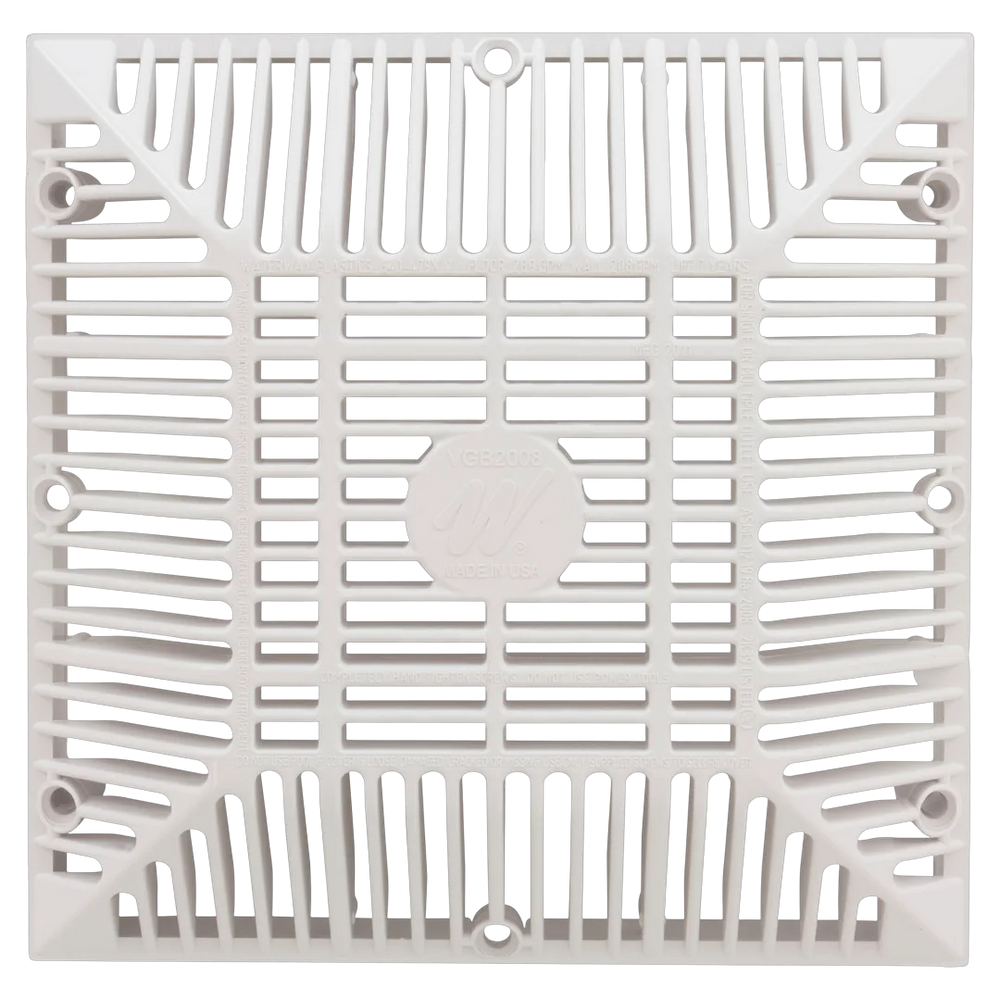

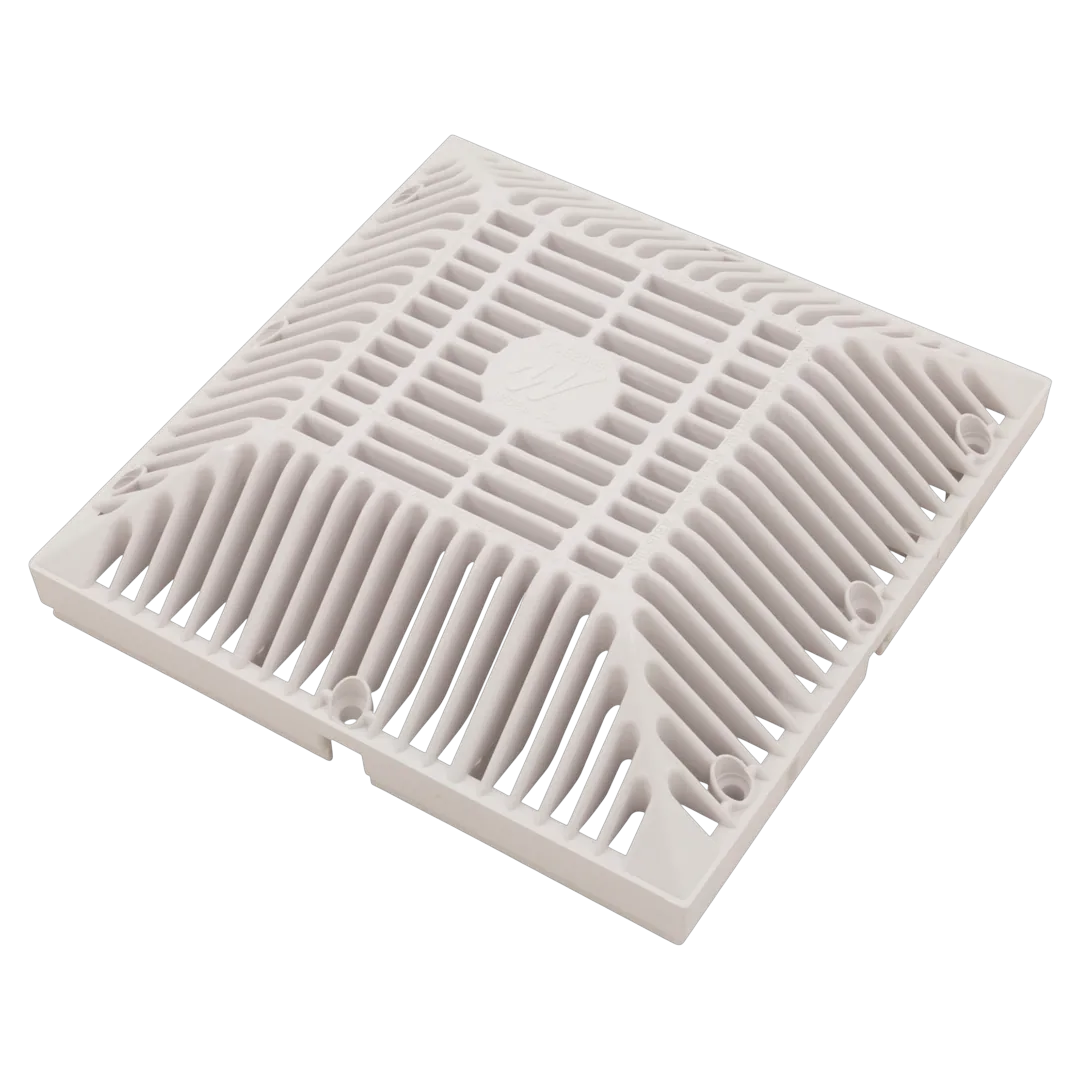

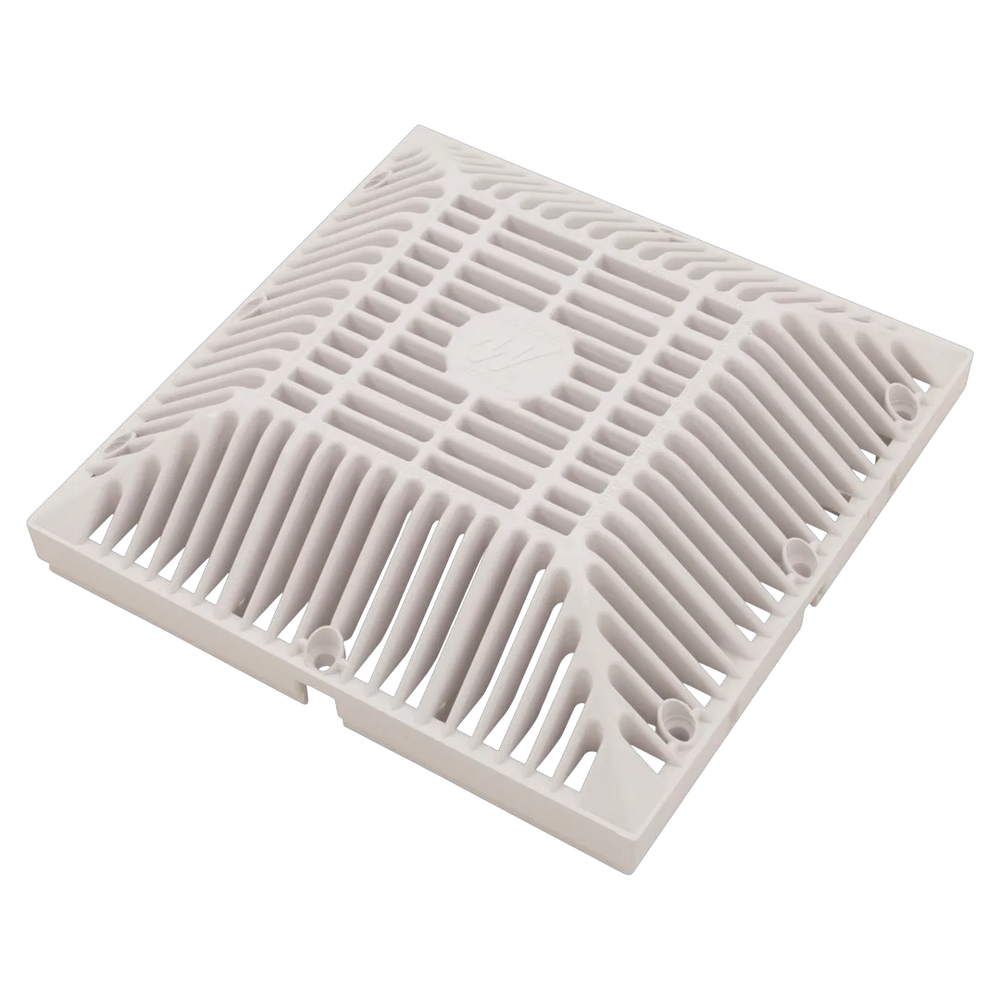

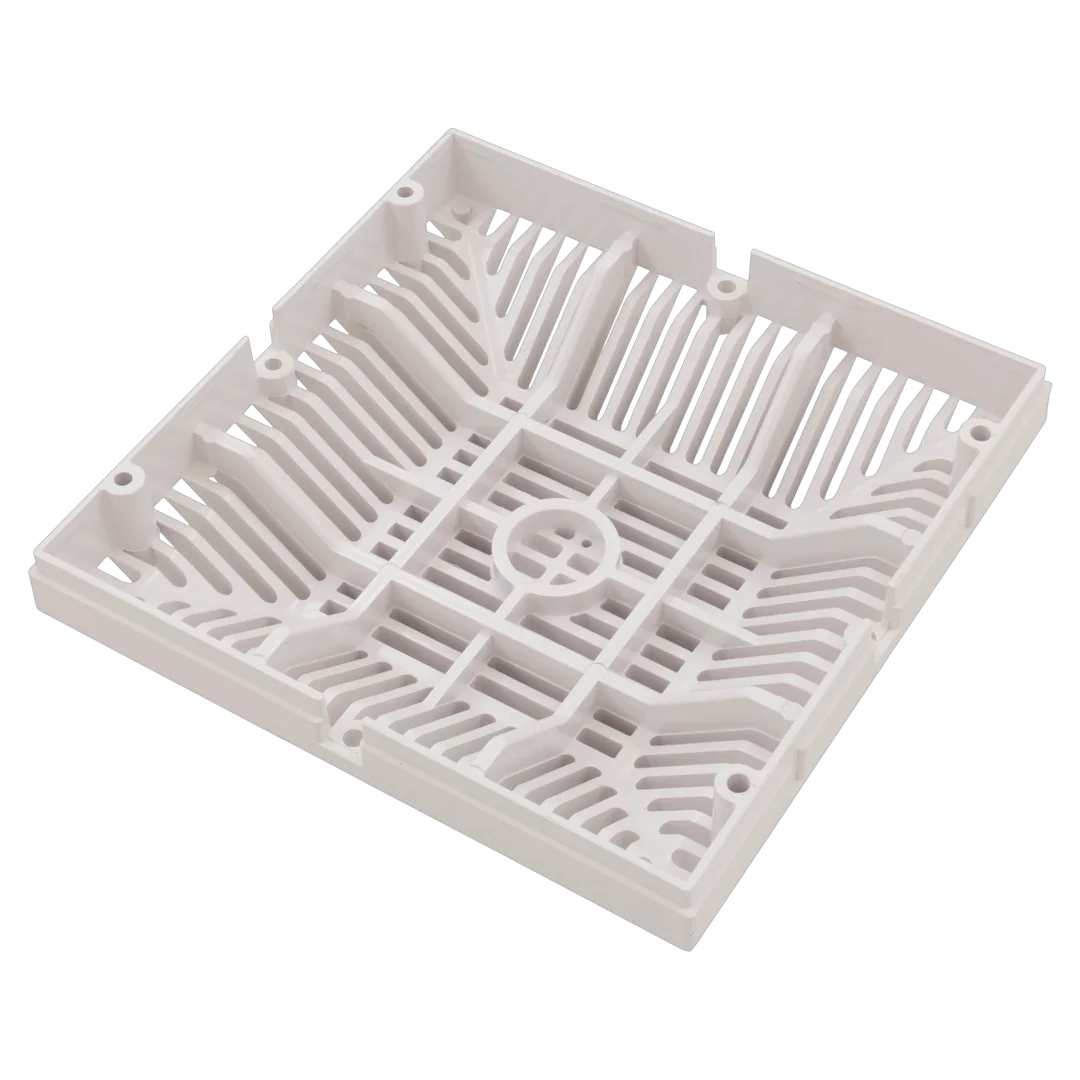

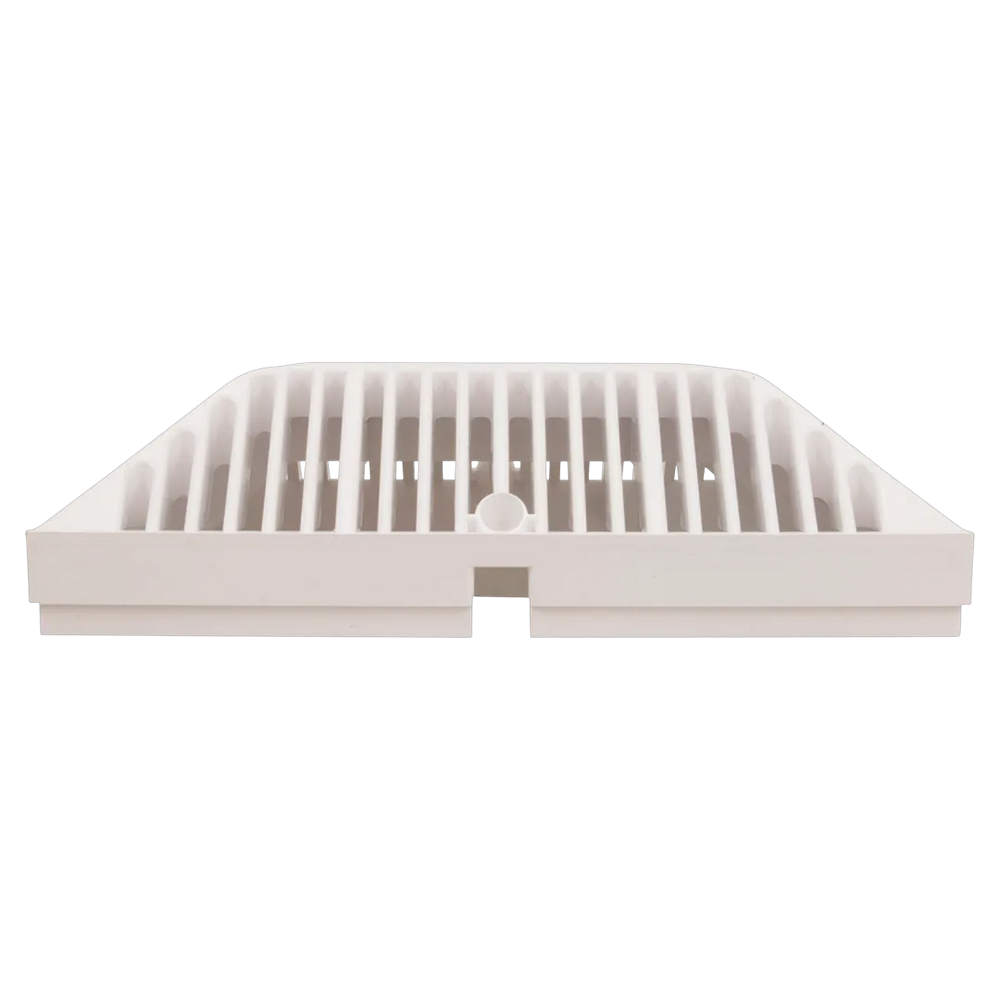

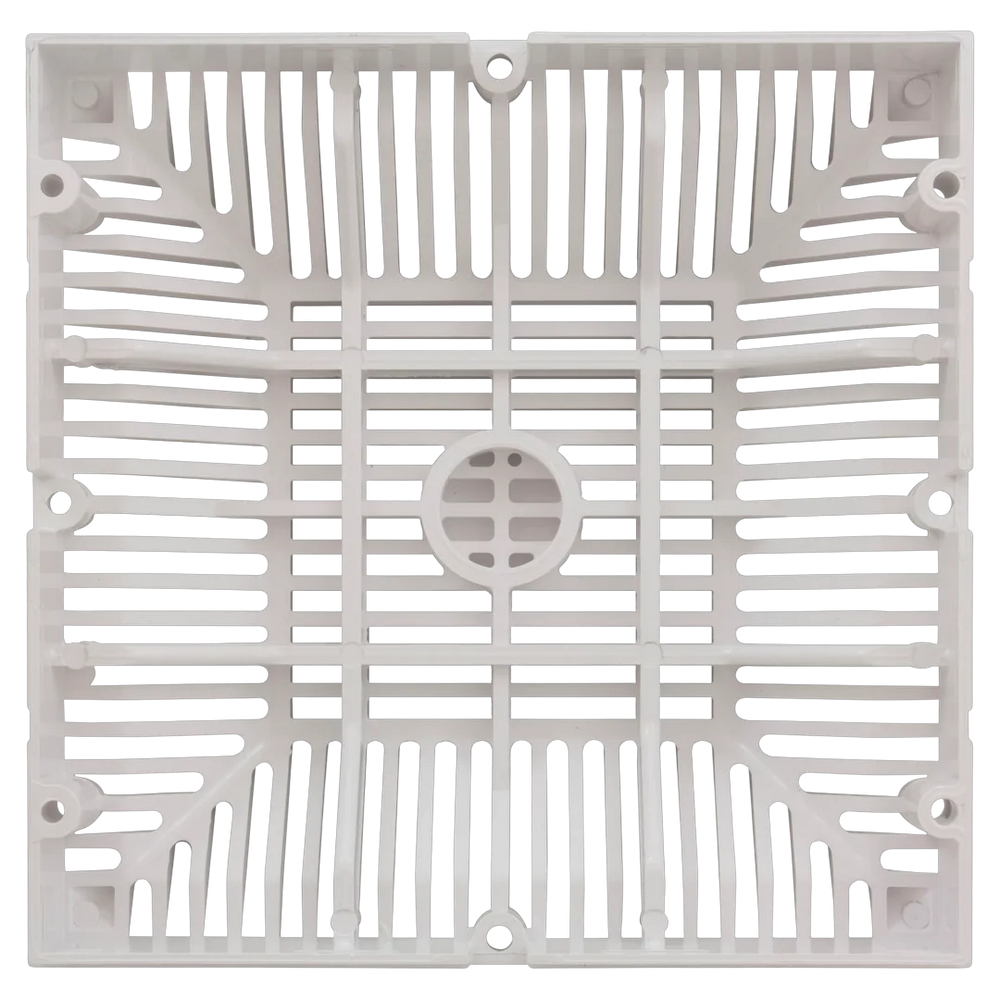

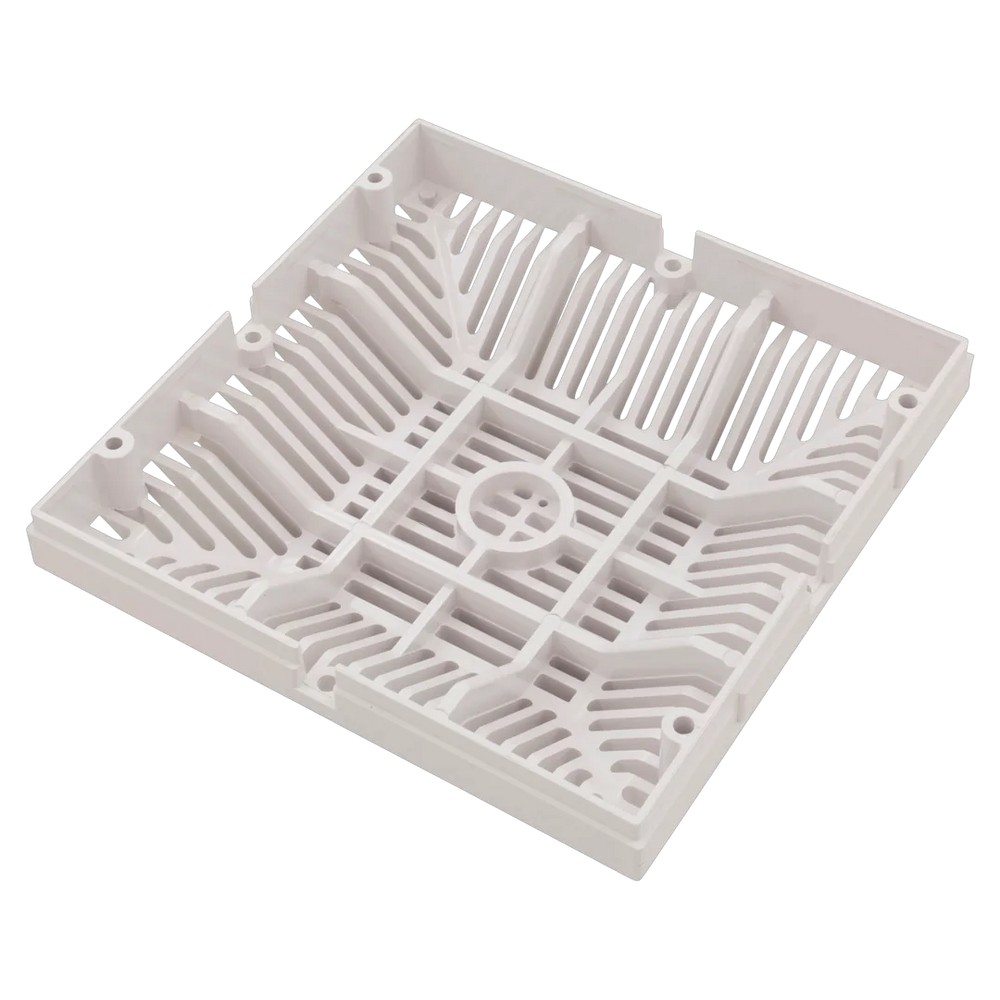

Waterway 9" x 9" Square Grate White
Waterway | SKU:
642-4790 V
$7600/ea
Unit price
/
Unavailable
Waterway 9" x 9" Square Grate White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 642-4790 V is a 9" x 9" square main drain grate designed for pool and spa applications. It consists of a white grate and frame, constructed for robust pool drainage systems. This part is intended for use with various models, including the 10" Tru Flo Round drainage systems.
Includes: Grate and frame
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 9" x 9" Grate & Frame |
| Part Number | 642-4790 V |
| Part Type | Grate & Frame |
| Compatibility | Fits Waterway frames designed for 9" x 9" grates |
| Includes | Grate and frame |
| Material | UV-resistant polymer |
| Frame Size | 10.375 x 10.375 inch |
| Total Open Area | 43.6 square inch |
| Floor Flow Rate | 240 GPM (3" plumbing) |
| Wall Flow Rate | 208 GPM (3" plumbing) |
| Flow Rate at 1.5 ft/sec | 203 GPM |
| Shipping Dimensions | 10.5 x 10.5 x 3 inch |
| Product Weight | 2.5908 pound |
