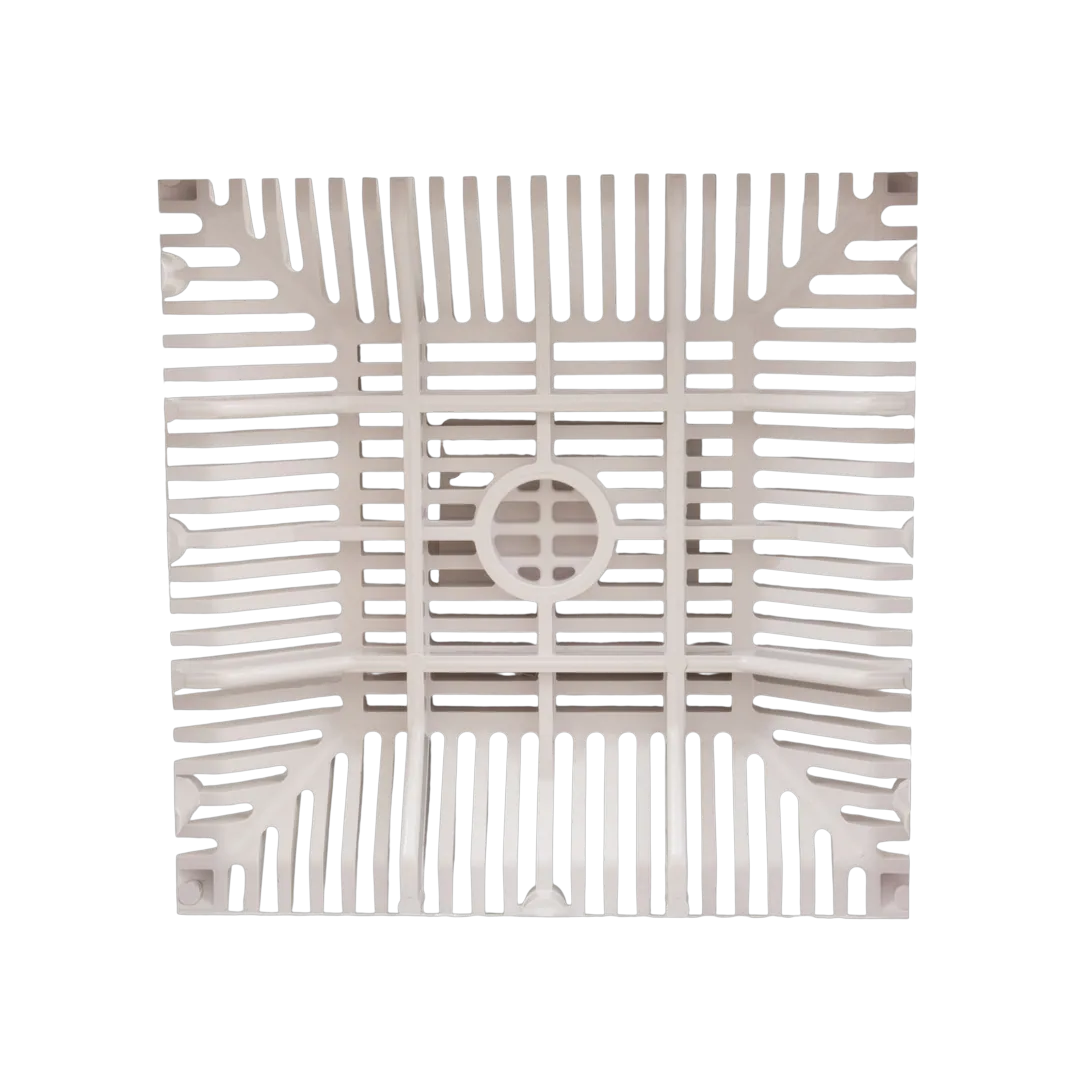

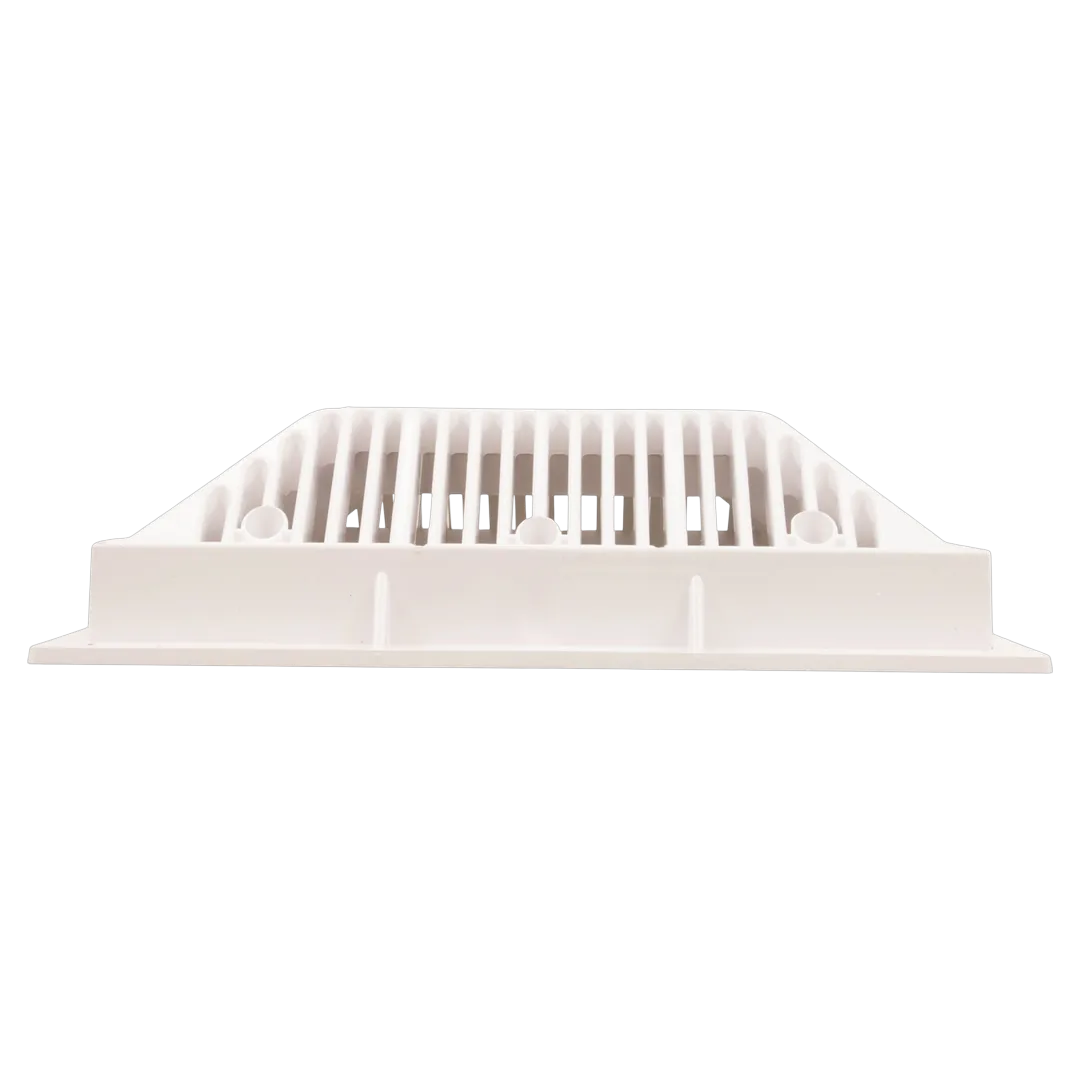

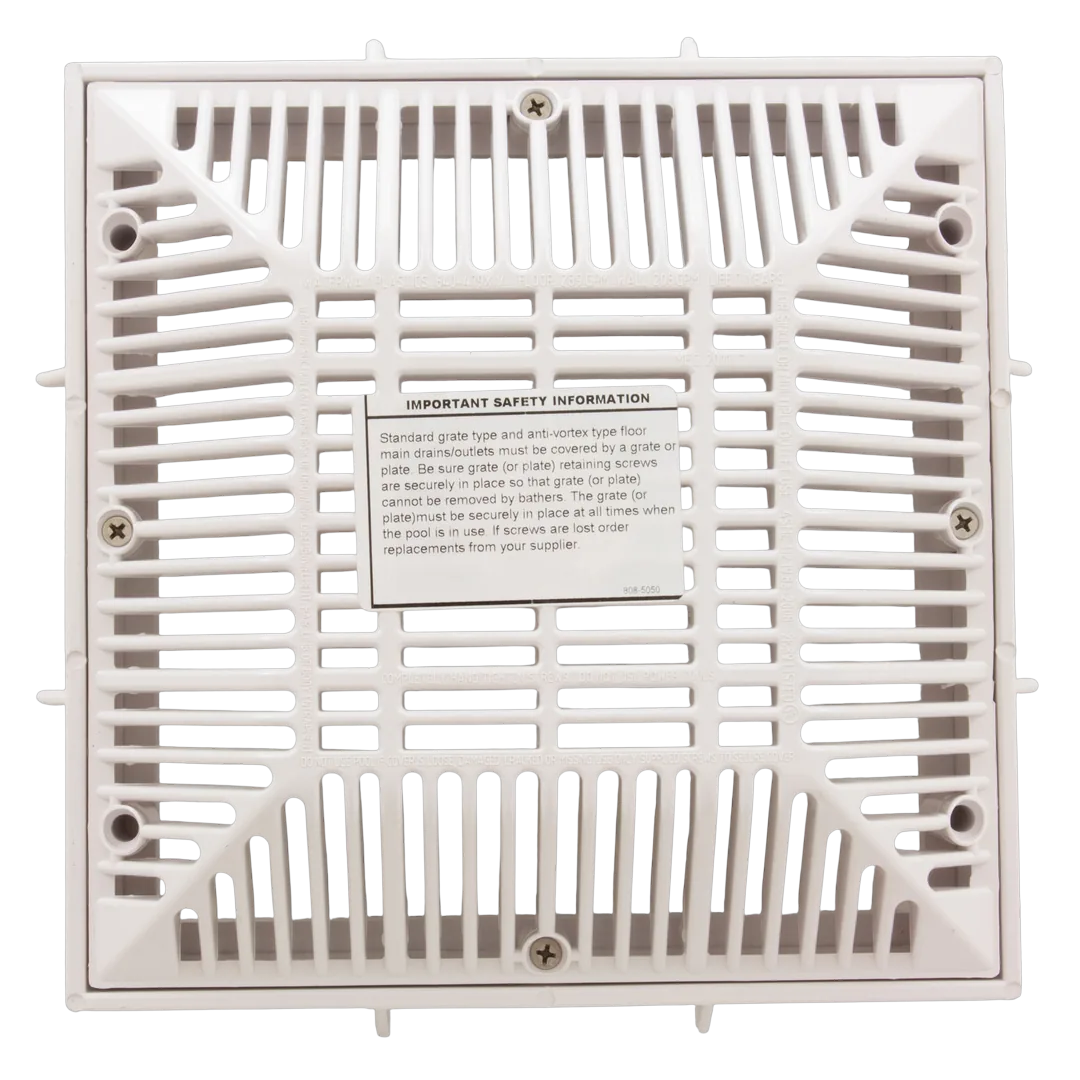

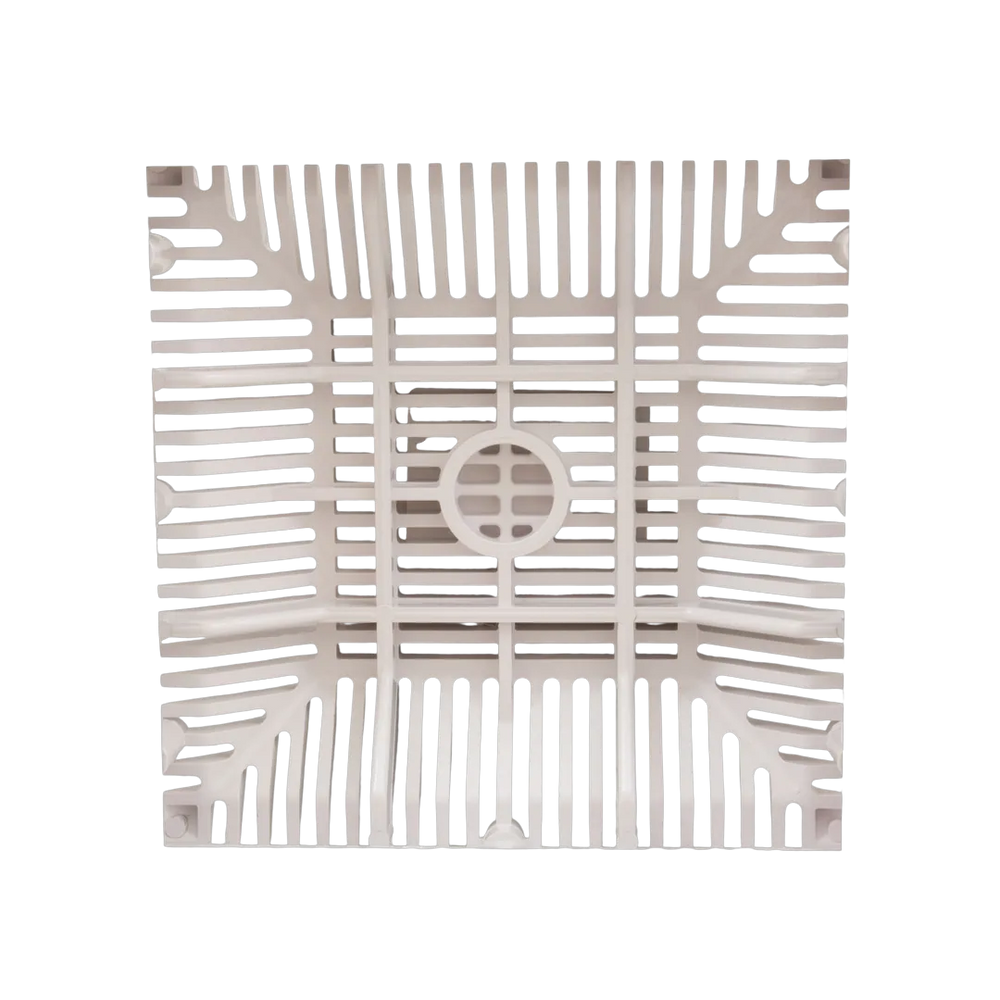

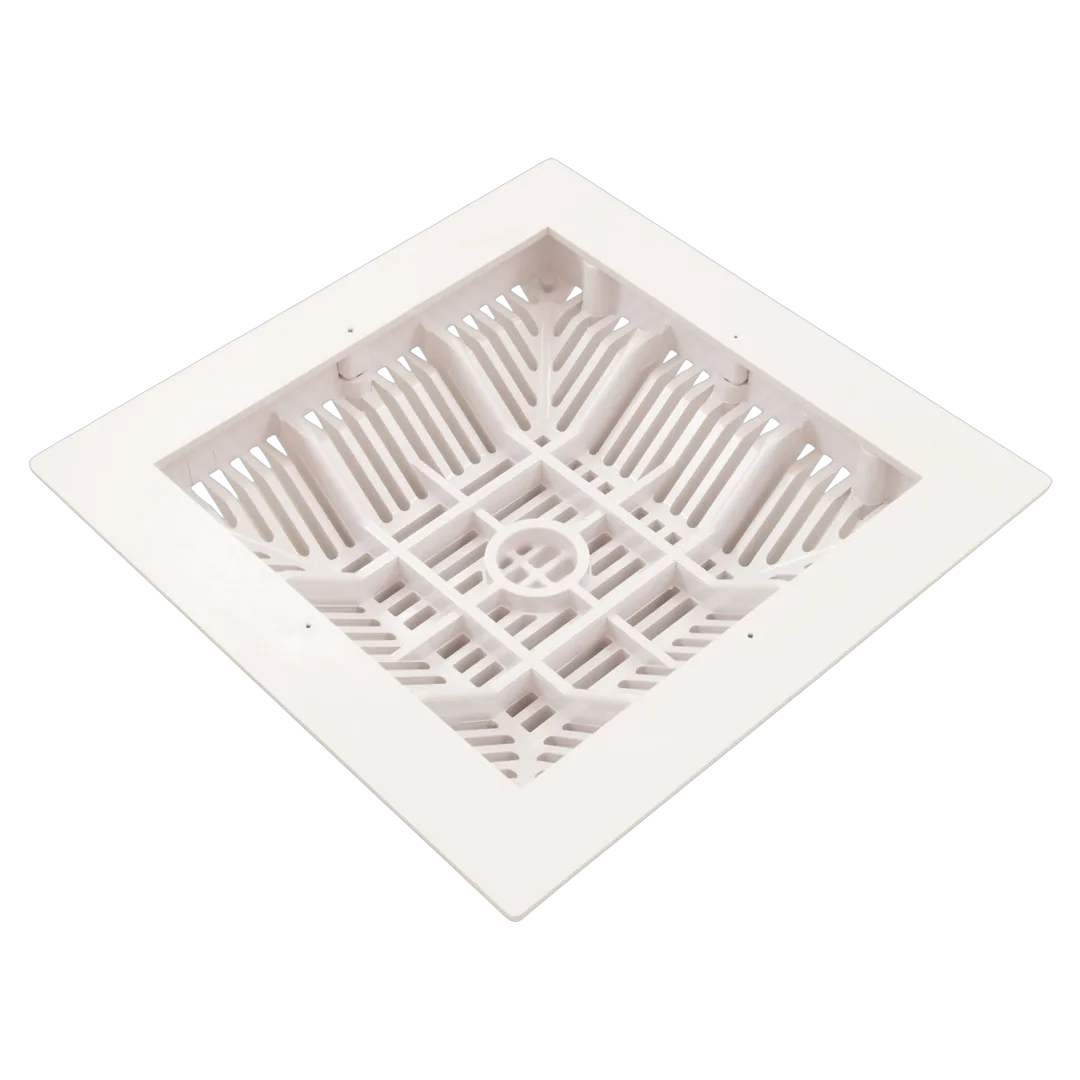

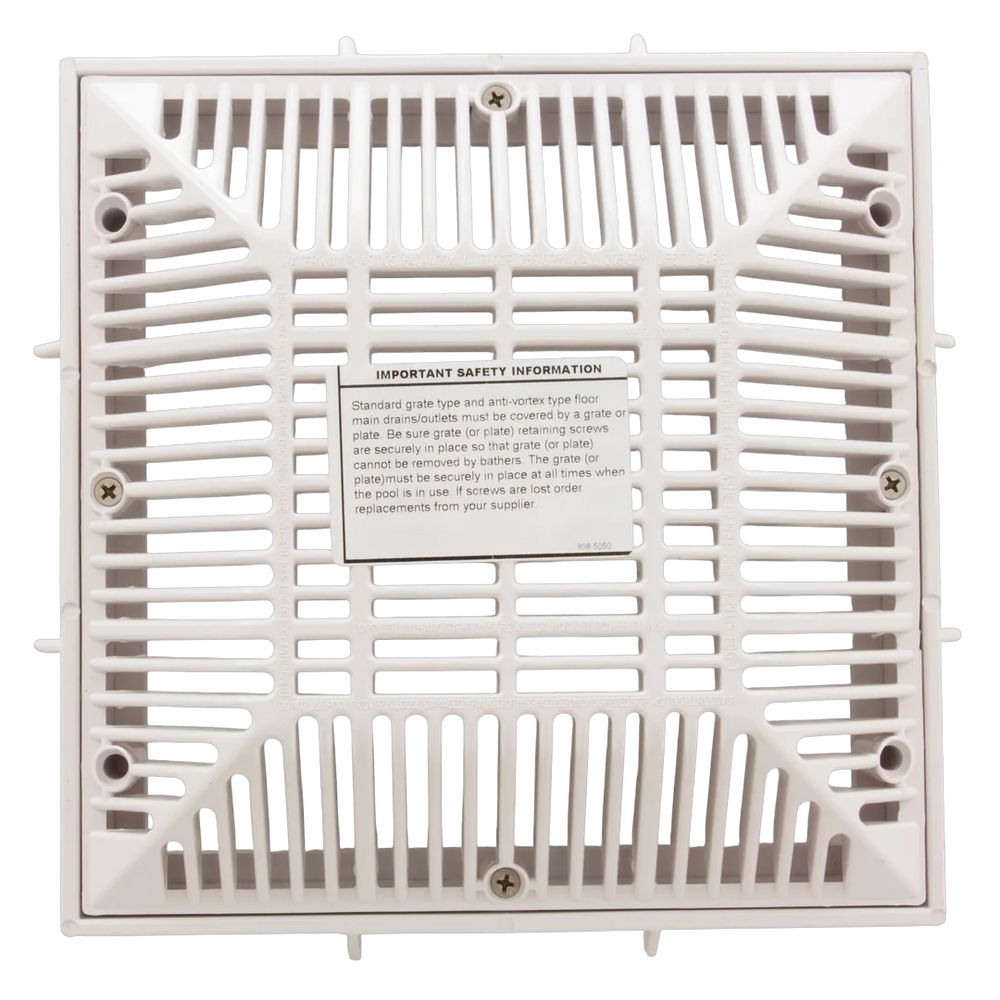

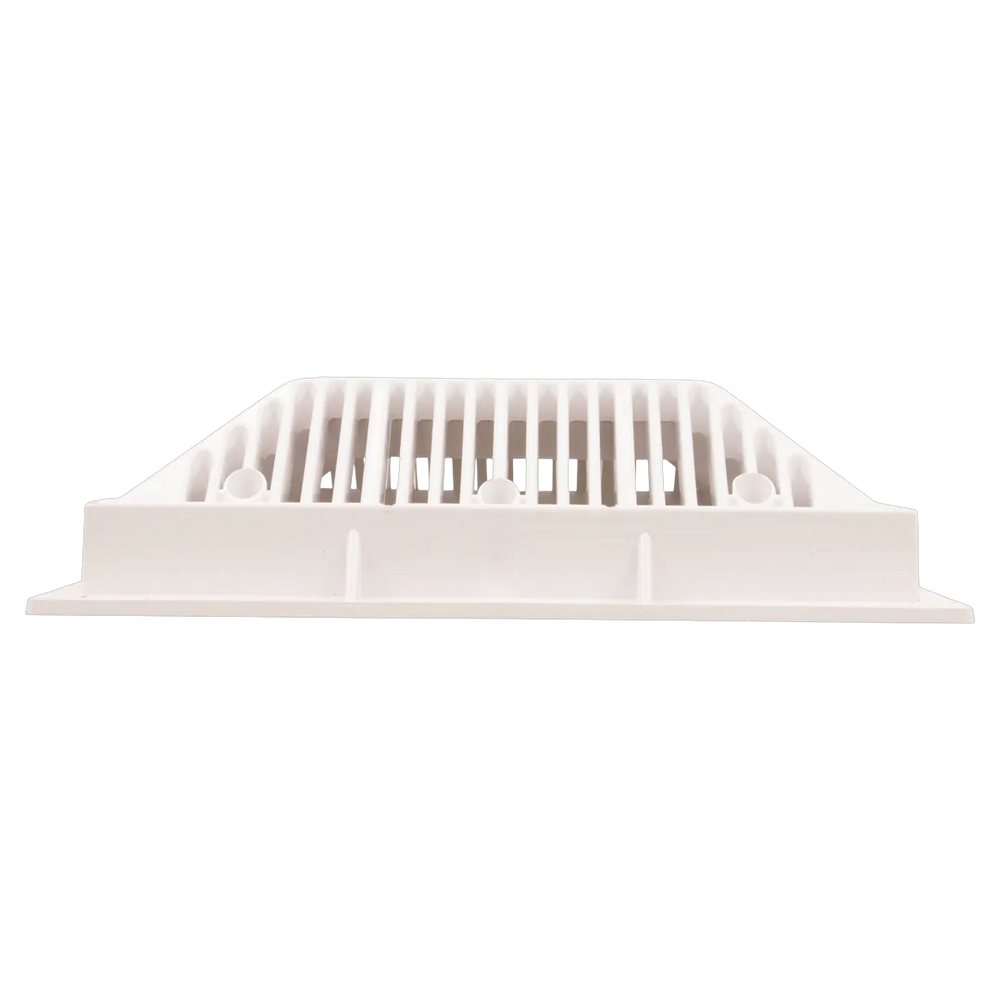

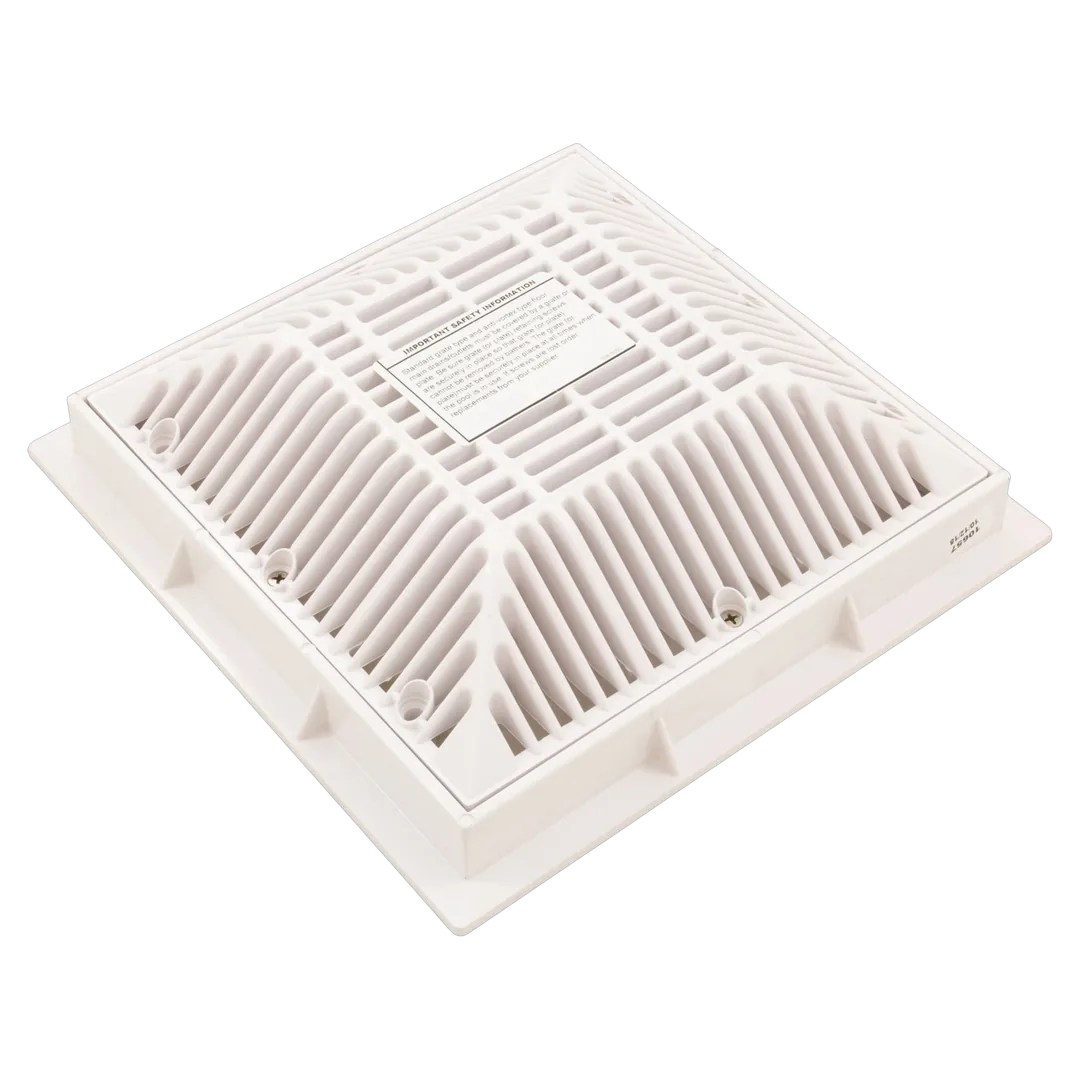

Waterway 640-4790V 9x9 Drain Cover Grate and Frame
Waterway | SKU:
640-4790 V
$9800/ea
Unit price
/
Unavailable
Waterway 640-4790V 9x9 Drain Cover Grate and Frame is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

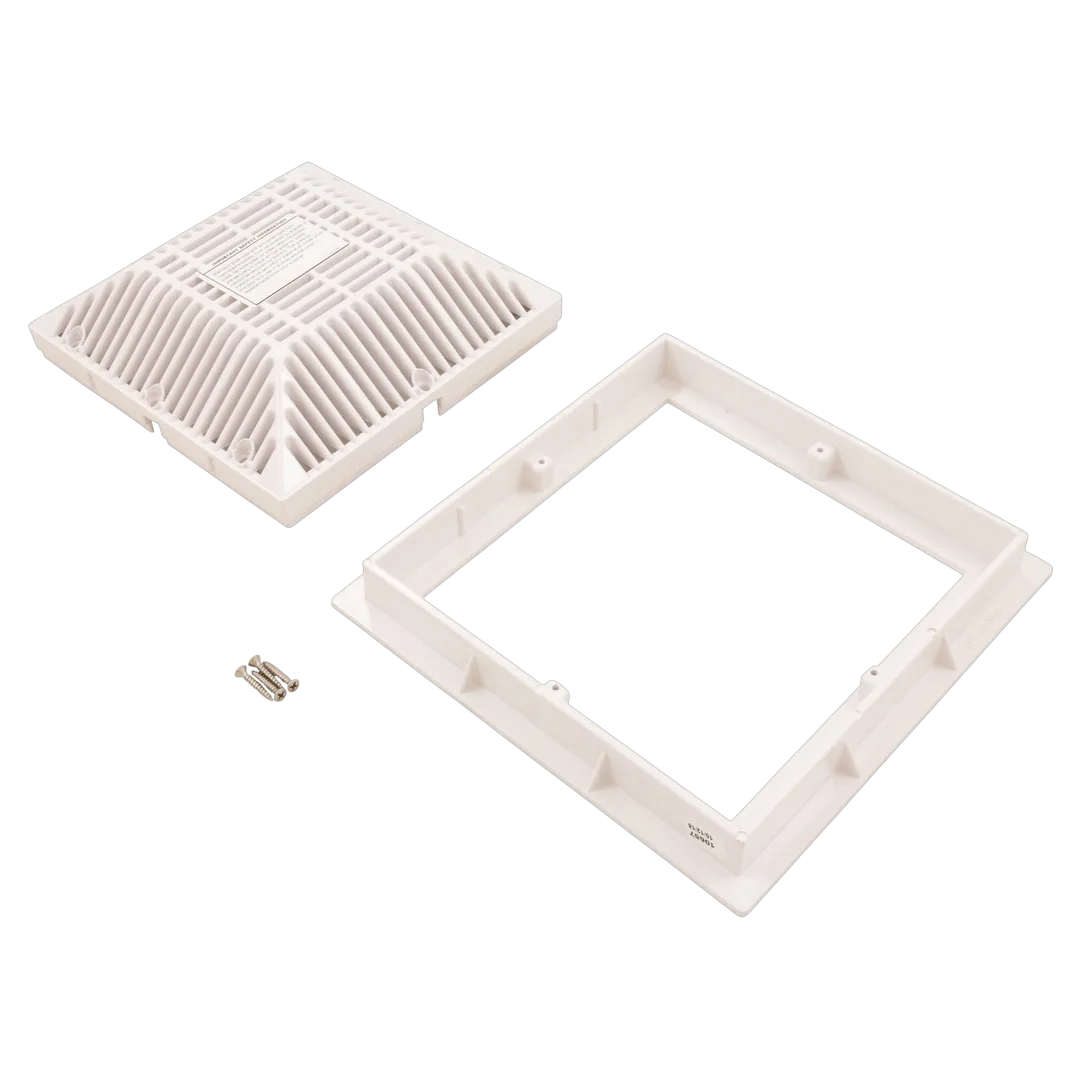

The Waterway 640-4790 V is a 9" x 9" square drain cover and frame, specifically made from white ABS material. It features an anti-vortex grate and includes stainless steel screws, making it suitable for concrete pool installations. The product is VGB-compliant and conforms to the ANSI 2017 specifications, ensuring its suitability for various pool safety and installation requirements.
Includes: Grate and frame
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 9" x 9" Grate & Frame |
| Part Number | 640-4790 V |
| Part Type | Grate & Frame |
| Includes | Grate and frame |
| Material | Plastic |
| Frame Size | 10.375 x 10.375 inch |
| Total Open Area | 43.6 square inches |
| Floor Flow Rate | 240 GPM with 3" plumbing |
| Wall Flow Rate | 208 GPM with 3" plumbing |
| Flow Rate at 1.5 ft/sec | 203 GPM |
| Certifications | Compliant with ANSI/PHTA/ICC-16 2017 |
| Shipping Dimensions | 10.38 x 8.85 x 8.30 inch |
| Product Weight | 1.47 pound |
