Waterway 640-4720V 12x12 Grate and Frame
Waterway | SKU:
640-4720 V
$11100/ea
Unit price
/
Unavailable
Waterway 640-4720V 12x12 Grate and Frame is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

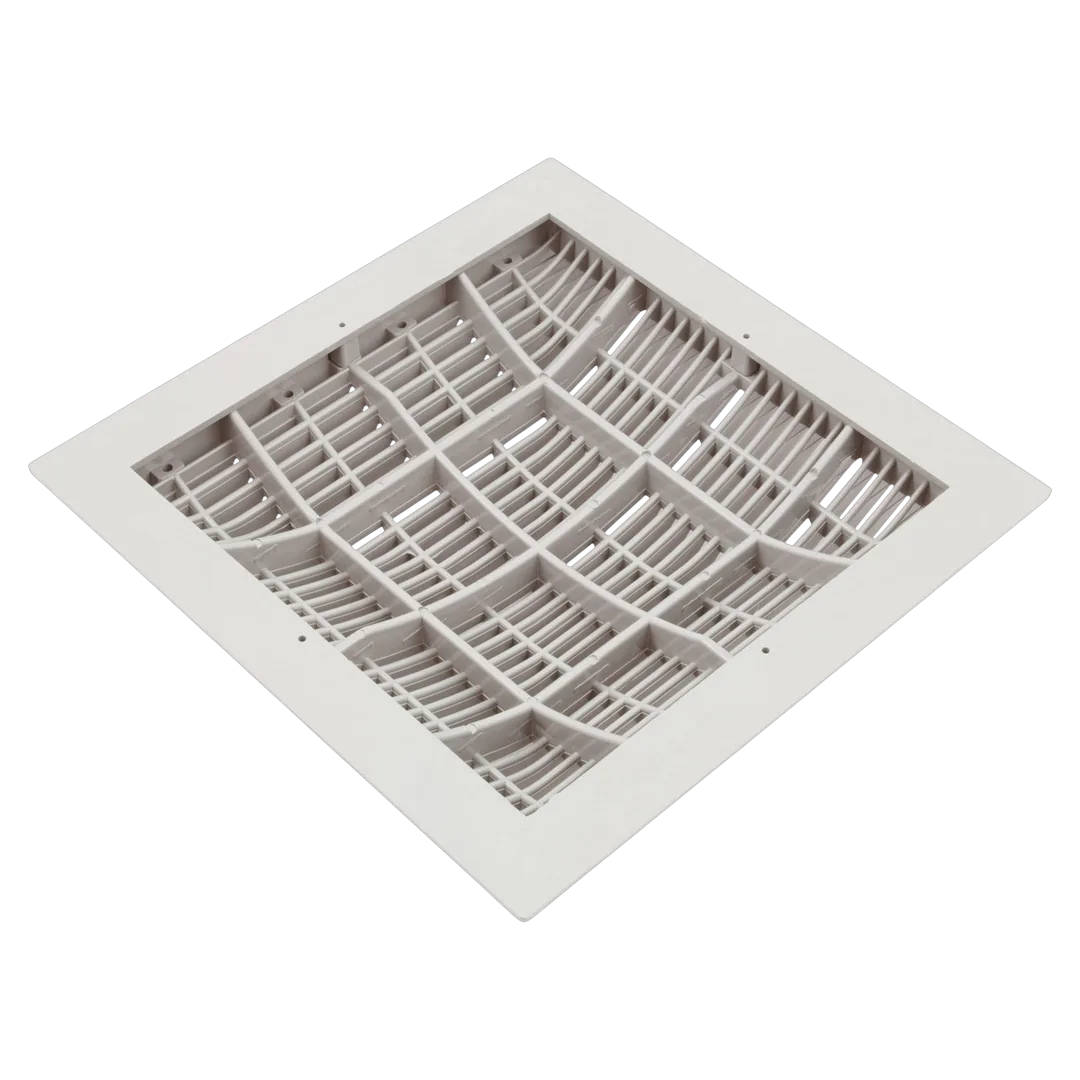

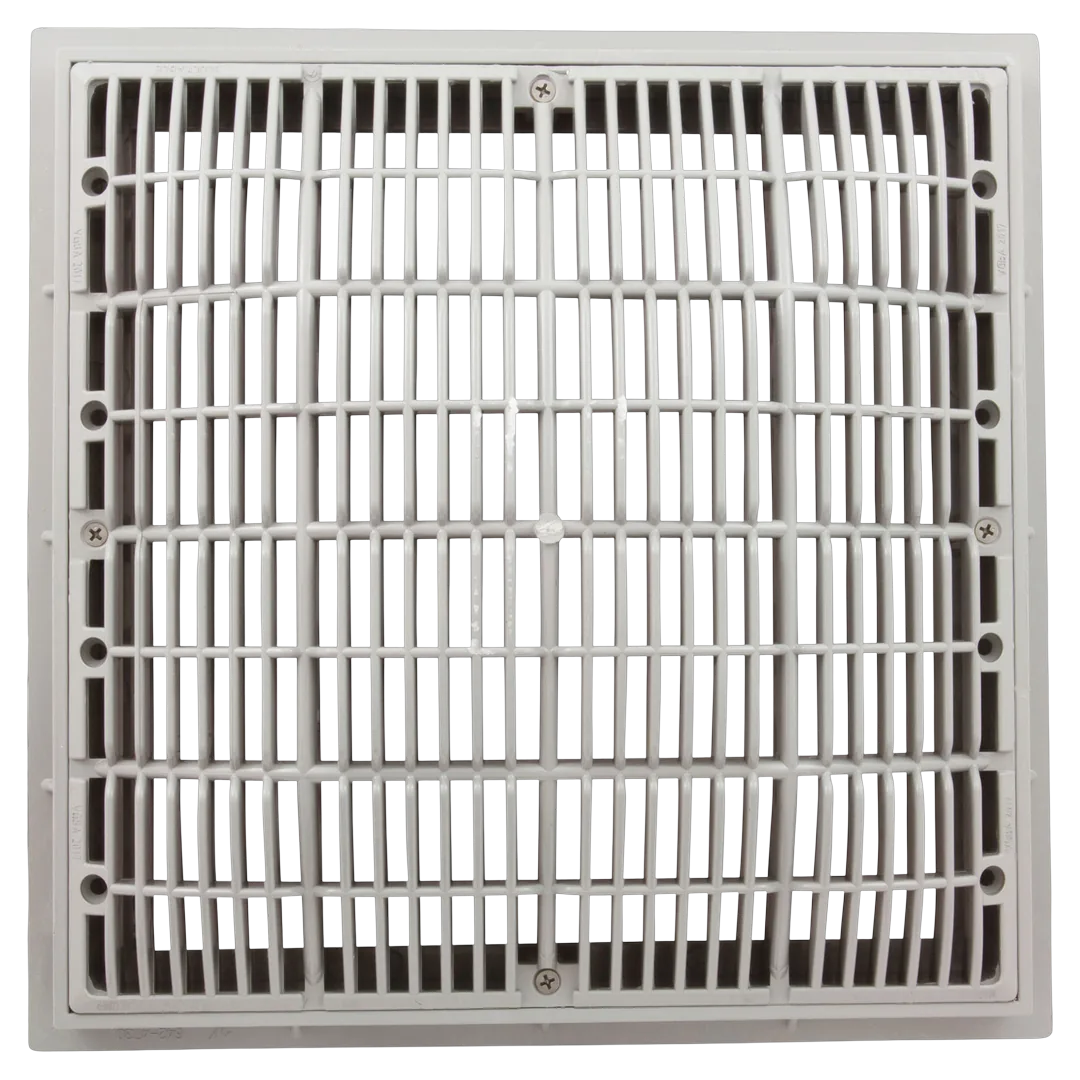

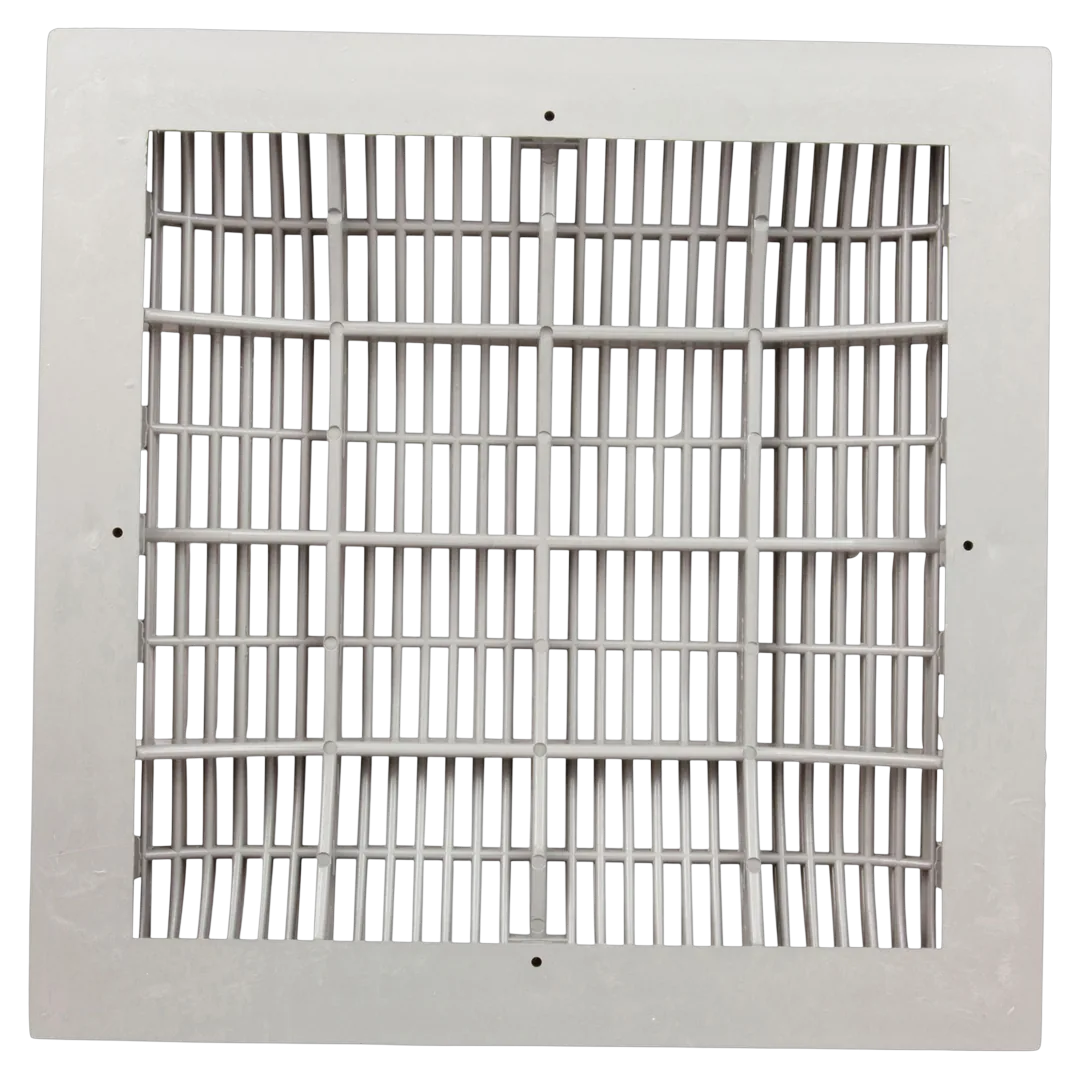

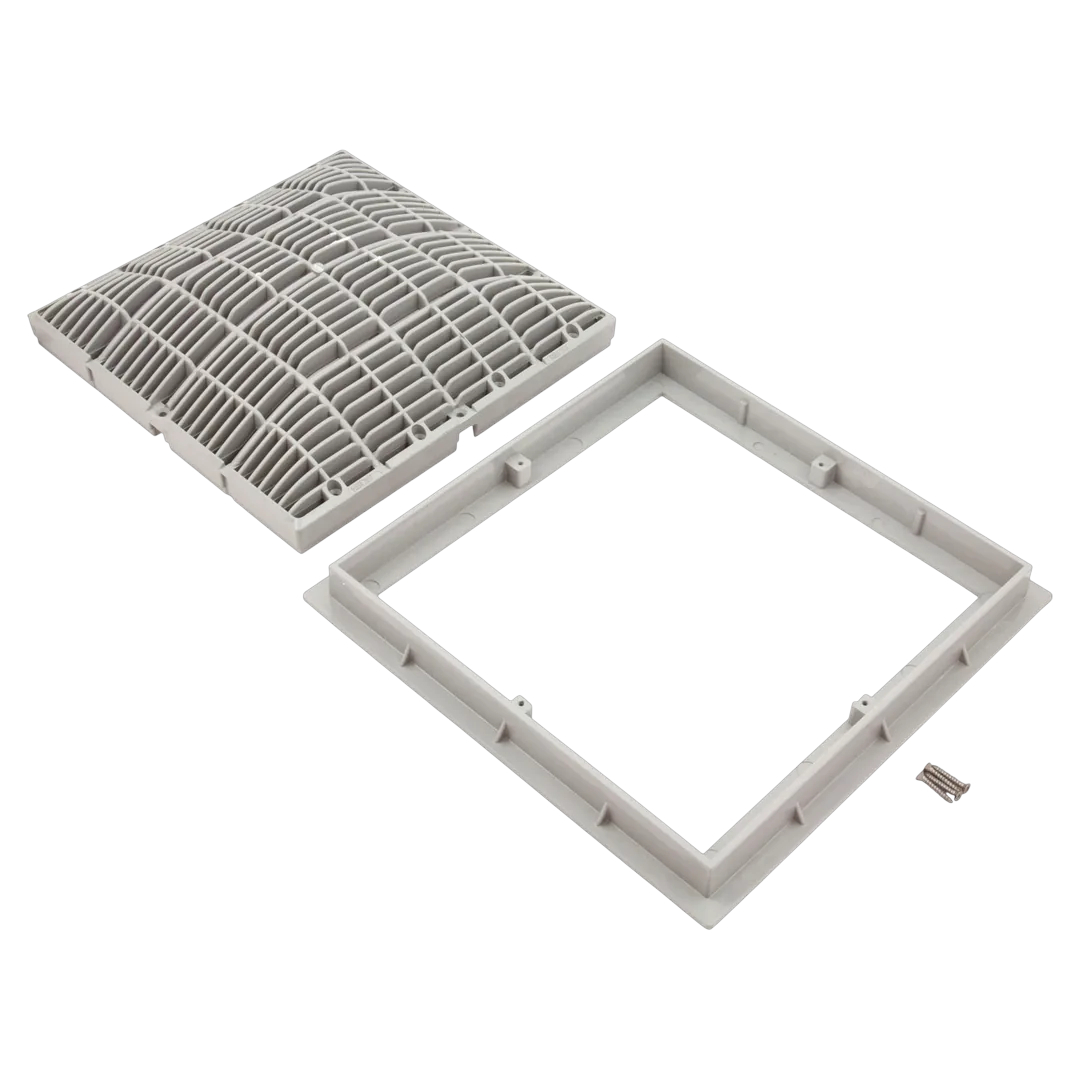

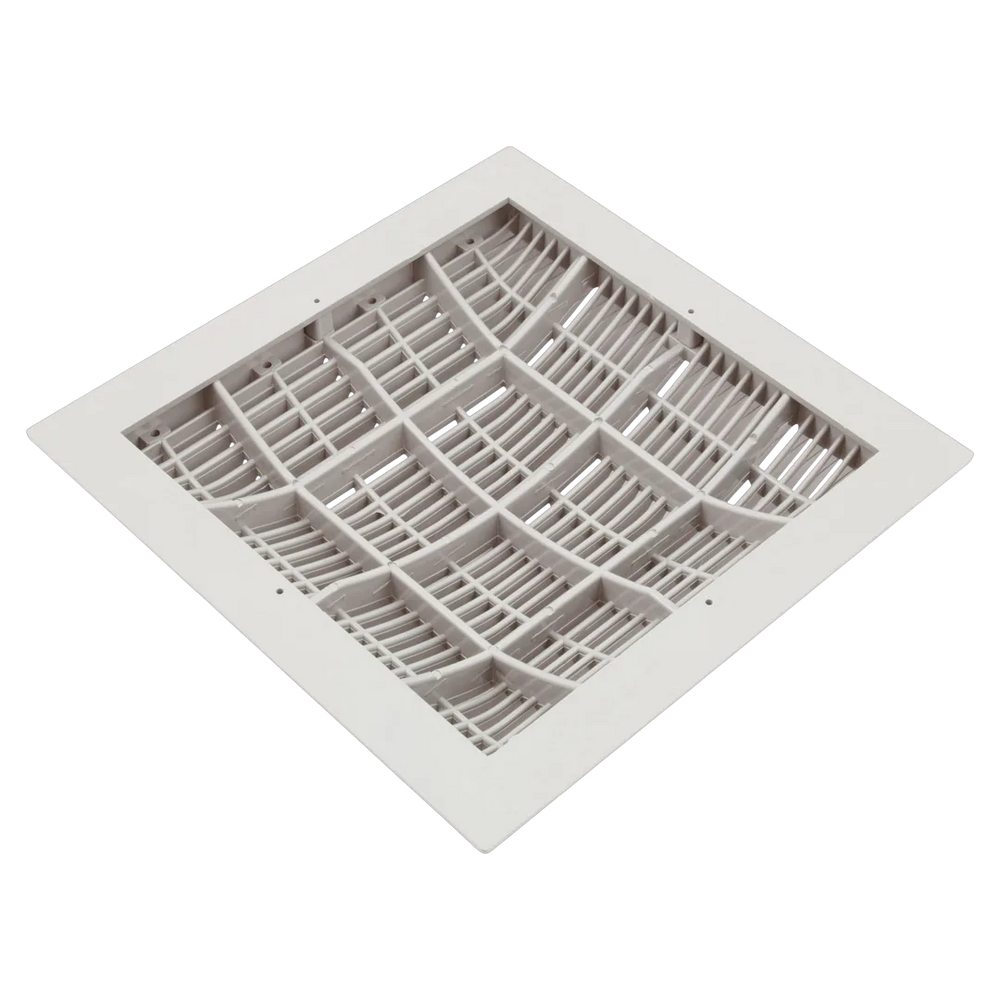

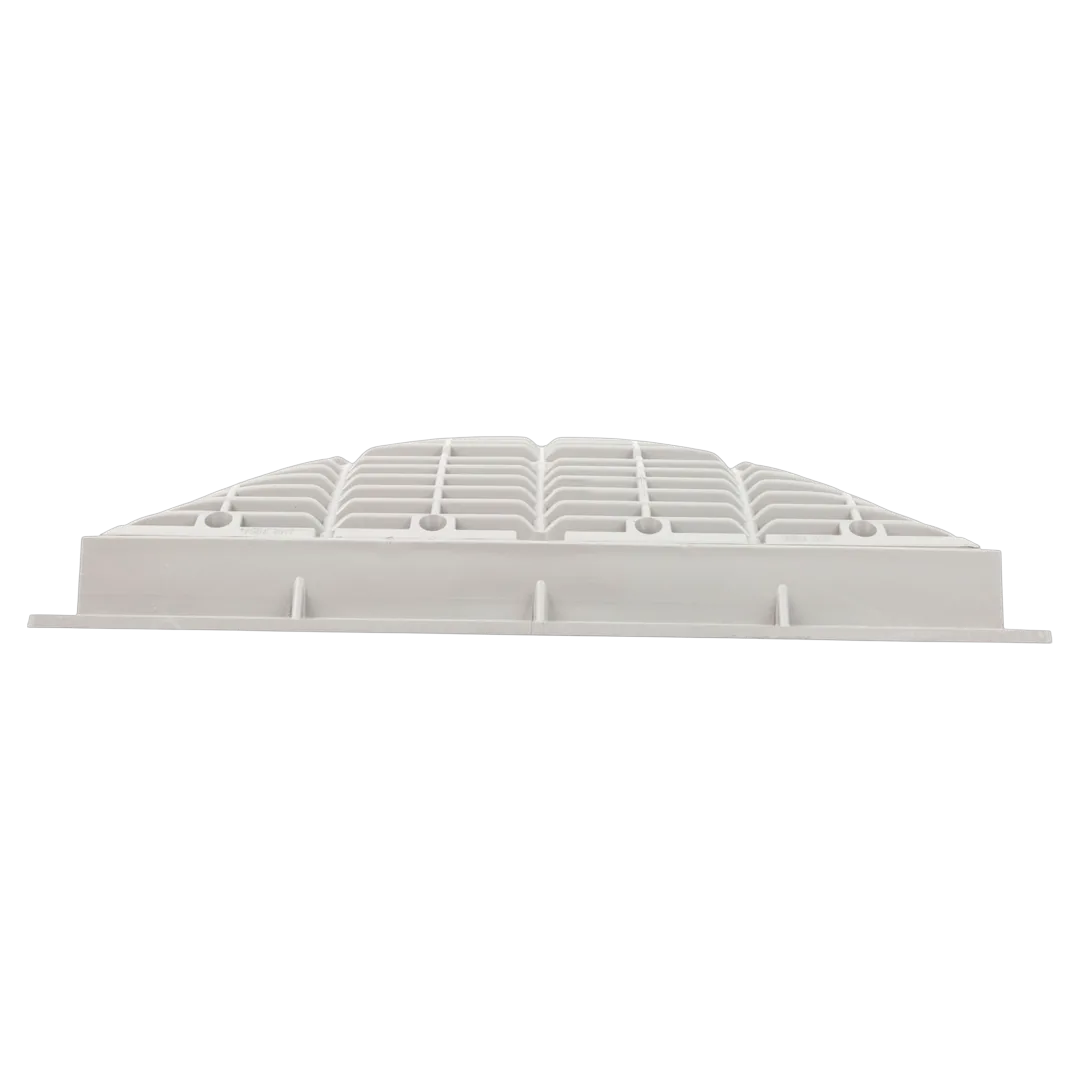

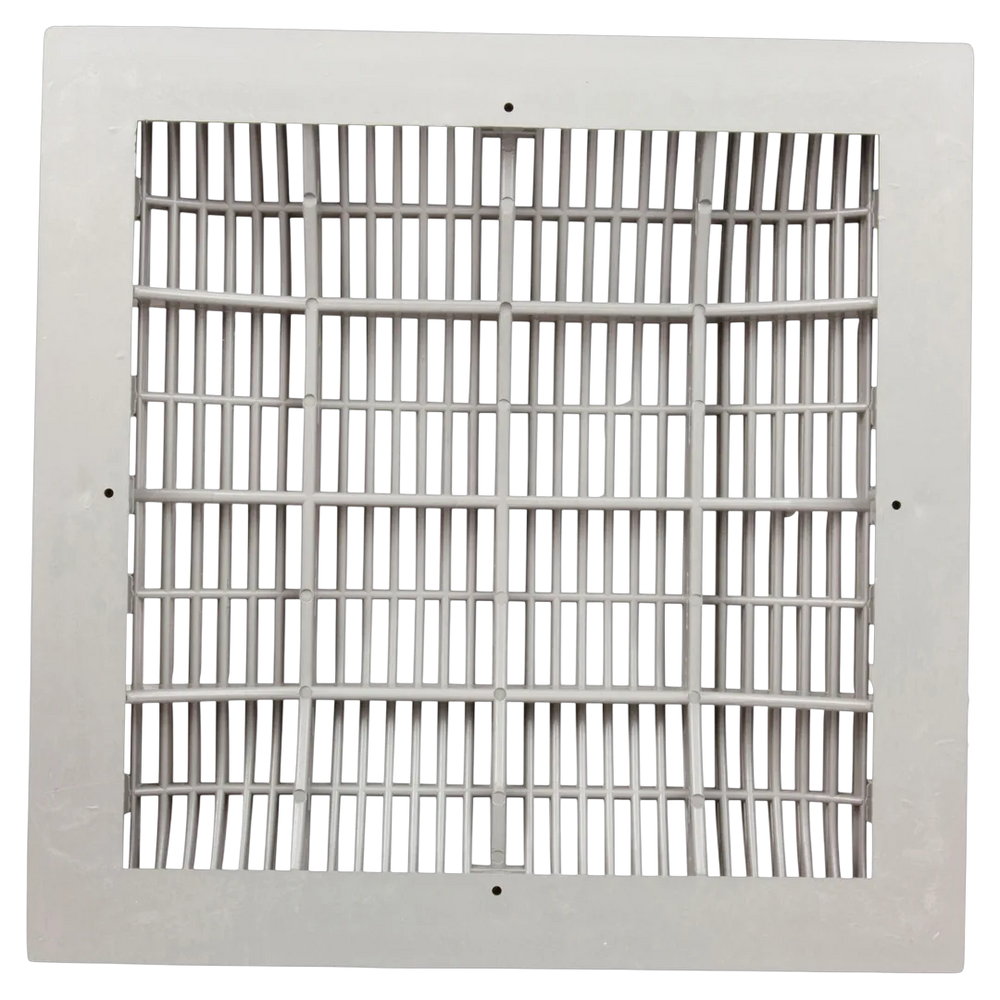

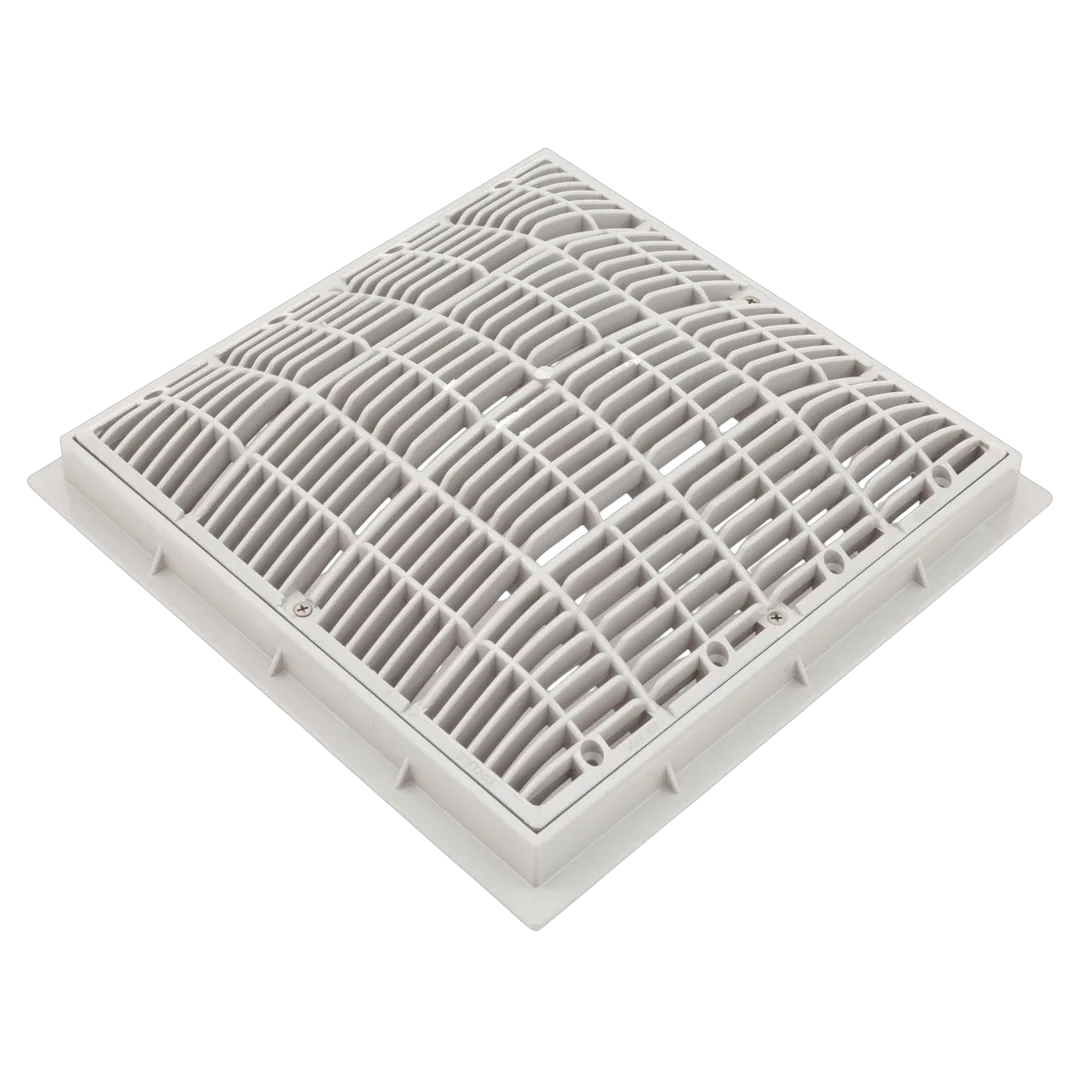

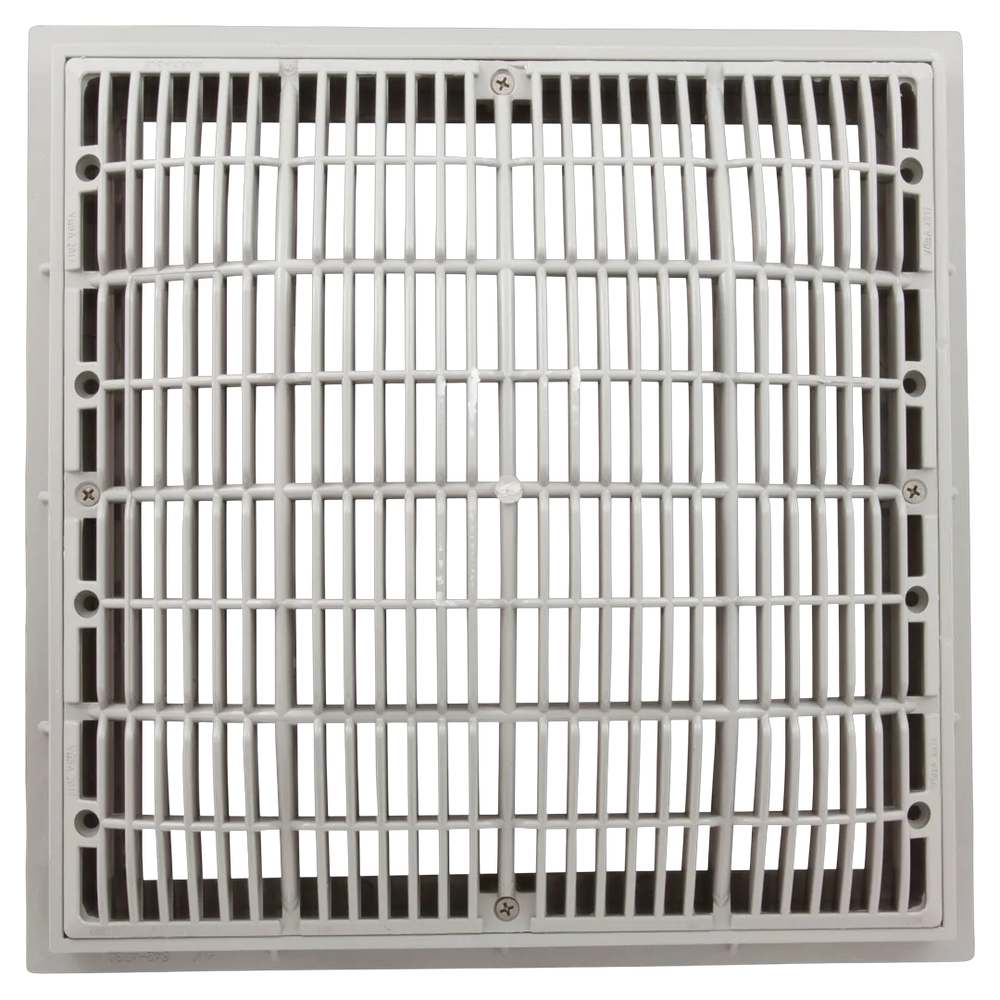

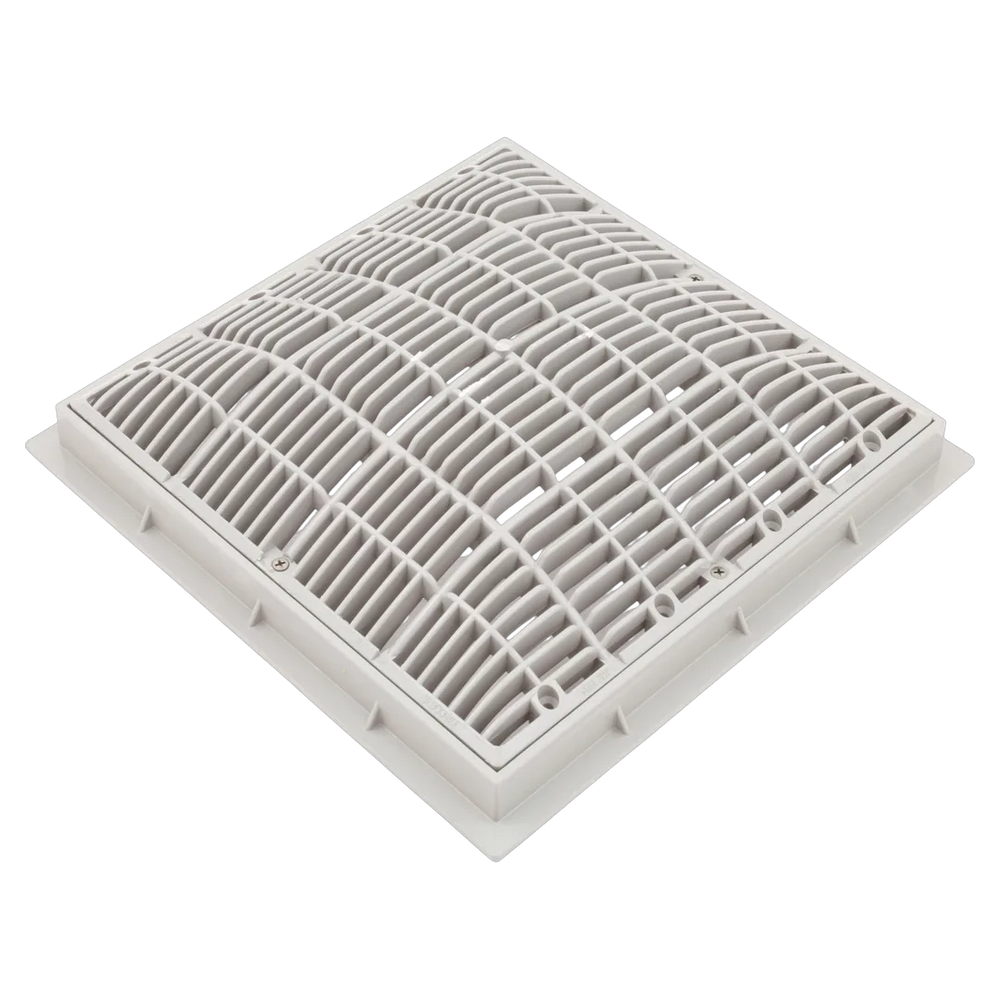

The Waterway 640-4720 V is a main drain grate and frame assembly measuring 12" x 12". The assembly features a white ABS frame and an anti-vortex grate, complemented by stainless steel screws. It is compatible with concrete pool installations and adheres to the Virginia Graeme-Baker Pool and Spa Safety Act standards for safe use in pool drainage systems.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 12" x 12" Grate & Frame |
| Part Number | 640-4720 V |
| Part Type | Grate & Frame |
| Material | Plastic |
| Certifications | Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act (ASME/ANSI A112.19.8-2007) UL Certified |
| Frame Size | 13.25 x 13.25 inch |
| Total Open Area | 62.4 square inches |
| Floor Flow Rate | 356 GPM with 4" plumbing |
| Wall Flow Rate | 280 GPM with 4" plumbing |
| Flow Rate at 1.5 ft/sec | 292 GPM |
| Shipping Dimensions | 34.54 x 34.29 x 6.1 inch |
| Product Weight | 4.8 pounds |
