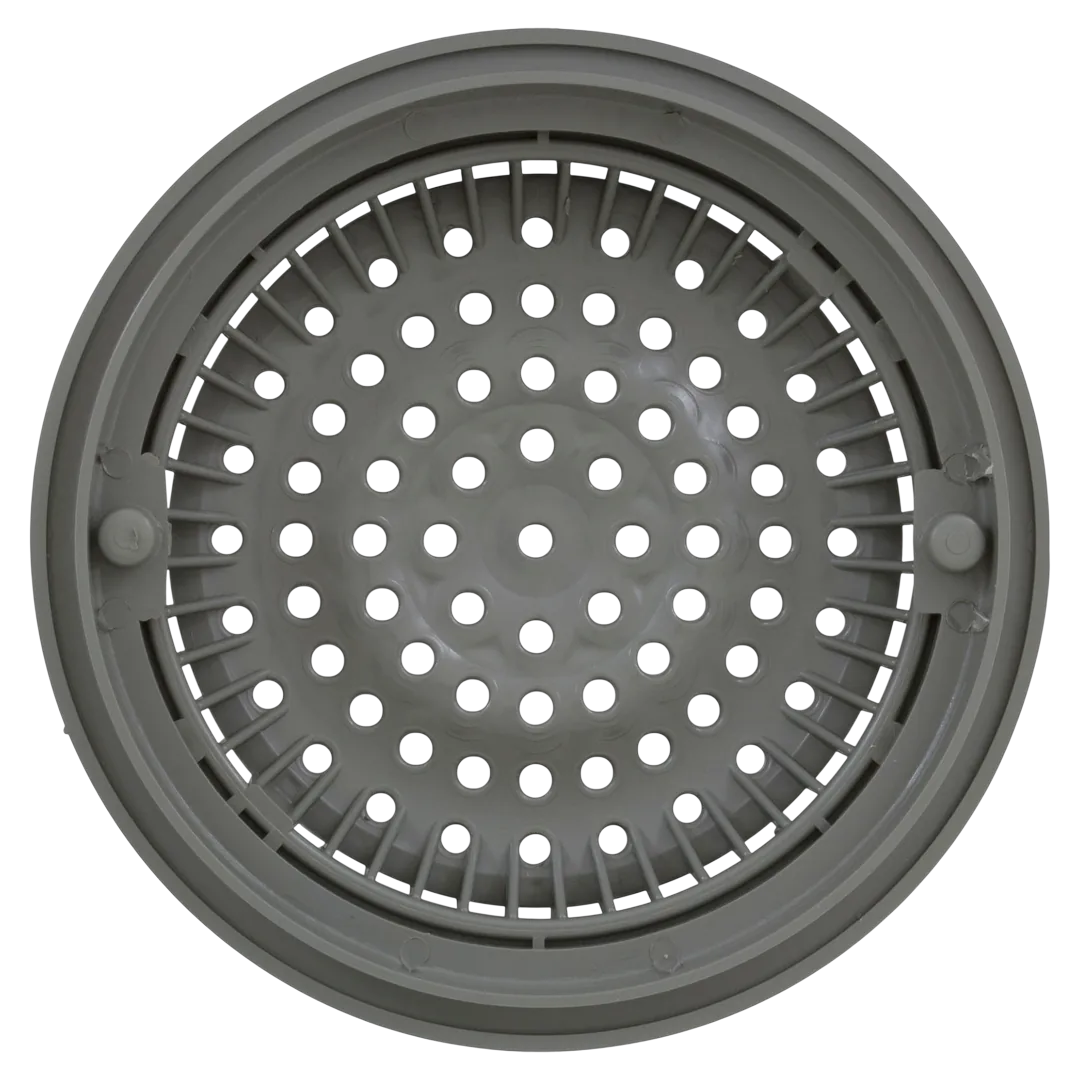

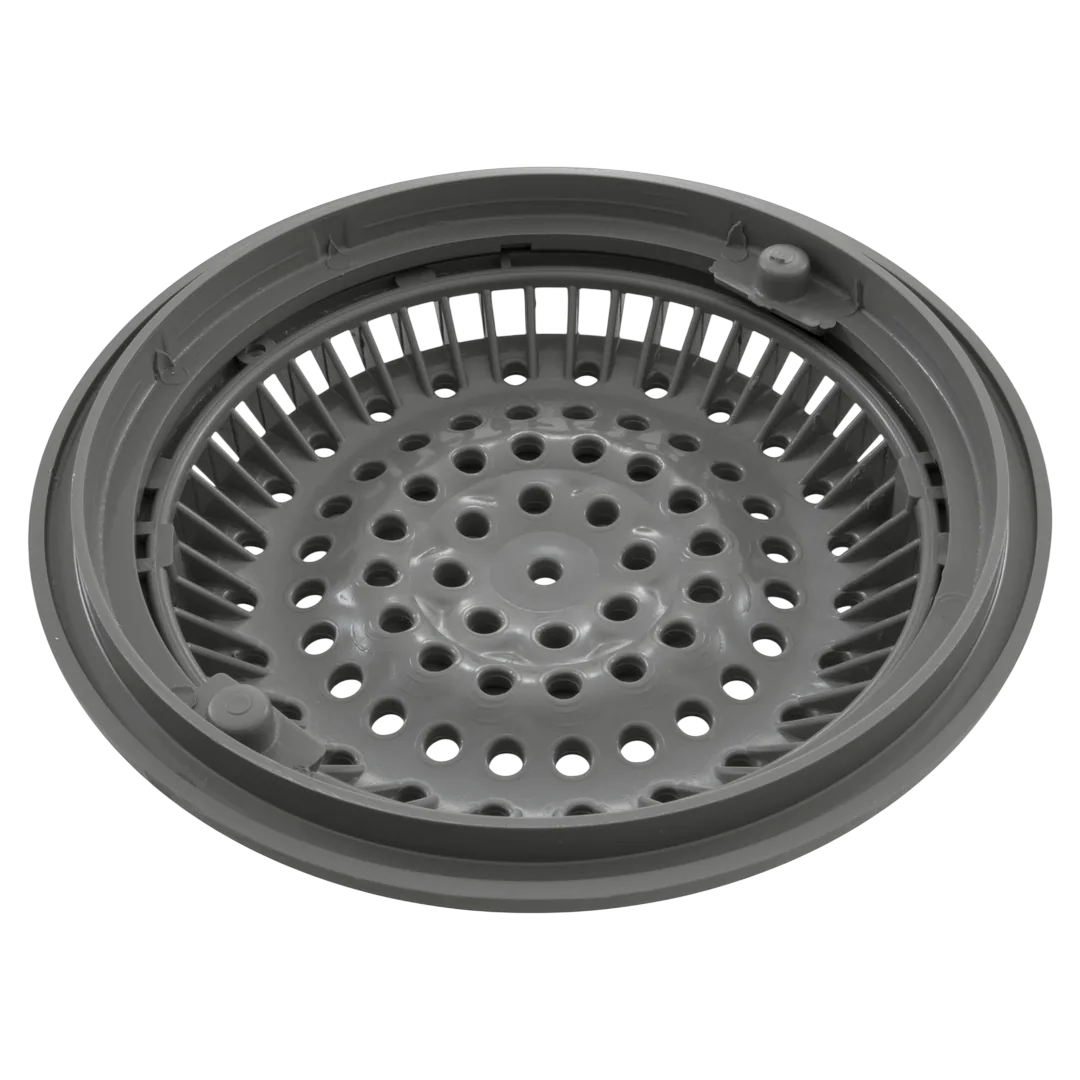

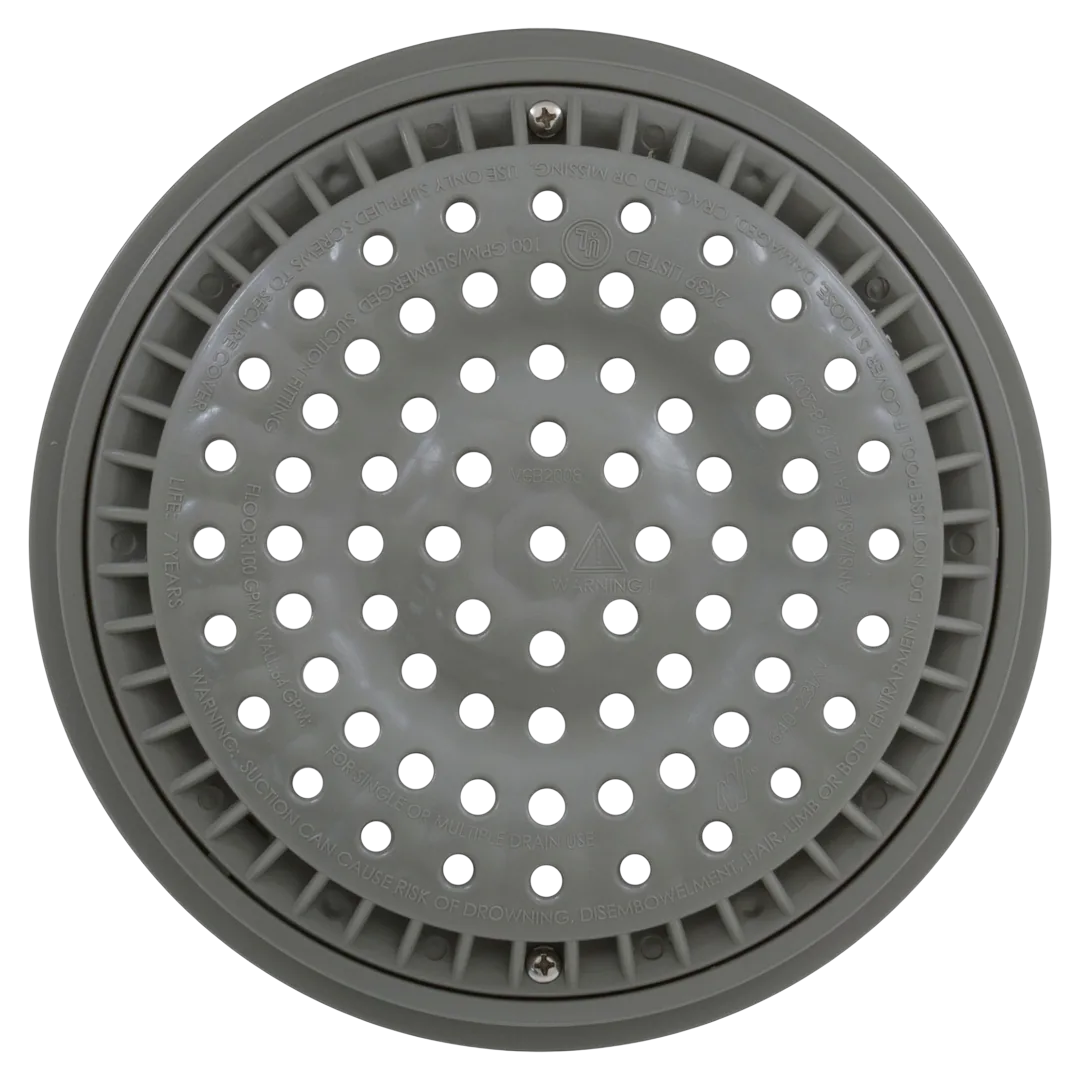

Waterway 640-2317V Anti Vortex Main Drain Grate
Waterway | SKU:
640-2317 V
$4000/ea
Unit price
/
Unavailable
Waterway 640-2317V Anti Vortex Main Drain Grate is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

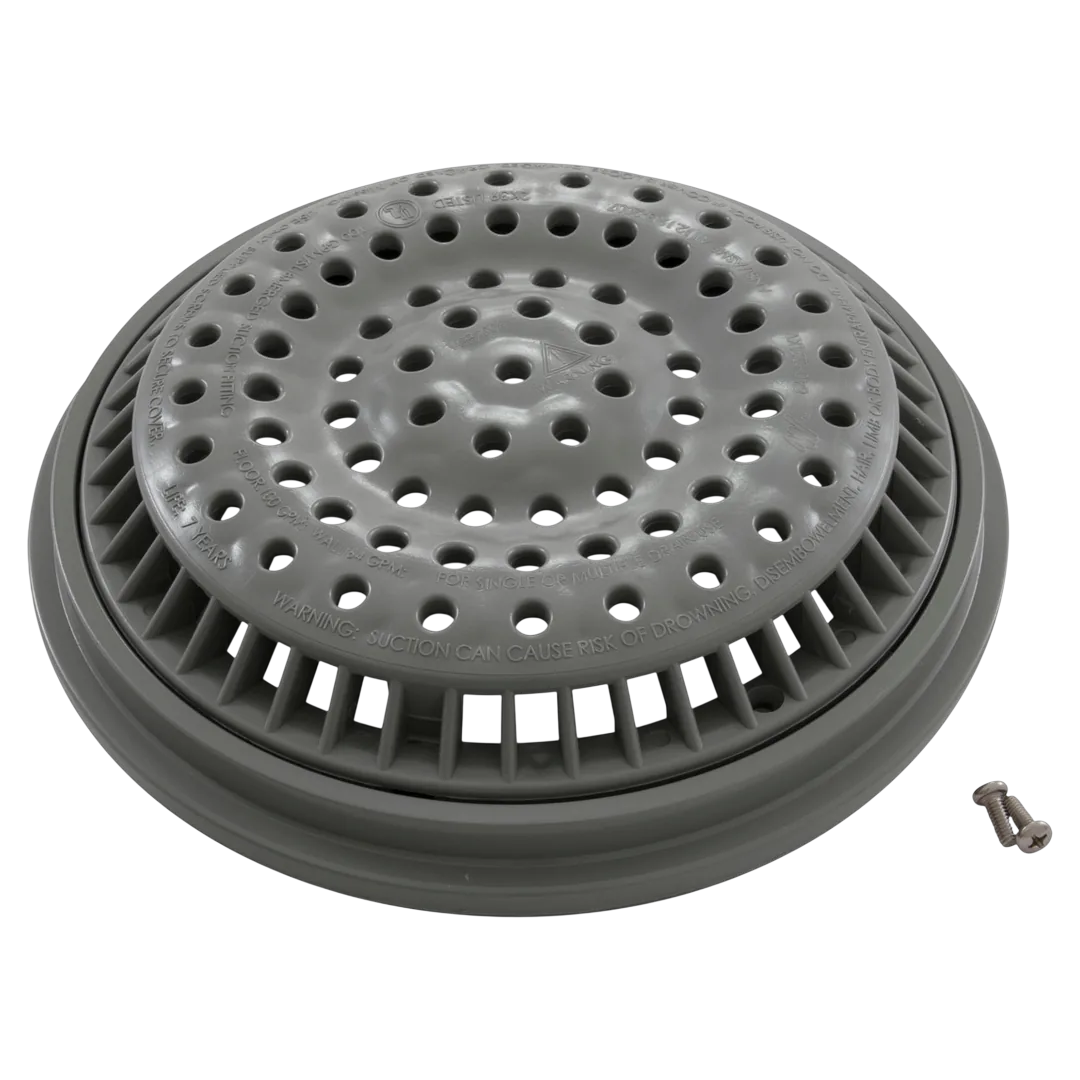

The Waterway 640-2317 V is an 8-inch Anti-Vortex Main Drain Grate. It features a cover and frame assembly that includes a threaded collar for secure installation. This part is designed in gray and is configured to comply with VGB standards, suitable for Waterway system assemblies.
Includes: Cover and frame
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 8" Anti-Vortex Drain Cover & Frame |
| Part Number | 640-2317 V |
| Part Type | Drain Cover & Frame |
| Includes | Cover and frame |
| Certifications | Compliant with ASME/ANSI A112.19.8-2007, ASME/ANSI A112.19.8a-2008, ASME/ANSI A112.19.8b-2009, and APSP-16-2011 per §1404 of the Virginia Graeme Baker (VGB 2008) Pool and Spa Safety Act |
| Material | Plastic |
| Total Open Area | 11.83 square inches |
| Frame Size | 9 inch round |
| Floor Flow Rate | 100 GPM at 2.72 ft/sec |
| Wall Flow Rate | 64 GPM at 1.73 ft/sec |
| Flow Rate at 1.5 ft/sec | 55 GPM |
| Shipping Dimensions | 9.2 x 8.7 x 2.3 inch |
| Product Weight | 0.72 pound |
