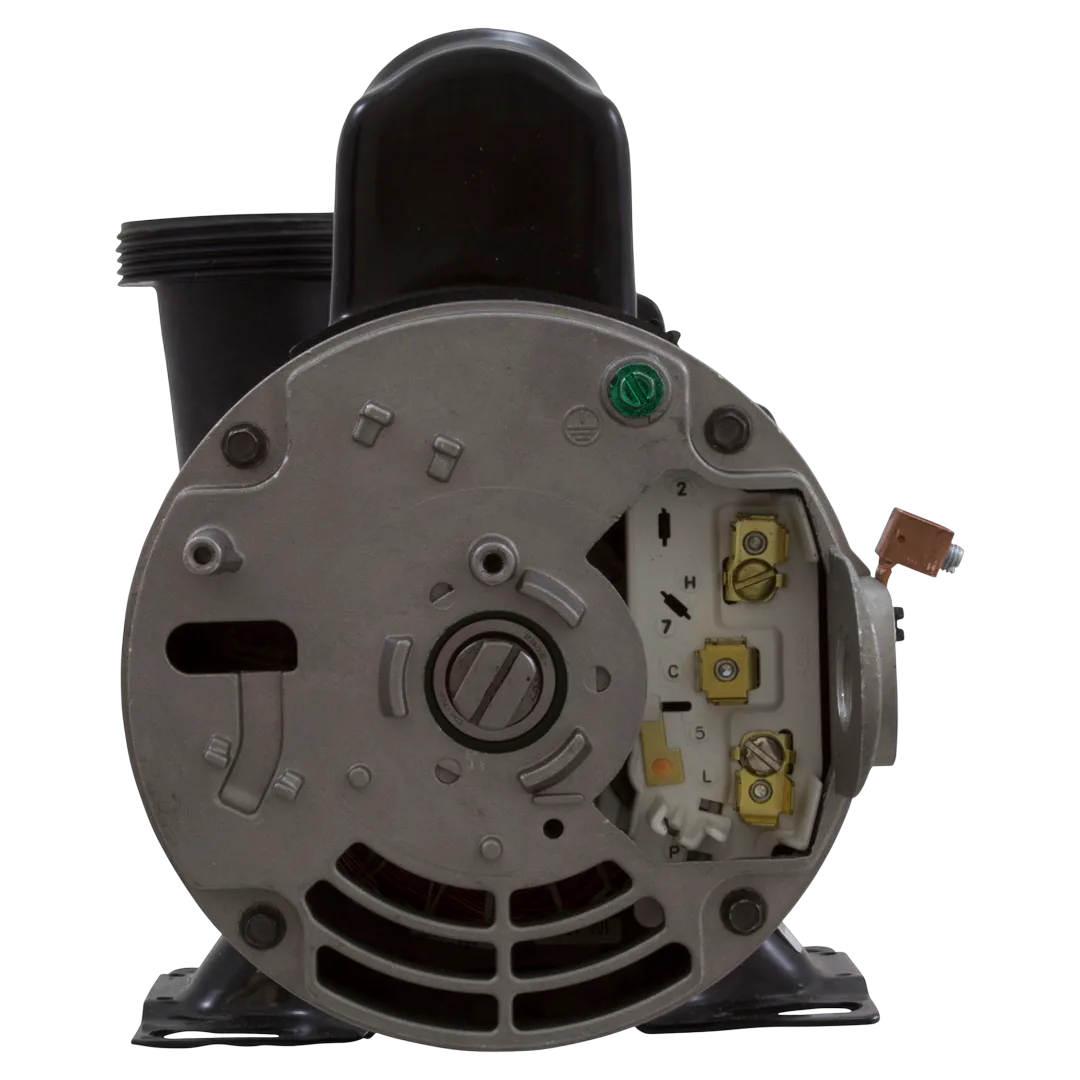

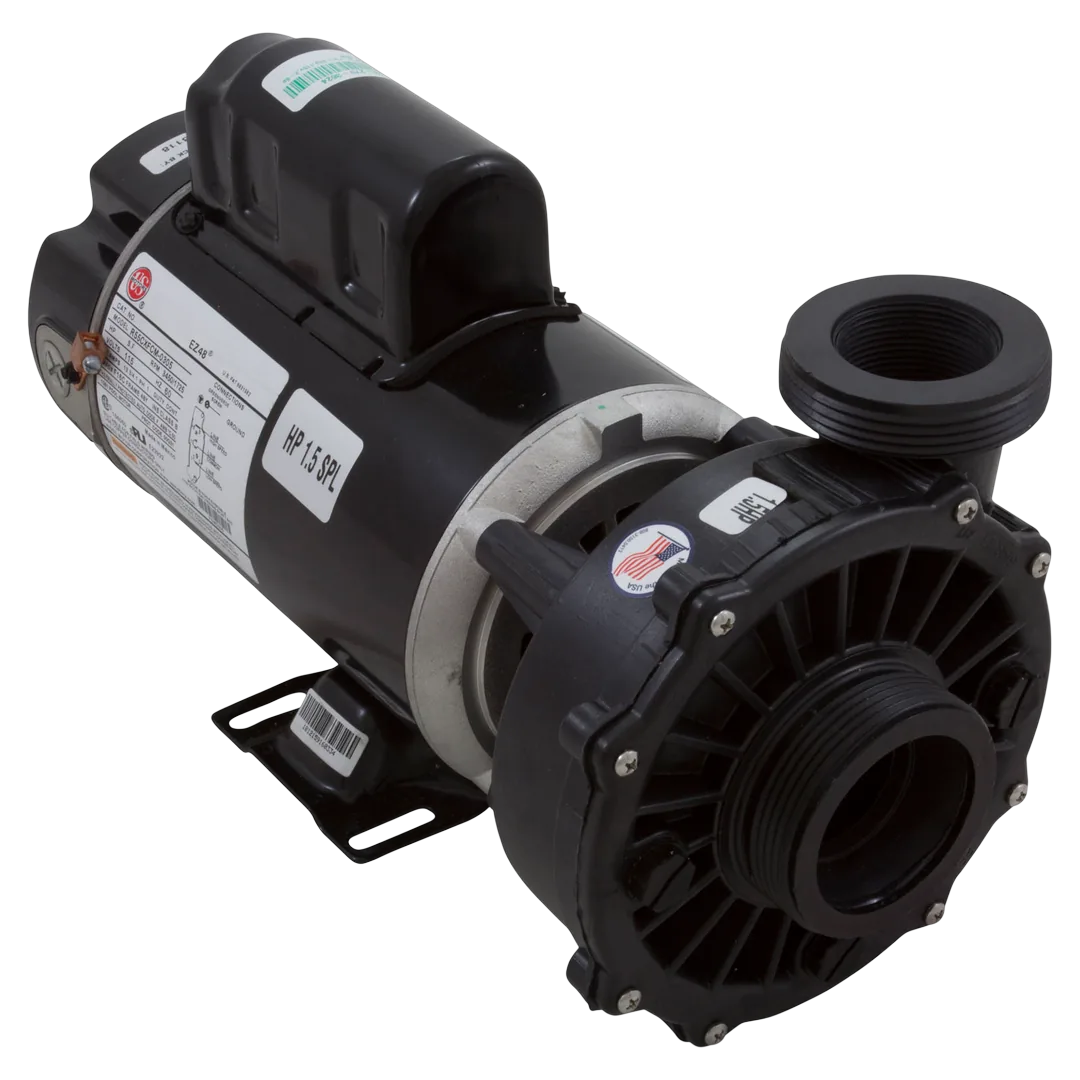

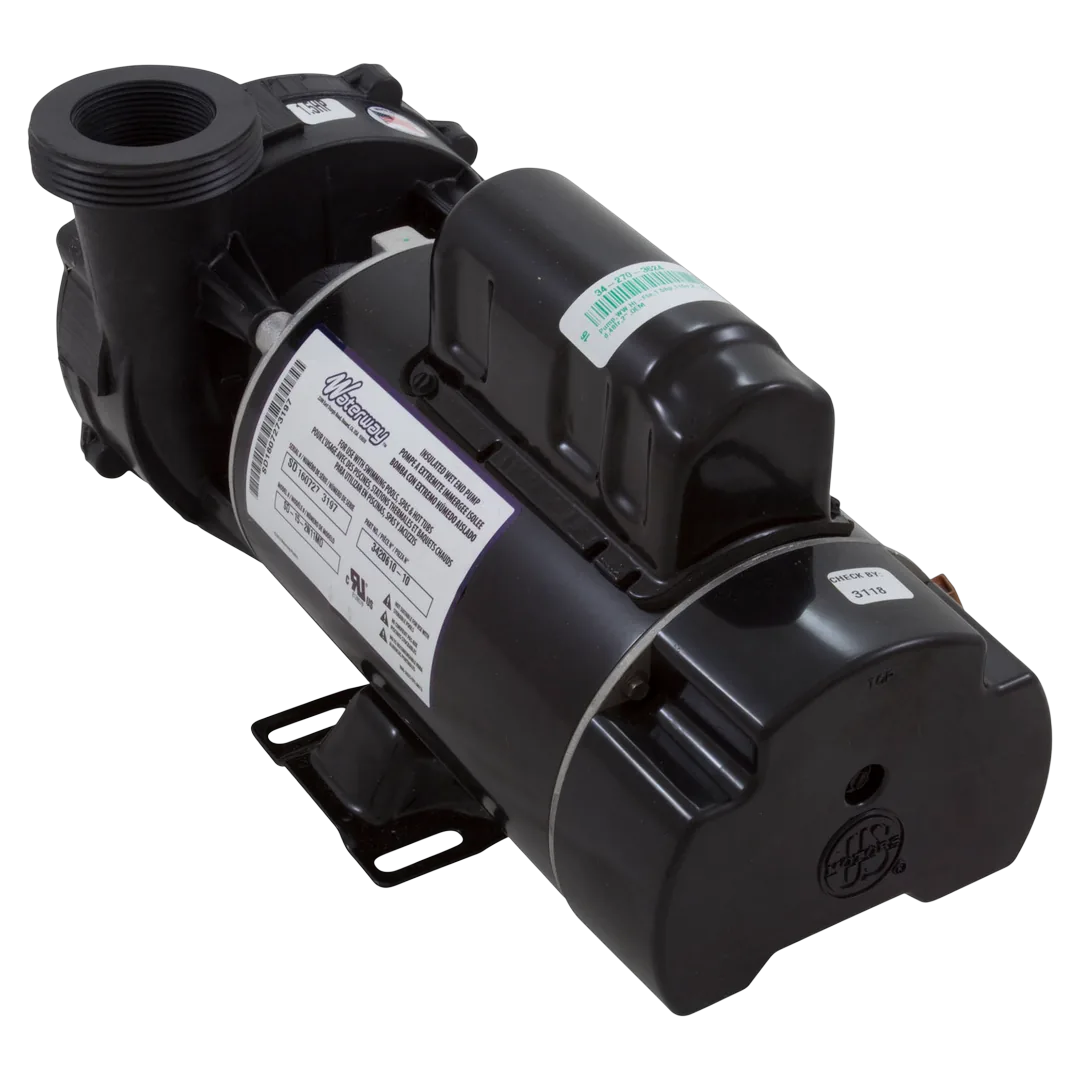

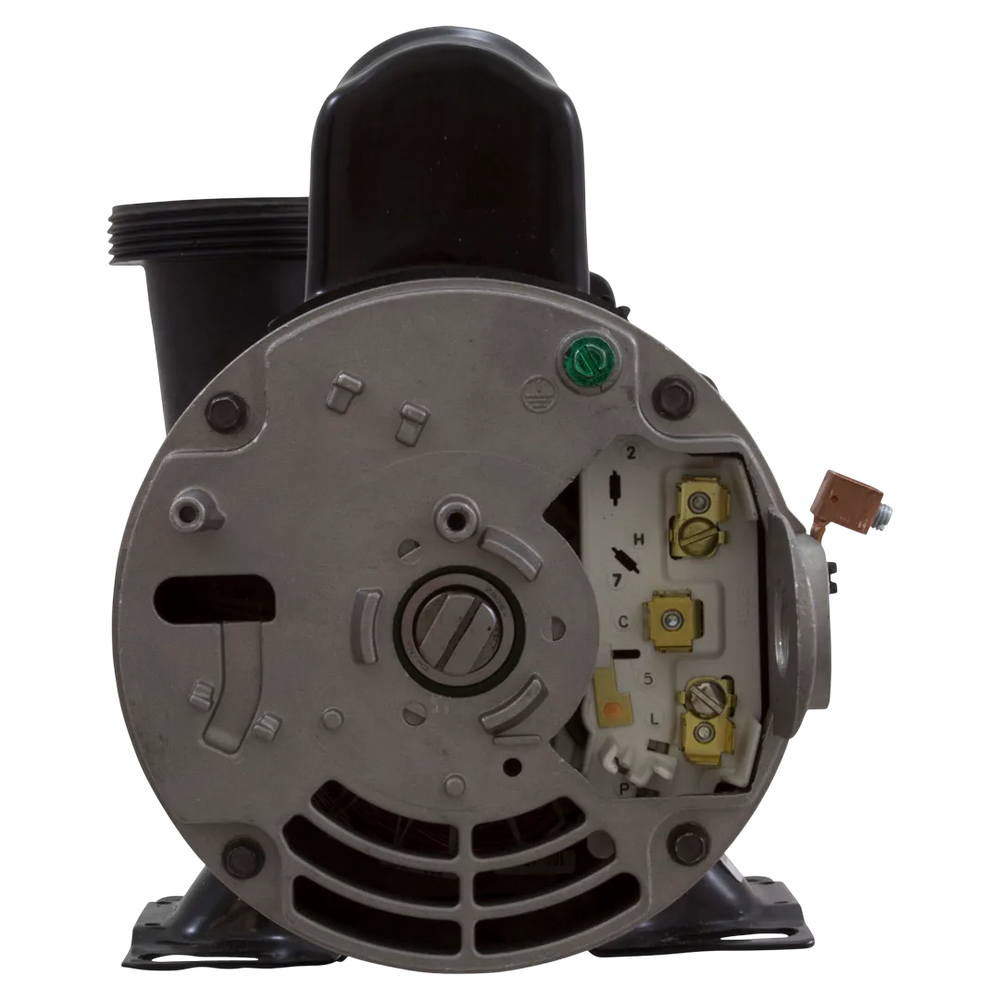

Waterway Hi-Flo II 3420610-10 Spa Pump
Waterway | SKU:
3420610-10
$42900/ea
Unit price
/
Unavailable
Waterway Hi-Flo II 3420610-10 Spa Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

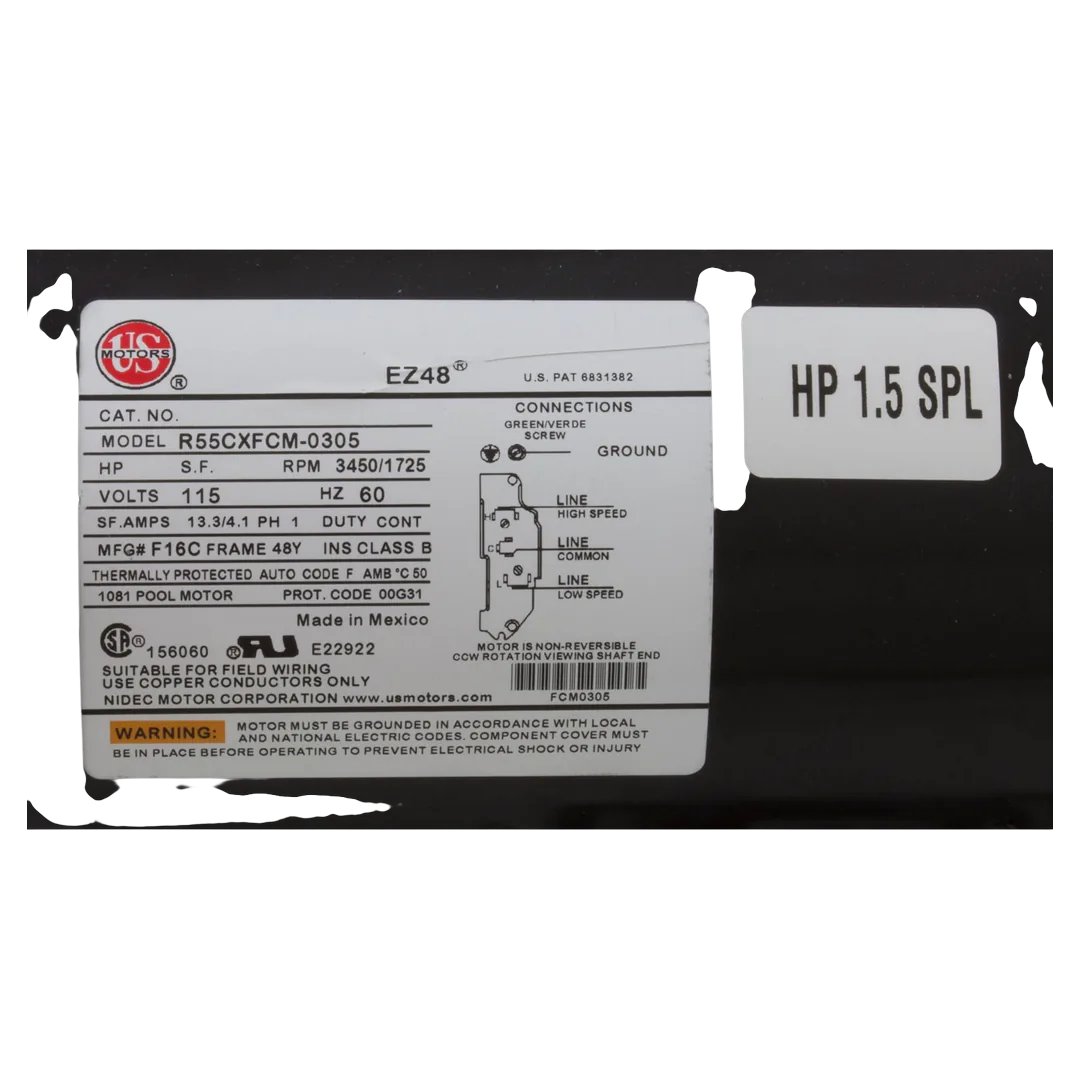

The Waterway 3420610-10 is a Hi-Flo II Side Discharge Spa Pump featuring a 48-frame design for high volume discharge efficiency. It operates at 1.5 horsepower with a dual-speed capability of 3450/1725 RPM and requires 115 volts, drawing 16.4 amps at high speed and 4.4 amps at low speed. This pump is suitable for use in spas, hot tubs, and similar water filtration systems.
Includes: Complete pump assembly
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Hi-Flo II Side Discharge 48-Frame Spa Pump |
| Part Number | 3420610-10 |
| Part Type | Spa Pump |
| Compatibility | Designed for portable spas and hot tubs requiring side discharge compatible with most spa plumbing using 2" unions |
| Substitute Part Numbers | 3420613, 3J20610, 5032-150, 625230, R55CXFCM-0305, WW342061010, WWP-10-1411 |
| Includes | Complete pump assembly |
| Certifications | California Title 20 Compliant |
| Material | Silicone carbide seals, Viton bellows, 316 stainless steel casing |
| Valve Type | None |
| Number of Positions | N/A |
| Connection Size | 2 inch intake and discharge |
| Mount Type | 48-Frame Thru-Bolt |
| Flow Paths | Side discharge |
| Pressure Rating | Not specified |
| Seal Material | Silicone carbide seals, Viton bellows |
| Shipping Dimensions | 19.5 x 9 x 11.25 inch |
| Product Weight | 28.89 pound |
