Waterway 319-3090B Pump Seal Set
Waterway | SKU:
319-3090B
$5000/ea
Unit price
/
Unavailable
Waterway 319-3090B Pump Seal Set is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

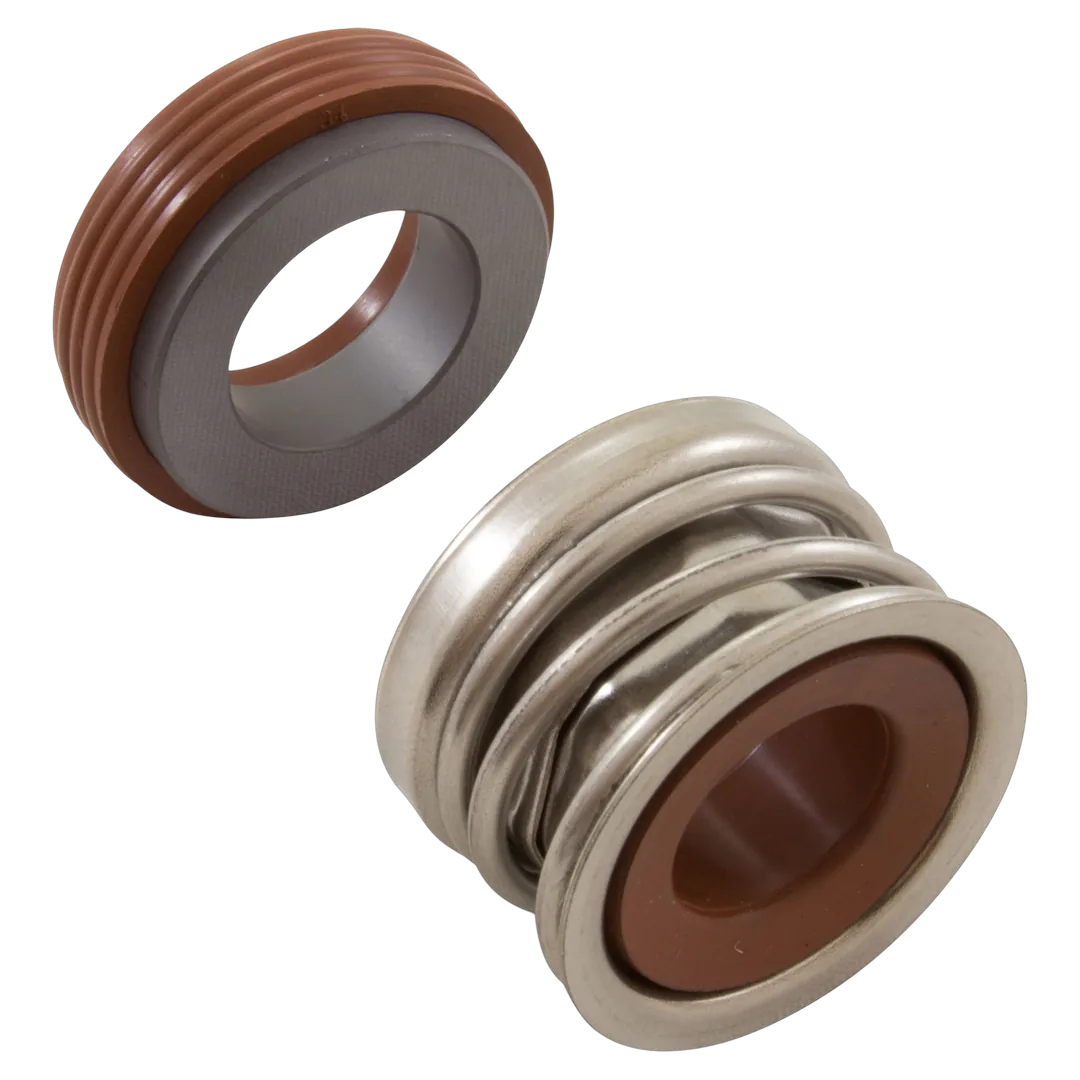

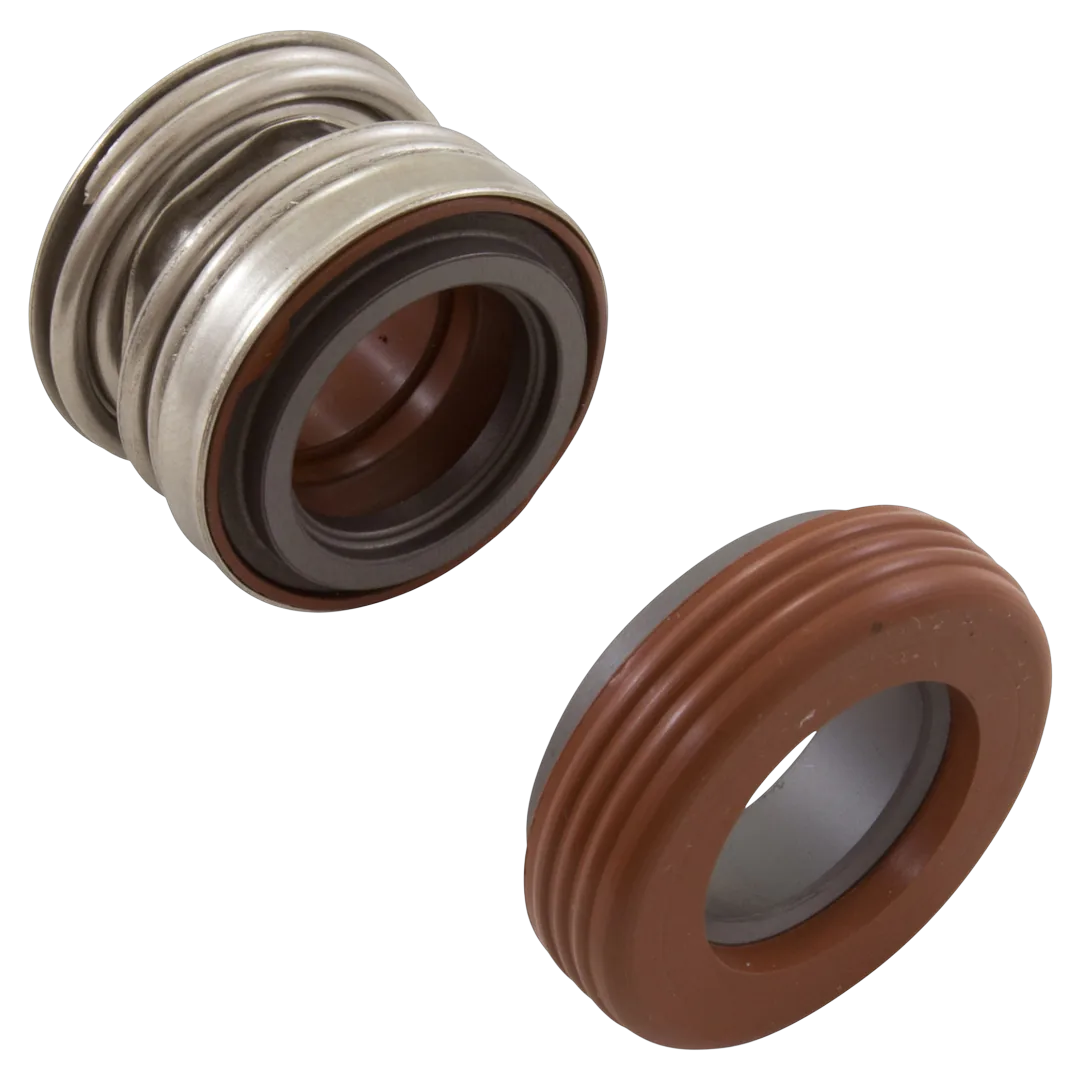

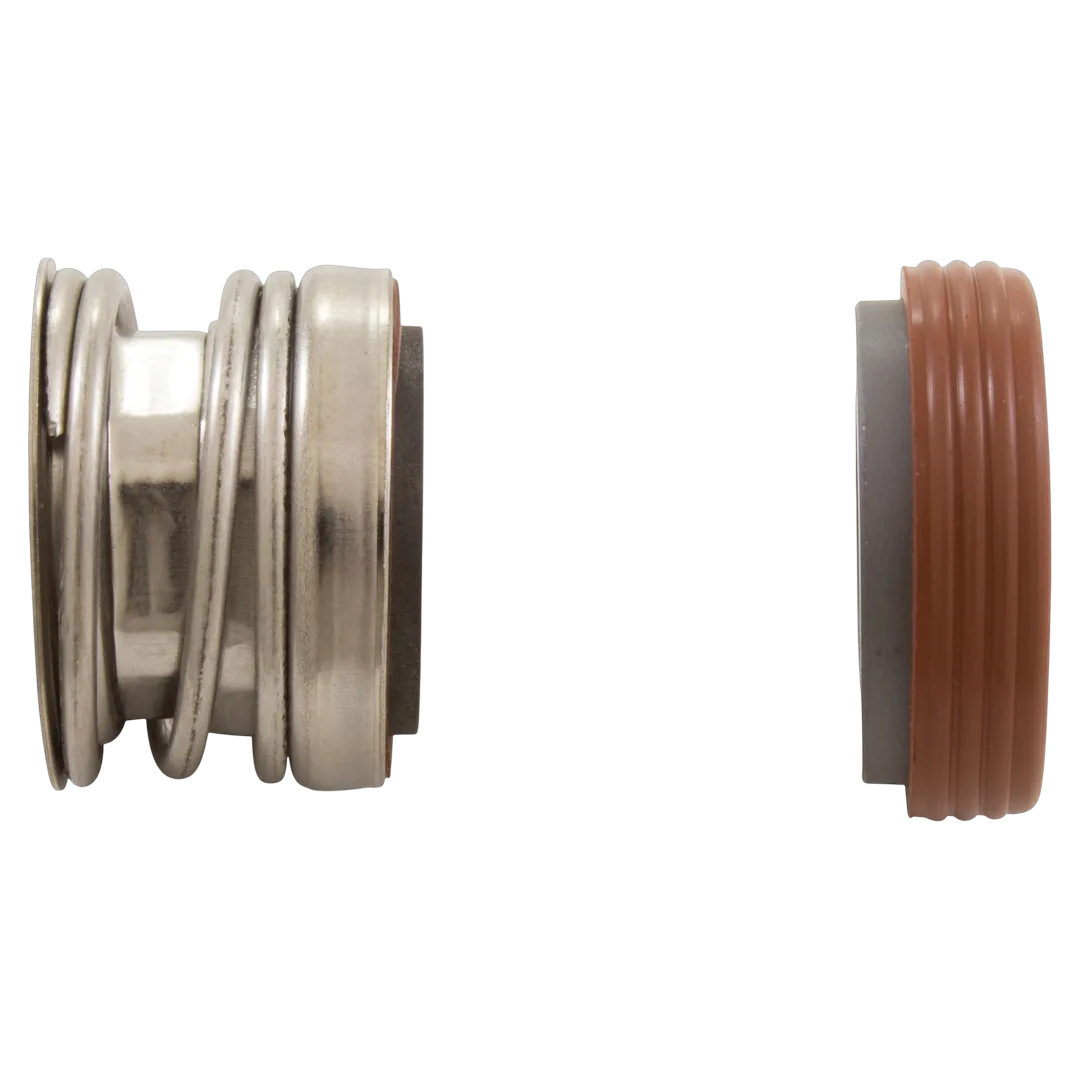

The Waterway 319-3090B is a pump seal kit designed for Waterway pool and spa systems. It features silicone carbide seals, Viton bellows, and a 316 stainless steel casing, ensuring robust construction. This component is compatible with Waterway Supreme Pool Pumps and select Hi-Flo II models.
Includes: Pump seal set
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 319-3090B |
| Part Number | 319-3090B |
| Part Type | Pump Seal Kit |
| Compatibility | Waterway Supreme Pumps, Waterway Supreme CSA Pumps, Waterway E-Series Center Discharge Pumps |
| Substitute Part Numbers | 35-270-2000, WWP-101-8106, WW3193090B, 319-3010B |
| Includes | Pump seal set |
| Material | Viton Carbon Graphite |
| Shaft Size | 5/8 inch |
| Seal Outside Diameter | 1-5/8 inch |
| Seal Height | 25/32 inch |
| Mating Ring Diameter | 1-1/4 inch |
| Mating Ring Thickness | 13/32 inch |
| Shipping Dimensions | 1.5 x 1.5 x 1.5 inch |
| Product Weight | 0.15 pound |
