Hi-Flo Side Discharge Faceplate
Hi-Flo Side Discharge Faceplate is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hi-Flo Side Discharge Faceplate

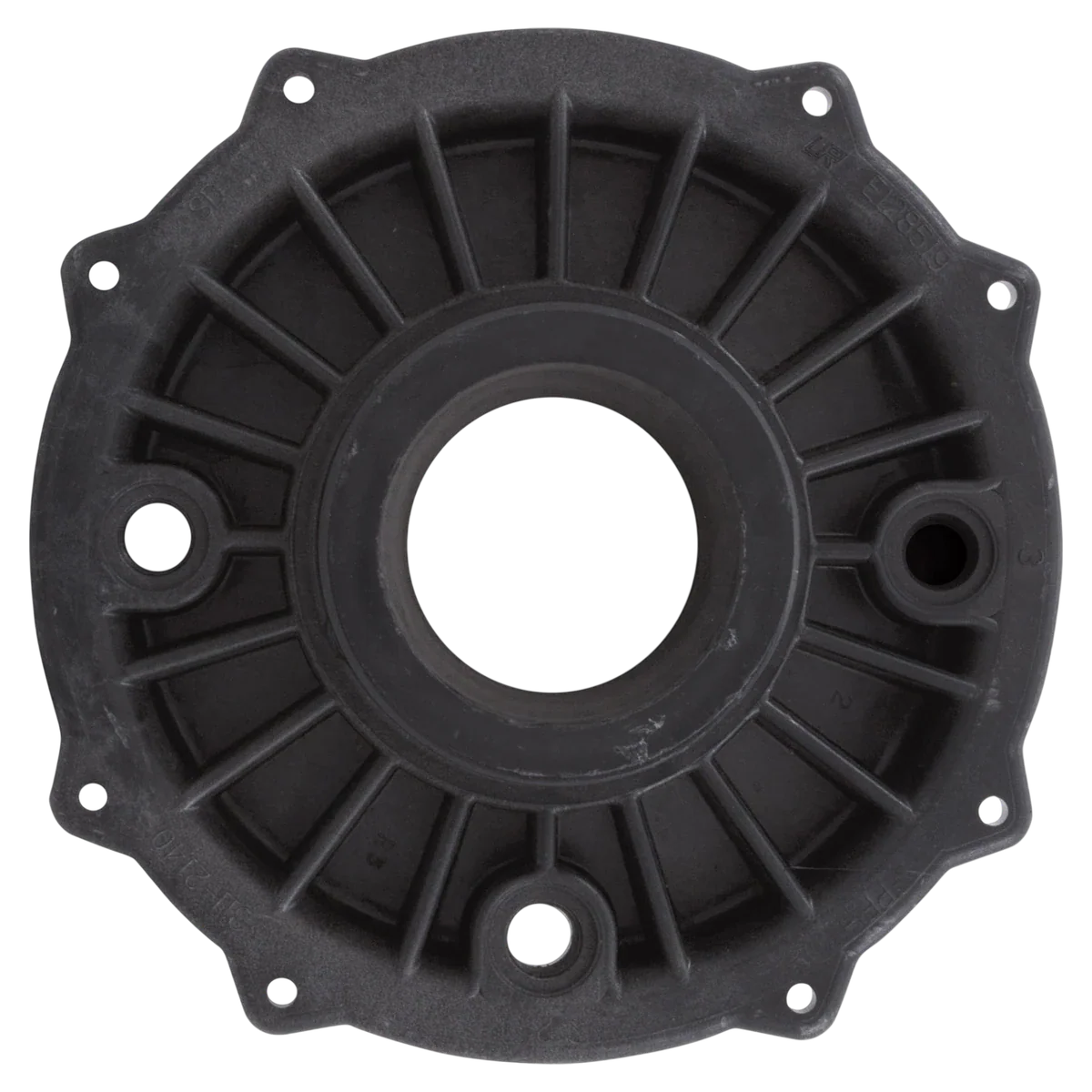

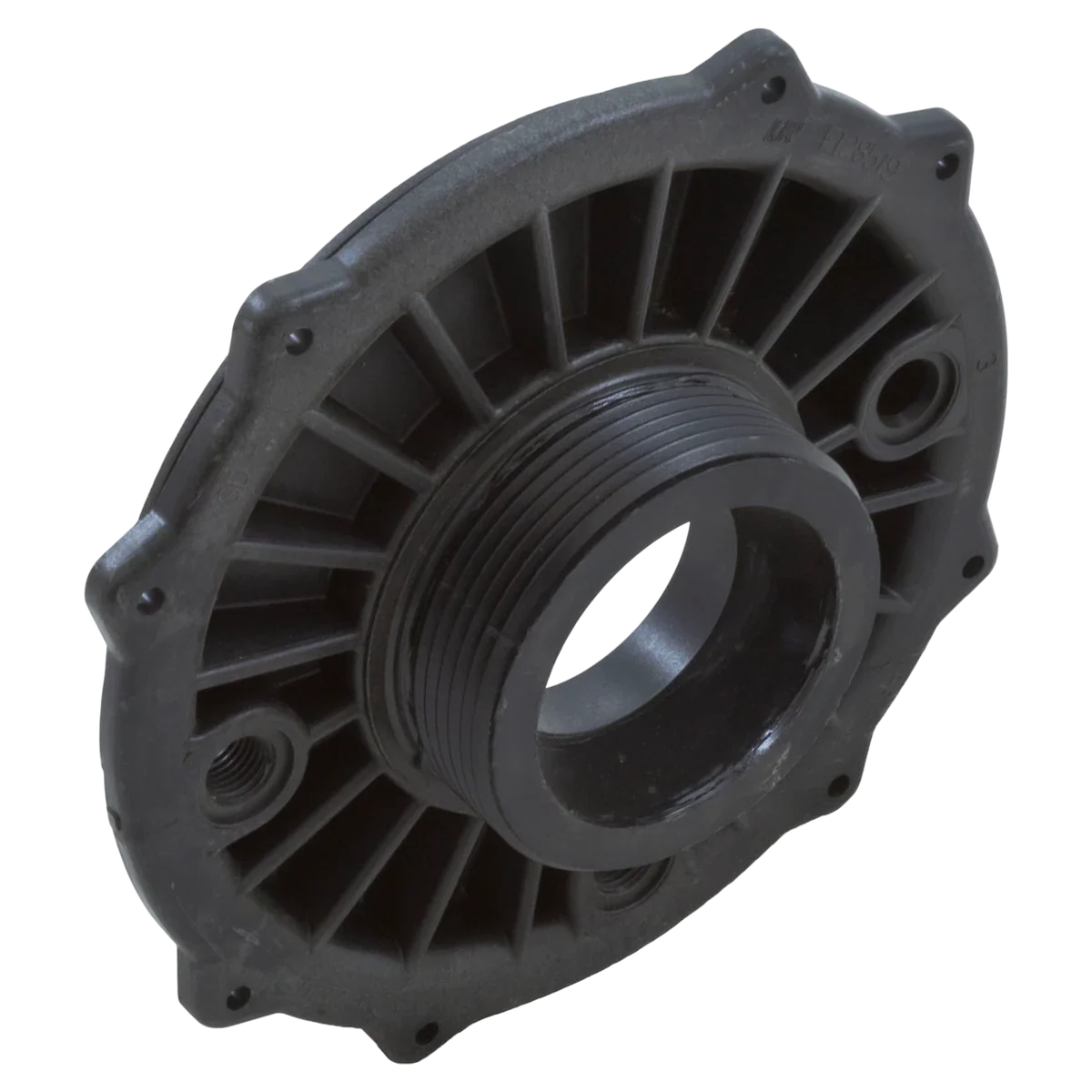

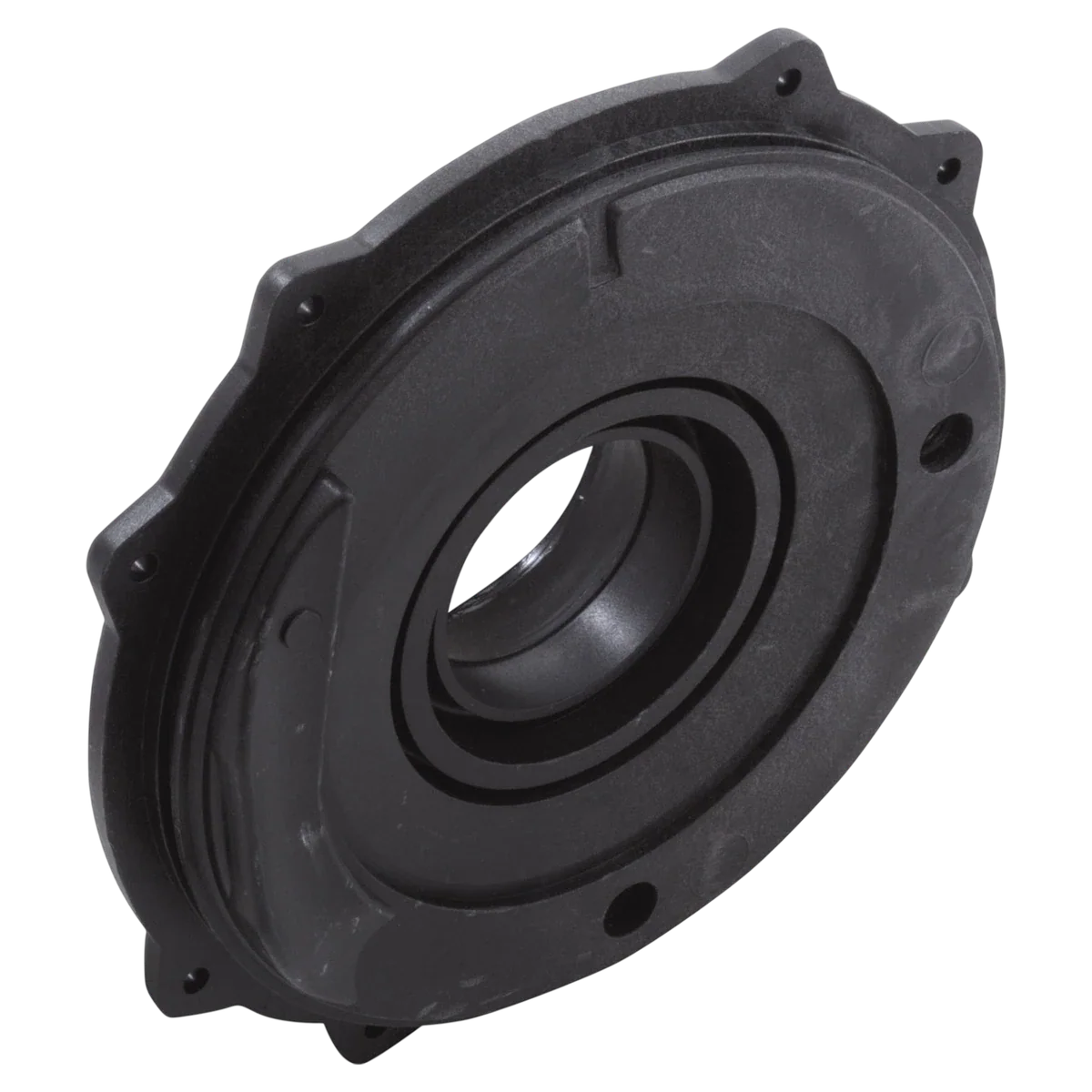

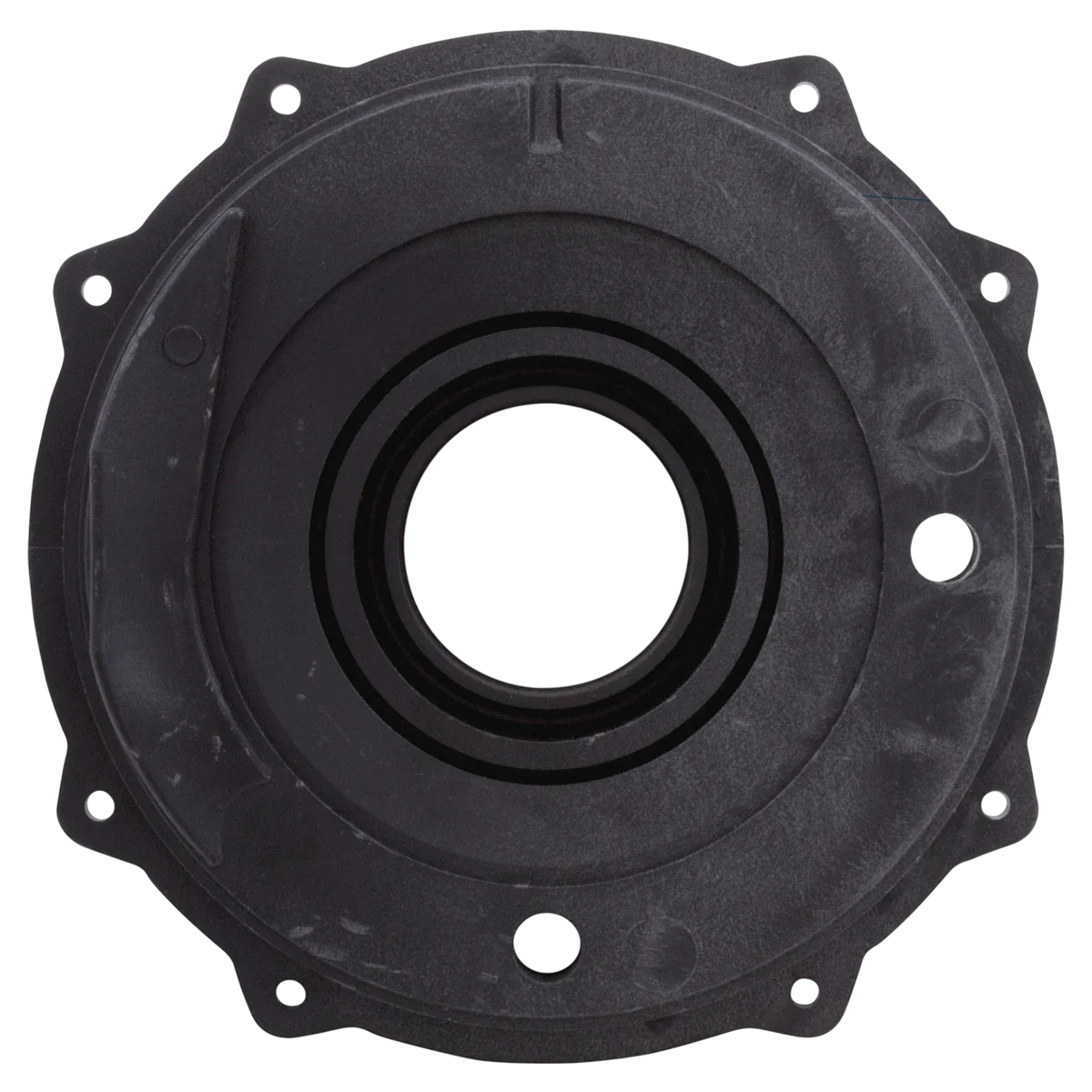

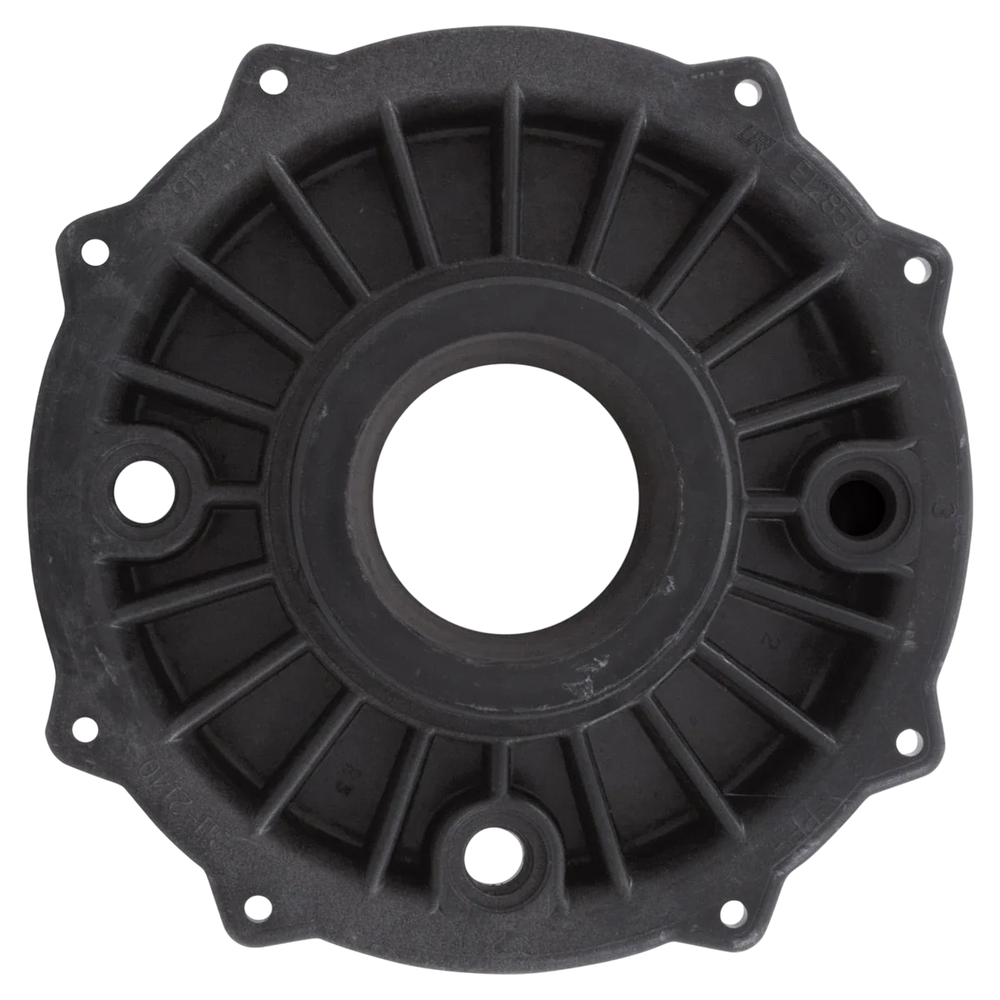

This faceplate is the plastic front cover for Waterway Hi-Flo and Hi-Flo II series side discharge pumps, with a 2" intake opening that mounts to the pump's wet end with 8 screws.
Key Features
- 2" center suction opening
- Male buttress thread connection
- 8-screw mounting pattern
- Drain plug locations at 3, 6, 9 o'clock
- Molded '311-2140' marking with UL File E128519
Compatibility
- Waterway Hi-Flo series side discharge pumps
- Waterway Hi-Flo II series side discharge pumps
- 1.0 HP through 4.0 HP spa pumps
The o-ring, mounting plugs and gasket are not included and need to be ordered separately.
On some older Hi-Flo pumps the screw holes do not line up exactly and may need to be drilled out slightly to fit.
This product ships free via FedEx Home Delivery.
Find it on the parts diagram
Waterway HiFlo & HiFlo II Series Pump Replacement Parts Replacement Parts
Show it on the diagram →
