Waterway 311-1210 Executive Spa Pump Faceplate
Waterway | SKU:
311-1210
$6700/ea
Unit price
/
Unavailable
Waterway 311-1210 Executive Spa Pump Faceplate is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

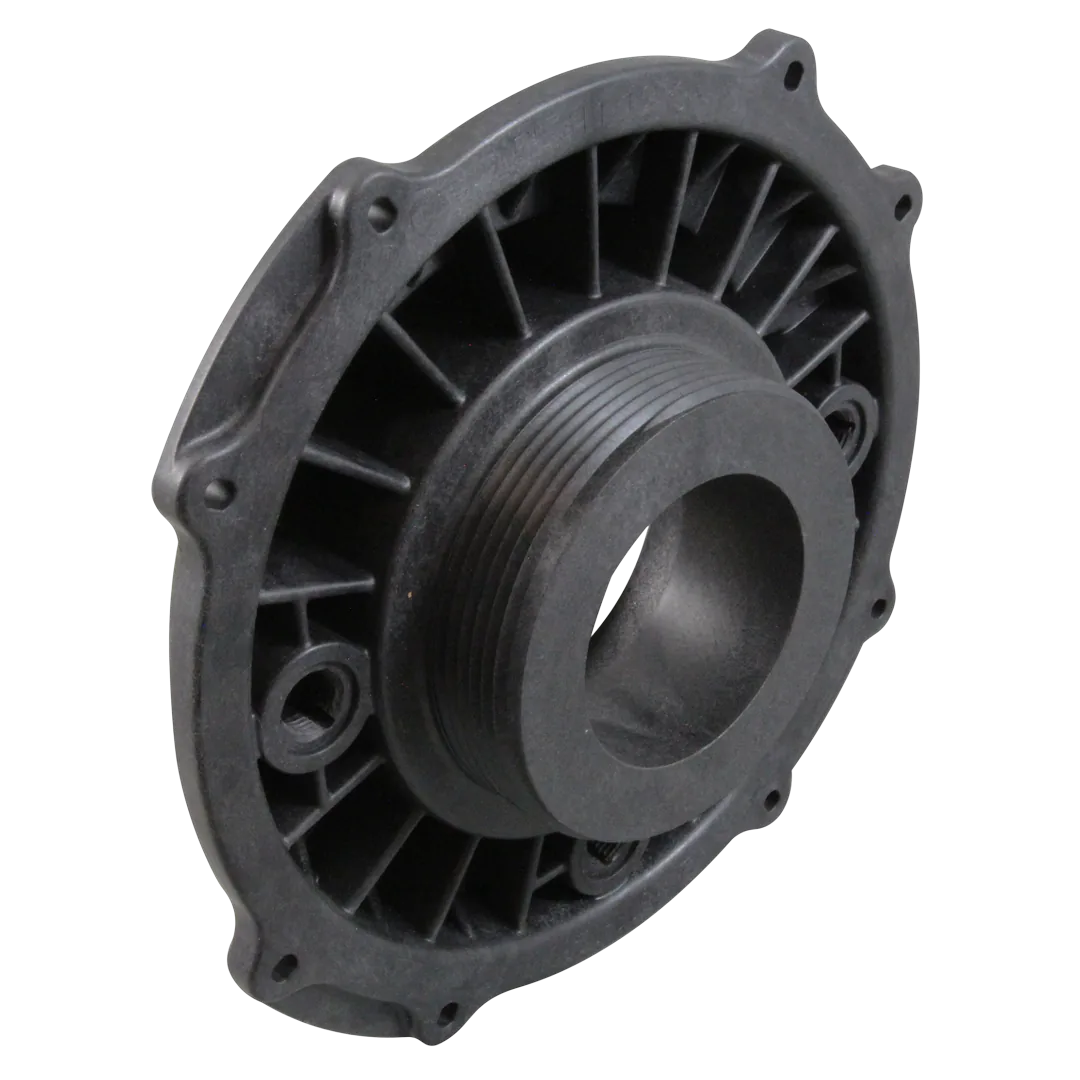

The Waterway 311-1210 is an Executive Spa Pump Faceplate designed for use with 48 and 56 Frame pump systems. It features a 2.5-inch suction inlet and includes housing O-rings and plugs for secure sealing. This faceplate is specifically compatible with the Executive series pumps that utilize a 48 or 56 Frame configuration.
Includes: Faceplate only O-rings, drain plugs, and barb fittings sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway Executive Faceplate 2.5" |
| Part Number | 311-1210 |
| Part Type | Pump Part |
| Compatibility | Waterway Executive 48 and 56 Frame Pumps |
| Substitute Part Numbers | 311-1200, 311-1239-DNB |
| Includes | Faceplate only O-rings, drain plugs, and barb fittings sold separately |
| Material | High-grade thermoplastic |
| Suction Connection Type | Male Buttress Thread (MBT) |
| Suction Connection Size | 2.5 inch |
| Suction Connection Outer Diameter | 3.7 inch |
| Faceplate Fastening Type | 8 screws |
| Drain Plug Locations | 3, 6, and 9 o'clock positions |
| Suction Style | Center |
| Shipping Dimensions | 8 x 8 x 3 inch |
| Product Weight | 1.13 pound |
