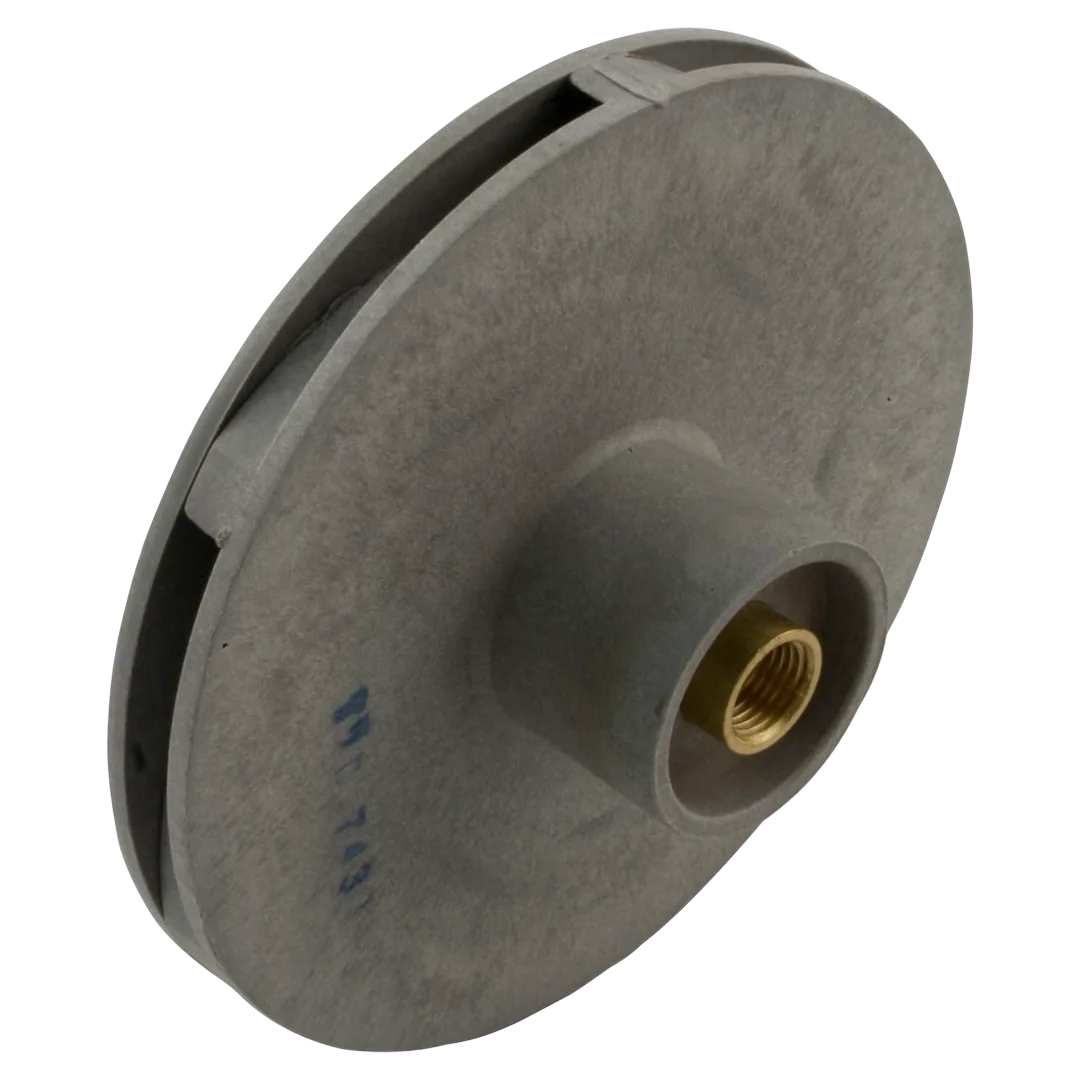

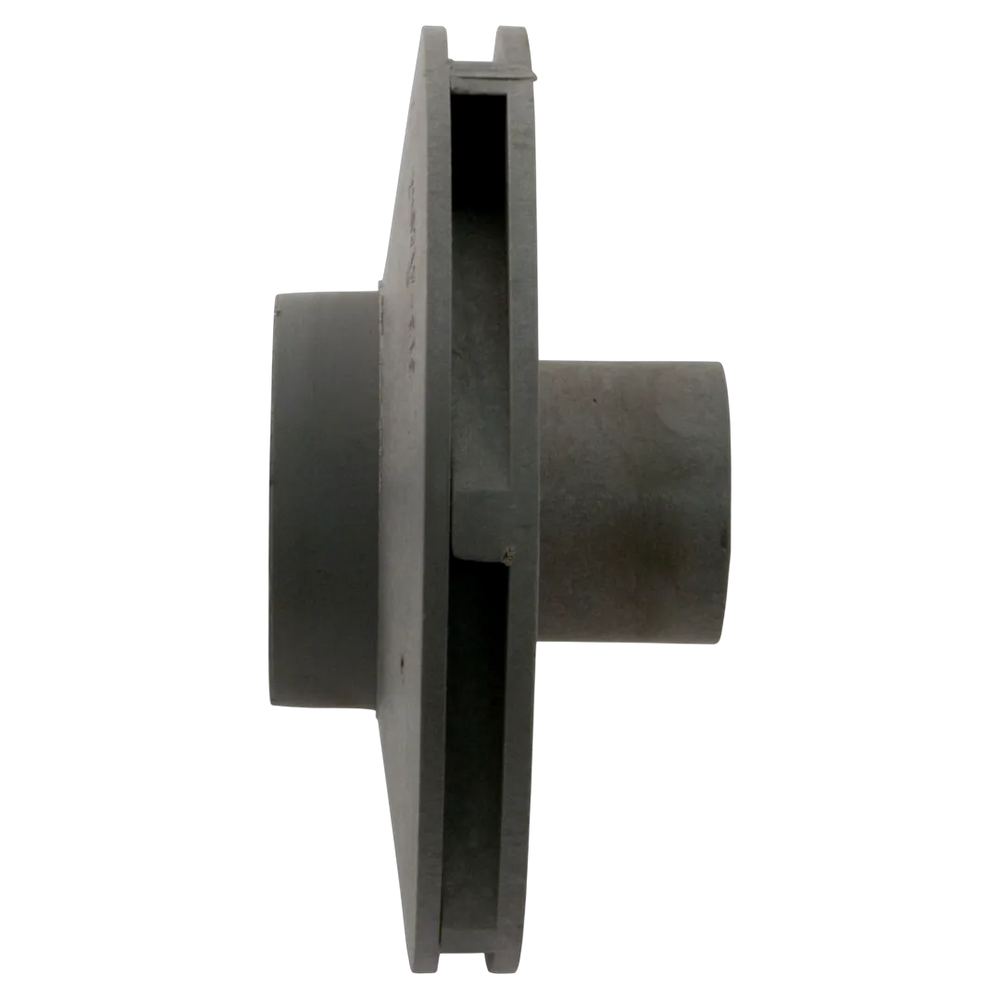

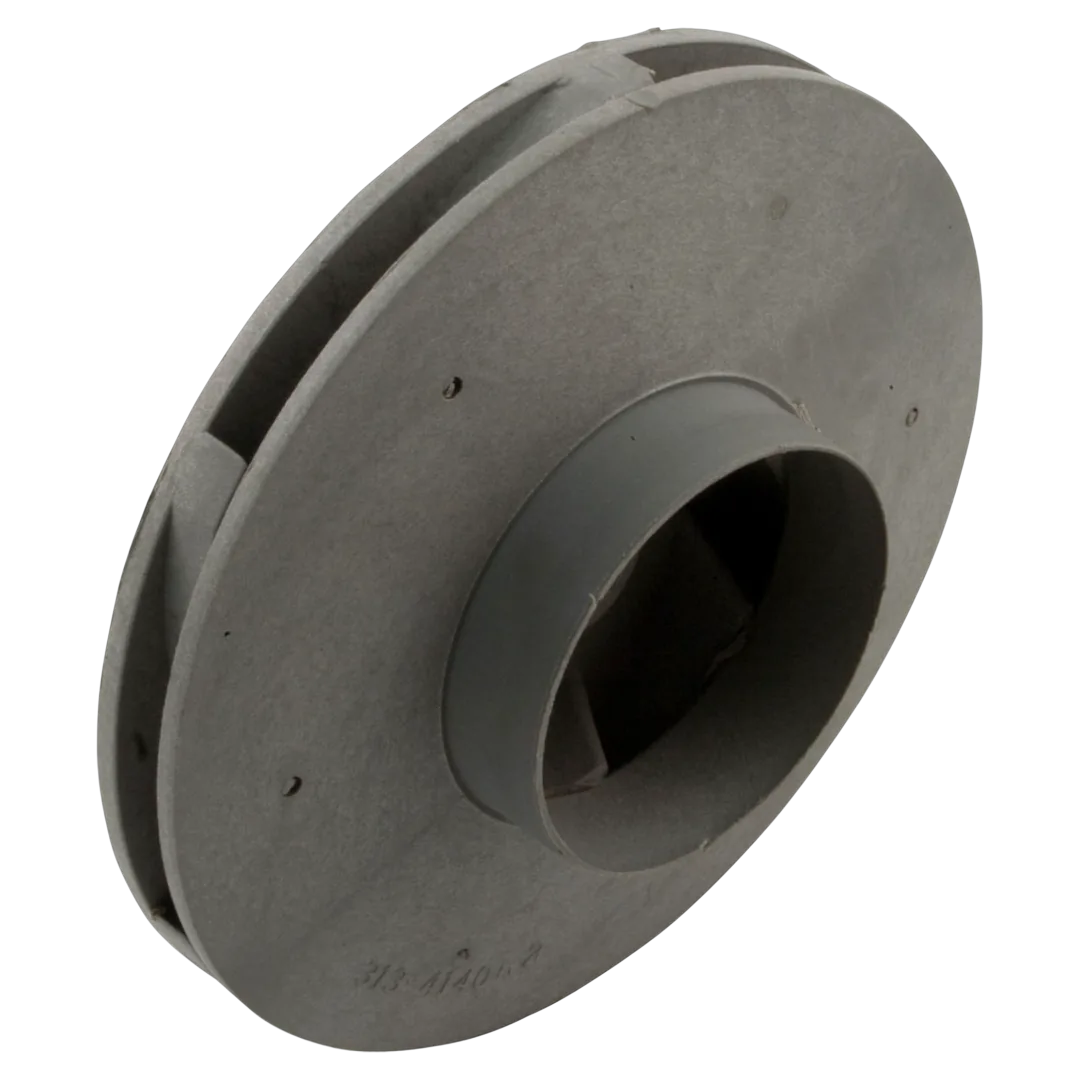

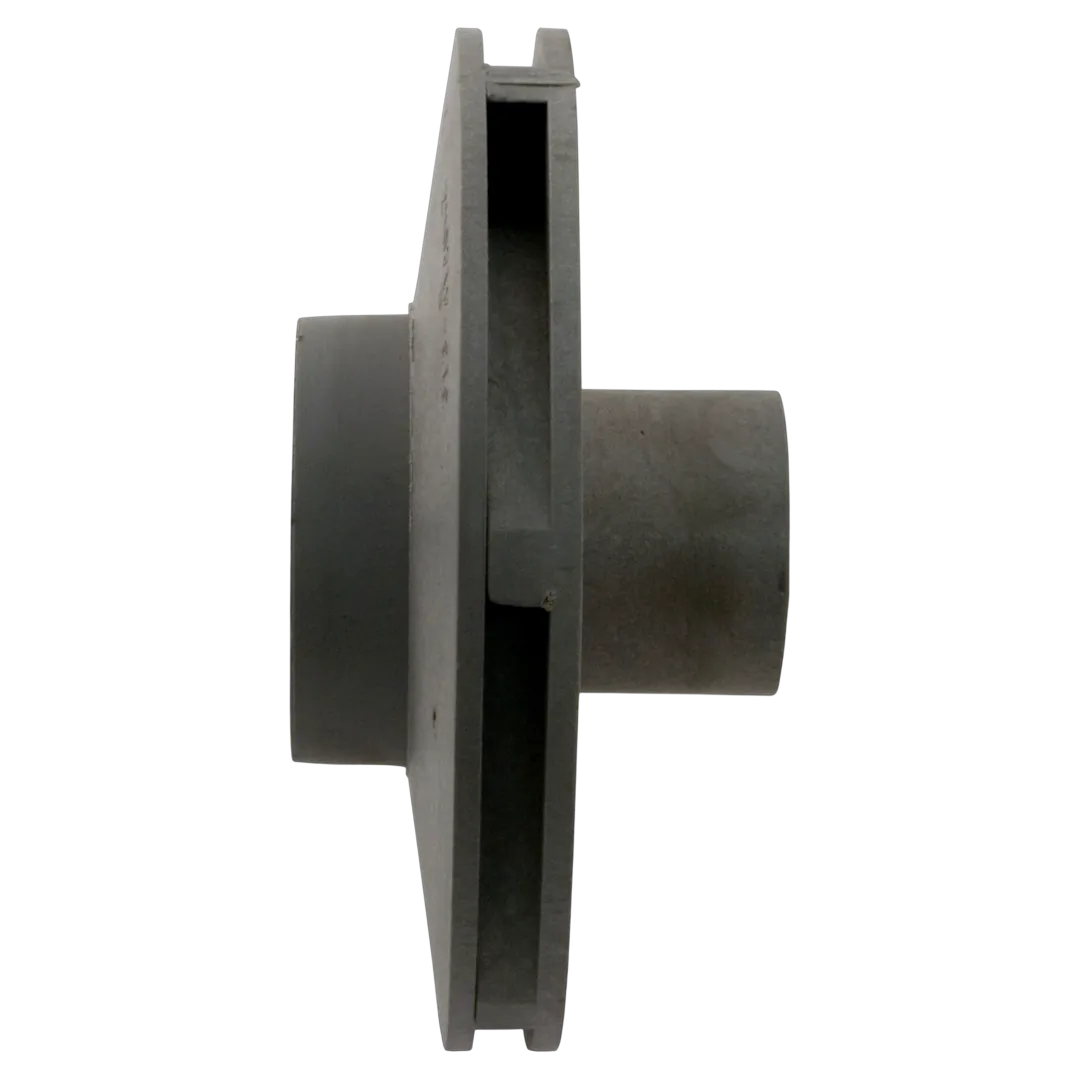

Waterway 310-7430 Impeller Assembly 1.5HP
Waterway | SKU:
310-7430
$7300/ea
Unit price
/
Unavailable
Waterway 310-7430 Impeller Assembly 1.5HP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-7430 is a high-pressure impeller assembly designed for 1.5HP pumps, with compatibility extending to full-rated and uprated 2HP models. It features a closed-face design, optimizing performance with square flange motors that have threaded shafts. This impeller fits Waterway SVL56, Champion, Power Defender, and Mustang pump models.
Includes: Impeller assembly only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 310-7430 Impeller Assembly |
| Part Number | 310-7430 |
| Part Type | Impeller |
| Compatibility | 1.5HP-2HP Champion 56-Frame Pump |
| Substitute Part Numbers | 310-7430B, 35-270-2096, WW3107430B, WWP310-7430, WWP3107430 |
| Includes | Impeller assembly only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.875 inch |
| Vane Width ID | 0.25 inch |
| Eye Diameter OD | 2.125 inch |
| Eye Length | 0.5625 inch |
| Impeller Width OD | 0.5 inch |
| Seal Seat Depth | 1 inch |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.5 inch |
| Shipping Dimensions | 5.25 x 5.25 x 2.25 inch |
| Product Weight | 0.415 pound |
