Waterway 310-4320 Impeller
WATERWAY | SKU:
310-4320
$6400/ea
Unit price
/
Unavailable
Waterway 310-4320 Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

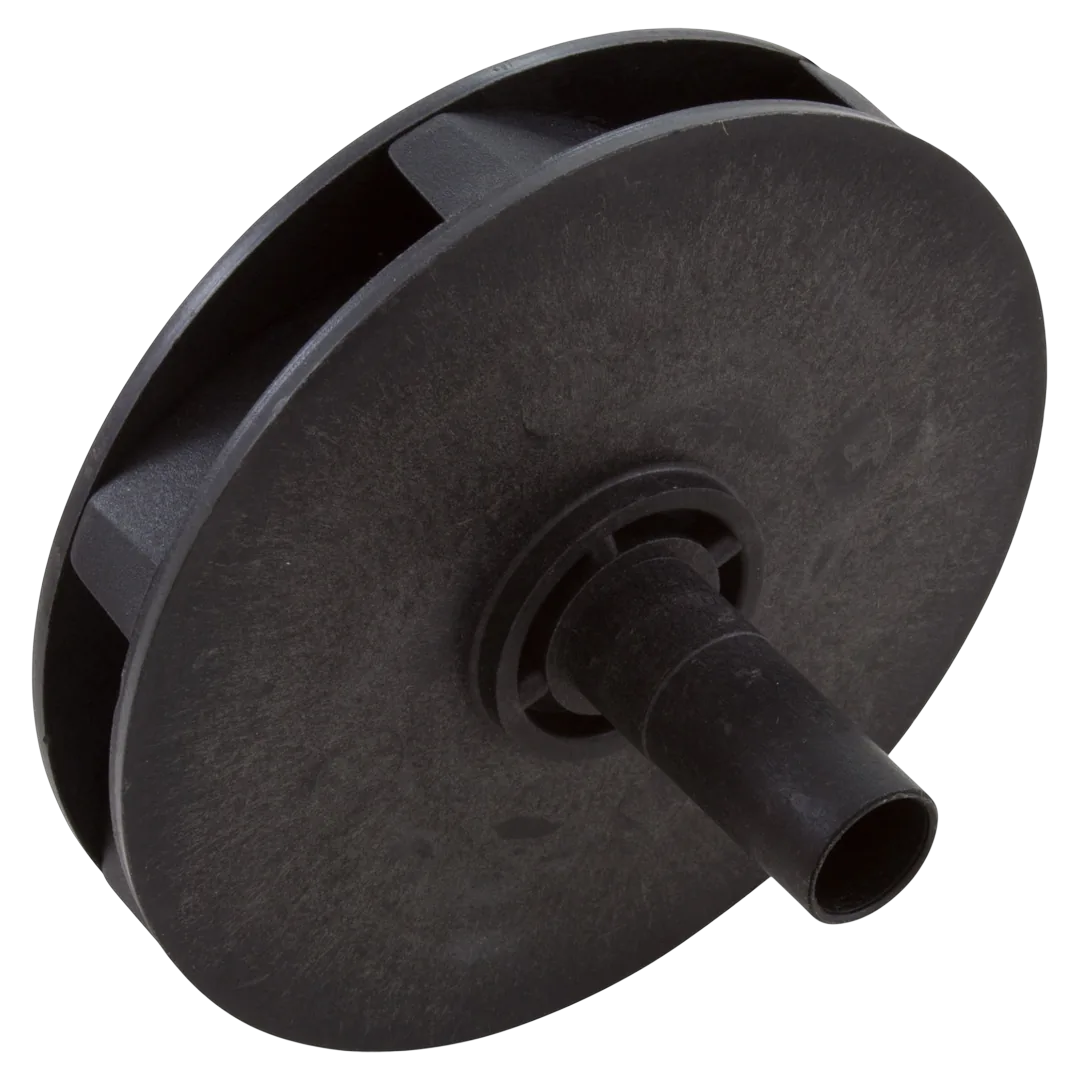

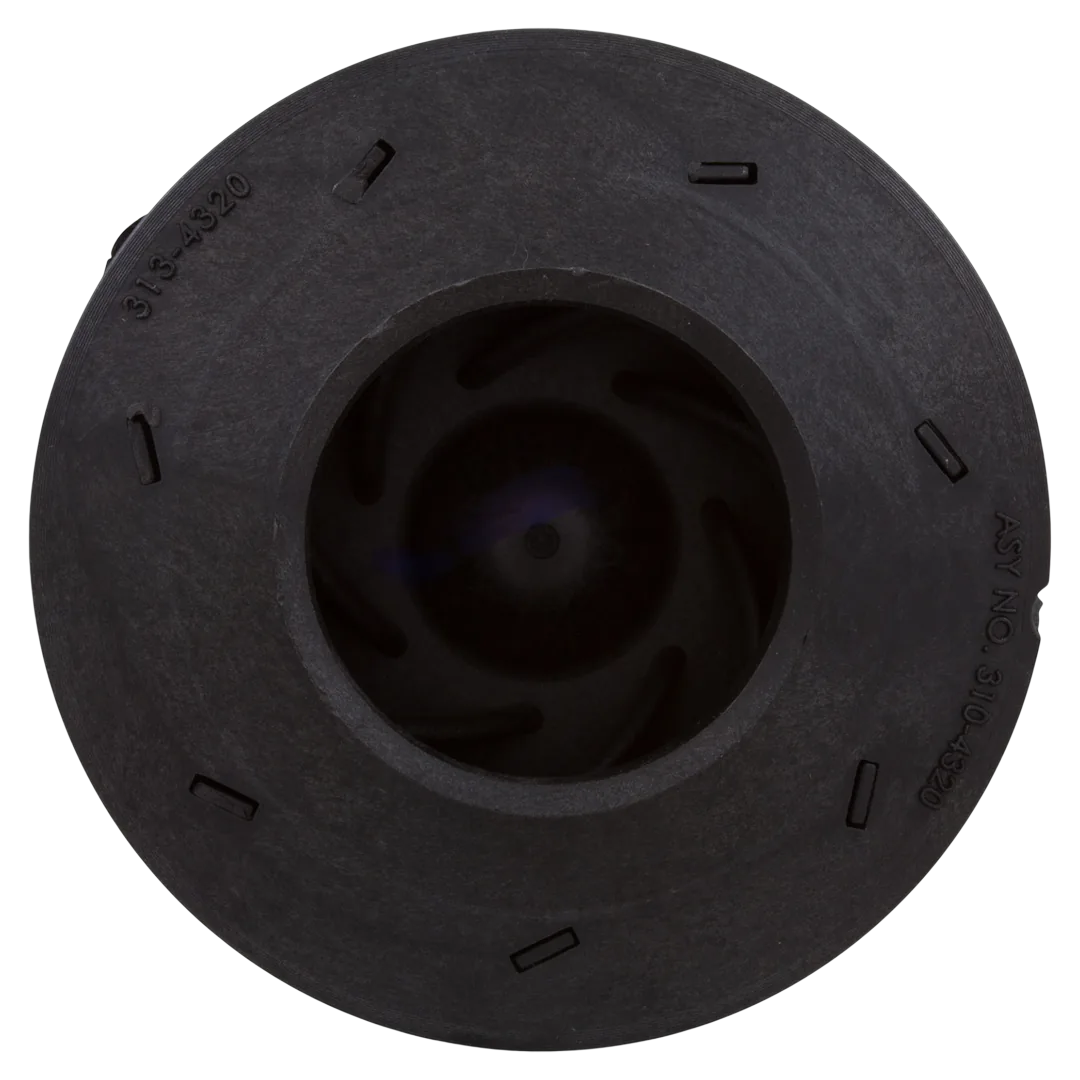

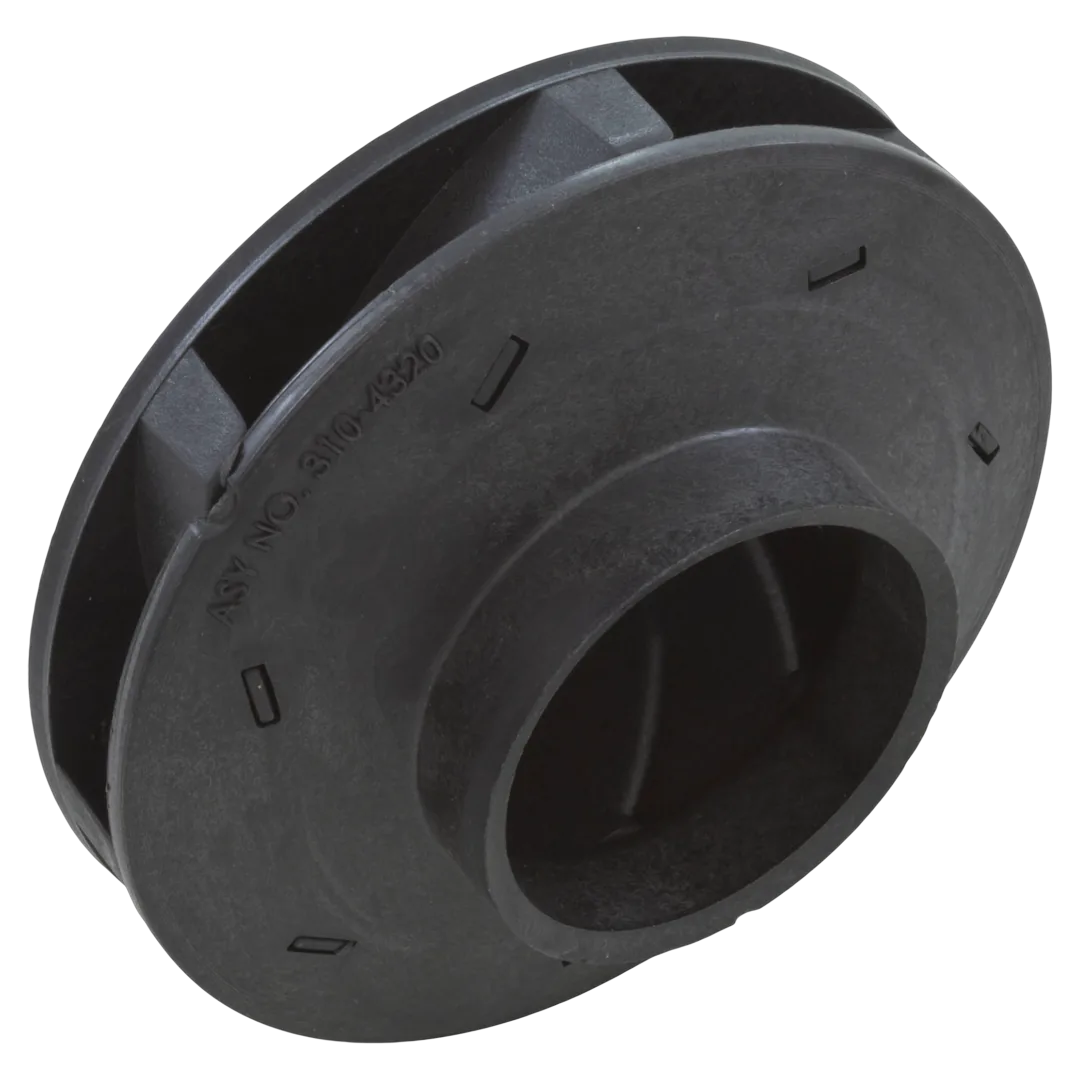

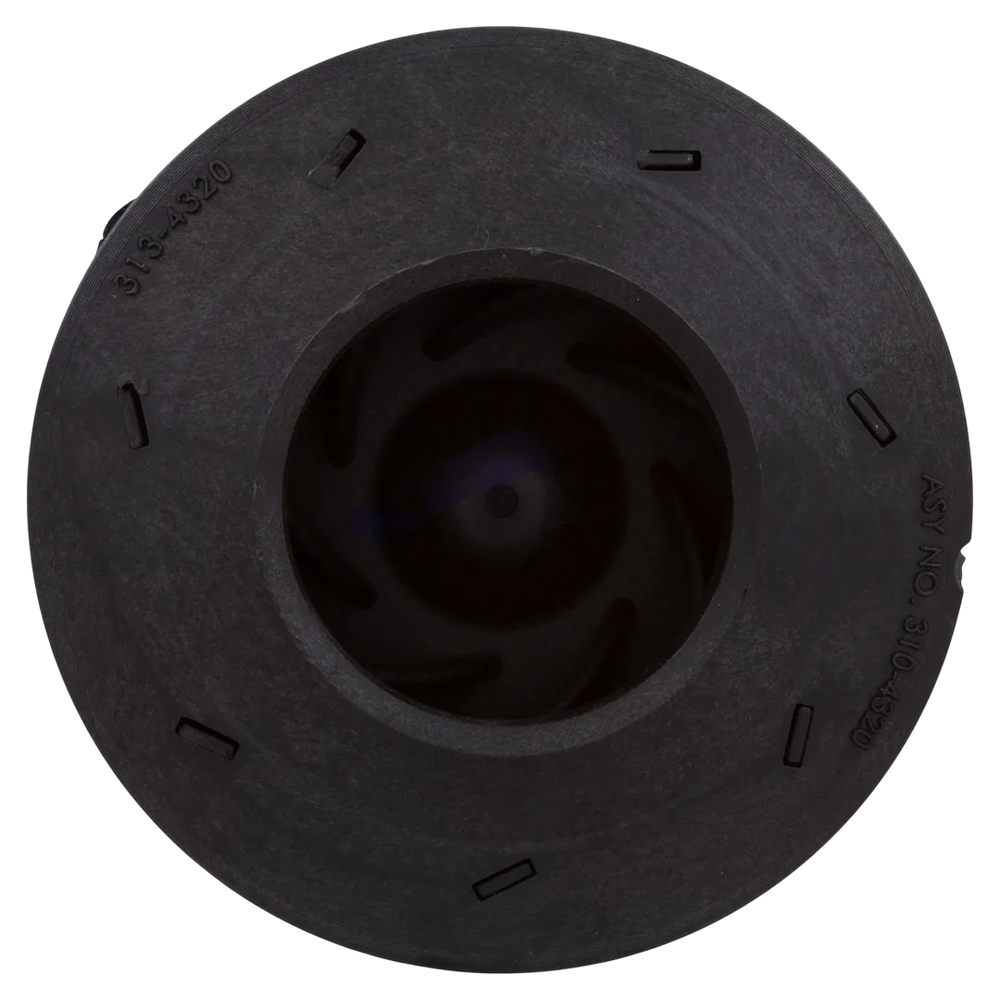

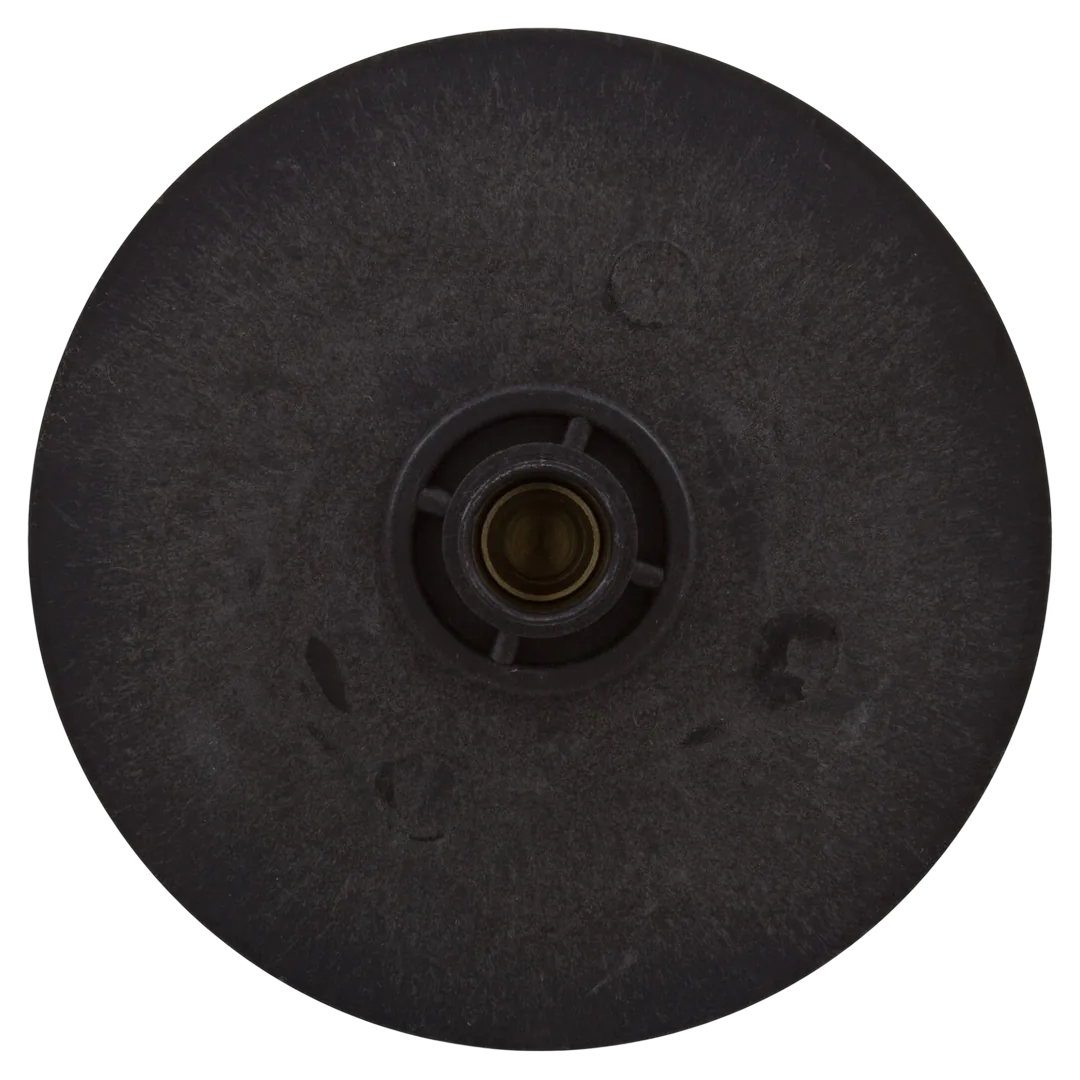

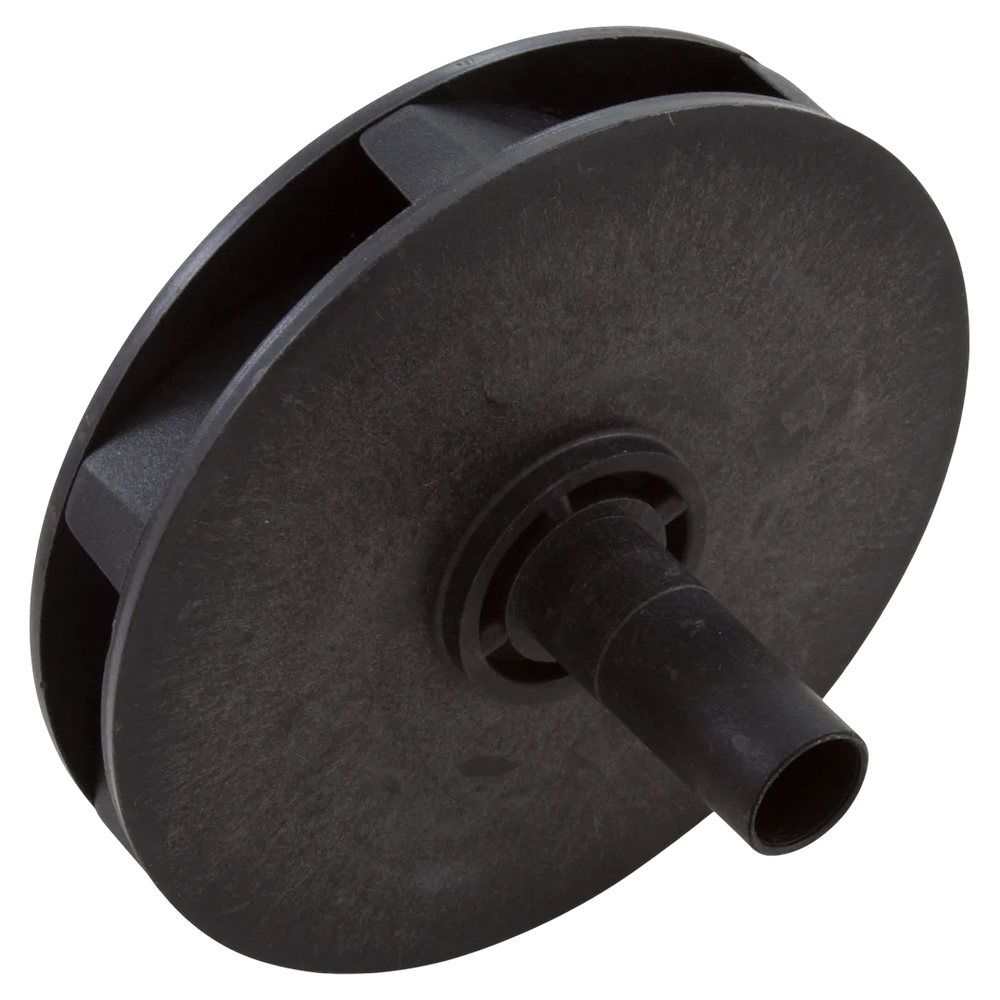

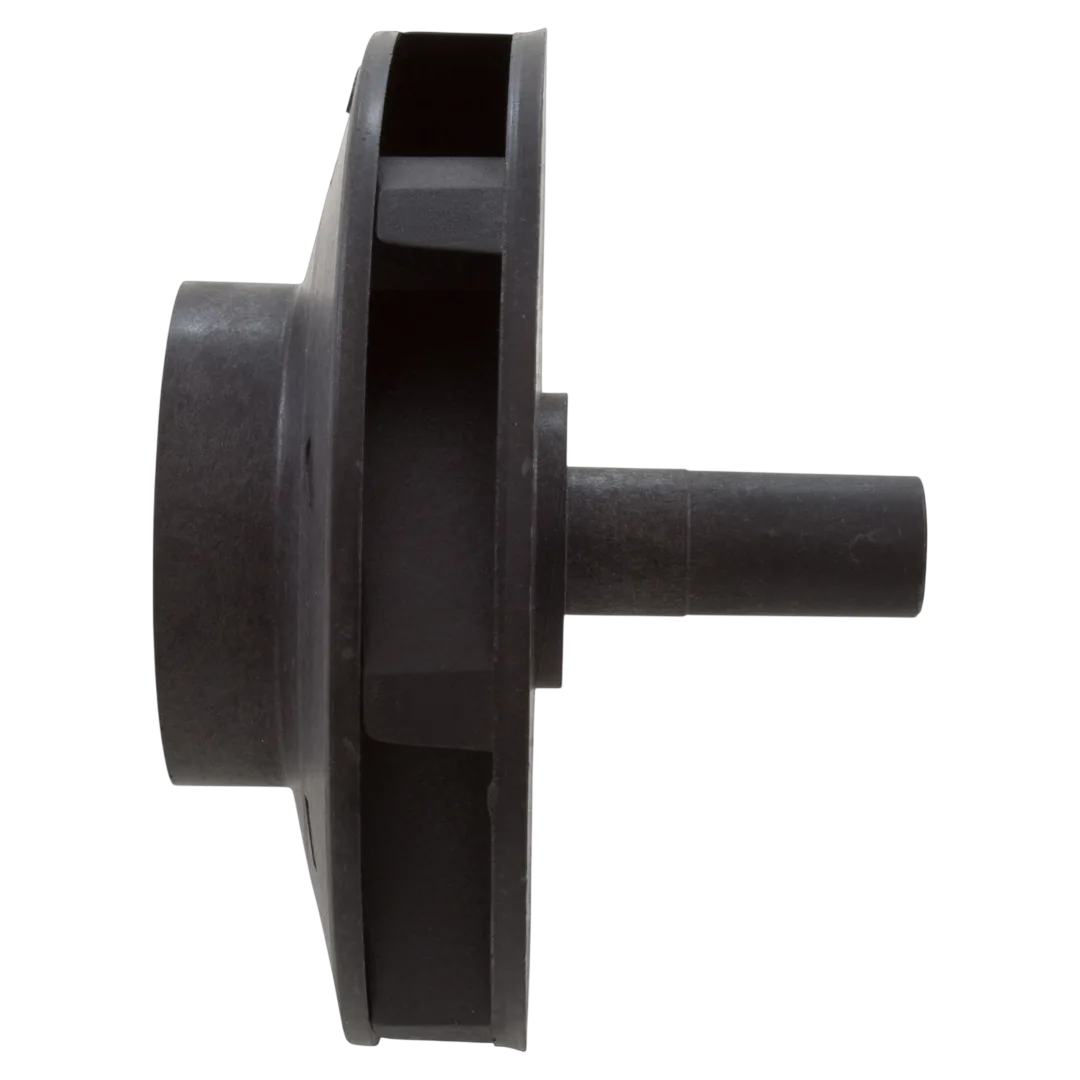

The Waterway 310-4320 is a hybrid medium head impeller designed for pumps operating with a 2.5 horsepower motor. It features a closed-face design, optimized for systems requiring medium head pressure, and carries the designation EX for its compatibility with certain pump models. This part is specifically suitable for the Waterway Executive 48 Series and is commonly utilized in EX2 series pumps found in select Dynasty and Master Spas.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway Hybrid Medium Head 2.5 HP Impeller |
| Part Number | 310-4320 |
| Part Type | Impeller |
| Compatibility | Waterway EX Series Pumps |
| Substitute Part Numbers | 313-4320, 954677 |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.25 inches |
| Vane Width ID | 0.4375 inches |
| Eye Diameter OD | 2.125 inches |
| Eye Length | 0.5 inches |
| Impeller Width OD | 0.6875 inches |
| Seal Seat Depth | 0.125 inches |
| Shaft Length | 1.5 inches |
| Shaft Diameter OD | 0.625 inches |
| Seal Seat Diameter OD | 1.25 inches |
| Shipping Dimensions | 3.5 x 3.25 x 1.75 inch |
| Product Weight | 0.35 pound |
