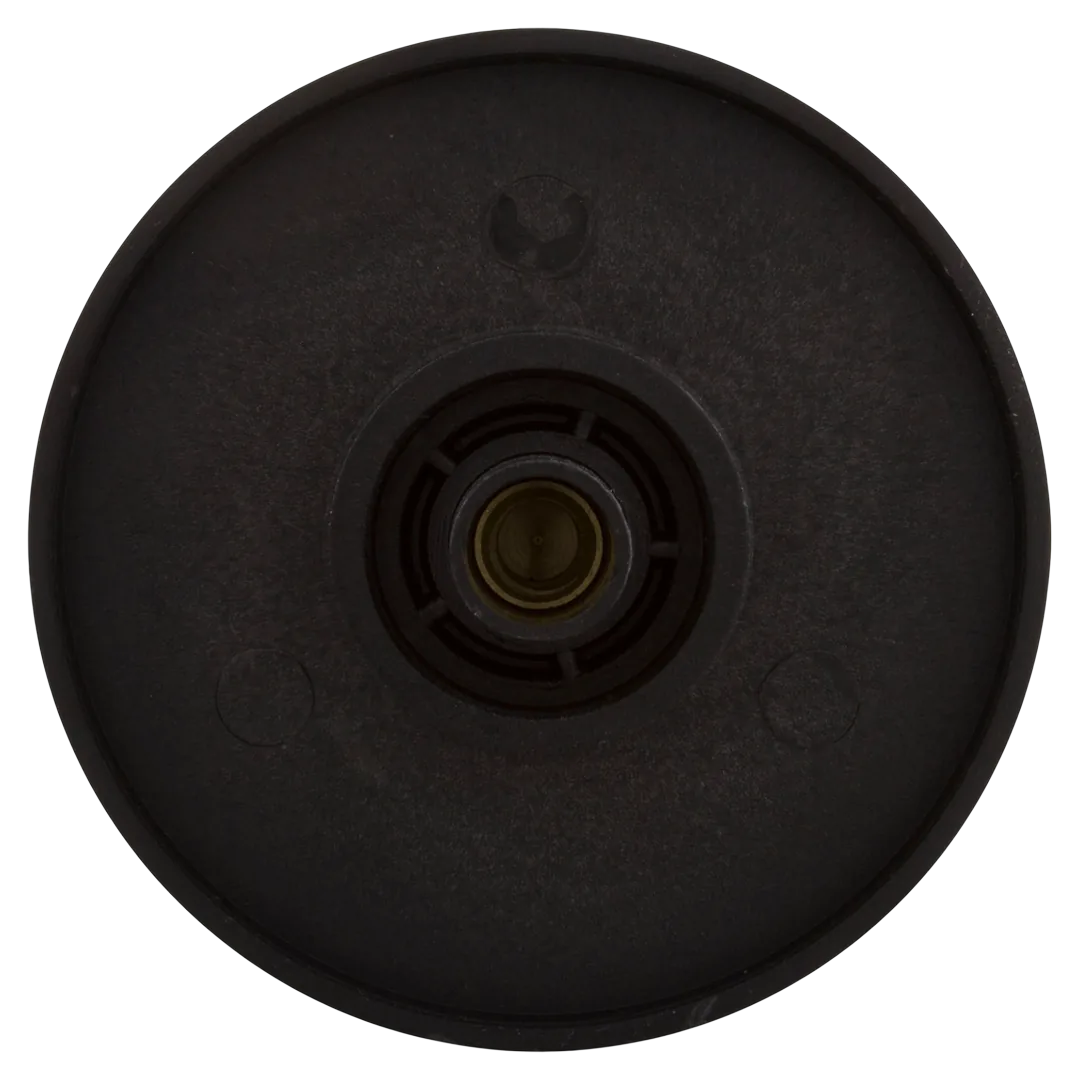

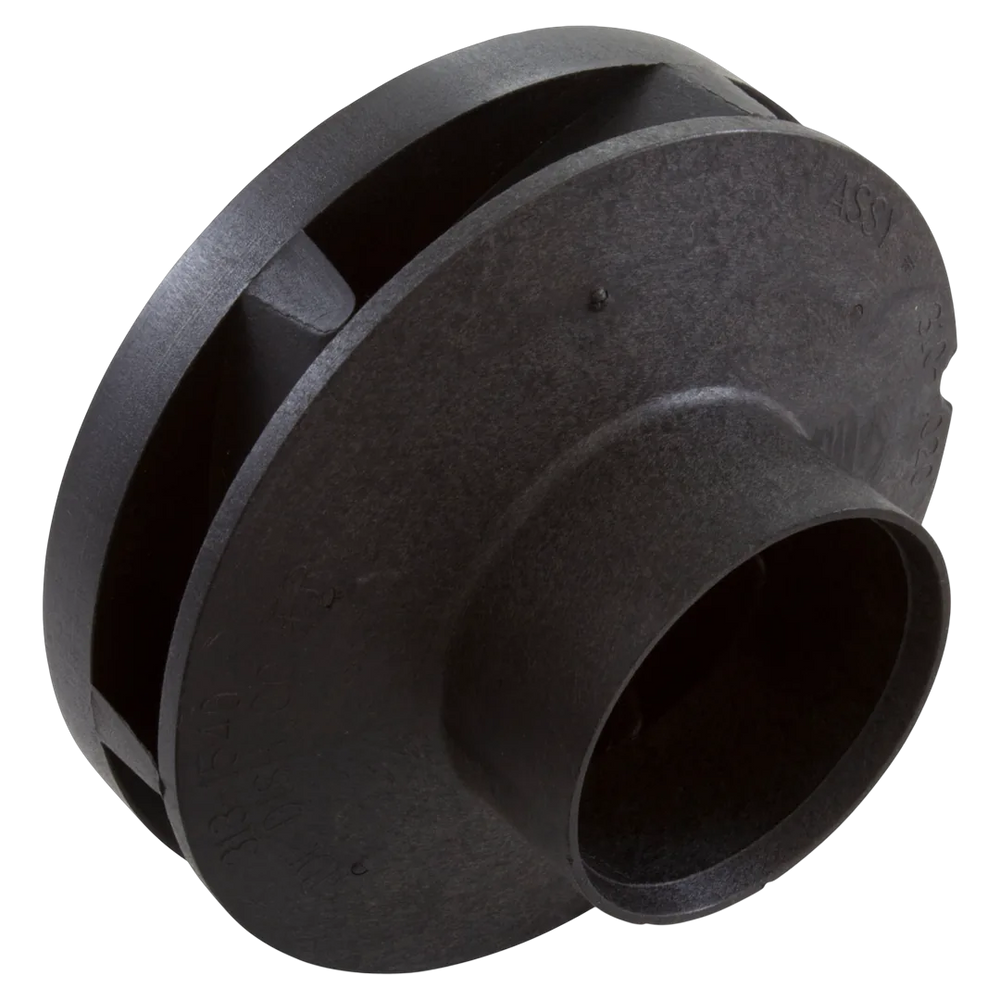

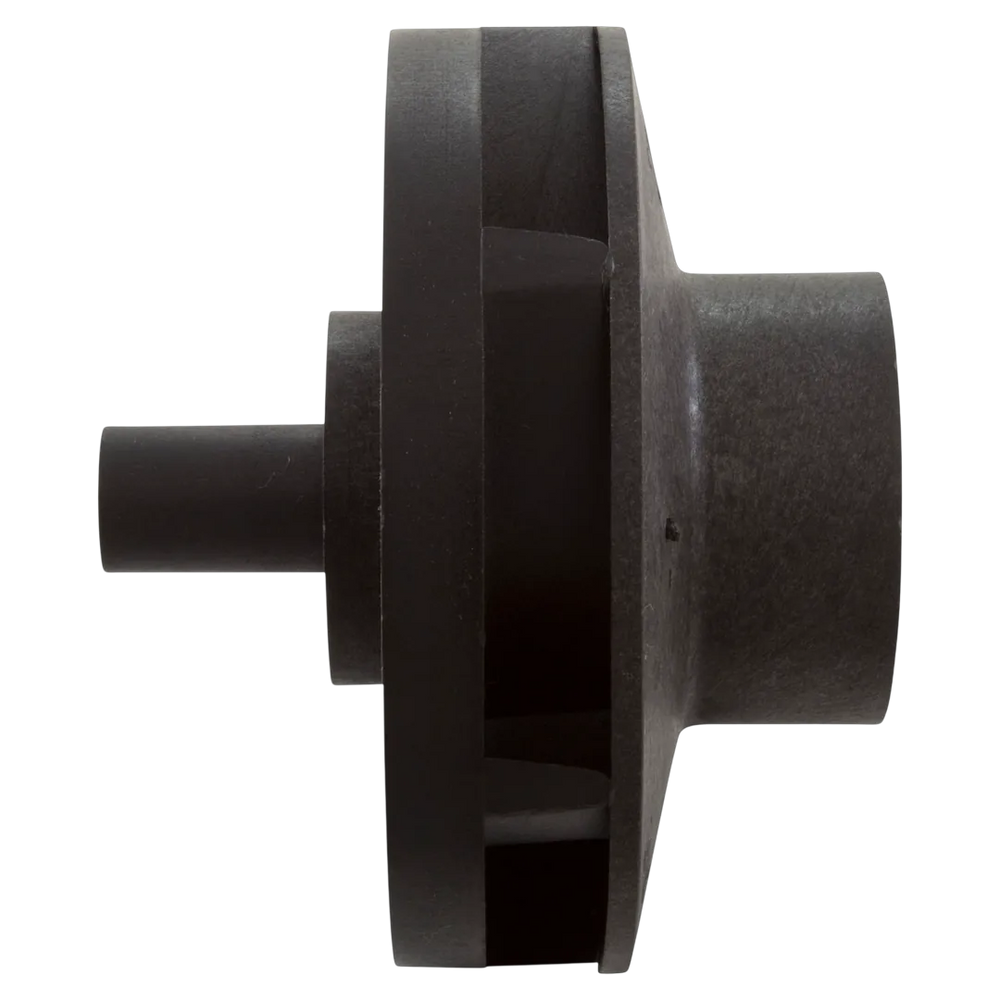

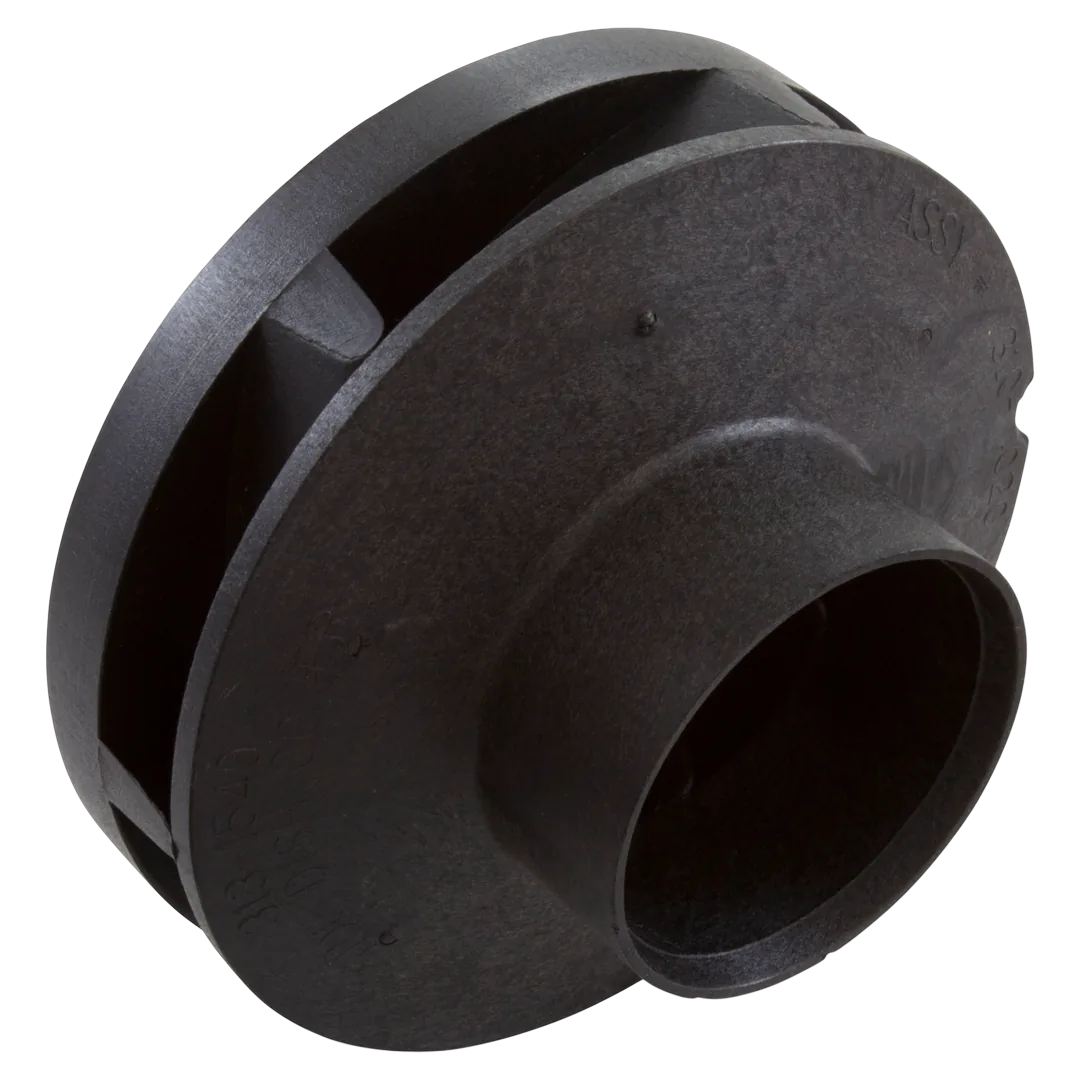

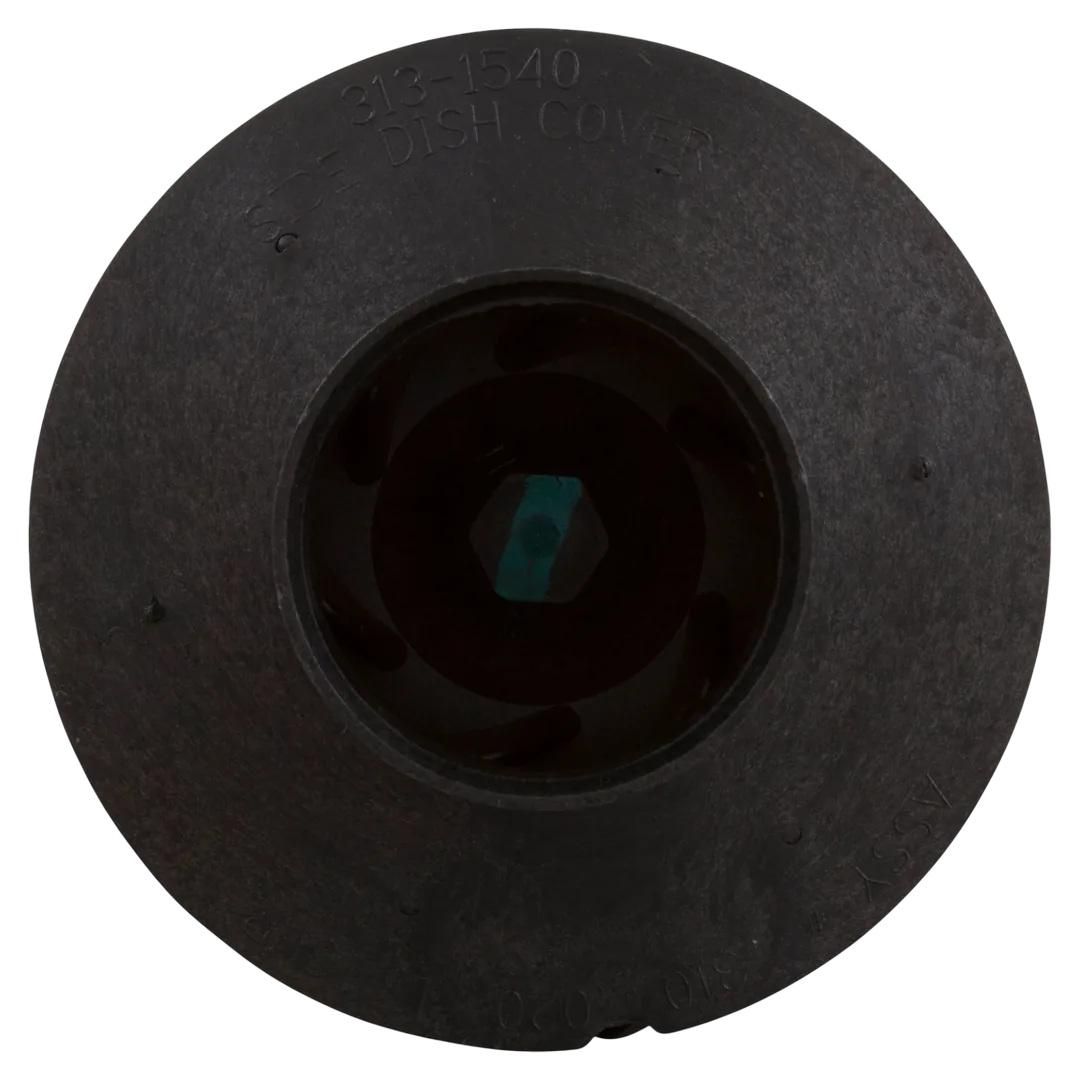

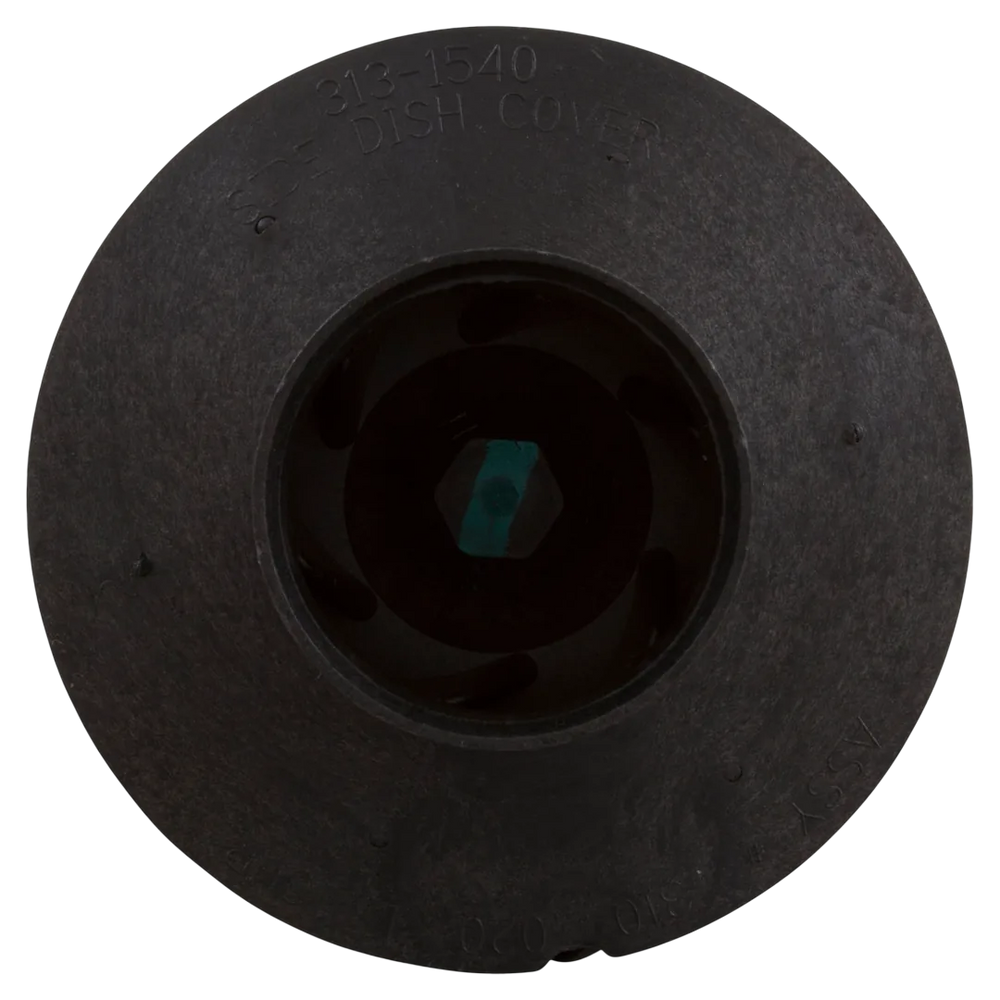

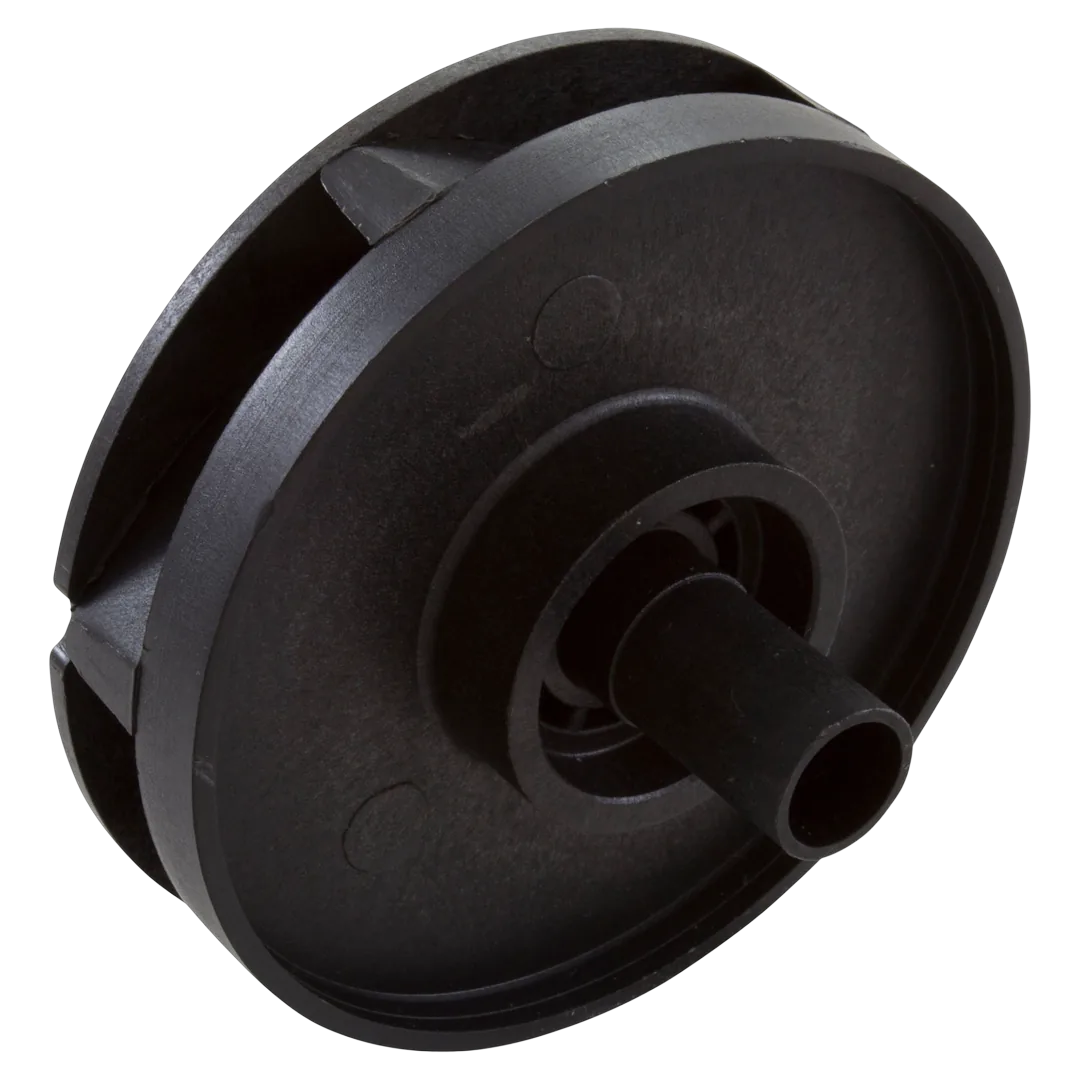

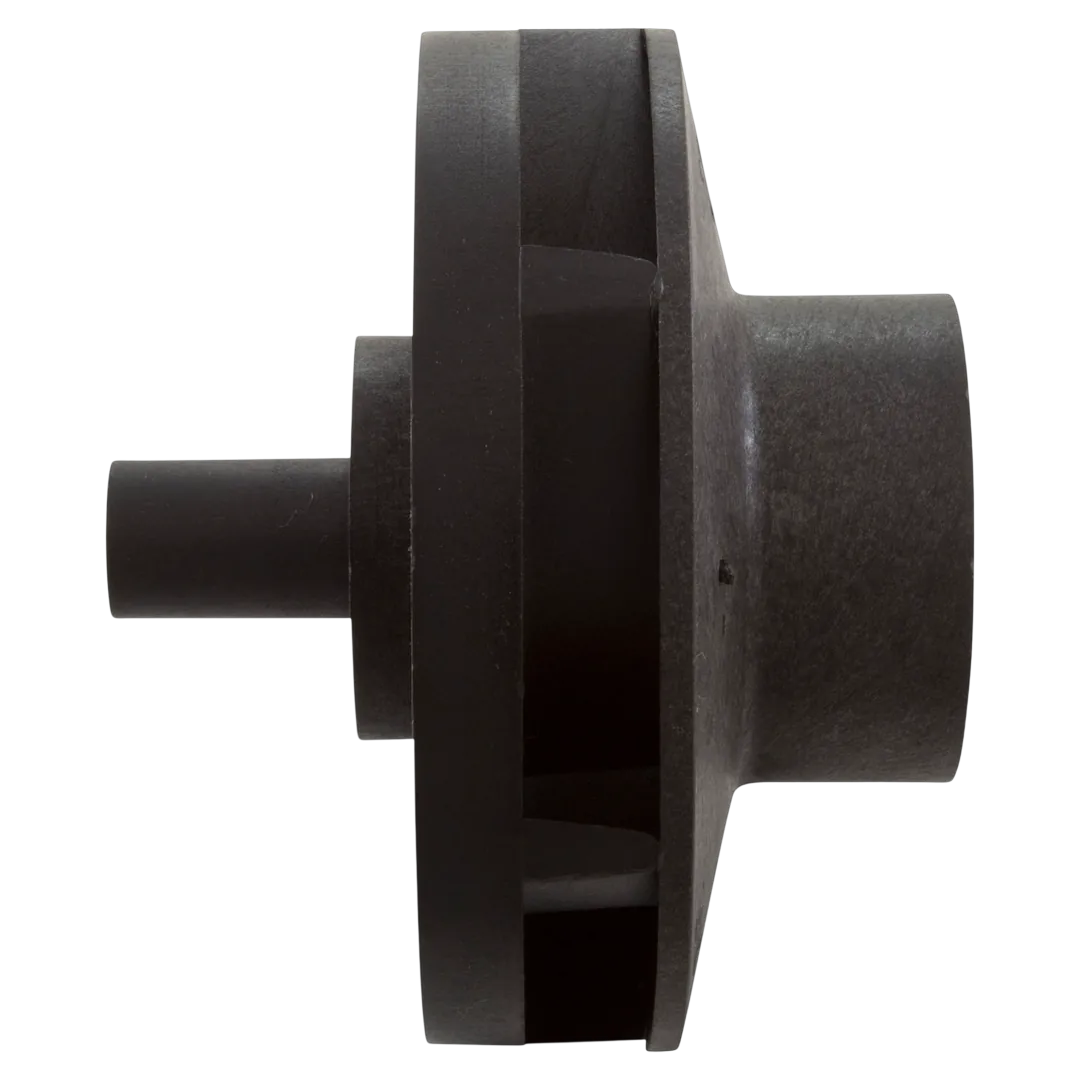

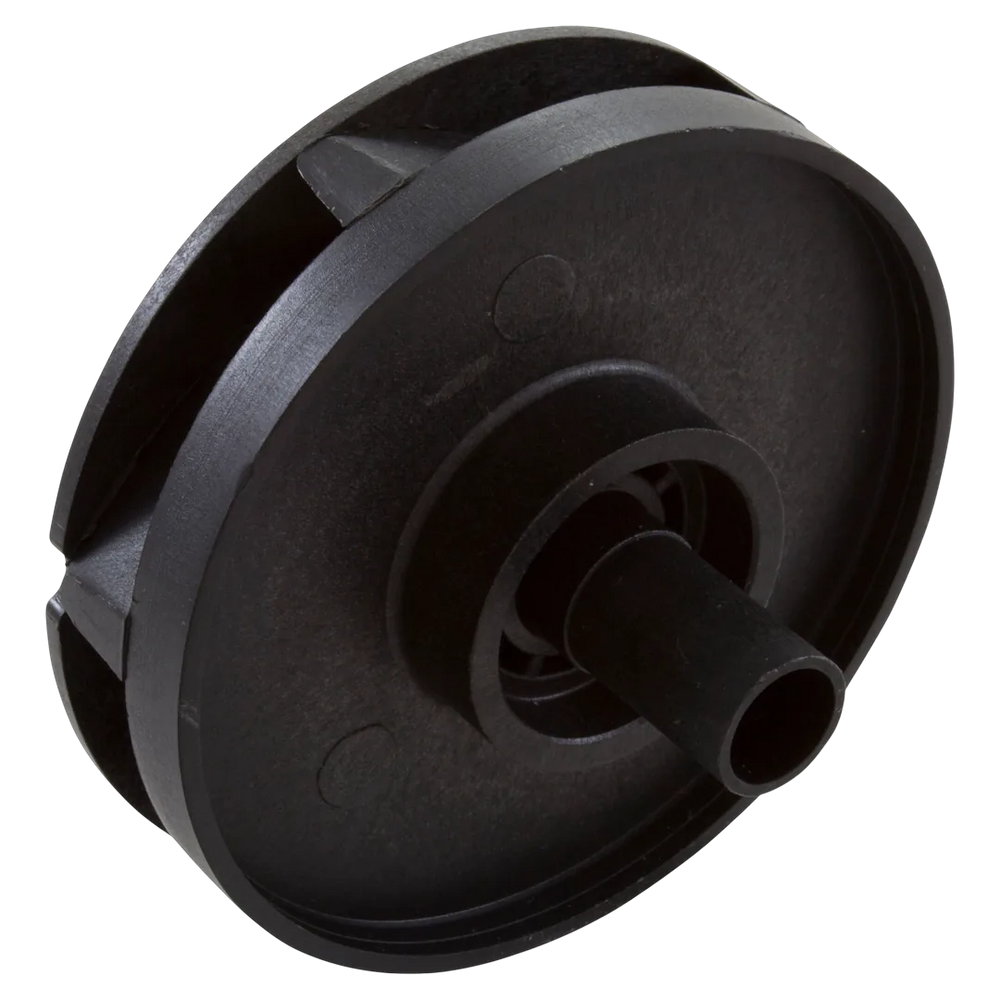

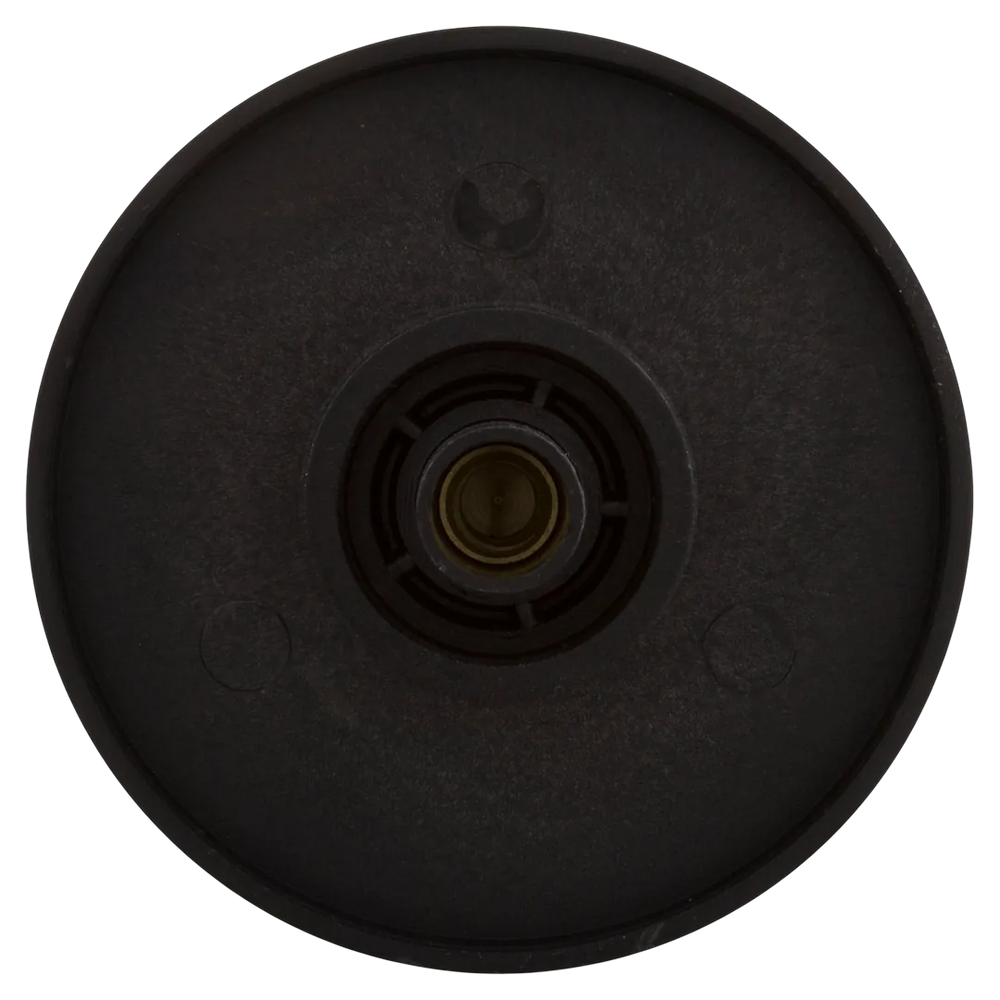

Waterway 310-4020 Hi-Flo 3HP Impeller
Waterway | SKU:
310-4020
$4400/ea
Unit price
/
Unavailable
Waterway 310-4020 Hi-Flo 3HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-4020 is a 3 horsepower impeller specifically engineered for Hi-Flo 48 Frame Pool and Spa Pumps. It features a side discharge design and is constructed from durable materials, with some sources indicating the use of bronze. This impeller is part of a kit that includes PS1000 seals, making it compatible with Waterway Hi-Flo pumps.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 3 HP Impeller Assembly |
| Part Number | 310-4020 |
| Part Type | Impeller |
| Compatibility | Waterway Hi-Flo Side Discharge Pumps |
| Includes | Impeller only |
| Material | Glass-filled Noryl |
| Impeller Type | Closed Face |
| Number of Vanes | 6 |
| Impeller Diameter | 3.8 inches |
| Vane Width | 0.44 inches |
| Eye Diameter | 1.45 inches |
| Eye Length | 0.75 inches |
| Impeller Width | 1 inch |
| Seal Seat Depth | 0.5 inches |
| Shaft Length | 0.9375 inches |
| Shaft Diameter | 0.625 inches |
| Seal Seat Diameter | 1.5625 inches |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 0.25 pound |
