Waterway 310-4010 Hi-Flo Impeller
Waterway | SKU:
310-4010
$4900/ea
Unit price
/
Unavailable
Waterway 310-4010 Hi-Flo Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

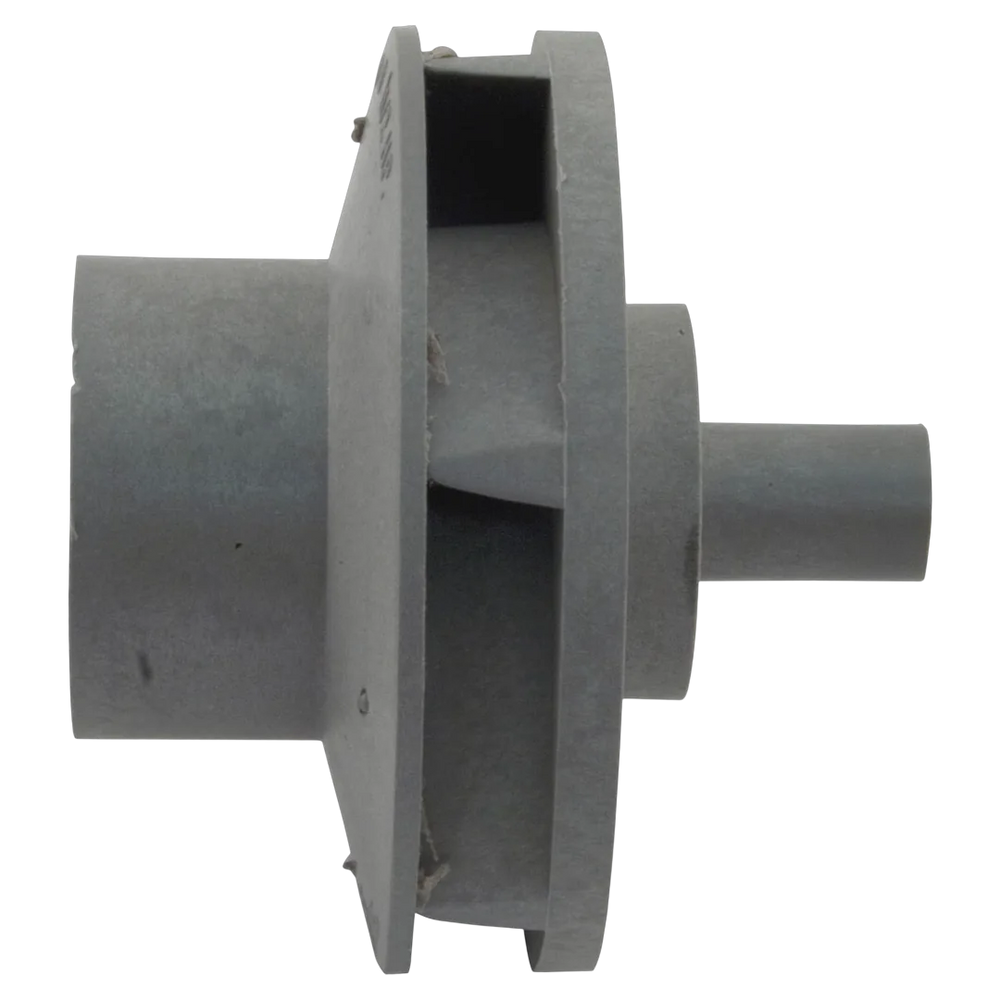

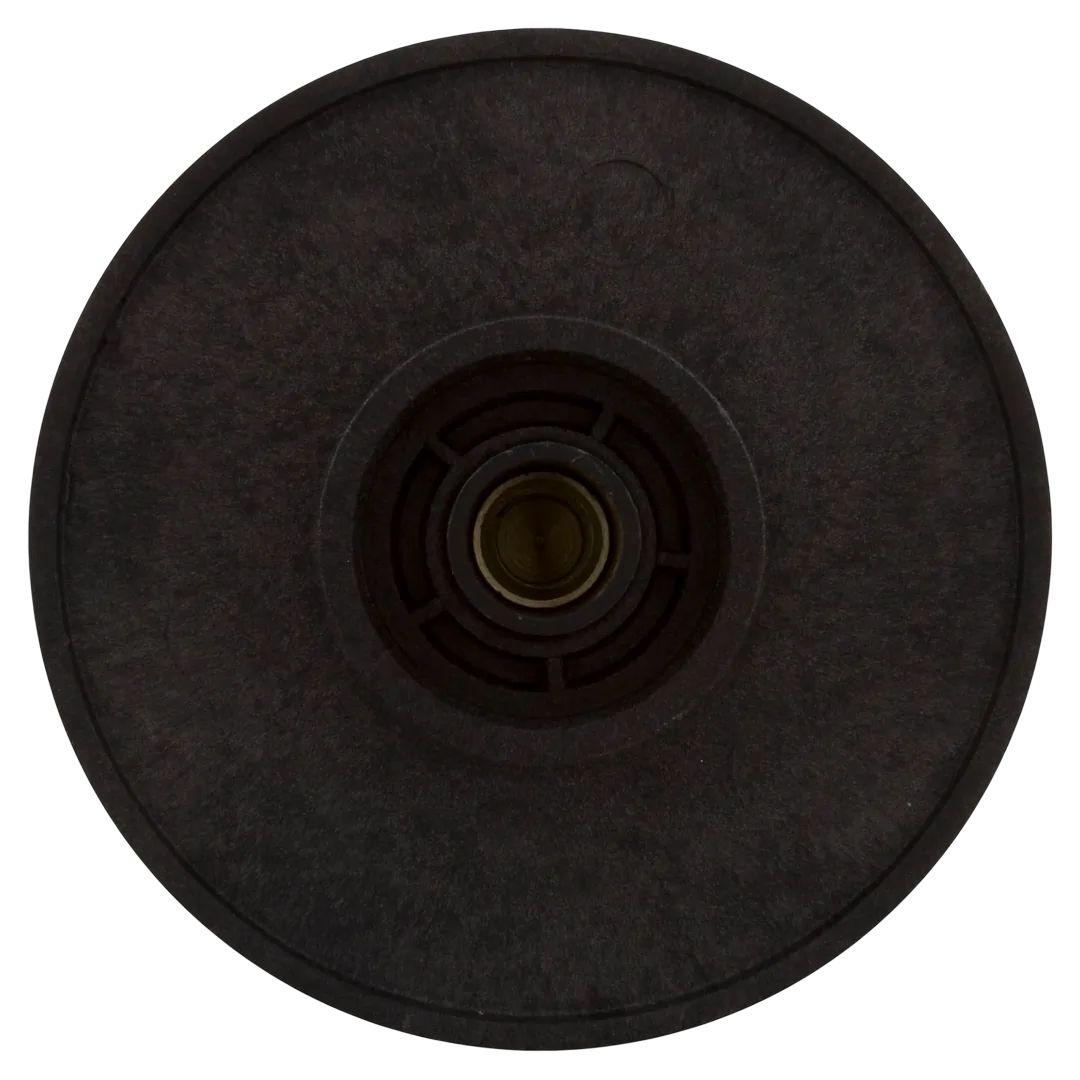

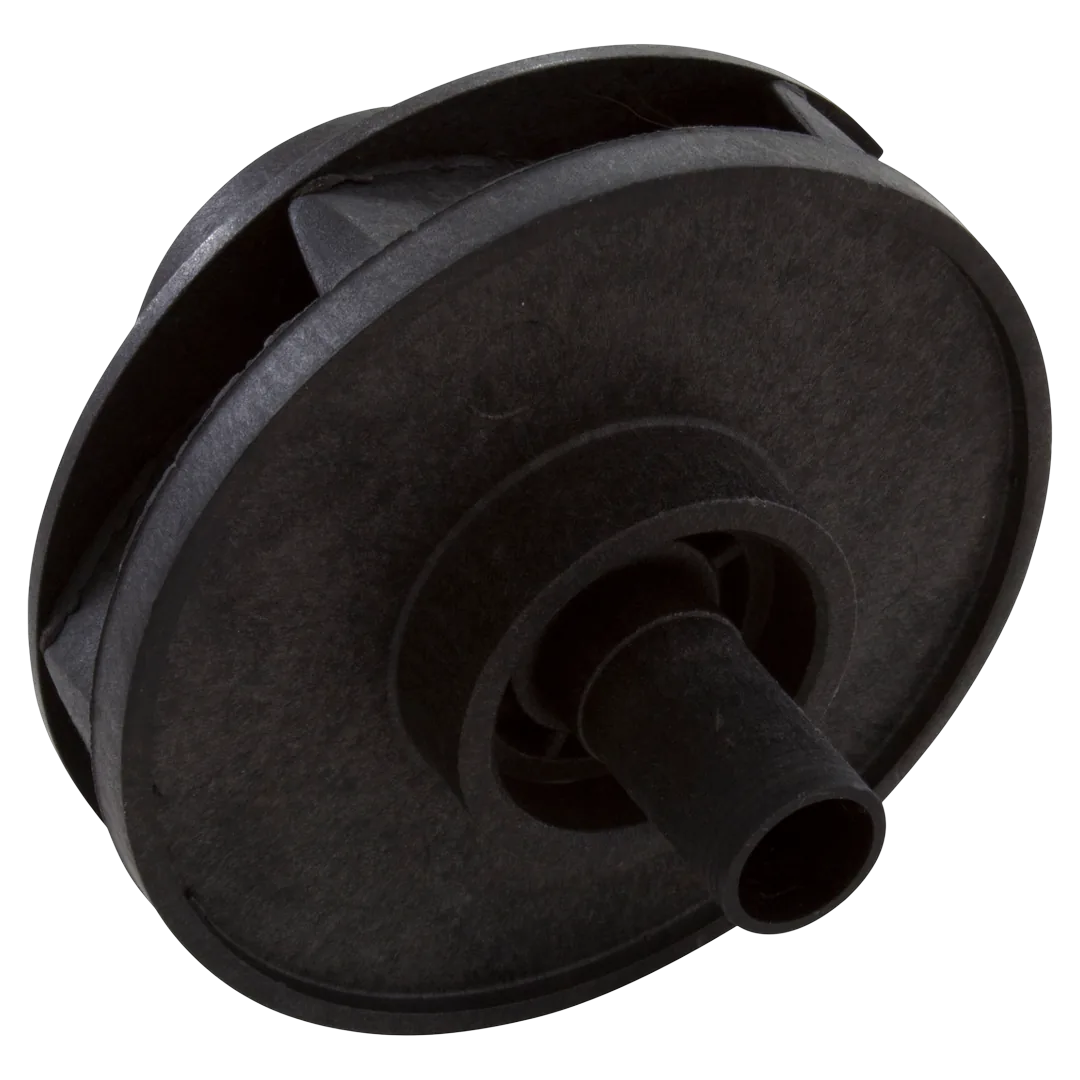

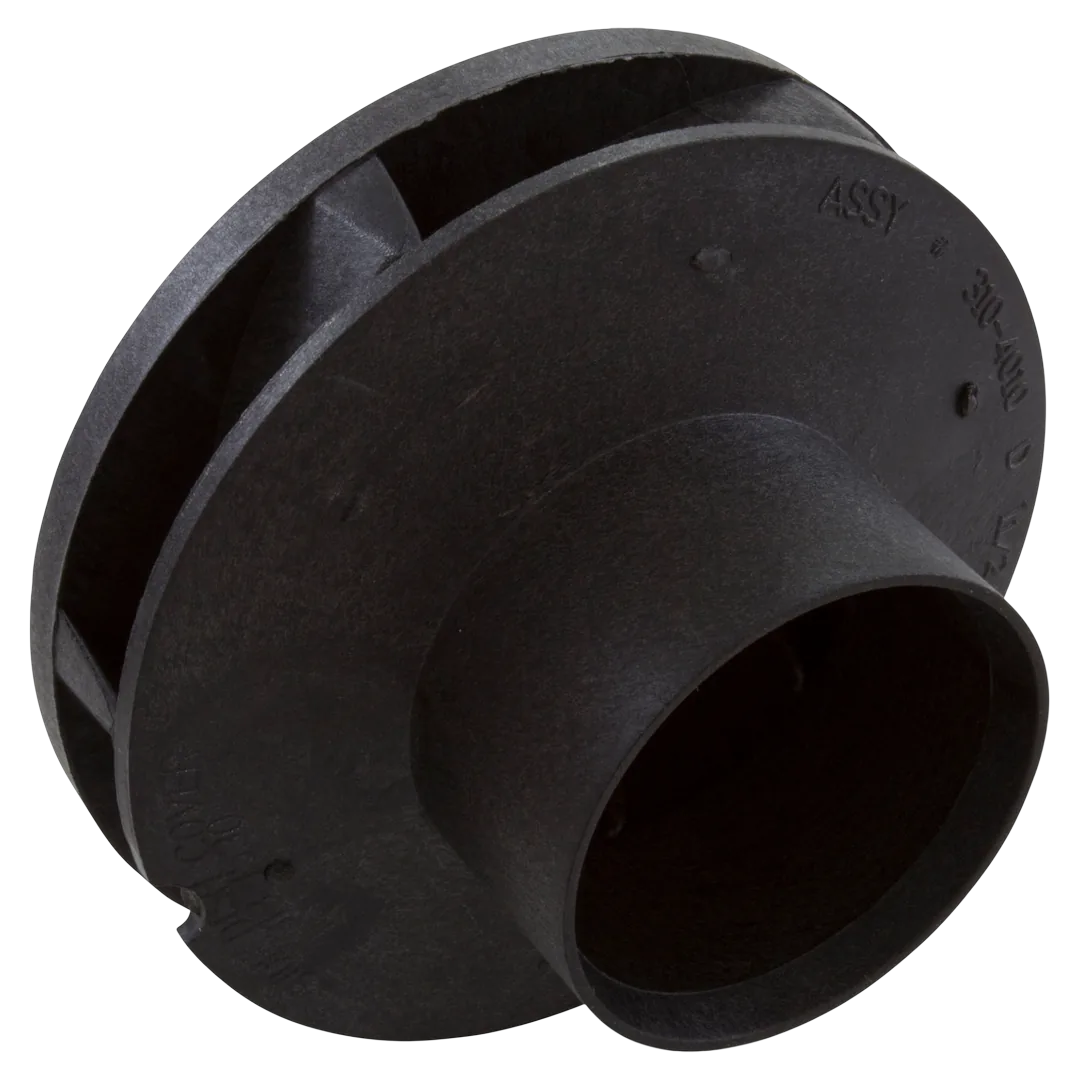

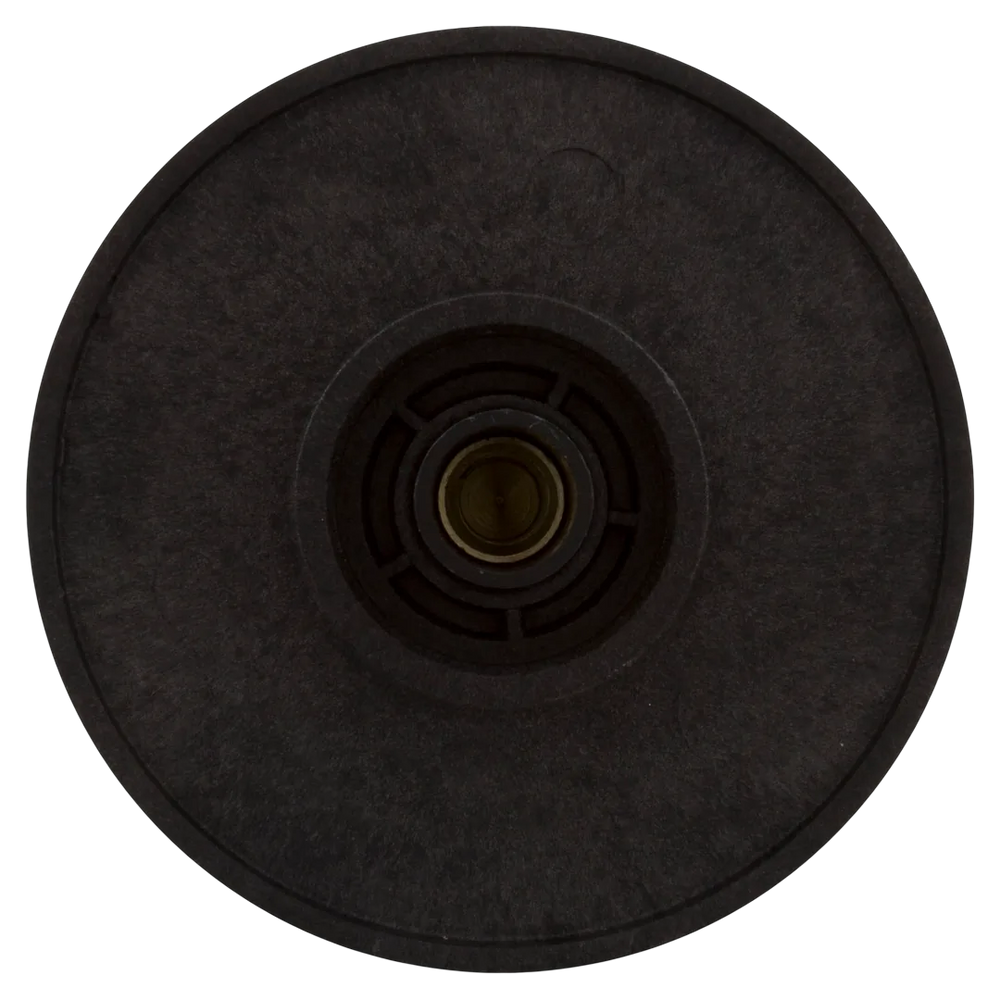

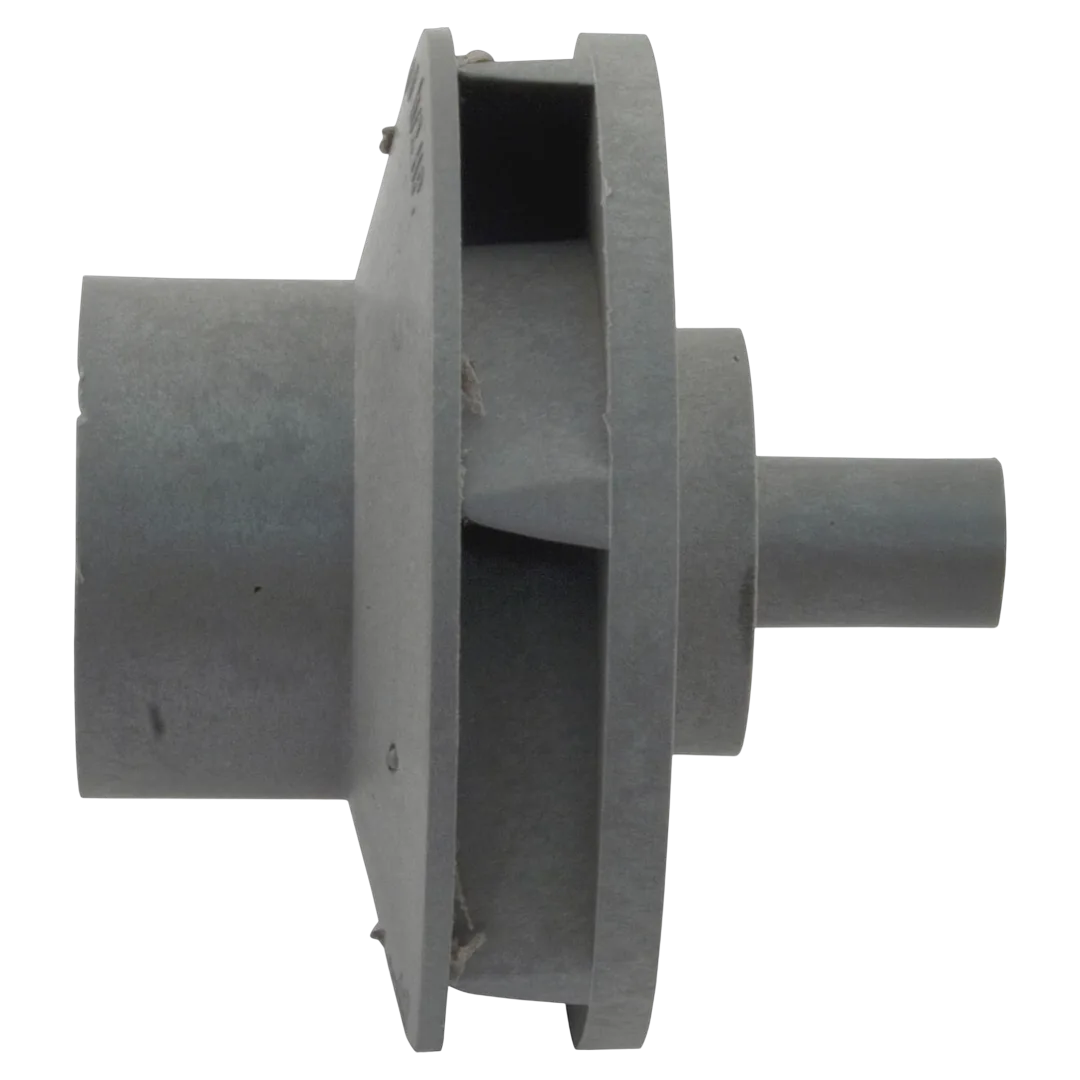

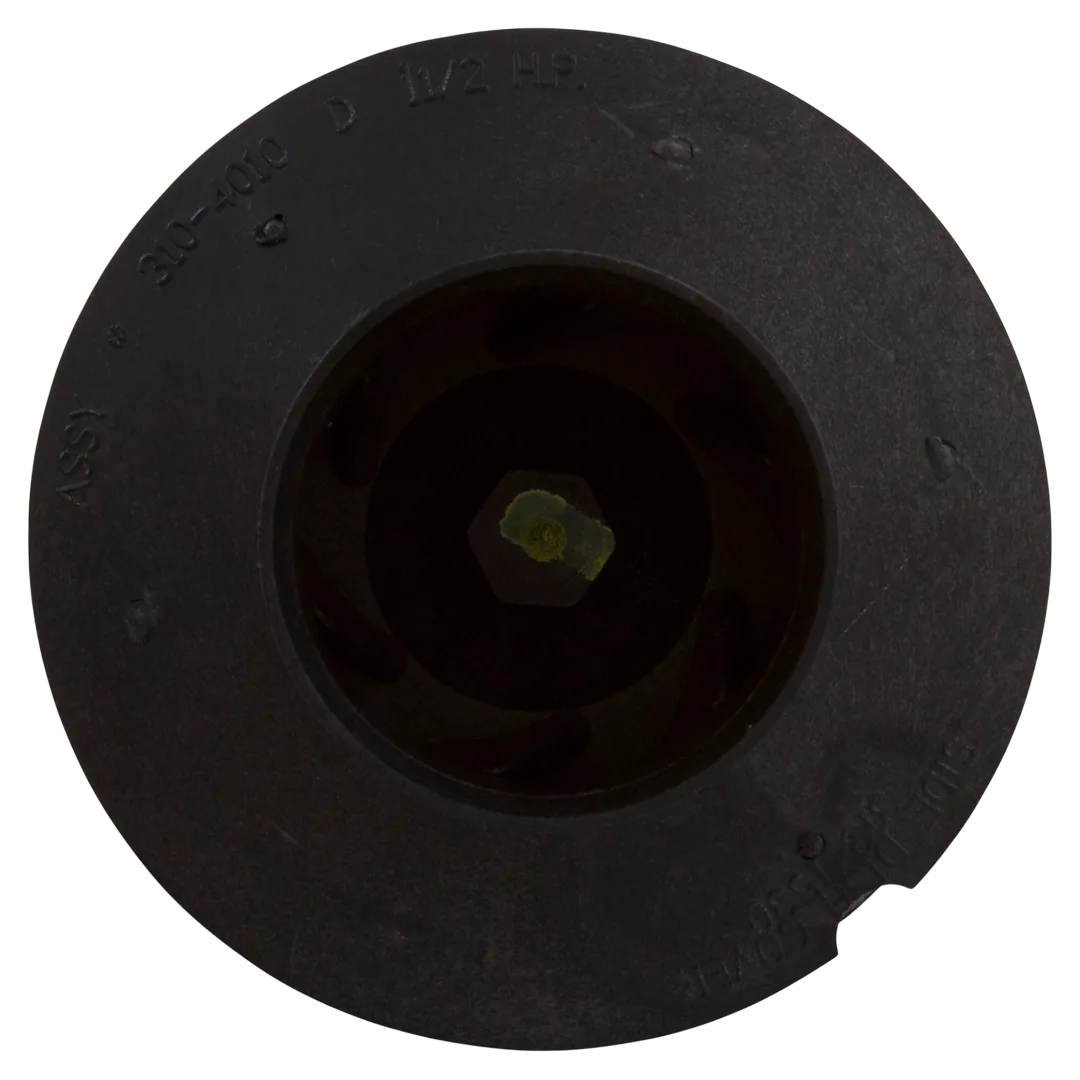

The Waterway 310-4010 is an impeller designed for Hi-Flo Side Discharge pumps, specifically rated at 1.5 horsepower. It is made from durable gray plastic, featuring an extended inlet opening and a raised ring around the shaft for precise installation. This impeller is compatible with Waterway Hi-Flo discharge series pumps, enhancing their operational efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 1.5 HP Hi-Flo Side Discharge Pump Impeller Assembly |
| Part Number | 310-4010 |
| Part Type | Impeller Assembly |
| Compatibility | Waterway Hi-Flo Side Discharge Pumps |
| Material | Plastic |
| Number of Vanes | 6 |
| Outside Diameter | 3.65 inches |
| Vane Thickness (Inside) | 0.4375 inches |
| Vane Thickness (Outside) | 0.8125 inches |
| Front-to-Back Length | 3.1875 inches |
| Inlet Inside Diameter | 1.5 inches |
| Inlet Outside Diameter | 1.875 inches |
| Inlet Length | 1 inch |
| Markings | "SIDE DISH COVER 313-1530" and "ASSY 310-4010-D - 1 1/2 HP" molded on inlet side |
| Shipping Dimensions | 2.25 x 3 x 3 inch |
| Product Weight | 0.01 pound |
