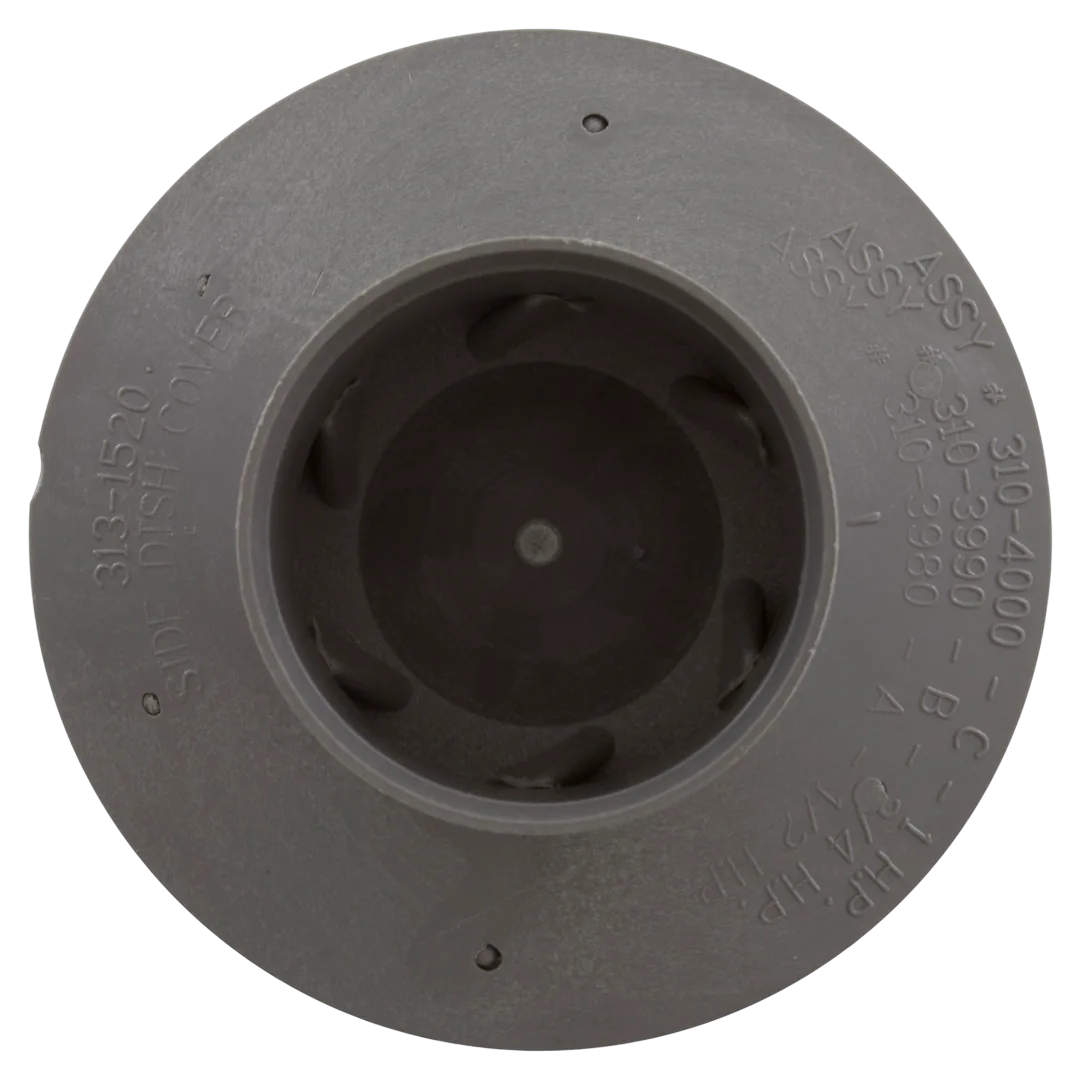

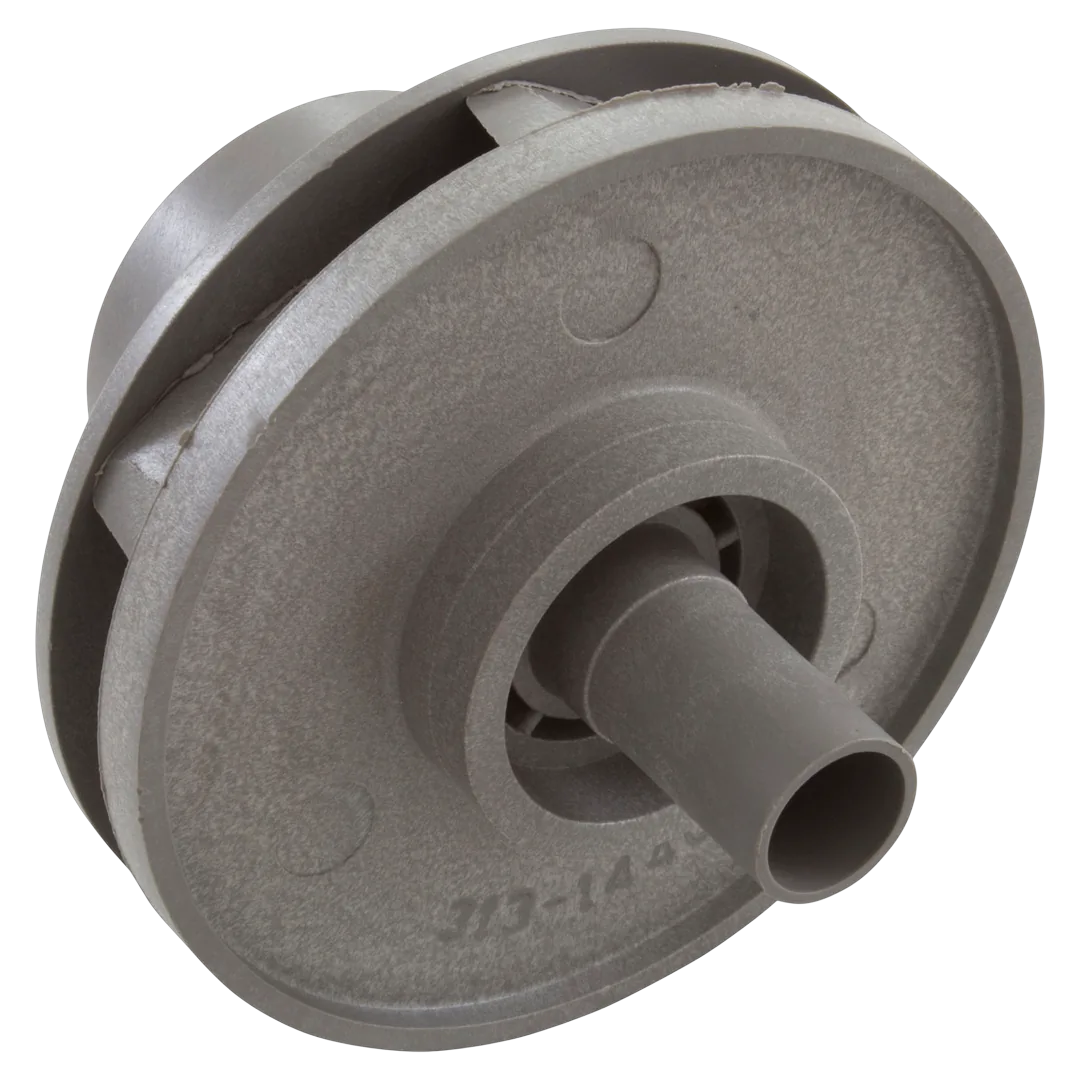

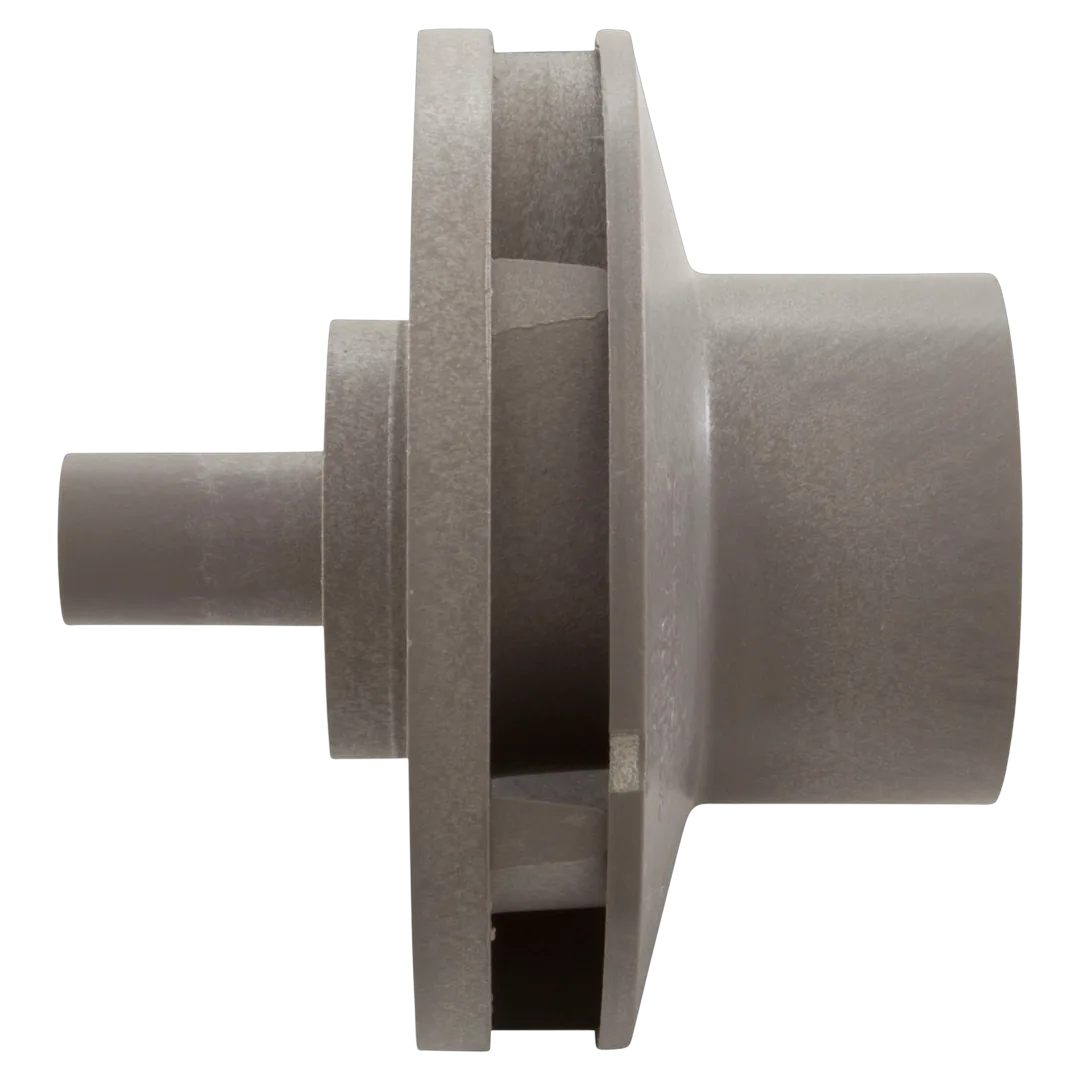

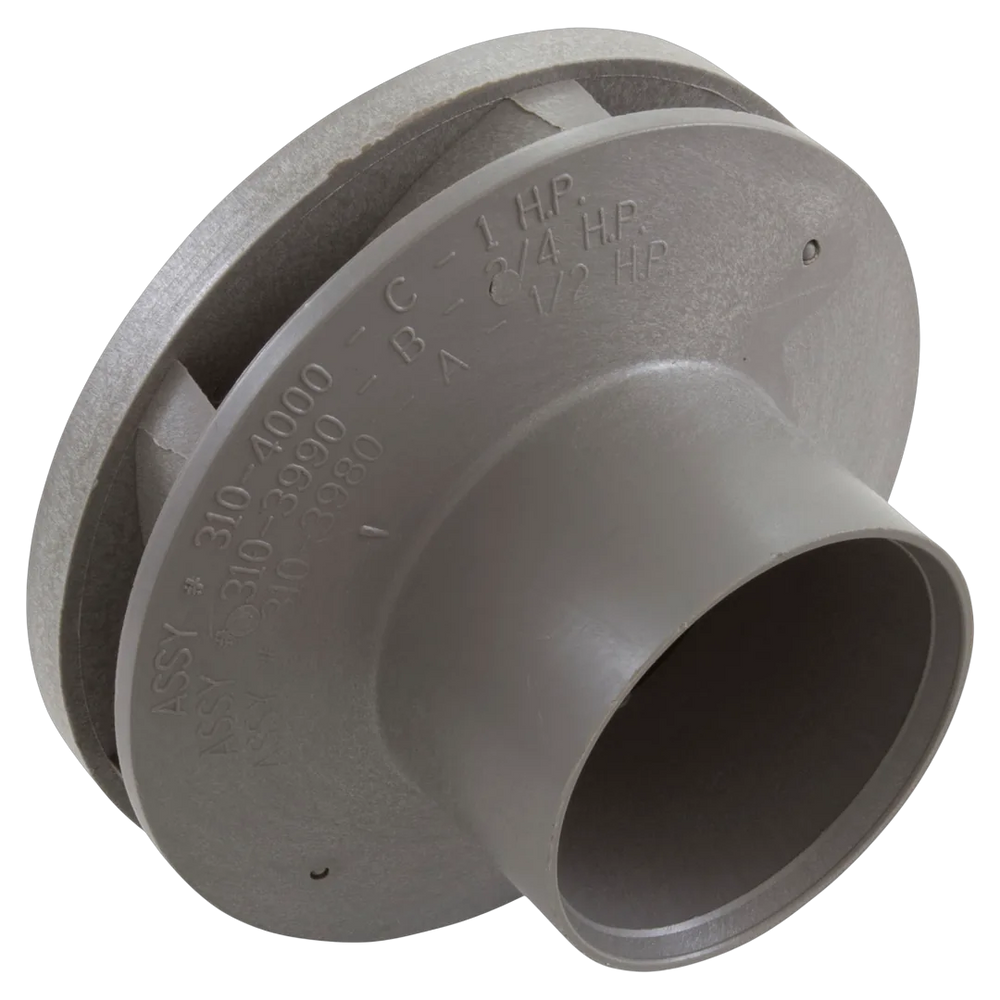

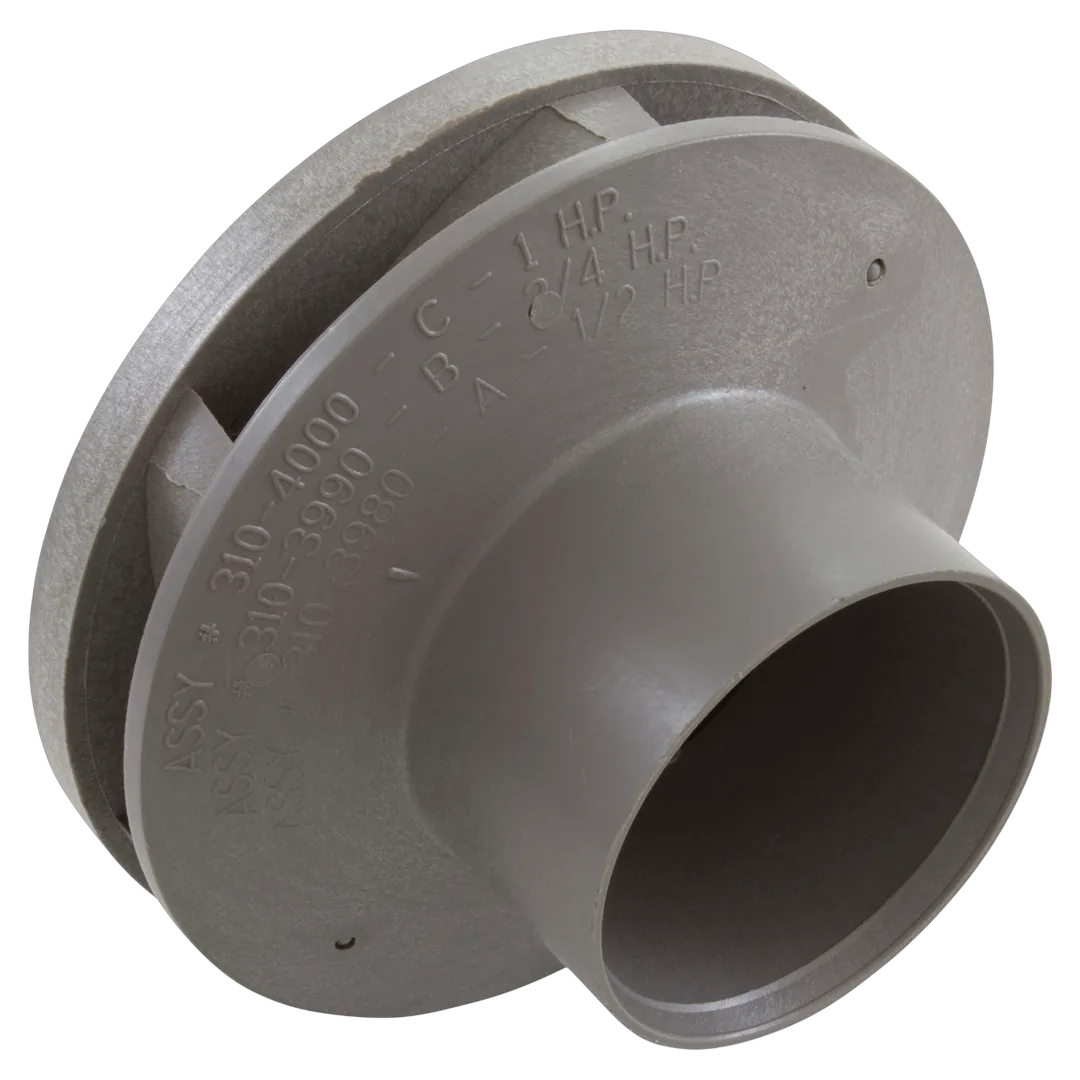

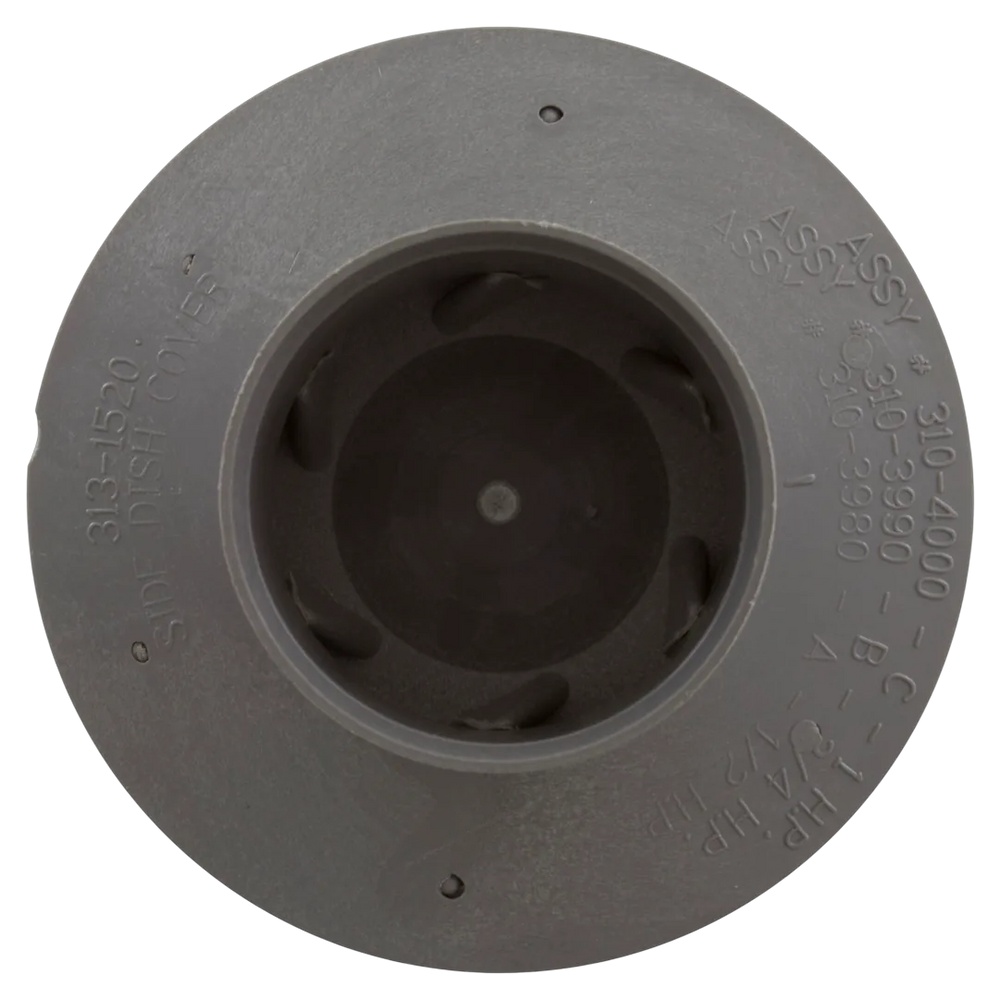

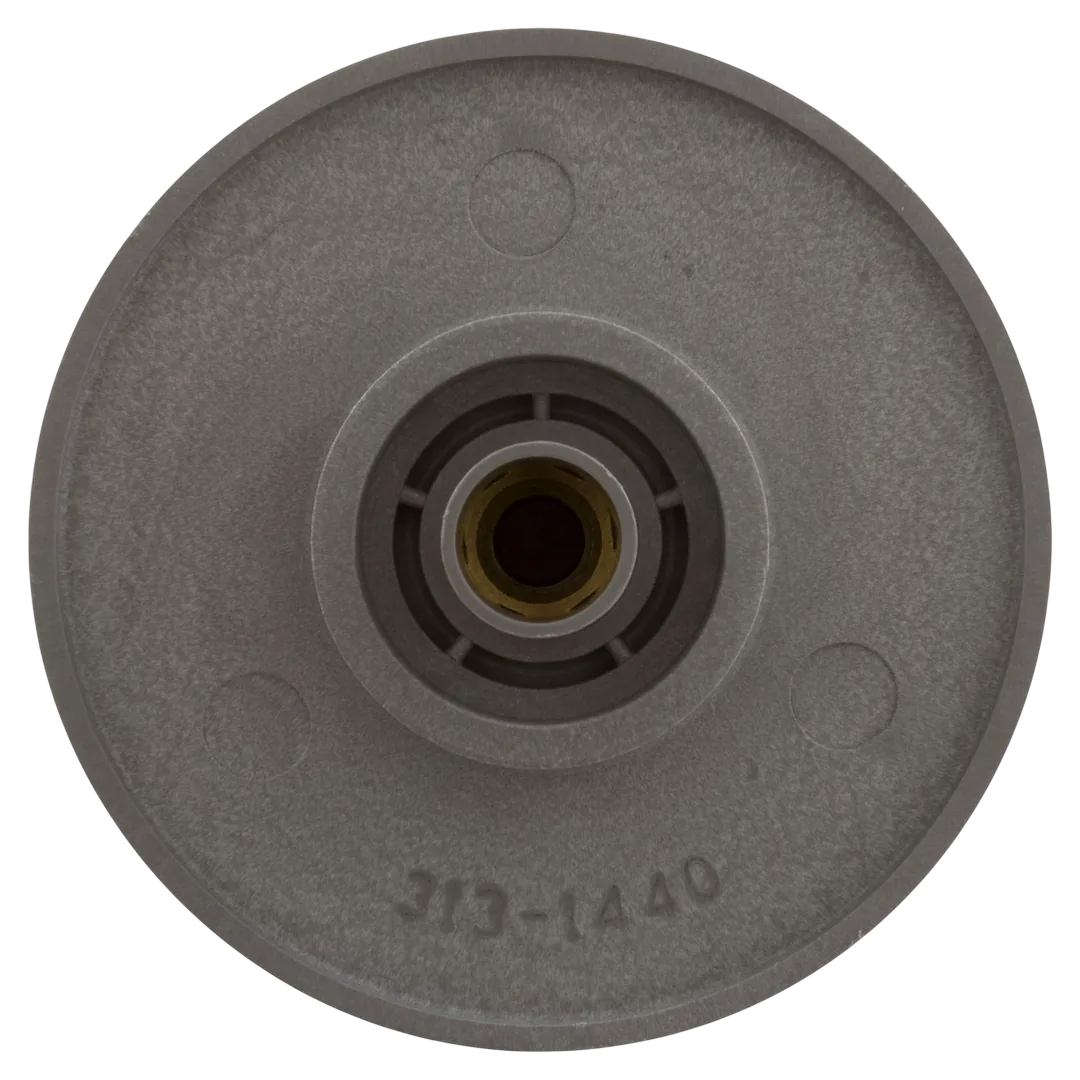

Waterway 310-4000 Hi-Flo Impeller
Waterway | SKU:
310-4000
$5000/ea
Unit price
/
Unavailable
Waterway 310-4000 Hi-Flo Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-4000 is an impeller designed specifically for 1 HP Hi-Flo side discharge pumps. It is constructed from durable gray plastic and features a closed face design for efficient water flow. This impeller is compatible with Waterway Hi-Flo pumps, specifically those utilizing a 48-frame design.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 1 HP Impeller Assembly |
| Part Number | 310-4000 |
| Part Type | Impeller |
| Compatibility | Waterway Hi-Flo Side Discharge Pumps |
| Substitute Part Numbers | 3104000, 352701502, 35-270-1502, WW3104000B |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 3.5 inches |
| Vane Width | 0.375 inches |
| Eye Diameter | 1.8125 inches |
| Eye Length | 1 inch |
| Impeller Thickness | 0.75 inches |
| Seal Seat Depth | 0.4375 inches |
| Shaft Length | 0.9375 inches |
| Shaft Diameter | 0.625 inches |
| Seal Seat Diameter | 1.5625 inches |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 0.26 pound |
