Waterway 310-1510 Executive Wet End
Waterway | SKU:
310-1510
$13500/ea
Unit price
/
Unavailable
Waterway 310-1510 Executive Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

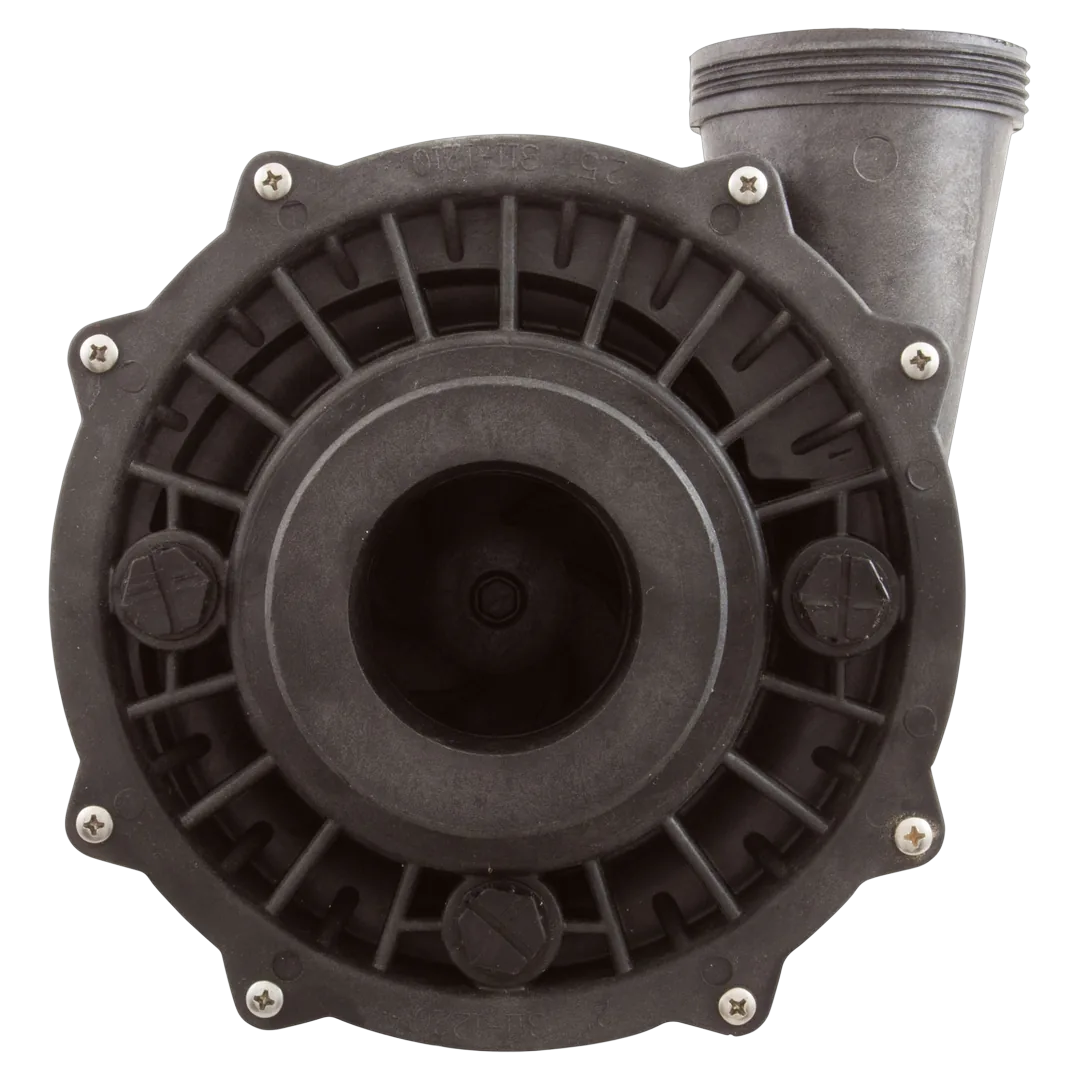

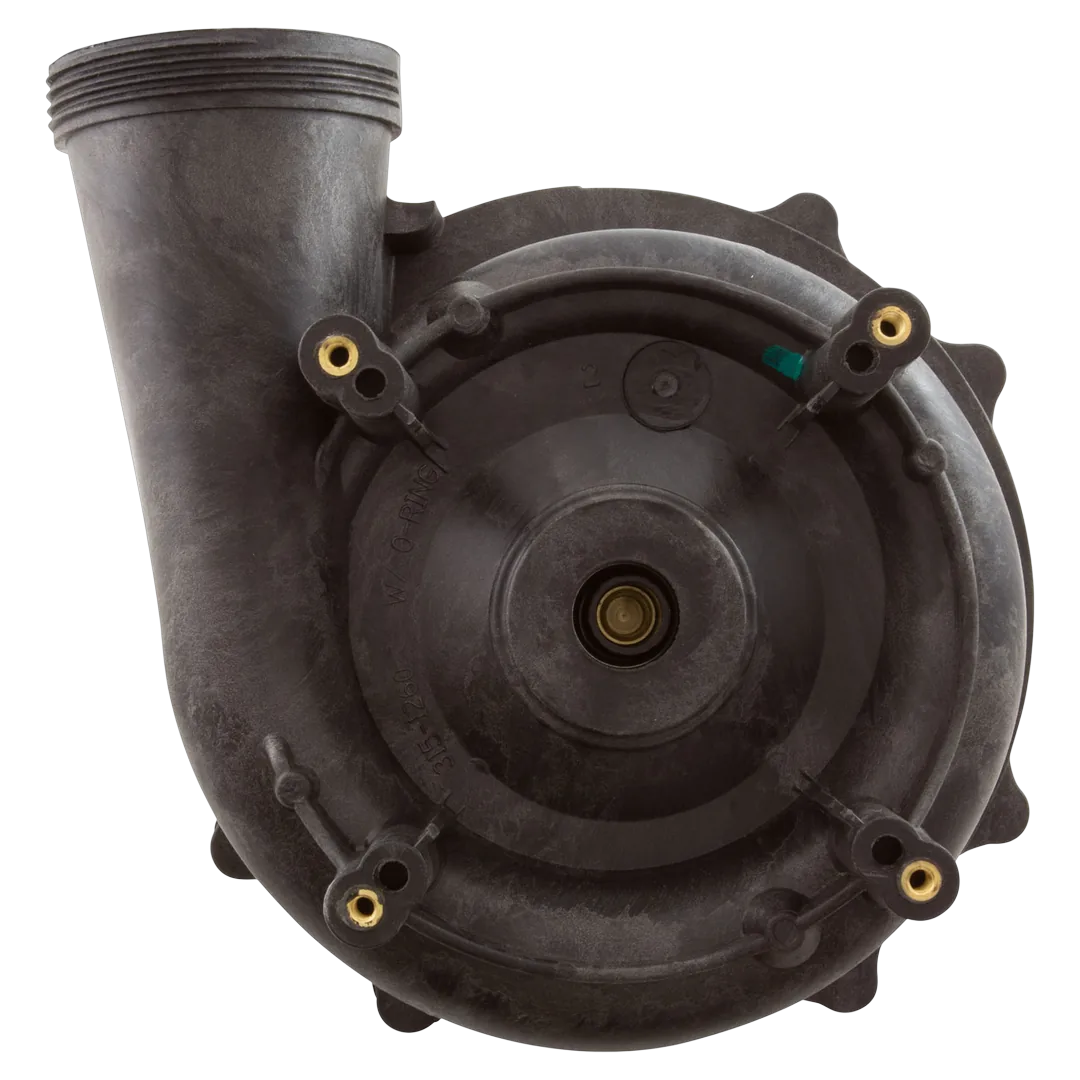

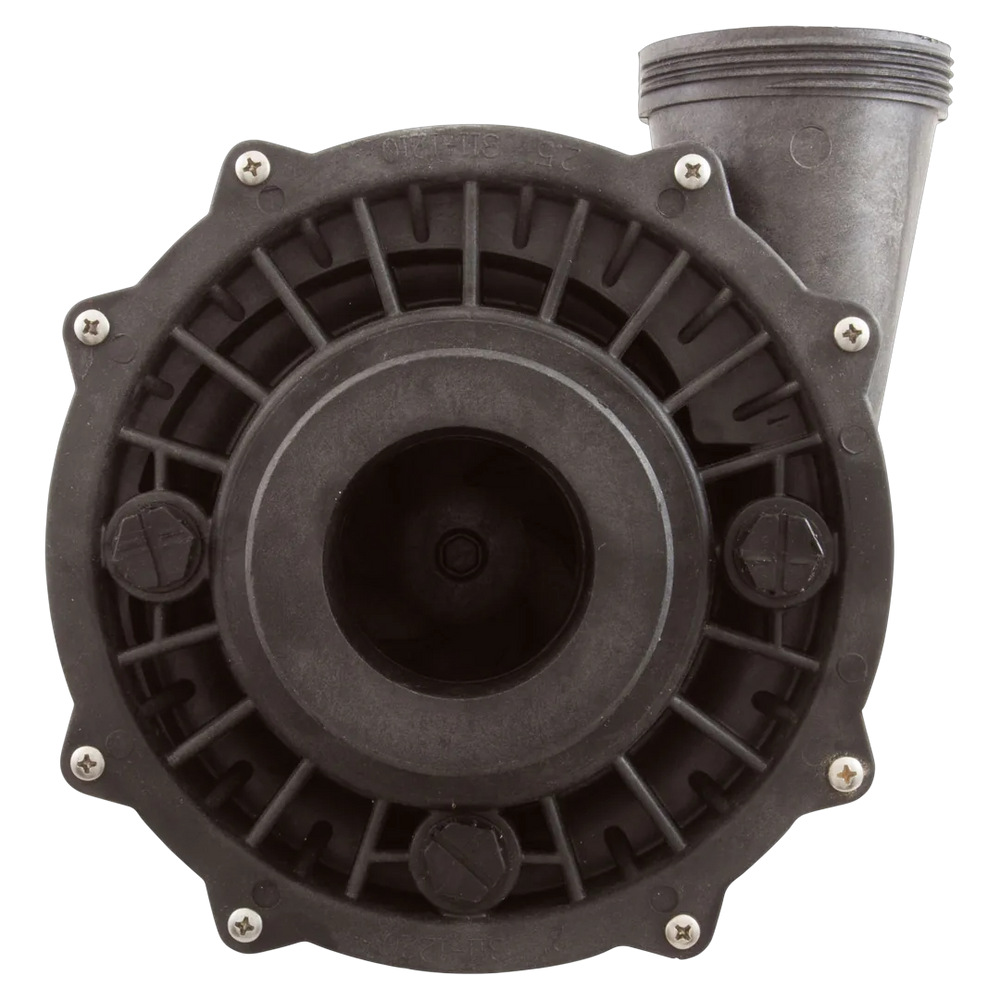

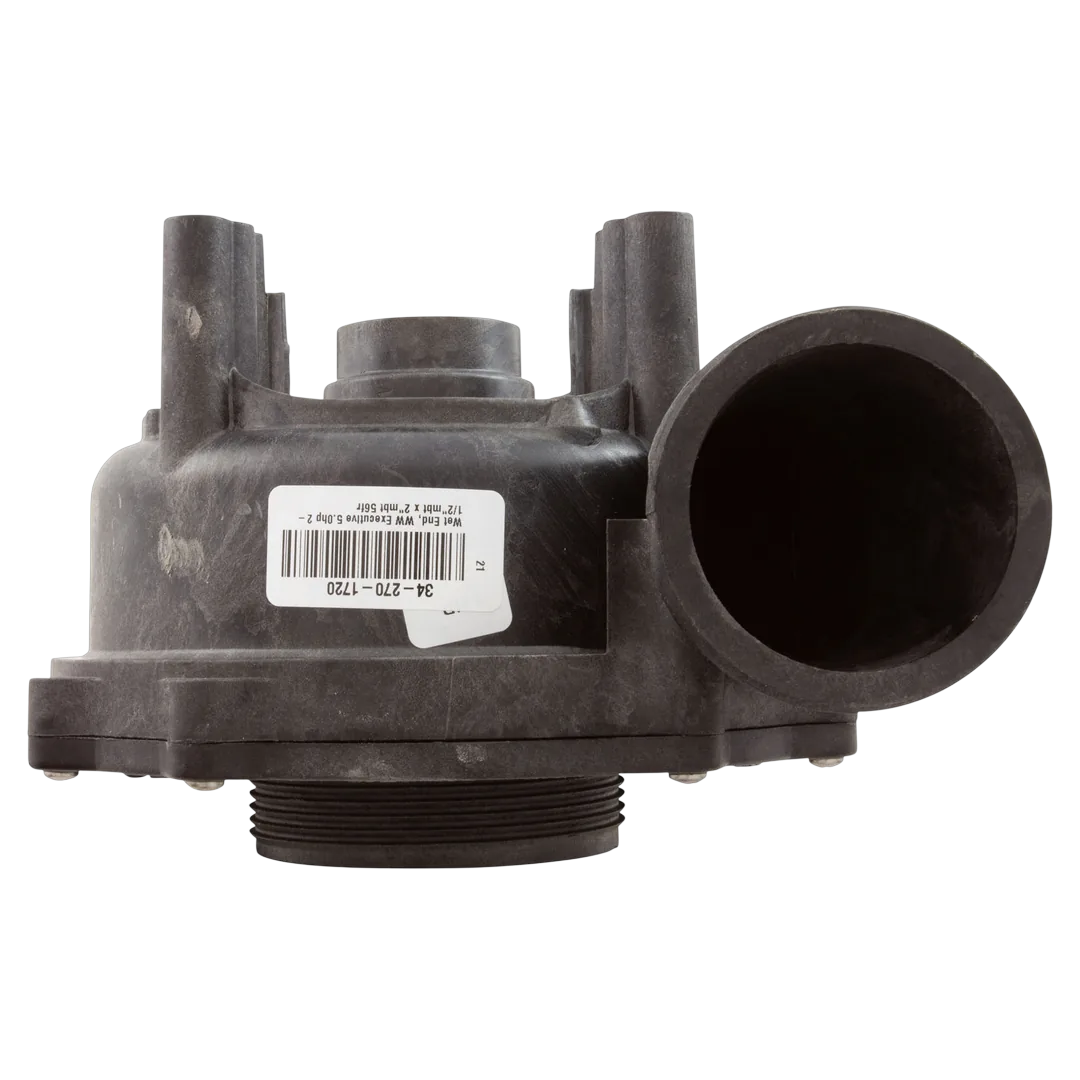

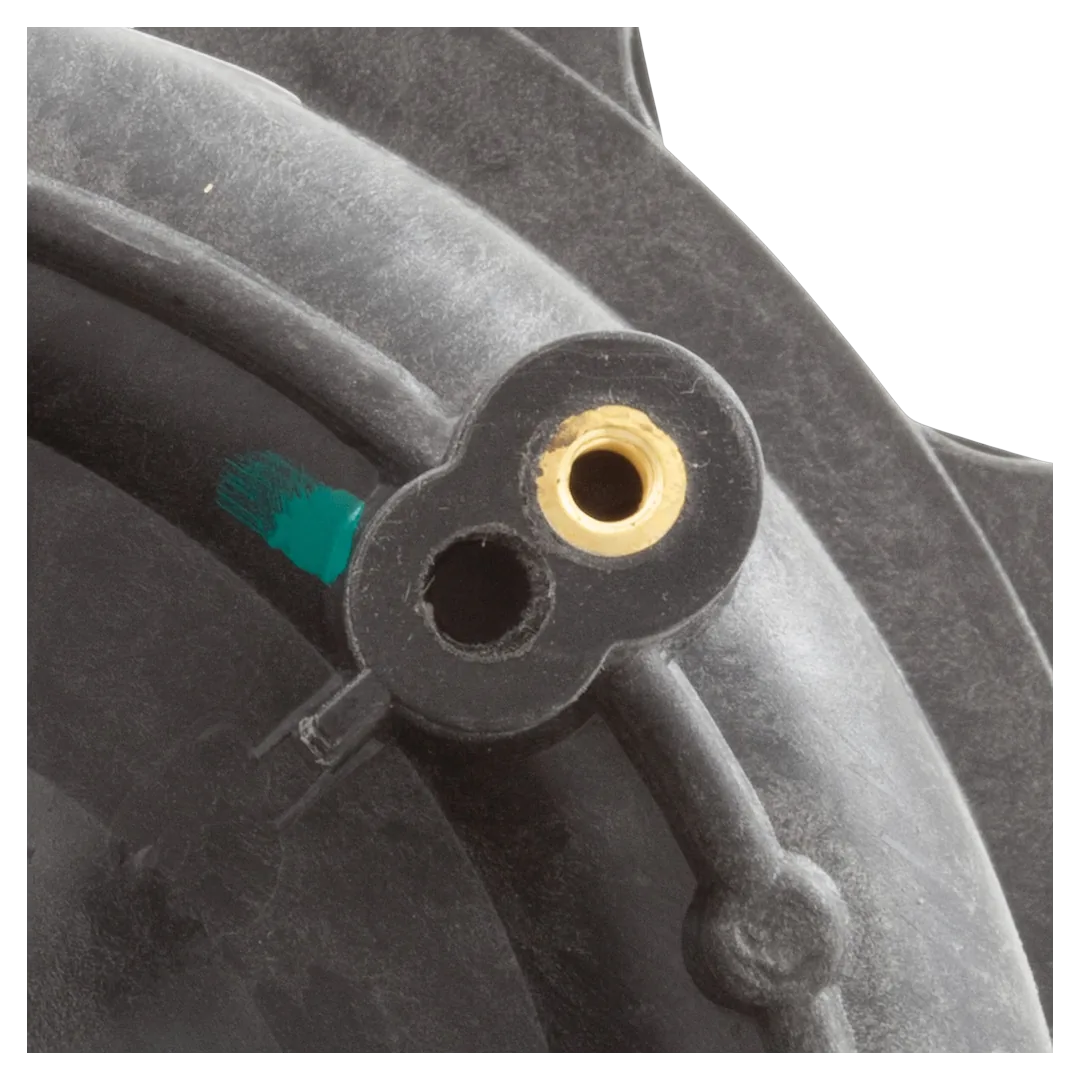

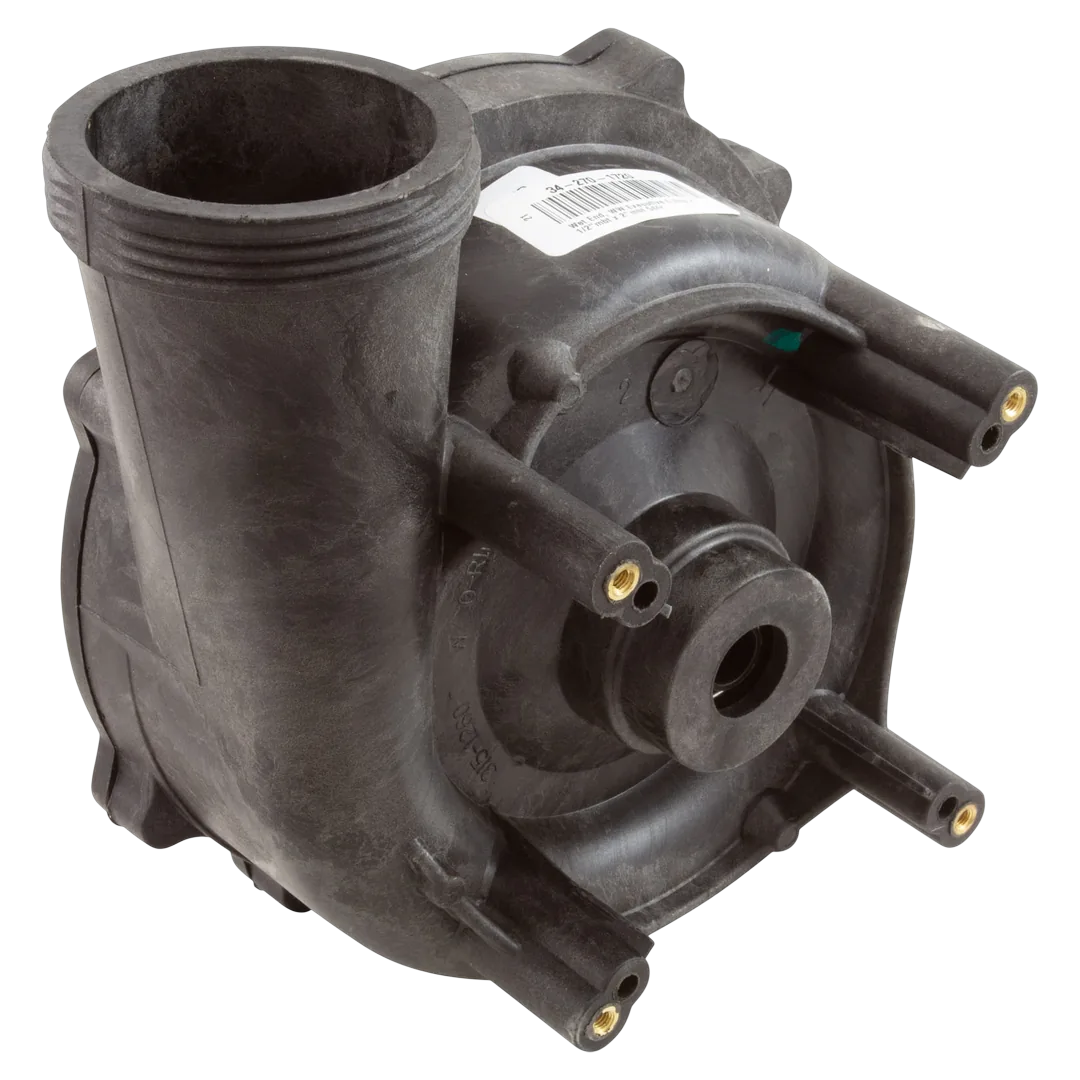

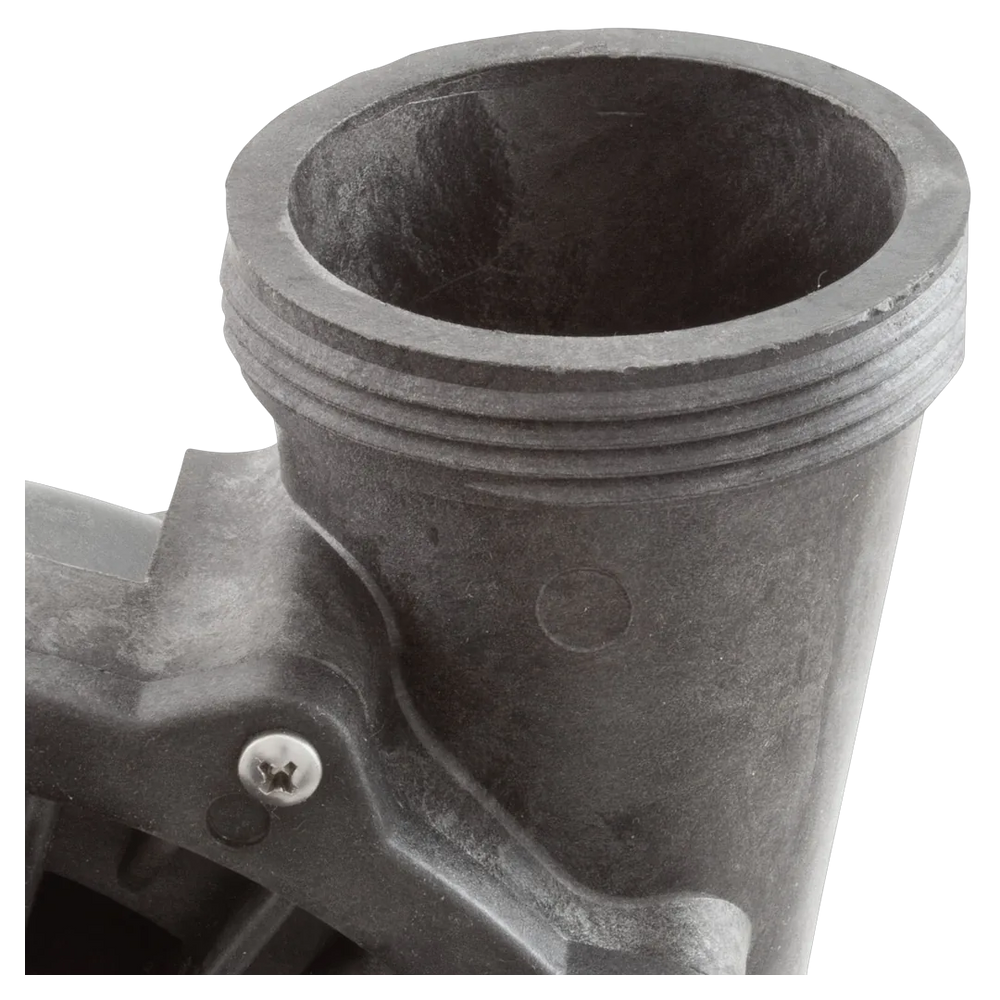

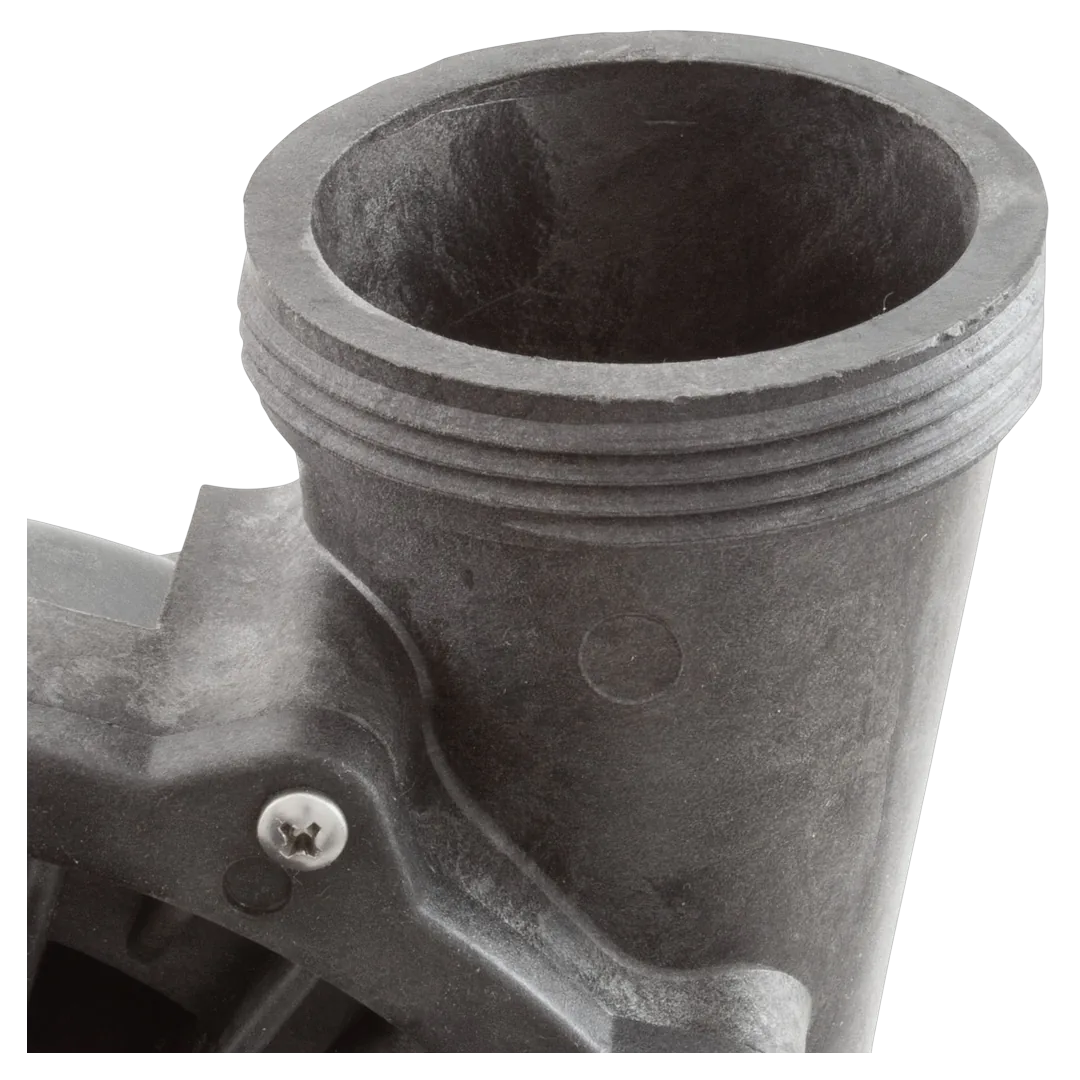

The Waterway 310-1510 is a wet end assembly designed for the Executive Series 56 frame pumps. It is specified for configurations using a 5.0 HP motor, featuring a 2.5-inch inlet and a 2-inch outlet with male buttress threads (MBT). It fits Waterway pumps equipped with a 56Y frame, 6.5-inch diameter motors, and is suitable for systems requiring 230V/16A power connections.
Includes: Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller Assembly |
| Part Number | 310-1510 |
| Part Type | Impeller |
| Compatibility | Waterway Executive 56 Frame Pumps |
| Includes | Volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, suction cover screws |
| Material | Plastic |
| Connection Size | 2.5 inch suction x 2 inch discharge |
| Mount Type | 56 Frame Thru-Bolt |
| Flow Paths | Side Discharge |
| Shipping Dimensions | 9 x 9 x 7 inch |
| Product Weight | 3.35 pound |
