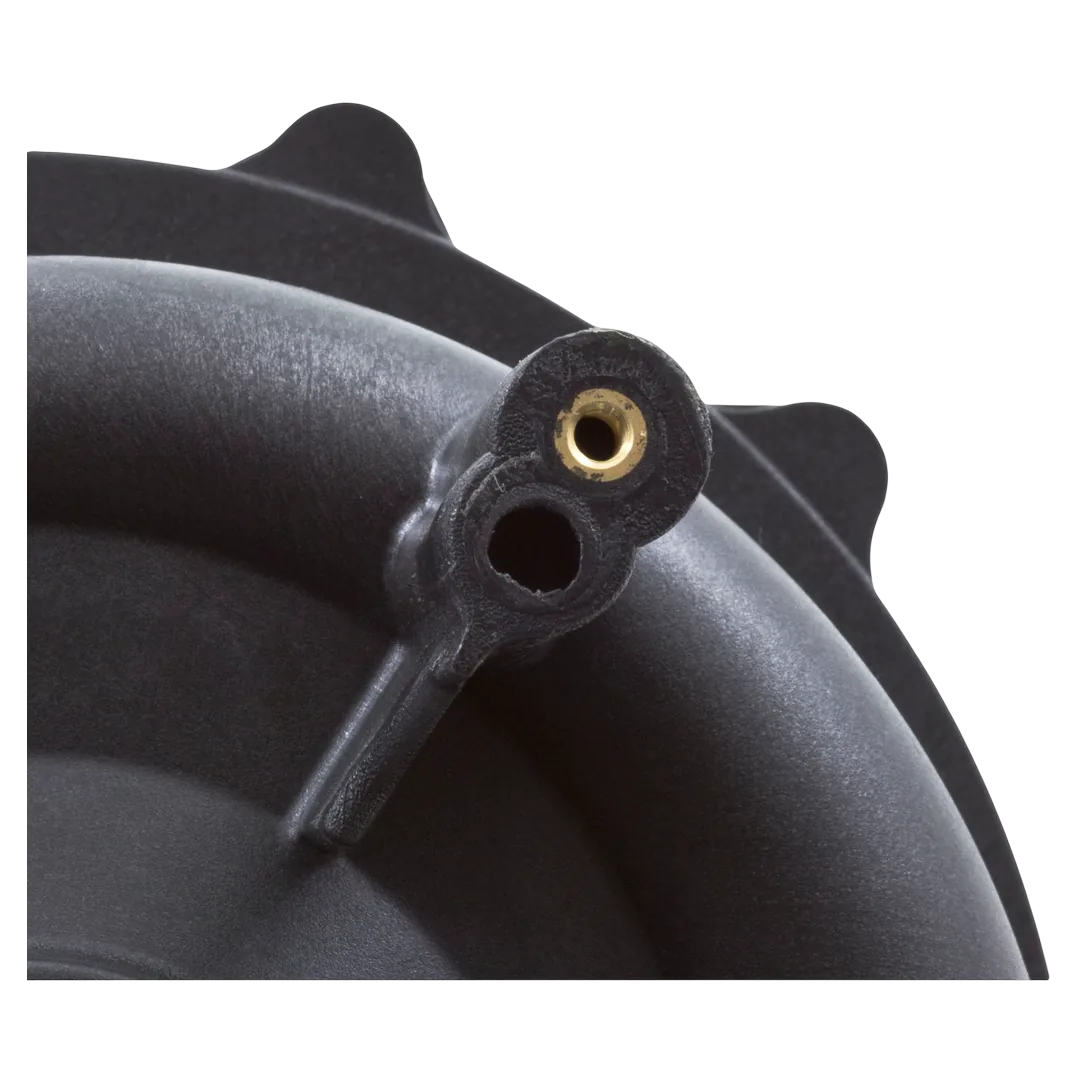

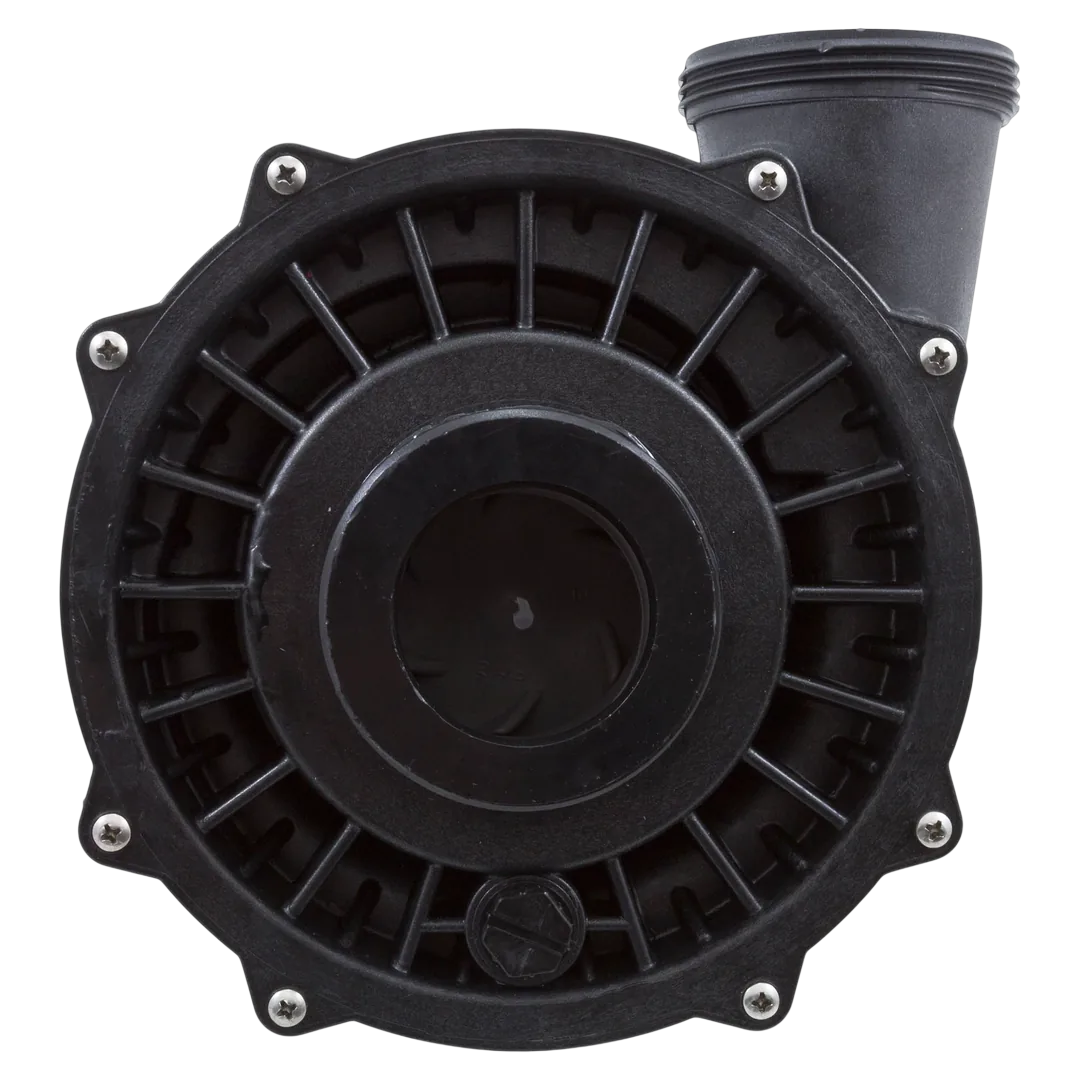

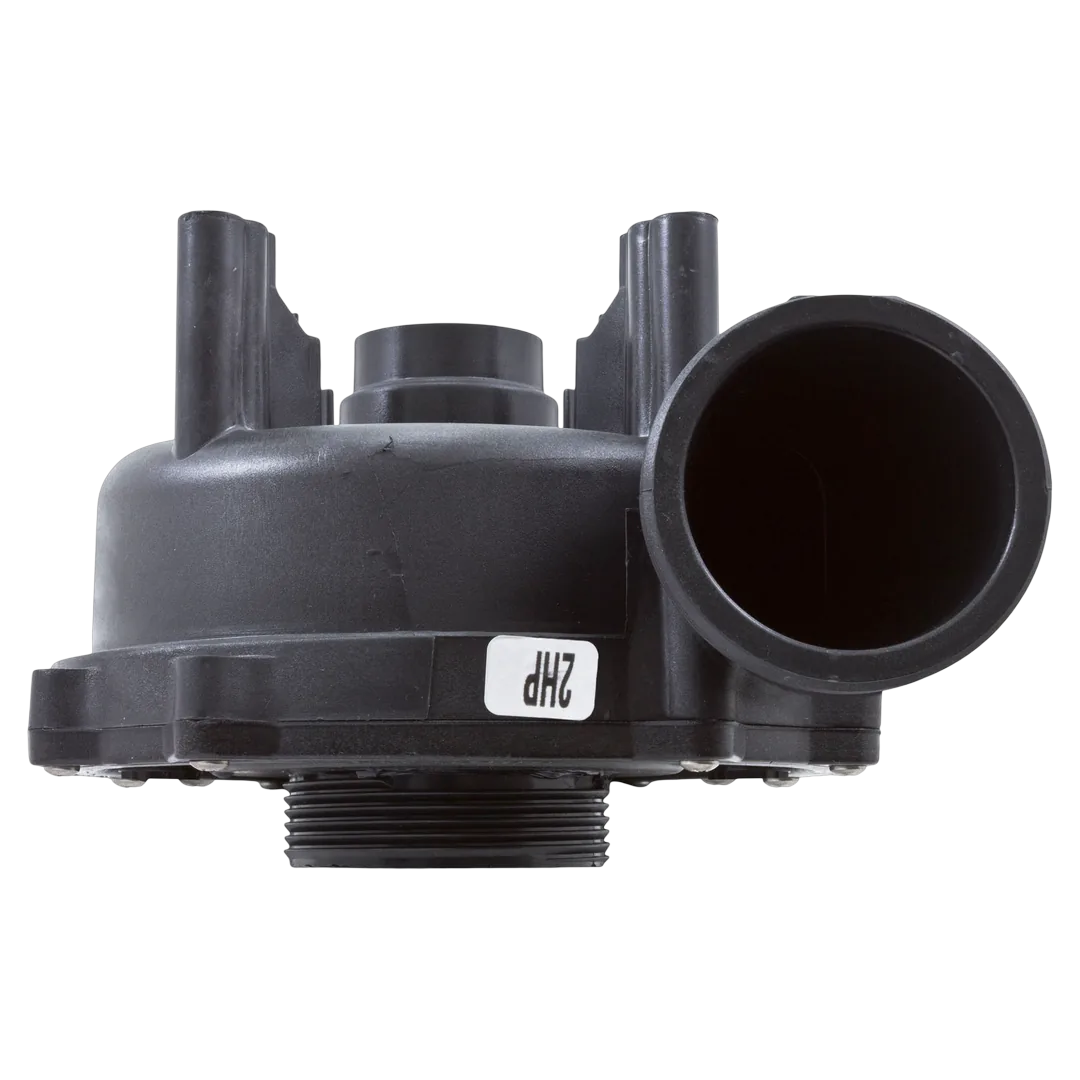

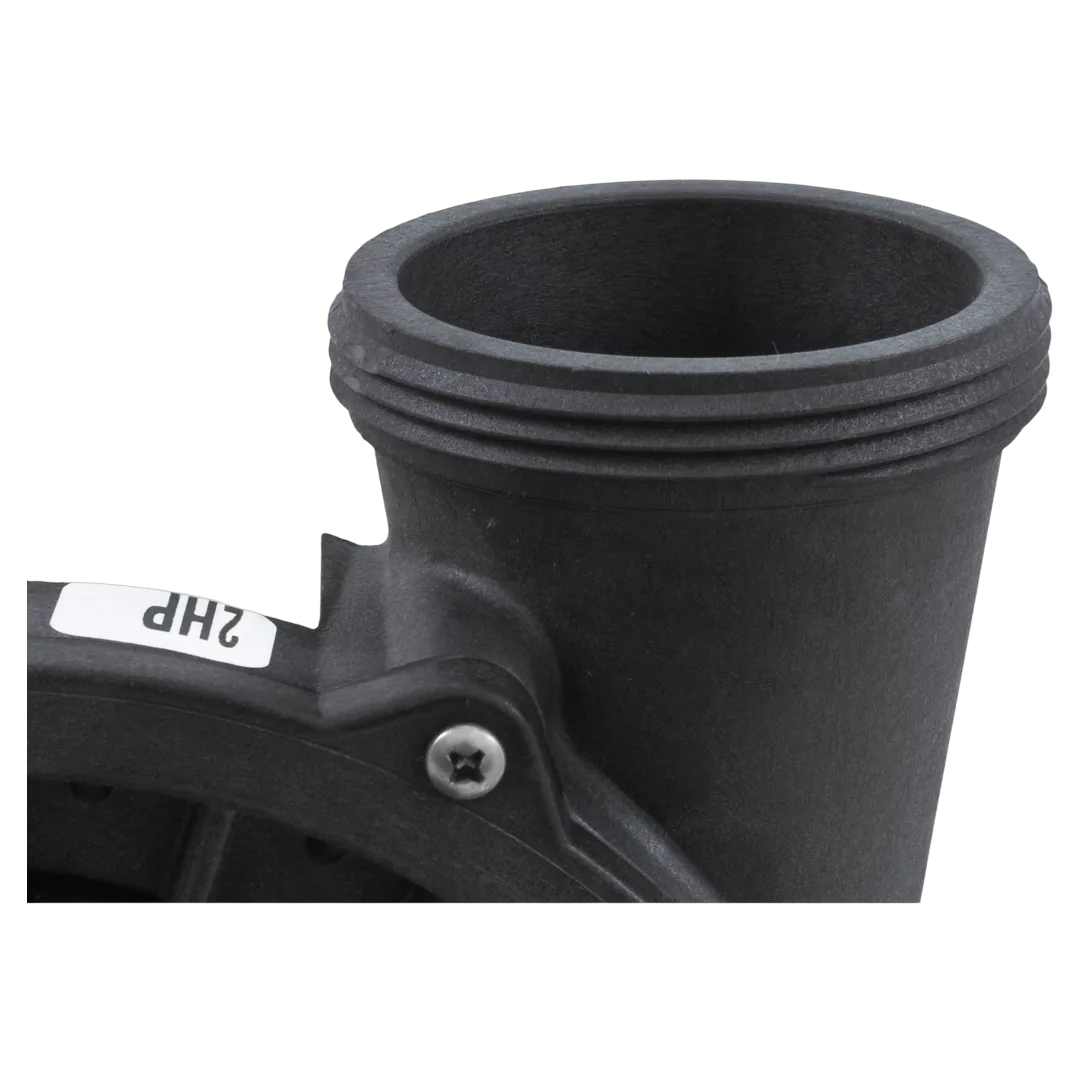

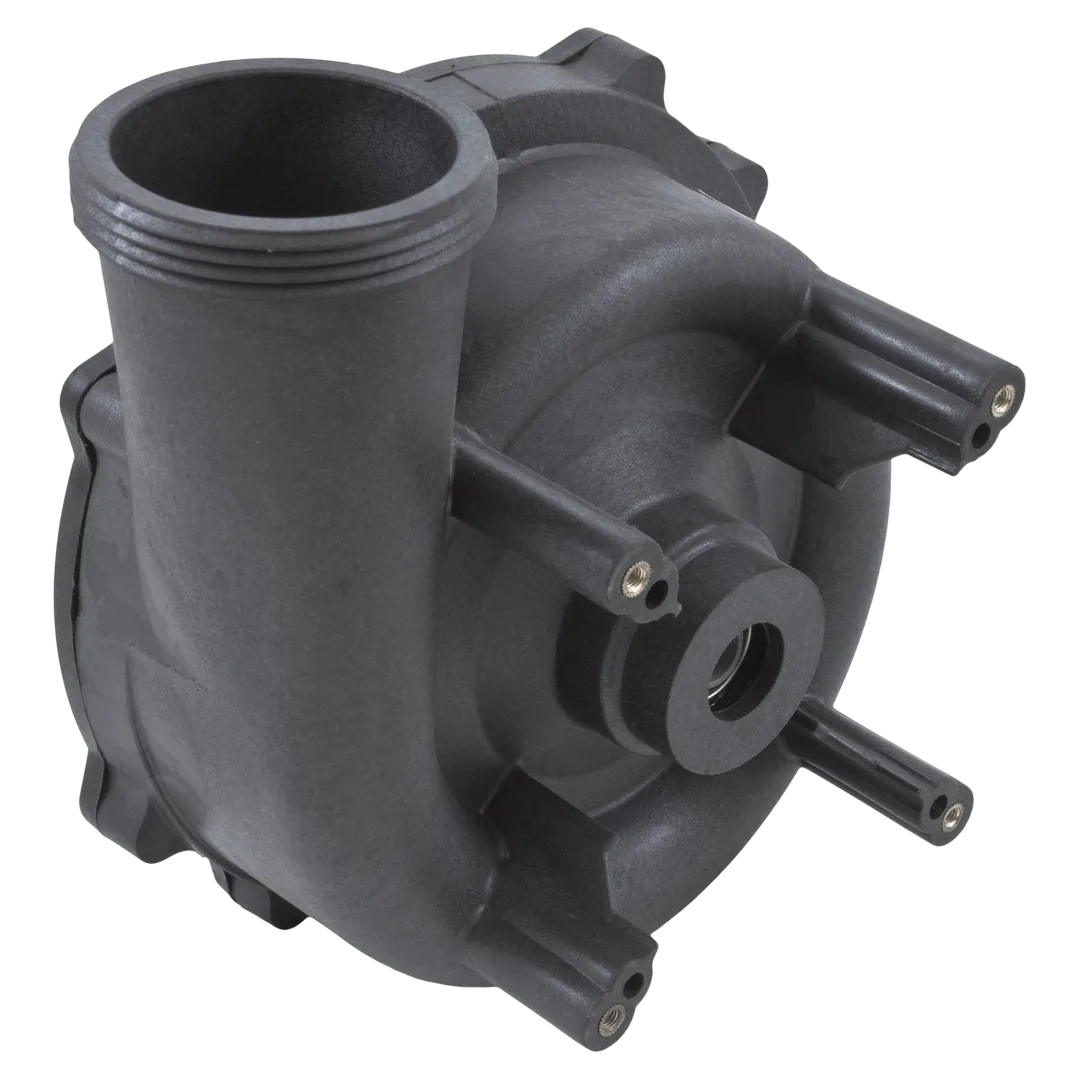

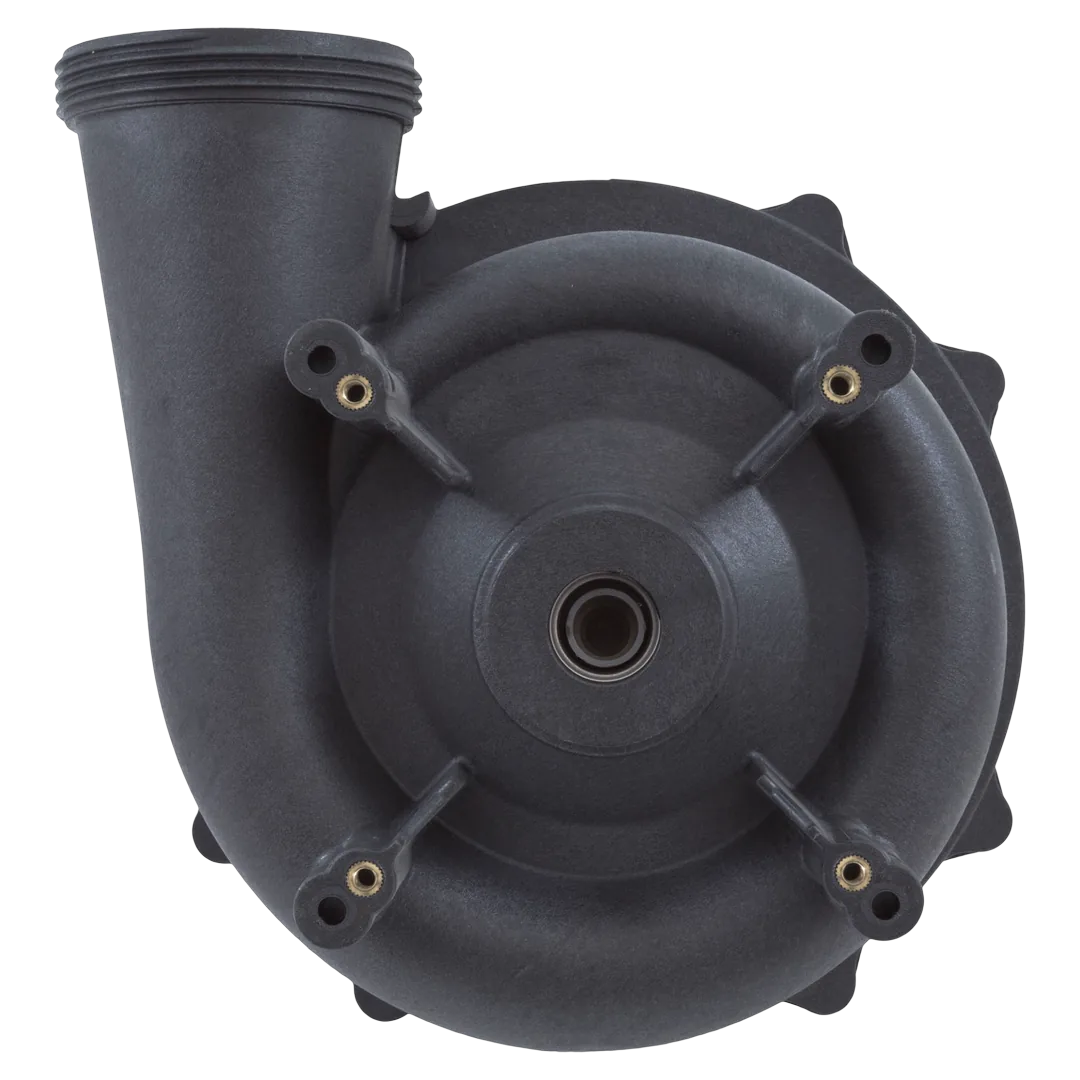

Waterway 310-1480 Executive Wet End
Waterway | SKU:
310-1480
$13500/ea
Unit price
/
Unavailable
Waterway 310-1480 Executive Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-1480 is a 2.0 HP Executive Series wet end specifically designed for 56-frame spa pumps. Constructed with a side discharge configuration, it features 2.5-inch suction and 2-inch discharge ports, along with components like a volute, seal, impeller, wear ring, suction cover, and O-rings. This wet end is compatible with standard 2.0 HP, 230V, 56Y frame motors, fitting both single and dual-speed motors.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 2 1/2" Executive Wet End |
| Part Number | 310-1480 |
| Part Type | Wet End |
| Compatibility | Fits 2 HP Executive 56-Frame Pumps |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |
| Connection Size | 2.5" MBT suction x 2" MBT discharge |
| Mount Type | 56-Frame motor mount |
| Flow Paths | Side discharge |
| Shipping Dimensions | 8.75 x 8.75 x 7 inch |
| Product Weight | 2.895 pound |
