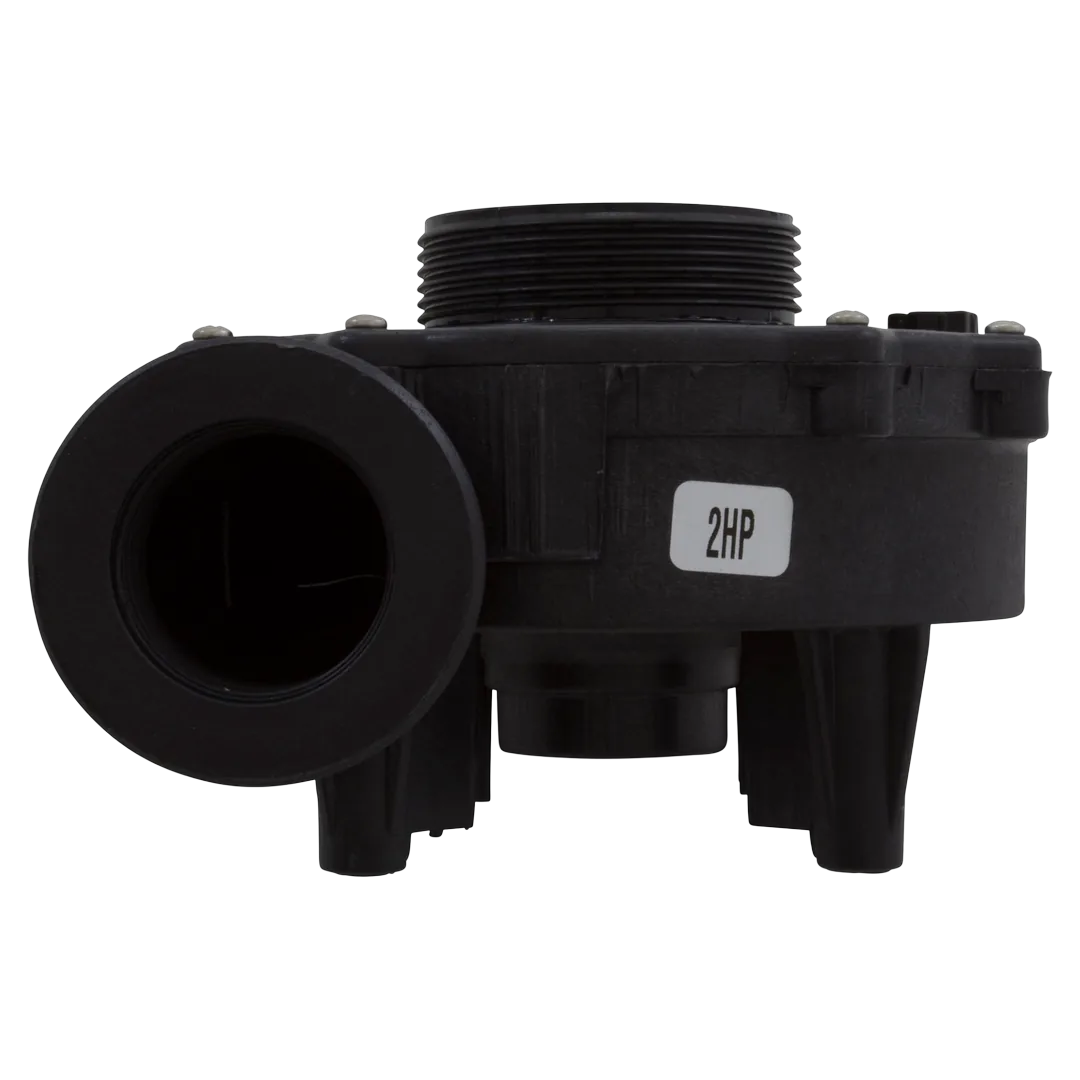

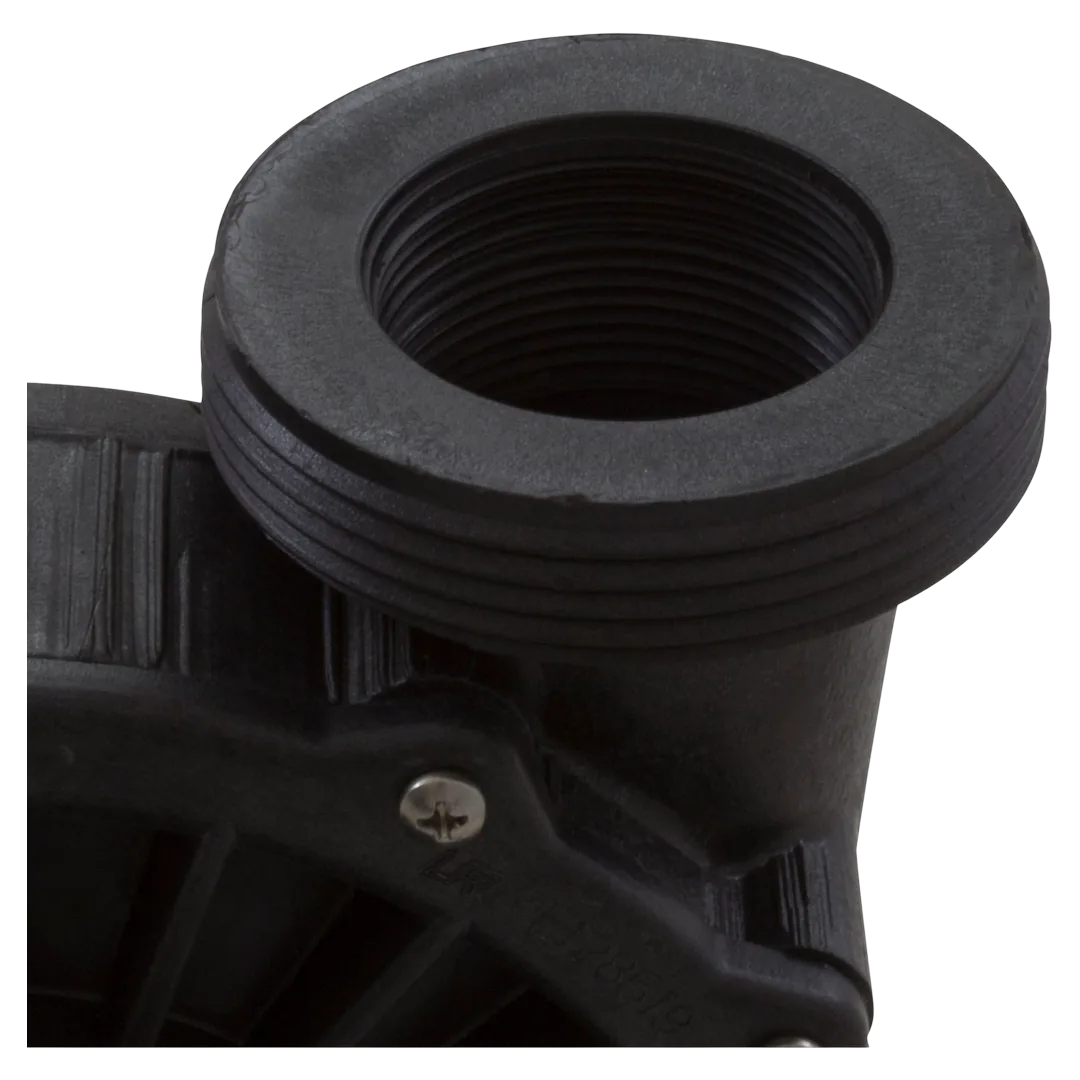

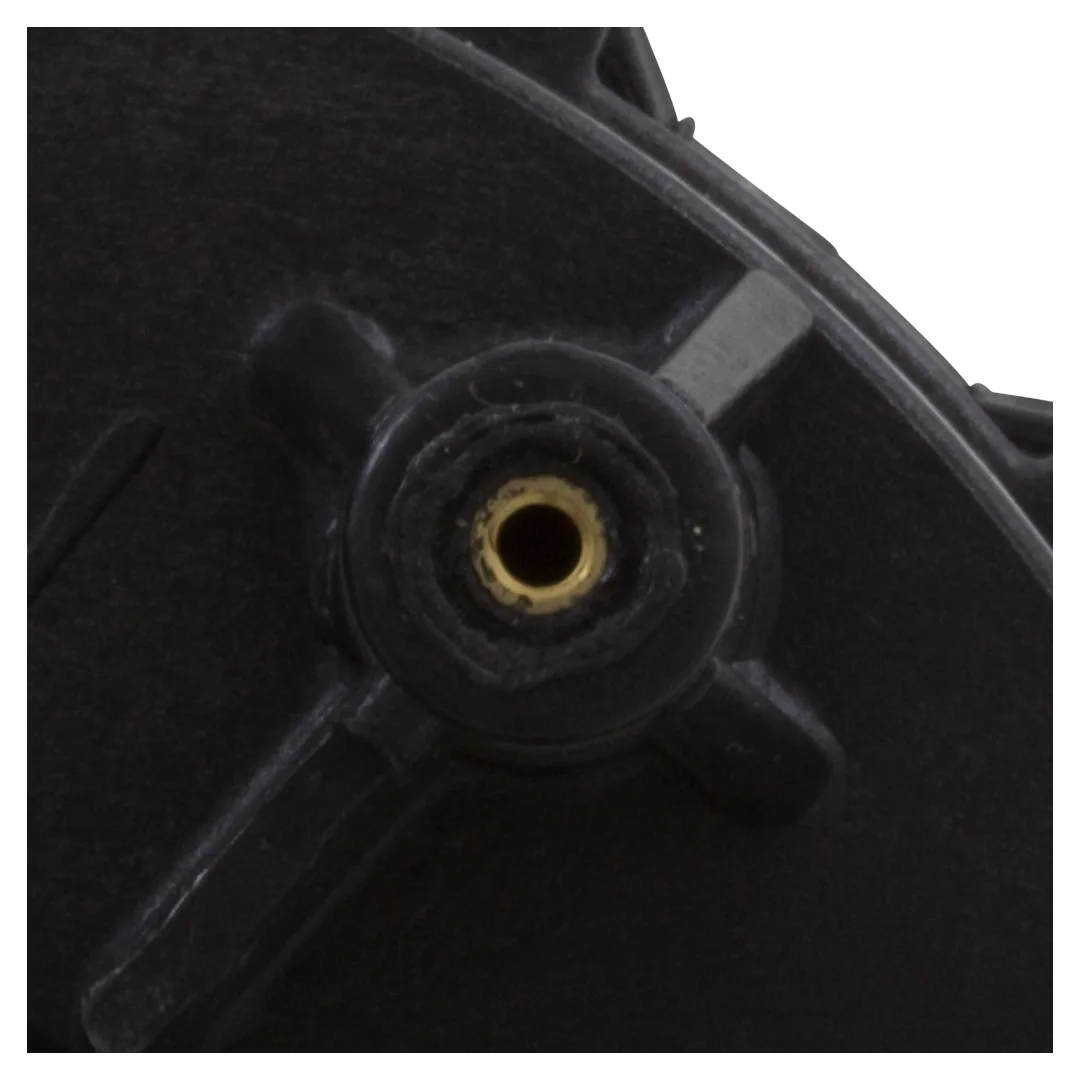

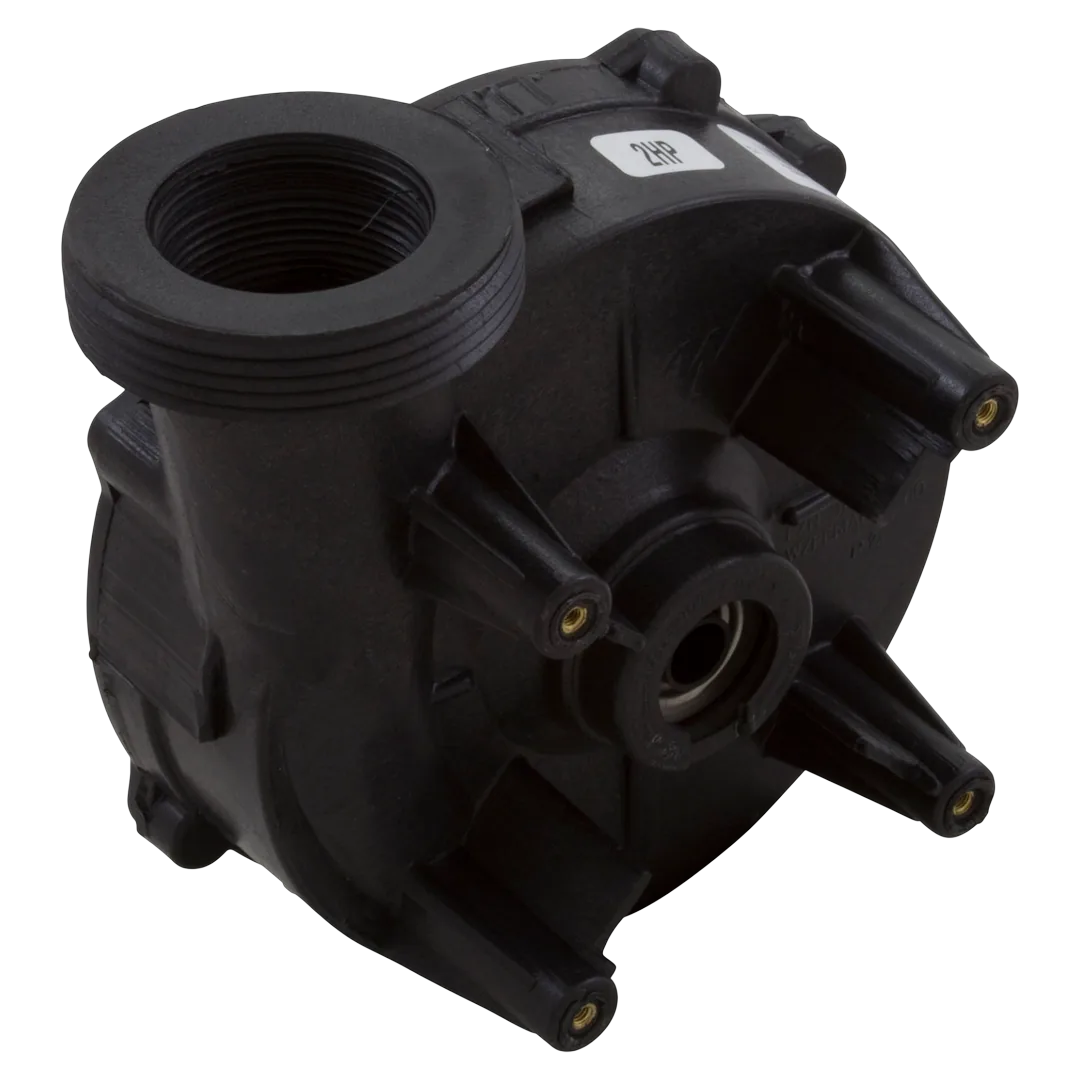

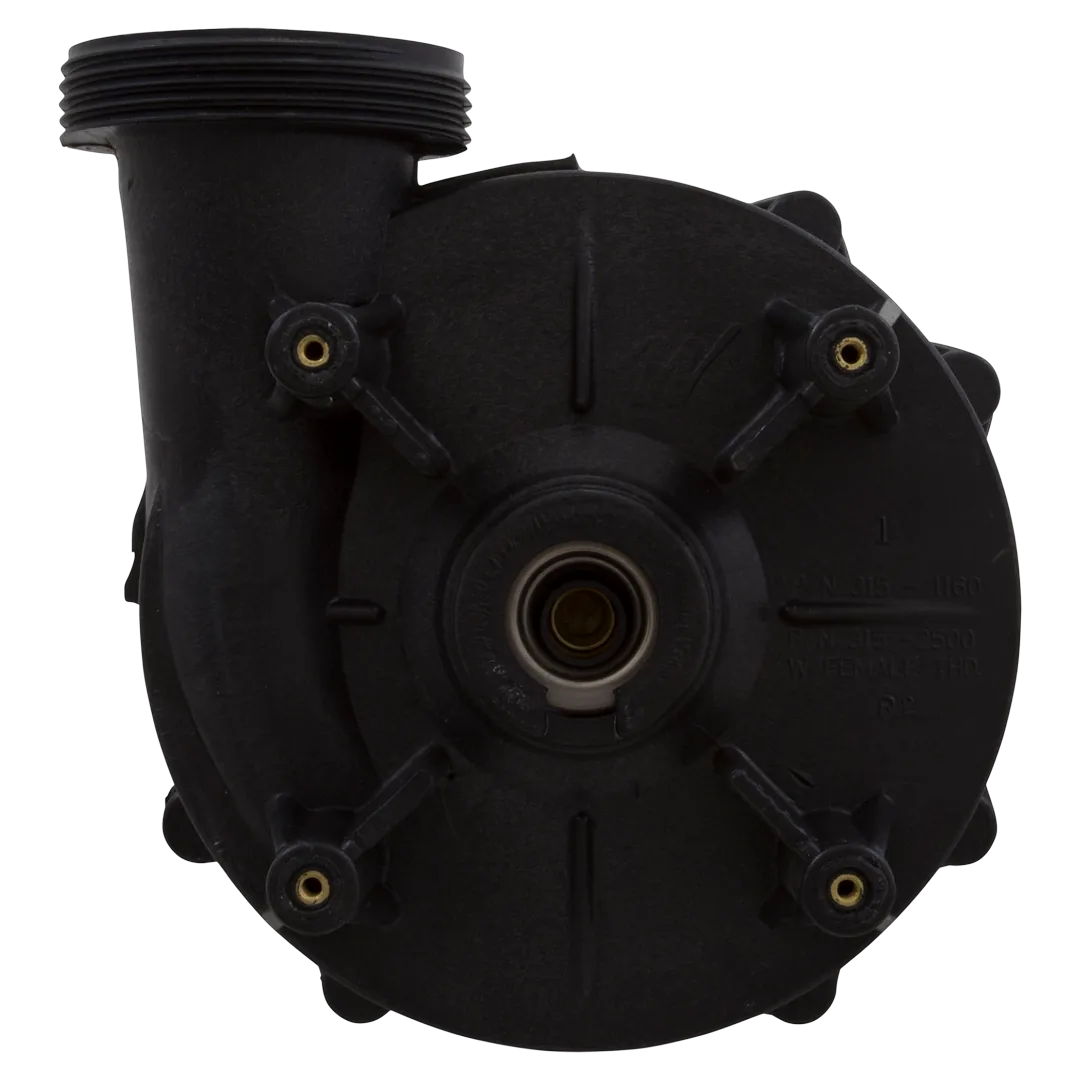

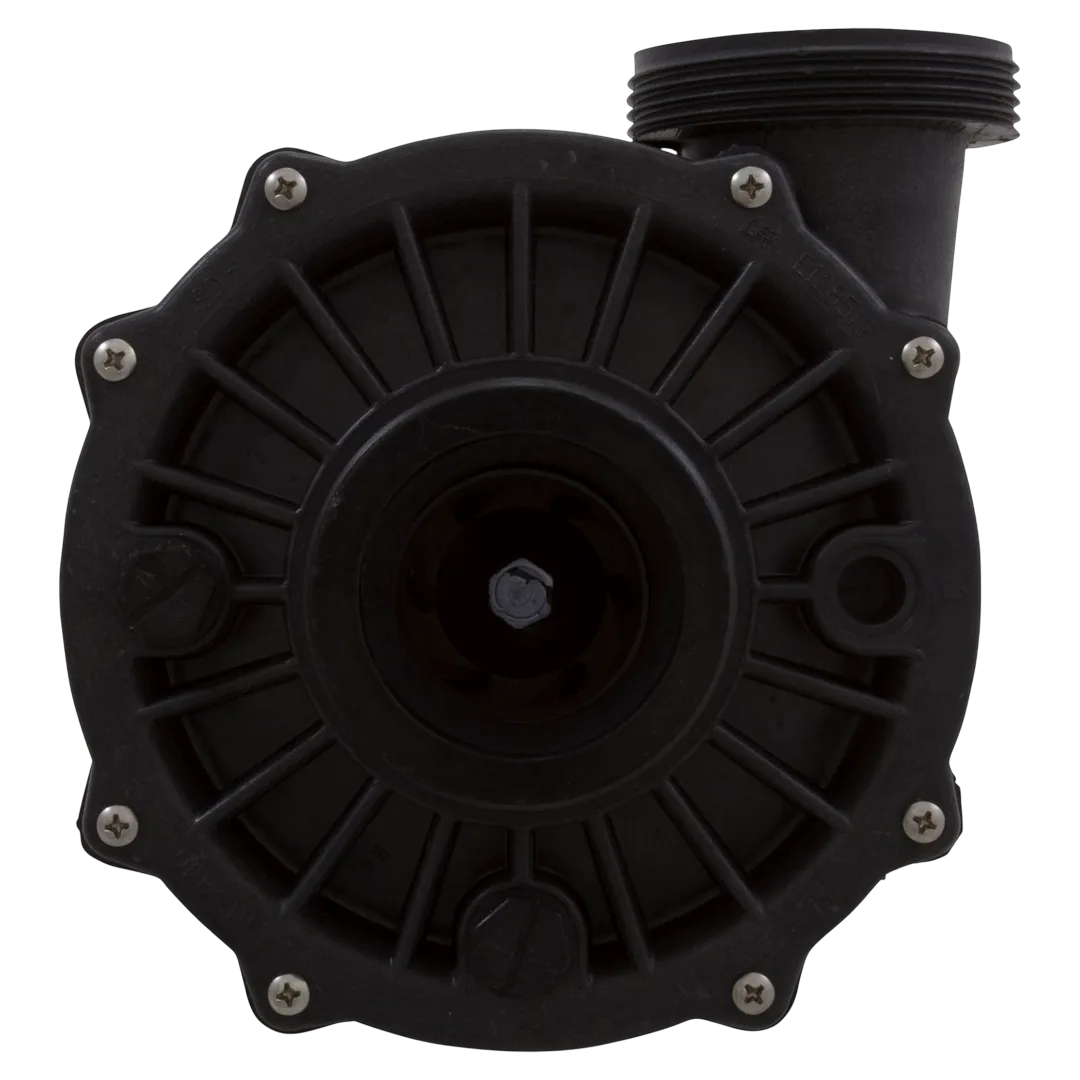

Waterway 310-1141SD Hi-Flo Wet End
Waterway | SKU:
310-1141SD
$15200/ea
Unit price
/
Unavailable
Waterway 310-1141SD Hi-Flo Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-1141SD is a 2.0 horsepower Hi-Flo Side Discharge Wet End designed for 48 frame pumps. It is made from durable plastic and incorporates components such as a volute, seal, impeller, wear ring, suction cover, suction cover O-ring, drain plug, and drain plug O-ring. This wet end is compatible with Waterway Hi-Flo and Waterway Workman systems operating at 115V/20amps and 230V/8.5 to 10.5 amps, with 2-inch MBT connections.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 310-1141SD Wet End |
| Part Number | 310-1141SD |
| Part Type | Pump Part |
| Compatibility | Designed for 48Y frame motors rated at 2.0 HP |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |
| Valve Type | Side Discharge |
| Connection Size | 2-inch MBT inlet and outlet |
| Mount Type | 48Y Frame |
| Shipping Dimensions | 7 x 7 x 5.5 inch |
| Product Weight | 2.28 pound |
