Waterway Hi-Flo 310-1140SD 1.5 HP Wet End
Waterway | SKU:
310-1140SD
$11900/ea
Unit price
/
Unavailable
Waterway Hi-Flo 310-1140SD 1.5 HP Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

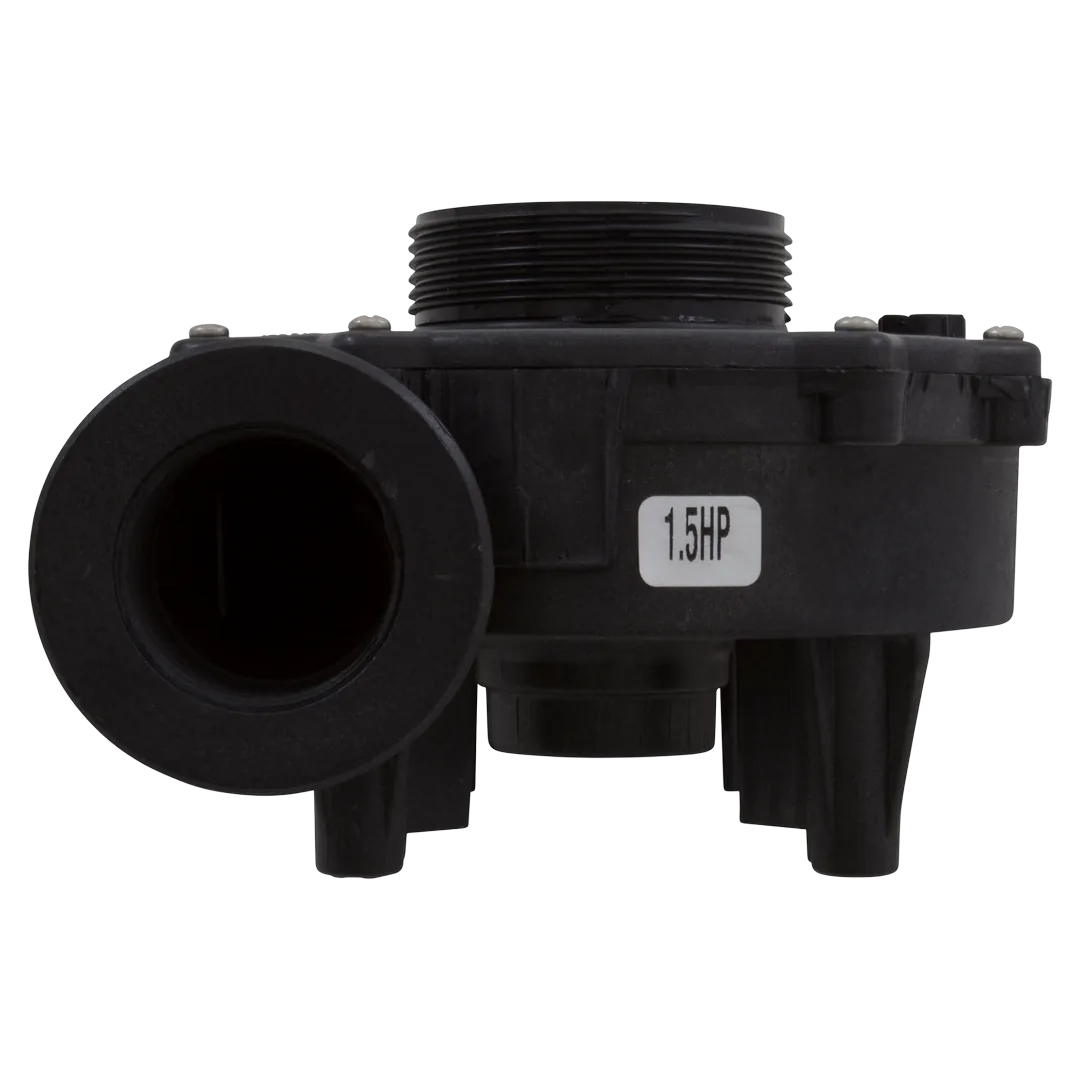

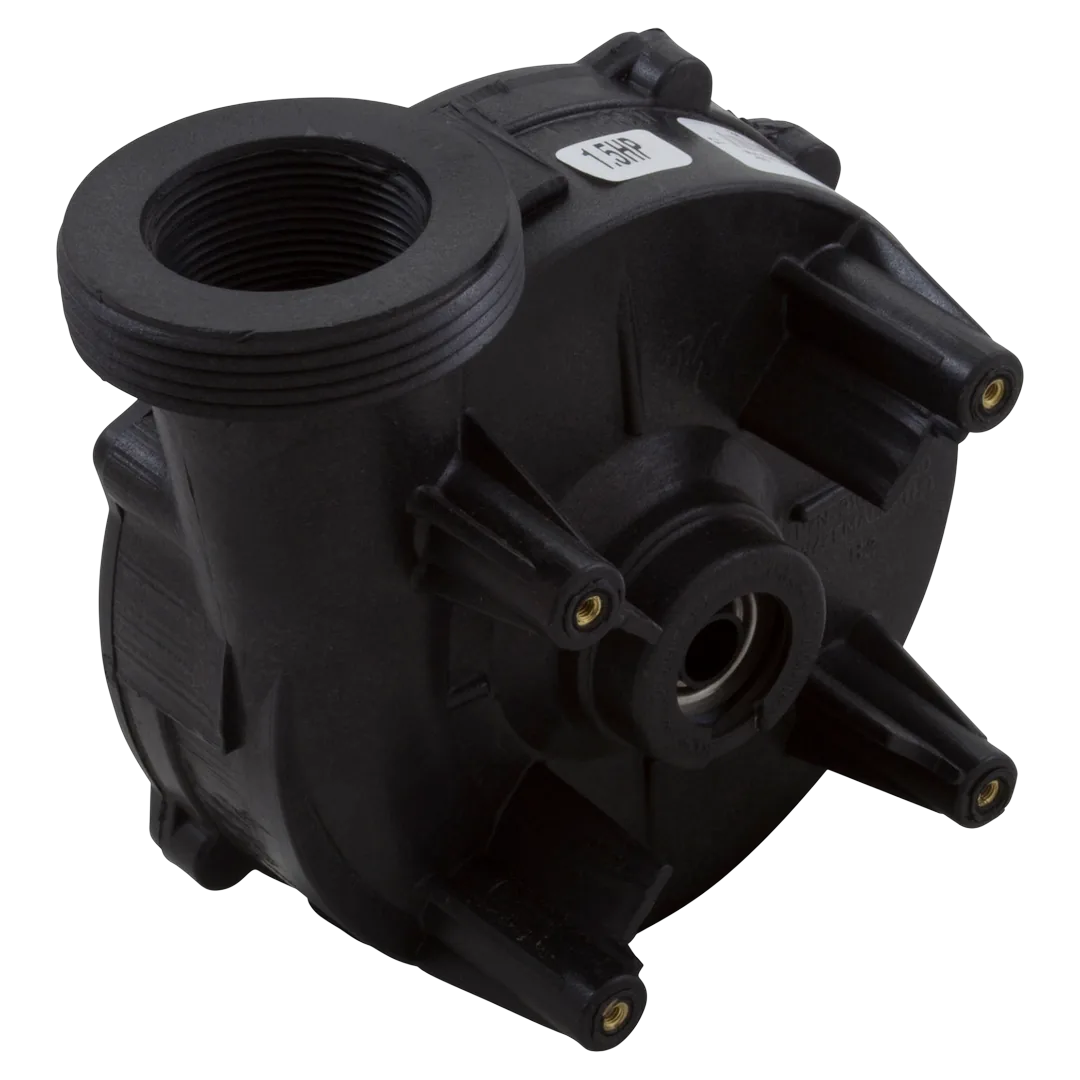

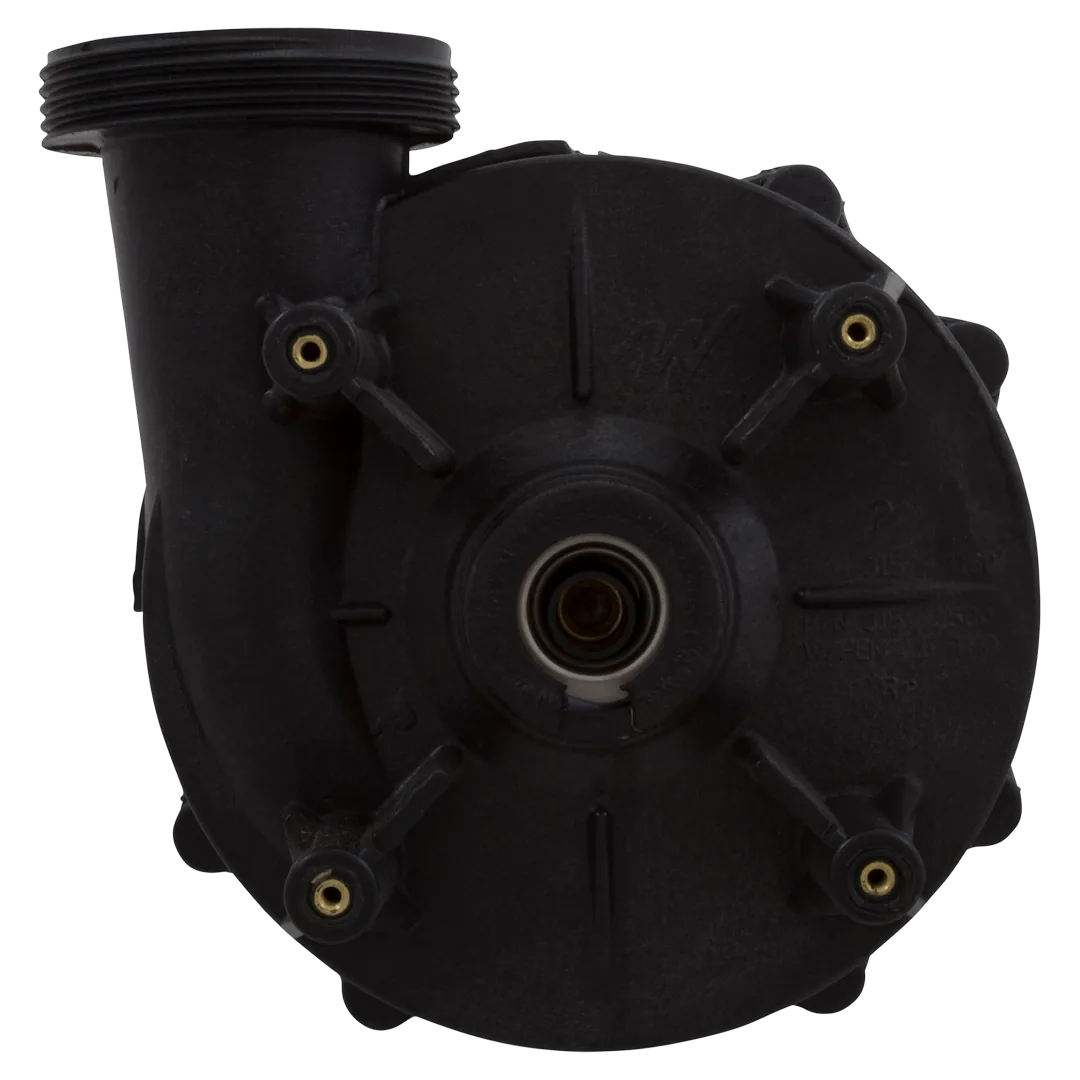

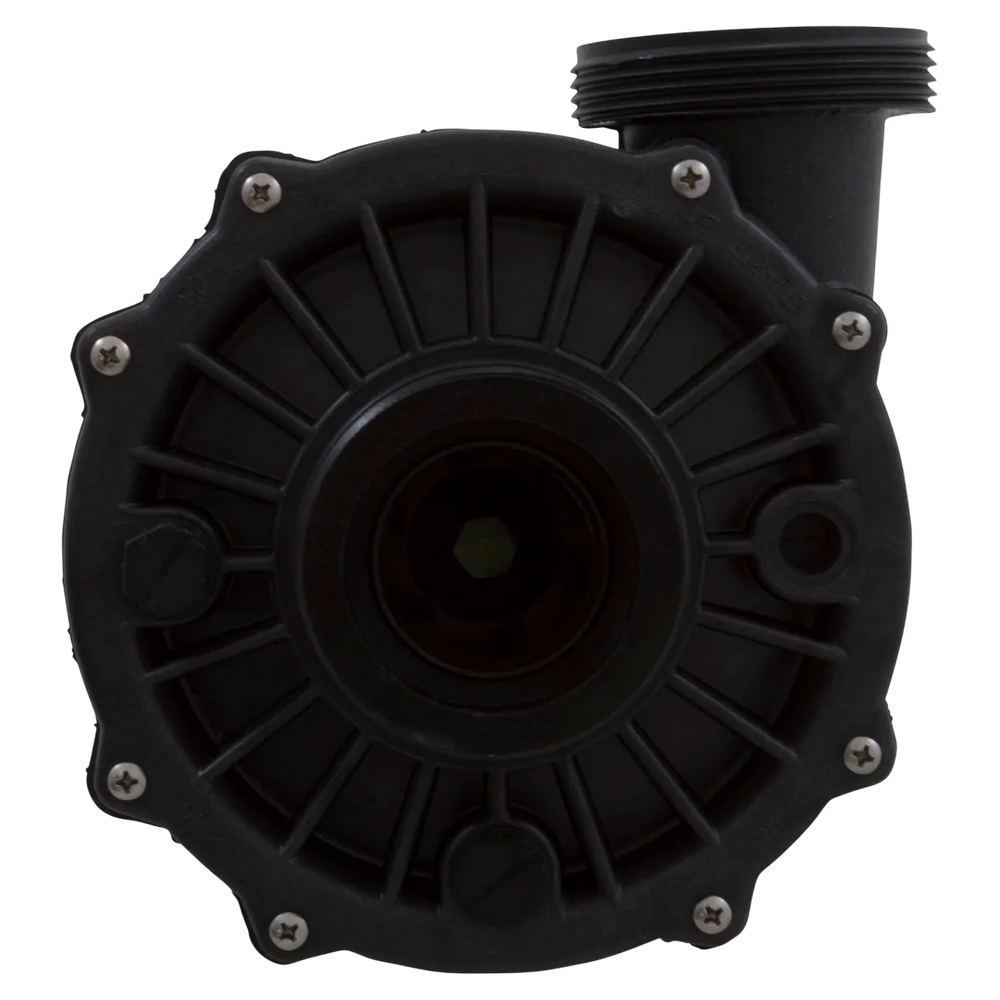

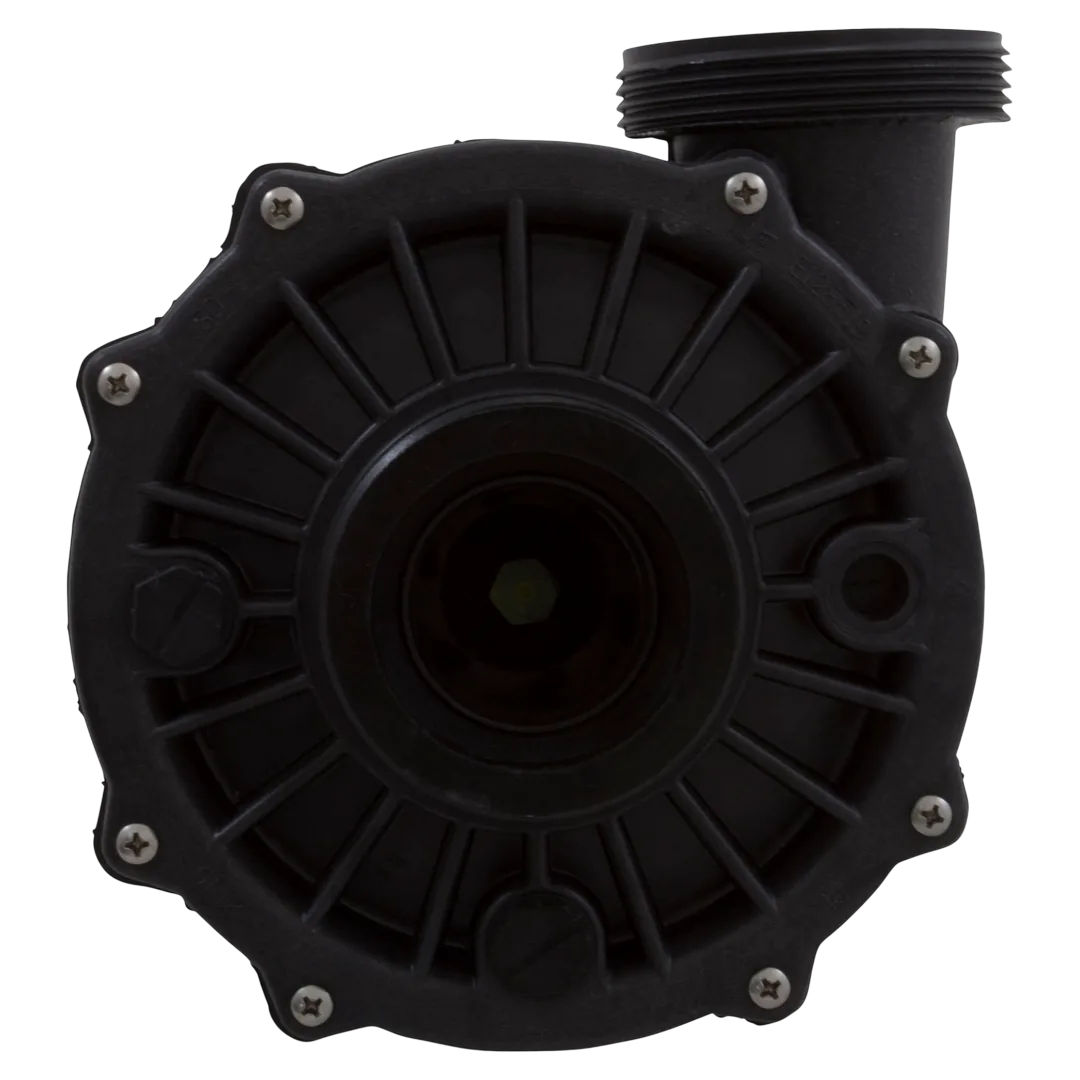

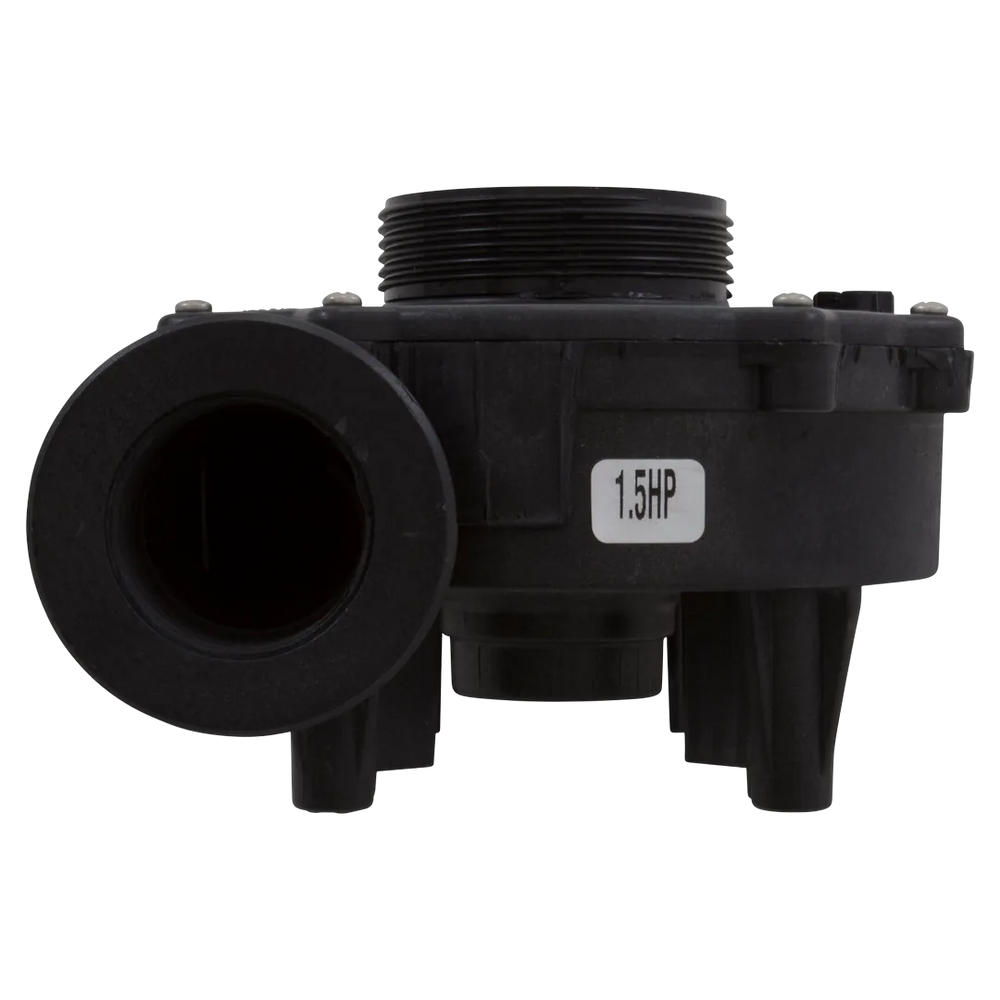

The Waterway 310-1140SD is a 1.5 HP Hi-Flo side discharge wet end designed for pool pump systems. It is composed of plastic with a 48-frame configuration, featuring 2-inch suction and discharge connections. This component integrates seamlessly with Waterway Hi-Flo pumps, providing compatibility specifically for 48-frame motors.
Includes: Wet end assembly including volute, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 1.5 HP Hi-Flo Side Discharge Wet End |
| Part Number | 310-1140SD |
| Part Type | Pump Part |
| Compatibility | Waterway Hi-Flo 1.5 HP 48 Frame Pumps |
| Substitute Part Numbers | 310-7730SD |
| Includes | Wet end assembly including volute, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | Plastic |

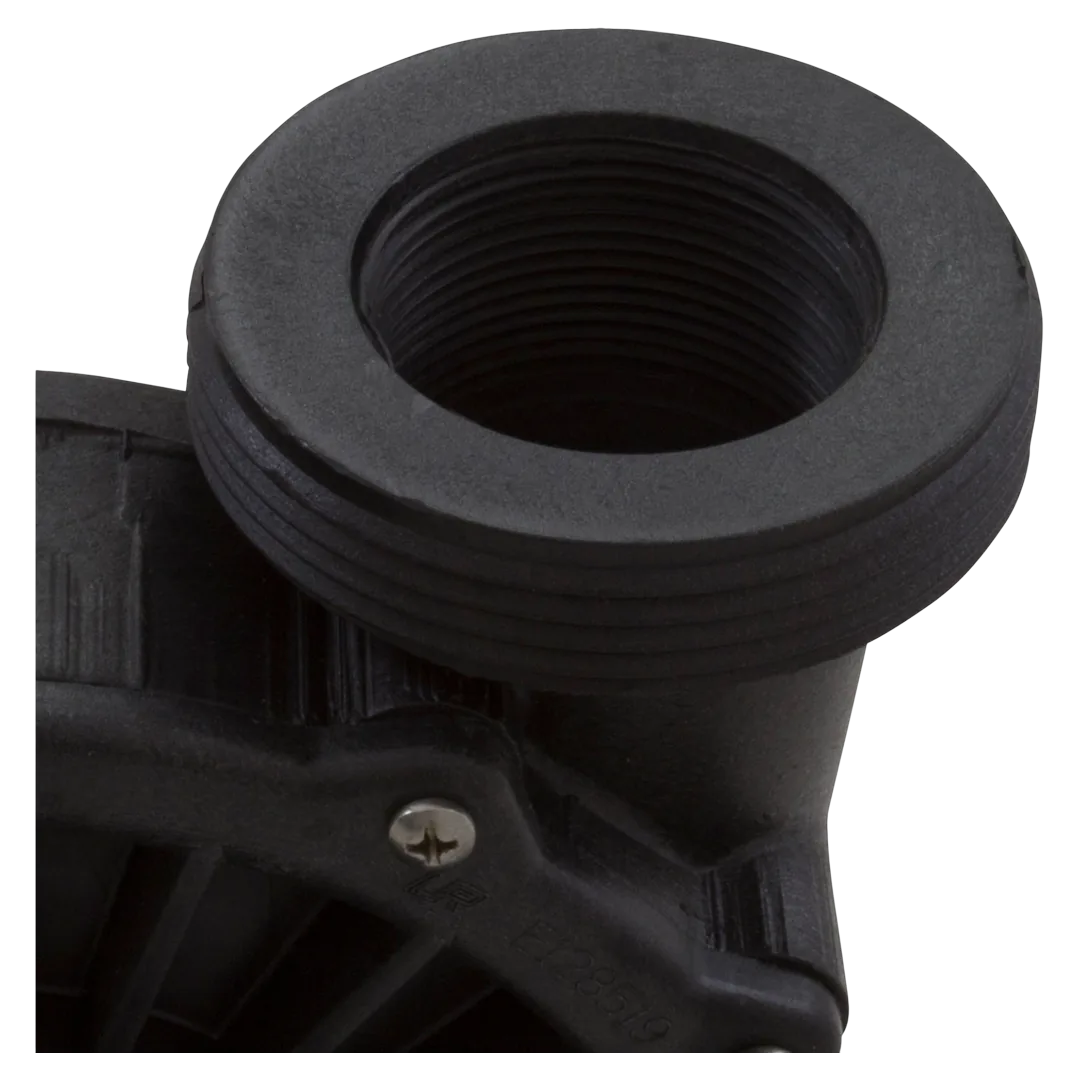

| Connection Size | 2-inch Male Buttress Thread (MBT) for both intake and discharge |
| Mount Type | 48 Frame |
| Shipping Dimensions | 7.5 x 6 x 5 inch |
| Product Weight | 2.33 pound |
