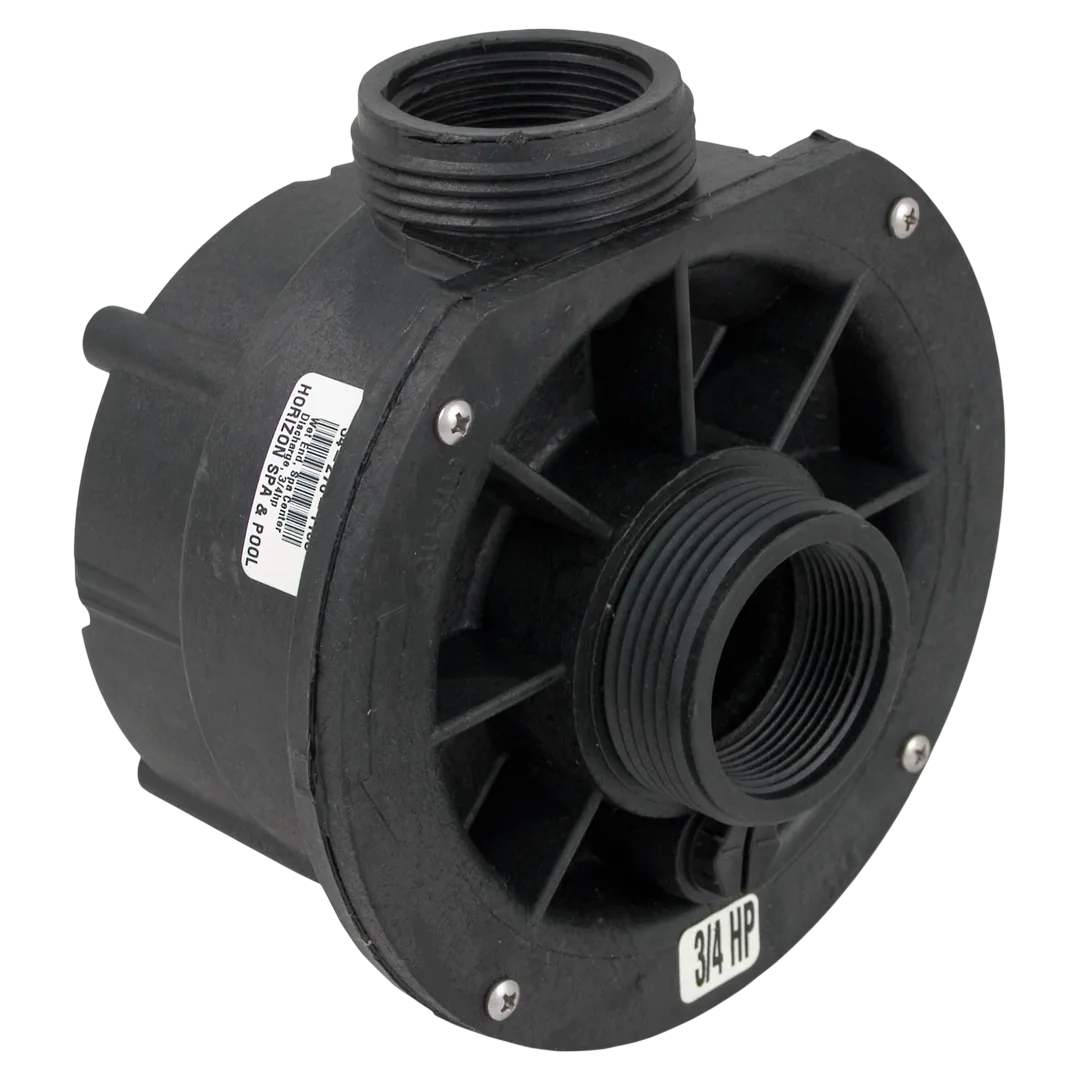

Waterway 310-1120 Center Discharge Wet End
Waterway | SKU:
310-1120
$000/ea
Unit price
/
Unavailable
Waterway 310-1120 Center Discharge Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterway 310-1120 is a center discharge wet end designed for use with spa pumps. It features a 0.75 HP motor and a 48 frame motor connection, with 1.5-inch center discharge and suction ports. This component is compatible with Waterway's E-Series pumps and is constructed for integration with 1.5-inch MBT/FPT pipe sizes.
Includes: Wet end assembly with impeller and shaft seal
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway 310-1120 0.75 HP E-Series Center Discharge Pump Wet End |
| Part Number | 310-1120 |
| Part Type | Pump Part |
| Compatibility | Waterway E-Series 48Y Frame 0.75 HP Center Discharge Pumps |
| Substitute Part Numbers | 1-05-0334, 310-8210, 310-1120B, 34-270-1130 |
| Includes | Wet end assembly with impeller and shaft seal |
| Material | Plastic |
| Valve Type | Center Discharge |
| Number of Positions | 6-screw faceplate |
| Connection Size | 1.5 inch MBT inlet and outlet |
| Mount Type | 48Y Frame |
| Flow Paths | Rotatable wet end for flexible installation |
| Shipping Dimensions | 7 x 6.75 x 5 inch |
| Product Weight | 2.275 pound |
