Waterway 310-0180 Viper Wet End
Waterway | SKU:
310-0180
$13400/ea
Unit price
/
Unavailable
Waterway 310-0180 Viper Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

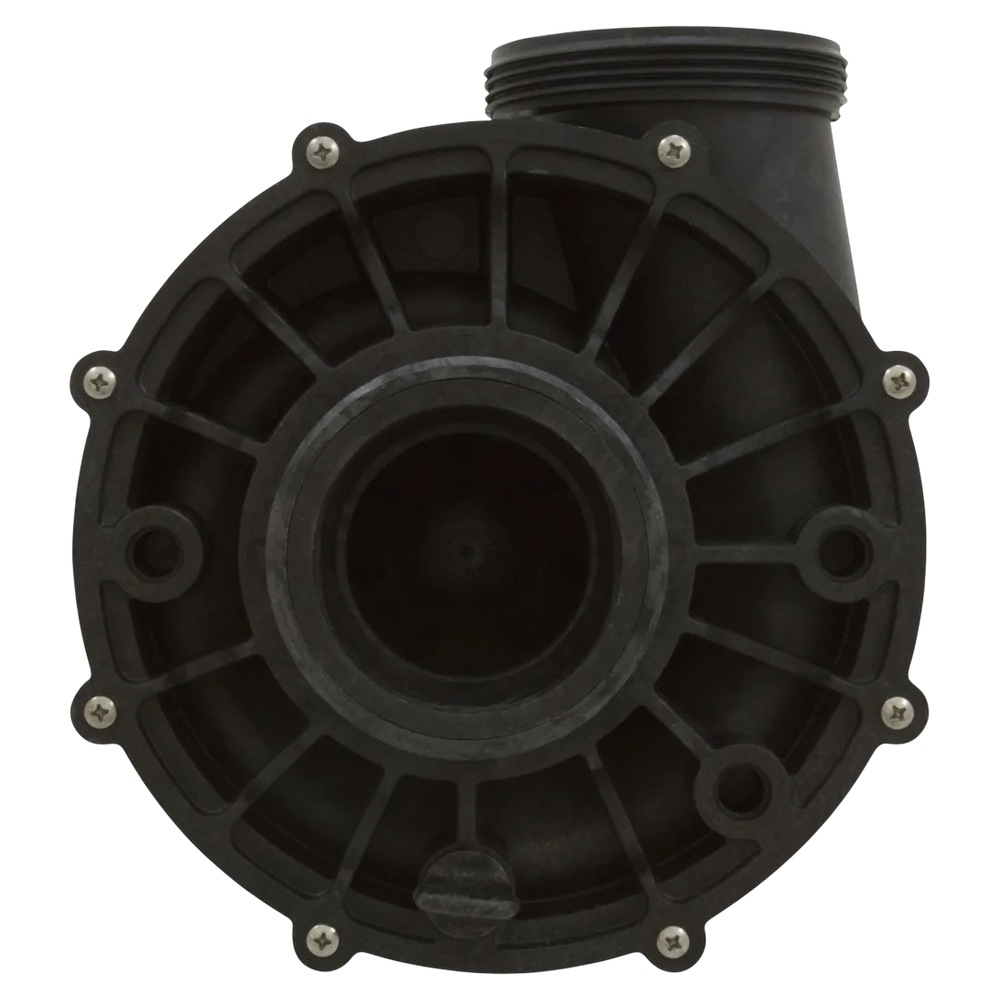

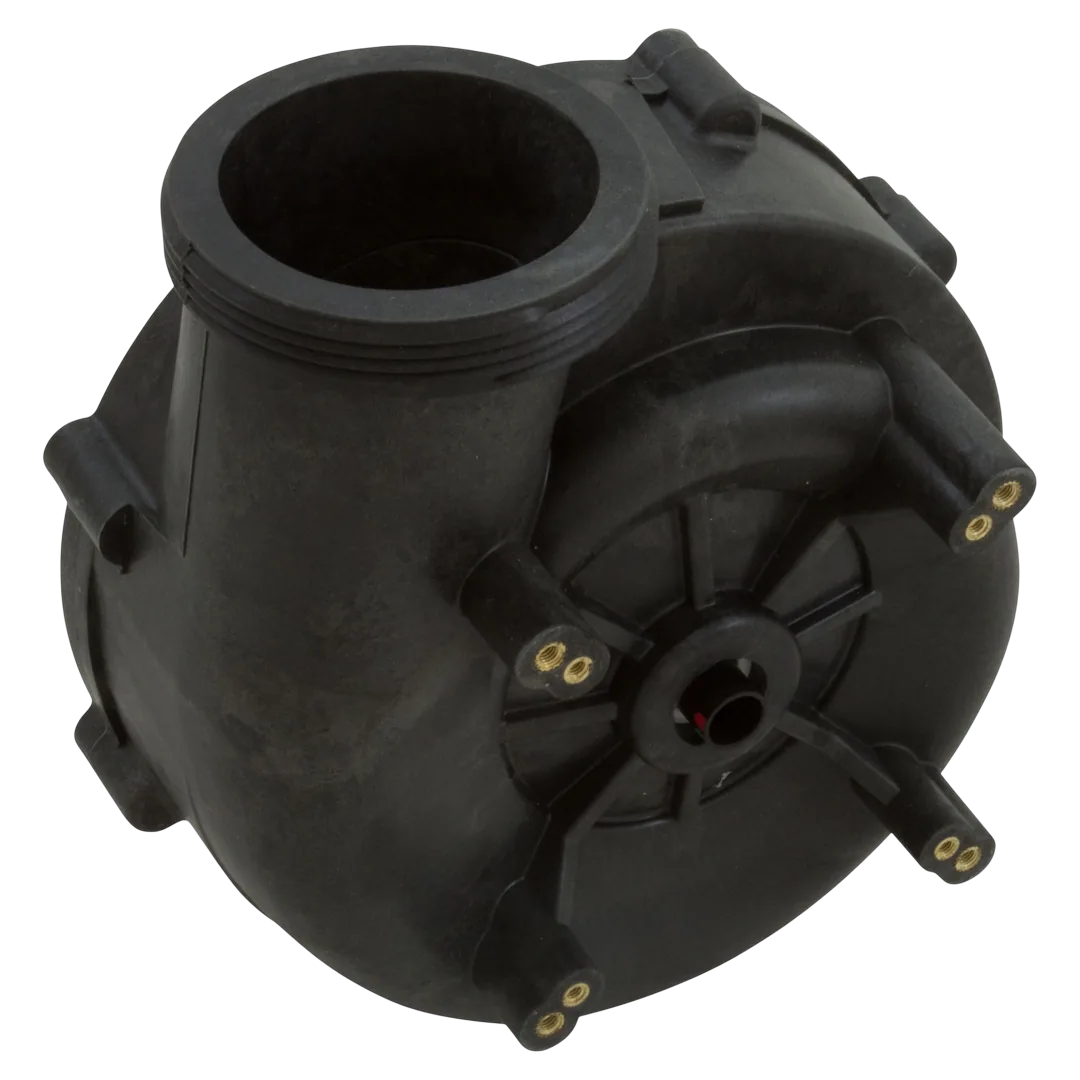

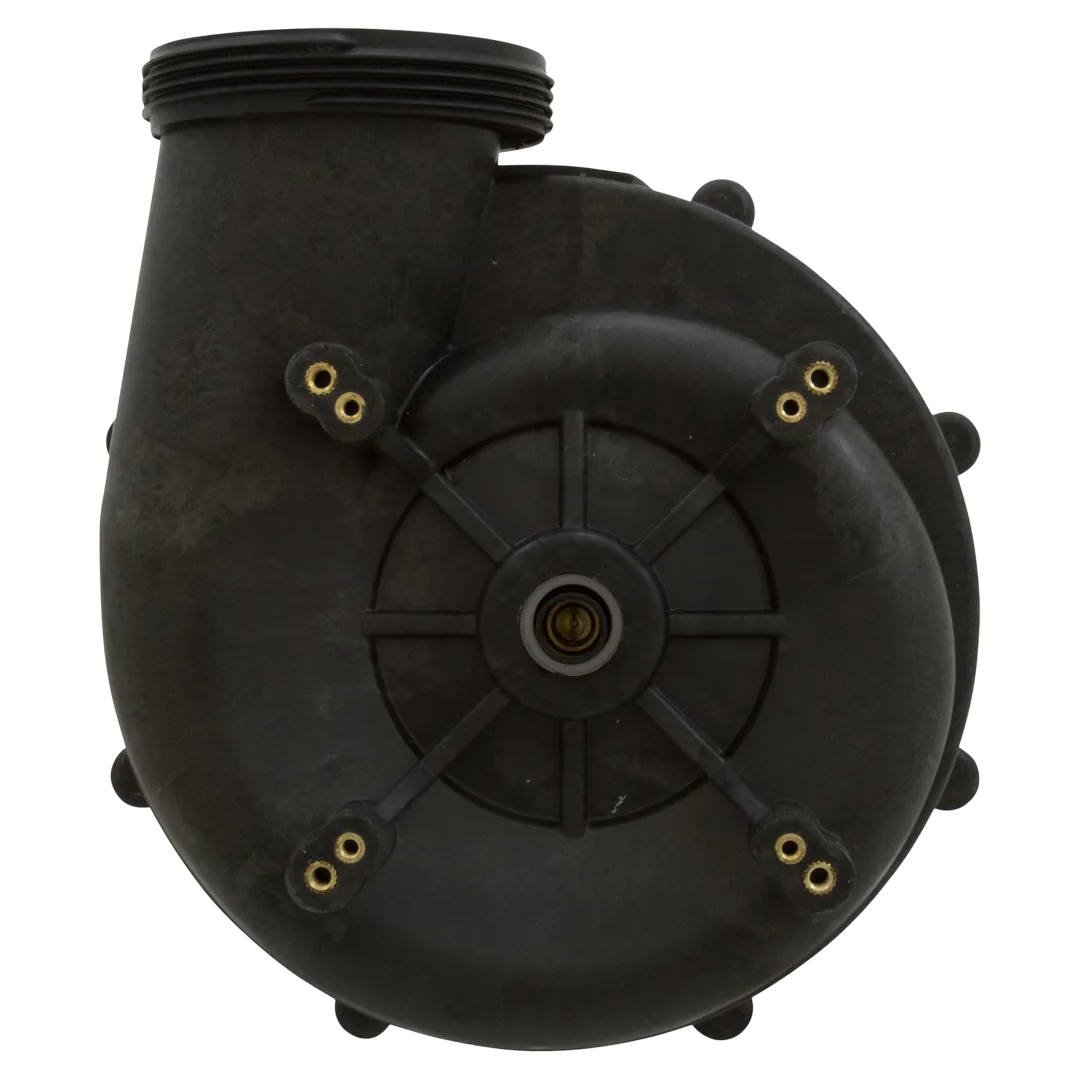

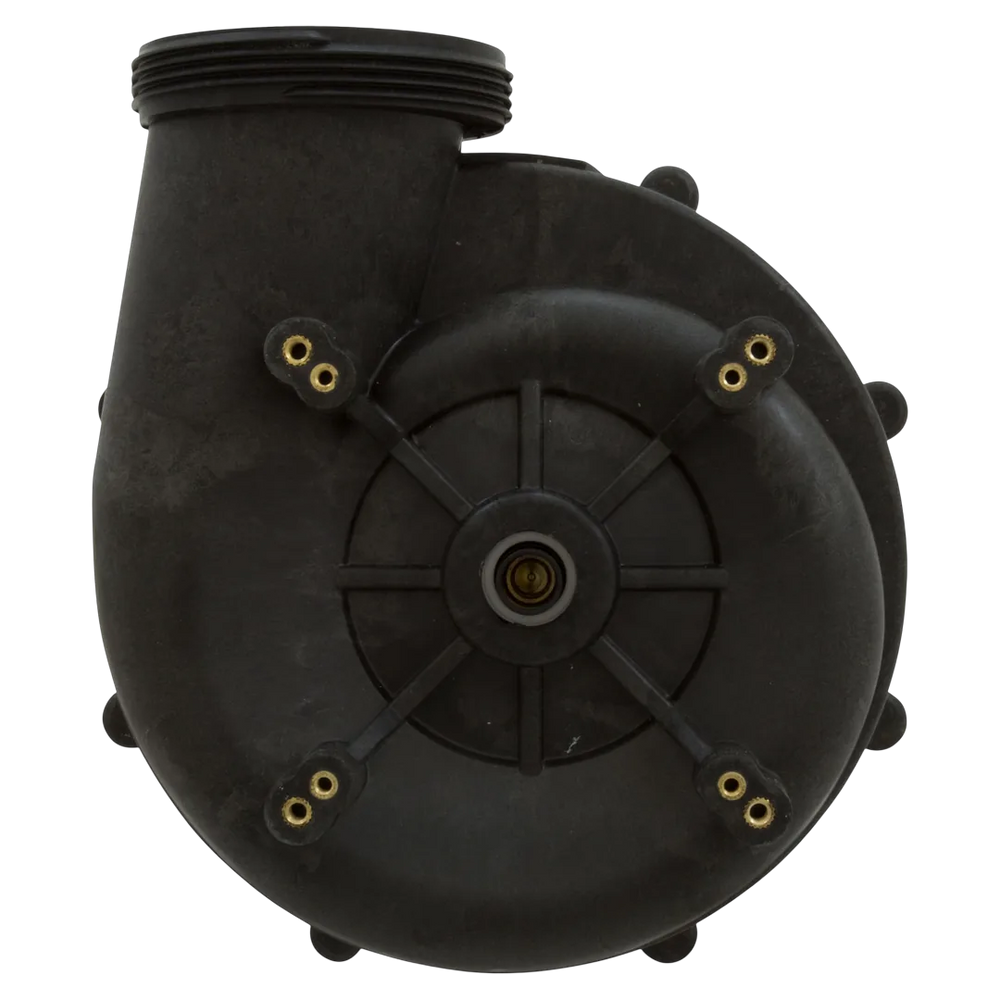

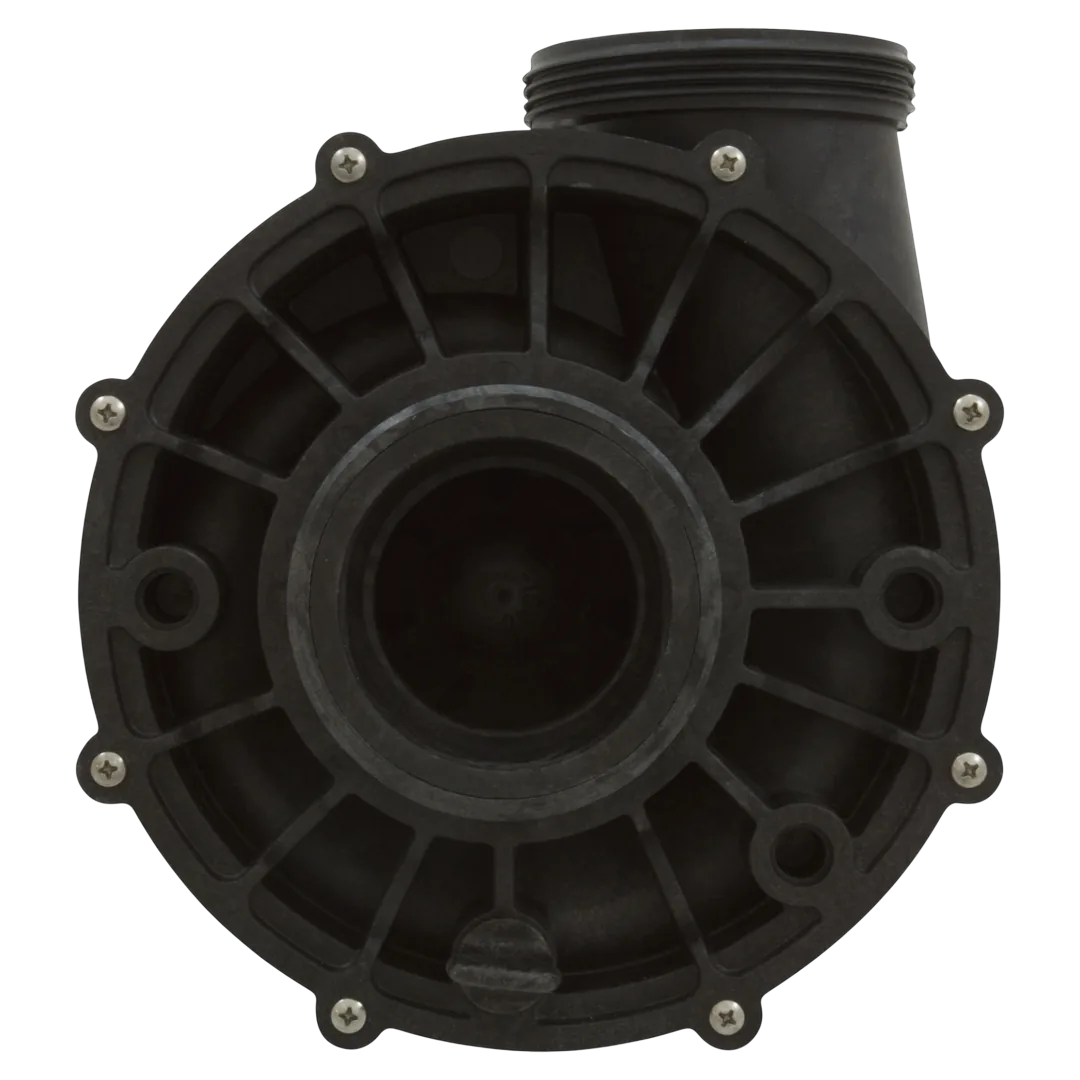

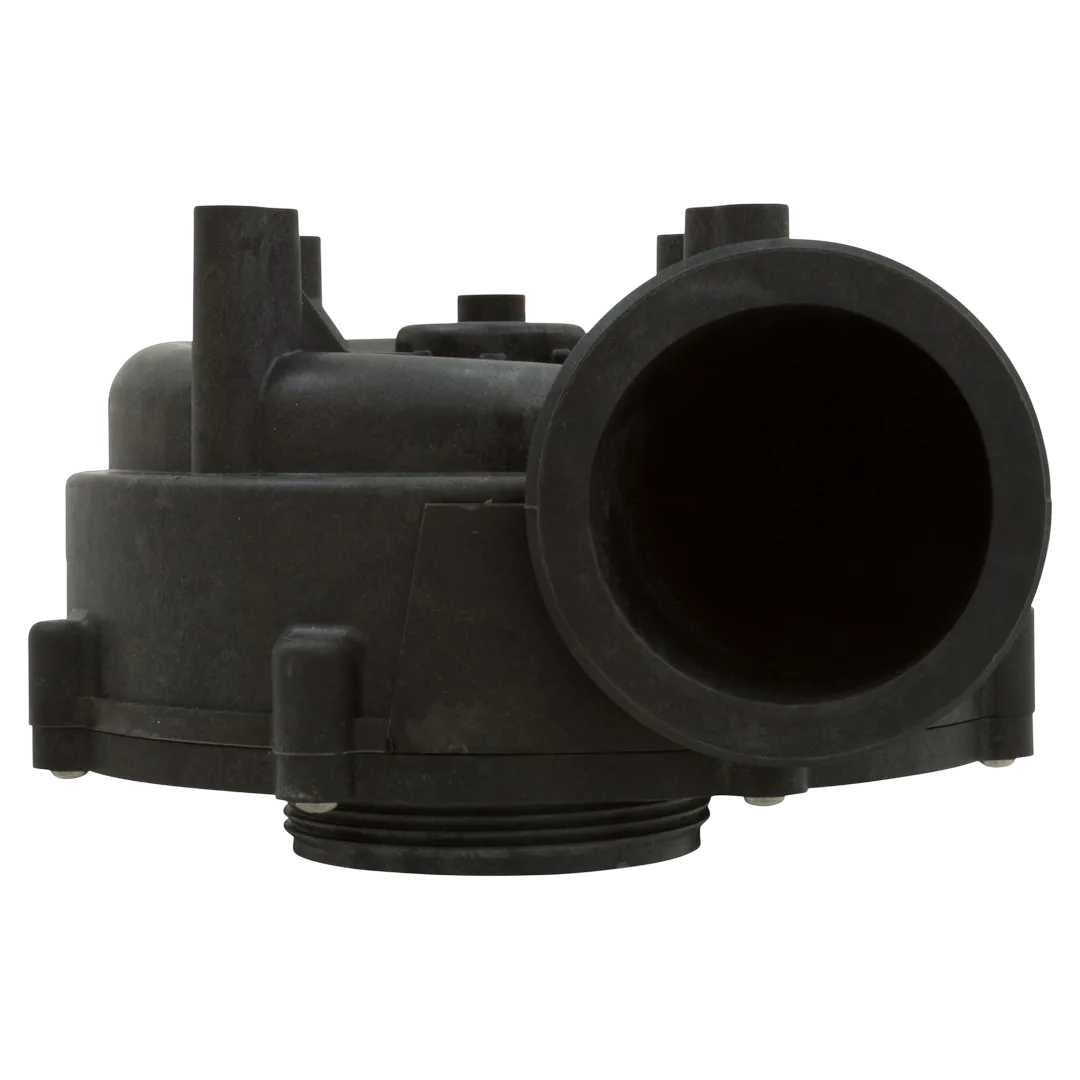

The Waterway 310-0180 is a 5 HP Viper wet end specifically designed for 56-frame motors. It features a 2-1/2" male buttress thread (MBT) for both suction and discharge connections, with a side discharge configuration. This component is compatible with 56-frame, through-bolt style motors, enhancing its integration into various pool and spa systems.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterway Viper 5.0 HP 56 Frame Wet End |
| Part Number | 310-0180 |
| Part Type | Pump Part |
| Compatibility | Waterway Viper 56-Frame 2-1/2" Spa Pump |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring, and suction cover screws |
| Material | PVC plastic |

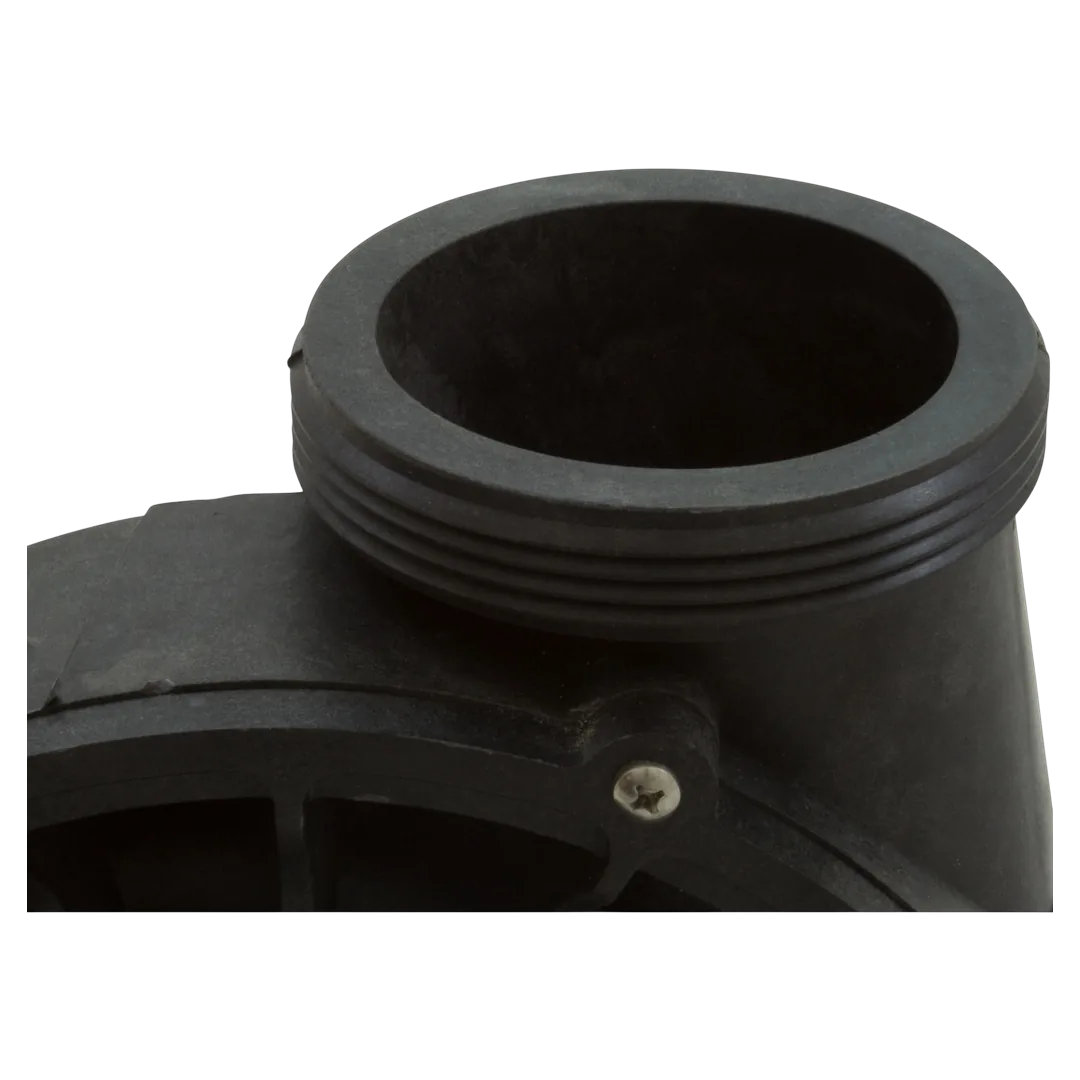

| Connection Size | 2.5" intake and 2.5" discharge (both measure 3.5" outside diameter on threads) |
| Mount Type | 56-frame motor mount |
| Shipping Dimensions | 10 x 8 x 5 inch |
| Product Weight | 2.5733 pound |
