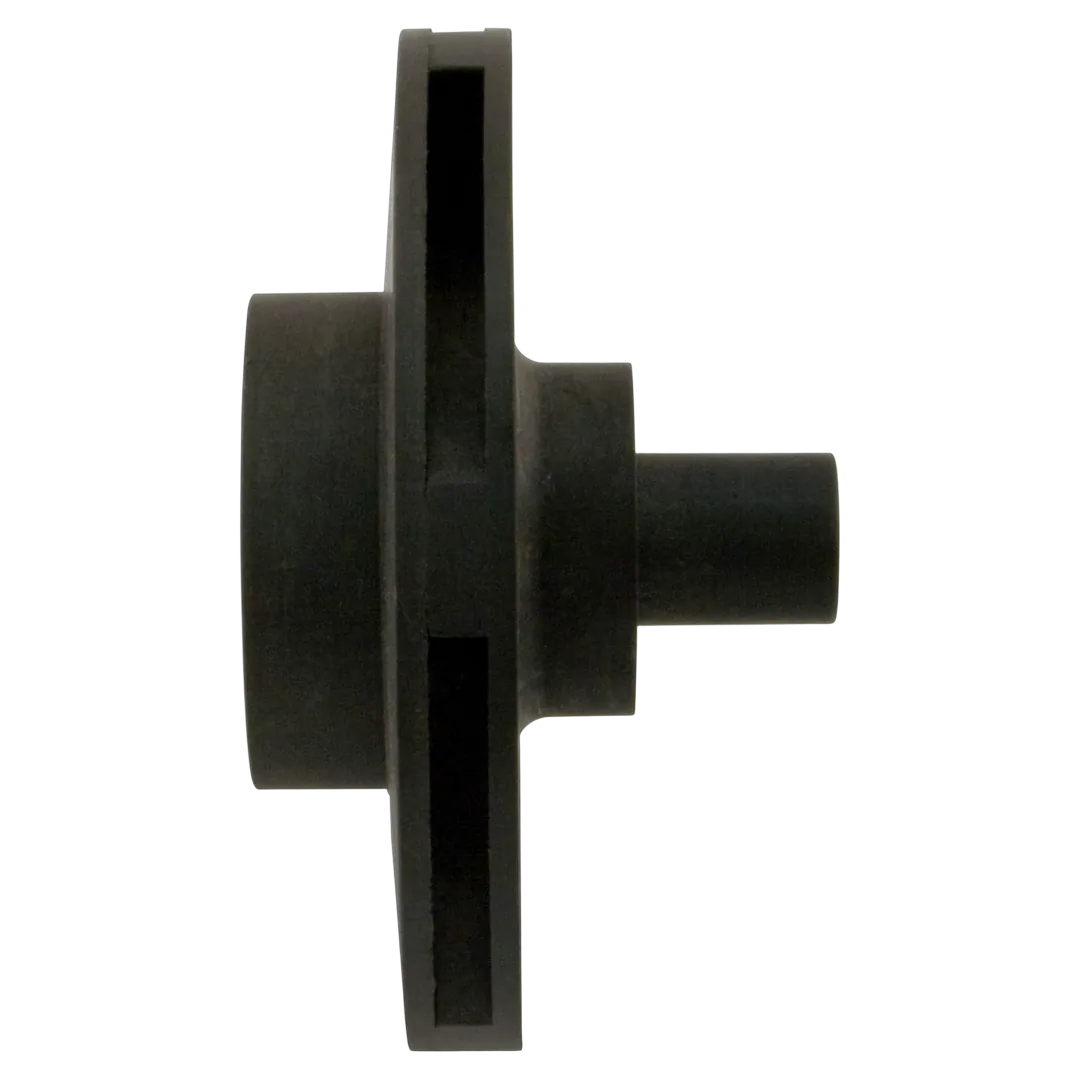

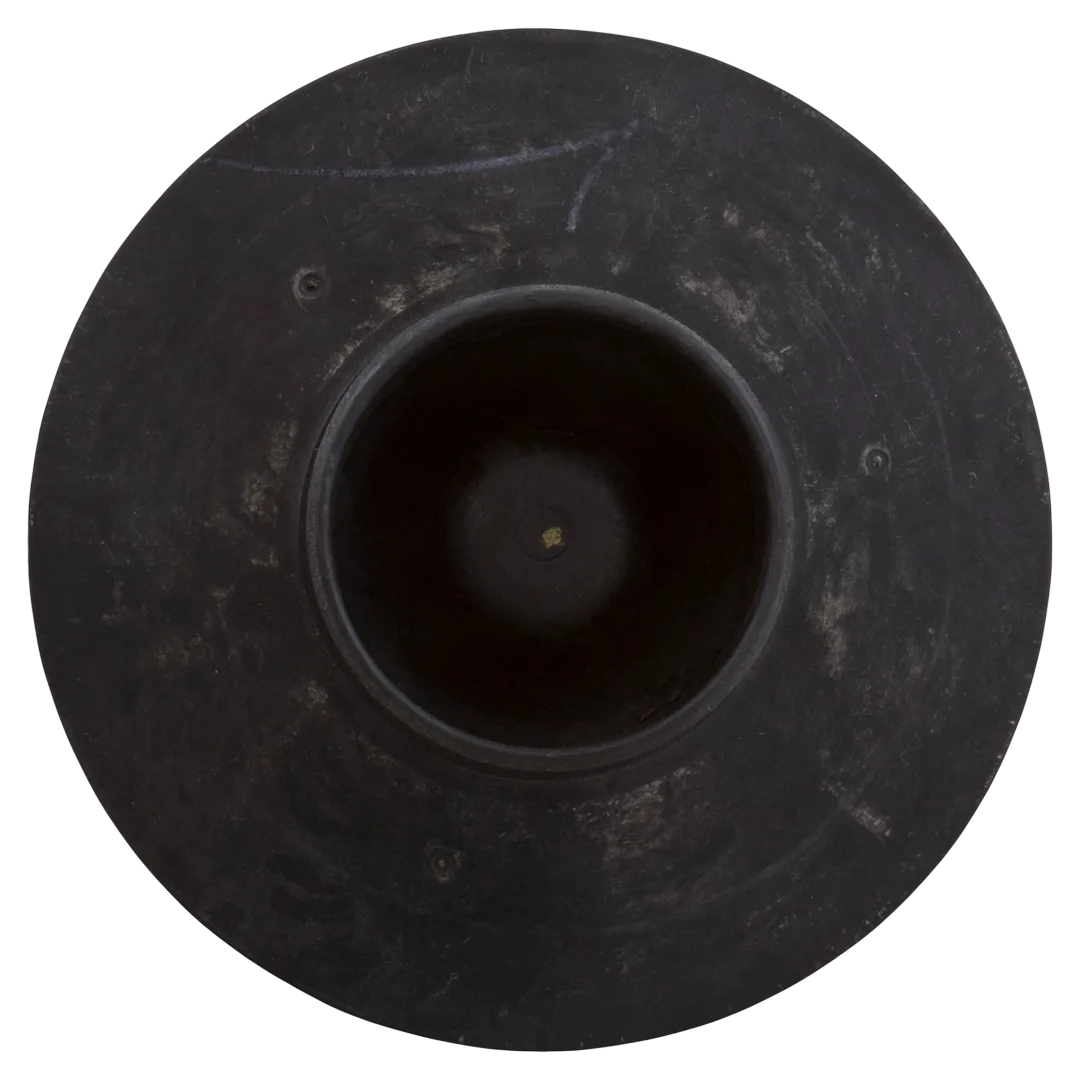

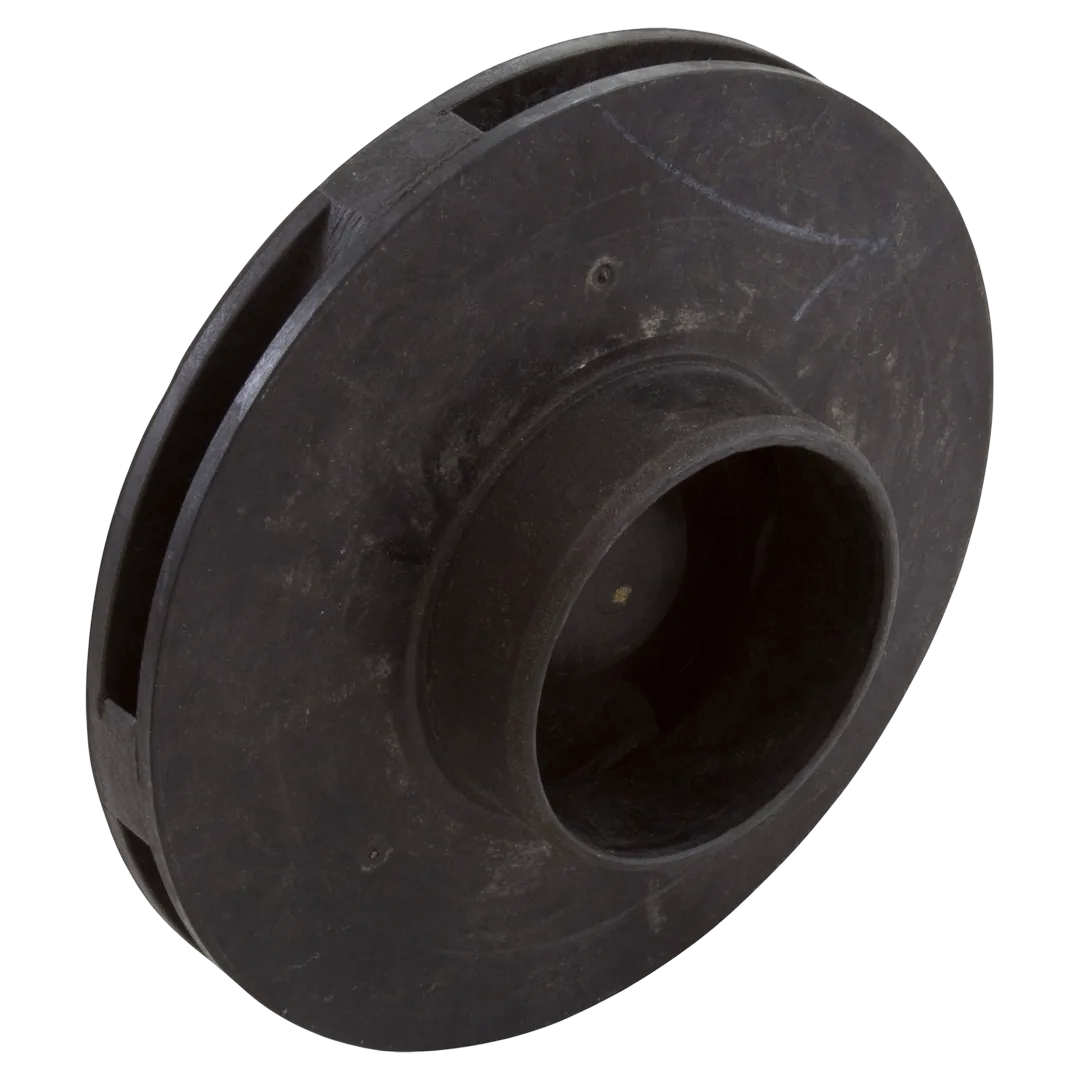

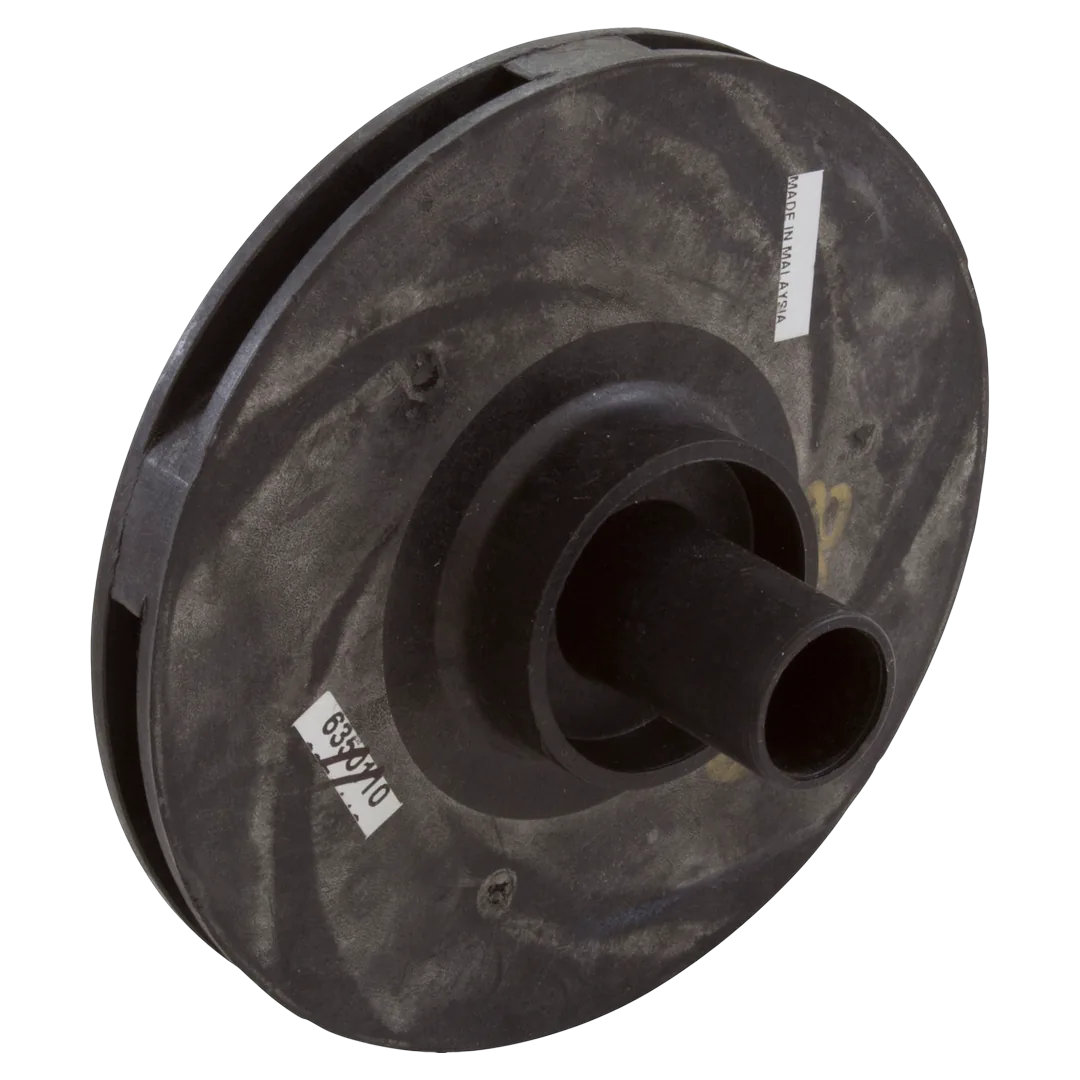

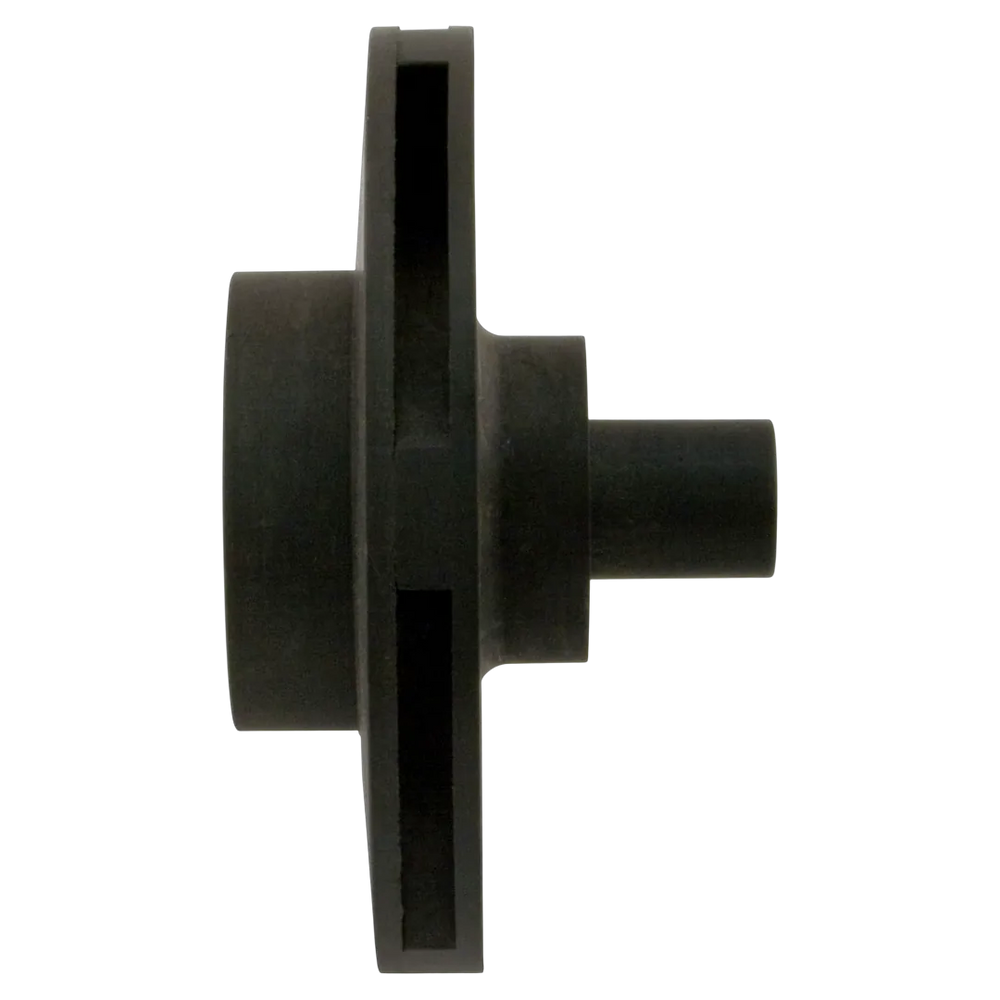

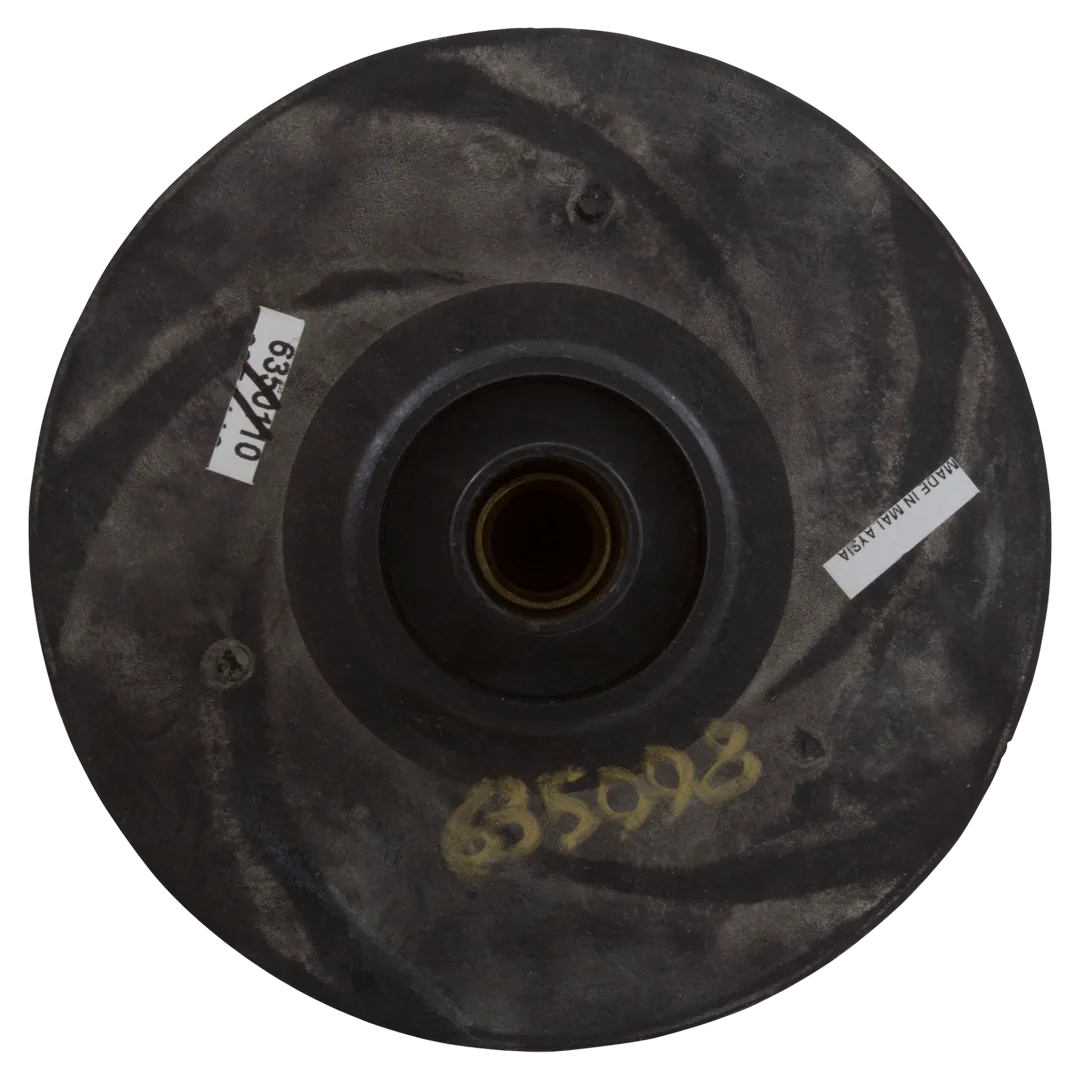

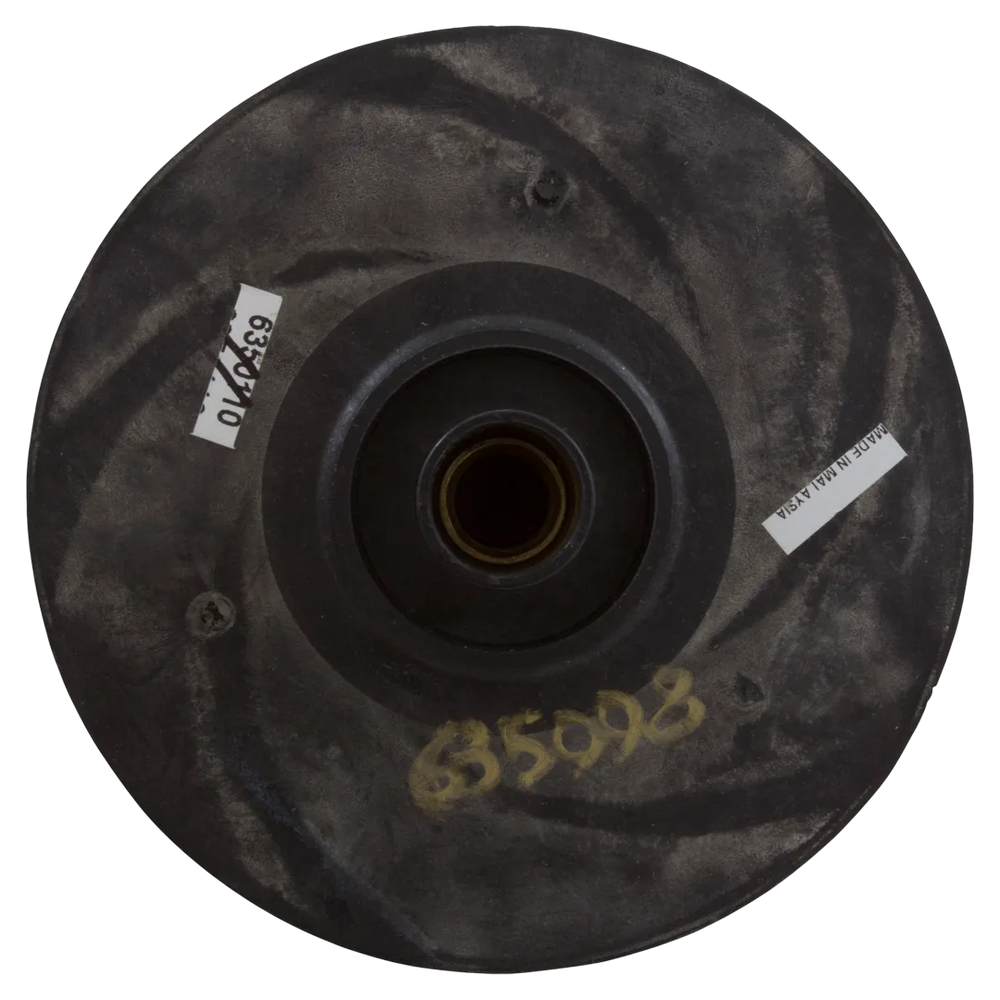

Waterco SupaTuf 1.5 HP Pump Impeller
Waterco | SKU:
635008
$10500/ea
Unit price
/
Unavailable
Waterco SupaTuf 1.5 HP Pump Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterco 635008 is a 1.5 horsepower impeller designed for SupaTuf pool pumps. It is constructed from metal and is specifically designed for use in above-ground settings. This impeller is compatible with the SupaTuf self-priming in-ground pool pump series and requires installation on a 1.5hp or greater square flange motor with a threaded shaft.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterco SupaTuf 1.5 HP Impeller |
| Part Number | 635008 |
| Part Type | Impeller |
| Compatibility | Waterco SupaTuf self-priming in-ground pool pumps |
| Substitute Part Numbers | 4590-45, 613971, WC635008 |
| Includes | Impeller only shaft seal sold separately |
| Material | Premium-grade thermoplastic |
| Impeller Diameter | 4.5 inches |
| Impeller Width | 0.5 inches |
| Eye Diameter | 2.1875 inches |
| Eye Length | 0.625 inches |
| Vane Width | 0.25 inches |
| Seal Seat Depth | 0.5 inches |
| Seal Seat Diameter | 1.5625 inches |
| Shaft Length | 0.875 inches |
| Shaft Diameter | 0.75 inches |
| Shipping Dimensions | 4.45 x 4.45 x 2.6 inches |
| Product Weight | 0.28 pounds |
