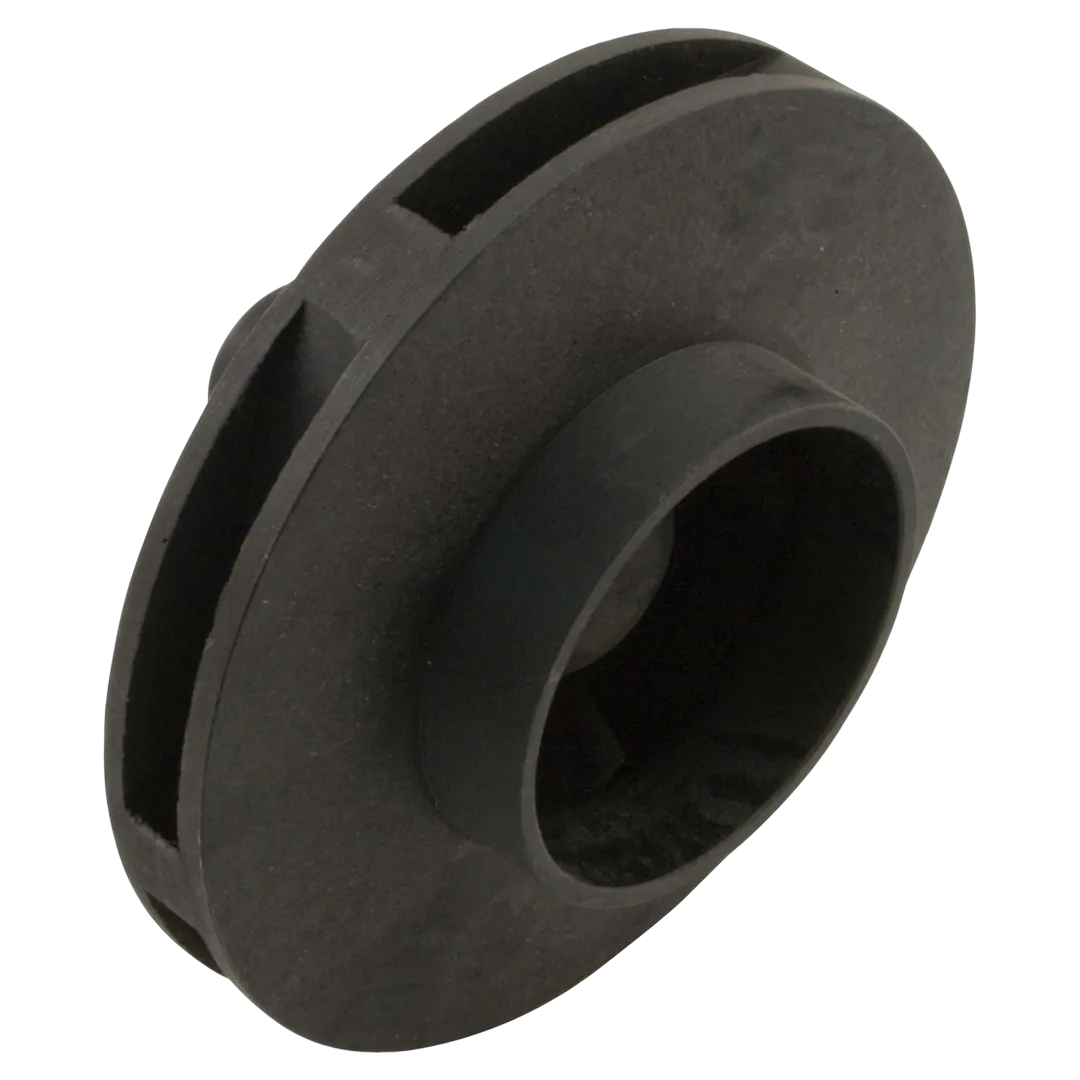

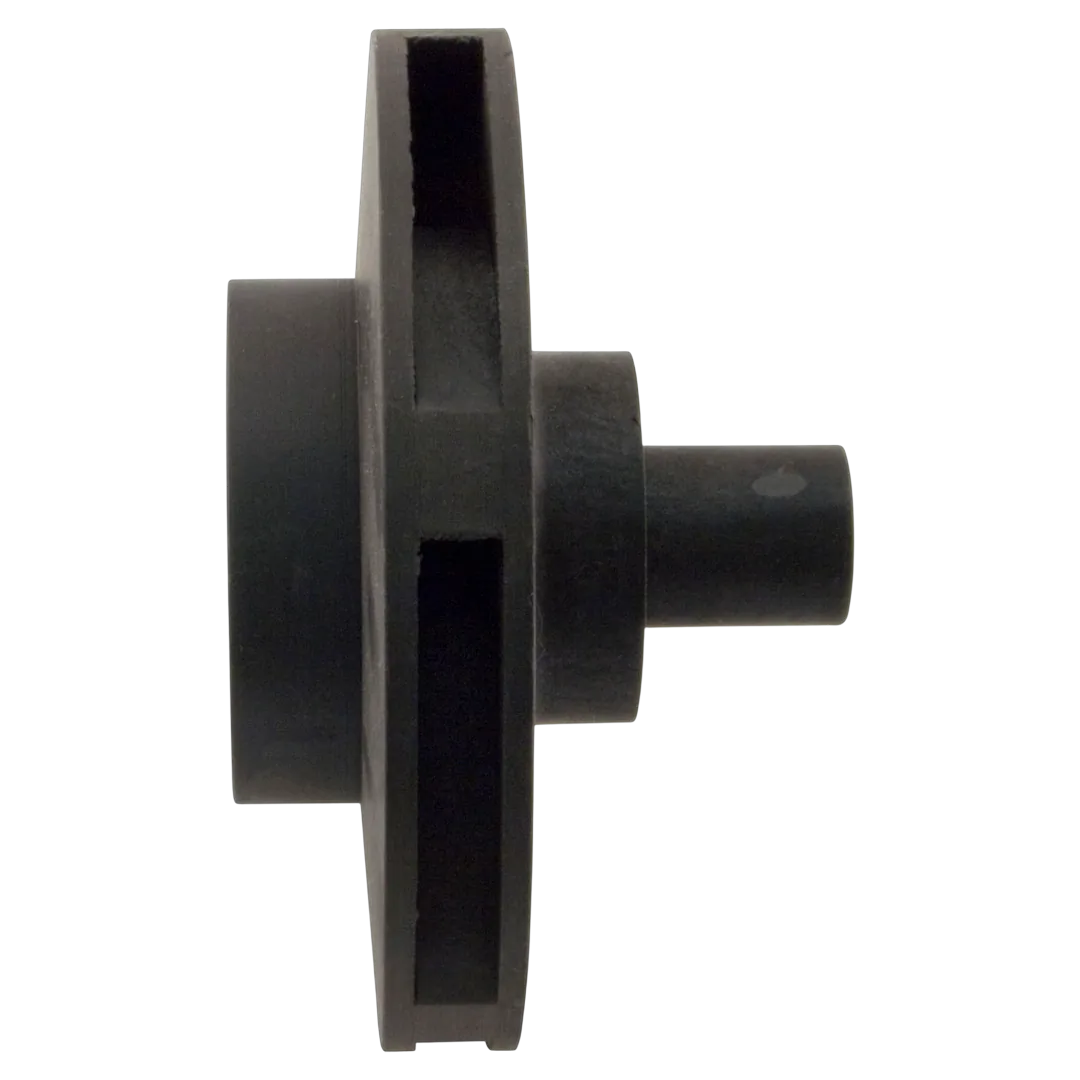

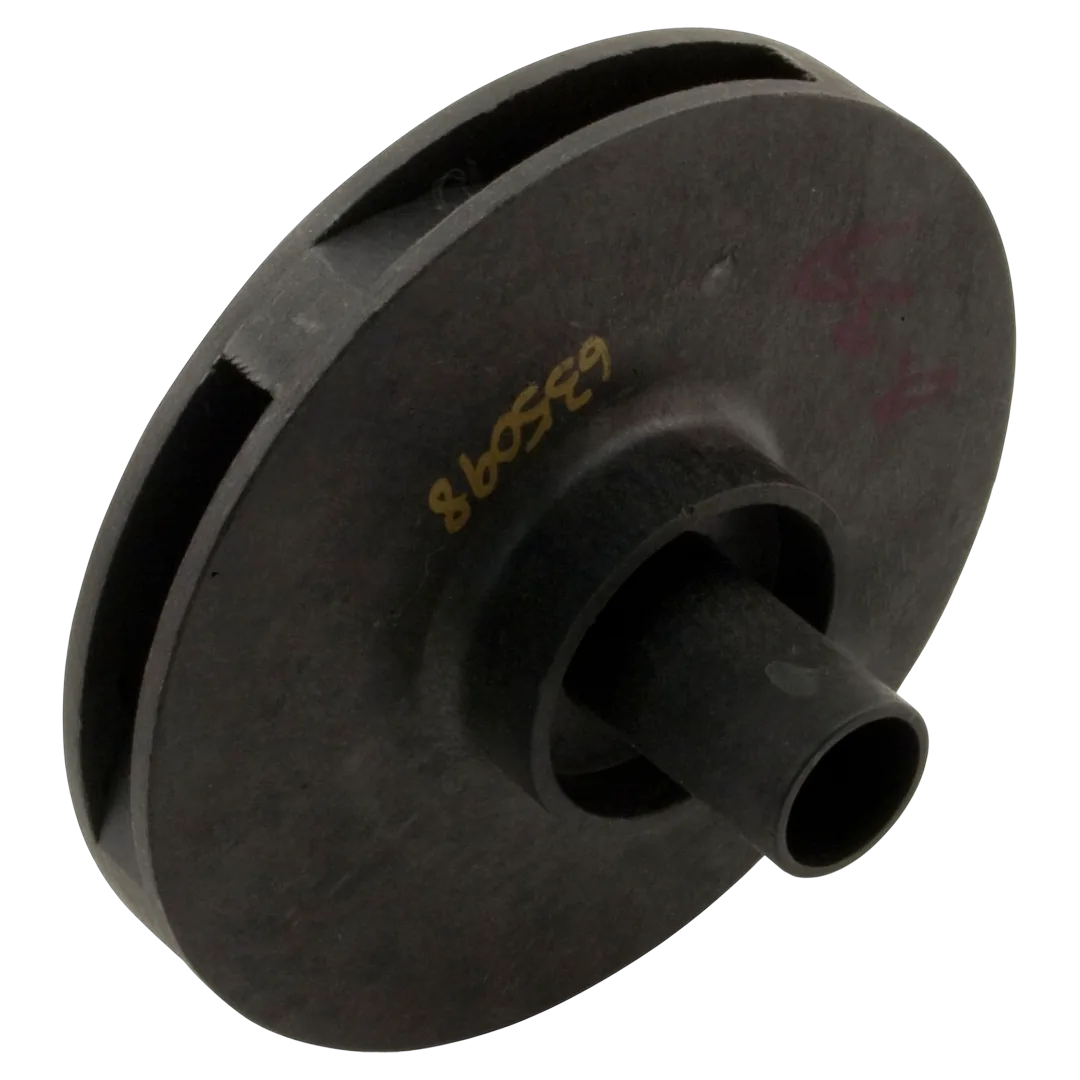

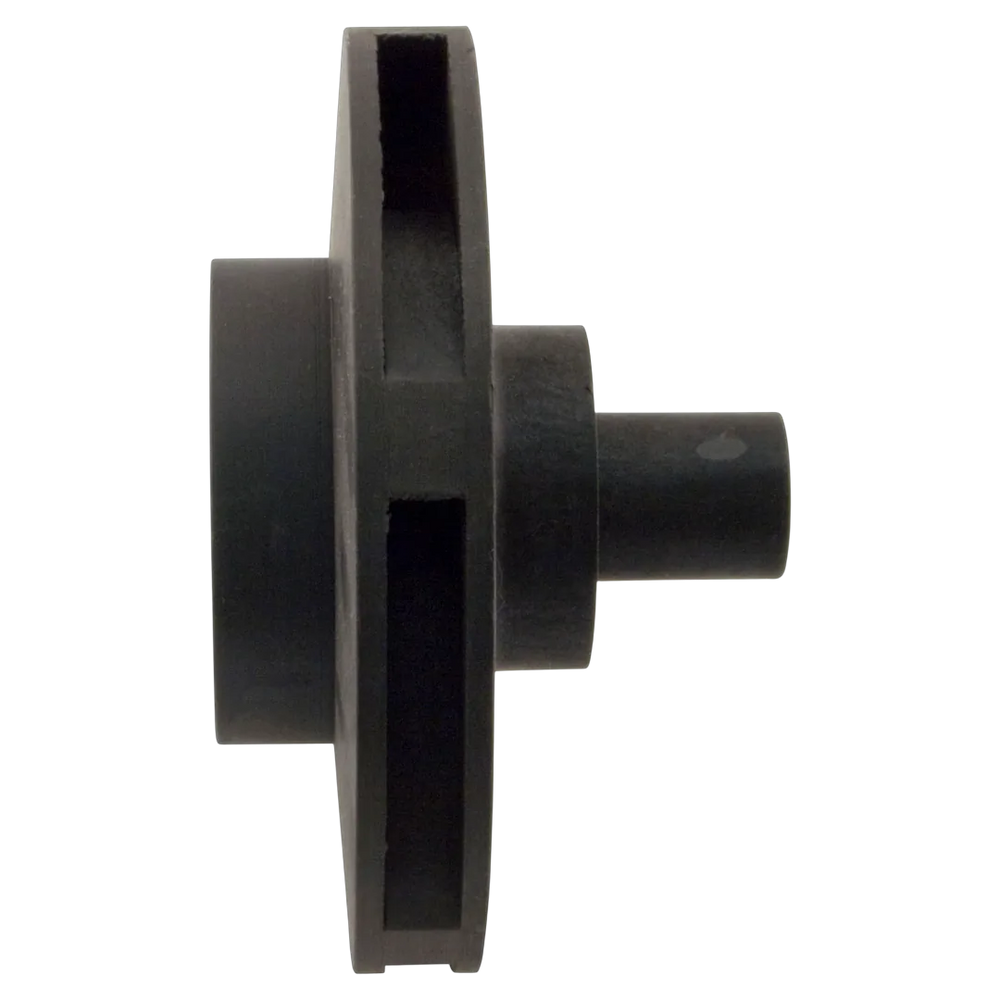

Waterco SupaStream Impeller 1.5 HP
Waterco | SKU:
635098
$11200/ea
Unit price
/
Unavailable
Waterco SupaStream Impeller 1.5 HP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Waterco 635098 is a 1.5 horsepower impeller specifically designed for the Waterco SupaStream self-priming in-ground pool pumps. It features a closed face design, enhancing its efficiency within the pumping mechanism. This impeller is compatible exclusively with the SupaStream pump series.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterco 1.5 HP Flowking Impeller |
| Part Number | 635098 |
| Part Type | Impeller |
| Compatibility | Waterco SupaStream self-priming in-ground pool pumps |
| Substitute Part Numbers | 406994, 4590-82, WC635098 |
| Includes | Impeller only shaft seal sold separately |
| Material | Industrial-grade thermoplastic |
| Horsepower Rating | 1.5 HP |
| Design Type | Closed face |
| Motor Requirement | Square flange motor with threaded shaft, rated at 1.5 HP or greater |
| Vane Width ID | 0.3125 inch |
| Eye Diameter OD | 2.1875 inch |
| Eye Length | 0.5 inch |
| Impeller Width OD | 0.5 inch |
| Impeller Diameter OD | 4.25 inch |
| Seal Seat Depth | 0.5 inch |
| Shaft Length | 0.875 inch |
| Shaft Diameter OD | 0.75 inch |
| Seal Seat Diameter OD | 1.5625 inch |
| Product Weight | 0.28 pound |
