Waterco SupaStream 1 HP Impeller
Waterco | SKU:
635097
$8900/ea
Unit price
/
Unavailable
Waterco SupaStream 1 HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

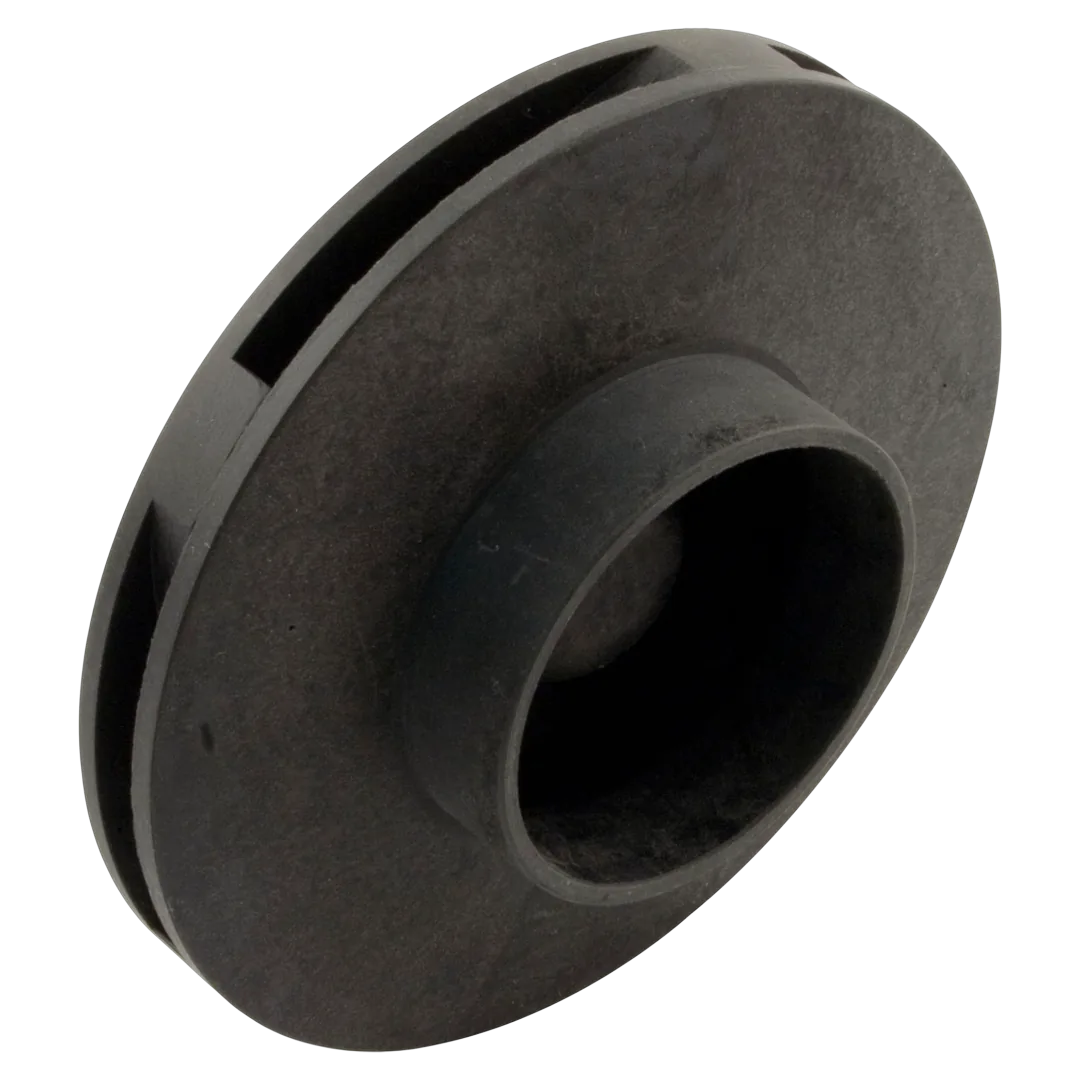

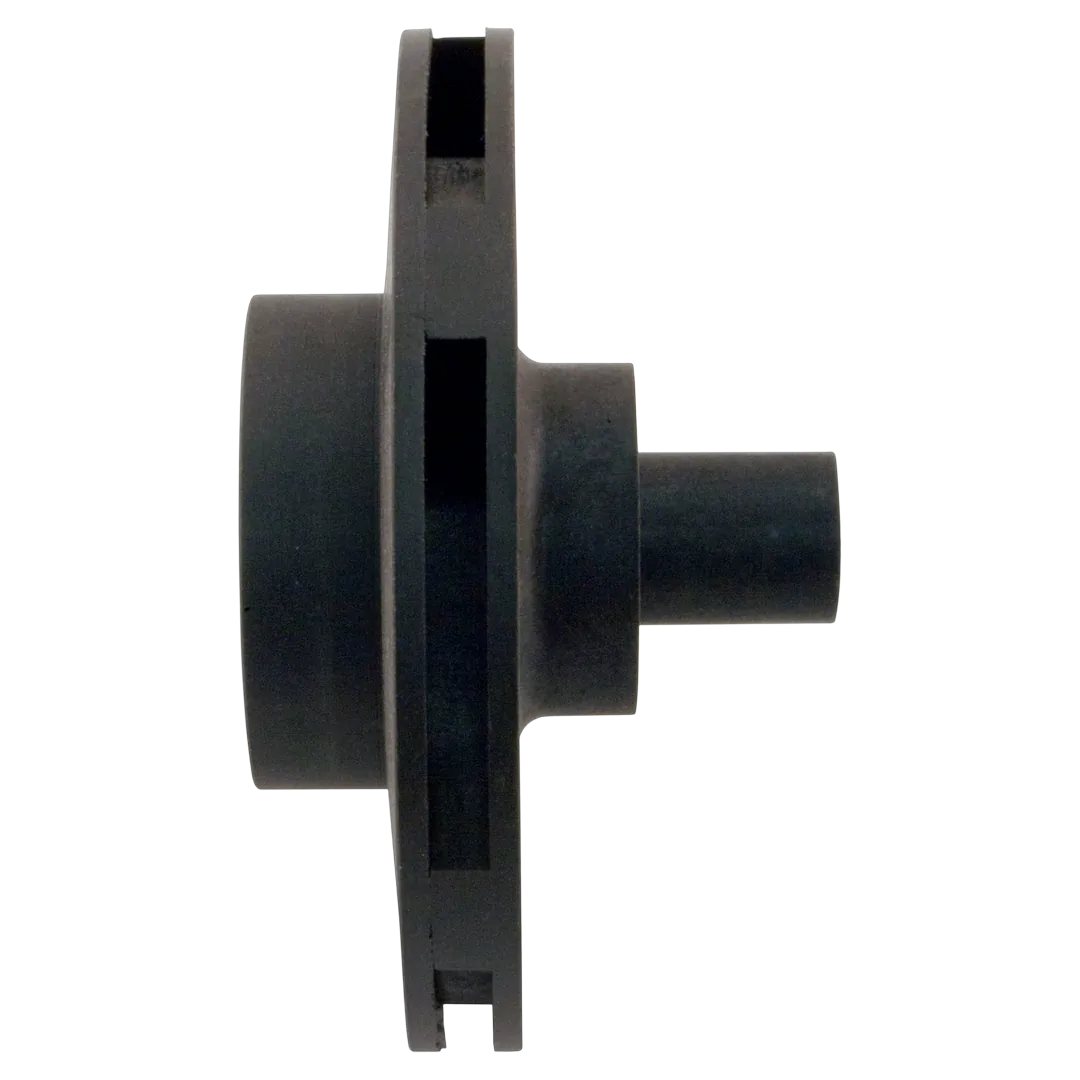

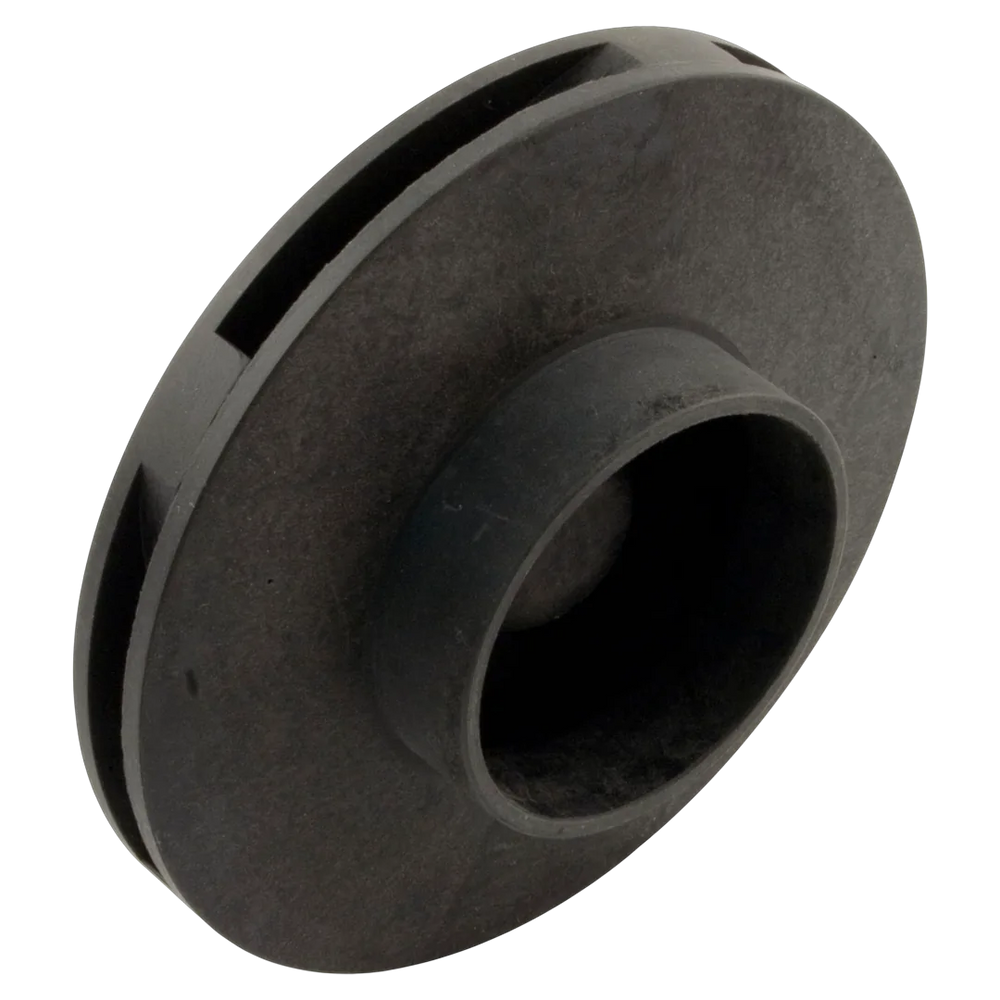

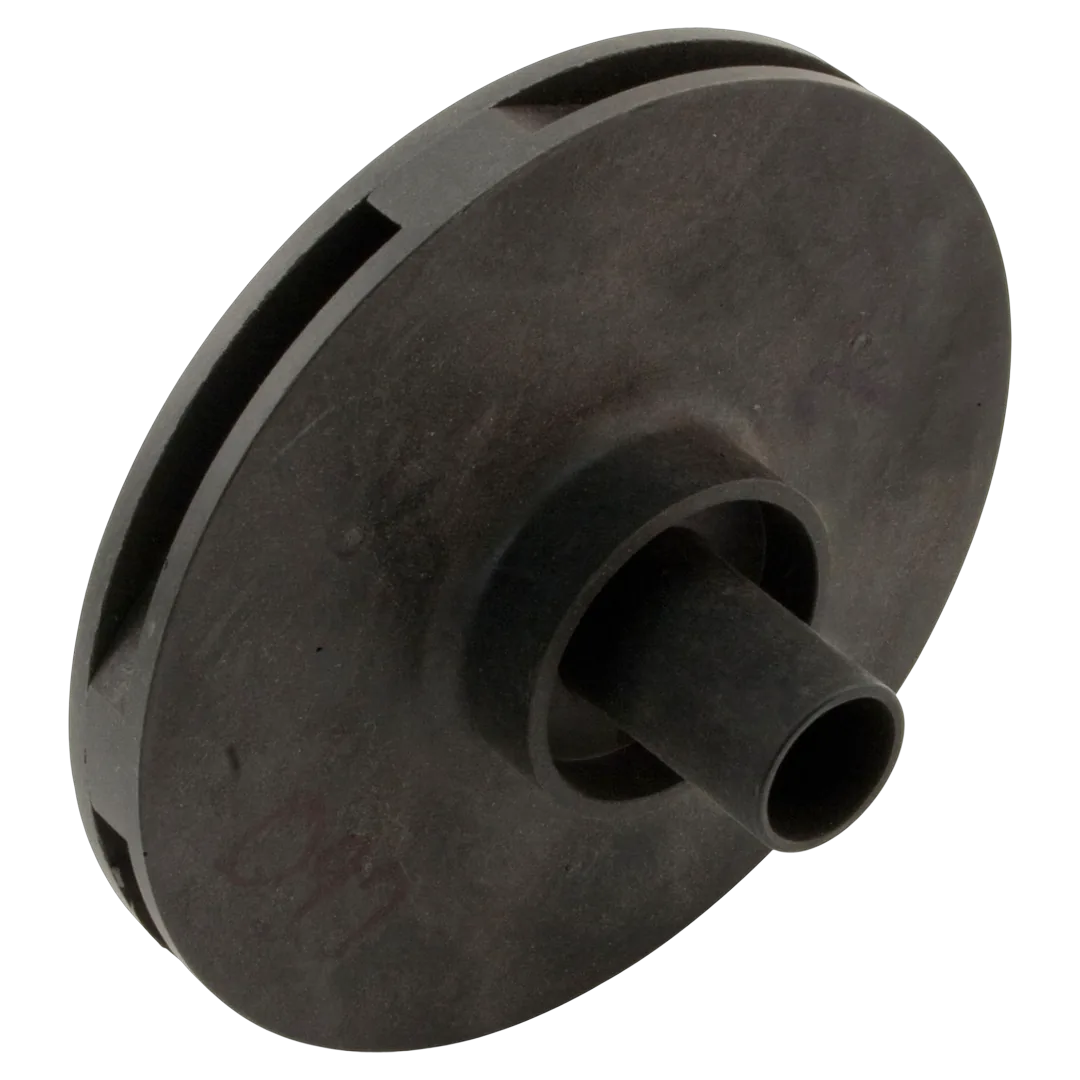

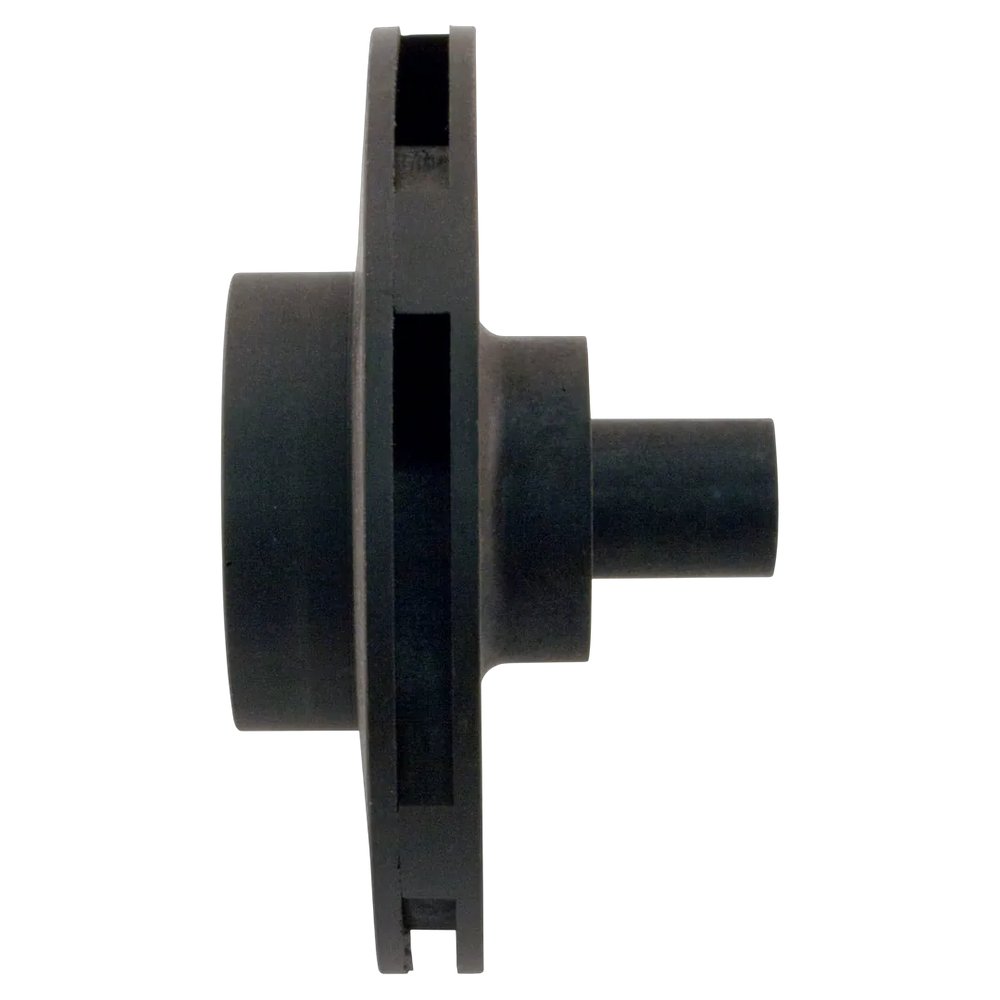

The Waterco 635097 is a 1.0 horsepower impeller designed for SupaStream pool pumps. It features a closed-face design, which is intended to enhance water flow efficiency. This component is specifically manufactured to fit the SupaStream series of self-priming in-ground pool pumps from Waterco.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterco SupaStream 1.0 HP Impeller |
| Part Number | 635097 |
| Part Type | Impeller |
| Compatibility | Waterco SupaStream self-priming in-ground pool pumps |
| Substitute Part Numbers | 406993, 4590-81, WC635097 |
| Includes | Impeller only shaft seal sold separately |
| Material | Premium-grade thermoplastic |
| Horsepower Rating | 1.0 HP |
| Design Type | Closed face |
| Motor Requirement | 1.0 HP or greater square flange motor with threaded shaft |
| Vane Width ID | 0.25 inch |
| Eye Diameter OD | 2.1875 inches |
| Eye Length | 0.5625 inch |
| Impeller Width OD | 0.5 inch |
| Impeller Diameter OD | 4.5 inches |
| Seal Seat Depth | 0.5 inch |
| Shaft Length | 0.875 inch |
| Shaft Diameter OD | 0.75 inch |
| Seal Seat Diameter OD | 1.5625 inches |
| Shipping Dimensions | 15 x 5 x 15 inch |
| Product Weight | 0.25 pound |
