Waterco HydroStorm 2HP Impeller
Waterco | SKU:
63401525
$9300/ea
Unit price
/
Unavailable
Waterco HydroStorm 2HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

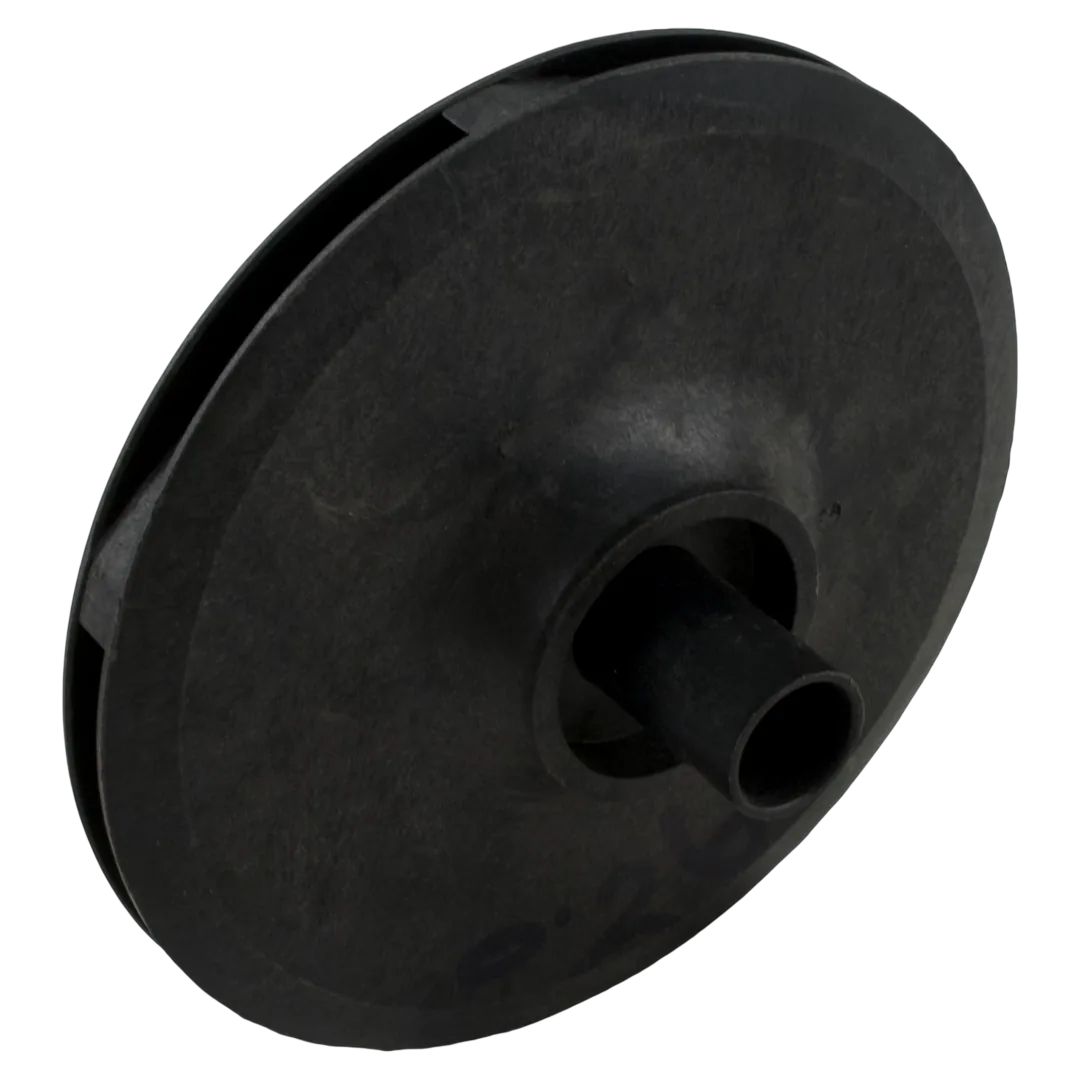

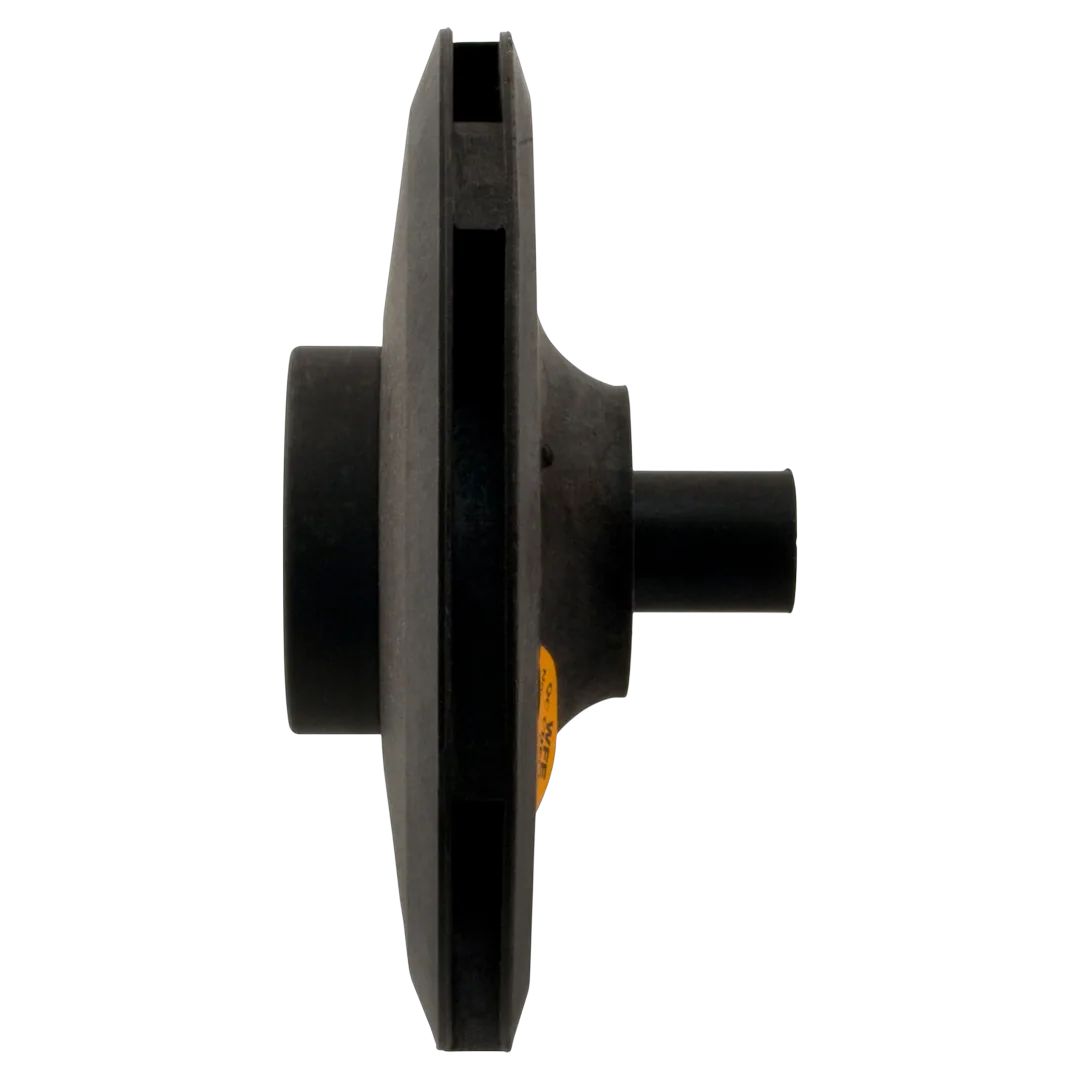

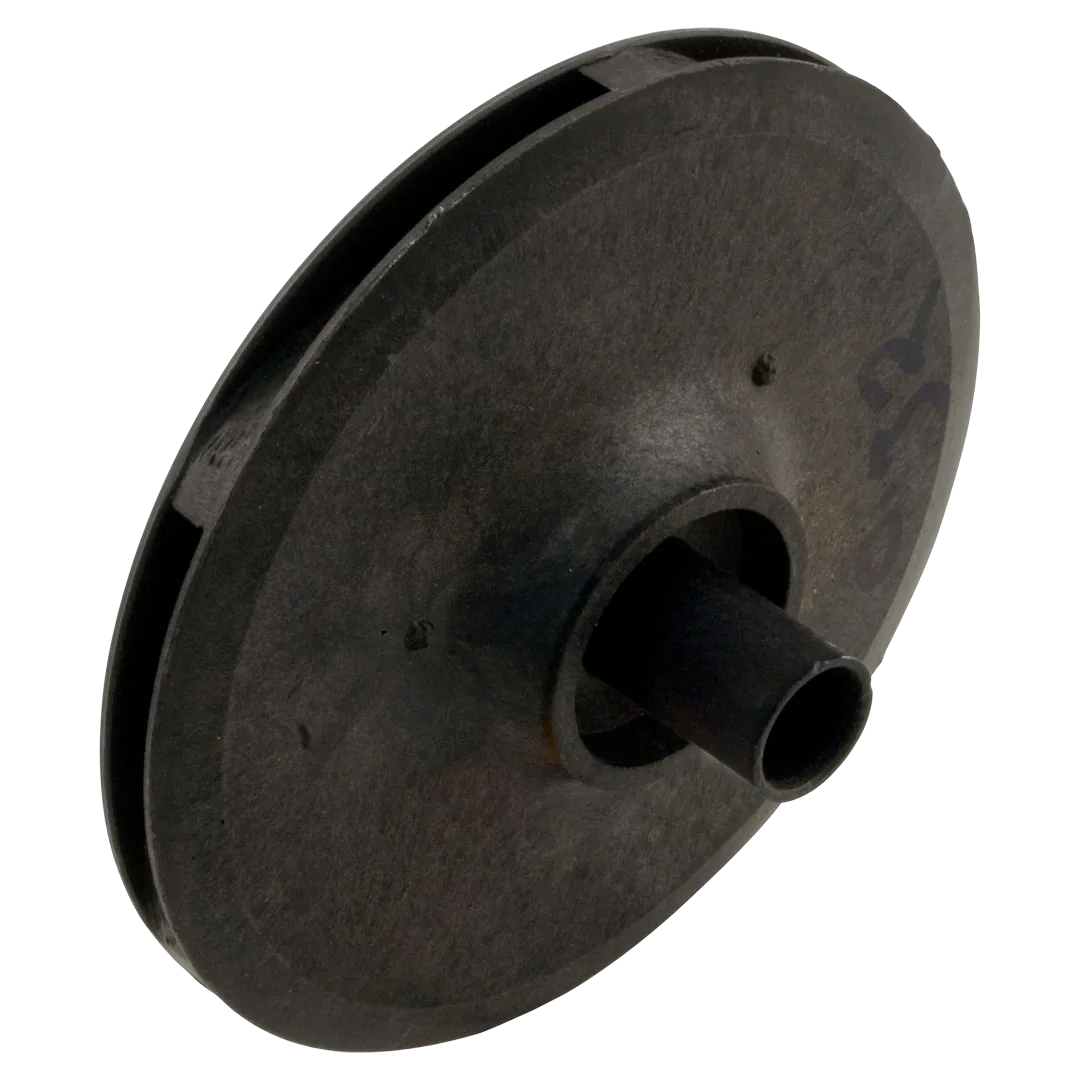

The Waterco 63401525 is a closed impeller designed for HydroStorm, HydroStorm Plus, and Star series pool pumps, rated at 2.0 to 2.5 horsepower. It features a closed face design with a sidewall on the top and bottom of the vanes, measuring 4.90 inches in outer diameter. This impeller is compatible with Waterco models such as HydroStorm and HydroStorm Plus, and replaces part number R0555804.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterco Impeller 2.0/2.5 HP HydroStorm/Plus/Star |
| Part Number | 63401525 |
| Part Type | Impeller |
| Compatibility | HydroStorm, HydroStorm Plus, HydroStar (2-1/2") Self Priming Semi-Commercial Pump |
| Substitute Part Numbers | 4590-106, 5005-09, 5020-005, 523370249218, 626892, 6340152, R0555804, TLD-101-5031, WC6340152, WC63401525, WTU-101-1004 |
| Includes | Impeller only shaft seal sold separately |
| Eye Diameter OD | 2 inch |
| Eye Length | 0.5 inch |
| Impeller Width OD | 0.375 inch |
| Impeller Diameter OD | 5.3125 inch |
| Seal Seat Depth | 0.5 inch |
| Shaft Length | 0.875 inch |
| Shaft Diameter OD | 0.75 inch |
| Seal Seat Diameter OD | 1.625 inch |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 2 pound |
