Waterco HydroStorm 1.0 HP Impeller
Waterco | SKU:
63401325
$10800/ea
Unit price
/
Unavailable
Waterco HydroStorm 1.0 HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

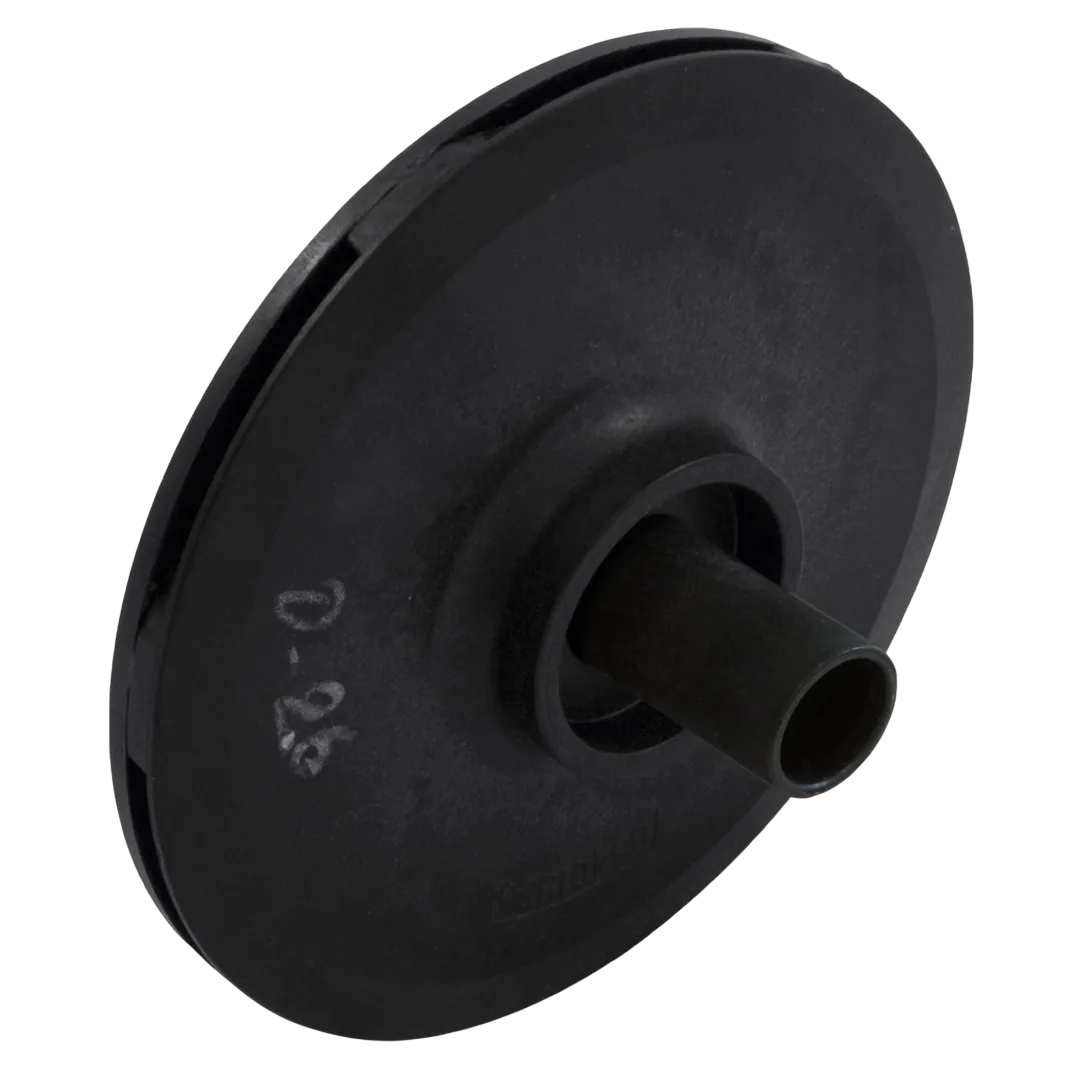

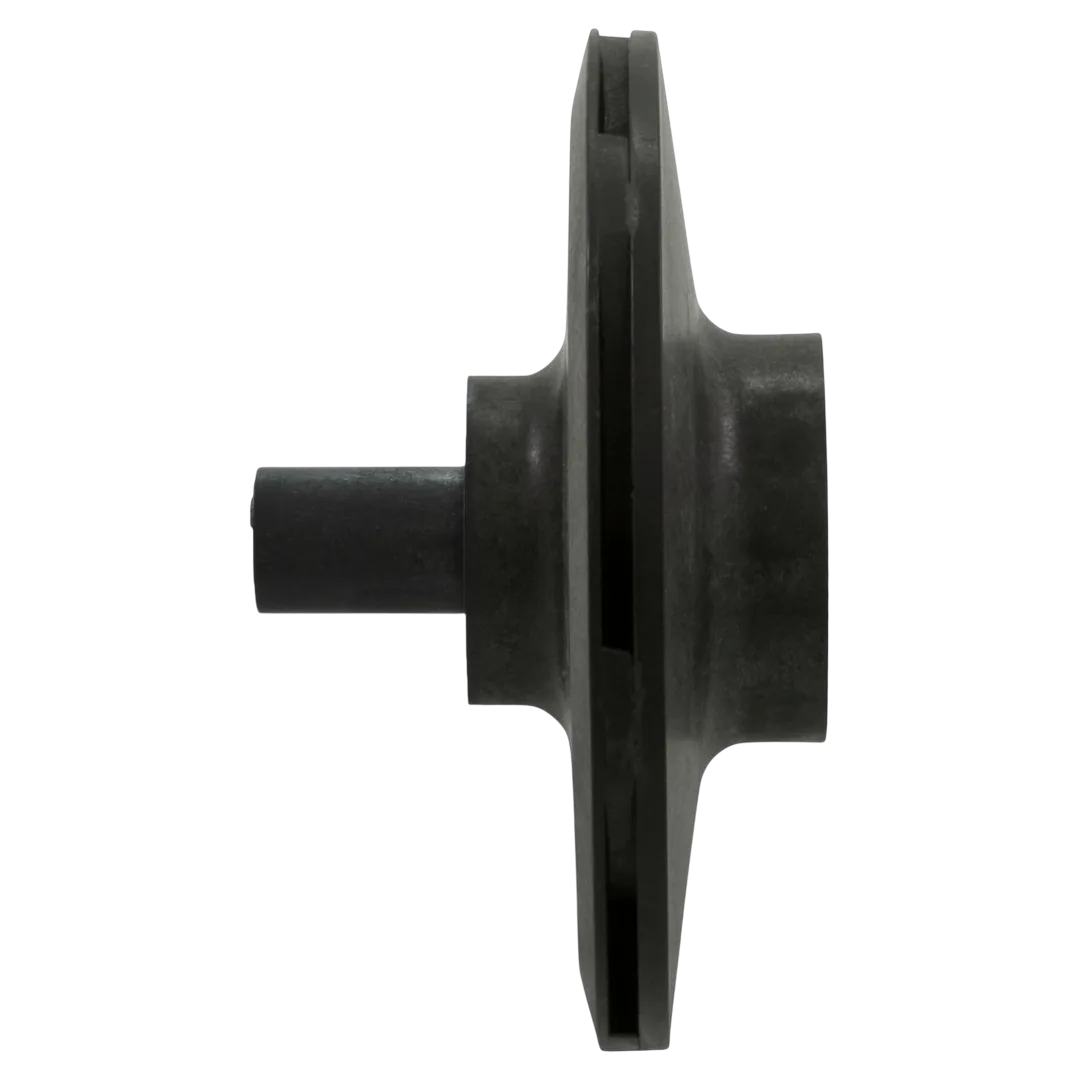

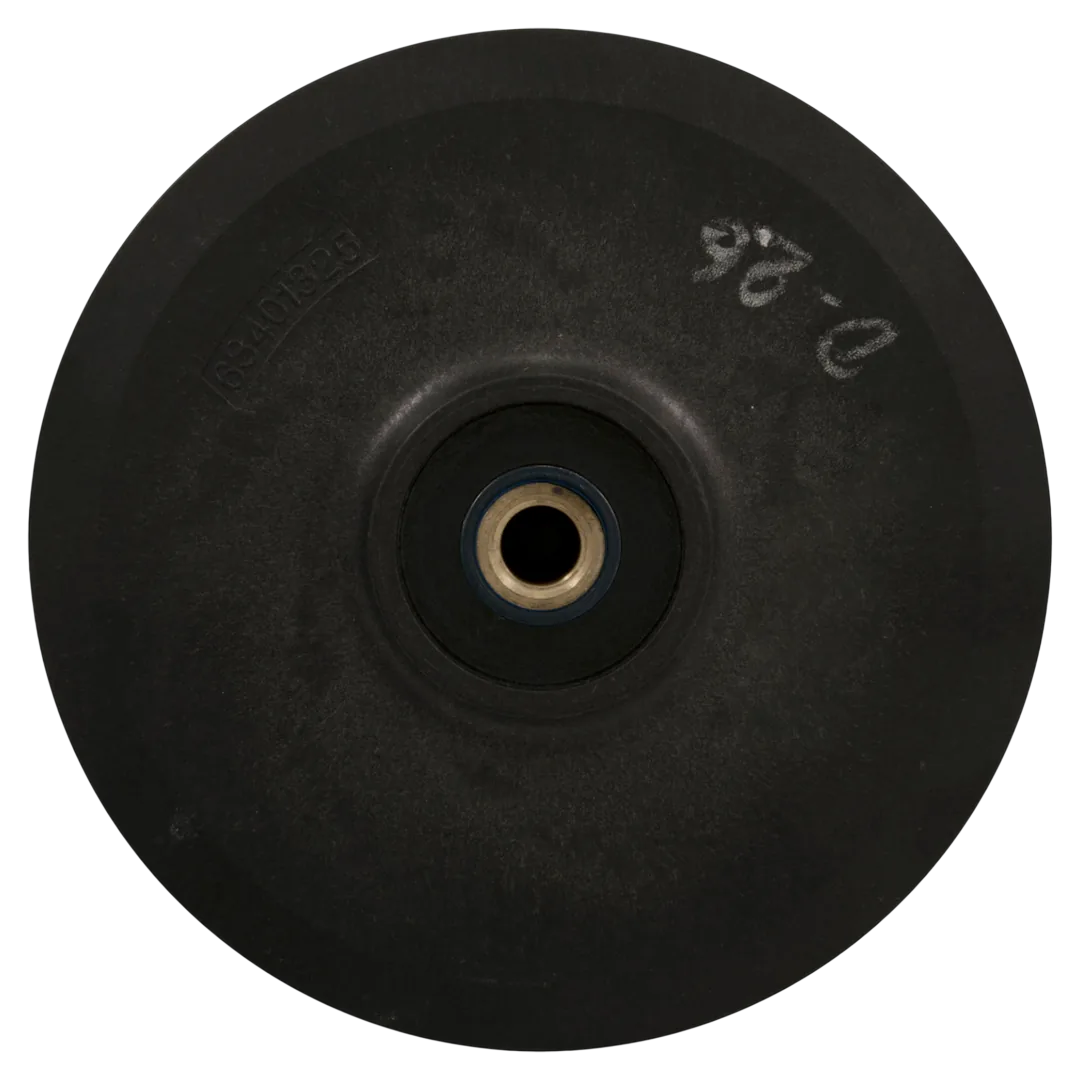

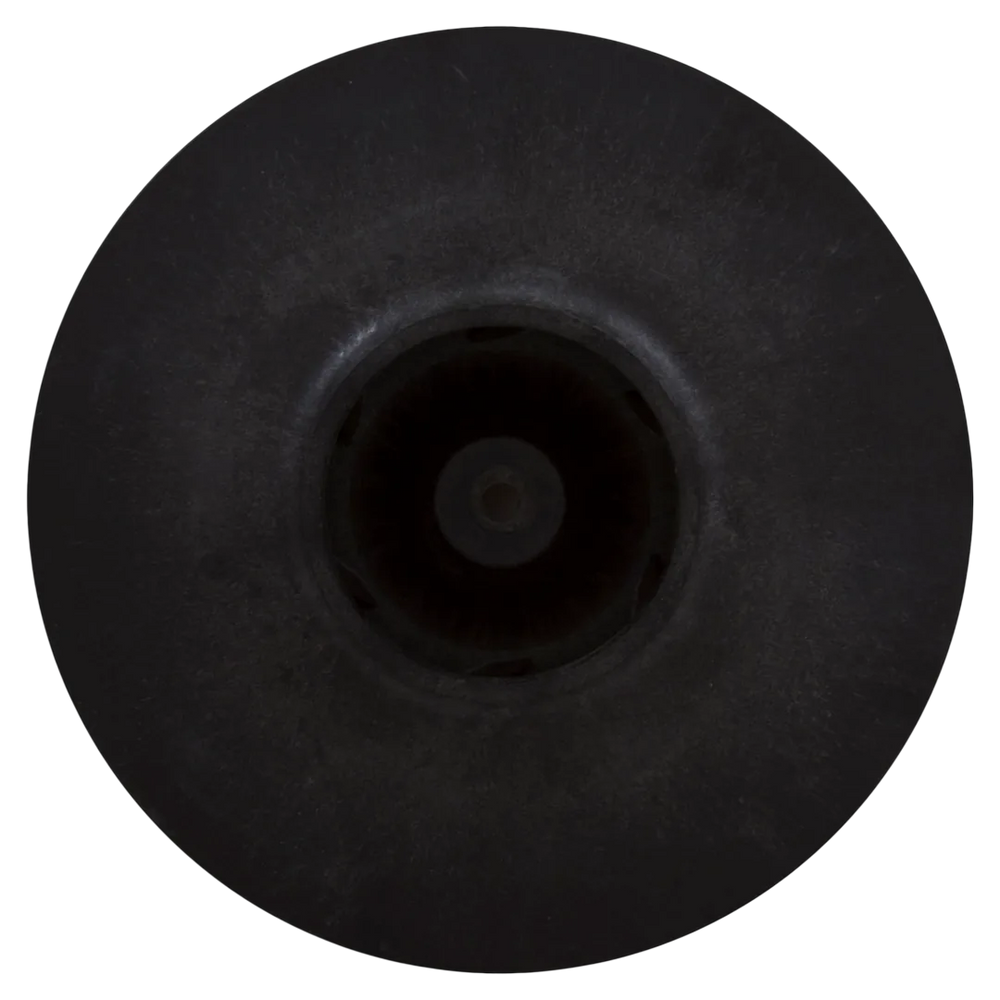

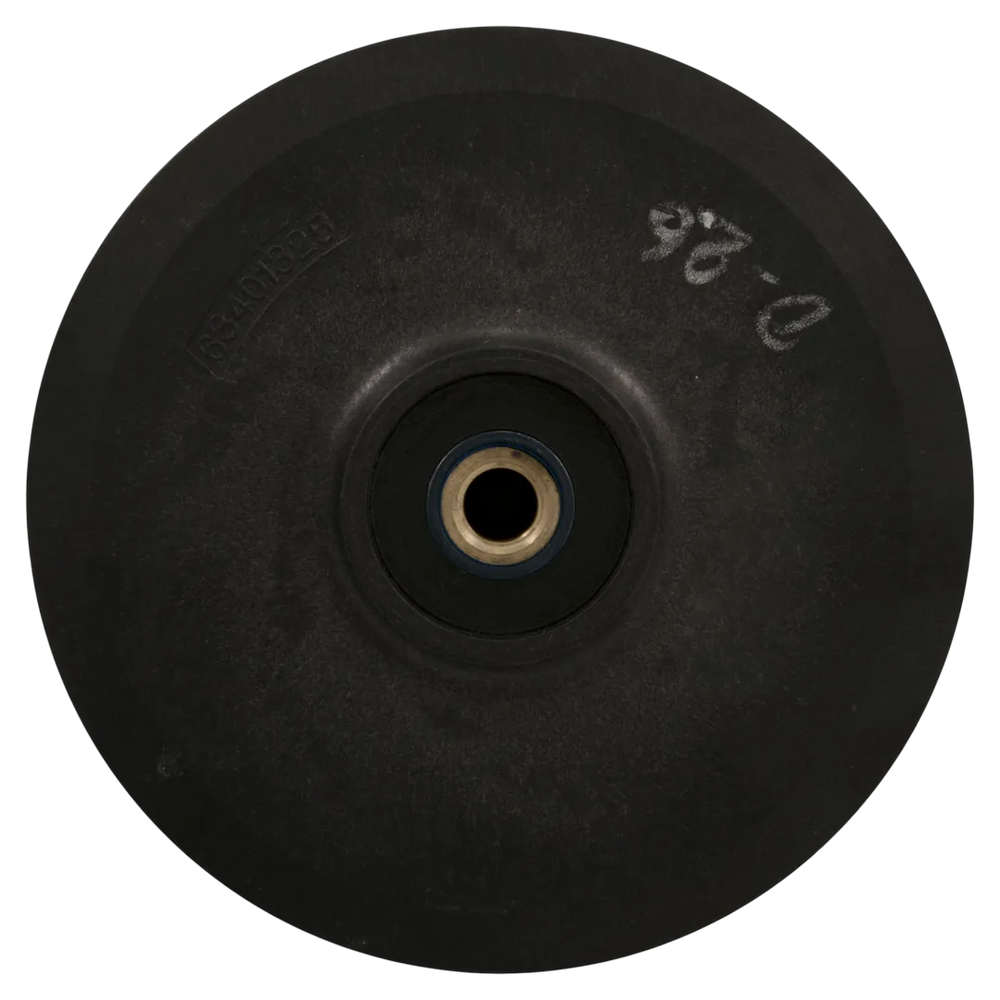

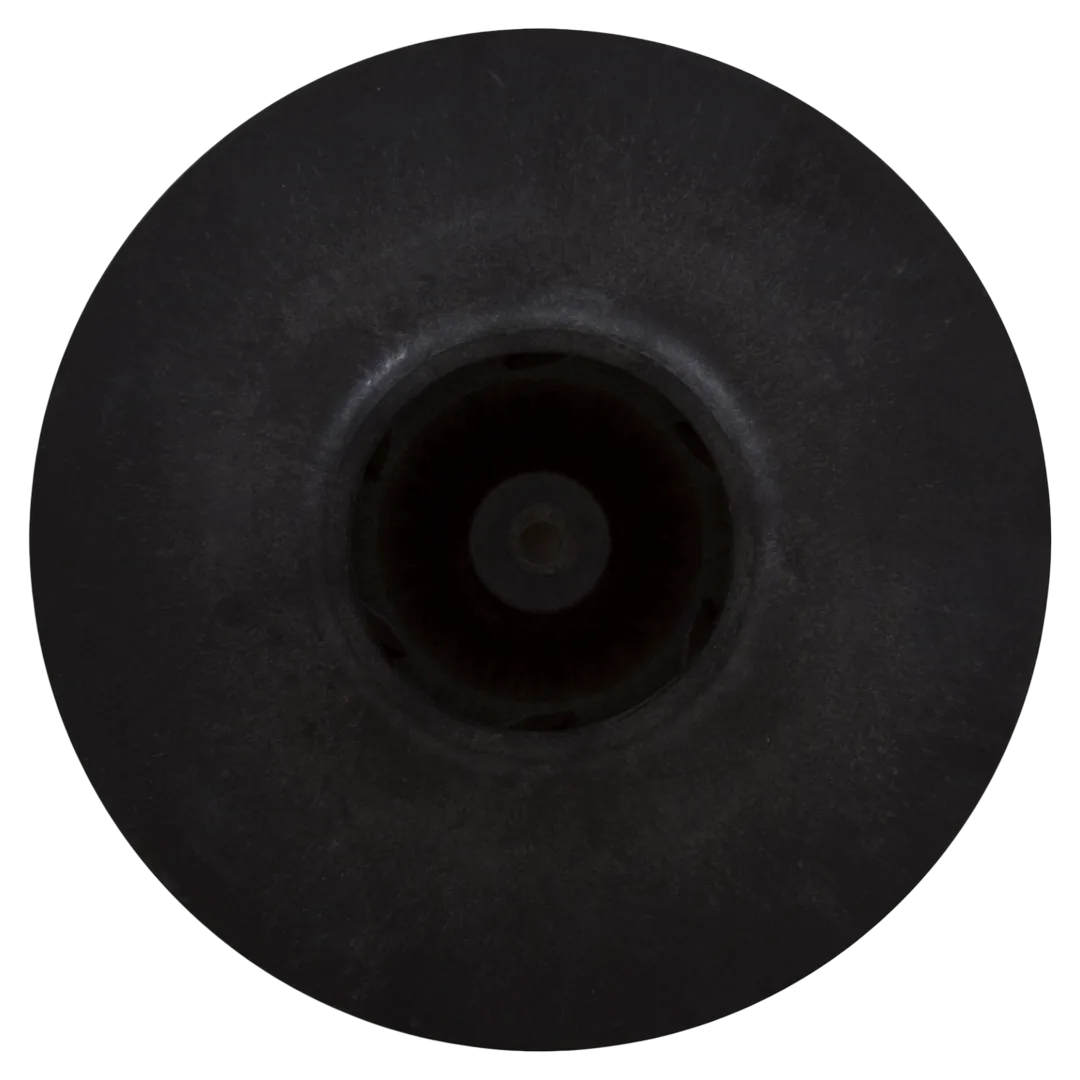

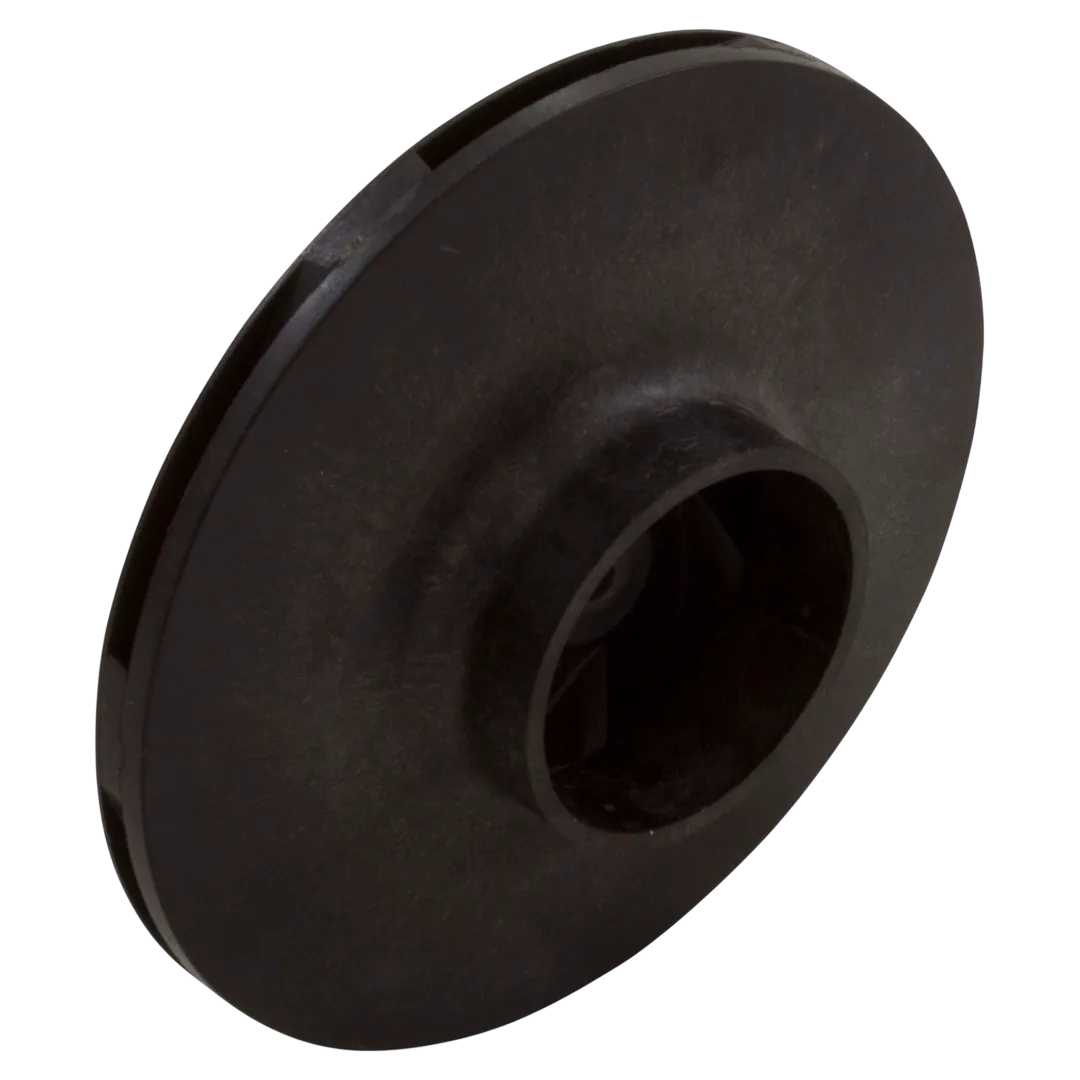

The Waterco 63401325 is a closed face impeller designed for 1.0 horsepower HydroStorm, HydroStorm Plus, and HydroStar pumps. It is crafted from durable materials and is situated between the motor bracket and the diffuser. This component is specifically compatible with Waterco's HydroStorm series pumps.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Waterco 1 HP Impeller |
| Part Number | 63401325 |
| Part Type | Impeller |
| Compatibility | HydroStar, HydroStorm, HydroStorm-Plus |
| Substitute Part Numbers | 406980, 4590-104, WC63401325 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 5 inch |
| Vane Width ID | 0.125 inch |
| Eye Diameter OD | 2 inch |
| Eye Length | 0.625 inch |
| Impeller Width OD | 0.3125 inch |
| Seal Seat Depth | 0.4375 inch |
| Shaft Diameter OD | 0.75 inch |
| Seal Seat Diameter OD | 1.625 inch |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 2 pound |
