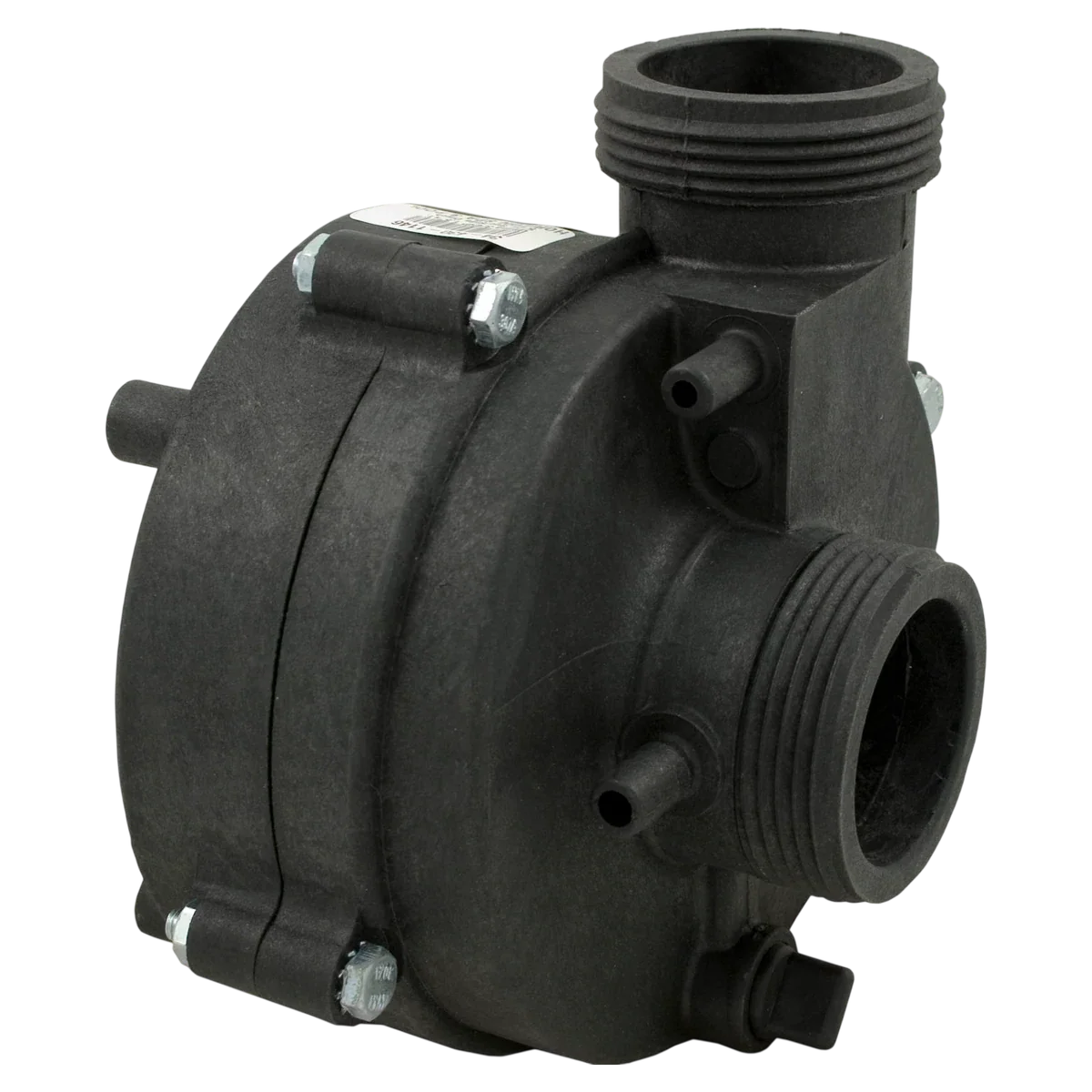

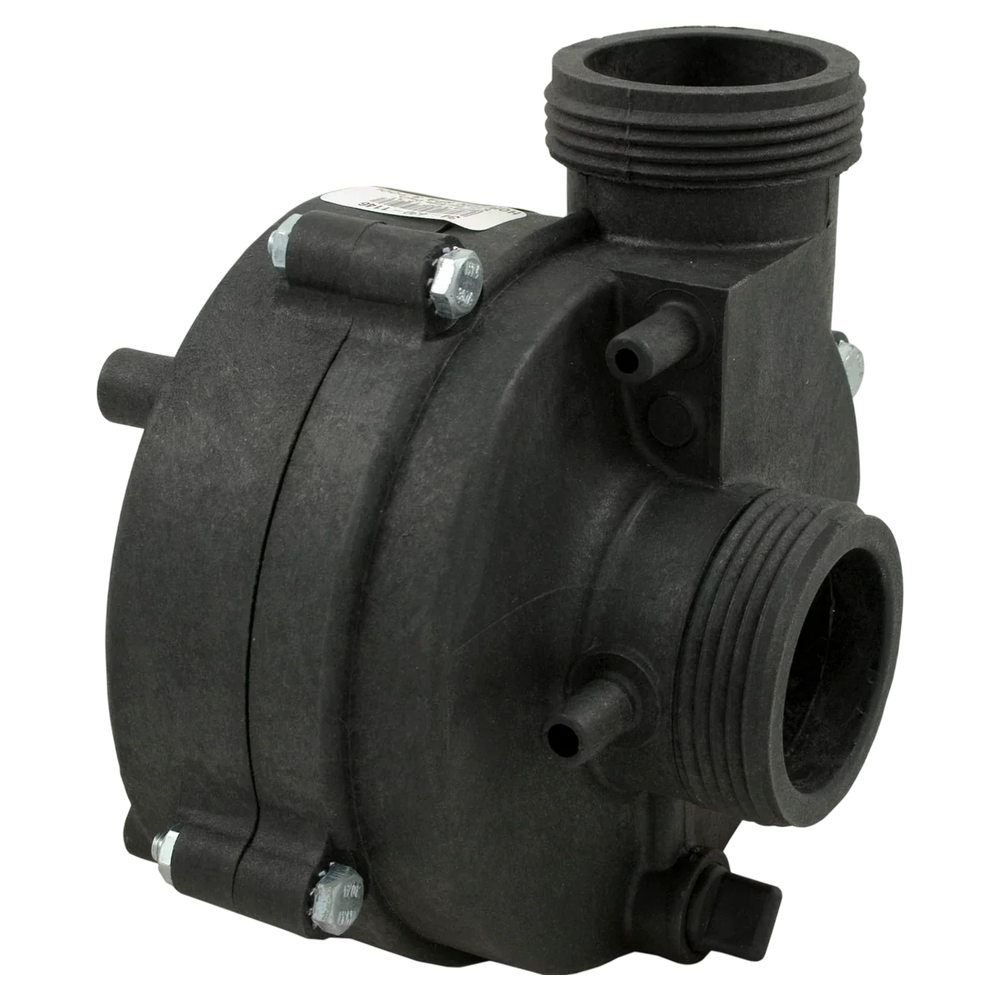

Ultima Wet End 0.75HP

This wet end fits the Balboa Vico Ultima series 48-frame pump, with 1-1/2" male buttress thread center suction and side discharge, built for the 0.75HP version.

Key Features

• 48 frame thru-bolt design
• Center suction, side discharge
• 1-1/2" mbt suction and discharge
• 6 o'clock drain plug
• Volute secured with 4 bolts and nuts

Compatibility

• Balboa Vico Ultima series, center/side discharge, 48 frame pump line
• Does not fit Vico Ultima 2HP and higher wet ends, which use 2" unions instead of 1-1/2"

The two horizontal barbs on the wet end are factory sealed shut but can be drilled out for certain heat-recovery plumbing setups.
