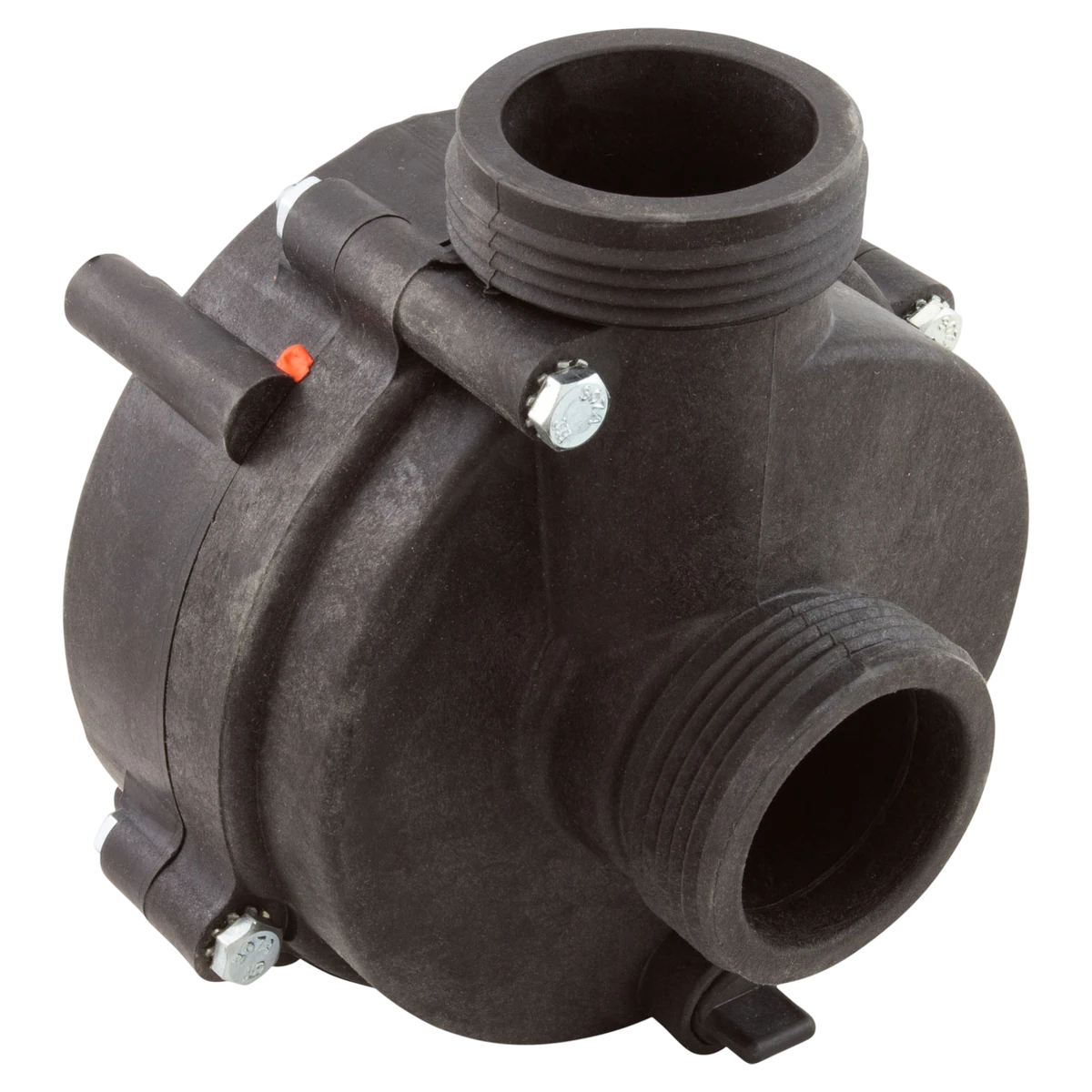

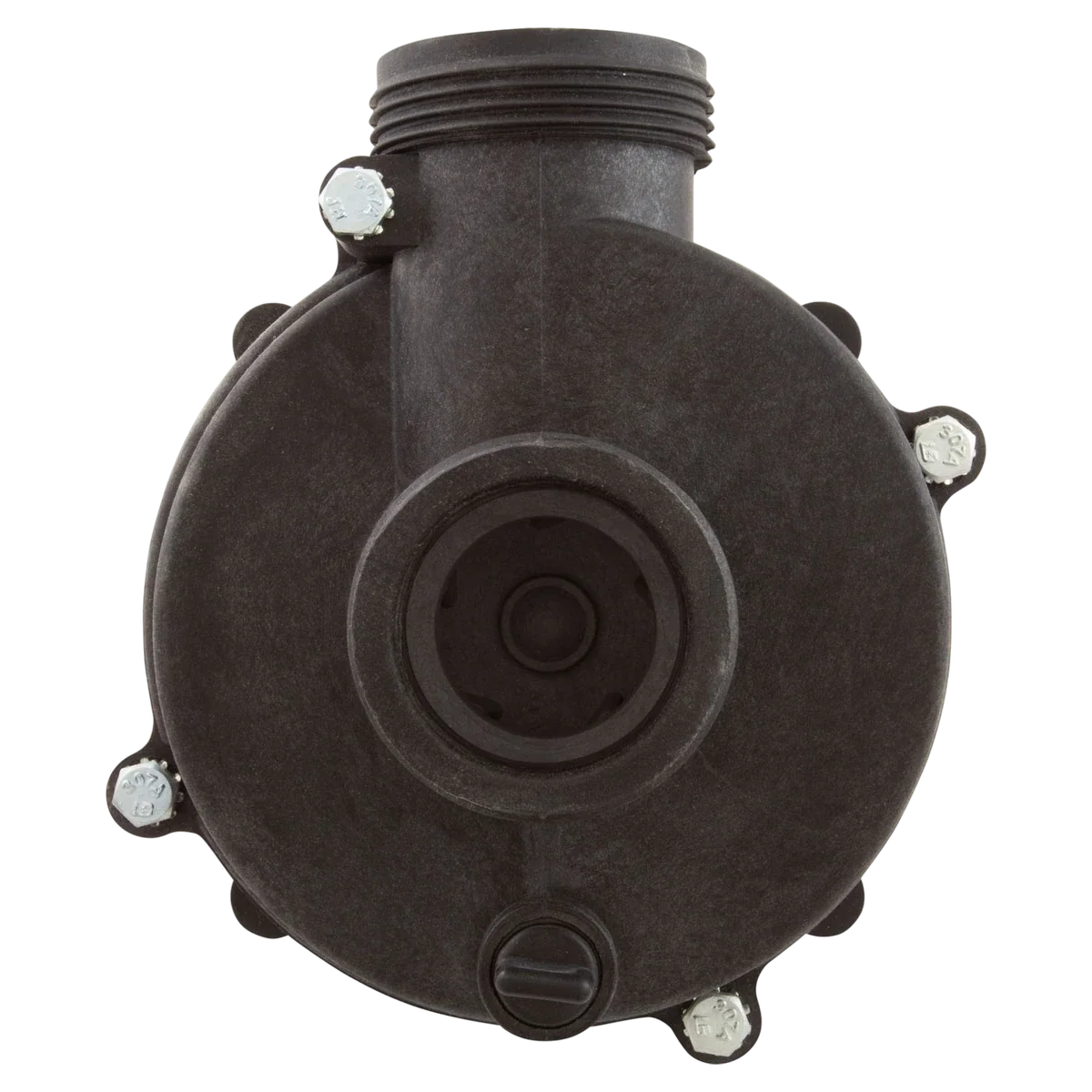

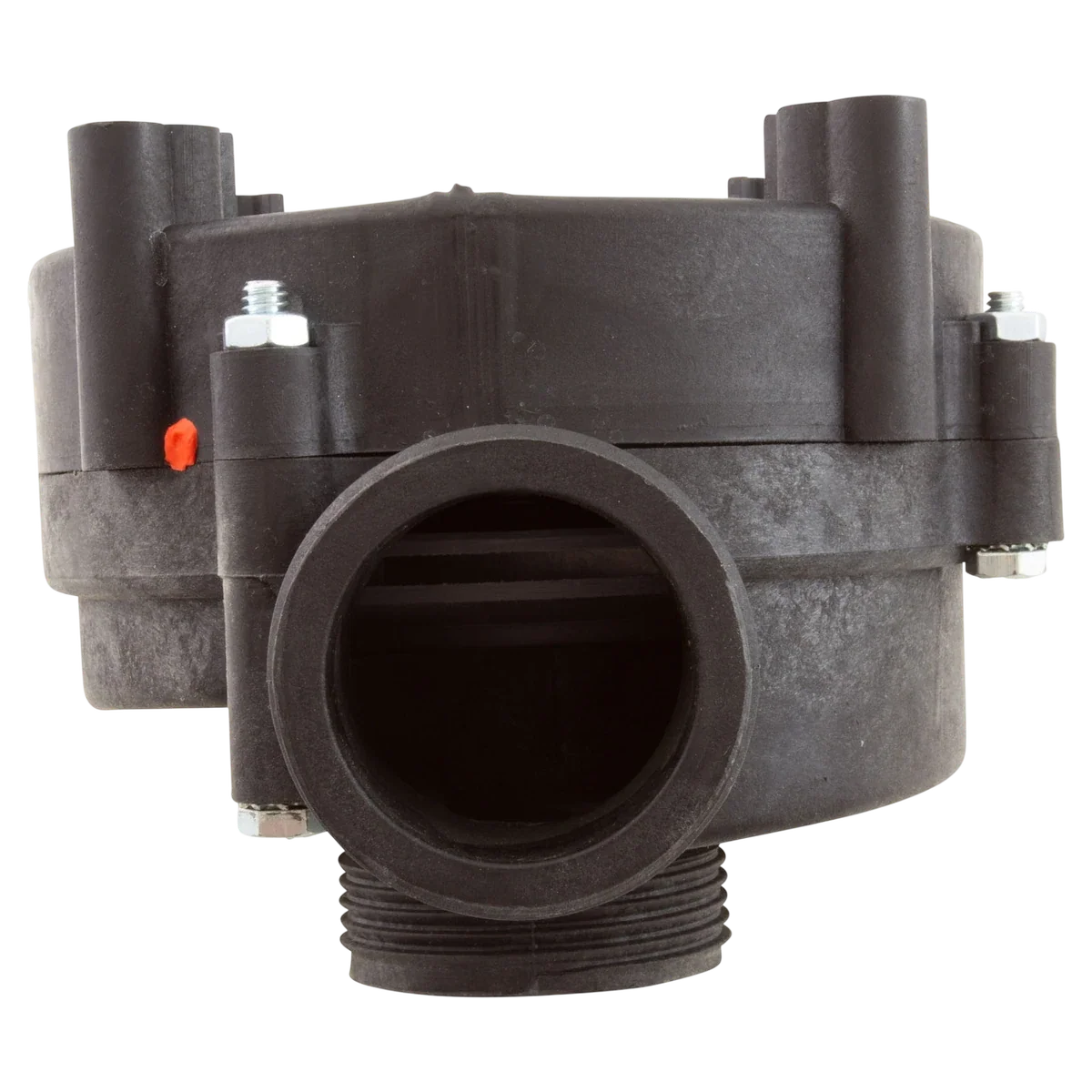

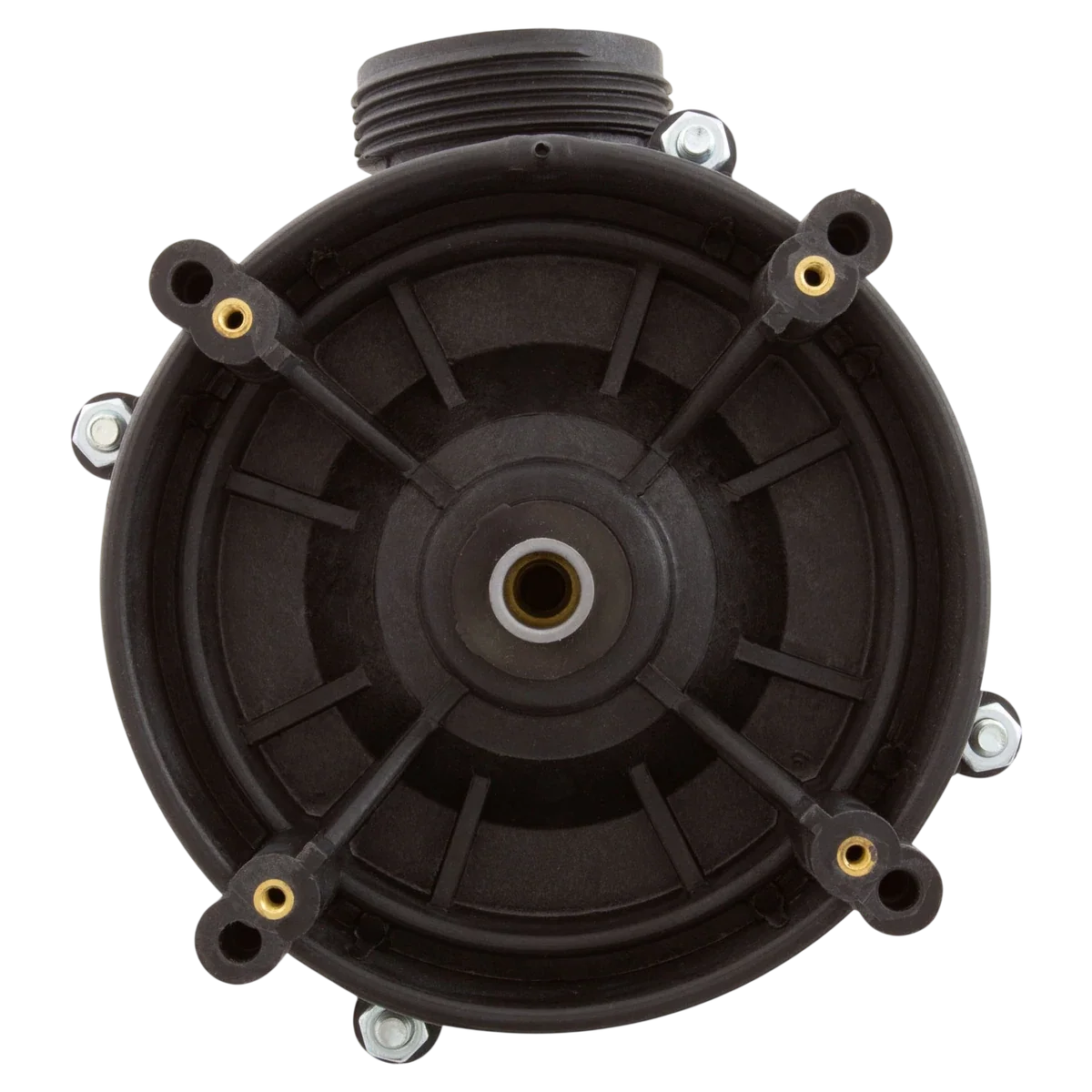

Ultima 1.0HP Center Discharge Wet End

This wet end is the volute, impeller housing and seal assembly for a Vico/Balboa Ultima 1.0HP spa pump, mounting to a 48-frame thru-bolt motor to move water through the spa's plumbing. It replaces a worn or leaking wet end without swapping the whole motor.

Key Features

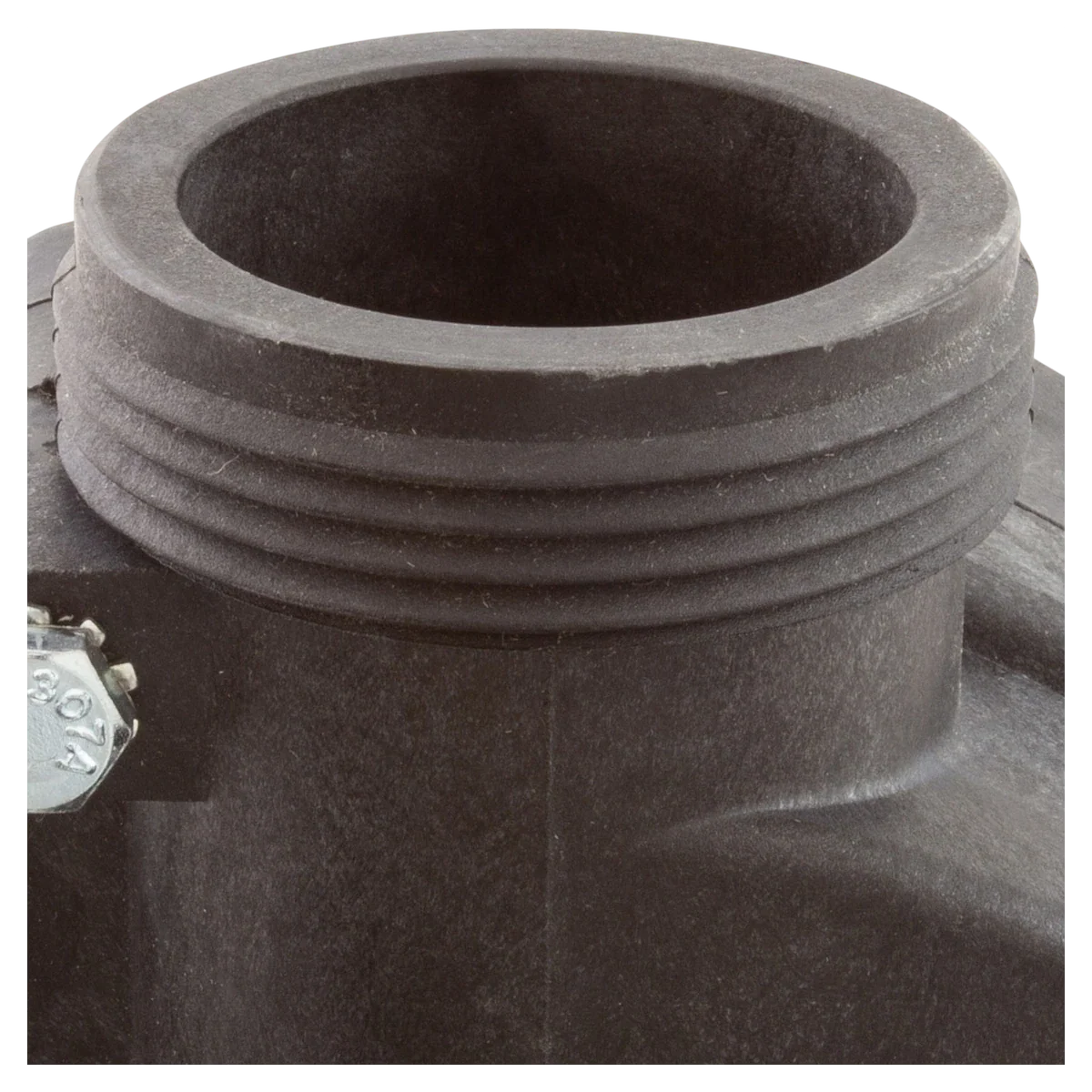

• 1-1/2" male buttress thread (MBT) suction and discharge
• Center suction, center discharge configuration

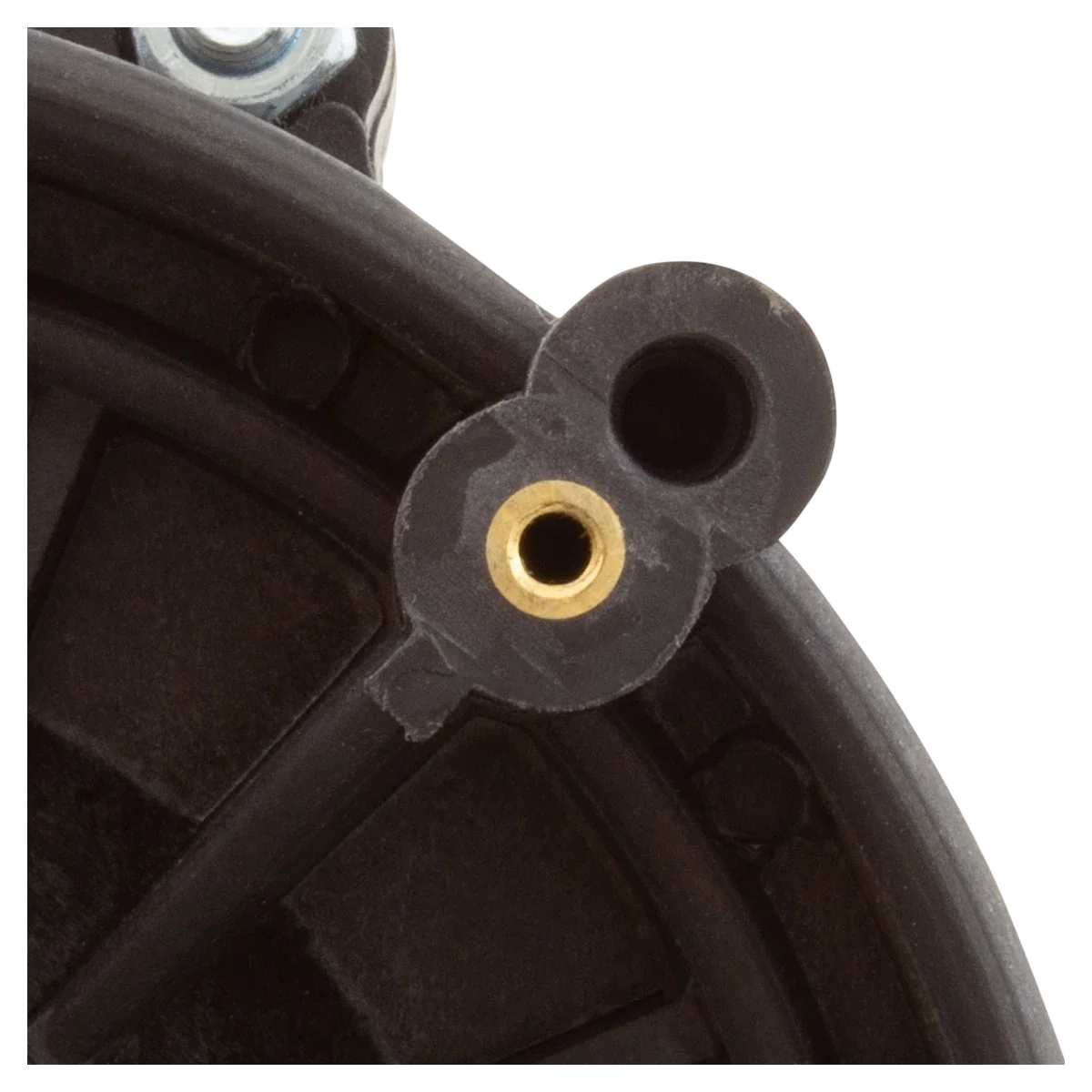

• 4-bolt, 4-nut volute fastening
• 6 o'clock drain plug location
• Black housing

Compatibility

• Balboa Vico Ultima series, center/side discharge, 48-frame pumps
• Does not fit 1215116 (side discharge), 1215128 (1.5HP), 1215156 (3/4HP side discharge), 1215135 (2HP), or 1215121 (1.5HP side discharge)

The discharge side points upward when installed; confirm orientation before plumbing.
