Val-Pak A Series 1.5HP Impeller
Val-Pak | SKU:
91691201
$17600
/ea
Unit price
/
Unavailable
Val-Pak A Series 1.5HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

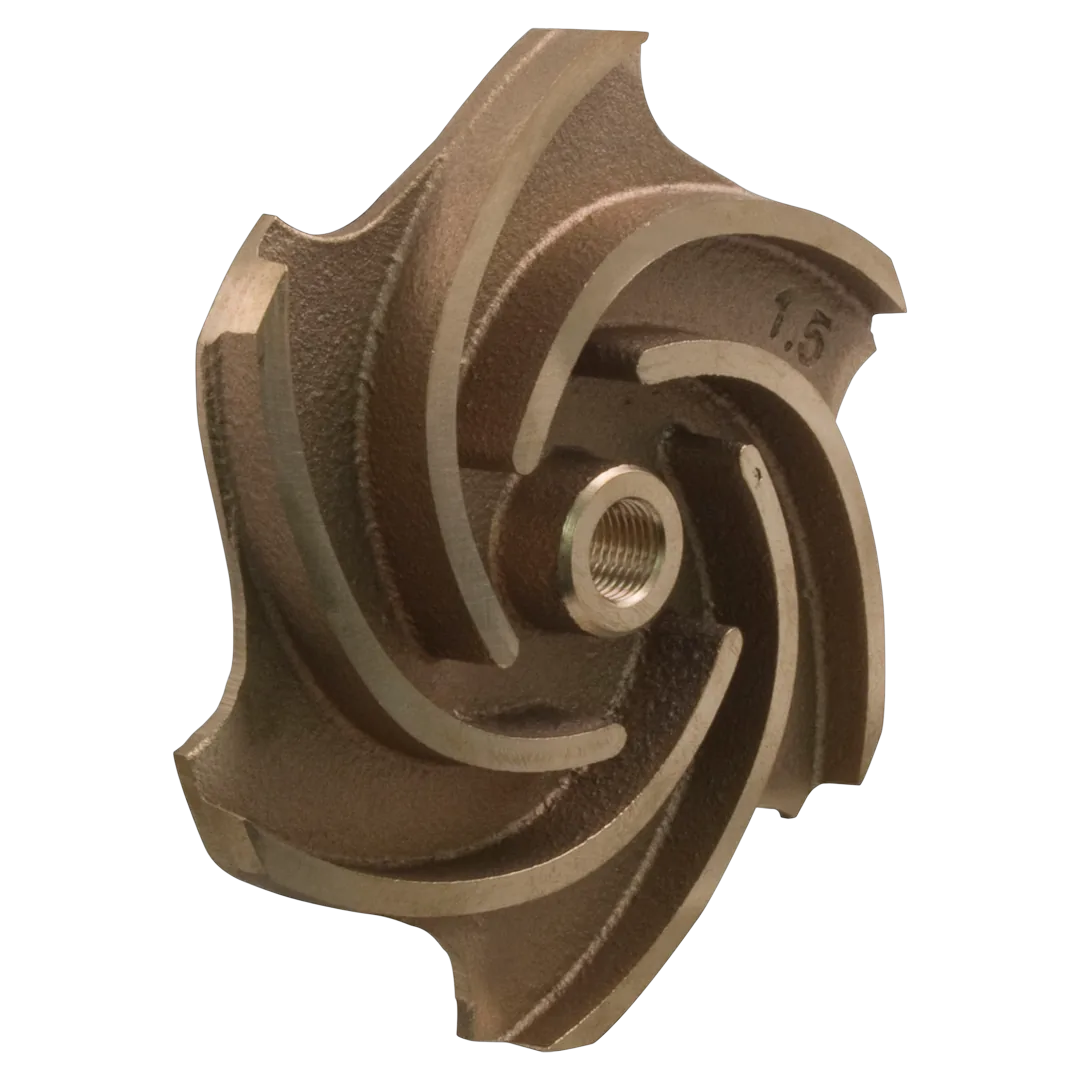

The Val-Pak 91691201 is an open face impeller specifically designed for the AquaFlo A Series pool pumps. It is constructed from bronze and has a horsepower rating of 1.5 HP. This component fits within the A Series volute of AquaFlo/Val-Pak pump systems and is compatible with setups requiring a 1.5 HP impeller, including models that may use replacement numbers like 5126-12, 905696, and V40-456.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller, 1.5 HP, Aquaflo Bronze |
| Part Number | 91691201 |
| Part Type | Impeller |
| Compatibility | AquaFlo A Series volutes requires 1.5 HP or greater C-face motor with keyed shaft |
| Substitute Part Numbers | 5126-12, 905696, V40-456 |
| Includes | Impeller only shaft seal sold separately |
| Material | Bronze |
| Impeller Type | Open Face |
| Impeller Diameter OD | 4-11/16 inches |
| Vane Width ID | 1/4 inch |
| Impeller Width OD | 3/8 inch |
| Seal Seat Depth | 5/16 inch |
| Seal Seat Diameter OD | 1-1/2 inches |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 1 pound |
