Pentair EQ Series 5 HP Three-Phase Motor
Pentair EQ Series 5 HP Three-Phase Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

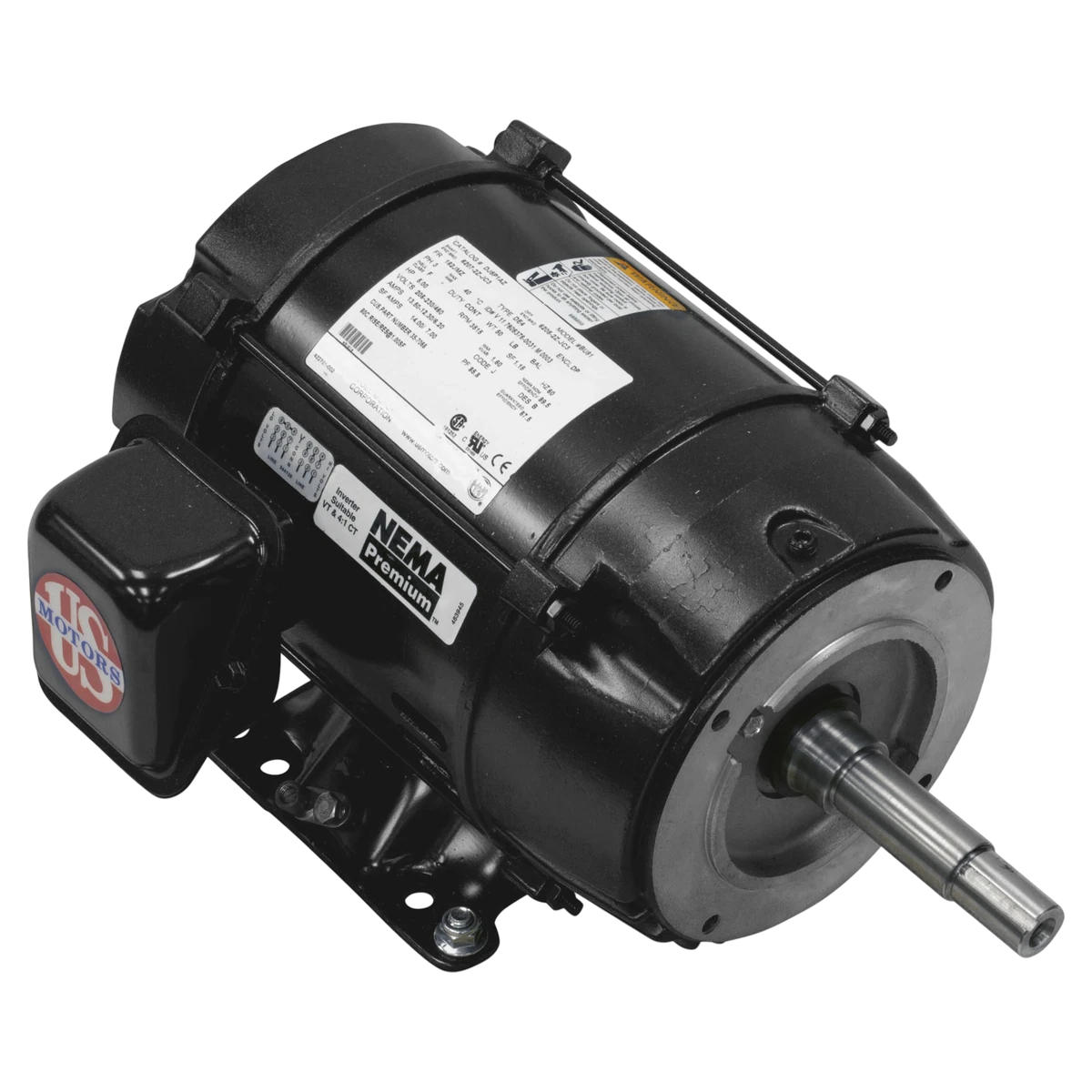

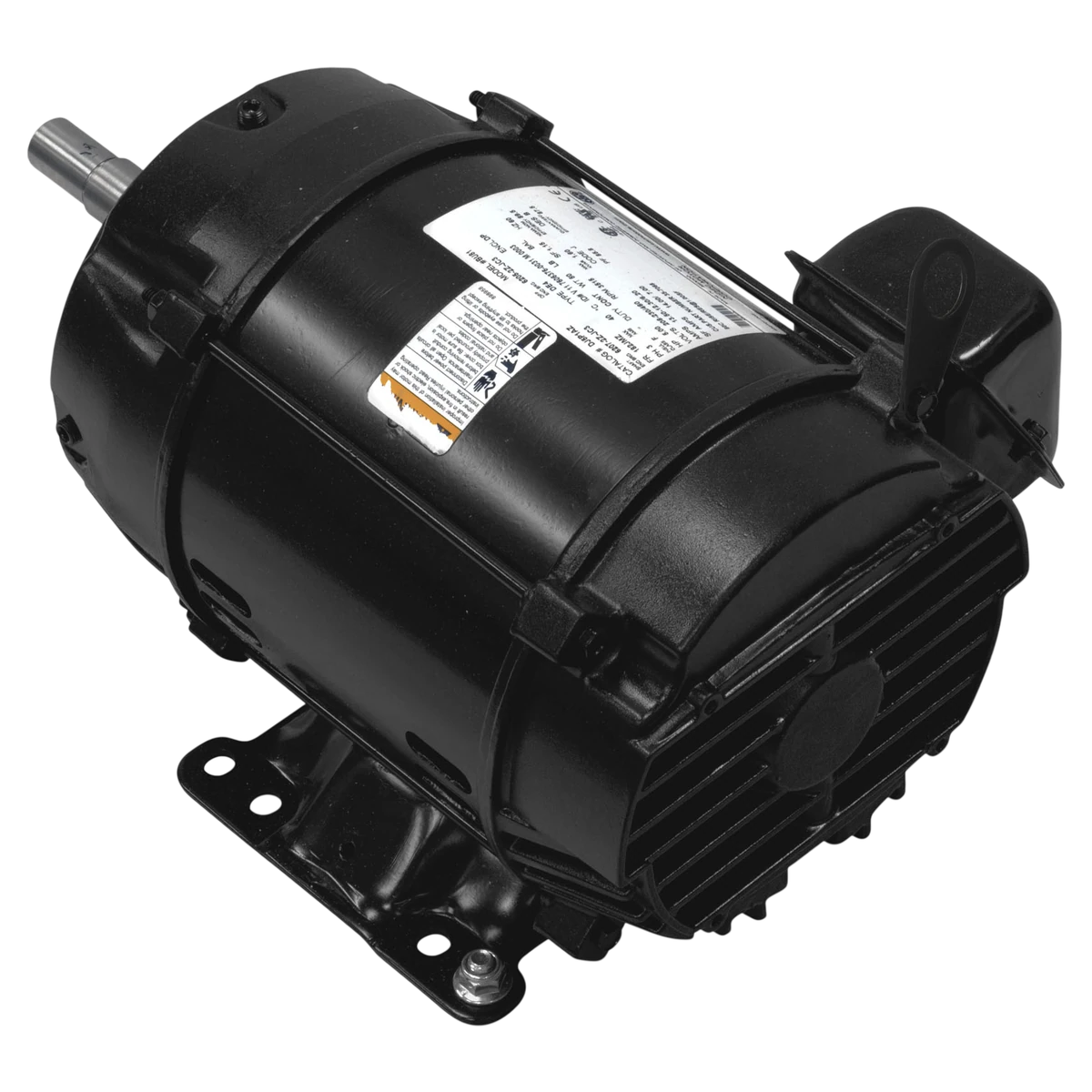

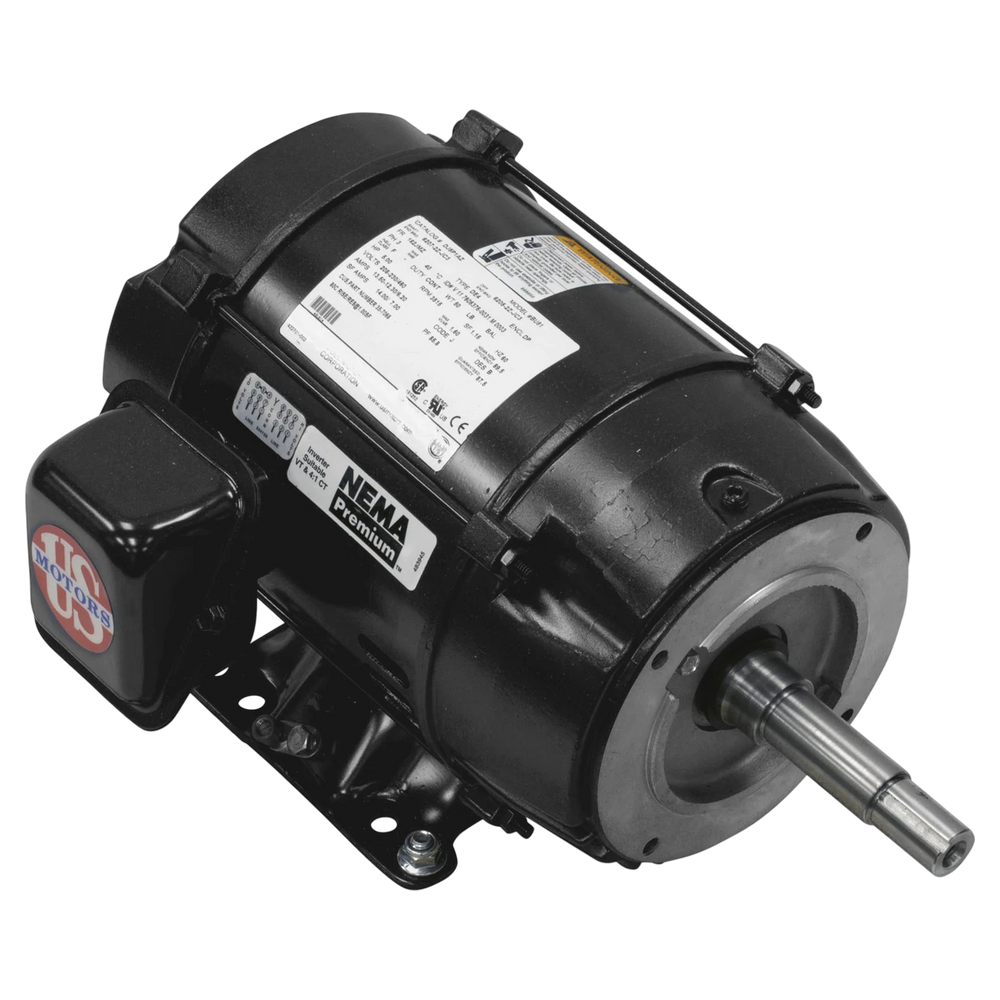

Pentair EQ Series 5 HP Three-Phase Motor
This 5 HP, three-phase motor replaces the drive motor on a Pentair EQK500 commercial pump without swapping the whole pump assembly. It uses a 182JMZ frame, built specifically for EQ-series mounting rather than a standard foot mount.
Key Features
- 182JMZ special frame mount
- 303 stainless steel shaft
- 208-230/460V, three-phase, 3600 RPM
- Permanently lubricated ball bearings
- Rigid base with ground lug
Compatibility
- Pentair EQK500 pump
- Pentair EQ Series pumps requiring JMZ mounting
EQ500/EQ750 three-phase pumps need a separate motor support and motor adapter, sold separately, to mate the 182JMZ frame to the pump's seal plate.
The 182JMZ frame is a special JMZ mounting configuration, not a standard 182J frame, so a standard-frame 5 HP three-phase motor will not bolt up to the EQ pump without the correct JMZ adapter hardware.
This product ships free via FedEx Home Delivery.
Installation Guides
Technical Information
Schematics:
|
Pentair EQ Series Pump, w/Hair & Lint Strainer Option Replacement Parts
View in Pentair EQ Series Pump, w/Hair & Lint Strainer Option Replacement Parts
|
