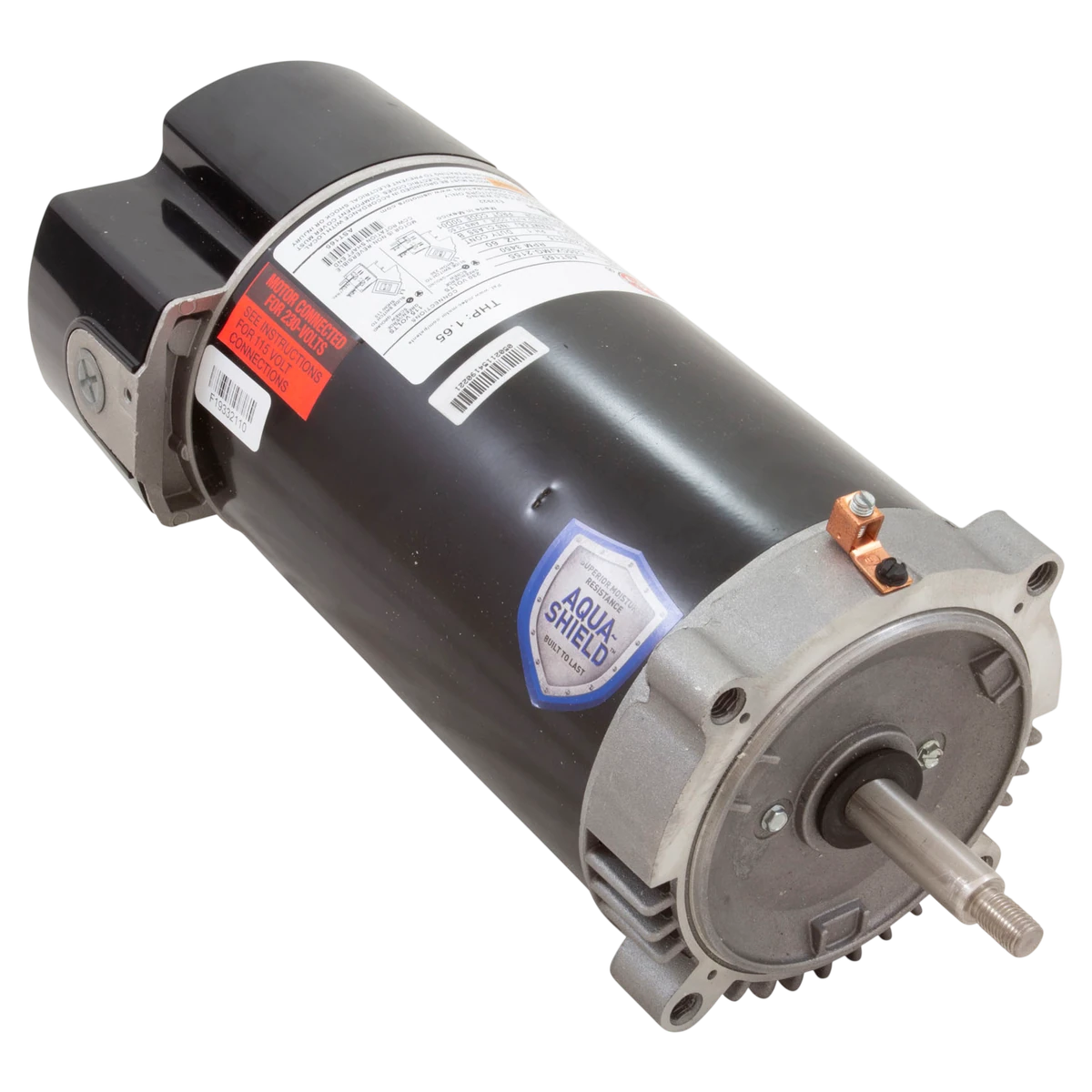

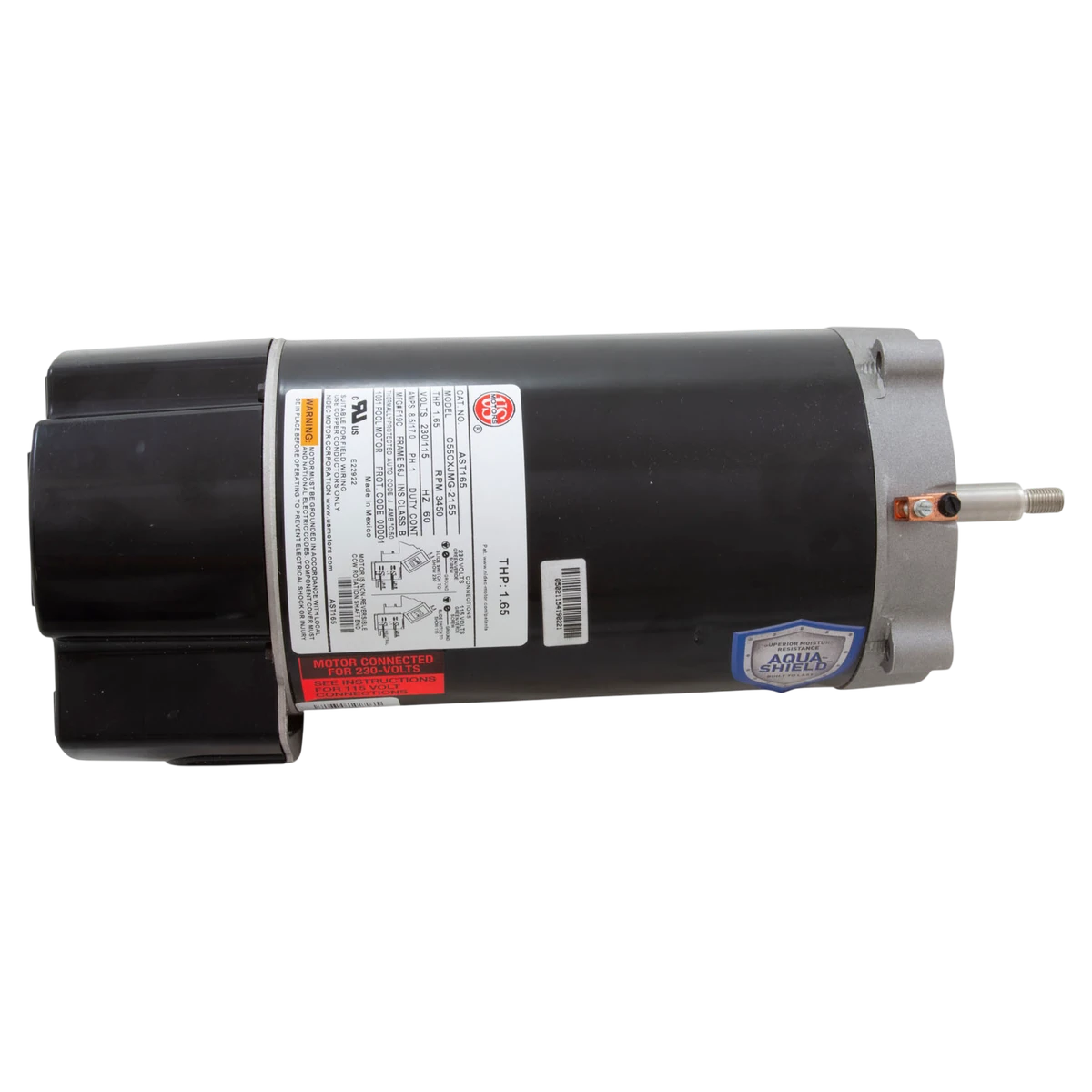

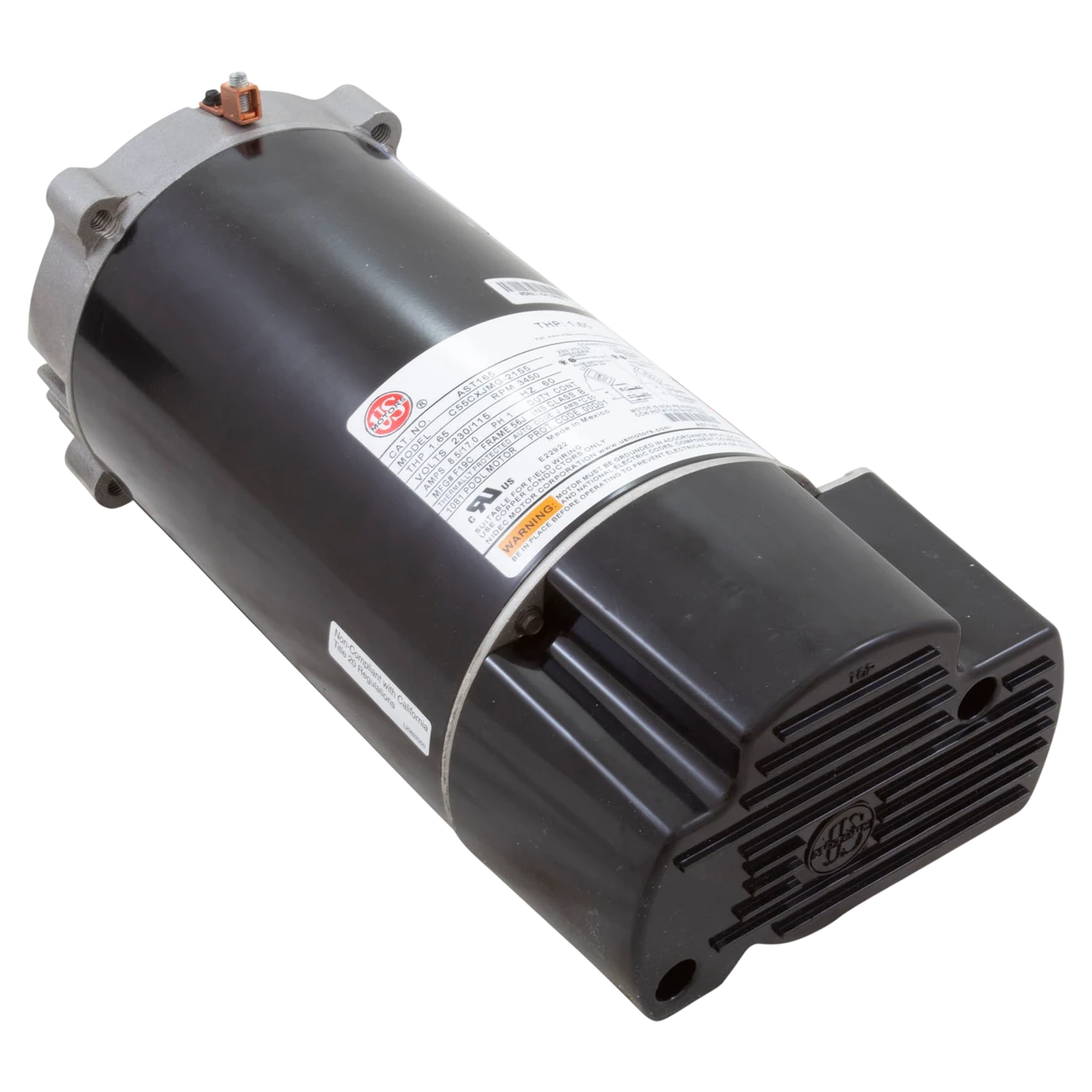

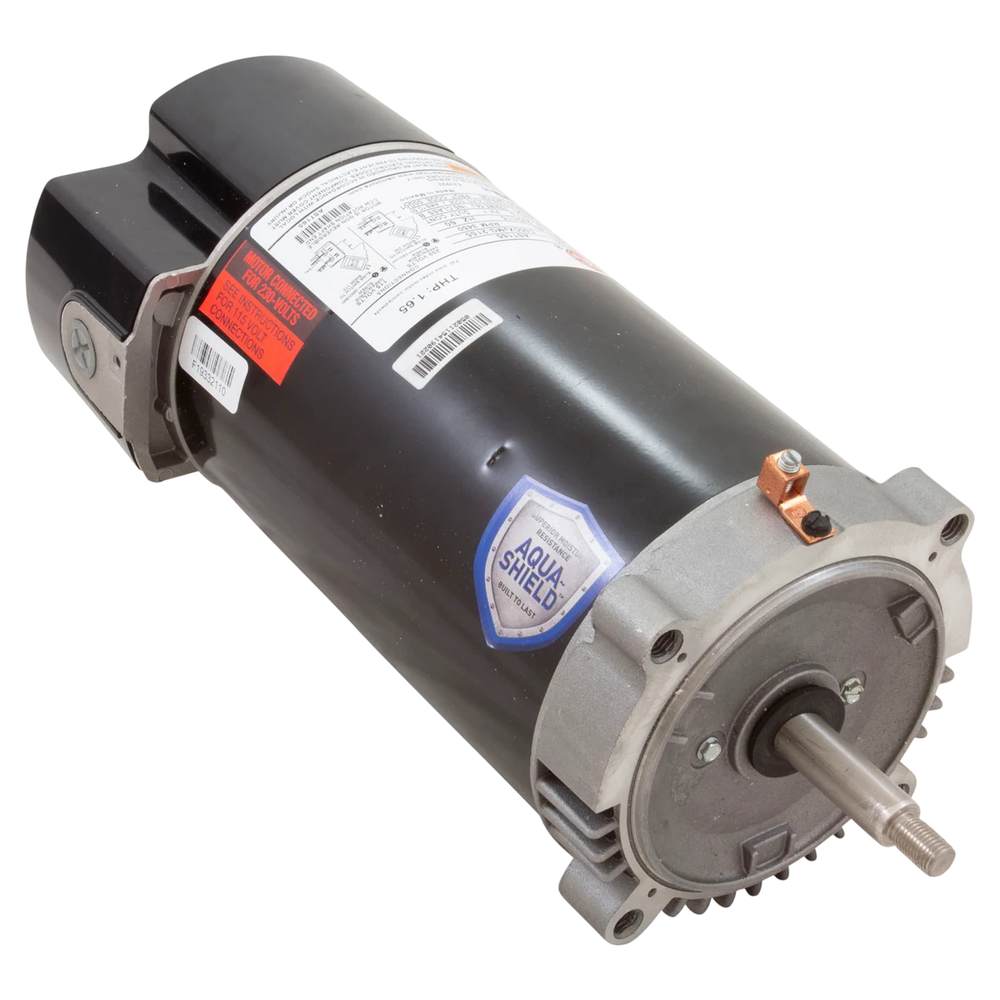

Aqua-Shield Pump Motor 1.65 THP C-Flange

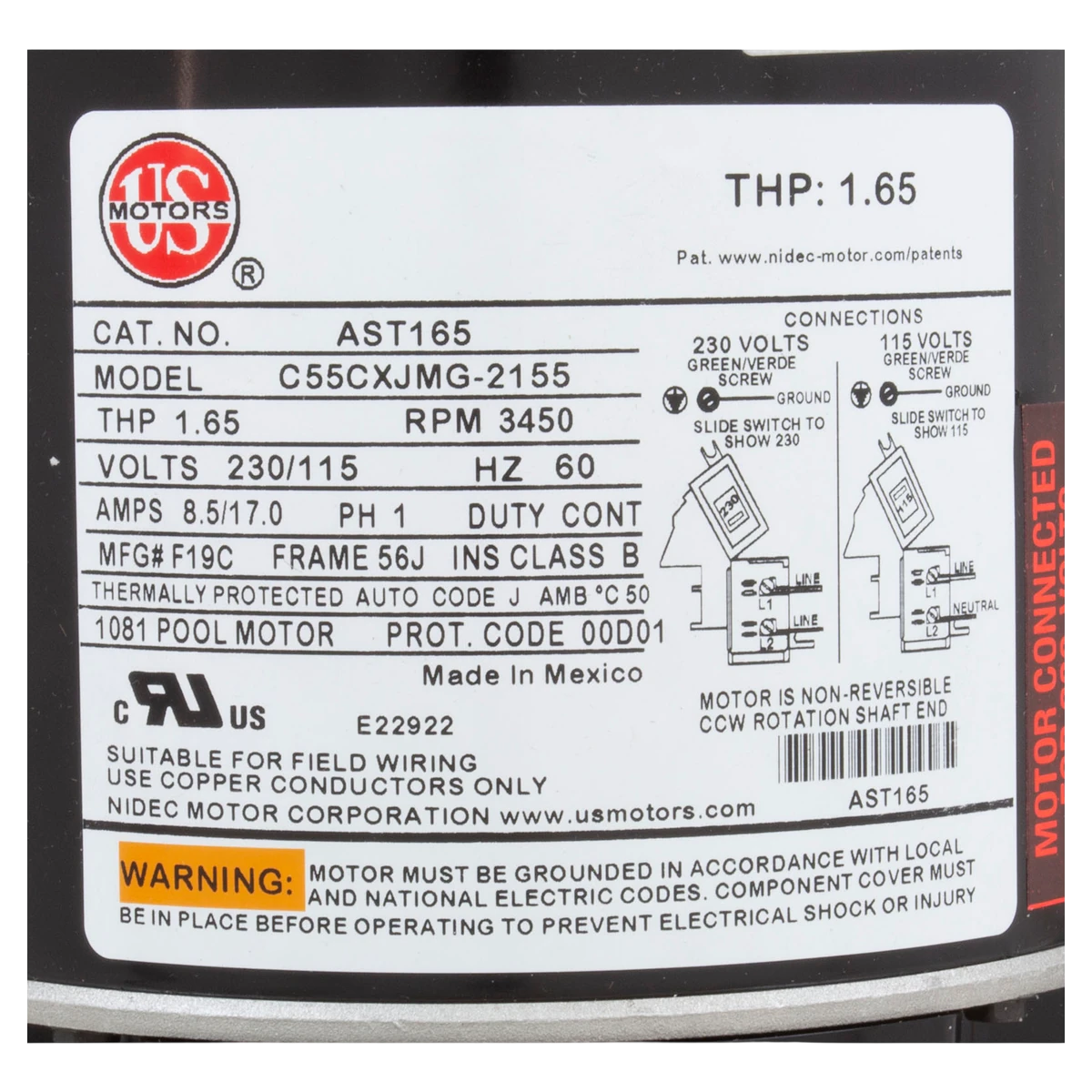

The AST165 is a dual-voltage, single-phase replacement motor for pool pumps with a threaded shaft and 56J C-flange, rated 1.65 Total Horsepower to replace a 1.5 HP Up-Rated or 1 HP Full-Rated motor.

Key Features

• 1.65 THP, 3450 RPM single speed

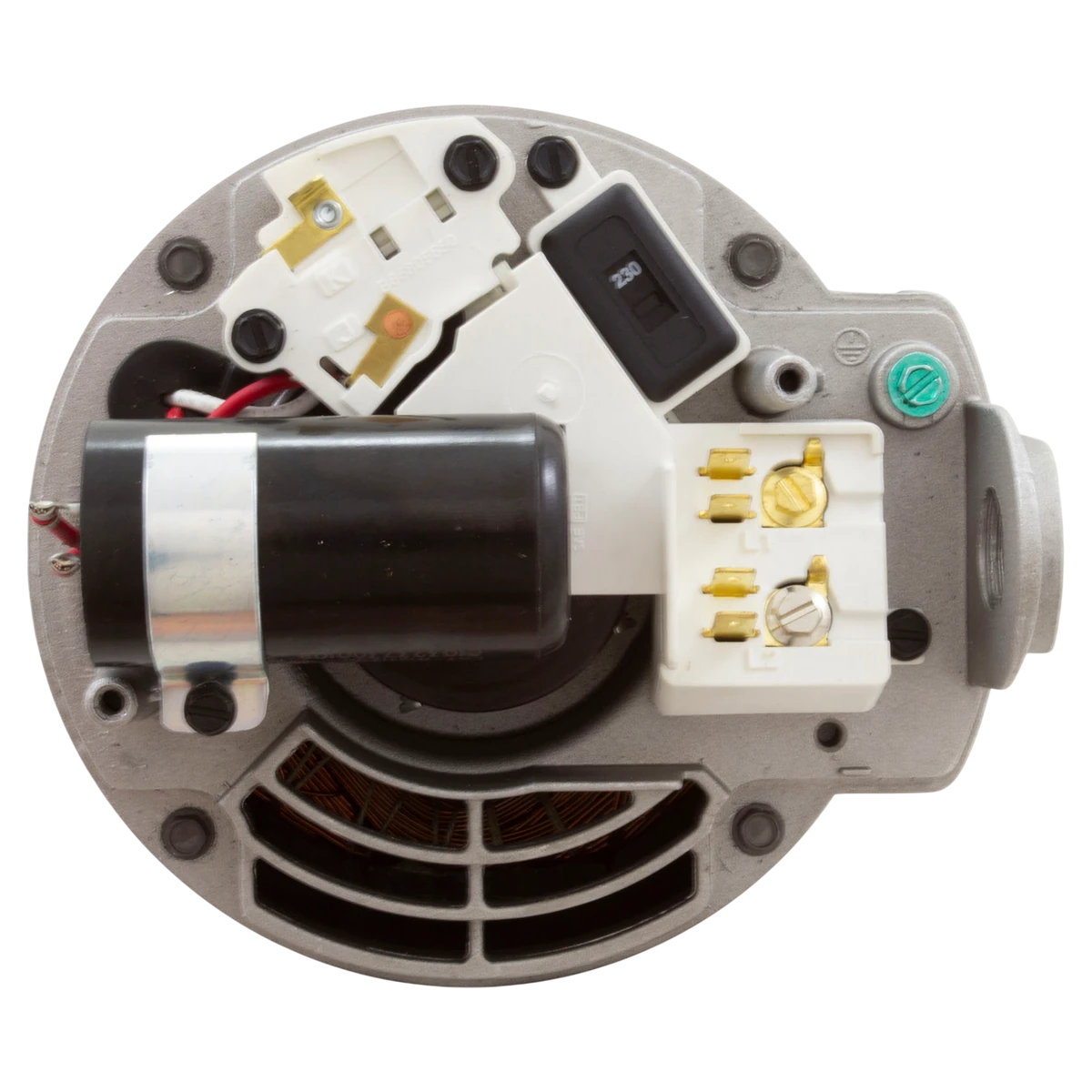

• Dual voltage, field-wired 115V or 230V
• Two-compartment moisture-isolated construction
• 300-series stainless steel threaded shaft
• Thermally protected, 50°C continuous duty rating

Compatibility

• American Products, Pentair, Astral, Hayward (including Super Pump), Jacuzzi and Jandy pumps with a threaded shaft and 56J C-flange
• Does not fit 48Y square-flange motors such as the ASQ165

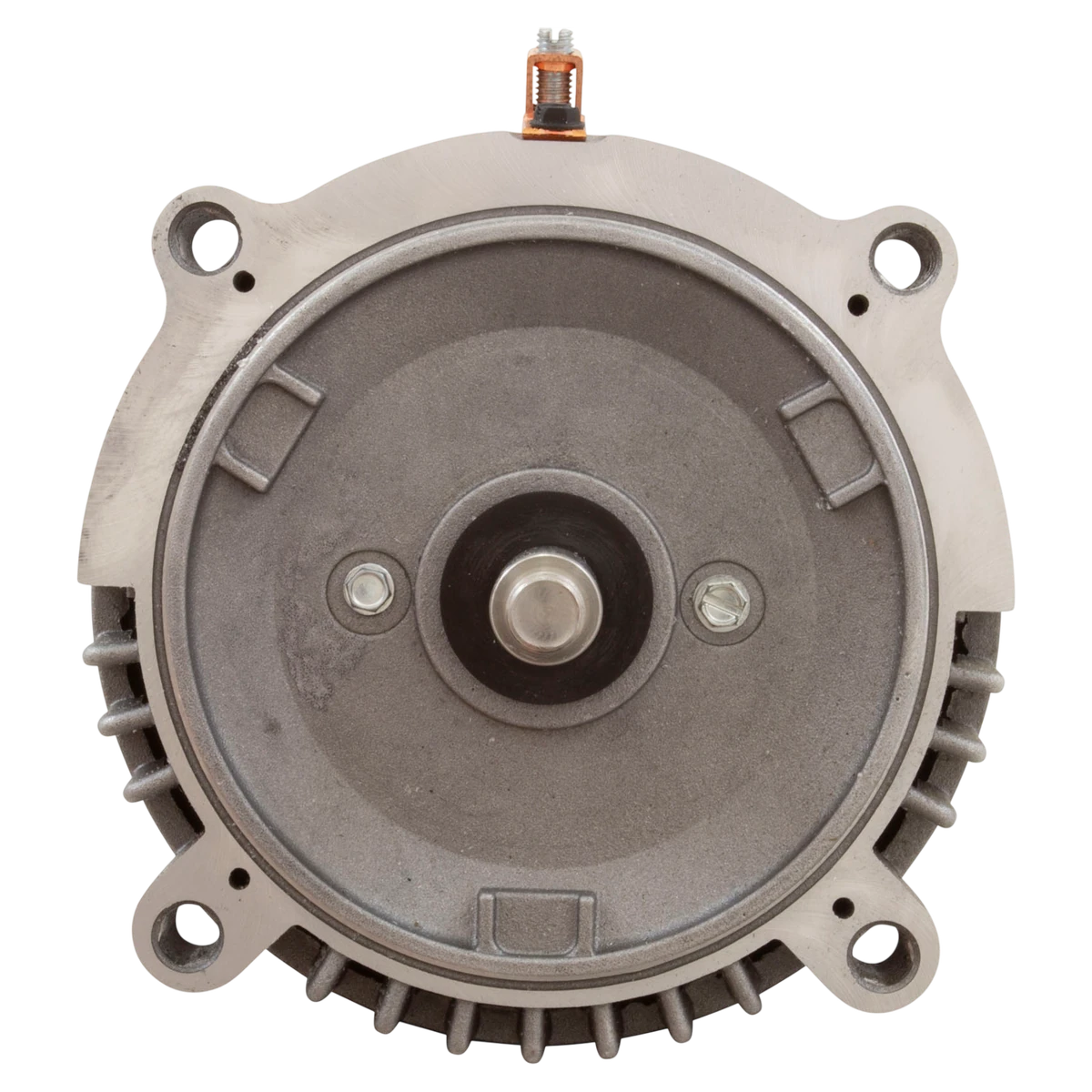

Bolts directly onto the existing pump wet end using the four 3/8-inch holes at 1, 5, 7 and 11 o'clock, with no re-plumbing needed.
